INSTRUCTIONS FOR USE & RECIPES
DESIGN MULTI JUICER DIGITAL
Art.-Nr. 40128 Design Multi Juicer Digital Read all provided instructions before first usage!
Model and attachments are subject to change
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 1

Important Instructions
•Never leave the appliance unattended when in operational mode.
• Always make sure the appliance is properly and completely assembled before connecting to
power outlet and operating. The unit will not turn ‘ON’ unless properly assembled.
•Do not let the motor run permanently for longer then 7 minutes to avoid overheating.
•Do not operate the appliance continuously on heavy loads for more than 10 seconds. If this
is the case the motor slows down because the appliance is overloaded or the fruit chunks are too
big. Cut the fruit in smaller pieces and try smaller amounts at one time. To continue juicing turn the
appliance OFF and then ON again. (None of the recipes in this book are considered a heavy load.)
• ATTENTION: Extra wide feed chute. Never put fingers, wooden spoons or other
foreign substance (such as hair, clothing, brushes, cloths) into the feed chute when the appliance is
plugged into the power point. Do not push products into the feed chute with your fingers or other
foreign substances. Always use the food pusher provided. Always turn the appliance off, wait
for the motor to stop moving and then pull the plug before taking off the lid of the juicer.
•Do not push products into the feed chute with your fingers or foreign objects. Always use
the food pusher provided.
• Never hold your face or other body parts over the feed chute when the motor is running
because little pieces of food could be thrown out of the feed chute.
• The blades on the base of the stainless steel micro mesh filter and inside the feed chute
are very sharp. Pay attention when handling the units. Only touch the stainless steel micro mesh
filter on the edge and handle with care when cleaning with the nylon bristle brush.
• ATTENTION: Ensure that the filter basket is clean before starting to operate the appliance. Do
not leave food leftovers dehumidify on the appliance or units of the appliance. If pulp dehumidifies
on the micro mesh filter it may clog the fine pores of the micro mesh filter thereby lessening the
effectiveness of the juicer.
• Note: The juice jug lid can be used to avoid any splatter. Alternatively you can fit the
custom-designed juice nozzle over the juice spout and place a glass underneath. The juice nozzle
will prevent splatter, ensuring mess free juicing.
• ATTENTION: Empty the pulp container and juice jug in time to avoid run-over and splatter which
might causes damages to the appliance.
• Never clean the motor block in the dishwasher.
• Always turn the appliance off and pull the plug when the appliance is not in use or
when disassembling, moving or cleaning the appliance.
Carefully read all provided instructions before you start running the
appliance and pay regard to the warnings mentioned in these
instructions.
!
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 2

The current interest in fresh and unprocessed food is the reason for fresh fruit and vegetable
juices to become a favourite component of our daily food and well balanced diet.
The Design Multi Juicer Digital has a special designed large feed chute, a 3 litre pulp container,
a big juice jug and a stainless steel titanium reinforced micro mesh filter. It operates with a
high performance 1.300 watt motor which makes the juice production easy and efficient.
The units have a smooth surface with no grooves and rough edges and can be cleaned easily
after use. The provided juice jug finishes with the juice run-out and therefore eliminates
any splatter during operation. It has a volumetric capacity of 1.200 ml and a nice grip
for easy and comfortable handling.
Please read all the advice and instructions with care and keep the manual. Only use the
appliance to process fresh food.
Important safeguards
Carefully read all instructions before operating and save the instructions for further reference.
Do not attempt to use this appliance for any other than the intended use, described in these
instructions. Any other use, especially misuse, can cause severe injury or damage by electric
shock, fire or moving mechanical parts. This instruction is an essential part of the appliance.
When passing on the appliance to a third person, ensure to include these instructions.
Any operation, repair and technical maintenance of the appliance or any part of it other
than described in these instructions may only be performed at an authorised service
centre. Please contact your vendor.
Safeguards for Daily Operation
• Only use the appliance for the intended purpose. Any non-appropriate use and misusage can
cause damages and heavy personal injuries through voltage, fire and moving units.
Only proceed the appliance as described in the directions.
•Do not use the appliance in moving vehicles or boats. Only use the appliance indoors.
• Store and use the appliance in a clean, frost free environment where it is protected
from dampness, moist and immoderate and extraordinary burden (such as: downfall, beat,
overheating, moisture in the motorblock) .
•Do not use or store the appliance outdoors.
• Store appliance and units out of reach of children.
• The work space has to be easily accessible, solid, even, dry and of sufficient size.
Do not use the appliance in moist and wet areas.
• Operate the appliance on a well accessible, stable, level, dry, and suitable large surface.
Do not place the appliance or any part of it on or near hot surfaces (heater, gas burner,
grill, or oven). Do not place the appliance near the edge of the table or counter or on
inclined or wet surfaces or where it can fall.
3
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 3

• Repair and technical maintenance of the appliance or line cord are just allowed to
be accomplished by an authorised specialist reparation shop.
•Do not use the appliance if it is damaged or units of the appliance are damaged.
Do not use the appliance if the rotating sieve is damaged. Do not use the appliance if it
does not function properly or if it was excessively loaded. The appliance is likely damaged if the
appliance or units of the appliance show cracks, exorbitant wearing down, alterations or leaks.
It is also likely damaged if the drive wheel of the motorblock moves slowly. Take the appliance
for technical maintenance and repair to an authorised specialised reparation shop.
• Only use units, spare parts and supplies which are provided and recommended by
the manufacturer. Damaged or improper units may break in use, damage the appliance
or cause injury.
•Do not push products into the feed chute with your fingers or foreign objects.
Always use the food pusher provided.
•Do not touch the small cutting blades in the base of the stainless steel filter basket.
• Always make sure the appliance is properly and completely assembled before connecting to
power outlet and operating. The unit will not turn ‘ON’ unless properly assembled.
•Do not let the motor run permanently for longer then 7 minutes to avoid overheating.
•Do not operate the appliance continuously on heavy loads for more than 10 seconds.
In this case the appliance is overloaded or the fruit chunks are too big. Cut the fruit in
smaller pieces and try smaller amounts at one time. To continue juicing turn the appliance OFF
and then ON again. (None of the recipes in this book are considered a heavy load.)
• While proceeding Do not push the food pusher too hard down. Empty the pulp container
and juice jug in time to avoid run-over and splatter which might causes damages to the
appliance. When proceeding hard or stringily food or if you press the stamp down too
hard the motor could stop or slow down. In this case turn off the appliance immediately
and pull the plug to avoid overheating. Operate according to the instructions ´Trouble
shooting guide`.
•Do not leave food leftovers dehumidify on the appliance or units of the appliance.
If pulp dehumidifies on the micro mesh filter it may clog the fine pores of the micro mesh
filter thereby lessening the effectiveness of the juicer. Remove such dirt immediately and operate
according to the instructions ´Care and cleaning` before you continue to proceed.
• Never clean or operate the appliance or units of the appliance with abrasive or hard
sharp-edged items.
• Never clean the motor block in the dishwasher.
• Never use force operating the appliance to avoid damage of the units of the appliance.
• The appliance is not suitable for mincing nuts, chocolate or similar ingredients. The
appliance is not suitable to make minced meet or to blend food.
•Do not use the appliance in moist and wet areas.
4
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 4

•Do not put any cloth or napkins underneath the appliance to avoid endangering by fire
and electric shocks.
• Never situate the appliance close to the edge of the working area.
• Never let water or other liquids run into the motorblock.
• Never clean the line cord or the motorblock in the dishwasher, pour liquids over the
appliance or douse or dip it in water or other liquids. In case that water or other liquids
ran into the motorblock while operating turn off the appliance immediately, pull the plug
and dry the appliance with a clean cloth.
• Never situate the appliance close to a strong heat source or a hot surface (for example:
heater, stove or grill)
• Never leave children unsupervised when the appliance or units of the appliance are in reach.
• Never let children play with the appliance or units of the appliance. Children and invalid
people have to be supervised using the appliance.
• Never leave the appliance unattended, when the plug is plugged into the power point.
• Always turn the appliance off and pull the plug when the appliance is not in use or
when disassembling, moving or cleaning the appliance.
• Make sure that the appliance is turned off before pulling the plug out of the power point.
• To avoid damage, do not use any abrasive cleaners, corrosive chemicals (i.e.
disinfectants, bleach) or cleaning pads for operation or cleaning. Do not use any hard
or sharp utensils for operation or cleaning.
Important Safeguards for all Electrical Appliances
• Always uncoil the line cord completely before installing the appliance.
• Place the appliance close to a power point and connect it directly without using any
extension cords to avoid additional risks of injury through fire or voltage.
• Only install the appliance in proper form secure grounding receptacle with adequate
electric power supply (alternating current; 230/240 V, 50 Hz) and ground fault circuit
interrupter. The maximum power consumption of the appliance is 1.300 Watt. You should also
install a fuse with a release current of maximum 30mA. If necessary ask your electrician for help.
• Never pull, rip, bend, clamp, squish or knot the line cord. Pay attention to the line cord
not hanging of the table. Attend to nobody getting caught in loops of the line cord or
pulling the appliance of the work space. When pulling the plug always catch hold of the
enclosure of the plug.
•Do not immerse the motor housing or power cord in water or any other liquid. Do
not pour or drip any liquids on the motor housing or power cord. When liquids are spilled
on the motor housing, immediately unplug the appliance and dry the motor housing to
avoid risk of electric shock or fire. Do not attempt to operate the appliance, when liquids are
on or in the motor housing.
5
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 5

Movable and sharp-edged units – risk of injury
• The feed chute is designed exceedingly large. Never put fingers, wooden spoons or other
foreign substance (such as hair, clothing, brushes, cloths) into the feed chute when the
appliance is plugged into the power point.
• Always turn the appliance off, wait for the motor to stop moving and then pull the
plug before taking off the lid of the juicer.
• Only use the provided food pusher to push food through the feed chute.
• Never hold your face or other body parts over the feed chute when the motor is running
because little pieces of food could be thrown out of the feed chute.
• The blades on the base of the stainless steel micro mesh filter and inside the feed
chute are very sharp. Pay attention when handling the units. Only touch the stainless steel
micro mesh filter on the edge and handle with care when cleaning with the nylon bristle brush.
Only store the appliance completely assembled. This way the blades will be out of reach.
• Never put foreign substance or hard objects into the feed chute. Remove all
inedible parts (such as stem, hard peeling and seeds) of the food before putting
them into the feed chute.
• The motor pursues running for a little while after turning the appliance off. Wait until
the motor stops running completely before you open or move the appliance.
6
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 6

Get to know your Gastroback juicer
7
food pusher with cannelure:
for pushing whole fruit and vegetables down the
feed chute (dishwasher proofed)
1,2 litre juice jug with handle and lid (dishwasher proofed)
Built in froth separator lid: ensures juice froth is separated from
juice when poured into a glass (if preferred)
Lid: Using the lid you avoid splatter while operating or to stor the
juice in the fridge
Cord storage:
cord wraps into position under base
and clips into place
Nylon cleaning brush: flat end of the
brush assists in removal of pulp from the pulp
container when juicing large quantities,
nylon brush end for easy cleaning of the
stainless steel filter basket
(dishwasher proofed)
Juicer cover (dishwasher proofed)
with interlocking safety arm: stops the
juicer operating without the juicer
cover locked in place.
3 litre pulp container (dishwasher
proofed)
Heavy duty 1300 watt motor
Speed control:
for juicing soft fruit with a lot of moist
up to hard fruit and vegetables
(view ´speed selector table`)
Patented extra wide feed chute:
You can fill in whole fruit such as
apples, carrots, tomatoes and
peeled oranges. For quick and easy
juicing of fruit and vegetables.
Stainless steel, titanium reinforced
mocro mesh filter basket (dishwasher
proofed)
Customer designed juice nozzle:
perfect for mess free juicing straight
into a glass (dishwasher proofed)
On-/Off-switch
Digital Display:
Shows selected speed and recom-
mends fruit or vegetables
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 7

Assembling the appliance
Step1:
Place the filter bowl surround on the motorblock. Locate the
filter bowl surround so that the spout fits through the hole on
the front of the motor base (picture A).
Step2:
WARNING: Handle the units with care and do not use any
force. Pay attention to the sharp blades on the stainless steel
micro mesh filter and the feed chute to avoid injury. Always
completely assemble your juicer before you plug the plug into
the power point.
ATTENTION: Ensure the stainless steel filter basket is clean
before assembling. Any dehumidified left over food on the
basket will block the fine mesh holes. If necessary remove
excess fibre build up (from fruit or vegetables) according to
the instructions ´Care and Cleaning`.
Align the arrows on the stainless steel filter basket with the
arrows on the motor drive coupling and push down until it
clicks into place. Ensure the stainless steel filter basket is fitted
securely inside the integrated pulp container and onto the
motor base (picture B).
Step 3:
Place the juicer cover over the stainless steel filter on top of
the filter bowl surround (picture C). The feed chute has to be
positioned in the middle of the filter basket and the pulp
spouting of the cover has to face away from the interlocking
safety arm.
Step 4:
Raise the safety locking arm straight up and lock into the two
grooves on either side of the juicer cover. The safety locking
arm should now be in a vertical position and locked into place
on top of the juicer cover (picture D).
Important: If the safety locking arm is not in the right position
the motor will not start moving and the display shows “Lockbar”.
Step 5:
Slide the food pusher down the feed chute by aligning the
groove of the food pusher with the small protrusion on the
inside of the top of the feed chute. Continue to slide the
food pusher down the feed chute (picture E)
8
A
B
C
D
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 8

Step 6:
Place the pulp container into position by tilting the motor base
slightly to the right. Insert the container under the juicer cover
on the left-hand side ensuring it is supported by the container
support extending from under the motor base (picture F).
Note: To minimise cleaning, line the pulp container with a plastic
freezer bag to collect the pulp (picture G). Pulp can then be used
in other dishes, or as compost for the garden or discarded.
Step 7:
Place the juice jug provided under the spout on the right-hand
side of the appliance. The juice jug lid can be used to avoid
any splatter.
Alternatively you can fit the custom-designed juice nozzle over the
juice spout and place a glass underneath. The juice nozzle
will prevent splatter, ensuring mess free juicing (picture H).
Operating your Design Multi Juicer Digital
Step 1:
Wash selection of fruit and vegetables to be juiced and
remove if necessary the peel (oranges, citrus fruit), stems
and stones (nectarines, peaches, plums) and all inedible
elements. NOTE: Most fruit and vegetables such as
apples, carrots and cucumber will not need to be cut or
trimmed to size as these will fit whole into the feed chute. Ensure vegetables such as beetroot,
carrots, etc. have all soil removed, are well washed and trimmed of leaves before juicing.
When juicing carrots place the tip of the carrot into the feed chute last.
Step 2:
Ensure the Design Multi Juicer Digital is correctly assembled and that there are no foreign
objects in the feed chute before putting the plug into the power point. Ensure the stainless
steel filter is thoroughly cleaned before each use (refer to ´Care and cleaning`). Ensure you
place the juice jug with lid fitted (or glass) under spout before commencing juicing.
Step 3:
Plug the power cord into a 230/240V power outlet and turn the power ‘ON’. Push the
‘ON/OFF’ button to ‘ON’. Adjust the variable speed control dial to the desired setting
depending on the type of fruit or vegetable being juiced. Use the speed selector table
as a guide for juicing different fruit and vegetables.
Note: Hard fruit and vegetables will put excess strain onto the motor if a low speed is
selected. Please refer to the speed selector table to determine the correct speed for the
fruit and vegetables being juiced.
9
E
F
H
G
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 9

Speed selector table
Fruit / Vegetables Suggested Speed
Apples 5
Beetroot (cleaned, trimmed) 5
Brussel sprouts (trimmed) 5
Carrots (cleaned) 5
Celery 5
Fennel 5
Pears hard (stalks removed) 5
Pineapple (peeled) 5
Broccoli 4
Cabbage 4
Cauliflower 4
Cucumber, soft skinned 4
Oranges (peeled) 3
Apricots (stone removed) 2
Cucumber, peeled 2
Kiwi fruit (peeled) 2
Mangoes (peeled, stone removed) 2
Nectarines (stone removed) 2
Peaches (stone removed) 2
Pears soft (stalks removed) 2
Plums (stone removed) 2
Melons (peeled) 1
Tomatoes 1
Watermelon (peeled) 1
Marking of display
Stufe Marking
Stufe 1 Soft Fruit
Stufe 2 Soft Fruit, Citrus
Stufe 3 Citrus
Stufe 4 Pineapple, Apple
Stufe 5 Pineapple, Apple, Hard Veg
Step 4:
WARNING: The feed chute is extra large! Never put fingers, wooden spoons or other
foreign substances (such as hair, clothing, brushes, cloth) into the feed chute. Never use fingers
to push food down the feed chute or to clear the feed chute. Always use the food pusher
10
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 10

provided. With the motor running, place food into the feed chute and use the food
pusher to gently guide food down. To extract the maximum amount of juice, always push
the food pusher down slowly.
Note: The Juicer will automatically stop operating if the motor is stalled for more than
10 seconds. This is a safety feature. Either too much food is being processed at one time
or the pieces are not small enough. Try trimming food, cutting food into smaller pieces
of even size and/or processing a smaller amount per batch. To continue juicing, reset
the Design Multi Juicer Digital by pressing the ‘On/Off’ switch on the control panel to
‘Off’, then turn the appliance back on by pressing the ‘On/Off’ switch to ‘On’.
Step 5:
As fruit and vegetables are processed, juice will flow into the juice jug and the separated
pulp will accumulate in the pulp container.
ATTENTION: Do not allow the pulp container to overfill as this may affect the operation
of the appliance (refer to disassembling instructions). Reassemble the machine to
continue juicing. To minimise cleaning, line the pulp container with a plastic freezer bag
to collect the pulp. Pulp can then be used in other dishes (see recipes), or as compost for
the garden or discarded (see page 17).
Empty the pulp container during juicing
The pulp container can be emptied during juicing by turning the appliance ‘Off’ at the control
panel and then carefully removing the pulp container. Remove the pulp container by tilting the
pulp container slightly to the right and unlatch it from under the juicer cover and the
container support extending from under the motor base. Replace the empty pulp container
into position before continuing to juice.
Overheat protection
The Design Multi Juicer Digital will automatically stop operating if the motor is stalled for
more than 10 seconds. This is a safety feature. Either too much food is being processed at
one time or the pieces are not small enough. Try trimming food, cutting food into smaller
pieces of even size and/or processing a smaller amount per batch. To continue juicing,
reset the appliance by pressing the ‘On/Off’ switch on the control panel to ‘Off’, then turn the
appliance back on by pressing the ‘On/Off’ switch to ‘On’.
Disassembling your Design Multi Juicer Digital
WARNING: Always turn the appliance off and pull the plug when the appliance is not
in use or when disassembling, moving or cleaning the appliance.
Step 1:
Ensure the appliance is turned off by pressing the ‘On/Off’ switch on the control panel
to ‘Off’. Then switch the appliance off at the power outlet and unplug the cord.
11
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 11

Step 2:
Remove the pulp container by tilting the pulp container slightly
to the right and unlatch it from under the juicer cover and the
container support extending from under the motor base (picture A).
Step 3:
Use the grip handle located on the safety locking arm to lift
the locking arm from the juicer cover and lower down out of
position (picture B).
Step 4:
Lift the juicer cover off the juicer (picture C).
Step 5:
Remove the filter bowl surround with the stainless steel filter
basket still in place. To remove the filter bowl grab it with both
hands and lift it (picture D).
Step 6:
WARNING: The stainless steel filter basket contains small
sharp blades to cut and process fruit and vegetables. Do
not touch blades when handling the filter basket.
To remove the stainless steel filter basket from the filter bowl
surround, insert fingers under the grooves market ‘LIFT
BASKET’ and lift the filter basket up. For easy cleaning, it is
recommended to remove the filter basket over the sink.
ATTENTION: There are sharp blades on the bottom of the
stainless steel filter basket (see picture).
12
C
D
A
B
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 12

Care and Cleaning
WARNING: Always ensure that the Juicer is switched off at the power outlet. Then remove
the plug from the power outlet before cleaning, disassembling and storing the appliance. Do
not immerse the motor base in water or any other liquid. Do not use water jet to clean
the motor base. Do not clean the motor base in the dishwasher.
The centre of the filter basket and feed chute contain small sharp blades to process fruit
and vegetables during the juicing function. Do not touch blades when handling the filter
basket or feed chute.
ATTENTION: Abrasive and strong cleaner damage the surface of the plastic units and
could cause discolouration. Never clean the appliance or units with abrasive and strong
cleaner. For easier cleaning and to avoid discolouration: Clean as you go and avoid
dried on juice or pulp residue. Immediately after each use, rinse removable parts in hot
water to remove wet pulp. Otherwise discolouration of the plastic may occur with strongly
coloured fruit and vegetables. Allow parts to air dry.
Never use hard or sharp-edged subjects when using or cleaning the juicer or the stainless
steel micro mesh filter. Do not use force when using the appliance to avoid damages.
Always assemble the appliance completely before storing. The units are protected this
way and cannot get lost.
Ensure the Design Multi Juicer Digital is correctly disassembled. Refer to ´Disassembling
your Design Multi Juicer Digital`. Follow these instructions to clean all surfaces of parts
that come into contact with food during normal use.
Filter bowl surround, juicer cover, stainless steel micro mesh filter, pulp container and juice
jug are dishwasher proofed (top shelf only). Use a program to be suited for glasses
(low temperature). A program with high temperature might cause discolouration and dis-
tortion of the plastic units. Plastic units might tarnish being frequently cleaned in the dish-
washer.
IMPORTANT: Do not clean the food pusher in the dishwasher.
IMPORTANT: Soak the stainless steel filter basket in hot soapy water for approximately 10
minutes immediately after juicing is completed. If pulp dehumidifies on the micro mesh filter it
may clog the fine pores of the micro mesh filter thereby lessening the effectiveness of the juicer.

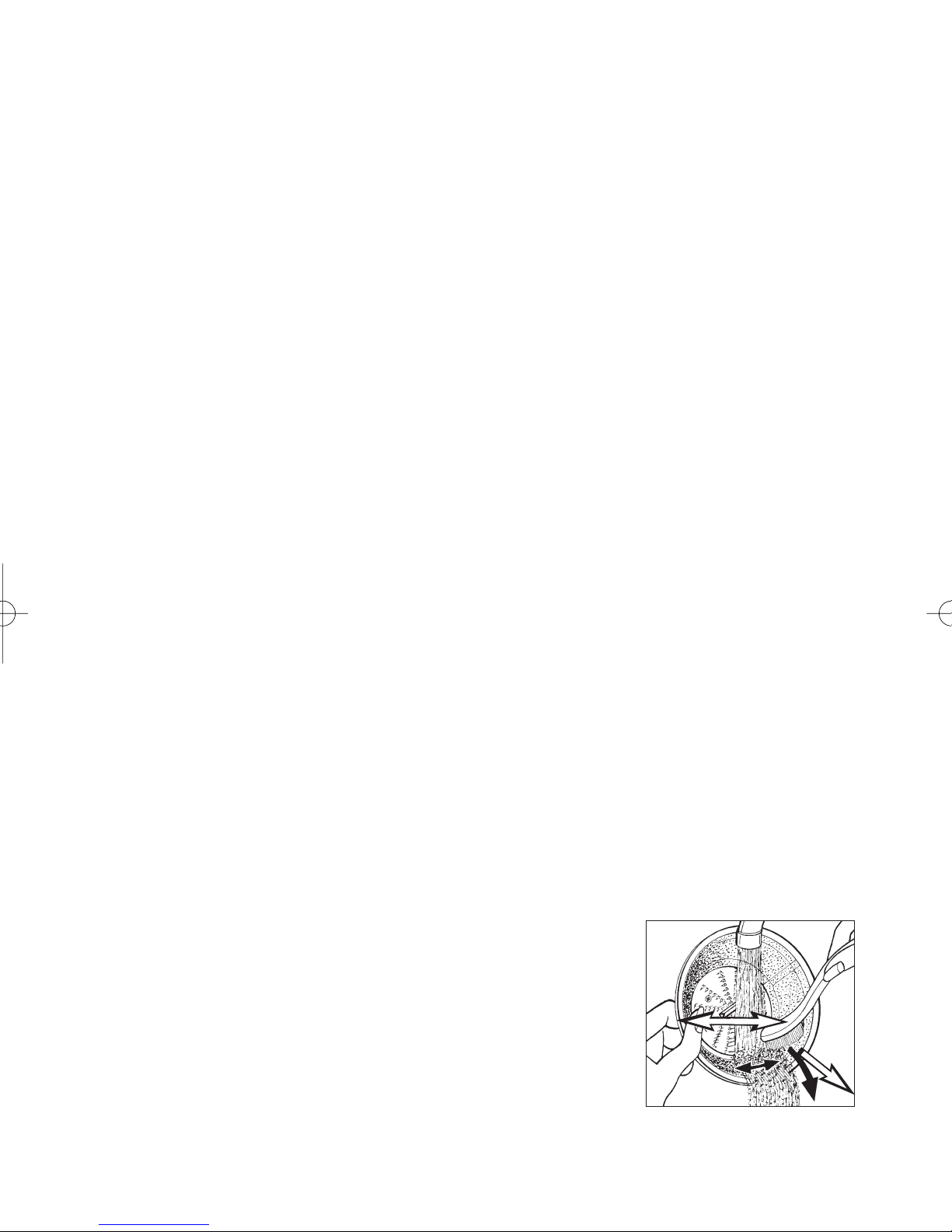

Using the cleaning brush, hold the filter basket under running
water and brush from the inside of the basket to the outer rim.
Avoid touching the small sharp blades in the centre of the filter
basket. After cleaning the filter basket, hold it up towards a light
to ensure the fine mesh holes are not blocked. If the holes are
blocked, soak the filter basket in hot water with 10% lemon juice
to loosen the blocked holes. Alternatively, wash the filter basket
in the dishwasher.
Note: Alternatively you can soak the filter basket in hot water with dental prosthesis
detergent. Rinse thoroughly with clear water and the provided nylon brush.
13
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 13

IMPORTANT: Do not soak the stainless steel filter basket in bleach. Always treat the filter
basket with care as it can be easily damaged.
Note: To minimise cleaning, line the pulp container with a plastic freezer bag to collect the pulp.
Pulp can then be used in other dishes (see recipes), or as compost for the garden or discarded.
Wipe the motor base with a damp cloth. Ensure of no water intrusion into the inside of
the motorblock.
Allow parts to air dry or thoroughly dry them with a clean cloth. Always assemble the
appliance completely before storing (regard ´Assembling the appliance`). The units are
protected this way and cannot get lost.
ATTENTION: Occasionally clean the drive coupling (see picture) with a damp cloth. Ensure the
stainless steel balls of the basket adjustment are clean and free
from dried on juice or pulp residue. After every fifth usage
put some vaseline onto the balls of the adjustment.
WARNING: Please store the juicer in a frost-free, clean and dry
location where it is out of reach of children and is protected against
excessively loads (such as down-fall, voltage, heat, humidity). Never
lay heavy or hard objects on top of the appliance.
TToocclleeaarrbblloocckkaaggee
When juicing hard or stringily fruit or vegetables, or if you push down the food pusher
too fast or with too much pressure or the juicing action is too vigorous, wet pulp can
build up under the juicer cover or the motor appears to stall when juicing. Wet pulp
would block the fine mashes of the filter basket. Try slower juicing action by pushing the
food pusher down more slowly. Follow Disassembling and Cleaning instructions and
clean the filter bowl surround, the stainless steel filter basket and the juicer cover.
11..Turn the appliance off, wait for the motor to stop moving and pull the plug.
22..Disassemble the appliance according to the instructions. WARNING: Do not touch
blades when handling the filter basket.
33..Remove residue of food on the filter basket with a small wooden or plastic spoon.
44..Assemble the appliance according to the instructions and continue juicing.
55..If another blockage occurs clean the appliance according to the instruction ´Care and Cleaning`.
To avoid further blockage:
• When juicing hard or stringily fruit or vegetables choose a high speed.
• Remove very hard and stringily elements such as stalks and stems.
• Try slower juicing action by pushing the food pusher down more slowly.
• Avoid overloading pulp in the pulp container. The pulp has to be able to fall easily
and unhindered into the pulp container.
• Try other fruit and vegetables.
14
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 14

Trouble Shooting Guide
15
Possible problem Easy solution
Machine will not work when
switched ´ON´
Motor appears to stall when
juicing
Excess pulp building up in
the micro mesh filter basket
Pulp too wet and reduced
extracted juice
Juice leaks between the rim
of the juicer and the cover
of the filter
Bowl surround juice sprays
out from spout
Juicer makes loud noise
when turned on
No juice coming out while
juicing
The safety locking arm may not be correctly engaged in the
vertical operating position with the locking arm located into
the two grooves on either side of the juicer cover (regard
´Assembling the appliance)`.
Wet pulp can build up under the cover if the juicing action
is too vigorous. Try slower juicing action by pushing the food
pusher down more slowly. Clean the integrated pulp container,
the stainless steel filter basket and the juicer cover (regard
´Clear blockage`).
Stop the juicing process. Remove the juicer cover, scrape off
pulp. Re-assemble and begin juicing again. Try alternative
(soft and hard) vegetable and fruit varieties.
Try a slower juicing action by pushing the food pusher down
more slowly. Remove stainless steel filter basket and thoroughly
clean mesh walls with the nylon brush. Rinse the stainless steel
filter basket under hot water. If the fine mesh holes are
blocked, soak the stainless steel filter basket in a solution of hot
water with 10% lemon juice to unblock the holes or wash in
the dishwasher. This will remove excess fibre build up (from
fruit or vegetables) which could be inhibiting the juice flow.
Try a slower juicing action by pushing the food pusher down
more slowly. Fruit and vegetables with a high water content
(tomatoes and watermelon) should be juiced on low speed.
Try a slower juicing action by pushing the food pusher down
more slowly.
Filer basket is not properly snapped into position. Turn the
On/OFF button to OFF. Turn the power OFF. Disassemble the
Design Multi Juicer Digital (refer to ´disassembling`). Re-assemble
(refer to ´assembling`).
Check that the spout is not blocked with pulp. Refer to ´Care
and cleaning`.
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 15

Tips on juicing
The inside information on juicing
Although juice drinks are usually developed with flavour, texture and aroma at the forefront,
the health benefits certainly add to the pleasurable taste experience.
95% of the nutrient content of fruit and vegetables is found in the juice. Liquids extracted
from fresh fruit and vegetables form an important part of a well balanced diet. Fresh fruit
and vegetable juices are an easy to make source of vitamins and minerals.
Juices are rapidly absorbed into the blood stream therefore being the quickest way in
which the body can digest nutrients. When you make your own juices, you have complete
control over what you include in them. You select the ingredients and decide if you need to
use sugar, salt or other flavouring agents. Freshly extracted juices should be consumed
just after they have been made to avoid a loss of vitamin content.
Purchasing and storage of fruit and vegetables
• Always wash fruit and vegetables before juicing.
• Always use fresh fruit and vegetables for juicing.
• To save money and obtain fresher produce, purchase fruit or vegetables that are in season.
• Keep your fruit and vegetables ready for juicing by washing them before storing.
• Most fruit and hardier type vegetables can be stored at room temperature. The more
delicate and perishable items such as tomatoes, berries, leafy greens, celery, cucumber and
herbs should be stored in the refrigerator until required.
Preparation of fruit and vegetables
• If using fruit with hard or inedible skins such as mangoes, guava, melons or pineapple,
always peel before juicing.
• Citrus fruit can be juiced in the Design Multi Juicer Digital if peeled first.
• All fruit with pits, hard seeds or stones such as nectarine, peaches, mangoes, apricots,
plums and cherries must be pitted before juicing.
• A small amount of lemon juice can be added to apple juice to prohibit browning.
NOTE: Your Design Multi Juicer Digital makes invigorating, frothy orange juice. Simply
peel the oranges and juice. (It is best to refrigerate oranges before juicing).
16
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 16

The right technique
• When juicing a variety of ingredients with varying textures start with the softer textured
ingredients then change to for harder texture ingredients. Choose the correct speed
according to the speed selection table.
• If you are juicing herbs, sprouts or leafy green vegetables either wrap them together
to form a bundle or juice them in the middle of a combination of ingredients to obtain the
best extraction.
• If juicing herbs or leafy green vegetables on their own, the juice yield will be low
due to the nature of centrifugal juicing, it is advised to juice them as with a combination
of other fruit and vegetables.
• All fruit and vegetables produce different amounts of liquids. This varies within the
same group i.e. one batch of tomatoes can produce more juice than another batch.
Since juice recipes are not exact, the precise quantities of any juice are not crucial to
the success of a particular mixture.
NOTE: To extract the maximum amount of juice always push the food pusher down slowly.
Getting the right blend
It is easy to create great tasting juice. If you have been making your own vegetable and
fruit juices, then you know how simple it is to invent new combinations. Taste, colour, texture
and ingredient preferences are a personal thing. Just think of some of your favourite
flavours and foods – would they work well together or would they clash. Some strong
flavours could over power the more subtle flavours of others. It is however, a good rule
of thumb to combine starchy, pulpy ingredients with those high in moisture.
Using the pulp
The remaining pulp left after juicing fruit or vegetables is mostly fibre and cellulose
which, like the juice, contains vital nutrients necessary for the daily diet and can be used
in many ways. However, like the juice, pulp should be used that day to avoid loss of
vitamins.
Some of the uses of pulp are to bulk out rissoles, thicken casseroles or soups or in the
case of fruit, simply placed in a bowl topped with meringue and baked for a simple
dessert. Quite apart from the consumption use, pulp is great used in the garden for compost.
NOTE: When using the pulp, there may be some pieces of fruit or vegetables remaining.
These should be removed before using the pulp in any recipes.
17
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 17

Fruit and vegetable facts
FFrruuiittaannddBBeessttsseeaassoonnSSttoorraaggeeNNuuttrriittiioonnaallvvaalluueeKKiilloojjoouullee//
vveeggeettaabblleessttoobbuuyyccaalloorriieeccoouunntt
Note: Your Design Multi Juicer Digital makes invigorating frothy orange juice. Simply
peel the oranges and juice (best to refrigerate oranges before juicing)
18
Apples
Apricots
Beetroot
Broccoli
Brussels Sprouts
Cabbage
Carrots
Cauliflower
Celery
Cucumber
Fennel
Kiwi Fruit
Mangoes
Melons including
Watermelon
Nectarine
Oranges
Peaches
Pears
Pineapples
Plums
Tomatoes
Autumn/Winter
Summer
Winter
Autumn/Winter
Autumn/Winter
Winter
Winter
Autumn/Winter
Autumn/Winter
Summer
Winter/Spring
Winter/Spring
Summer
Summer/Autumn
Summer
Autumn/Winter
Spring
Summer
Autumn
Summer
Summer
Summer
Vented plastic bags in refrigerator
Unwrapped in crisper of refrigerator
Cut off tops, then refrigerate
unwrapped
Plastic Bag in refrigerator
Unwrapped in crisper of refrigerator
Wrap, trimmed in the refrigerator
Uncovered in refrigerator
Remove outer leaves, store in
Plastic bag in refrigerator
Refrigerate in plastic bag
Crisper in refrigerator
Crisper in refrigerator
Crisper in refrigerator
Refrigerated
Crisper in refrigerator
Crisper in refrigerator
cool and dry place for 1 week,
transfer to refrigerator keep longer
Refrigerate uncovered
Refrigerate uncovered
Refrigerate uncovered
Refrigerate uncovered
Uncovered in crisper of refrigerator
High in Dietary Fibre and Vitamin C
High in Dietary Fibre, Contains Potassium
Good source Folate and Dietary Fibre,
Vitamin C and Potassium
Vitamin C, Folate, B2, B5, E, B6 and
Dietary Fibre
Vitamin C, B2, B5, E, Folate and Dietary
Fibre
Vitamin C, Folate, Potassium, B6 and
Dietary Fibre
Vitamin A, C, B6 and Dietary Fibre
Vitamin C, B5, B6, Folate, Vitamin K
and Potassium
Vitamin C and Potassium
Vitamin C
Vitamin C and Dietary Fibre
Vitamin C and Potassium
Vitamin A, C, B1, B6 and Potassium
Vitamin C, Folate, Dietary Fibre and
Vitamin A
Vitamin C, B3, Potassium and Dietary Fibre
Vitamin C 35 mg/100 g
Vitamin C, B3, Potassium and Dietary Fibre
Dietary Fibre
Vitamin C
Dietary Fibre
Vitamin C, Dietary Fibre, Vitamin E,
Folate and Vitamin A
200 g Apple=300 Kj (72 cals)
30 g Apricot=85 Kj (20 cals)
160 g Beetroot=190 Kj (45 cals)
100 g Broccoli=195 Kj (23 cals)
100 g Brussels Sprouts
=110 Kj (26 cals)
100 g Cabbage=110 Kj (26 cals)
120 g Carrots=125 Kj (30 cals)
100 g Cauliflower=55 Kj (13 cals)
80 g Celery= 55 Kj (7 cals)
280 g Cucumber=120 Kj (29 cals)
300 g Fennel=145 Kj (35 cals)
100 g Kiwi Fruit=100 Kj (40 cals)
240 g Mango=200 Kj (48 cals)
200 g Melon=210 Kj (50 cals)
80 g Nectarine=355 Kj (85 cals)
150 g Orange=160 Kj (38 cals)
150 g Peach=205 Kj (49 cals)
150 g Pears=250 Kj (60 cals)
150 g Pineapple=245 Kj (59 cals)
70 g Plums=110 Kj (26 cals)
100 g Tomatoes= 90 Kj (22 cals)
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 18

19
Recipes
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 19

20
Fresh Starts
Apple-Carrot-Celery-Juice
You may alter the amounts of either the carrots or apple to make the juice sweeter or
savoury to suit your taste buds:
Makes 2 cups:
4 small Granny Smith apples
3 medium sized carrots, trimmed
4 sticks celery
Process apples, carrots and celery through the Design Multi Juicer Digital. Mix well and
serve immediately.
Tomato-Carrot-Celery-Lime-Juice
Makes 3 cups:
2 medium tomatoes
1 large carrot, trimmed
2 celery stalks, trimmed
1 lime, peeled
Process tomatoes, carrot, celery and lime through the Design Multi Juicer Digital. Serve immediately.
Carrot-Beetroot-Orange-Juice
Makes 2 cups:
2 medium carrots, trimmed
3 medium beetroot, trimmed
4 oranges, peeled
Process carrots, beetroot and oranges through the Design Multi Juicer Digital. Serve immediately.
Apple-Peach-Grapefruit-Juice
Makes 2 cups
1 small Delicious apple
2 large peaches, halved and seeds removed
2 grapefruits, peeled
Process apple, peaches and grapefruit through the Design Multi Juicer Digital. Serve immediately.
Pineapple-Peach-Pear-Juice
Makes 3 cups
1/2 small pineapple, peeled and halved
2 peaches, halved and seeds removed
2 small ripe pears
Process pineapple, peaches and pears through the Design Multi Juicer Digital. Serve immediately.
40128_designmultijuicerdigital_manual_englisch_0309.qxp 11.03.2009 08:37 Seite 20
