Ambi XL is a hygiene chair designed with bariatric users in mind. With a maximum user weight of 250kg,
67cm internal width and electric heigh adjustment, Ambi XL hygiene chair provides stability and comfort for
the user while requiring minimal effort for the care staff.
Contents
1. Raising/Lowering the seat 04
2. Foot support/heel restraint 04
3. Sanitary pan 05
4. Locking the castors 05
5. Installation/adjustment of back strap 05
6. Installing the seat 05
7. Moving the chair 05
8. Locking the armrests 05
9. System calibration 06
10. Battery installation/removal 06
11. Charging the battery 06
12. Maintenance 06
13. Maintenance - Special check items 07
14. Safety 08
Ambi XL
AMFIBI XL
GATERD.SE4
1. Raising/lowering the seat
The seat is raised/lowered using the remote control (see gure 1).
Manoeuvring may take place with the patient in the chair; make sure there
is no risk of pinch injuries.
Audible signals during operations (warning symbol/N.B.
symbol):
• 3 short buzzes means the battery must be recharged (chair can only be
lowered).
• 1 short buzz means the battery is empty.
2. Foot support/heel restraint
a) The foot support can be adjusted in height by removing the clips (see gure 2
and moving the foot support to the desired height. Make sure to replace the clips
(see gure 3).
b) The foot support can be swung to the side by grasping it at arrow B and lifting/
swinging.
c) The foot support platform can be swung upwards (c1) and/or angled (c2) as
desired.
Up
Down
1
2 3
USER MANUAL
5
GATERD.SE

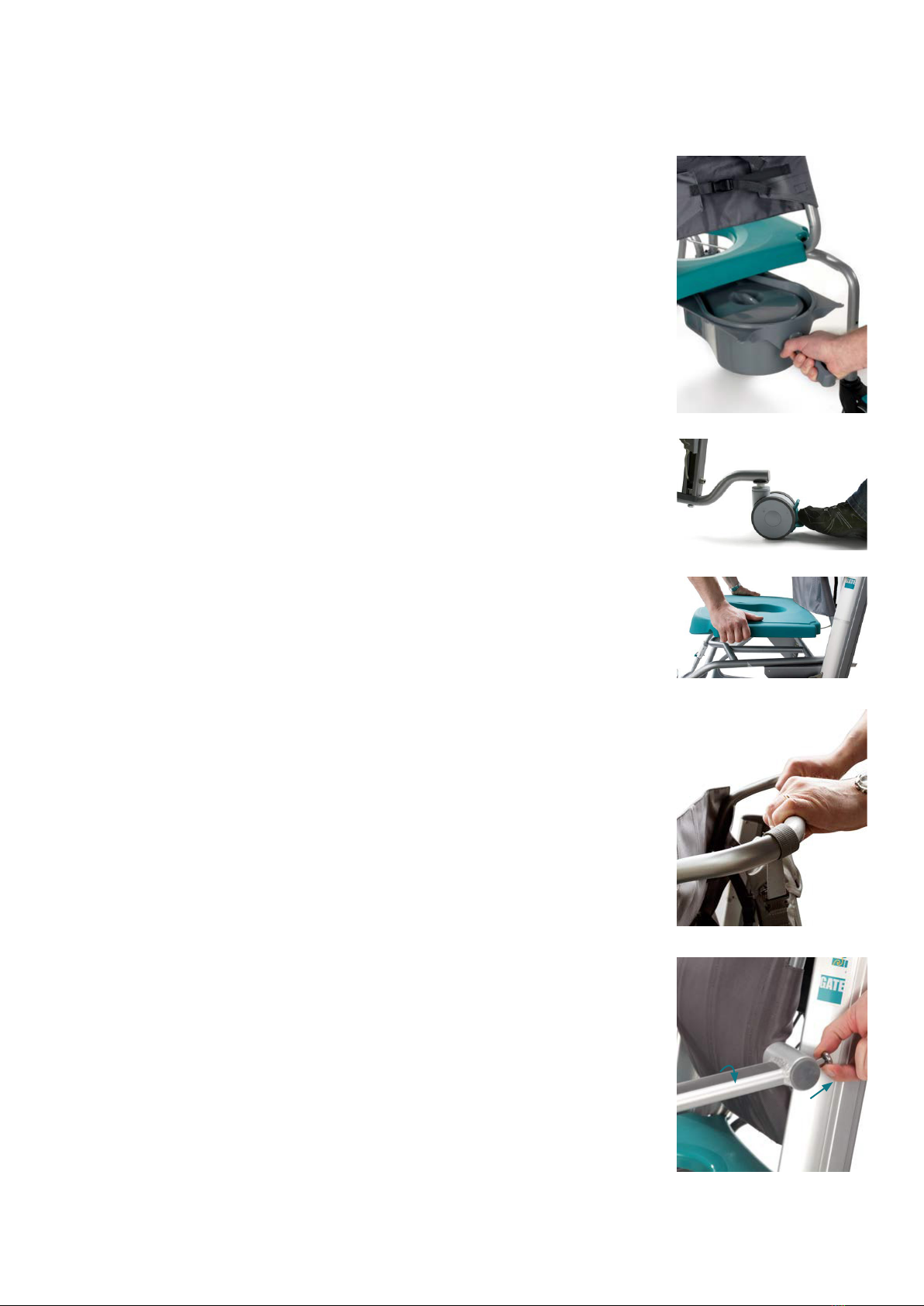

3. Sanitary pan
The sanitary pan is slid into position from behind between the seat and wire
guides as shown in gure 4. Make sure the sanitary pan is slid into position above
the wire guides. Also make sure that the pan is in the right position in relation to
the seat/cut-out.
4. Locking the castors
Ambi XL is tted with three braked (grey pedal) castors with directional locking
(green pedal). Figure 5 shows activation of castor functions. Braking via grey
pedal – rolling and swiveling disabled. Locking via green pedal – wheels roll
normally but cannot swivel.
5. Installation/adjustment of back-strap
Fasten the back-strap around the rear frame – lock using the side-release
buckles. Adjust to the desired position. Make sure the cut-out for the armrest is
aligned with the cut-out in the back-strap.
6. Installing the seat
The seat is easily attached with the clips underneath that snap onto the seat
frame (see gure 6).
7. Moving the chair
We recommend using the handlebar whenever the chair must be moved
(with/without a patient). The handlebar is designed so that the chair can be
moved forwards and turned easily (see gure 7).
8. Locking the armrests
The armrest is locked in the extended position. To lift the armrest, pull out the pin
(1) and raise the armrest (2).
4
5
6
7
8
1
2
