Gazer F122G User manual

USER MANUAL
MOBILE VIDEO RECORDER
GAZER F122/F122g

User manual 4-18
Руководство пользователя 19-33
Посібник користувача 34-48
ENG
RU
UA
User manual ............................. 4-21
Руководство пользователя ...... 22-40
Посібник користувача ............. 41-58
ENG
RU
UA

ENG
4
1. Warnings ............................................... 5
2. Important information ............................. 6
3. Package contents.................................... 7
4. Controls ................................................ 8
5. Usage ................................................... 9
6. Preparing memory card ......................... 12
7. Preparing MVR ..................................... 13
8. Settings menu...................................... 15
9. Viewing ............................................... 18
10. Vacuum mount installation ................... 19
11. 3M scotch Tape mount installation ......... 20
12. Specications ..................................... 21
Contents

ENG
5
Congratulations on your purchase of Gazer mobile
video recorder.
Please read this manual carefully, before using the
device.
Warnings
•Do not expose the device to direct sunlight.
•Do not apply any chemicals when cleaning the
device. Only use soft cloth to clean the frame and
lens.
•Prevent the device from falling or being damaged
by other objects.
•
Do not use or store the device in cold or hot places.
- Storage temperature: from -20°C to +60°C
- Operation temperature: from -5°C to +55°C
•Make sure the device warms up before starting,
if it was exposed to the low temperature for too
long.
•Do not attempt to repair the appliance yourself.
In case of damage, contact your dealer or service
center.
•The manufacturer is not responsible for any loss-
es or missed opportunities due to use of videos
and data obtained with the help of this MVR.
Warning

ENG
6
• Do not insert or remove the SD card when the de-
vice is on. This can lead to the MVR malfunction. Wait
for 30 seconds after MVR shutdown, make sure that
all the lights are off for at least 10 seconds, and
only then safely remove the memory card.
• Set the correct time and date before using the de-
vice. The MVR may not record in case these settings
were entered incorrectly.
• Use at least 0.5 seconds time interval while press-
ing control buttons, this guarantees proper function-
ing of the device.
• Do not turn off the power for at least 20 seconds
after the power supply cable is connected. This is nec-
essary to help the built-in battery function correctly.
•If after you have started the car (when the power
supply cable is connected to the MVR), the device
failed to switch to the recording mode automatically,
simply unplug the power supply cable for ten seconds
and then try again.
• Use the restart option (by pressing «RESET» but-
ton) in the following cases:
• power indicator is not on when the power supply
cable is connected;
• the device does not switch from the standby to
the recording or control mode;
• the device fails to function properly.
•Files protected from overwriting by G-sensor or
by pressing a corresponding button are recorded in
a loop with a 30% les limit. Check the free space
left on your memory card on a regular basis to pre-
vent data loss (this happens when the memory card
is full).
Warning!
Important information

ENG
7

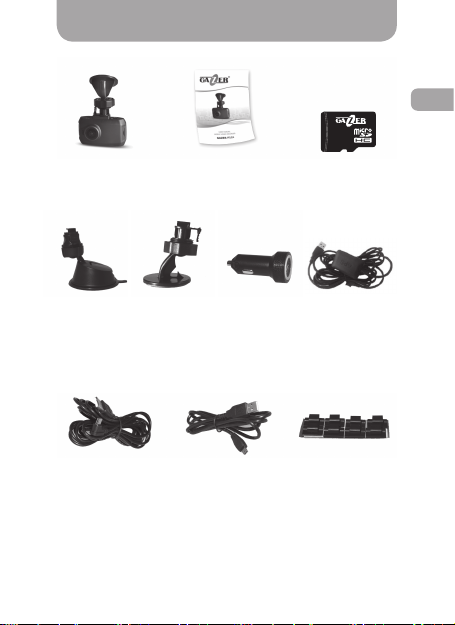

Package contents
Gazer MVR F121 Gazer micro SDHC
memory card + adapter
User Manual
Vacuum windshield
mount
3M scotch tape
windshield mount
Mounting clips kit
Package contents
Cigarette lighter
socket power unit
(with an integrated +
5V converter)
USB cable for
connection to the
car’s power unit
using the cigarette
lighter socket (with
an angular mini USB
connector)
USB-cable for PC
connection (with a
direct mini USB
connector)
Gazer MVR F121 Gazer micro SDHC
memory card + adapter
User Manual
Vacuum windshield
mount
3M scotch tape
windshield mount
Mounting clips kit
Package contents
Cigarette lighter
socket power unit
(with an integrated +
5V converter)
USB cable for
connection to the
car’s power unit
using the cigarette
lighter socket (with
an angular mini USB
connector)
USB-cable for PC
connection (with a
direct mini USB
connector)
Gazer MVR F121 Gazer micro SDHC
memory card + adapter
User Manual
Vacuum windshield
mount
3M scotch tape
windshield mount
Mounting clips kit
Package contents
Cigarette lighter
socket power unit
(with an integrated +
5V converter)
USB cable for
connection to the
car’s power unit
using the cigarette
lighter socket (with
an angular mini USB
connector)
USB-cable for PC
connection (with a
direct mini USB
connector)
Gazer MVR F121 Gazer micro SDHC
memory card + adapter
User Manual
Vacuum windshield
mount
3M scotch tape
windshield mount
Mounting clips kit
Package contents
Cigarette lighter
socket power unit
(with an integrated +
5V converter)
USB cable for
connection to the
car’s power unit
using the cigarette
lighter socket (with
an angular mini USB
connector)
USB-cable for PC
connection (with a
direct mini USB
connector)
Gazer MVR F121 Gazer micro SDHC
memory card + adapter
User Manual
Vacuum windshield
mount
3M scotch tape
windshield mount
Mounting clips kit
Package contents
Cigarette lighter
socket power unit
(with an integrated +
5V converter)
USB cable for
connection to the
car’s power unit
using the cigarette
lighter socket (with
an angular mini USB
connector)
USB-cable for PC
connection (with a
direct mini USB
connector)
Gazer MVR
F122/F122g
Vacuum
windshield
mount
User Manual
3M scotch
tape wind-
shield mount
Gazer
micro SDHC
memory card +
adapter
Cigarette
lighter socket
power unit
(with an inte-
grated + 5V
converter)
GPS module
(optional)
USB cable for
connection to
the car’s power
unit using the
cigarette lighter
socket (with an
angular mini USB
connector)
USB-cable for
PC connection
(with a direct
mini USB
connector)
Mounting
clips kit

ENG
8
1
4 5
7 8 10 11 13
9 12 14
6
3
2
1. Micro SD slot.
Do not insert or remove
your SD memory card
when the power or indi-
cator lights are on.
2. Lens.
3. Speaker.
4. Microphone.
5. RESET button.
6. USB connector –
connection to PC, power
connector, external GPS
antenna connection.
7. HDMI – HDMI video
output.
8. REC/OK – recording
mode control button,
turning the device on/off,
selecting features while
navigating the menu.
9. MODE/RETURN –
mode selection (short
press – setting menu,
long press – changes
Video/Photo), back to
the menu, deleting les,
viewing mode.
10. Mounting hole.
11. 1.5″ display.
12. DOWN – «down»
button (menu navigation,
fast forwarding, decreas-
ing volume, activating the
archive mode).
13. UP – «up» but-
ton (menu navigation,
rewinding, increasing
volume, turning sound
recording on/off).
14. Status indicator.
Соntrols

ENG
9
•To connect the MVR power supply cable to the car,
use the car’s cigarette lighter socket power unit and a
USB cable with an angular mini USB connector for charg-
ing. Connect the power supply cable to the charger. The
angular mini USB connector must face the MVR.
•MVR switches to the recording mode automatically
when the power is on, pressing «REC/OK» manually
is not required. The recorder automatically shuts down,
saves the video and switches off when no power is sup-
plied for at least 5 seconds. Manual shutdown (before
you turn off the ignition) is not required.
•If necessary, you can manually turn off the MVR by
long pressing the «REC/OK» button. Use the same
button to turn it back on.
Usage
Note: Do not turn off the recorder manually if it is in
the recording mode (this may damage the last record-
ing). First stop the recording by short pressing the
«REC/OK» button and then turn off the device. The
MVR can operate independently for a certain period
of time. The time of ofine operation depends on the
condition and charge of the built in battery.
Recommendation: Use the recording mode with a
minimum video length (1 minute).
Is this case, the pauses between videos will be
minimal.

ENG
10
Usage
Recommendation: We recommend setting your
vehicle’s license plate number as a watermark. Avail-
ability of this information in the video clip will simplify
the analysis of a complicated road situation and serve
as an extra advantage later if you have to use the
recorded video as evidence in court.
•Sound recording mode is on by default. You can
switch this option on and off - just short press «UP»
button.
• The MVR has the function to protect les from over-
writing. This option is activated automatically when the
G-sensor turns on or if you manually press the «MODE/
RETURN» button. If this option has been activated, the
MVR protects the current video recording from overwrit-
ing. No more than 30% les can be protected this way
and overwriting still takes place within this folder.
•Gazer F122/F122g MVR has the function to display
user captions in the video. To set user captions, use the
menu item «STAMP».
•Gazer F122/F122g MVR supports external GPS mod-
ules. To use a GPS module, one must connect the power
supply cable to an external GPS antenna (optional) and
then select «ON» option in the «GPS» menu.

ENG
11
Usage
Warning! If you upload an alternative Speedcam
database, the current database will be completely
deleted from the MVR memory.
Note: Laws of some countries may restrict the use
of Speedcam database. Do not use this function if it
violates the laws of your country.
Save this le as gpsdb.txt in the root directory of your
memory card. The next time you turn on the MVR the
Speedcam database will be updated automatically.
IDX, X, Y, TYPE, SPEED, DirType, Direction
0, 12.300604, 45.452664, 106, 0, 0,0
1, 2.280041, 48.85029, 101, 40, 1, 161
txt
etc.
•When used with an optional GPS module, the MVR
supports the voice prompt function. You can also upload
an alternative Speedcam database of important points
and events on the route (e.g., location of speed cameras
or speed bumps). Whenever the vehicle approaches such
points, the MVR will automatically activate the alerting
system: voice prompts and graphical messages on the
screen. To upload your own database of such points, you
need to create the following text le:

ENG
12
Preparing Memory Card
If you use an unformatted memory card, the MVR may
fail to record or record incorrectly (long pauses between
videos). Formatting with SD Formatter reduces the du-
ration of pauses to a minimum.
Before using the MVR, it is important to format your
memory card using specialized tools. We recommend us-
ing a free SD Formatter utility. Use a search engine to
nd and download it from one of many Internet resourc-
es or from the web portal http://www.sdcard.org.
Formatting is necessary to optimize the memory card
access speed. The system formats the card in
accordance with SD Memory Card Format specica-
tion, which allows the MVR to access the card faster. This
cannot be done with regular Windows formatting tools.
SD Formatter also (by selecting option of Format Size
Adjustment=ON) creates an optimal le system struc-
ture (cluster size, etc.).

ENG
13
Preparing MVR
One must adjust the MVR settings before using the device.
The main settings are optimal by default (factory settings)
but in any case, you must set the exact time and date. This
is necessary for correct functioning in the recording mode
and further analysis of recorded video sequences.
1. Do not connect the MVR to the power supply yet. First
make sure that all the indicators are off and insert the
memory card.
The memory card is inserted with connectors towards
the display.
2. Connect the recorder’s power unit to the car’s cigarette
lighter socket and supply the power.
When you turn on the MVR, it automatically switches to
the recording mode. That is why you will see the real time
camera image at once (loop-through channel) and the re-
cording mode indicator will light up.
3. Press the «REC/OK» button to stop the recording rst,
if you want to go to the settings menu (the recording
mode will take some time to shut down as it is closing
and saving the current le) and then click the «MODE/
RETURN» button.
4. Use «UP» and «DOWN» buttons to navigate through
the menu, «REC/OK» to go to the submenu and select
the setting, and «MODE/RETURN» button to go back.
5. When you nish adjusting the settings, do not forget
to press the •REC to activate the recording mode.
6. Fix the MVR on the windshield and supply the power.
7. Use the long press «MODE/RETURN» button to
switch to the photo shooting mode and take a snap-
shot by pressing the «REC/OK» button.

ENG
14
Preparing MVR
1. Current recording resolu-
tion
2. Motion detector
3. GPS status (blinking
indicator – searching for
satellites, green light –
position xed)
4. Sound recording
5. Memory card
6. Battery indicator
7. Date
8. Approximate total record-
ing time
9. Time
10. Current video clip
recording time (indicator
is active during record-
ing)
11. Watermarks (vehicle’s
license plate number)
1 – Standby mode 2 – Recording mode
1920x1080 30P 000:00:27
Car ID
2014/05/27 00:25:15 12:03:17 2014/05/27 12:03:17
1
2 3 4 5 6
7 8 9
10
11
Main window icons denition
The status indicators denition
Indicator
status Status description
Blue
MVR is in the standby mode.
Low battery charge, memory card error.
Red
Video recording mode.
Green
Connection with GPS satellites is established.
Searching for GPS satellites.
Yellow
MVR battery is charging.
Yellow indicator will go off when the battery
is fully charged.
indicator is always on indicator is ashing

ENG
15
RESOLUTION
Camera recording setting:
2304x1296 30P 16:9
2560x1080 30P 21:9
1920x1080 45P 16:9
1920x1080 30P 16:9
HDR1920x1080 30P 16:9
1280x720 60P 16:9
1280x720 30P 16:9
In HDR1920x1080 30P 16:9 mode
HDR is enable.
QUALITY Recording quality settings.
S.FINE/FINE/NORMAL
WDR Enable/disable WDR (wide
dynamic range) function.
STAMP Enable/disable video
watermarking.
LDWS+FCWS
Enable/disable intelligent LDWS (Lane
Departure Warning System) and FCWS
(Forward Collision Warning System)
systems.
LDWS+FCWS
calibration
Calibration of intelligent LDWS and FCWS
systems. To calibrate the systems, align
the violet line on the display with the ho-
rizon using «DOWN» and «UP» buttons.
Press the «MODE» button to start adjust-
ing the next line.
Align the red line on the car hood edge
with the road using «UP» and «DOWN»
buttons.
RESOLUTION
Photo resolution settings.
9M (4000x2250 16:9)
6M (3264x1836 16:9)
4M (2688x1512 16:9)
Settings menu
Viewing
Photo setting
Warning! In the settings menu, options «GPS POW-
ER», «Stamp speed» and «Edog beep» are available
when you connect an optional GPS module.

ENG
16
Settings menu
MOTION
DETECT
Enable/disable motion detector mode.
To activate this function, the МVR must
be in the recording mode.
LCD OFF TIME Screen timeout delay settings.
OFF/30 SEC/1 MIN/3 MIN
SPLIT TIME
Setting the length of recorded videos
with loop overwriting.
1 min/2 min/5 min/10 min
GPS POWER
Enable/disable the recording location
data saving function (вincluding GPS
watermarks on video clips).
DATE/TIME
SETTINGS
Date and time watermark
settings.
SYSTEM Standard video output.
PAL/NTSC.
CAR ID
Watermarking.
To navigate from symbol
to symbol,
use Up/Down/MODE buttons.
FORMAT Memory card formatting.
DEFAULT
SETTINGS
Reset to factory settings.
LCD CONTROL Screen brightness and contrast
adjustment.
Main settings
QUALITY Recording quality settings.
S.FINE/FINE/NORMAL
STAMP Enable/disable photo watermarking.
WB
White balance settings.
AUTO/INCADESCENT/D4000/
D5000/SUNNY/CLOUDY

ENG
17
Settings menu
AE BIAS Exposure adjustment.
DRIVER
FATIGUE
Setting alert intervals.
1 H./2 H./3 H./OFF
STAMP SPEED
Setting the speed value after which
no speed values will be displayed as
watermarks on recorded video clips.
From 20 to 170 with 10 (кm/h)
intervals or Off (constant speed
watermarks display).
SPEAKER
VOLUME
Speaker volume adjustment.
CAR LAMP OPEN
Enable/disable the reminder to turn
the headlights on in poor lighting
conditions.
EDOG BEEP Enable/disable
Speedcam voice prompts.
LANGUAGE Select menu language.
FW VERSION Current МVR rmware version.
TIME ZONE
Time zone selection.
When the optional GPS receiver is
used, time is automatically synchro-
nized with satellite data. For correct
time display, set the time zone of your
country.
G-SENSOR
LEVEL
G-sensitivity adjustment
(0 – means that the sensor
is disabled).
SCENE MODE
Video recording mode selection.
OFF/NIGHT/NIGHT PORTRAIT/
SPORTS/LANDSCAPE/PORTRAIT/
SUNSET/SAND/SNOW/FLOWER/
FIREWORK/WATER/BACK LIGHT/
BACK LIGHT PORTRAIT/TRIPOD/
BLUE SKY/MACRO/ARENA

ENG
18
To switch to the viewing mode, rst stop the current
recording with the «REC/OK» button, then press
«DOWN». To navigate through videos, use «UP»
and «DOWN» buttons. «REC/OK» button will start
and pause playback. You can use «UP» and «DOWN»
buttons to adjust the sound volume while watching the
video. Long press «MODE/RETURN» to switch to the
playback of les submenu. Short press «MODE/RE-
TURN» to exit from the viewing mode.
• You can view the records directly from the MVR.
• Alternatively, you can: connect MVR to your personal
computer with a USB cable that comes in the package or
remove the memory card and insert it directly into your
PC.
Viewing
Note: All recorded les are stored on the memory
card in 2 folders. Protected les are saved on the
memory card in the «100MEDIA» folder, current les –
in the «101MEDIA» folder.
Warning!
When you nish the viewing do not forget
to re-enable the recording function by pressing the
«REC/OK» button.

ENG
19
Fix the frame and the
mount of the device on
the windshield.
Loosen the screw 1by
turning it counterclockwise.
Adjust the MVR position
on the frame and set the
recording angle. Tighten
screw 1by turning it
clockwise.
Install the MVR and x the
power supply cable using
mounting clips as shown in
the drawing. Place the clips
evenly on the windshield to
x the cable.
To detach the MVR from the
mount, press tab
1. Then, holding the tab,
remove the recorder from
the mount by sliding it to the
side 2.
Vacuum mount installation
Recommendation: Install your MVR as high as possible (MVR
frame right next to the rear view mirror or behind it) in the
position in which the lens is directed slightly downward at an
angle of about 15°. If the MVR is set too low (on the dashboard
or a bit higher), the recorded videos will not provide full
information about the road situation as it is impossible to see the
front of your vehicle. Therefore, there is no «reference point».
Recordings will be significantly dimmed if the device is set in
parallel with the road or at an upward angle.
Fix the frame and the mount of
the device on the windshield.
Install the MVR and fix the power
supply cable using mounting clips as
shown in the drawing. Place the clips
evenly on the windshield to fix the
cable.
Loosen the screw 1by turning it
counterclockwise. Adjust the MVR
position on the frame and set the
recording angle. Tighten screw 1by
turning it clockwise.
To detach the MVR from the mount,
press tab 1. Then, holding the tab,
remove the recorder from the mount by
sliding it to the side 2.
1
3 4
1
1
2
Vacuum mount installation
2
Recommendation: Install your MVR as high as possible (MVR
frame right next to the rear view mirror or behind it) in the
position in which the lens is directed slightly downward at an
angle of about 15°. If the MVR is set too low (on the dashboard
or a bit higher), the recorded videos will not provide full
information about the road situation as it is impossible to see the
front of your vehicle. Therefore, there is no «reference point».
Recordings will be significantly dimmed if the device is set in
parallel with the road or at an upward angle.
Fix the frame and the mount of
the device on the windshield.
Install the MVR and fix the power
supply cable using mounting clips as
shown in the drawing. Place the clips
evenly on the windshield to fix the
cable.
Loosen the screw 1by turning it
counterclockwise. Adjust the MVR
position on the frame and set the
recording angle. Tighten screw 1by
turning it clockwise.
To detach the MVR from the mount,
press tab 1. Then, holding the tab,
remove the recorder from the mount by
sliding it to the side 2.
1
3 4
1
1
2
Vacuum mount installation
2
Recommendation: Install your MVR as high as pos-
sible (MVR frame right next to the rear view mirror or
behind it) in the position in which the lens is directed
slightly downward at an angle of about 15°. If the MVR
is set too low (on the dashboard or a bit higher), the
recorded videos will not provide full information about
the road situation as it is impossible to see the front of
your vehicle. Therefore, there is no «reference point».
Recordings will be signicantly dimmed if the device is
set in parallel with the road or at an upward angle.

ENG
20
Tape mount installation
Warning! Wipe the surface of the windshield before in-
stalling. Make sure the place of installation is dry and
clean. Do not install the mount on 3M scotch tape at
temperatures below +5°C. Due to such low temperature
and the difference between the temperature inside the
car and outdoors, the 3M scotch will lose its adhesive
properties and will not be able to x the mount properly.
tape mount installation
Warning! Wipe the surface of the windshield before installing.
Make sure the place of installation is dry and clean. Do not install
the mount on 3M scotch tape at temperatures below +5°C. Due
to such low temperature and the difference between the
temperature inside the car and outdoors, the 3M scotch will lose
its adhesive properties and will not be able to fix the mount
properly.
Attach the MVR frame to the 3M scotch
mount.
Remove the protecting film from the
mount.
Fix the mobile video recorder on 3M
scotch tape to the selected place on
the windshield.
Loosen screw 1by turning it
counterclockwise. Regulate the MVR
position on the mount and set the
recording angle. Tighten screw 1by
turning it clockwise.
To remove the MVR from the mount,
first press tab 1. Then, holding the tab,
remove the recorder from the mount by
sliding it to the side 2.
To remove the mount from 3M tape,
take a ruler or credit card, and push it
gently between the mount and the
windshield.
1 2
3 4
5 6
1
1
2
Attach the MVR frame to
the 3M scotch mount.
To remove the MVR from
the mount, rst press tab 1.
Then, holding the tab, remove
the recorder from the mount
by sliding it to the side 2.
Fix the mobile video re-
corder on 3M scotch tape
to the selected place on
the windshield.
Remove the protecting lm
from the mount.
To remove the mount from
3M tape, take a ruler or
credit card, and push it gen-
tly between the mount and
the windshield.
Loosen screw 1by turning it
counterclockwise. Regulate
the MVR position on the
mount and set the recording
angle. Tighten screw 1by
turning it clockwise.
tape mount installation
Warning! Wipe the surface of the windshield before installing.
Make sure the place of installation is dry and clean. Do not install
the mount on 3M scotch tape at temperatures below +5°C. Due
to such low temperature and the difference between the
temperature inside the car and outdoors, the 3M scotch will lose
its adhesive properties and will not be able to fix the mount
properly.
Attach the MVR frame to the 3M scotch
mount.
Remove the protecting film from the
mount.
Fix the mobile video recorder on 3M
scotch tape to the selected place on
the windshield.
Loosen screw 1by turning it
counterclockwise. Regulate the MVR
position on the mount and set the
recording angle. Tighten screw 1by
turning it clockwise.
To remove the MVR from the mount,
first press tab 1. Then, holding the tab,
remove the recorder from the mount by
sliding it to the side 2.
To remove the mount from 3M tape,
take a ruler or credit card, and push it
gently between the mount and the
windshield.
1 2
3 4
5 6
1
1
2
tape mount installation
Warning! Wipe the surface of the windshield before installing.
Make sure the place of installation is dry and clean. Do not install
the mount on 3M scotch tape at temperatures below +5°C. Due
to such low temperature and the difference between the
temperature inside the car and outdoors, the 3M scotch will lose
its adhesive properties and will not be able to fix the mount
properly.
Attach the MVR frame to the 3M scotch
mount.
Remove the protecting film from the
mount.
Fix the mobile video recorder on 3M
scotch tape to the selected place on
the windshield.
Loosen screw 1by turning it
counterclockwise. Regulate the MVR
position on the mount and set the
recording angle. Tighten screw 1by
turning it clockwise.
To remove the MVR from the mount,
first press tab 1. Then, holding the tab,
remove the recorder from the mount by
sliding it to the side 2.
To remove the mount from 3M tape,
take a ruler or credit card, and push it
gently between the mount and the
windshield.
1 2
3 4
5 6
1
1
2
