Gazer F150 User manual

GAZER F150/F150g

3
ENG
Contents
1. Warnings ...................................................................... 4
2. Important information .................................................... 5
3. Package contents........................................................... 6
4. Controls ....................................................................... 7
5. Usage .......................................................................... 8
6. Preparing Memory Card ................................................ 10
7. Preparing MVR............................................................. 11
8. Setting menu .............................................................. 12
9. Viewing records ........................................................... 13
10. Mount installation ...................................................... 14
11. Specications ............................................................ 16

ENG
4
Warning
Congratulations on your purchase of Gazer mobile video recorder.
Please read this manual carefully, before using the device.
Warnings
•Do not expose the device to direct sunlight.
•Do not apply any chemicals when cleaning the device. Only use
soft cloth to clean the frame and lens.
•Prevent the device from falling or being damaged by other
objects.
•Do not use or store the device in cold or hot places.
- Storage temperature: from -20°C to +60°C
- Operation temperature: from -5°C to +45°C
•Make sure the device warms up before starting, if it was exposed
to the low temperature for too long.
•Do not attempt to repair the appliance yourself. In case of
damage, contact your dealer or service center.
•The manufacturer is not responsible for any losses or missed
opportunities due to use of videos and data obtained with the
help of this MVR.
• Technical specications may be changed without prior notice to
improve the quality of the product.

5
ENG
•Do not insert or remove the SD card when the device is on.
This can lead to the MVR malfunction. Wait for 30 seconds
after MVR shutdown, make sure that all the lights are off for
at least 10 seconds, and only then safely remove the memory
card.
•Set the correct time and date before using the device.
•Use at least 0.5 seconds time interval while pressing control
buttons, this guarantees proper functioning of the device.
•Do not turn off the power for at least 20 seconds after the
power supply cable is connected. This is necessary to help the
built-in battery function correctly. If after you have started the
car (when the power supply cable is connected to the MVR),
the device failed to switch to the recording mode automati-
cally, simply unplug the power supply cable for ten seconds
and then try again.
•Use the restart option (by pressing RESET button) in the fol-
lowing cases:
- power indicator is not on when the power supply cable is
connected;
- the device does not switch from the standby to the recording
or control mode;
- the device fails to function properly.
• To prevent loss of protected les or recording interruption,
make sure that the memory card is not lled up with les
protected from loop overwriting (by G-sensor or PROTECT
button).
Warning!
Important information

ENG
6
Package contents
Gazer MVR
F150/F150g
Windshield
mount*
Cigarette lighter
socket power unit
(with an integrated
+5V converter)
User Manual
Gazer MVR F121 Gazer micro SDHC
memory card + adapter
User Manual
Vacuum windshield
mount
3M scotch tape
windshield mount
Mounting clips kit
Package contents
Cigarette lighter
socket power unit
(with an integrated +
5V converter)
USB cable for
connection to the
car’s power unit
using the cigarette
lighter socket (with
an angular mini USB
connector)
USB-cable for PC
connection (with a
direct mini USB
connector)
Gazer micro SDHC
memory card +
adapter (optional)
*With a built-in GPS module for model Gazer F150g.

7
ENG
Controls
1. Mount release button.
2. Screen.
3. UP button – menu
navigation; stop sound
recording (in video mode).
4. PROTECT button – set/
remove loop overwriting
protection from the current
video clip.
5. MENU button – access
settings menu, go back to the
previous menu.
6.ОN/OFFbutton – long press -
power on/off; short press -
monitor on/off.
7. MODE button – switch
between Video/Time-Lapse/
Photo/Viewing modes.
8. DOWN button – menu
navigation, go to the last
recorded le (in viewing
mode).
9. Microphone.
10. LED status indicator –
red light – MVR is on;
blinking red light – МVR is in
recording mode; red light on
a turned off device – battery
is charging (the indicator light
goes out when the device is
fully charged).
11. Mount USB port.
12. MVR USB port.
13. Additional micro SD
memory card slot (for
GazerF150);HDMIport
(forGazerF150g).
14. Primary micro SD memory
card slot.
Do not insert or remove your
SD memory card when the
power or indicator lights are on.
15. OK button: start/stop video
recording; snapshot; menu
selection conrmation;
playback/pause (in viewing
mode).
16. Camera tilt angle
adjustment knob.
17. Windshield mount.
18.3Мtapebaseformounting
on the windshield.
19. Lens.
20. AV output.
21. RESET button.
22. Speakers.
22
21
20
17
11
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
18
19

ENG
8
Usage
• When connected to a power source, the МVR switches to the
recording mode automatically, and pressing the OK button (15) man-
ually is not required. When the power is off, the МVR automatically
stops recording, saves the video le and shuts down. Prior (before
turning off the power) manual shutdown is not required. If needed,
you can turn the МVR off manually by pressing the ON/OFF button
(6) or set the required turn off time in the «Power off delay» menu.
• The MVR has protection against loop overwriting of recorded les.
This function is activated automatically when the G-sensor trips or
when the PROTECT button (4) is pressed.
• The MVR his capable of frame-by-frame shooting (Time-Lapse video
recording). To enable this function, one must select Time-Lapse re-
cording mode by pressing the MODE button (7). When this function
is enabled, the МVR will shoot frames with 1 sec., 5 sec., 10 sec., 30
sec., or 1 min. intervals generating a 30fps video le.
Recommendation: Use the recording mode with a minimum
video length (1 minute).
Note: Do not turn off the recorder manually if it is in the recording mode
(this may damage the last recording). First stop the recording by short
pressing the OK button (15) and then turn off the device. The MVR can
operate independently for a certain period of time. The time of ofine
operation depends on the condition and charge of the built in battery.
Note: No sound is recorded when the frame-by-frame shoot-
ing function is enabled. Frame-by-frame shooting may come
in handy during long monotonous trips for sparing use of the
memory card space.
• There is a password protection function to restrict unauthorized ac-
cess to the МVR settings and recorded video les. To set or change
the password, go to the «Set password» menu item and set the de-
sired password.
Caution! Make sure that les protected from loop overwriting are
deleted from the memory card in a timely manner. Should the
memory card overll with protected les, the МVR will stop recording.
Caution! Whenever you set a password, please, save it on reliable
data storage media. If you forget the password, please contact Gazer
support center for assistance. Contact information can be found on
the ofcial website www.gazer.com.

9
ENG
• The Gazer F150g МVR has a function to display shooting location
coordinates on the video. For coordinates to be displayed, the GPS
function must be enabled in the setting menu. One can use the
special Gazer Player to view recorded video clips with reference to
the map. For more details, go the ofcial website www.gazer.com.
Usage
Caution! To prevent the MVR from stopping to record, it is
recommended to enable the loop recording function in the settings
menu. In this case, after the secondary memory card becomes full,
the MVR will automatically switch to the primary card and record new
video les over the old ones in a loop mode. Video will be recorded
continuously due to automatic switching between memory cards
whenever either of them runs out of space.
Note: Copied photo and video les are stored in the COPY folder in
the memory card root directory. Use a PC to view copied media les.
• Gazer F150 MVR supports up to two memory cards with the total
storage capacity of 128Gb and allows copying les from one card to
the other. Thanks to this feature, one can record and store more video
les and manage them directly on the MVR.
To select a memory card for recording video les, press MENU (5) to
access the menu, go to the «System Settings»/»Storage» from the
options and then select the memory card.
When the primary card is selected in the menu, it will be used for video
recording until it runs out of space. Once the primary memory card is
full, the MVR will automatically switch to the secondary memory card.
When there is no free space on the secondary memory card, video
recording will stop.
To copy video les from one memory card to the other, select the video
le you need to copy, press MENU (5) to access the menu, select “Copy
le”, and then conrm the selection by pressing ОК (15). To access
the list of les stored on the second memory card, press MENU (5)
to access the submenu, select “Switch card”, and then press ОК (15).

ENG
10
Preparing Memory Card
Before using the MVR, it is important to format your memory card
using specialized tools. We recommend using a free SDFormatter
utility. Use a search engine to  nd and download it from one of many
Internet resources or from the web portal http://www.sdcard.org.
Formatting is necessary to optimize the memory card access speed.
The system formats the card in accordance with SD Memory Card
Format speci cation, which allows the MVR to access the card
faster. This cannot be done with regular Windows formatting tools.
SD Formatter also (by selecting option of Format Size
Adjustment=ON) creates an optimal le system structure (cluster
size, etc.).
If you use an unformatted memory card, the MVR may fail to record
or record incorrectly (long pauses between videos). Formatting with
SDFormatter reduces the duration of pauses to a minimum.
Recommendation: To ensure that the МVR delivers maximum
performance, use such a memory card:
- 8-128* Gb Сlass 10 (for Gazer F150);
- 8-32 Gb Сlass 10 (for Gazer F150g).
*The total storage capacity of two memory cards.

11
ENG
Preparing MVR
One needs to precongure the MVR before using it. By default
(factory settings), all main parameters are set to optimal values.
Nonetheless, one still needs to set the exact time and date. This is
required for further analysis of recorded video les.
1. Make sure that all indicators are turned off and then insert the
memory card into the corresponding slot without connecting the
МVR to a power source. The memory card must be inserted with
contacts facing the screen.
2. Connect the MVR power adapter to a 12V car cigarette lighter
socket and supply power. Once turned on, the MVR automatically
switches to the recording mode. Therefore, the rst thing you will
see on the screen will be real-time video feed from the camera
(point-to-point channel) and the recording mode indicator.
Mainwindowiconsdenition
3. To access the МVR settings menu, you rst need to stop the
recording by pressing the OK button (15) (the recording stops
with some delay because the device needs to close and save the
le with the last video clip) and then press the MENU button (5).
4. Use «Up» (3) and «Down» (8) buttons to navigate the menu, OK
button (15) – to access submenus and select parameters, MENU
button (5) – to exit from the menu.
GPS status
(for Gazer F150g)
WDR
Cycle Recording
Power/Battery
Indicator
Recording resolution
Recording Mode
(Video/Time-Lapse/Photo)
Date and Time
Current recording
location
(for Gazer F150)

ENG
12
Setting menu
VIDEO RESOLUTION SuperHD30;FHD30;HD30;WVGA30.
Video resolution setting.
TIME-LAPLSE 1s;5s;10s;30s;1min.
Frame interval settings in the Time-Lapse mode.
MUTE ON;OFF.
Turning the sound recording function on and off.
TIME SPLIT
1min;3min;5min;OFF.
Setting the length of recorded videos with loop overwriting.
It is recommended to set the video le length at 2 minutes
because when the length of video les is minimal, the pauses
between them become minimal as well.
RECORD OVERWRITE ON;OFF.
Turning the record overwrite function on and off.
WDR ON;OFF.
Turning the dynamic range expansion function on and off.
PHOTO RESOLUTION 3M;5M;16M.
Photo resolution setting.
QUALITY High;Middle;Low.
Photo Quality setting.
Caution! Once you nish setting up the device, start recording
by pressing the OK button (15) to resume the MVR operation.
Video Setting
Photo Setting
System Setting
DELAY POWER OFF
TIME
3s;10s;1min;Never.
Set the time during which the MVR will continue recording after
the engined is turned off.
When «Never» is selected, the MVR will shut down only after the
built-in battery charge is depleted.
LCD TURN OFF 30s;1min;3min;OFF.
Setting the automatic screen timeout after a specied period.
STAMP ON;OFF.
Turning the date and time watermarks display on and off.
GPS
ON;OFF.
Turning the GPS watermarks display on and off (for Gazer
F150g).
To use GPS, please, connect power to the mount.
G-SENSOR
SENSITIVITY
High;Middle;Low;Close.
Setting G-sensor sensitivity.
G-SENSOR
CALIBRATION
Calibration of G-sensor.
Calibrate the vehicle by setting the MVR to mount with
connecting power to the mount.
LANGUAGE Menu language selection.
TIME AND DATE Date and time setting.
FORMAT Memory card formatting.
DEFAULT SETTING Reset all settings to defaults.

13
ENG
PLAYBACK IN
PASSWORD Set password protection for access to the le viewing mode.
FATIGUE DRIVING
WARNING
ON;OFF.
Enable/disable fatigue warning function (anti-sleep alarm).
T-ADAS
ON;OFF.
Turning the LDWS (Lane Departure Warning System) and FCWS
(Forward Collision Warning System) on and off.
T-ADAS CALIBRATION
Calibration of intelligent LDWS and FCWS systems.
Use «Up» and «Down» buttons to perform calibration. Align
the purple line on the display with the horizon. Press the SOS
button to start adjusting the next line. Align the red line with the
borderline between the car hood and the road.
Security Setting
Settingmenu/Viewingrecords
FIRMWARE VERSION Firmware version display.
STORAGE Select a memory card for video recording (for Gazer F150).
• You can view recorded video clips directly from the MVR menu and
stream video to an external monitor via HDMI (for Gazer F150g)
or RCA ports using an appropriate cable. To view records on a PC,
connect the MVR to your computer using a USB cable. You can
also remove the memory card from the MVR and view recorded
videos on your PC directly from the memory card.
• To access the video viewing menu, rst stop the current recording
with the OK button (15) and then press the MODE button (7)
to switch to the viewing mode. Use the «Up» (3) and «Down»
(8) buttons to navigate through video les and press the OK
button (15) to start or pause video playback. In the «viewing»
mode, the MENU button (5) is responsible for photo and video
les management submenu (deleting and protecting the current
le or all les on the memory card). Use the MODE button (7) to
exit from the viewing mode. When you nish viewing, do not forget
to resume the recording by pressing the ОК button (15).
Viewing records
Note: Gazer F150 MVR supports up to two memory cards with
copying les from one card to the other. Please, use a PC to
view copied media les.

ENG
14
Mount installation
УСТАНОВКА КРЕПЛЕНИЯ
RU
16
2
34
56
1. Перед установкой регистратора
обезжирьте поверхность лобового
стекла.
2. Соедините корпус
видеорегистратора с креплением.
3. Установите видеорегистратор на
лобовое стекло. Проложите кабель
питания, как показано на рисунке.
4. Ручкой регулировки угла наклона
объектива (16) отрегулируйте
положение объектива и задайте
направление съемки.
1
5. Oтсоедините устройство от
крепления, сдвинув корпус вниз.
6. Чтобы подключить питание к
креплению, выполните действия,
указанные на рисунке.
Prior to installing the MVR, please,
degrease the windshield surface.
Then attach the MVR frame
to the mount.
Lay the power cable as shown
in the drawing.
Use the lens tilt angle adjustment knob
(16) to adjust the lens position and set
the shooting direction.
УСТАНОВКА КРЕПЛЕНИЯ
RU
16
2
34
56
1. Перед установкой регистратора
обезжирьте поверхность лобового
стекла.
2. Соедините корпус
видеорегистратора с креплением.
3. Установите видеорегистратор на
лобовое стекло. Проложите кабель
питания, как показано на рисунке.
4. Ручкой регулировки угла наклона
объектива (16) отрегулируйте
положение объектива и задайте
направление съемки.
1
5. Oтсоедините устройство от
крепления, сдвинув корпус вниз.
6. Чтобы подключить питание к
креплению, выполните действия,
указанные на рисунке.

15
ENG
Mount installation
Recommendation: Install your MVR as high as possible (MVR
frame right next to the rear view mirror or behind it) in the
position in which the lens is directed slightly downward at an angle
of about 15°. If the MVR is set too low (on the dashboard or a
bit higher), the recorded videos will not provide full information
about the road situation as it is impossible to see the front of your
vehicle. Therefore, there is no «reference point». Recordings will be
signicantly dimmed if the device is set in parallel with the road or
at an upward angle.

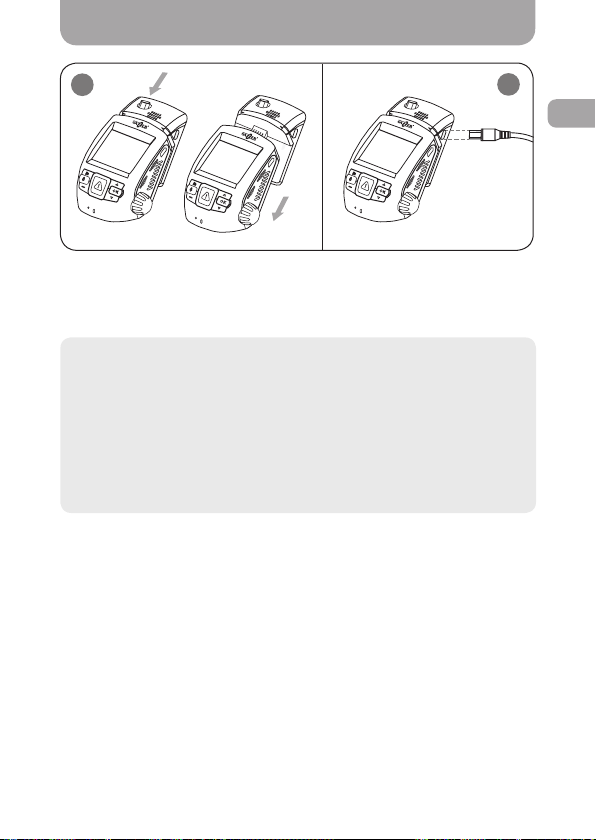

To detach the MVR from the mount,
press and hold the mount release button
(1), then slide the MVR down and detach
it from the mount.
To connect power to the mount,
follow the steps shown in drawing.
УСТАНОВКА КРЕПЛЕНИЯ
RU
16
2
34
56
1. Перед установкой регистратора
обезжирьте поверхность лобового
стекла.
2. Соедините корпус
видеорегистратора с креплением.
3. Установите видеорегистратор на
лобовое стекло. Проложите кабель
питания, как показано на рисунке.
4. Ручкой регулировки угла наклона
объектива (16) отрегулируйте
положение объектива и задайте
направление съемки.
1
5. Oтсоедините устройство от
крепления, сдвинув корпус вниз.
6. Чтобы подключить питание к
креплению, выполните действия,
указанные на рисунке.

ENG
16
Specications
Camera viewing angle
140˚
Lens aperture
F2.0
Resolution
SHD 2304x1296 (30fps),
FHD 1920x1080 (30fps),
HD 1280x720 (30fps),
WVGA 848x480 (30fps)
Video parameters
H.264, MP4
Sound recording
Yes
Mini USB interface
Yes
HDMI
Yes (for Gazer F150g)
AV-out
Yes
Display
Built-in 2”, 960x240
G-sensor Yes
WDR
Yes
GPS Yes (for Gazer F150g)
LDWS, FCWS Yes
Fatigue driving warning Yes
Time-Lapse Yes
Memory card support
2х micro SDHC, with the total storage
capacity of 128Gb (for Gazer F150);
1х micro SDHC, up to 32Gb (for Gazer
F150g).
Date and time display Yes
Auto start on power-up Yes, in the recording mode
Loop video recording Yes
Playback in password Yes, a 4-character password
Power 5 V, PSU 12-24 V from the Car’s cigarette
lighter socket
Glass mount type In the form of rain sensor
Camera rotation ability Yes, rotate the lens
Dimensions, mm 87х59х41 – without a mount;
107х59х46 – with a mount.
Weight 85 g - without a mount;
112 g - with a mount.
Recording time on 1Gb of memory
Resolution Approximate duration
2304x1296, (30fps) 7 min
1920x1080, (30fps) 8 min
1280x720, (30fps) 13 min
848x480, (30fps) 26 min

17
RU
Cодержание
1. Меры предосторожности ............................................. 18
2. Важная информация ................................................... 19
3. Комплектация ............................................................ 20
4. Элементы управления................................................. 21
5. Особенности использования ........................................ 22
6. Подготовка карты памяти............................................ 25
7. Подготовка видеорегистратора .................................... 26
8. Меню настроек ........................................................... 27
9. Просмотр записей....................................................... 28
10. Установка видеорегистратора .................................... 29
11. Технические характеристики ..................................... 31

RU
18
Поздравляем Вас с приобретением автомобильного
видеорегистратора Gazer.
Перед использованием устройства, пожалуйста, внимательно
ознакомьтесь с данным руководством.
Мерыпредосторожности
• Не используйте химические средства для очистки устройства.
Пожалуйста, используйте мягкую ткань для очистки корпуса и
линзы.
• Избегайте ударов, падений и механических повреждений
устройства.
• Не используйте и не храните устройство в очень холодных
или горячих местах.
- Температура хранения: от -20°С до +60°С
- Температура использования: от -5°С до +45°С
• В случае, если устройство в течение длительного времени
находилось в условиях низкой температуры, перед
подключением и запуском обязательно прогрейте его до
температуры эксплуатации.
• Не пытайтесь ремонтировать видеорегистратор самостоятель-
но. В случае возникновения каких-либо поломок, обратитесь
к продавцу или в сервисный центр.
• Завод-производитель и продавец не несут ответственности за
убытки, а также упущенную выгоду, возникшие в результате
использования или потери информации, полученной с
помощью данного видеорегистратора.
• Завод-производитель оставляет за собой право изменения
технических характеристик и/или комплектации без
предварительного уведомления об этом.
Мерыпредосторожности

19
RU
Важнаяинформация
•Не вставляйте и не вынимайте SD карту памяти при
включенном питании либо при работе устройства от
аккумулятора. Это может привести к нарушениям в работе
видеорегистратора. Перед установкой или извлечением
карты памяти убедитесь, что питание устройства
отключено не менее 30 секунд назад, а все индикаторы
видеорегистратора отключились не менее 10 секунд назад.
•Перед началом эксплуатации обязательно совершите
точную настройку даты и времени.
•Для корректной работы видеорегистратора интервал
времени между нажатием кнопок управления должен
составлять не менее 0,5 секунды.
•После подключения кабеля питания устройства не
отключайте питание не менее 20 секунд. Это необходимо
для корректной работы схемы заряда аккумулятора.
Если после запуска двигателя, при подключении кабеля
питания, видеорегистратор не перешел в режим записи,
отключите кабель питания на 10 секунд, затем подключите
его снова.
•Используйте перезагрузку видеорегистратора с помощью
нажатия кнопки сброса RESET в следующих случаях:
- после подключения кабеля питания индикатор питания
неактивен;
- устройство не переходит из режима ожидания в режим
записи или управления;
- работа устройства не соответствует заданным режимам.
•Внимательно следите за заполнением карты памяти
защищенными от циклической перезаписи файлами (по
G-cенсору или кнопкой PROTECT), чтобы избежать потери
защищенных файлов или остановки записи.
Внимание!

RU
20
Комплектация
*С встроенным GPS модулем для модели Gazer F150g.
Видеорегистратор
Gazer F150/F150g
Крепление на
лобовое стекло
автомобиля*
Автомобильный
блок питания от
автомобильной
розетки
(с встроенным
преобразователем
до +5В)
Руководство
пользователя
Gazer MVR F121 Gazer micro SDHC
memory card + adapter
User Manual
Vacuum windshield
mount
3M scotch tape
windshield mount
Mounting clips kit
Package contents
Cigarette lighter
socket power unit
(with an integrated +
5V converter)
USB cable for
connection to the
car’s power unit
using the cigarette
lighter socket (with
an angular mini USB
connector)
USB-cable for PC
connection (with a
direct mini USB
connector)
Карта памяти
Gazer
micro SDHC
+ Adapter
(опционально)
