GE AIR C18 Service manual

GE Consumer & Industrial Appliances
Service Manual & Installation Manual
Split System Air Conditioner

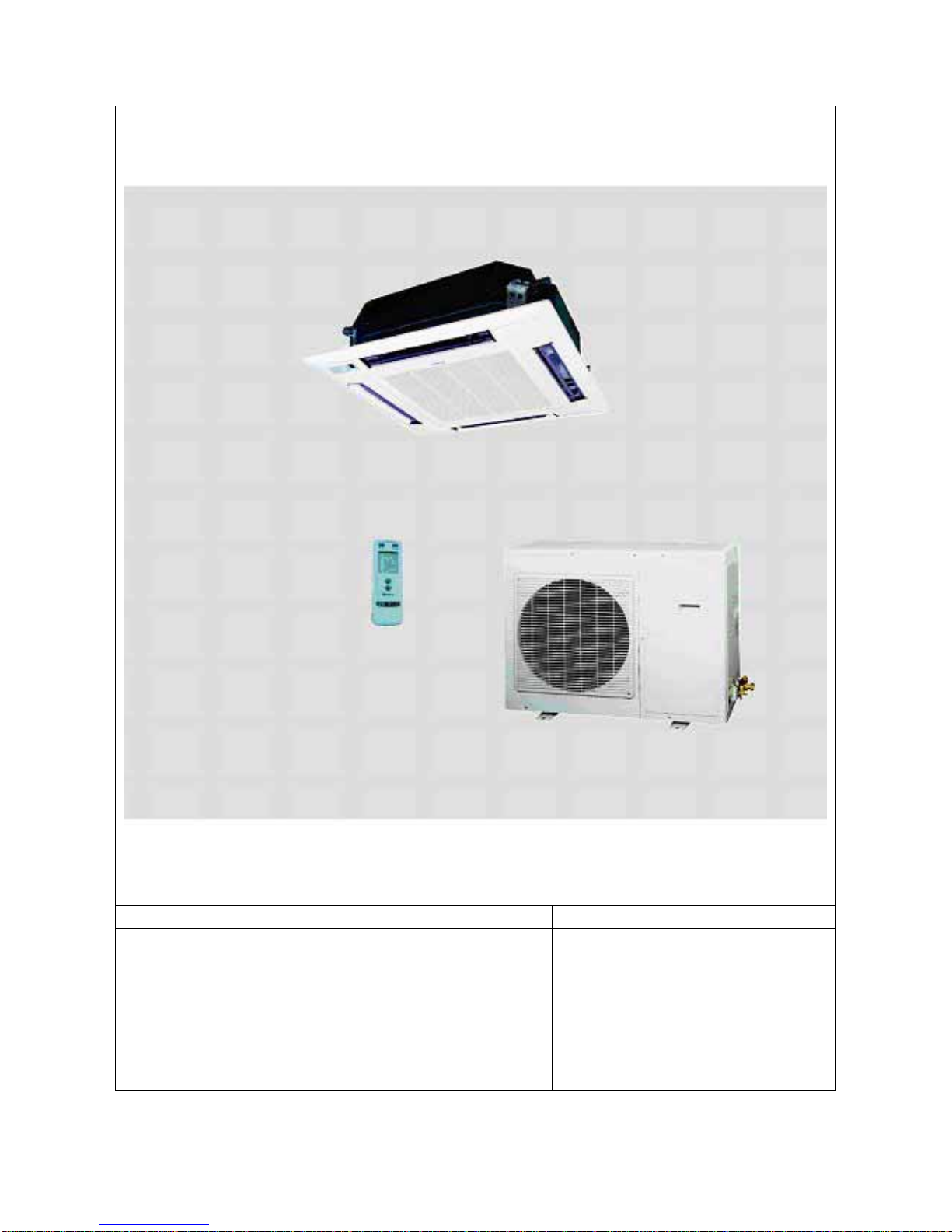

Model numbers:
GE AIR C18

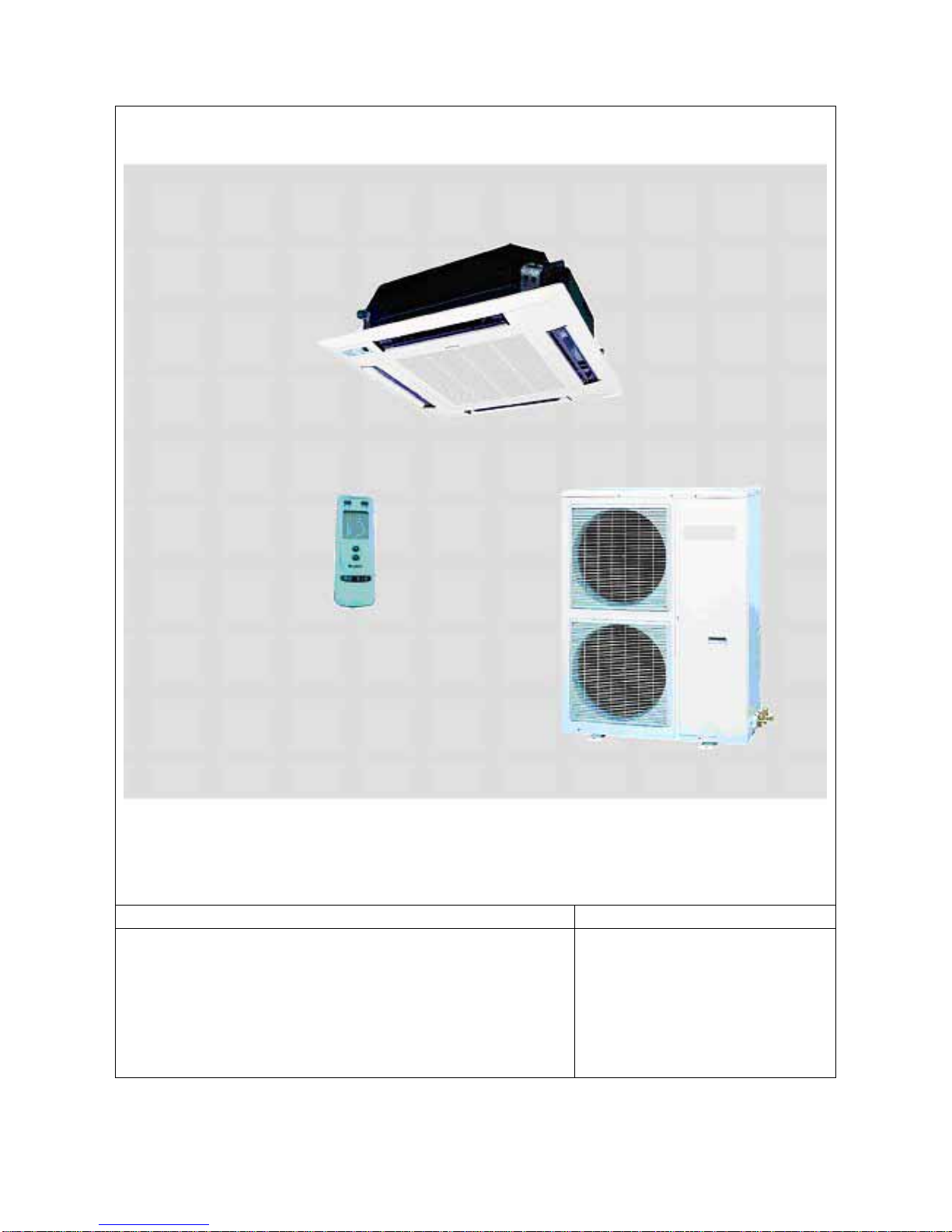

GE AIR C24
GE AIR C34
GE AIR C41

—1 —

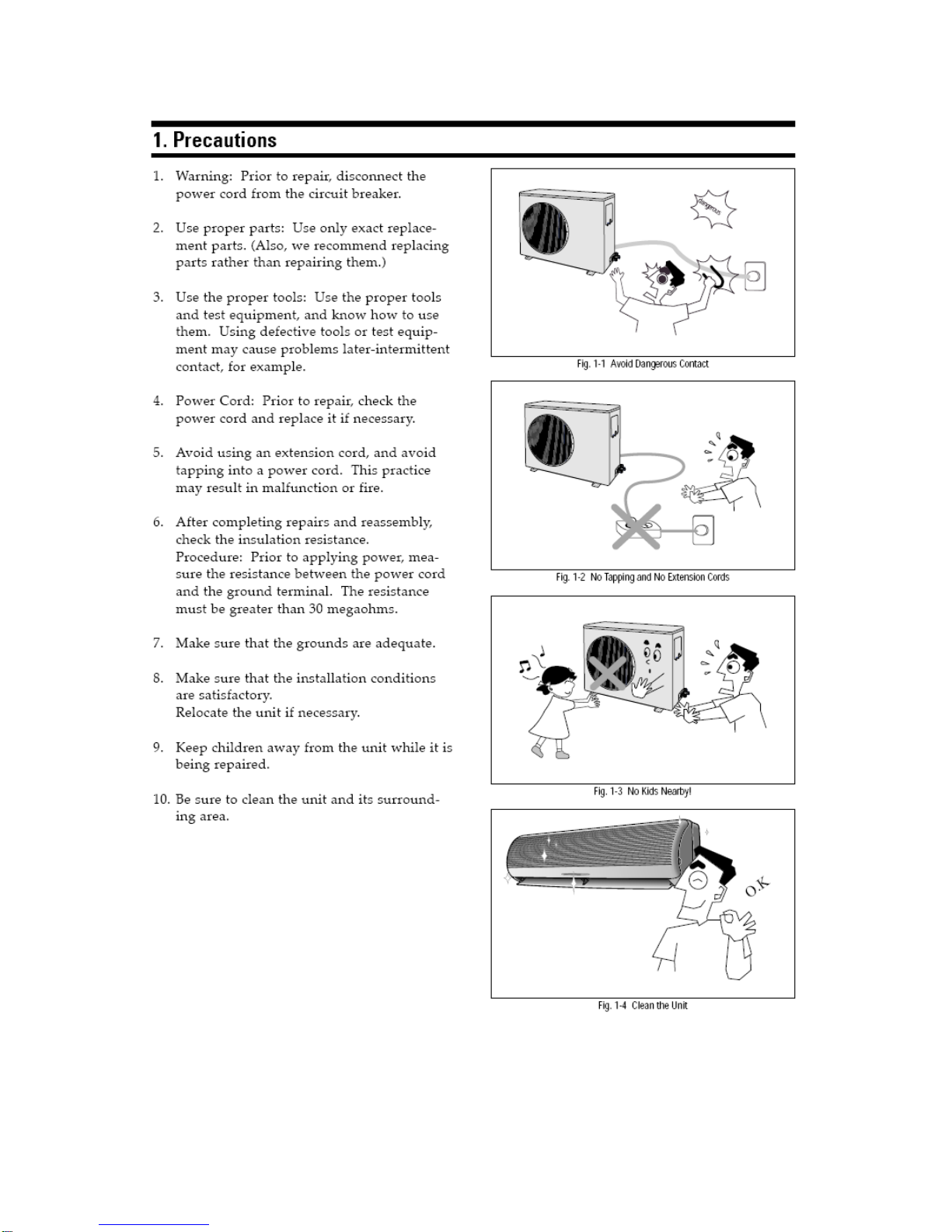

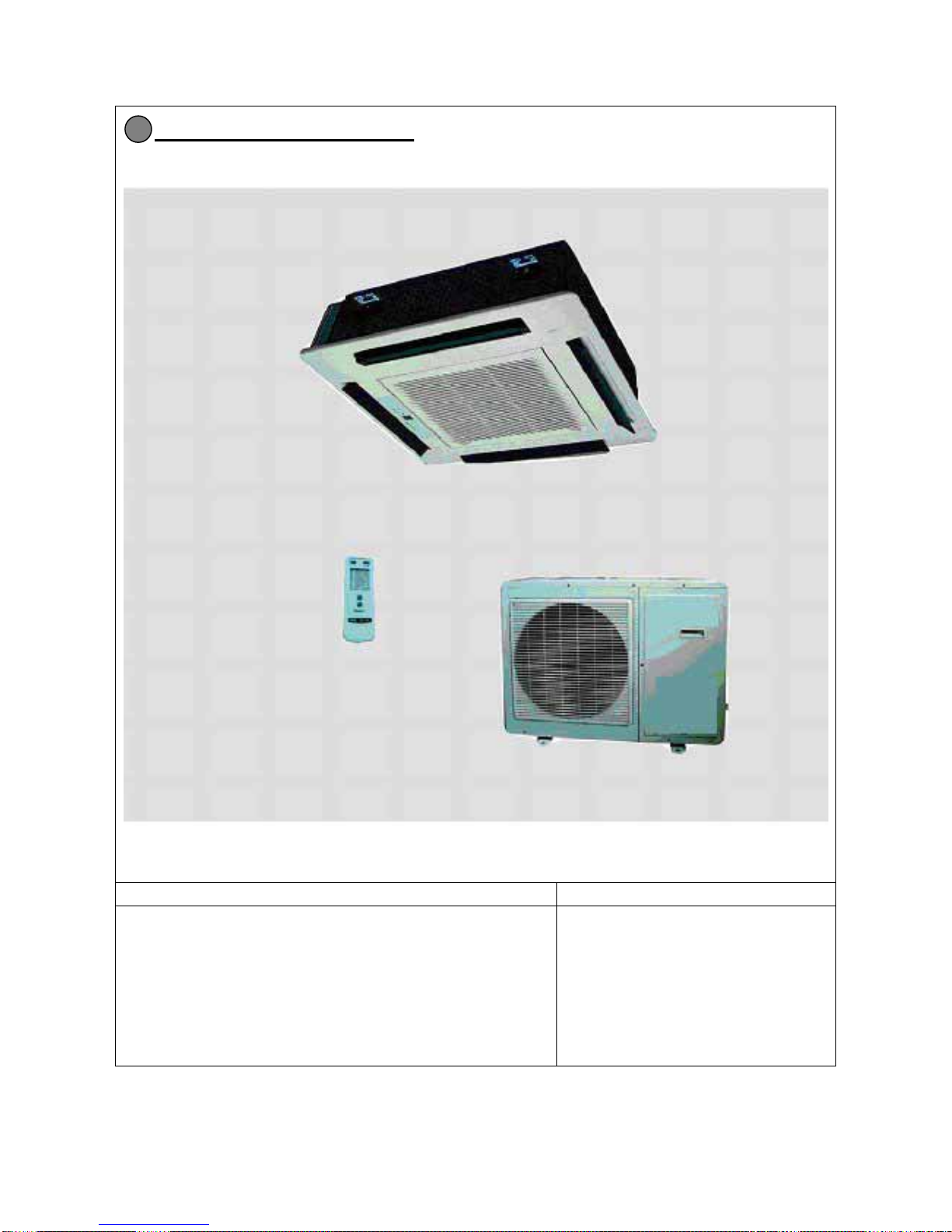

Introduction and Features
Model Remarks
GE AIR C18 (Communication Seat-and-Ceiling Mounted Unit)
1PH 230V 50Hz R407C
1

—2 —
Model Remarks
GE AIR C24(Communication Ceiling Mounted Unit) 1PH 230V 50Hz R407C

—3 —
Model Remarks
GE AIR C34 (Communication Ceiling Mounted Unit)
GE AIR C41 (Communication Ceiling Mounted Unit)
3PH 380V 50Hz R407C

—4 —
Specifications and Technical Parameters
Model GE AIR C18 GE AIR C24
Function Cooling Heating Cooling Heating
Power (Phase-Frequency-Voltage) 1Ph 50Hz 230V 1Ph 50Hz 230V
Total Capacity (W) 5000 5500 7000 7500
Nominal Power (W) 2150 3200 3200
Rated power (W) 10 2250 4032 3863
Rated current (A) 5000 9.5 19.75 19.18
Air flow volume （m3/h）680 1180
Dehumidify volume (L/h) 2.9 4
C.O.P/EER (W/W) 2.325 2.444 2.19 2.34
Model GE AIR C18 IN GE AIR C24 IN
Fan motor speed(r/min)(H/M/L) 820/720/620 600/550/500
Output power of motor(W) 11 35
Fan Motor Capacitor 2.5 3.5
Fan type-piece Centrifugal Fan—1 Centrifugal Fan—1
Diameter-length(mm) φ283-148 φ450X140.5
Evaporator Aluminum fin-copper tube Aluminum fin-copper tube
Pipe diameter φ9.52 φ7
Row-fin distance (mm) 2-1.5 2-1.5
Extended area of heat exchange (I×H×L) 0.203 0. 301
Swing motor model MP35EA SM008
Power of motor (W) 4 3
Fuse (A) PCB3.15ATransformer 0.2A PCB3.15ATransformer 0.2A
Sound (pressure level) dB(A) 47.8/44.7/40.4 46.2/44.3/41.8
Dimension W/D/H)(mm) 600X600X230 840X840X240
Dimension of package (W/D/H)(mm) 848X678X310 970X970X310
Indoor unit
Net weight/gross weight (kg) 20/27 30/38
Model GE AIR C18 OUT GE AIR C24 OUT
Compressor Model CHW33TC4-U C-RN220H5B
Compressor Type Rotary Type Rotary Type
LRA(A) 71/75/78
Compressor Overload Protector Type Internal Inherent Protector Internal Inherent Protector
Throttle Method Capillary Capillary
Starting Method Capacitor Capacitor
Range of working temperature (℃) -7℃≤T≤43℃-7℃≤T≤43℃
Condenser Aluminum fin-copper tube Aluminum fin-copper tube
Pipe diameter φ9.52 Φ9.52
Row-fin distance (mm) 2-1.8 2-1.8
Extended area of heat exchange (I×H×L) 0.308 0.589
Fan motor speed(rpm) 780/620/380 780/600/460
Output power of motor(W) 60 60
Operating capacitor(uF) 3 3
Air Flow Volume of Outdoor Unit 2700
Fan type-piece Axial Flow Fan—1 Axial Flow Fan—1
Fan Diameter(mm) Ф450 Ф450
Defrosting Method Auto Auto
Sound (pressure level) dB(A) ≤59 ≤60
Dimension W/D/H)(mm) 950X700X412 950X840X412
Dimension of package (W/D/H)(mm) 1100X755X450 1100X950X450
Net weight/gross weight (kg) 65/70 75/80
Outdoor
Unit
Refrigerant/Refrigerant Charge (kg) R407C/2.0 R407C / 2.8
Length 5 5
Liquid Pipe (mm) Φ9.52(3/8”)Φ9.52(3/8”)Outer
Diameter Gas Pipe (mm) Φ16(5/8”)Φ16(5/8”)
Height (m) 5 5
Connecting
Pipe Max.
Distance Length (m) 10 10
2

—5 —
Model GE AIR C34 GE AIR C41
Function Cooling Heating Cooling Heating
Power (Phase-Frequency-Voltage) 3Ph 50Hz 380-400V 3Ph 50Hz 380V
Total Capacity (W) 10000 10500 12000 12500
Nominal Power (W) 4230 4335 4900 4800
Rated power (W) 5100 4600 6598 5900
Rated current (A) 9.7 9.2 12.08 10.53
Air flow volume （m3/h）1860 1860
Dehumidify volume (L/h) 7 70
C.O.P/EER (W/W) 2.4 2.55 2.45 2.6
Model GE AIR C34 IN GE AIR C41 IN
Fan motor speed(r/min)(H/M/L) 610/560/510 710/660/610
Output power of motor (W) 50 60
Fan Motor Capacitor 4.5 4.5
Fan type-piece Centrifugal Fan—1 Centrifugal Fan—1
Diameter-length (mm) φ476X169.5 φ476X169.5
Evaporator Aluminum fin-copper tube Aluminum fin-copper tube
Pipe diameter Φ7 φ7
Row-fin distance (mm) 3-1.6 3-1.6
Extended area of heat exchange (I×H×L) 0.335 0.559
Swing motor model SM008 SM008
Power of motor (W) 3 3
Fuse (A) PCB3.15A Transformer 0.2A PCB3.15A Transformer 0.2A
Sound (pressure level) dB(A) ≤51.2/50.3/48.4 ≤54(50.4/47.8/46.3)
Dimension W/D/H)(mm) 840X840X320 840X840X320
Dimension of package (W/D/H)(mm) 970X970X394 970X970X394
Indoor unit
Net weight/gross weight (kg) 38/46 38/46
Model GE AIR C34 OUT GE AIR C41 OUT
Compressor Model C-SB303H8A C-SB263H3A
Compressor Type Rotary Type Rotary Type
LRA (A) 45 48
Compressor Overload Protector Type Internal Inherent Protector Internal Inherent Protector
Throttle Method Capillary Capillary
Starting Method Capacitor Capacitor
Range of working temperature (℃) -7℃≤T≤43℃-7℃≤T≤43℃
Condenser Aluminum fin-copper tube Aluminum fin-copper tube
Pipe diameter φ9.52 Φ9.52
Row-fin distance (mm) 2-1.8 2-1.8
Extended area of heat exchange (I×H×L) 0.882 0.883
Fan motor speed (rpm) 840/ 740/640 840/350/200
Output power of motor (W) 68 60
Operating capacitor (uF) 3.5 3.5
Air Flow Volume of Outdoor Unit 4500 4500
Fan type-piece Axial Flow Fan—1 Axial Flow Fan—1
Fan Diameter (mm) Ф450 Ф450
Defrosting Method Auto Auto
Sound (pressure level) dB(A) ≤62 ≤62
Dimension W/D/H)(mm) 950X1240X412 950X1240X412
Dimension of package (W/D/H)(mm) 1110X1295X450 1100X1295X450
Net weight/gross weight (kg) 112/123 112/123
Outdoor Unit
Refrigerant/Refrigerant Charge (kg) R407C/3.4 R407C/3.8
Length 5 5
Liquid Pipe (mm) Φ12 Φ12Outer
Diameter Gas Pipe (mm) Φ19 Φ19
Height (m) 5 5
Connecting
Pipe
Max.
Distance Length (m) 10 10
Parameter data of specifications in the form are subject to change without prior notice. Refer to
the actual data specified on the nameplate of the unit.

—6 —

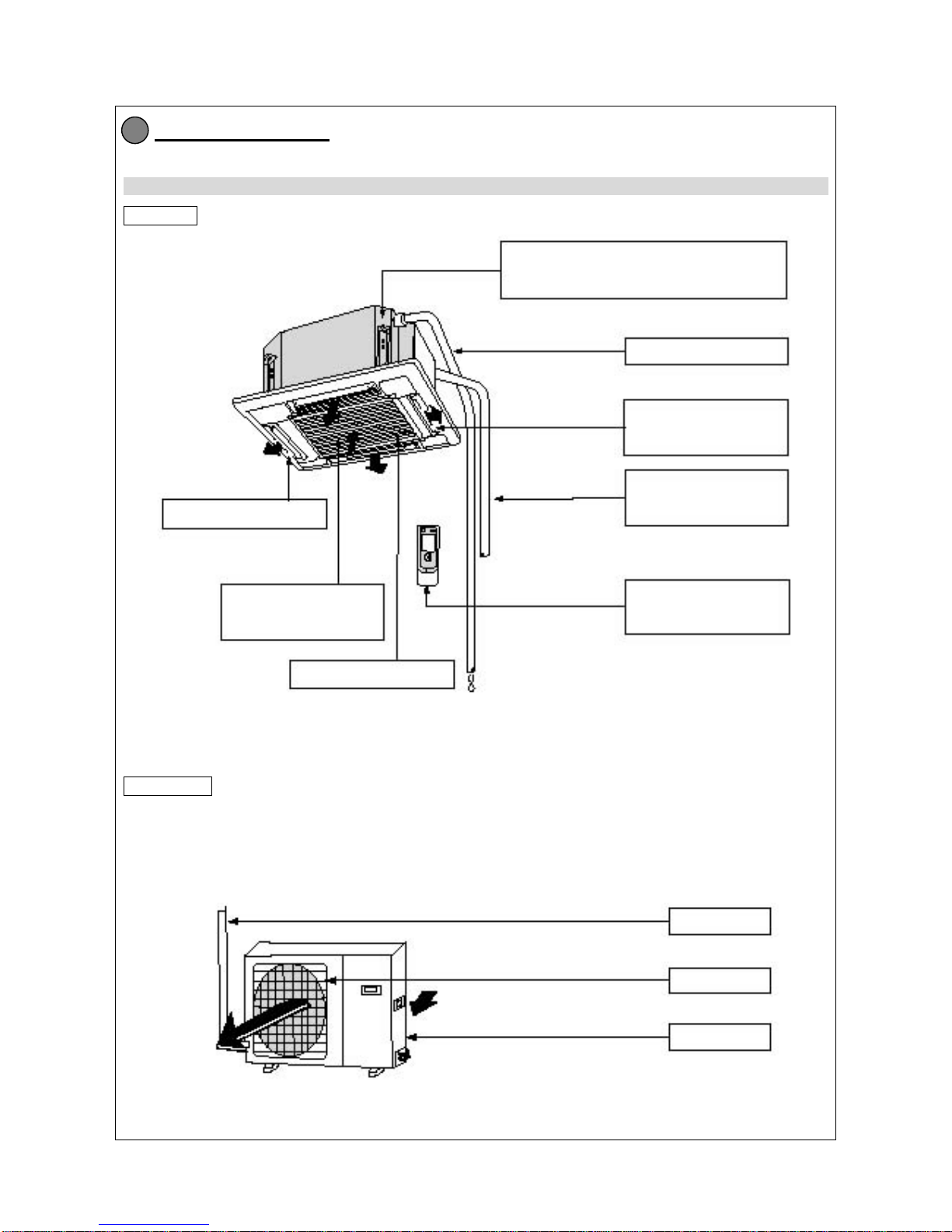

Component Name
ApplicabletoGEAIRC18&C24
Indoor unit
Outdoor Unit
3
The drainage device (built-in type) will
discharge condensing water out of the unit
under cooling mode.
Air filter, air cleaner
(
within air inlet
g
rill
)
A
i
r
outlet
A
ir inlet grill
Drainage pipe
Guide louver
(within air outlet)
Connecting pipe
Remote controller
Connecting pipe
A
ir outlet
A
ir inlet

—7 —
ApplicabletoGEAIRC34&C41
Indoor unit
Outdoor Unit
The drainage device (built-in type) will
discharge condensing water out of the unit
under cooling mode.
Air filter, air cleaner
(
within air inlet
g
rill
)
A
ir outlet
A
ir inlet grill
Drainage pipe
Guide louver
(within air outlet)
Connecting pipe
Remote controller
Connecting pipe
A
ir outlet
A
ir inlet
A
ir outlet

—8 —
Overall and Installing Dimension

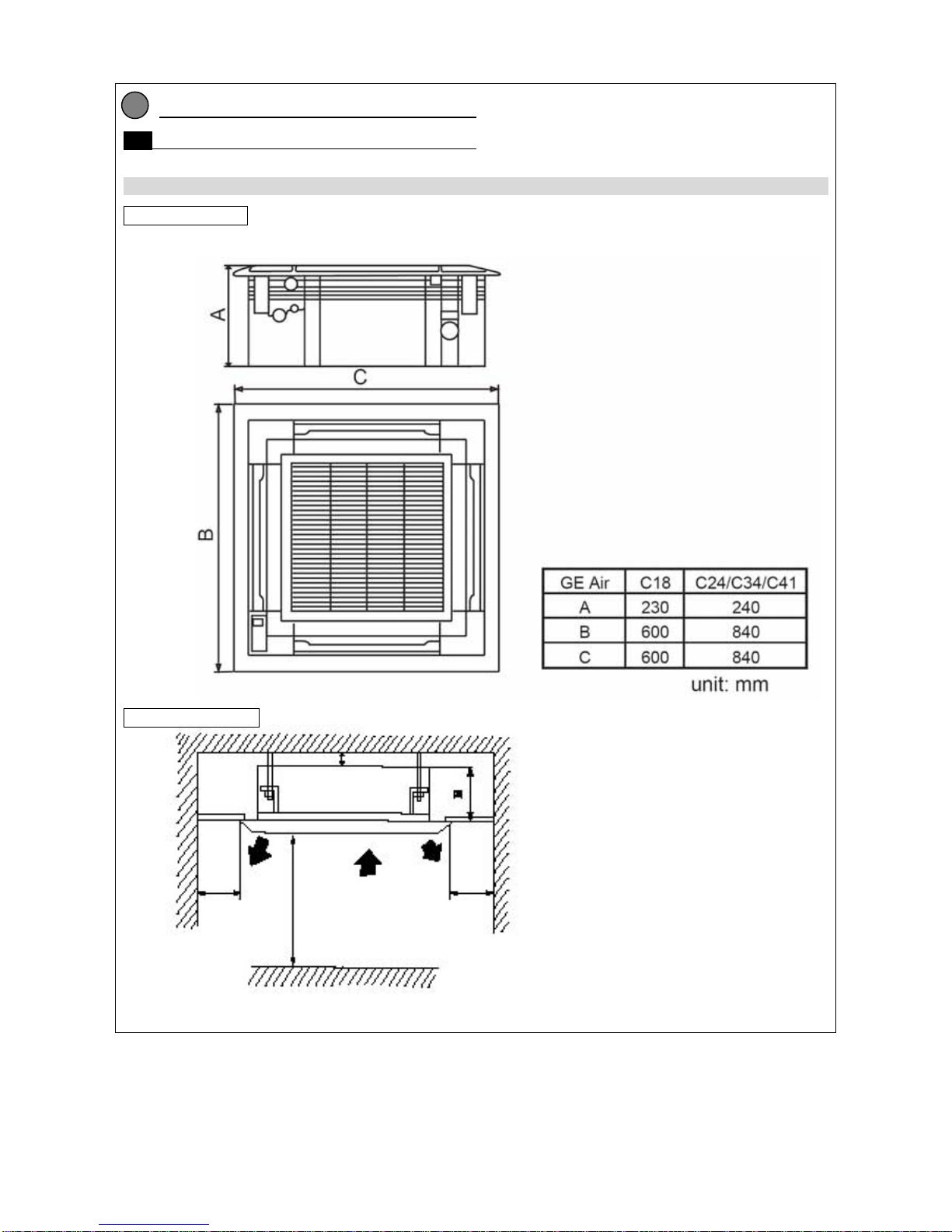

4.1 Overall and Installing Dimension of Indoor Unit
ApplicabletoGEAIRC18IN
Overall dimension
Installing dimension
Over 1500MM Over 1500MM
Floor
4
Over 1800MM

—9 —
Applicable to GE AIR C24, C34 and C41 IN
Overall dimension
Installing dimension
Over 1500MM Over 1500MM
Floor
Over 1800MM

—10 —
4.2 Overall and Installing Dimension of Outdoor Unit
ApplicabletoGEAIRC18OUT
Unit: mm
Over 600
Bolt
Nut
Wrench

—11 —

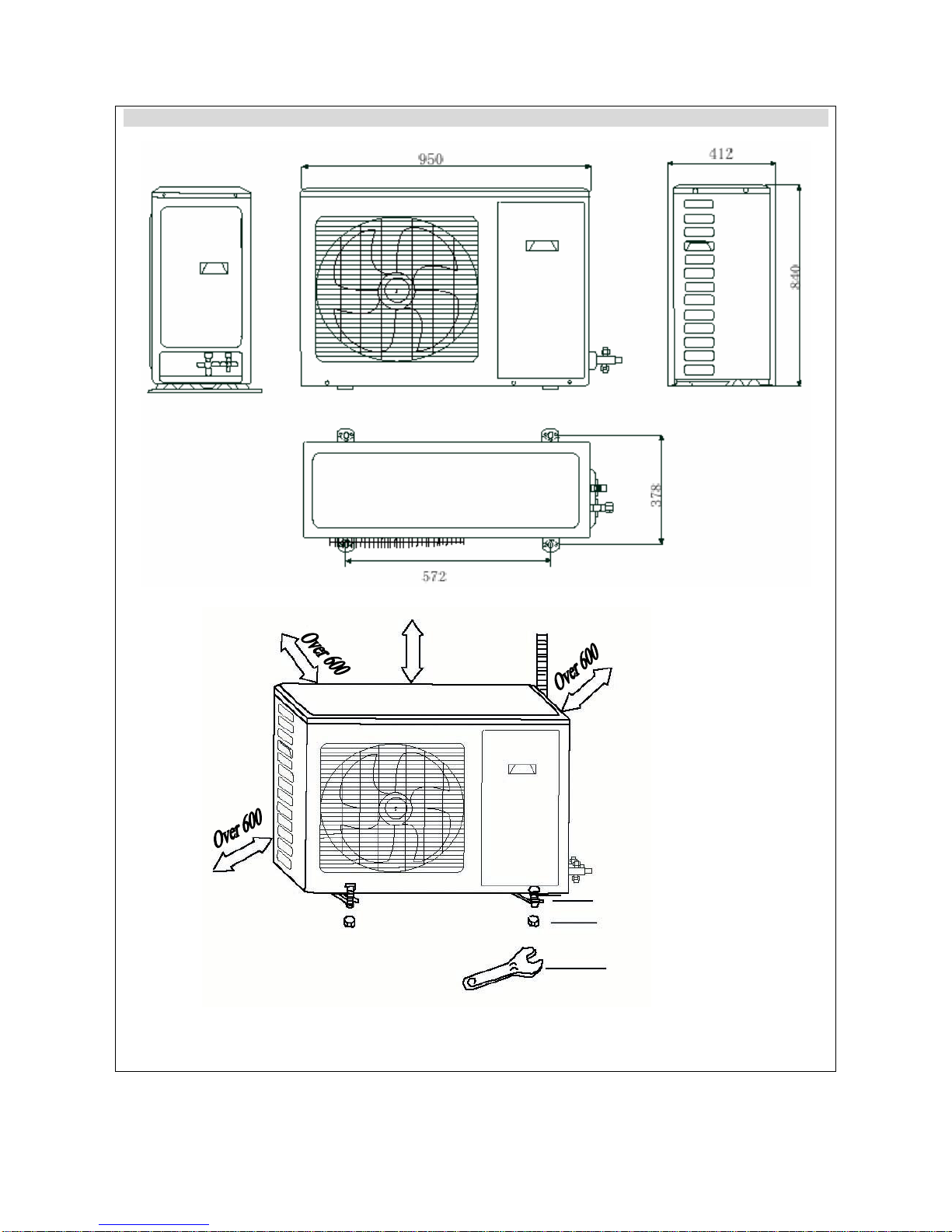

ApplicabletoGEAIRC24OUT
Unit: mm
Over 600
Bolt
Nut
Wrench

—12 —

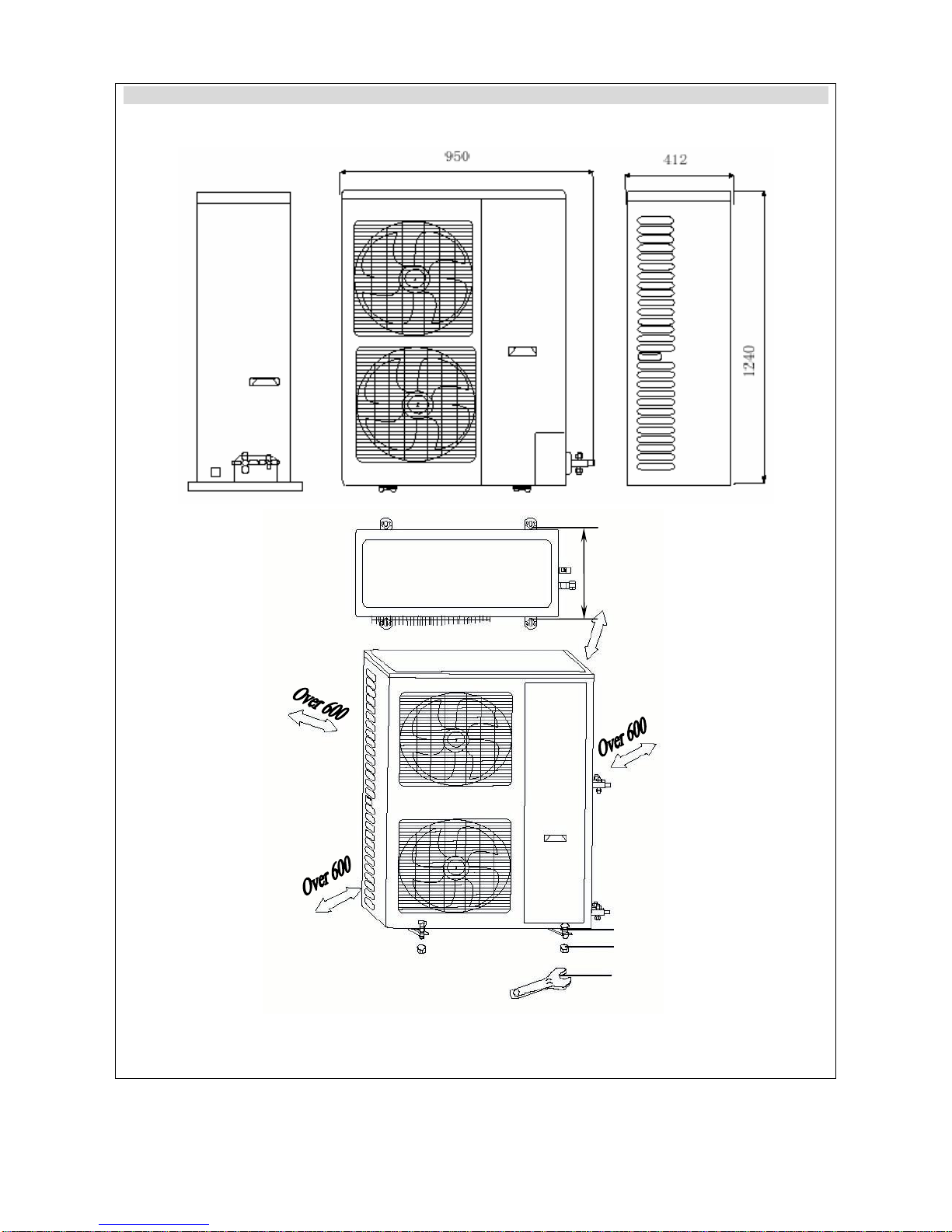

ApplicabletoGEAIRC34&C41OUT
378
Unit: mm
Over 600
Bolt
Nut
Wrench

—13 —

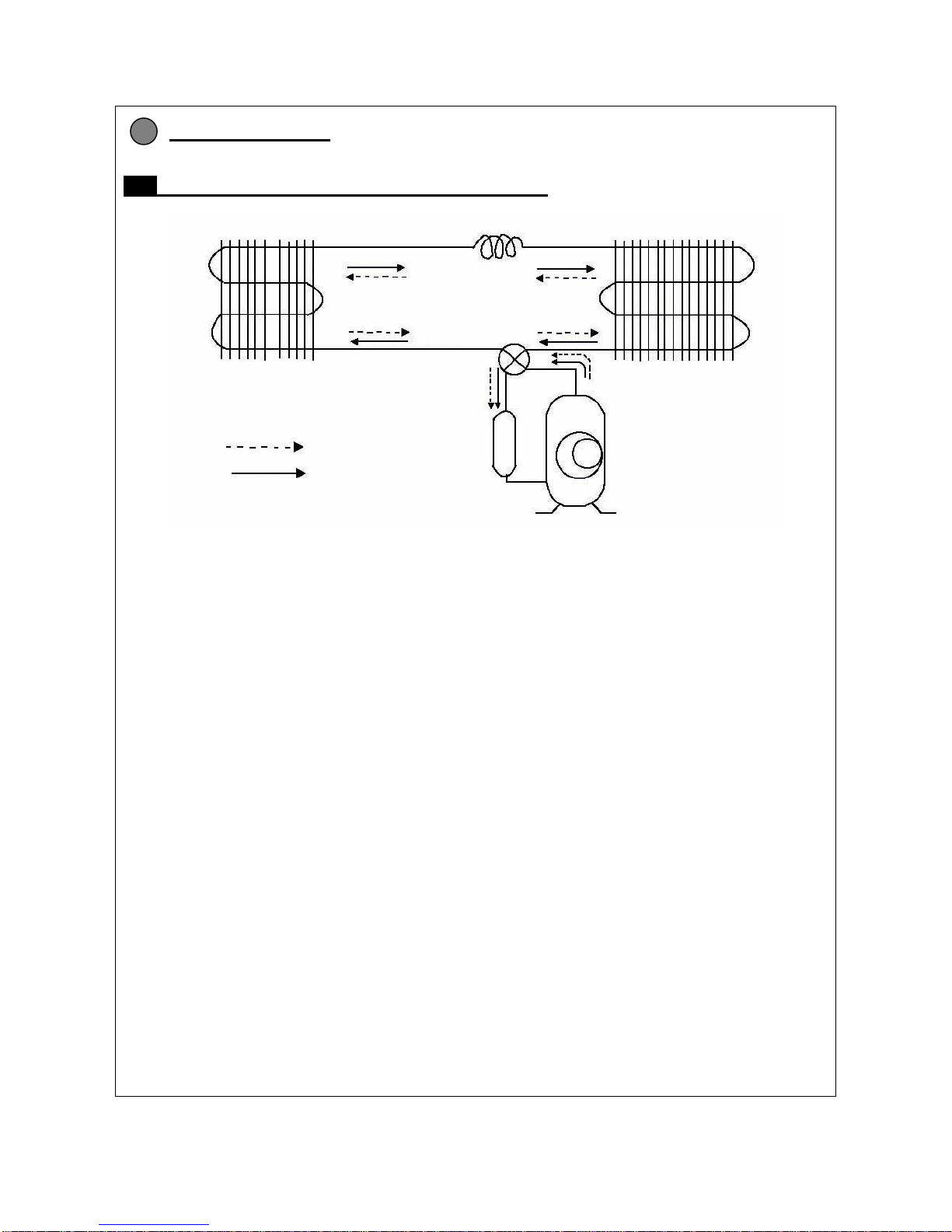

System Diagram
5.1 System Diagram for Cooling-and-Heating Unit
Capillary
4-way valve
Evaporator Condenser
Cooling Gas-liquid separator
Heating Compressor
Switch on the power to start the unit. Low-pressure refrigerant vapor from evaporator is absorbed into
the compressor, where it is compressed into high-temp. and high-pressure gas. The gas refrigerant is
then diverted to condenser, where it is liquidized after heat exchange with outdoor air. After that, the
liquidized refrigerant flows through capillary for decrease of temperature and pressure and then enters
into evaporator, where it becomes low-temp. and low-pressure refrigerant vapor after heat exchange
with indoor air to be regulated. This process is repeated in cycle to achieve the purpose of cooling.
(Under heating mode, the 4-way valve will change the flow of refrigerant, so that the condenser absorbs
heats and the evaporator gives out heats, thus to achieve the purpose of heating).
5

—14 —

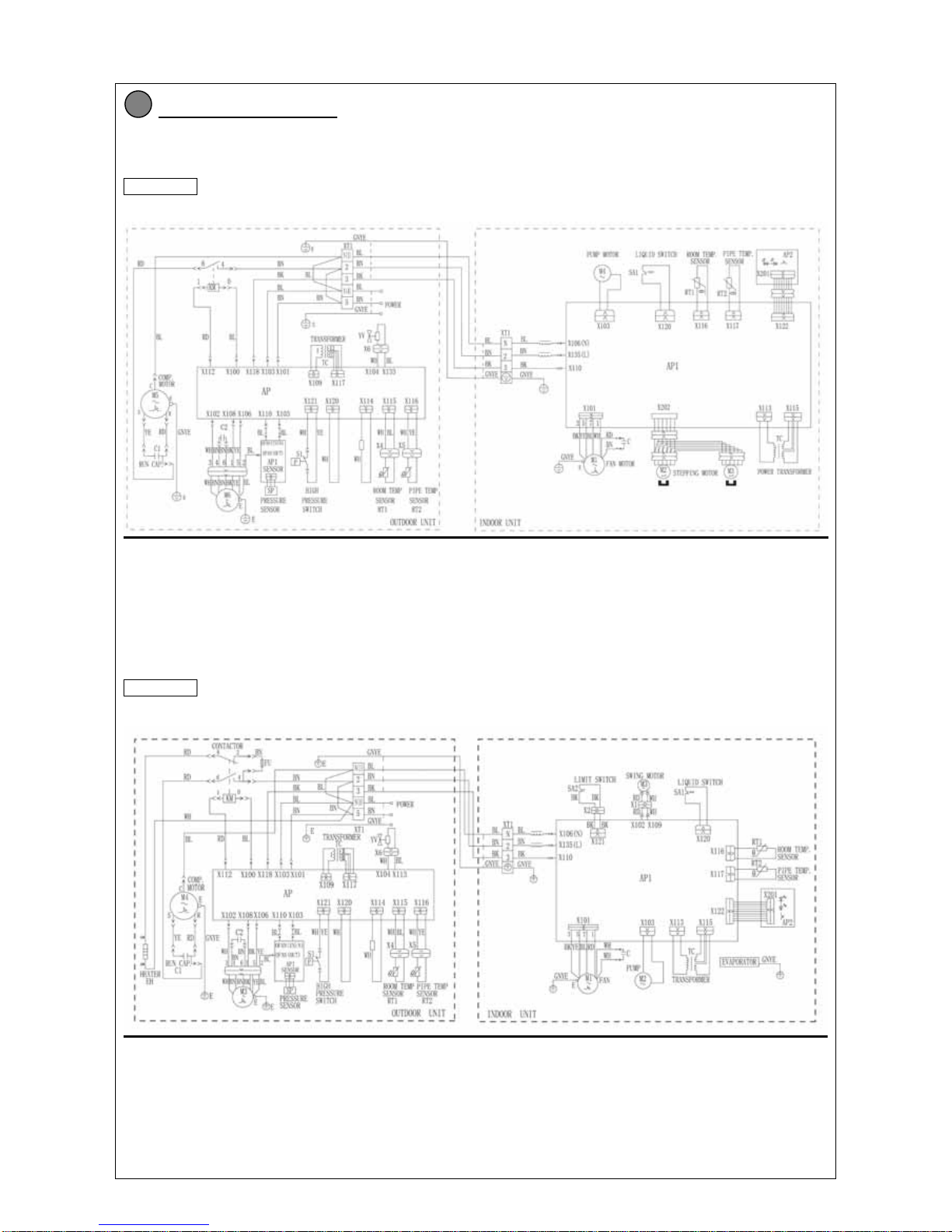

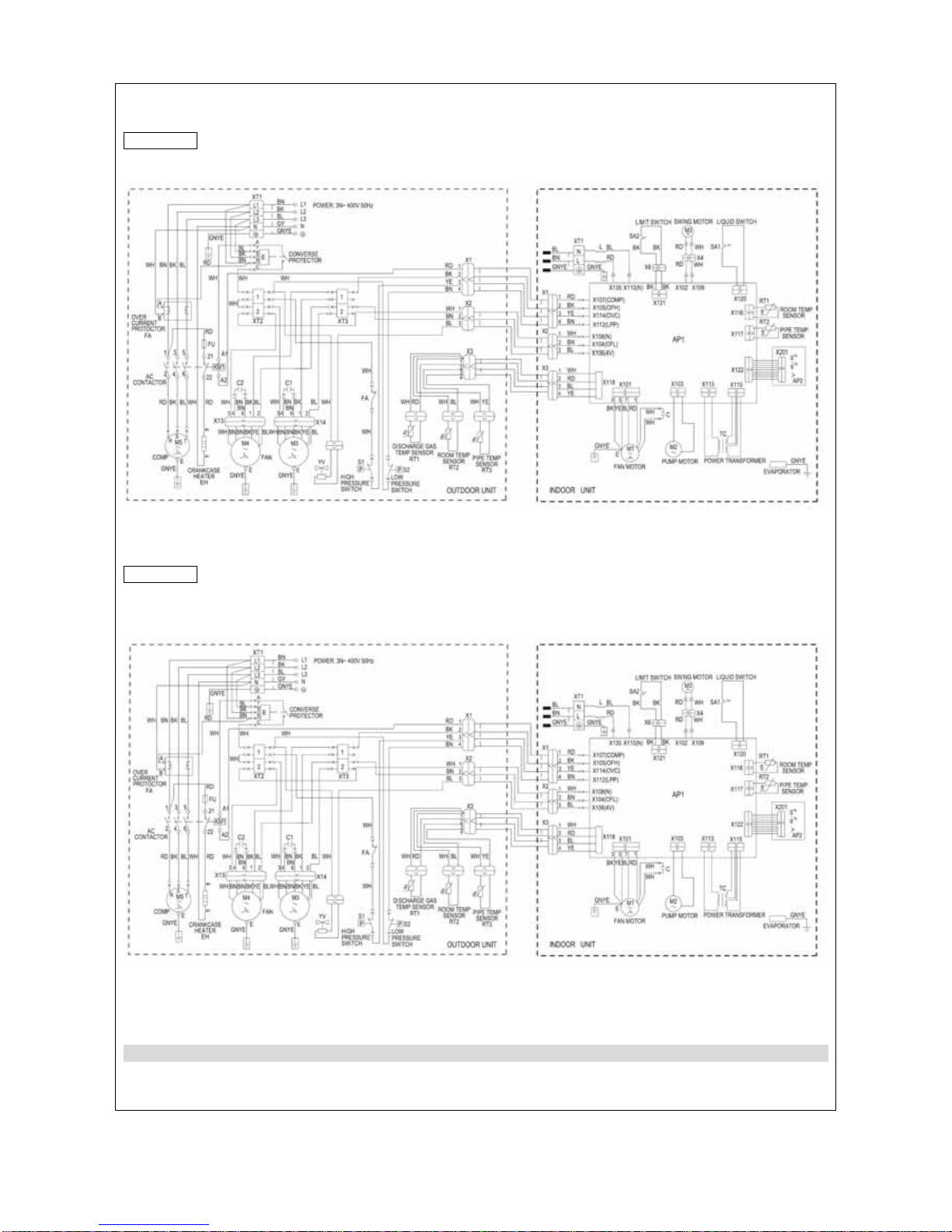

Electrical Diagram
GE AIR C18
GE AIR C24
6

—15 —
GE AIR C34
GE AIR C41
In case of any change in the Electrical Diagram shown above, please follow the drawing on cabinet.

—16 —
Controller and Remote Controller Function Manual and Operating Instructions
7.1 Controller and Remote Controller Function Manual 1
7.1.1 Temperature Parameters
◆Indoor preset temperature (Tpreset) ◆Indoor ambient temperature (Tamb.) ◆Outdoor condenser temperature (Tcond.)
7.1.2 Basic Functions
Under any mode, the compressor will keep running within 6 minutes once it is started (except under overfull protection).
Once stopped, it cannot be restarted until after 3-minute delay. When outdoor fan is started, run at high speed for 8
seconds and then switch to desired speed.

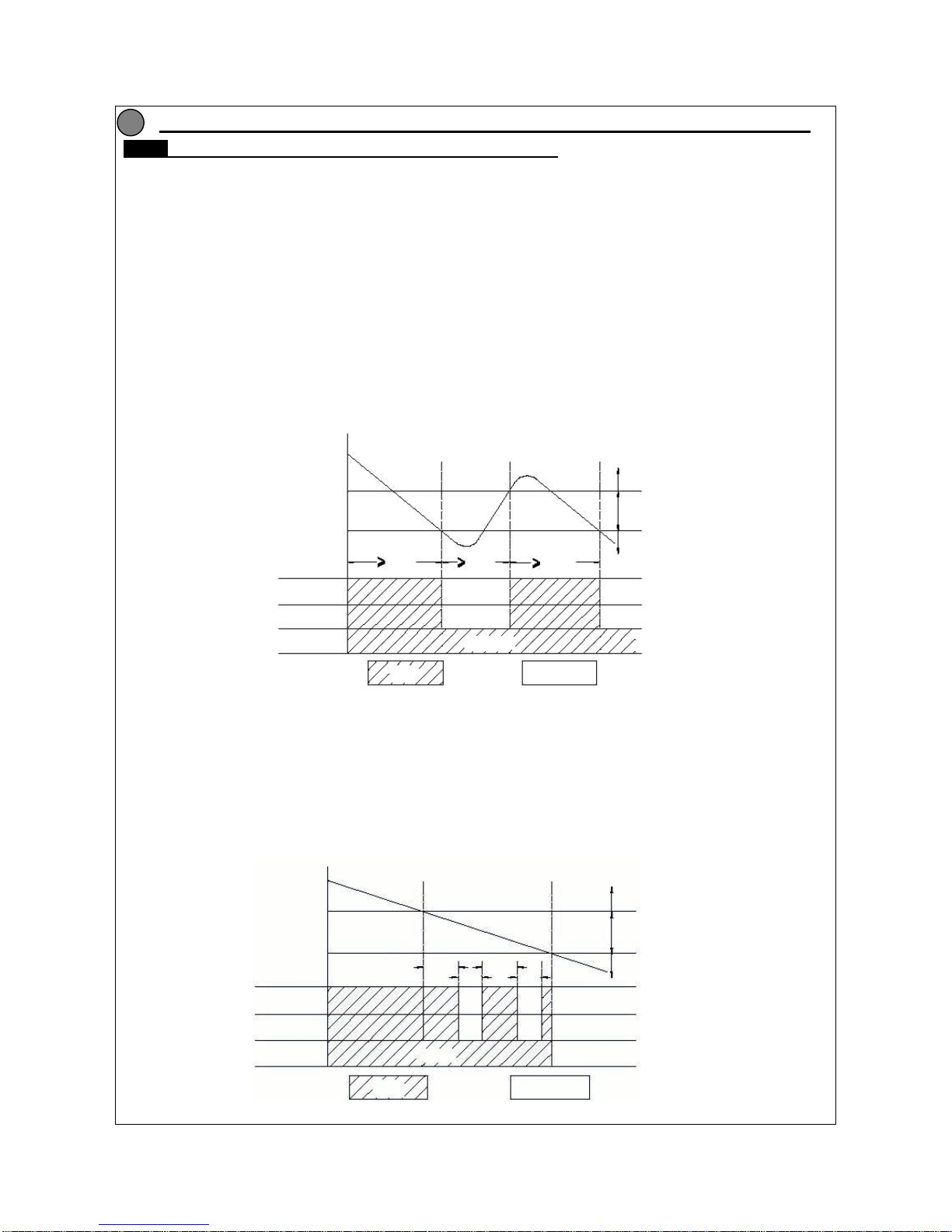

7.1.2.1 Cooling Mode
7.1.2.1.1 Cooling Conditions and Process
When Tamb. ≥T
preset +1℃, the unit will run under cooling mode, in which case the compressor and outdoor fan will be
started and the indoor fan will run at low speed.
When Tamb≤Tpreset -1℃, the unit will be stopped under cooling mode, in which case the compressor and outdoor fan will
be stopped and the indoor fan will run at preset speed.
When Tpreset -1℃<Tamb.< Tpreset +1℃, the unit will maintain its original operating status.
¾Under this mode, the switchover valve will be de-energized and the temperature can be set within a range from 16 to
30℃.
7.1.2.2 Dehumidifying Mode
7.1.2.2.1 Working Conditions and Process of Dehumidifying
When T amb.> Tpreset +2℃, the unit will run under cooling mode, in which case the compressor and outdoor fan will be
started and the indoor fan will run at low speed.
When Tpreset -2℃≤Tamb.≤Tpreset +2℃, the compressor, indoor unit and outdoor fan will run 6 minutes and stop 4 minutes
in repeated cycle, while the indoor fan will run at low speed.
When Tamb.< Tpreset -2℃, the compressor, outdoor fan and indoor fan will be stopped.
¾Under dehumidifying mode, the temperature can be set within a range from 16 to 30℃.
7

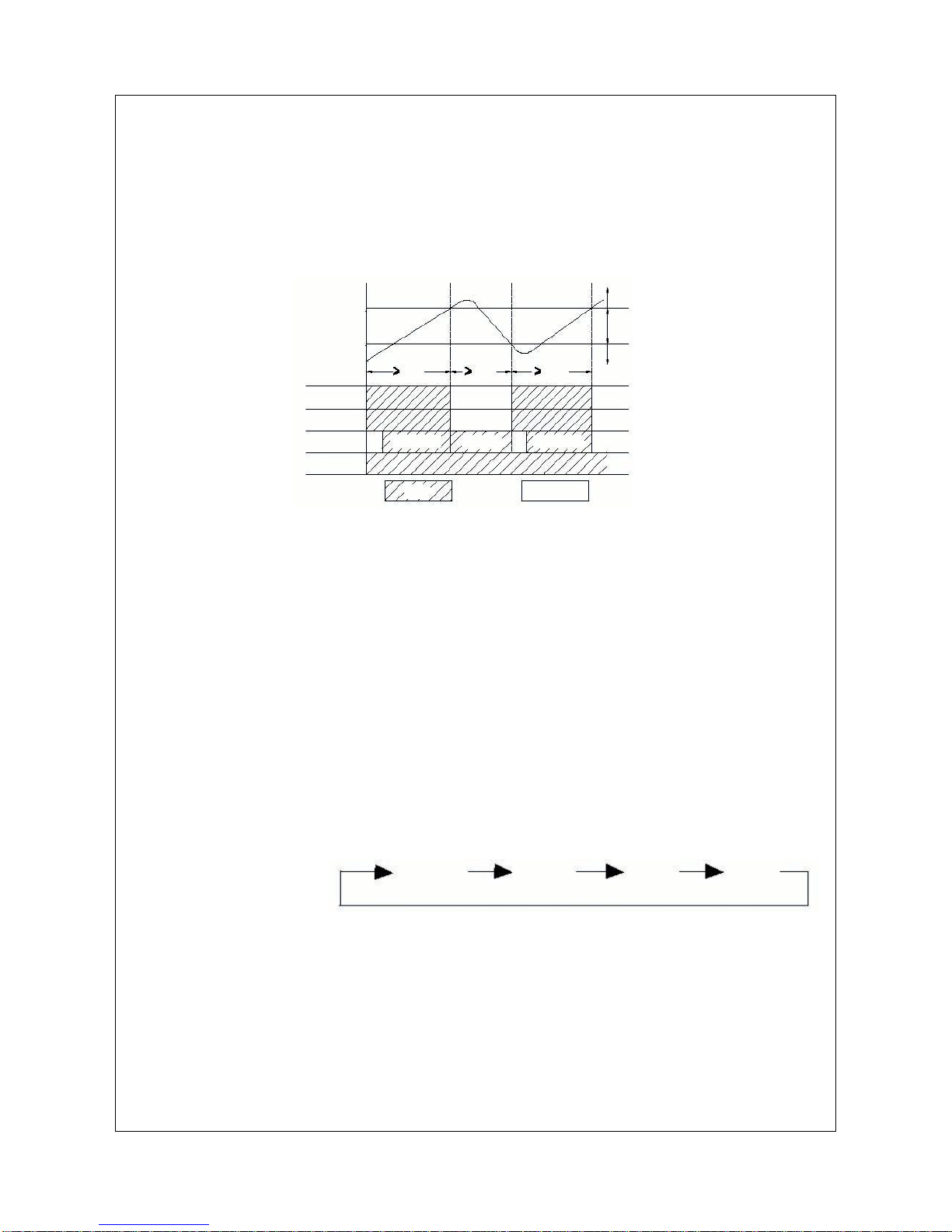

Tamb
Tpreset +1℃
Tpreset -1℃
Start cooling
Original operating status
Stop cooling
6 min.
Preset speed
Run Stop
6 min.
3 min.
Tamb
Tpreset +2℃
Tpreset -2℃
Cooling
Stop cooling
Run Stop
Low speed
Dehumidifying
Compressor
Indoor fan
Outdoor fan
Compressor
Indoor fan
Outdoor fan
6 min. 6 min.
4 min. 4 min.

—17 —
Auto Speed Low Speed Medium Speed High Speed
7.1.2.3 Heating Mode
7.1.2.3.1 Heating Conditions and Process
When T amb.≤Tpreset +1℃, the unit will run under heating mode, in which case the valve, compressor, outdoor fan and
indoor fan will run at preset speed under preset cold air prevention conditions.
If Tamb.≥Tpreset +3℃, the compressor and outdoor fan will be stopped, the valve is still energized and the indoor fan will
run at low speed.
When Tpreset +1℃<Tamb.< Tpreset +3℃, the unit will maintain its original operating status.
¾Under heating mode, the temperature can be set from 16 to 30℃.
¾If the unit is switched off under heating mode or switched from heating mode to another mode, the 4-way valve will
be de-energized 2 minutes after the compressor is stopped.
7.1.2.3.2 Defrosting Conditions and Process
When the condenser is detected to have frost, the system will enter into defrosting status and the guide louver will be
adjusted to level position. The auxiliary heater (if any) will be stopped firstly. After 1-minute lag, the compressor, indoor fan
and outdoor fan will be stopped. After 3 seconds, the 4-way valve will be closed. Thirty seconds after the 4-way valve is
closed, the compressor will be started and the defrosting begin. Upon completion of defrosting, the compressor will be
stopped and the 4-way valve will be energized. After 30 seconds, the compressor and outdoor fan will be started and the
indoor fan will run under cold air prevention mode.
7.1.2.3.3 Liquid Splash Protection
1. When the unit is put into heating mode for the first time or it is switched to heating mode from another mode, the
4-way valve will be energized and the indoor fan will run under cold air prevention mode 20 seconds after the
compressor and outdoor fan are started. If the unit is switched off under heating mode or switched from heating
mode to another mode, the 4-way valve will be de-energized 2 minutes after the compressor is stopped.
2. When the compressor is started for the first time, the exhaust temperature protection will be shielded for 1 minute.
7.1.2.3.4 Cold Air Prevention Condition
The indoor unit will firstly adjust the guide louver to level, while the indoor fan will run at low speed.
1. When up to UNIT ON temperature, the compressor will be started, the indoor unit will run at low speed and the guide
louver will remain at level position. After 30 seconds, the indoor unit will be switched to preset fan speed and the
guide louver will run as preset.
2. When lower than UNIT ON temperature, the guide louver will remain at level position and the indoor unit will run at
low speed.
7.1.2.4 Fan Mode
Indoor fan will run at preset speed
The temperature can be set within a range from 16 to 30℃.
7.1.2.5 Auto Mode
Under this mode, the system will automatically select the run mode (cooling, dehumidifying, heating and fan) depending
on the ambient temperature. Protection function is the same as under cooling and heating mode.
Thirty-second delay is provided for switching between different modes. (Every 30 seconds the system will detect if to
switch the mode).
Tpreset +3℃
Tpreset +1℃Tamb
Start cooling
Stop cooling
Maintain original
operating status
Compress
Run Stop
Preset speed
Preset speed Low speed
≥6 min. ≥3 min. ≥6 min.
Indoor fan
Outdoor fan
Switchover valve
