GE ASC05 Series Original instructions

Safety Information
Safety Precautions . . . . . . . . . . . . . . . .3
How to Connect Electricity . . . . . . . .3
Use of Extension Cords . . . . . . . . . . .4
Use of Adapter Plugs . . . . . . . . . . . . .4
Operating Instructions
About the Controls . . . . . . . . . . . . . . .5
Care and Cleaning
Grille and Case . . . . . . . . . . . . . . . . . . .6
Outdoor Coils . . . . . . . . . . . . . . . . . . .6
Air Filter . . . . . . . . . . . . . . . . . . . . . . . .6
Installation Instructions
Window Installation . . . . . . . . . . .7–11
Troubleshooting Tips
Before You
Call For Service . . . . . . . . . . . . . . . . .12
Normal Operating Sounds . . . . . . .12
Customer Service
Product Registration . . . . . . . . .13, 14
Warranty . . . . . . . . . . . . . . . . . . . . . . .15
Service Telephone
Numbers . . . . . . . . . . . .2, Back Cover
GE Appliances
Air Conditioners
49-7385-1 JR 12-99
ASC05 – 5,000 BTU models
Owner’s Manual &
Installation Instructions
www.geappliances.com
E DB68-01037A(2)

Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
FOR YOUR RECORDS
Write the model and serial numbers here:
#
#
You can find them on a label on the side of the air conditioner.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service under the warranty.
Inside you will find many helpful hints on how to use and maintain your air conditioner properly.
Just a little preventive care on your part can save you a great deal of time and money over the life
of your air conditioner.
READ THIS MANUAL
IF YOU NEED SERVICE
You’ll find many answers to common problems in the Before You Call For Service section. If you
review our chart of Troubleshooting Tips first, you may not need to call for service at all.
If you do need service, you can relax knowing help is only a phone call away. A list of toll-free
customer service numbers is included in the back section. Or, you can always call the GE Answer
Center® at 800.626.2000, 24 hours a day, 7 days a week.
2
IMPORTANT!
Fill out the Consumer Product Registration Card.
Two easy ways to register your appliance!
■Through the internet at www.geappliances.com
■Complete and mail the enclosed Product Registration Card
GE & You, A Service Partnership.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
■Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from
the receptacle.
■ Repair or replace immediately all electric
service cords that have become frayed or
otherwise damaged. Do not use a cord
that shows cracks or abrasion damage
along its length or at either the plug or
connector end.
■ Turn the mode control to OFF and unplug
your air conditioner before making any
repairs or cleaning.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
■ For your safety…do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
SAFETY PRECAUTIONS
3
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
For personal safety, this appliance must be
properly grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
outlet to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and obligation
to have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be
plugged into its own individual electrical
outlet which has a voltage rating that matches
the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits
which could cause a fire hazard from
overheated wires.
See the Installation Instructions,
Electrical
Requirements
section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY

Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
4
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an extension cord.
However, if you must use an extension cord,
it is absolutely necessary that it be a UL-listed,
14 gauge, 3-wire grounding type appliance
extension cord having a grounding type plug
and outlet and that the electrical rating of the
cord be 15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of
the 230/208 volt models.
USE OF EXTENSION CORDS – 115-Volt models only
Because of potential safety hazards under
certain conditions, we strongly recommend
against the use of an adapter plug.
However, if you must use an adapter,
where local codes permit, a
temporary
connection
may be made to a properly
grounded 2-prong wall outlet by use of
a UL-listed adapter available at most
local hardware stores.
The larger slot in the adapter must be
aligned with the larger slot in the wall
outlet to provide proper polarity in the
connection of the power cord.
When disconnecting the power cord from
the adapter, always hold the adapter in place
with one hand while pulling the power cord
plug with the other hand. If this is not done,
the adapter ground terminal is very likely to
break with repeated use.
If the adapter ground terminal breaks,
DO NOT USE the air conditioner until a
proper ground has been established.
Attaching the adapter ground terminal to a wall
outlet cover screw does not ground the appliance
unless the cover screw is metal, and not insulated,
and the wall outlet is grounded through the house
wiring. You should have the circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
USE OF ADAPTER PLUGS – 115-Volt models only
Read and follow this Safety Information carefully.
SAVE THESE INSTRUCTIONS

Customer Service
Troubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions

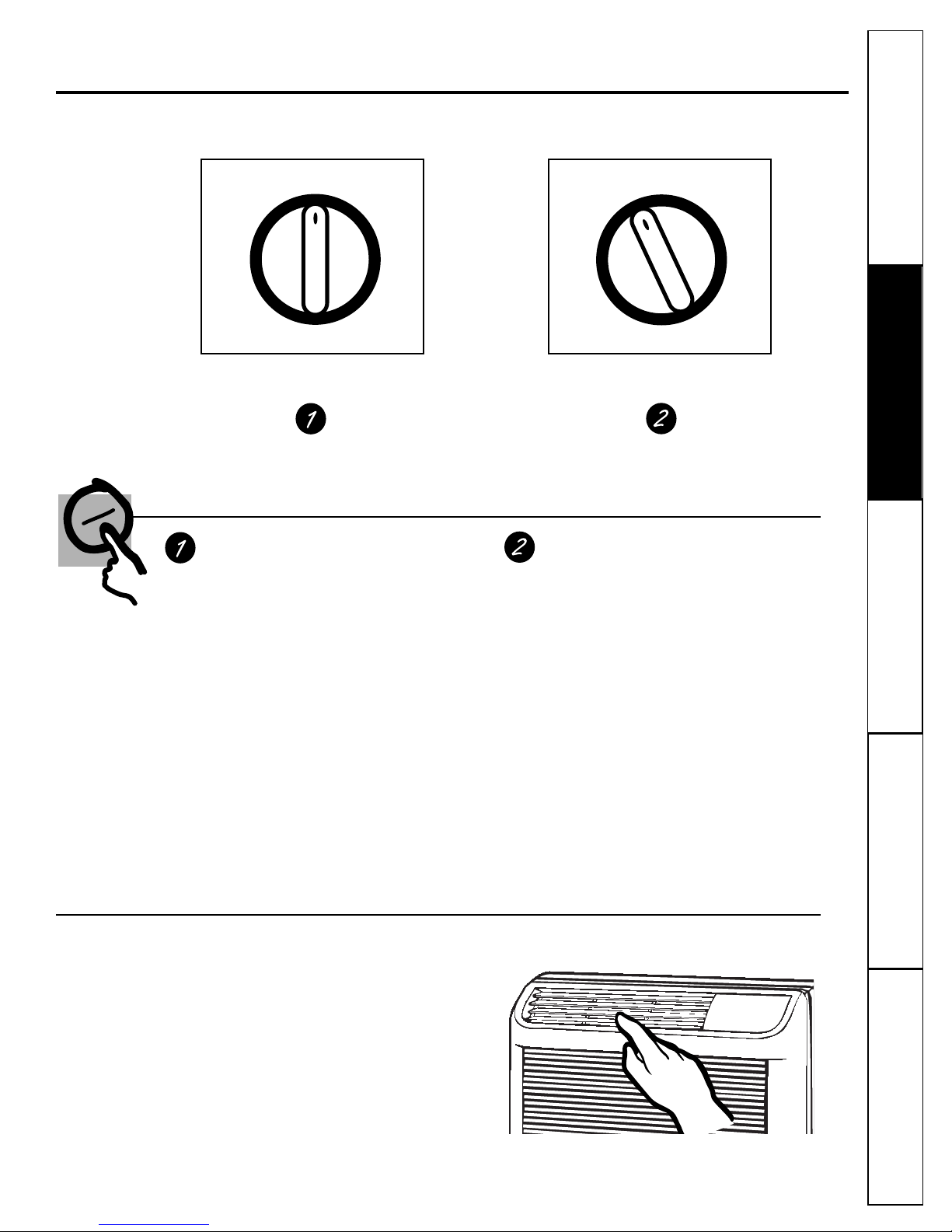

About the controls on the air conditioner.
Features and appearance will vary.
5
Controls
Mode Control
HI COOL, MED COOL and LOW COOL
provide cooling with different fan speeds.
FAN settings provide air circulation and
filtering without cooling.
NOTE: If you move the switch from a cool setting
to OFF or to a fan setting, wait at least
3 minutes before switching back to a cool setting.
Cooling Descriptions
For Normal Cooling —Select HI COOL
or MED COOL with the temp control
at midpoint.
For Maximum Cooling —Select HI COOL
with the temp control at the highest
number available on the knob.
For Quieter & Nighttime Cooling —Select
LOW COOL with the temp control at
midpoint.
Temp Control
The temp control is used to maintain the
room temperature. The compressor will
cycle on and off to keep the room at the
same level of comfort. When you turn
the knob to a higher number the indoor
air will become cooler. Turn the knob to
a lower number and the indoor air will
become warmer.
The blower runs as long as the mode
control is not on OFF.
MODE CONTROL TEMP CONTROL
LOW
COOL
LOW
FAN
OFF
HI
FAN
HI
COOL
MED COOL
1
2
3
45
6
7
8
Air Direction
Fingertip pressure on the louvers adjusts the
air direction up or straight ahead.

6
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions

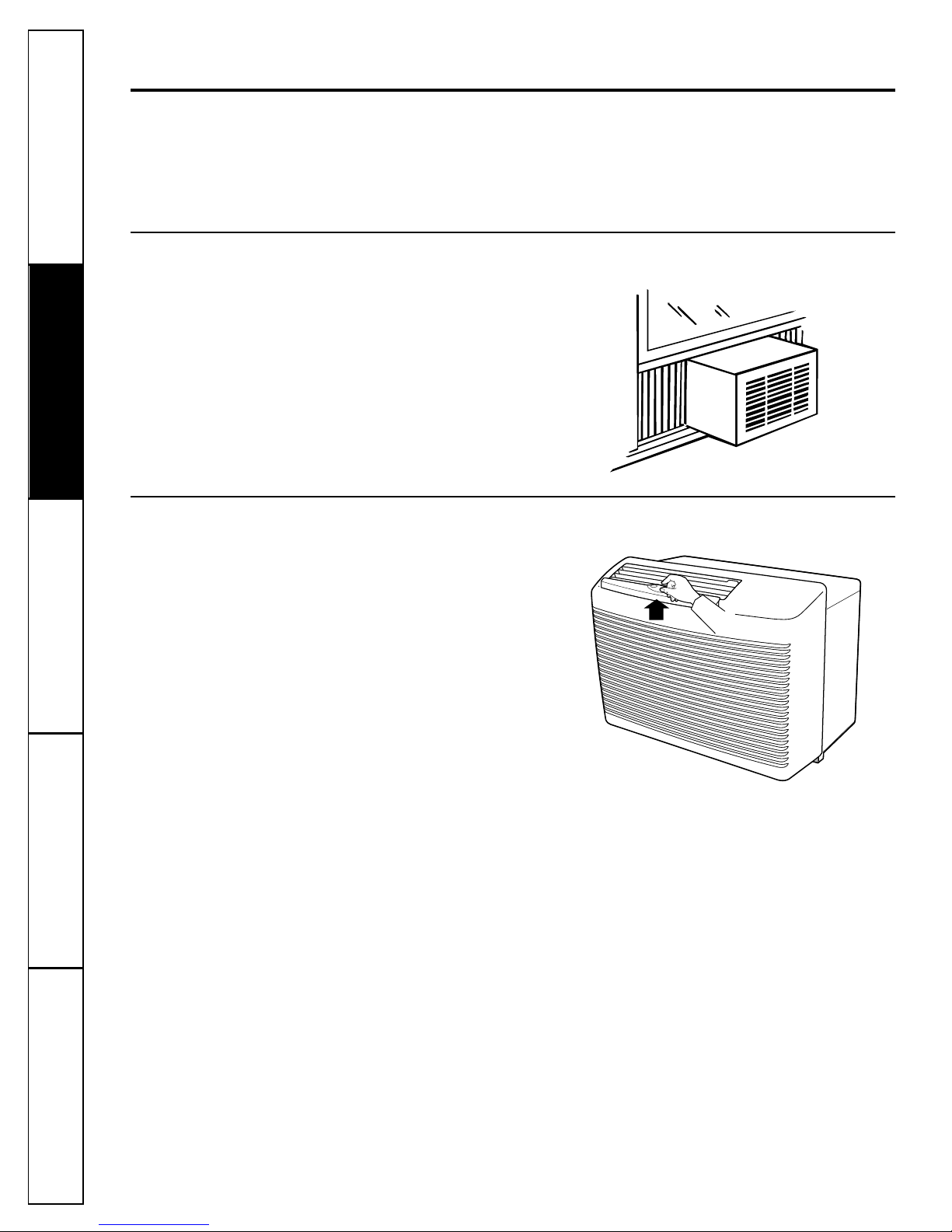

Care and cleaning of the air conditioner.
Air Filter
The air filter behind the front grille should be
checked and cleaned at least every 30 days or
more often if necessary.
To remove:
Grasp the filter handle and pull it up and out.
The filter can be cleaned with a vacuum
cleaner to remove light dust or washed in
warm, soapy water. Rinse and let the filter dry
before replacing it. Do not expose the filter to
heat or direct sunlight when drying.
CAUTION: DO NOT operate the air conditioner
without a filter because dirt and lint will clog it and
reduce performance.
Outdoor Coils
The coils on the outdoor side of the air
conditioner should be checked regularly.
If they are clogged with dirt or soot they may
be professionally steam cleaned, a service
available through your GE service outlet.
Grille and Case
Turn the air conditioner off and remove the
plug from the wall outlet before cleaning.
To clean, use water and a mild detergent.
Do not use bleach or abrasives.

Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
7

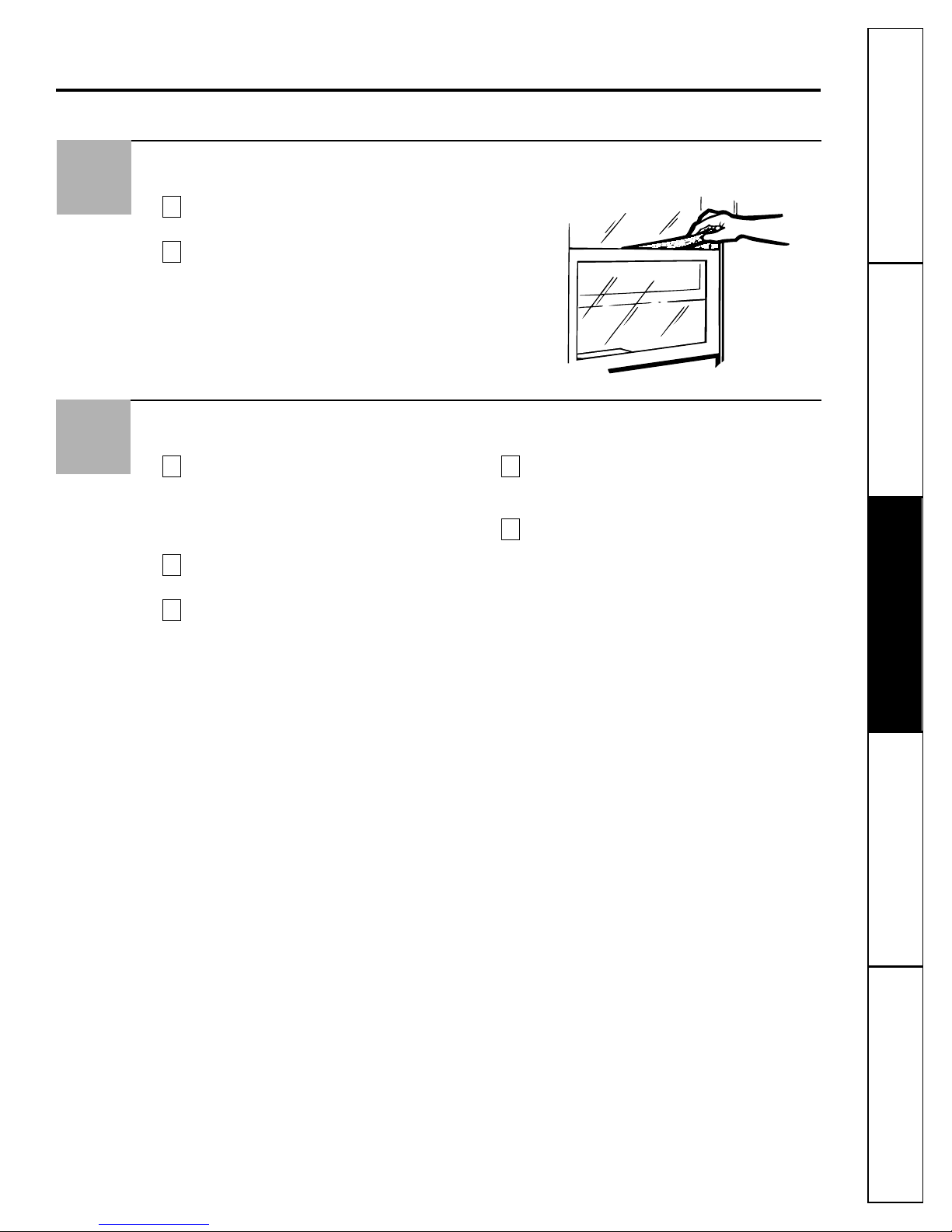

Preparing to install the air conditioner.
Read these instructions completely and carefully.
NOTE TO INSTALLER: Leave these instructions
with the air conditioner after installation is
completed.
NOTE TO CONSUMER: Keep this Owner’s
Manual and Installation Instructions for
future use.
IMPORTANT NOTES:
For personal safety, this air conditioner must
be properly grounded.
It is important to have the wall outlet and
circuit checked by a qualified electrician if
there is any doubt as to whether a proper
ground exists.
Follow National Electric Codes (NEC) and/or
local codes and ordinances.
CAUTION:
Do not, under any circumstances, cut
or remove the third (ground) prong
from the power cord.
Do not change the plug on the power
cord of this air conditioner.
Aluminum house wiring may present
special problems—consult a qualified
electrician.
Before You Begin
Some models require 115/120-volt
a.c., 60 Hz grounded outlet protected
with a 15-amp time delay fuse or
circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall
outlet you plan to use is only a 2-prong outlet,
it is your responsibility to have it replaced with
a properly grounded 3-prong wall outlet.
Some models require 230/208-volt
a.c., protected with a time delay fuse
or circuit breaker. These models
should be installed on their own single
branch circuit for best performance
and to prevent overloading house or
apartment wiring circuits, which could
cause a possible fire hazard from
overheating wires.
Electrical Requirements
■ Phillips-head screwdriver
■ Flat blade screwdriver
■ Ruler or tape measure
■ Scissors or knife
■ Pencil
■ Level
Tools You Will Need

8
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions

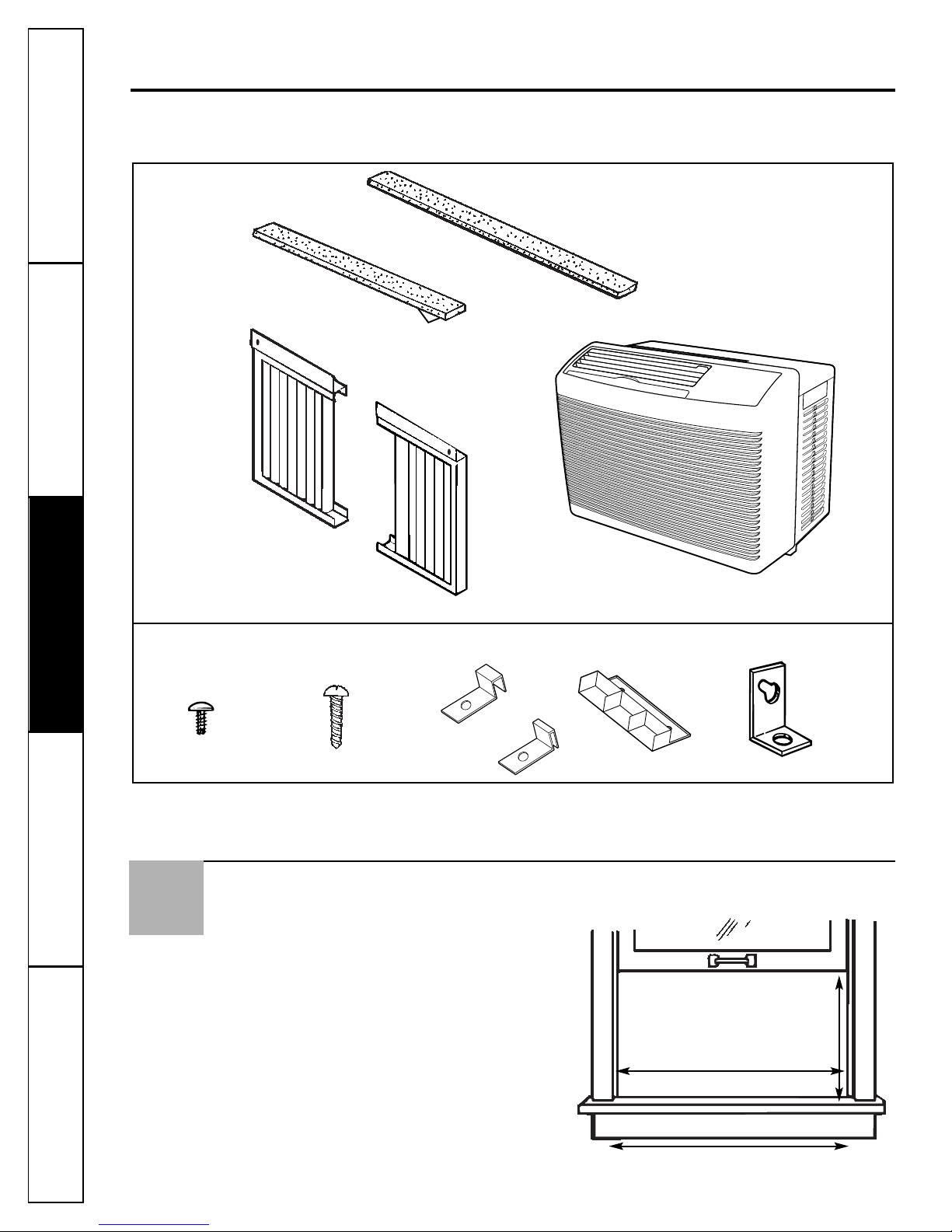

Window installation instructions.
Read these instructions completely and carefully.
Parts Included
Window locking bracket
Foam top window gasket
Air conditioner
Support bracket (2)
183⁄4″min.
(Without accordion panels)
Window Requirements
■These instructions are for a standard
double-hung window. You will need to
modify them for other types of windows.
■The air conditioner can be installed without
the accordion panels if needed to fit in a
narrow window. See the window opening
dimensions at right.
■All supporting parts must be secured to
firm wood, masonry or metal.
■The electrical outlet must be within
reach of the power cord. Do not use an
extension cord.
133⁄16″min.
23″to 35″
1
Read completely, then follow step-by-step.
Type A screws (4) Upper accordion
panel clamp (2)
Lower accordion
panel clamp (2)
Type B screws (11)
Window sash seal
Left accordion panel
Right accordion panel

Mark the centerline of the sill. Measure
and mark the locations for the support
brackets 1″from both sides of the
centerline.
Place the edges of the support brackets
on the 1″marks on the sill and against the
back edge of the stool.
Attach them to the sill with two type B
screws through each support bracket.
C
B
A
Install the Support Brackets
Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
9
Storm Window Requirements
A storm window frame will not allow the air
conditioner to tilt towards the outside and will
keep it from draining properly. To adjust for
this, attach a piece of wood to the stool.
WOOD PIECES:
WIDTH: 2″
LENGTH: Long enough to fit inside the
window frame.
THICKNESS: To determine the thickness,
place a piece of wood on the stool to make it
1/2″higher than the top of the storm window
frame.
Attach securely with nails or screws provided
by the installer.
1/2″higher
than frame
Storm
window
frame
Wood
Stool
2
4
Stool
Type B screws
Outside
Inside
Support
bracket
Sill
Cut the window sash seal to the proper
length. Peel off the backing and attach
the adhesive side to the underside of
the window sash.
Insert the frames for the accordion panels
into the top and bottom mounting rails.
Attach the accordion panels to the side of
the case using 4 type A screws.
BA
Prepare the Window and the Case
3
Window sash seal
Type A
screws
Type A
screws
Type B screws

10
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety InstructionsOperating Instructions
Window installation instructions.
Read these instructions completely and carefully.
Install the Air Conditioner in the Window
Center the air conditioner in the window
with the bottom rail between the window
stool and the support brackets.
Lower the window behind the top
mounting rail. The air conditioner
should be slightly tilted to the outside.
BA
5
Lower the
window
Front
grille
Inside Outside
Install the Window Accordion Panels and Locking Bracket
Extend the left and right accordion panels
to the vertical window sashes and attach
the top corners with two type B screws.
Use a lower accordion panel clamp on
each lower corner to trap the panels.
Attach them to the stool using 2 type
B screws.
Use an upper accordion panel clamp on
each upper side to trap the panels. Attach
them to the vertical window sash using a
type B screw on each side.
Attach the window locking bracket with a
type B screw.
BA
6
Support brackets
Type B screws
Type B screws
Lower accordion
panel clamp
Upper accordion
panel clamp

Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
11
Read these instructions completely and carefully.
Install the Window Gasket
Cut the foam top window gasket to the
window width.
Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
B
A
7
Removal from Window
Turn the air conditioner off and
disconnect the power cord. Wait
5-10 minutes before moving the air
conditioner to allow the water to
drain from the coil into the base pan.
Remove the foam gasket from between
the windows.
Remove the window locking bracket.
Remove the screws securing the
accordion panels on each side.
Close the accordion panels.
Keeping a firm grip on the air
conditioner, raise the window and
carefully “rock” the air conditioner
backward to drain most of the pan.
Carefully lift it from the window to avoid
spilling any remaining water. Store parts
for re-use with the air conditioner.
E
D
C
B
A
8

12
Customer Service Troubleshooting Tips Operating Instructions Safety InstructionsInstallation InstructionsCustomer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Before you call for service…
Troubleshooting Tips
Save time and money! Review the chart below first and
you may not need to call for service.
Normal Operating Sounds
■ You may hear a pinging noise caused by water
being picked up and thrown against the
condenser on rainy days or when the humidity is
high. This design feature helps remove moisture
and improve efficiency.
■ You may hear the thermostat click when the
compressor cycles on and off.
■ Water will collect in the base pan during
high humidity or on rainy days. The water
may overflow and drip from the outdoor side
of the unit.
■ The fan may run even when the compressor
does not.
Problem Possible Causes What To Do
Air conditioner The air conditioner •Make sure the air conditioner plug is pushed
does not start is unplugged. completely into the outlet.
The fuse is blown/circuit •Check the house fuse/circuit breaker box and replace
breaker is tripped. the fuse or reset the breaker.
Power failure. •If power failure occurs, turn the mode control to OFF .
When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
Air conditioner does Airflow is restricted. •Make sure there are no curtains, blinds or furniture
not cool as it should blocking the front of the air conditioner.
The temp control may •Turn the knob to a higher number. The highest setting
not be set high enough. provides maximum cooling.
The air filter is dirty. •Clean the filter at least every 30 days. See the Care and
cleaning of the air condtioner section.
The room may have been hot. •When the air conditioner is first turned on you need to
allow time for the room to cool down.
Cold air is escaping. •Check for open furnace floor registers and cold
air returns.
Cooling coils have iced up. •See “Air conditioner freezing up” below.
Air conditioner Ice blocks the air flow •Set the mode control at HI FAN or HI COOL
freezing up and stops the air conditioner with the temp at 1 or 2 .
from cooling the room.

General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
GE Service Protection Plus™
GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus™—comprehensive protection on all your appliances—
No Matter What Brand!
Benefits Include:
•Backed by GE
•All brands covered
•Unlimited service calls
•All parts and labor costs included
•No out-of-pocket expenses
•No hidden deductibles
•One 800 number to call
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!
Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800-626-2224
for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance.
Anywhere. Anytime.*
Please place in envelope and mail to:
✁Cut here
13

Consumer Product Ownership Registration
Important
Mail
Today!
First
Name
Mr. ■■Ms. ■■Mrs. ■■Miss ■■
Street
Address
City State
Date Placed
In Use
Month Day Year
Zip
Code
Apt. #
Last
Name
Phone
Number __
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at www.geappliances.com.
123
Model Number Serial Number
✁Cut here
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in the
unlikely event of a
safety modification.
After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800 GE CARES
(800-432-2737).
Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.
If you have questions,
or need more
information, call the
GE Answer Center®
800.626.2000.
Model Number Serial Number
E-mail Address
Occasionally, we may allow selected companies to send you information.
■■Check here if you do not want this information.
14

15
Customer ServiceTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
Air Conditioner Warranty
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care® technician. For service,
call 800-GE-CARES.
For The Period Of: We Will Replace:
One Year Any part of the air conditioner which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, we will also provide, free of charge, all labor
original purchase and in-home service to replace the defective part.
Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator
From the date of the and all connecting tubing) which fails due to a defect in materials or workmanship.
original purchase During this four-year additional warranty, we will also provide, free of charge, all labor
and in-home service to replace the defective part.
■Service trips to your home to teach you how to use the
product.
■Improper installation. If you have an installation problem,
or if the air conditioner is of improper cooling capacity
for the intended use, contact your dealer or installer.
You are responsible for providing adequate electrical
connecting facilities.
■Failure of the product resulting from modifications to
the product or due to unreasonable use including failure
to provide reasonable and necessary maintenance.
■In commercial locations labor necessary to move the
unit to a location where it is accessible for service by
an individual technician.
■Replacement of house fuses or resetting of circuit
breakers.
■Failure due to corrosion on models not corrosion-
protected.
■Damage to the product caused by improper power supply
voltage, accident, fire, floods or acts of God.
■Incidental or consequential damage to personal property
caused by possible defects with this air conditioner.
What Is Not Covered:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225

Operating Instructions Safety InstructionsInstallation InstructionsTroubleshooting TipsCustomer Service
Service Telephone Numbers.
GE Answer Center
®
800.626.2000
The GE Answer Center® is open 24 hours a day, 7 days a week.
In-Home Repair Service 800-GE-CARES (800-432-2737)
Expert GE repair service is only a phone call away.
Special Needs Service 800.626.2000
800-TDD-GEAC (800-833-4322)
GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons
with limited mobility.
Service Contracts 800-626-2224
Purchase a GE service contract while your warranty is still in effect and you’ll receive a
substantial discount. GE Consumer Service will still be there after your warranty expires.
Parts and Accessories 800-626-2002
Individuals qualified to service their own appliances can have parts or accessories sent directly
to their homes (VISA, MasterCard and Discover cards are accepted).
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since
improper servicing may cause unsafe operation.
Service Satisfaction
If you are not satisfied with the service you receive from GE:
First, contact the people who serviced your appliance.
Next, if you are still not pleased, write all the details—including your phone number—to:
Manager, Customer Relations
GE Appliances
Appliance Park
Louisville, KY 40225
Printed in Korea
16
