PK7000SF
Profile™Series 27" Built-In Single Convection Wall Oven
DimenSionS anD inStallation inFormation (in incheS)
Note: These ovens are Not approved for
stackable or side-by-side installations.
Note: Cabinets installed adjacent to wall
ovens must have an adhesion spec of at least
a 194°F temperature rating. For 27” built-in
single ovens, if marks, blemishes or the cutout
opening is visible above the installed oven, it
may be necessary to add wood shims under
the runners and front trim until the marks or
openings are covered.
Note: Door handle protrudes 3" from door face.
Cabinets and drawers on adjacent 45° and 90°
walls should be placed to avoid interference
with the handle.
Electric wall ovens are not approved for
installation with a plug and receptacle.
They must be hard wired in accordance
with installation instructions.
INstallatIoN INformatIoN:
Before installing, consult installation
instructions packed with product for
current dimensional data.
C
L
Suitable
bracing
to support
runners
(must support 200 lbs.)
2 x 4 or
equivalent runners
level with bottom of cutout
and ush with sides of cutout
or solid bottom oor.
F
E
22
"
Conduit
40"
8-3/4" MAX.
Cutout depth
23-1/2" MIN
Cabinet 27"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"
Oven
D – Install depth 23-1/2"
E – Overall height with trim 28-7/8"
F – Overall width 26-3/4"
CK7000
PK7000
JK5000
JK3000
JK1000
B
27''
A
C
Cutout width
25" MIN.
25-1/4" MAX.
Recommended
cutout location
from oor
32-1/2"
Cutout height
27-5/8" MIN.
28-1/8" MAX.
23" minimum
door opening
allowance
22" to
bottom of
junction box
Junction box
location
D
C
L
Suitable
bracing
to support
runners
(must support 200 lbs.)
2 x 4 or
equivalent runners
level with bottom of cutout
and ush with sides of cutout
or solid bottom oor.
F
E
22"
Conduit
40"
8-3/4" MAX.
Cutout depth
23-1/2" MIN
Cabinet 27"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"
Oven
D – Install depth 23-1/2"
E – Overall height with trim 28-7/8"
F – Overall width 26-3/4"
CK7000
PK7000
JK5000
JK3000
JK1000
B
27''
A
C
Cutout width
25" MIN.
25-1/4" MAX.
Recommended
cutout location
from oor
32-1/2"
Cutout height
27-5/8" MIN.
28-1/8" MAX.
23" minimum
door opening
allowance
22" to
bottom of
junction box
Junction box
location
D
C
L
Suitable
bracing
to support
runners
(must support 200 lbs.)
2 x 4 or
equivalent runners
level with bottom of cutout
and ush with sides of cutout
or solid bottom oor.
F
E
22"
Conduit
40"
8-3/4" MAX.
Cutout depth
23-1/2" MIN
Cabinet 27"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"
Oven
D – Install depth 23-1/2"
E – Overall height with trim 28-7/8"
F – Overall width 26-3/4"
CK7000
PK7000
JK5000
JK3000
JK1000
B
27''
A
C
Cutout width
25" MIN.
25-1/4" MAX.
Recommended
cutout location
from oor
32-1/2"
Cutout height
27-5/8" MIN.
28-1/8" MAX.
23" minimum
door opening
allowance
22" to
bottom of
junction box
Junction box
location
D
C
L
Suitable
bracing
to support
runners
(must support 200 lbs.)
2 x 4 or
equivalent runners
level with bottom of cutout
and ush with sides of cutout
or solid bottom oor.
F
E
22
"
Conduit
40"
8-3/4" MAX.
Cutout depth
23-1/2" MIN
Cabinet 27"
A – Overlap of oven at top of cutout 1"
B – Overlap of oven over side of edges of cutout 1"
C – Overlap of oven at bottom of cutout 1"
Oven
D – Install depth 23-1/2"
E – Overall height with trim 28-7/8"
F – Overall width 26-3/4"
CK7000
PK7000
JK5000
JK3000
JK1000
B
27''
A
C
Cutout width
25" MIN.
25-1/4" MAX.
Recommended
cutout location
from oor
32-1/2"
Cutout height
27-5/8" MIN.
28-1/8" MAX.
23" minimum
door opening
allowance
22" to
bottom of
junction box
Junction box
location
D
PK7000
KW ratINg
240V 3.6
208V 2.7
BreaKer sIze
240V 20 Amps
208V 20 Amps

UndercoUnter dimensions and installation information
PK7000sf
Profile™Series 27" Built-In Single Convection Wall Oven
Specification Revised 5/15
For answers to your Monogram,® GE Profile™
or GE®appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
Note: 36" ribbon cooktops are approved
for use over GE 30" single wall ovens and
warming drawers. 30" ribbon cooktops are
approved for use over GE 30" and GE 27"
single wall ovens and warming drawers.
Refer to cooktop and wall oven installation
information packed with products for current
dimensional data.
Note: Oven is rated for use only under
GE 30" standard or sealed burner gas and
selected GE 30" smoothtop and Calrod®
electric cooktops.
INstallatIoN INformatIoN:
Before installing, consult installation
instructions packed with product for
current dimensional data.
Power cord
for cooktop
Junction box
for oven
Junction box in
adjacent cabinet
for cooktop
hook-up
2 (two) 90°elbows &
sucient pipe to
connect in adjacent
cabinet
Right cabinet side
3/4" Support
Shut-o
valve
Pressure
regulator
1/2" Black
iron pipe
Union
Conduit
40"
27" built-in
oven
3-1/2" MIN.
Free space
4"
3-1/4
22
Side View
25
Gas or electric cooktops may be installed over this
oven. See cooktop installation instructions for cutout size.
See label on top of oven for approved cooktop models.
Gas or electric connections
for gas cooktop must be
located in an adjacent
accessible location to the right
240V / 208V
Junction box
location
36"
Typical
countertop
height
24
4
"
Allow 1"
unit overlap
all edges
25" MIN.
25 1/4" MAX.
8-3/4"
27 5/8" MIN.
28 1/8" MAX.
3/4" Support
platform required
Must Support 200 Lbs.
22" MIN.
Above
support
platform

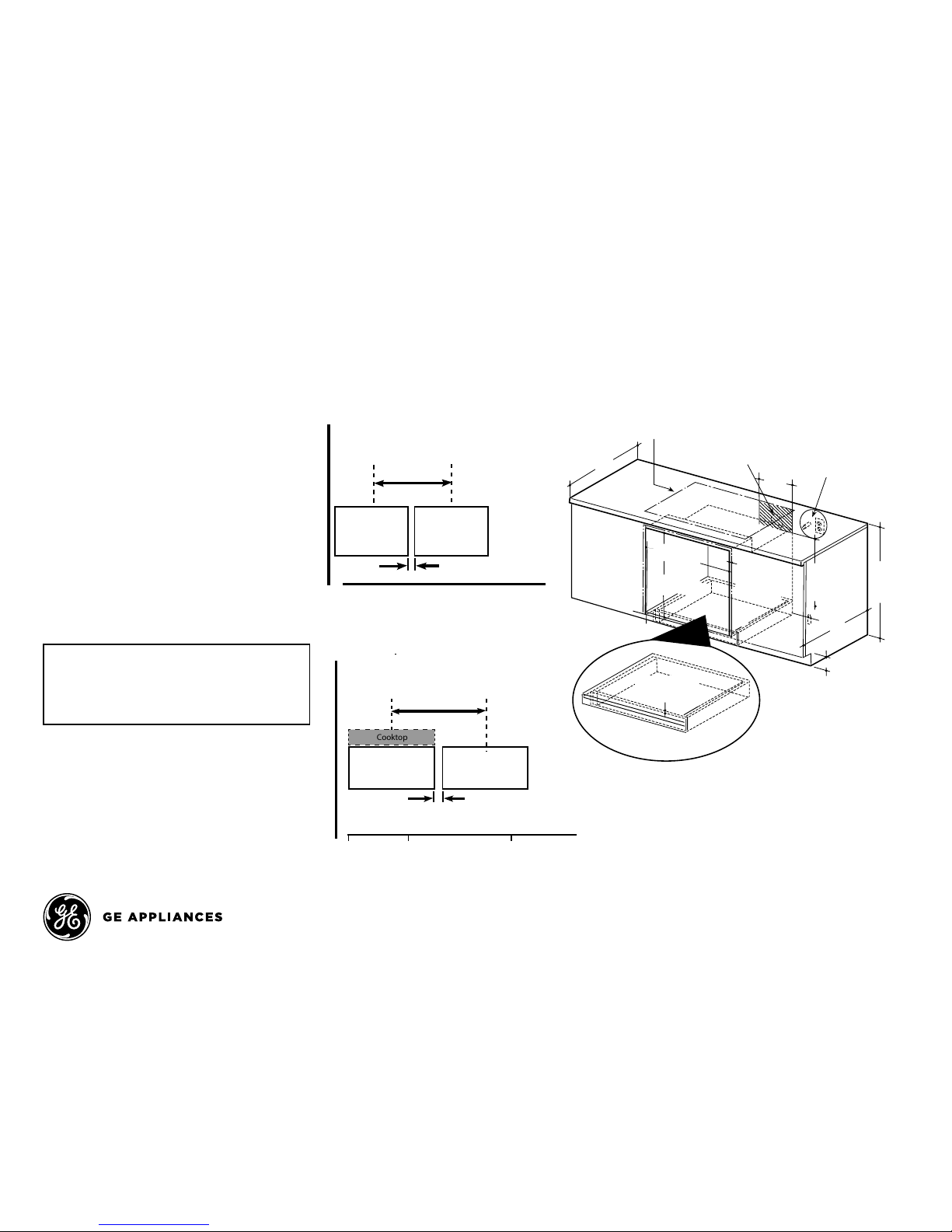

Side by Side single ovens
Side-by-Side Installations
Install two ovens in separate cutouts.
Center Line
Cutout -
observe all
dimensions and
requirements.
Cutout -
observe all
dimensions and
requirements.
Center Line
30" models
2 " MIN.
27" models
Side by Side single ovens under
cooktop and counter
Side-by-Side Installations
Install two ovens in separate cutouts.
Cooktop
Center LineCenter Line
NOTE: One cooktop may be centered over either oven in
the side-by-side istallation.
Cutout - observe
all dimensions and
requirements.
Cutout - observe
all dimensions and
requirements.
30" models
2 " MIN.
27" models
Power cord
for cooktop
Junction box
for oven
Junction box in
adjacent cabinet
for cooktop
hook-up
2 (two) 90°elbows &
sucient pipe to
connect in adjacent
cabinet
Right cabinet side
3/4" Support
Shut-o
valve
Pressure
regulator
1/2" Black
iron pipe
Union
Conduit
40"
27" built-in
oven
3-1/2" MIN.
Free space
4"
3-1/4
22
Side View
25
Gas or electric cooktops may be installed over this
oven. See cooktop installation instructions for cutout size.
See label on top of oven for approved cooktop models.
Gas or electric connections
for gas cooktop must be
located in an adjacent
accessible location to the right
240V / 208V
Junction box
location
36"
Typical
countertop
height
24
4
"
Allow 1"
unit overlap
all edges
25" MIN.
25 1/4" MAX.
8-3/4"
27 5/8" MIN.
28 1/8" MAX.
3/4" Support
platform required
Must Support 200 Lbs.
22" MIN.
Above
support
platform
Side by Side single ovens
Side-by-Side Installations
Install two ovens in separate cutouts.
Center Line
Cutout -
observe all
dimensions and
requirements.
Cutout -
observe all
dimensions and
requirements.
Center Line
30" models
2 " MIN.
27" models
Side by Side single ovens under
cooktop and counter
Side-by-Side Installations
Install two ovens in separate cutouts.
Cooktop
Center LineCenter Line
NOTE: One cooktop may be centered over either oven in
the side-by-side istallation.
Cutout - observe
all dimensions and
requirements.
Cutout - observe
all dimensions and
requirements.
30" models
2 " MIN.
27" models
Power cord
for cooktop
Junction box
for oven
Junction box in
adjacent cabinet
for cooktop
hook-up
2 (two) 90°elbows &
sucient pipe to
connect in adjacent
cabinet
Right cabinet side
3/4" Support
Shut-o
valve
Pressure
regulator
1/2" Black
iron pipe
Union
Conduit
40"
27" built-in
oven
3-1/2" MIN.
Free space
4"
3-1/4
22
Side View
25
Gas or electric cooktops may be installed over this
oven. See cooktop installation instructions for cutout size.
See label on top of oven for approved cooktop models.
Gas or electric connections
for gas cooktop must be
located in an adjacent
accessible location to the right
240V / 208V
Junction box
location
36"
Typical
countertop
height
24
4
"
Allow 1"
unit overlap
all edges
25" MIN.
25 1/4" MAX.
8-3/4"
27 5/8" MIN.
28 1/8" MAX.
3/4" Support
platform required
Must Support 200 Lbs.
22" MIN.
Above
support
platform
Side by Side single ovens
Side-by-Side Installations
Install two ovens in separate cutouts.
Center Line
Cutout -
observe all
dimensions and
requirements.
Cutout -
observe all
dimensions and
requirements.
Center Line
30" models
2 " MIN.
27" models
Side by Side single ovens under
cooktop and counter
Side-by-Side Installations
Install two ovens in separate cutouts.
Cooktop
Center LineCenter Line
NOTE: One cooktop may be centered over either oven in
the side-by-side istallation.
Cutout - observe
all dimensions and
requirements.
Cutout - observe
all dimensions and
requirements.
30" models
2 " MIN.
27" models
electrIc Wall oveNs are Not
aPProved for INstallatIoN WIth
a Plug aNd recePtacle. they
must Be hard WIred IN accordaNce
WIth INstallatIoN INstructIoNs.
sIde By sIde sINgle oveNs uNder
cooKtoP aNd couNter
sIde By sIde sINgle oveNs

PK7000SF
Profile™Series 27" Built-In Single Convection Wall Oven
Specification Revised 5/15
PK7000SFSS
features aNd BeNefIts
True European Convection - Achieve delicious results from a third heating
element and fan combination
Wifi Connect- Wirelessly control oven functions from
your smartphone
Ten-pass bake element - Even baking is assured with heat that covers more
surface area
Eight-pass broil element - Get full broil coverage and even browning
from edge to edge
Self-clean heavy-duty roller rack - Easily access items with racks that glide
smoothly
Halogen interior oven lighting - Easily see how your food is baking
Self-clean with steam clean option - Clean your oven the way
you want
Glass touch controls - Set temperatures quickly and clean with
little effort
4.3 cu. ft. oven capacity - Cook more dishes at once
Black gloss oven interior - Enjoy a clean and sleek appearance
Model PK7000SFSS - Stainless steel
