GE Profile PTDN850GM0WW Operating instructions

GEAppliances.com
0
Safety Instructions ........... 2-s
Operating Instructions
Controls ........................... 6-8
Cycle Options .................... 9-10
Dryer Features ...................... 11
Loading and Using
the Dryer ........................ 12, 13

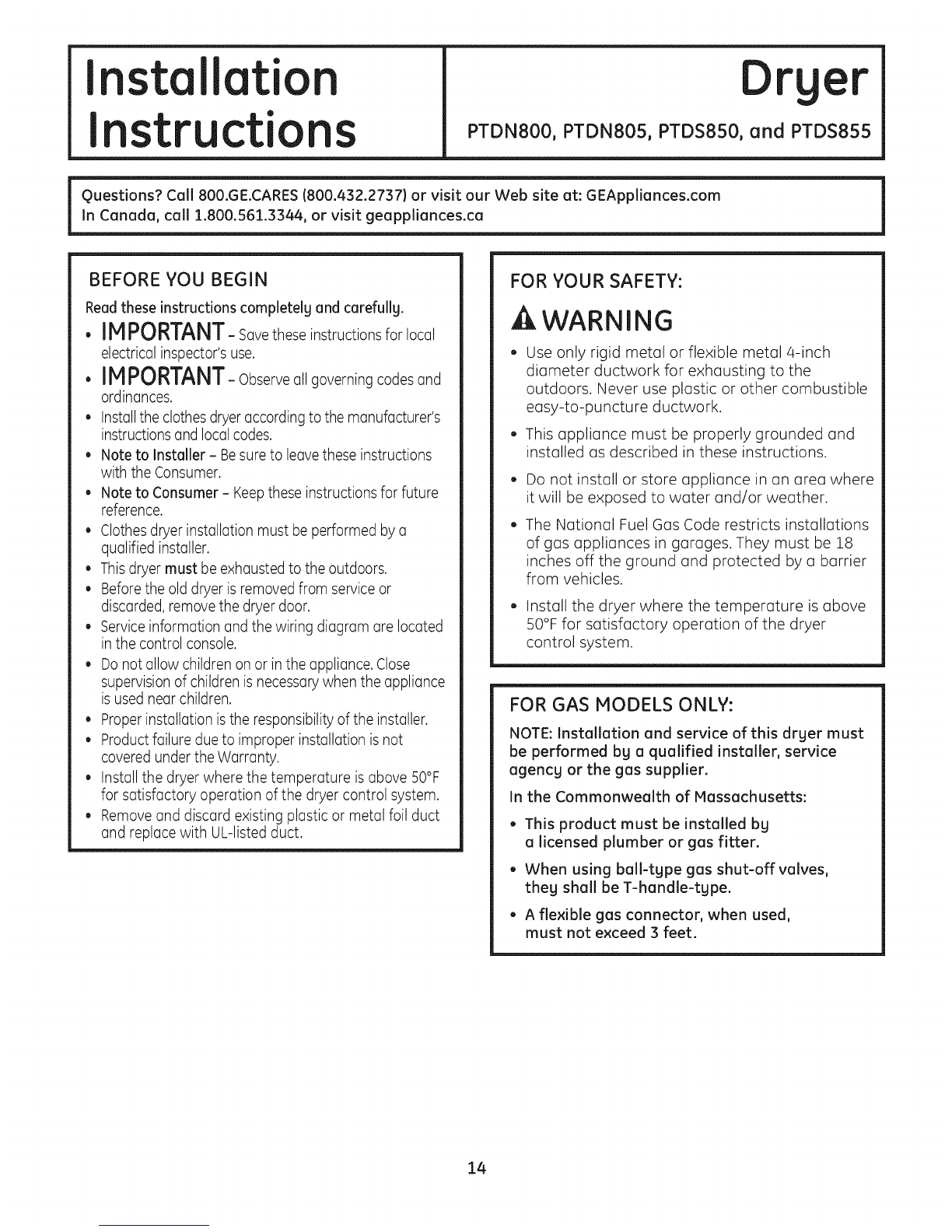

Installation Instructions
Before You Begin ............... 14-16
Connecting a Gas Dryer ........ 17-20
Connecting an
Electric Dryer ................... 21-23
Exhausting the Dryer ........... 24-30
Final Setup .......................... 31
Reversing the Door Swing ....... 32-33
Troubleshooting Tips .......... 34
Consumer Support
Warranty (U.S.) ................. B6
Warranty (Canada) ............. 37
Consumer Support .............. 38
Write the model and serial
numbers here:
Model #
Serial #
They are on the label on the front
of the dryer behind the door. 3828EL2001D
49-90403-1 04/11 GE

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For gour safety, the information in this manual must be followed to minimize the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury, or
death.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or ang other appliance.
,, installation and service must be
performed bg a qualified installer,
service agencg or the gas supplier.
WHAT TO DO IF YOU SMELL GAS"
[_ Do not try to light a match, or cigarette,
or turn on ang gas or electrical
appliance.
[] Do not touch ang electrical switch;
do not use ang phone in gour building.
r31Clear the room, building or area of all
occupants.
r-411mmediatelg call gour gas supplier
from a neighbor's phone. Follow the
gas supplier's instructions carefully.
[_] If gou cannot reach gour gas supplier,
call the fire department.
California Safe Drinking Water and Toxic Enforcement Act
Thisact requiresthe governor of Californiato publish a list of substancesknown to the stateto cause cancer,
birth defects or other reproductive harm and requiresbusinessesto warn customers of potential exposure to
such substances.
Gasappliances can cause minor exposure to four of these substances,namely benzene,carbon monoxide,
formaldehyde and soot, caused primarily bythe incomplete combustion of natural gas or LPfuels.
Properlyadjusted dryers will minimize incomplete combustion. Exposureto these substancescan be minimized
further by properlyventing the dryerto the outdoors.

GEAppliances.com
PROPERINSTALLATION
This drbter must be properlbt installed and located in accordance with the Installation Instructions
before it is used. If btou did not receive an Installation Instructions sheet, btou can receive one bbt
visiting GEAppliunces.com, or bbt calling 800.GE.CARES (800.432.27Y).
I Properlyground dryer to conform with all governing
codes and ordinances. Followdetails
in Installation Instructions.
I Installor store where it will not be exposedto
temperatures below freezing or exposedto
the weather.
I Connectto a properly rated, protected and sized
power supply circuit to avoid electricaloverload.
I Removethe colored protective film from both the
control panel and the door.
I Removeall sharp packing items and dispose of all
shipping materials properly.
I Do not removethe vent protector from the buck of
the dryer (on some models).
I Pullthe protector out and down to its lowest
position and connect the exhaust duct to the dryer.
Thelowered protector will prevent the duct from
getting crushed (onsome models).
I Keep area around the exhaust opening and
adjacent surrounding areas freefrom the
accumulation of lint, dust, and dirt.
Exhaust/Ducting:
r-_ DryersMUSTbe exhausted to the outside to
prevent large amounts of moisture and lintfrom
being blown into the room.
r_] use only rigid metal 413diameter ductwork inside
the dryer cabinet and useonly ULapproved
transition ducting between the dryer and the
home duct. USEOFPLASTICOROTHER
COMBUSTIBLEDUCTWORKCANCAUSEA FIRE.
PUNCTUREDDUCTWORKCANCAUSEA FIREIFIT
COLLAPSESORBECOMESOTHERWISE
RESTRICTEDINUSEORDURINGINSTALLATION.
Forcomplete details,follow the Installation
Instructions.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
AWARNING!
YOUR LAUNDRY AREA
Keepthe area underneath and around your
appliances free of combustible materials
(lint, paper,rags, etc.),gasoline,chemicals
and other flammable vapors and liquids.
I Keep all laundry aids (suchasdetergents, bleaches,
etc.)out ofthe reach of children, preferably in a
locked cabinet. Observeall warnings on container
labelsto avoid injury.
I Keepthe floor around your appliances clean
and dry to reducethe possibilityof slipping. I Never climb on or stand on the dryer top.
I Closesupervisionisnecessary ifthis appliance
isused by or near children. Donot allow children to
play on,with or insidethis or any other appliance.
WHEN USING YOUR DRYER
Never reach into the dryer while the drum is
moving. Beforeloading, unloading or adding
clothes,wait until the drum has completely
stopped.
BThelaundry process can reducethe flume
retardancy of fabrics.To avoid such a result,
carefully follow the garment manufacturer's
care instructions.
Cleanthe lint filter beforeeach load to prevent lint
accumulation insidethe dryer or in the room. DO
NOTOPERATETHEDRYERWITHOUTTHELINT
FILTERIN PLACE.
Do not wash or dry articles that have been
cleaned in,washed in,soaked in or spotted with
combustible or explosivesubstances(suchas wax,
oil,paint, gasoline,degreasers,dry-cleaning
solvents,kerosene,etc.)which may ignite or
explode. Donot add these substances to the
wash water. Donot useor place these substances
around your washer or dryer during operation.
Do not place items exposed to cooking oils inyour
dryer. Items contaminated with cooking oilsmay
contribute to a chemical reaction that could cause
a clothes load to catch fire.
Anyarticle on which you have useda cleaning
solvent or that contains flammable materials (such
ascleaning cloths, mops,towels used in beauty
salons,restaurants or barber shops,etc.)must not
be placed in or near the dryer until solvents or
flammable materials have been removed.There
are many highlyflammable items used in homes
such as acetone, denatured alcohol, gasoline,
kerosene,some household cleaners,some spot
removers,turpentines, waxes,wax removersand
products containing petroleum distillates.
B
B
B
B
B
Do not dry articles containing rubber,plastic,foam
or similar materials such as padded bras, tennis
shoes,galoshes,bath mats, rugs, bibs,baby pants,
plastic bags, pillows,etc.,that may melt or burn.
Somerubber materials, when heated, can under
certain circumstances producefire by spontaneous
combustion.
Do not store plastic,paper or clothing that may
burn or melt on top of the dryerduring operation.
Garments labeled DrgAwa_lfrom Heat or Do Not
TumbleDry (suchas lifejackets containing kapok)
must not be put in your dryer.
Do not dry fiberglass articles in your dryer.
Skinirritation could result from the remaining
particlesthat may be picked up byclothing
during subsequent dryer uses.
To minimize the possibility of electric shock, unplug
this appliance from the power supply or disconnect
the dryer at the building's distribution panel by
removing the fuse or switching off the circuit
breaker before attempting any maintenance or
cleaning (exceptthe removal and cleaning of the
lint filter).NOTE:PressingSTART,PAUSEor
POWERdoesNOT disconnect the appliance from
the power supply.
4

GEAppliances.com
AWARNING!
WHEN USING YOURDRYER(cont.)
I Never attempt to operate this appliance if it is contribute to a chemical reaction that could cause
damaged, malfunctioning, partially disassembled, a load to catch fire.
or has missingor broken parts,including a I
damaged cord or plug.
B
B
B
B
The interior of the machine and the exhaust duct
connection insidethe dryer should be cleaned at
least once a year bya qualified technician. See
the Loading and Usingthe Dryer section.
If yours isa gas dryer,it isequipped with an
automatic electric ignition and does not have
a pilot light. DO NOTATTEMPTTOLIGHTWITHA
MATCH.Burnsmay result from havingyour hand
in the vicinity of the burner when the automatic
ignition turns on.
Do not open the dryer door during steam cycles.
Thesteam isvery hot and it will continue to
exhaust from the part for several secondsafter
opening. Donot touch the steam part after a
steam cycle.
Youmay wish to soften your laundered fabrics
or reducethe static electricity in them by using
a dryer-applied fabric softener or an anti-static
conditioner. We recommend you useeither a fabric
softener in the wash cycle, according to the
manufacturer's instructionsfor those products,
or try a dryer-added product for which the
manufacturer giveswritten assuranceon the
package that their product can be safely used
in your dryer. Serviceor performance problems
caused by useof these products are the
responsibility of the manufacturers of those
products and are not covered under the
warranty to this appliance.
Do not usesteam cyclewith items such as wool,
leather,silk,lingerie,foam products or electric
blankets.
B
B
Do not use heatto dry articles containing foam
rubber or similarlytextured rubber-like materials.
Do not place items exposed to cooking oilsin your
dryer. Items contaminated with cooking oilsmay
B
NOT USING YOURDRYER
Graspthe plug firmly when disconnecting this
appliance to avoid damage to the cord while
pulling. Placethe cord away from traffic areas
so itwill not be stepped on,tripped overor
subjected to damage.
I Beforediscarding a dryer,or removing it from
service,remove the dryer door to prevent children
from hiding inside.
Ill Do not tamper with controls.
Donotattempt to repair or replaceany part
of this applianceor attempt anyservicingunless
specificallyrecommended in this Owner'sManual
or in publisheduser-repairinstructionsthat you
understand and havethe skillsto carry out.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS
5

About the drger control panel.
IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
Control Panel
Throughout this manual, features and appearance mag varg from gout model.
*Applied Model •PTDS850/PTDS855
START
POWER
SENSOR DRY
MIXED LOADS
DELICATES
JEANS,
TOWELS &
SPEED DRY "
TIME DRY
COTTONS _ORTER 0
WARM UP STEAN
DEWRINKLE
*Applied Model •PTDN8OO/PTDN805
-_ SENSOR DRY
DELICATES
START JEANS.
_% PAUSE TOWELS &
SHEETS"
BULKY/.
HEAVY DUTY
POWER SPEED DRY
TIME DRY
ACTIVE WEAR M)_ED LOADScoTTONS
WARM UP DEWRIN
o_
6

GEAppliances.com
Power
Pressto "wake up" the display. If the display isactive, press to put the dryer in the idle mode.
NOTE:Pressing POWERdoes not disconnect the appliance from the power supplg.
START
Pressto start a dry cycle. If the dryer is running, press it once and it will pause the dryer. Pressit again to restart
the dryer cycle.
Cycles
The cycle controls the length and tumble speed of the drying process. The chart below will help you match the
dry setting with the loads.
Note: Steam and Time Dry cycles do not sense the dryness level of the clothing. Adjust the Time and Heat in
order to achieve the desired level of dryness left in your clothing at the end of a cycle.
Steam Cycles
STEAMREFRESH For slightly wrinkled dry garments. Refreshes garments by reducing odor and de-wrinkling
1-5 garments. It brings new life to clothes that have been stored for extended period.
CONFORTORSTEAMUse to refresh comforters and sheets with a steam cycle to reduce odor.
REFRESH Do not use this cgcle with delicate fabrics.
STEAMDEWRINLKLEFor 1-5 wrinkled garments. Significantly reduces wrinkles on garments. Ideal for loads left in
the dryer for an extended time.
Sensor Cycles
COTTONS For cottons and most linens.
MI×ED LOAD For loads consisting of cottons and poly-blends.
DELICATES For lingerie and special-care fabrics.
JEANS For use with jeans, to change the desired level of dampness remaining in jeans at the end of the cycle,
press dryness LEVELbutton.
TOWELS&SHEETS For towels and sheets.
SPEEDDRY For small loads that are needed in a hurry, such as sports or school uniforms. Can also be
used if the previous cycle left some items damp, such as collars or waistbands.
ACTIVE WEAR For clothing worn for active sports exercise and some casual wear. Fabrics include new technology
finishes and stretch fibers such as spandex.
BULl(W/HEAVYDUTY For Bulky or Heavy duty items such as sheets, bed linens or throw rugs.
Time Dry Cycles
AIR FLUFF Use this feature to tumble items without heat.
WARN UP Uses 10 minutes of warming time to warm up clothes.
TIMED DRY Set the desired heating time and temperature manually.
DEWRINKLE a short cycle to flup up items that need to loosen up wrinkles.
My Cycle
MY CYCLE Pressto use, create or modify custom dry cycles.

About the dryer control panel (cont.).
Time Dry
Use to set your own dry time. TIME DRY is also recommended for small loads.
To use TIME DRY:
1. Turn dry cycle dial to TIME DRY.
2. Select the drying time by pressing the TIME button. You can increase the time in 10 minute increments up to 1
hr and 40 min. Each time you press the Time button, observe the segment display at the top of the control
increase by 10 minutes increments. The upper display shows the actual dry time. The lower display shows the
dry time range. E.G. the lower display shows 50 - 60 the upper display will show :50, if you press the TIME
button again the lower display remains at 50 - 60 and the upper display will change to :60 minutes. The dry
time will be 60 minutes.
3. Select temperature by pressing the TEMP button.
4. Close the door.
5. Press the START/PAUSE button.
Dry Level
The sensor continuously monitors the amount of moisture in the loud. When the moisture inyour clothes reaches
your selected dry level, the dryer will stop.
EXTRADRY Use for heavy fabrics.
MOREDRY Use for heavy or mixed type of fabrics.
DRY Use for normal dryness level suitable for most loads. This is the preferred cycle
for energy saving.
LESSDRY Use for lighter fabric (ideal for ironing).
DAMP For leaving items partially damp.
TEMP
You can change the temperature of your dry cycle.
ANTI-BACTERIAL This option may only be used with mixed load, towels and sheets andjeans cycles. This option
reduces certain types of bacteria by 99.9%: The anti-bacterial process occurs when high heat is used
during a portion of this drying cycle. When the option is selected, dryness level is automatically
changed to Very Dry.
Do not use this cgcle with delicate fabrics.
*The Anti-Bacterial temperature setting is Certified by NSF International (formerly National
Sanitation Foundation) to NSFProtocol PlB4 Sanitization Performance of Residential Clothes Dryers.
NSF Protocol P154
Sanifization Perfbrmance of
Residential Clothes I)ryers
HIGH For regular to heavy cottons.
MEDIUM For synthetics, blends and items labeled permanent press.
LOW For delicates, synthetics and items labeled Tumble Dry Low.
EXTRALOW For lingerie and special-care fabrics.
8

About cycleoptions.
NOTE: Not all features are available on all dryer models. GEAppliances.com
My Cycle
Set up your favorite combination of settings and save them here for one touch recall.
These custom settings can be set while a cycle is in progress.
To store u MY CYCLE combination of settings:
1. Select your drying cycle.
2. Change TEMPand DRYLEVELsettings to fit your needs.
3. Select any drying OPTIONSyou want,
4. Press and hold the _ pad for three seconds to store your selection. A beep will sound
and the pad will light up.
To recall your stored MY CYCLE combination:
Press the MYCYCLE button before drying a load.
To change your stored PlY CYCLE combination:
Follow steps 1-4 in "To store aPlY CYCLE combination of settings".
Add Water
When illuminated this indicates that your steam tank is low and it is time to add water to the tank. Please follow
the instructions on page 11.
About cycle options.
NOTE: Not all features are available on all dryer models.
trig Cycle
Tosave a favorite cycle,set the desired
settings and hold down the MYCYCLEbutton
for 3 seconds.A beepwill sound
to indicate the cyclehas been saved.
Touseyour custom cycle,pressthe MY
CYCLEbutton before drying a load.
Tochange the saved cycle, set the desired
settings and hold down the MYCYCLE
button for 3 seconds.
Seepage 8 for more details.
Signal
Alerts you that the cycle is complete.
The clothes should be removed when the
beeper goes off so wrinkles don't set in.
Press SIGNALto select low or high volume,
or to turn the beeper off.
The beeper will continue to sound every
2 minutes (maximum of 4 times).
Lock
You can lock the controls to prevent any
selectionsfrom being made. Or you can lock
the controls after you have started a cycle.
Children cannot accidentally start the dryer
by touching pads with this option selected.
To lockthe dryer,pressthe LOCKbutton. To
unlock the dryer, pressand hold the LOCK
button for 3 seconds.
When the lock function isenabled,the red
lock icon will appear in the upper display.
Eventhough the controls are locked,
the POWER button isstill active
in caseyou have to turn the unit off.

About cycle options(cong.NOTE: Not oil features ore available on oil dryer models.
_E×TENDED']
oIDAM'I
ALERT
Estimated Time Remaining
Displaysthe approximate time remaining
until the end ofthe cycle.
Asthe cyclebegins,you will seean initial
approximate total cycle time in the display.
Thenlights will "race" in the display.This
means the dryer iscontinuously monitoring
Extended Tumble
the amount of moisture in the load.Thelights
will continue until the dryer sensesa low level
of moisture inthe load.At that point, the
dryer will calculate and display the
approximate time remaining.
Minimizeswrinkles byadding brief periodsof
tumbling after cycle ends. Thedryer will
tumble without heat for !O secondsfollowed
by no tumbling for 5 minutes and repeat for
up to 3 hours after clothes are dry. Thedryer
isinEXTENDEDTUMBLEwhenthe
ESTIMATEDCYCLETIMEdisplay is
illuminated in a circular pattern.
Thelight besidethe button will light up when
EXTENDEDTUMBLEison.
NOTE:It is normal for the drum to pause
for short periods o1:time during EXTENDED
TUMBLE.
Damp Alert
This option causesthe dryerto beep when
clothes havedried to a damp level.Remove
items that you wish to hang dry. TheDAMP
ALERTwillonly beep when this option is
selected(drycycle keepsrunning).
The light besidethe button will light up when
DAMPALERTison.
NOTE:Onlg for LESSDRY,DRY,MOREDRY
and EXTRADRYsensor drg selections.
Removingclothes and hanging them when
they are damp can reduce the need to iron
some items.
DELAY ]
0 L START J
Delag Start
Useto delay the start of your dryer.
I.Chooseyour dry cycle and any options.
2. Pressthe DELAYSTARTbutton. You
can change the delay time in !-hour
increments (upto 2/4hours)each time
you pressthe DELAYSTARTbutton. Stop
pressingthe button when your desired
time isdisplayed.
3. Pressthe START/PAUSEbutton to start
the countdown.
Thecountdown time will be shown in the
ESTIMATEDTIMEREMAININGdisplay.
Thelight besidethe button will light up when
DELAYSTARTison.
NOTES:
IIf the door is opened while the drger is in
DELAY,the countdown time will continue
to count down the delabltime. If the door
is not closed and the countdown time
expires, the cgcle will not start until the
door is closed and the START/PAUSE
button is pressed.
BYou can delag the start of a dryer cgcle
up to 24 hours.
Rack Drg
Usethe RACKDRYfeature to dry shoesand
hats.
1. Insertthe drying rack (referto page 11 for
the correct placement).
2. Placegarment in the center of the rack
and closethe door.
3. Pressthe RACKDRYbutton.
4. SetTIME.(referto page 8 for instructions).
5. Pressthe STARTPAUSEbutton.
The light besidethe button will light up when
RACKDRYison.
NOTES:
I Donot usethe drying rack without
selectingthe RACKDRYcycle.
IDo not change the cgcle setting off the
timed dry cgcle.
I When the RACKDRY feature is selected
no other cycle setting can be chosen.An
invalid tone will sound if the cycle knob
isturned.
10

Dryer Features. GEAppliances.com
Duct Sensing
Theduct blockage system automatically
monitors, detects and alerts you to blockages
in the ductwork. Blockedductwork can
degrade dryer performance by reducing
airflow from the dryer. If you observe the
display window with the message,"CLg"it is
time to cleanyour exhaust ducting in order to
increase efficiency and reducedry times.
Screw Changing the Drum Lamp
Before replacingthe drum lamp, be sureto
unplug the dryer power cord or disconnect
the dryer at the household distribution panel
by removing the fuse or switching off the
circuit breaker.
Thedrum lamp is located at the top left of
the door frame.
1 Removethe screw holding the drum lump
shield in place.
2 Slidethe shield up and remove.
21 Removethe bulb and replacewith a
iS-watt, 120-volt candelabra-base bulb.
4 Replacethe lump shieldand screw.
Using the Drying Rack
A handy drying rack may be usedfor drying
delicate items such us washable sweaters.
Hookthe rack over the lint filter so the rack
extends into the dryer drum.
NOTE:
Thedrying rack should only be usedwith
the TIMEDRYcycle. It isalsostrongly
recommended when drying sneakers.
Donot use this drying rack when there are
other clothes in the dryer.
Using the Steam Cycles
Add Water
Beforeusinga Steam Cycle,the water tank
must be filled with water up to the MAXline.
If not, the ADDWATERlightwill blink. Make
surethat the water tank isfilled with water
and the cartridge iscompletely connected.
Turnthe dryer off and then restart the Steam
Cycle.
1. Turnthe dryer off by pressingthe POWER
button.
2. Open the lid.
21.Movethe leverto open.
4. Liftout the water tank and open the tank
lid.
5. Fillthe tank to the HAX water linewith
water.
6. Placethe water tank back into the barrel
and move the leverto close.
7. Closethe lid,press the POWERbutton and
selectthe cyclesdesired.
NOTES
+Only usewater. Donot fill the water tank
with foreign substances, rinseagents,or
detergents.
+Before moving the dryer,make surethe
water tank isempty.
Donot use distilledwater; the water level
sensor in the steam generator will not work.
+Becareful while filling the water tank to
avoid overflow and spilling.
+Wipe up any spilledwater around the water
tank and the drawer before starting the
dryer.
11

Loading and Using the Dryer.
Alwags follow fabric manufacturer's care label when laundering.
Sorting and Loading Hints
Asa general rule,ifclothes are sorted
properly for the washer, they are sorted
properly for the dryer. Try also to sort items
according to size.Forexample, do not dry a
sheet with socks or other small items.
Donot add fabric softener sheetsonce
the load hasbecome warm. They may
causefabric softener stains. Bounce®
FabricConditioner Dryer Sheetshave
been approved for usein all GEDryerswhen
usedin accordance with the manufacturer's
instructions.
Do not overload. Thiswastes energy and
causeswrinkling.
Do not dry the following items:
fiberglass items,woolens, rubber-coated
items, plastics,itemswith plastic trim and
foam-filled items.
Fabric Care Labels
Beloware fabric care label "symbols"that
affect the clothing you will be laundering.
Dry Labels
TumbleDr- _ _-]
dry Dry Normal FOqbq Do not dry[:]
Permanent Press/D Gentle/I] Do not tumble dry (used with[:]
wrinkle resistant delicate do not wash)
Heat@@@
setting High Medium Low No heat/air
Line dry/[:] Drip dry Dry flat In the shade
hang to dry
12

GEAppliances.com
Care and Cleaning of the Dryer
Dryer Interior and Duct: Theinterior of
the appliance and exhaust duct should be
cleaned once a year byqualified service
personnel.
TheExterior'.Wipe or dust any spillsor
washing compounds with a damp cloth.
Dryercontrol panel and finishes may be
damaged bysome laundry pretreatment
soiland stain remover products. Applythese
products away from the dryer. Thefabric
may then be washed and dried normally.
Damage to your dryer caused by these
products isnot covered byyour warranty.
Donot touch the surface or the display with
sharp objects.
TheLint Filter: Cleanthe lint filter before
each use. Removeby pulling straight up.Run
your fingers acrossthe filter.A waxy buildup
may form on the lintfilter from using dryer-
added fabric softener sheets.Toremove this
buildup,wash the lint screen in warm, soapy
water. Drythoroughly and replace. Donot
operate the dryer without the lint filter in
place.
Vacuum the lint from the dryer lint filter area
ifyou notice a change in dryer performance.
Stainless Steel'.Toclean stainless steel
surfaces,usea damp cloth with a mild,
nonabrasive cleaner suitable for stainless
steel surfaces.Removethe cleaner residue,
and then drywith a clean cloth.
Thestainlesssteel usedto make the
dryer drum provides the highest reliability
available in a GEdryer. If the dryer drum
should be scratched or dented during normal
use,the drum will not rust or corrode. These
surface blemisheswill not affect the function
or durability of the drum.
TheExhaust Hood: Checkwith a mirror that
the insideflaps of the hood move freely when
operating. Make surethat there is no wildlife
(birds,insects,etc.)nesting insidethe duct or
hood.
13

IIstolloti
str ct" Dr er
PTDN800, PTDN805, PTDS850, and PTDS855
ln Canada, call 1.800.561.3344,or visit geappliances.ca
BEFORE YOU BEGIN
Reed these instructions completelg and cerefuJlg.
•iMPORTANT-save these instructions for local
electrical inspector's use.
•iMPORTANT-ObserveaUgoverningcodesend
ordinances.
• Installthe clothesdryer according to the manufacturer's
instructions and local codes.
•Note to Installer -Besure to leave these instructions
with the Consumer.
•Note to Consumer- Keepthese instructions for future
reference.
•Clothes dryer installation must be performed by u
qualified installer.
•This dryer must be exhausted to the outdoors.
• Before the old dryer is removed from service or
discur@& remove the dryer door.
• Service information and the wiring diagram are located
in the control console.
• Do not allow children onor in the appliance. Close
supervision of children is necessary when the appliance
is used near children.
• Proper installation isthe responsibility of the installer.
• Product failure due to improper installation isnot
covered under the Warranty.
•Install the dryer where the temperature isabove 50°F
for satisfactory operation of the dryer control system.
•Remove and discard existing plastic or metal foil duct
and replace with UL-listed duct.
FOR YOUR SAFETY:
,WARNING
Use only rigid metal or flexible metal 4-inch
diameter ductwork for exhausting to the
outdoors. Never use plastic or other combustible
easy-to-puncture ductwork.
This appliance must be properly grounded and
installed as described in these instructions.
Do not install or store appliance in an area where
it will be exposed to water and/or weather.
The National Fuel Gas Code restricts installations
of gas appliances in garages. They must be 18
inches off the ground and protected by a barrier
from vehicles.
.Install the dryer where the temperature is above
50°F for satisfactory operation of the dryer
control system.
FOR GAS MODELS ONLY:
NOTE: Installation end service of this dryer must
be performed by e qualified installer, service
agency or the gas supplier.
in the Commonwealth of Massachusetts:
.This product must be installed by
o licensed plumber or gas fitter.
,,When using bell-type gas shut-off valves,
they shall be T-handle-type.
. A flexible gas connector, when used,
must not exceed 3 feet.
14

Installation Instructions
UNPACKING YOUR DRYER
Tilt the dryer sideways and remove the foam
shipping pads by pulling at the sides and breaking
them away from the dryer legs. Be sure to remove
all of the foam pieces around the legs.
Remove the bag containing the drying rack,
literature and serial cable.
LOCATION OF YOUR DRYER
IMPORTANT: Gas dryers are not approved for
mobile home installation.
MINIMUM CLEARANCE OTHER THAN
ALCOVE OR CLOSET INSTALLATION
Minimum clearance to combustible surfaces and
for air openings are:
, 1 inch clearance both sides
, 1 inch front
, 5 inches rear
Consideration must be given to provide adequate
clearance for proper operation and service.
DRYER DIMENSIONS
Front View
iliL,,_a
27"
(68.6 cm)
45"
(114.5 cm)
15
Side View
)
51"
(129.5 cm)
29"
(73.7 cm) -_
377A''
(96.3 cm)

Installation Instructions
LOCATION OF YOUR DRYER (cont.)
REQUIREMENTS FOR ALCOVE OR
CLOSET INSTALLATION
, Your dryer is approved for installation in an alcove
or closet, as stated on a label on the
dryer back.
, The dryer MUST be vented to the outdoors.
See the EXHAUST INFORMATION section.
Minimum clearance between dryer cabinet and
adjacent walls or other surfaces is:
1"either side
5"frontand rear
, Minimum vertical space from floor to overhead
shelves, cabinets, ceilings, etc., is 52".
, Closet doors must be Iouvered or otherwise
ventilated and have at least 60 square inches
of open area equally distributed. If the closet
contains both a washer and a dryer, doors must
contain a minimum of 120 square inches of open
area equally distributed.
, No other fuel-burning appliance shall be
installed in the same closet with the dryer
(gas models only).
, The closet should be vented to the outdoors
to prevent gas pocketing in case of gas in the
supply line.
BATHROOM OR BEDROOM
INSTALLATION
The dryer MUST be vented to the outdoors.
See EXHAUST INFORMATION.
The installation must conform with local codes or,
in the absence of local codes, with the NATIONAL
ELECTRICALCODE, ANSI/NFPA NO. 70 (for electric
dryers) or NATIONAL FUEL GAS CODE,ANSI Z223
(for gas dryers).
MOBILE OR MANUFACTURED HOME
INSTALLATION
, The installation must conform to the
MANUFACTURED HOME CONSTRUCTION & SAFETY
STANDARD, TITLE 24, PART 32-80 or, when such
standard is not applicable, with AMERICAN
NATIONAL STANDARD FOR MOBILE HOME,
NO. 50lB.
, The dryer MUST be vented to the outdoors with
the termination securely fastened to the mobile
home structure. (See EXHAUSTING THE DRYER.)
, The vent MUST NOT be terminated beneath a
mobile or manufactured home.
, The vent duct material MUST BE METAL.
, FOR GAS MODELS ONLY: KIT 14-D346-33 MUST be
used to attach the dryer securely to the structure.
, FOR GAS MODELS ONLY: The vent MUST NOT be
connected to any other duct, vent or chimney.
, Do not use sheet metal screws or other
refastening devices which extend into the interior
of the exhaust vent.
, Provide an opening with a free area of at least
25 sq. in. for introduction of outside air into the
dryer room.
16

Installation Instructions
CONNECTING A GAS DRYER (skip for electric drgers)
TOOLS AND MATERIALS YOU WILL NEED
FOR CONNECTING THE GAS SUPPLY
O Flat- or straight-blade screwdriver (may be
needed for cord strain relief)
OFlexible stainless steel or plastic-coated brass
connecting tube (if allowed by building code)
OOpen-end wrenches for flexible tube and
connector
OAdjustable pliers (to adjust leveling legs)
OPipe wrench for holding dryer gas inlet while
attaching adapter elbow
OAdjustable wrenches (21for tightening
connections
t_Gloves
t_Safety glasses
FOR YOUR SAFETY:
AWARNING
Before beginning the installation, turn off the circuit
breaker(s) or remove the dryer's circuit fuse(s) at the
electrical box. Be sure the dryer cord is unplugged
from the wall.
Turn the dryer's gas shutoff valve in the supply line
to the OFF position.
Shutoff
Valve
Disconnect and discard old flexible gas connector
and ducting material.
17

Installation Instructions
CONNECTING A GAS DRYER (cont.)
GAS REQUIREMENTS
,WARNING
Installation must conform to local codes and
ordinances, or in their absence, the NATIONAL
FUEL GAS CODE, ANSI Z223.
. This gas dryer is equipped with a Valve and
Burner Assembly for use only with natural gas.
Using conversion kit WE25XI0026, your local
service organization can convert this dryer for use
with propane (LP) gas. ALL CONVERSIONS MUST
BE HADE BY PROPERLYTRAINED AND QUALIFIED
PERSONNEL AND IN ACCORDANCE
WITH LOCAL CODES AND ORDINANCE
REQUIREMENTS.
The dryer must be disconnected from the gas
supply piping system during any pressure testing
of that system at a test pressure in excess of
0.5 PSI(3.4 KPa).
The dryer must be isolated from the gas supply
piping system by closing the equipment shut-off
valve during any pressure testing of the gas
supply piping of test pressure equal to or less
than 0.5 PSI(3.4KPa).
DRYER GAS SUPPLY CONNECTION
(8.2 cm)
t 2_" (6 cm) 3/8" NPT HALE THREAD GAS SUPPLY
NOTE: Add to vertical dimension
the distance between cabinet
bottom to floor.
GAS SUPPLY
, A 1/8" National Pipe Taper thread plugged
tapping, accessible for test gauge connection,
must be installed immediately upstream of the
gas supply connection to the dryer. Contact your
local gas utility should you have questions on the
installation of the plugged tapping.
, Supply line is to be 1/2" rigid pipe and equipped
with an accessible shutoff within 6 feet of, and in
the same room with, the dryer.
, Use pipe compound appropriate for natural or LP
gas or use Teflon ®tape.
. Connect flexible metal connector to dryer and gas
supply.
IN THE COMMONWEALTH
OF MASSACHUSETTS
, This product must be installed by a licensed
plumber or gas fitter.
, When using ball-type gas shut-off valves, they
shall be the T-handle type.
, A flexible gas connector, when used, must not
exceed 3 feet.
ADJUSTING FOR ELEVATION
Gas clothes dryers input ratings are based on
sea level operation and need not be adjusted
for operation at or below 2000 ft. elevation.
For operation at elevations above 2000 ft., input
ratings should be reduced at a rate of 4 percent
for each 1000 ft. above sea level.
Installation must conform to local codes and
ordinances or, in their absence, the NATIONAL
FUEL GAS CODE, ANSI Z223.
18

Installation Instructions
CONNECTING THE DRYER TO THE
GAS SUPPLY
r_ Install a female 3/8" NPT elbow at the end of
the dryer gas inlet.
Install a 3/8" flare union adapter to the female
elbow.
IMPORTANT: Use a pipe wrench to securely hold
on to the end of the dryer gas inlet to prevent
twisting the inlet.
NOTE: Apply pipe compound or Teflon ®tape to
the threads of the adapter and dryer gas inlet.
Adapt_
Apply Pipe Compound
_X_ Dryer Gas Inlet
j_ Attach the flexible metal gas line connector
to the adapter.
j'_ Tighten the flexible gas line connection using
two adjustable wrenches.
CONNECTING THE DRYER TO THE
GAS SUPPLY (cont.)
@Install a 1/8" NPT plugged tapping to the dryer
gas line shut-off valve for checking gas inlet
pressure.
Install a flare union adapter to the plugged
tapping.
NOTE: Apply pipe compound or Teflon ®tape to
the threads of the adapter and plugged tapping.
Apply pipe compound or
Teflon¢_tape to all male
threads. Tapping
[_ Tighten all connections using two adjustable
wrenches. Do not overtighten.
[_ Open the gas shutoff valve.
19

Installation Instructions
CONNECTING A GAS DRYER {cont.)
TEST FOR LEAKS
A WARNING - Never use an open
flame to test for gas leaks.
Check all connections for leaks with soapy solution
or equivalent.
Apply a soap solution. The leak test solution must
not contain ammonia, which could cause damage
to the brass fittings.
If leaks are found, close the valve, retighten the joint
and repeat the soap test.
Open Gas
Valve
ELECTRICAL CONNECTION
INFORMATION FOR GAS DRYERS
A WARNING - To reduce the risk of
fire, electric shock and personal injurg:
. Do not use an extension cord or an adapter plug
with this appliance.
. The dryer must be electrically grounded in
accordance with local codes and ordinances, or
in the absence of local codes, in accordance with
the NATIONAL ELECTRICALCODE, ANSI/NFPA
NO. 70.
ELECTRICAL REQUIREMENTS
FOR GAS DRYERS
This appliance must be supplied with &20V, 60Hz,
and connected to a properly grounded branch
circuit, protected by a 15- or 20-amp circuit breaker
or time-delay fuse.
If electrical supply provided does not meet the
above specifications, it is recommended that a
licensed electrician install an approved outlet.
A WARNING - Thisdryer is
equipped with a three-prong (grounding) plug for
your protection against shock hazard and should
be plugged directly into a properly grounded
three-prong receptacle. Do not cut or remove
the grounding terminal from this plug.
Ensure proper Ill I! /1
ground exists .....
before use.
2O
