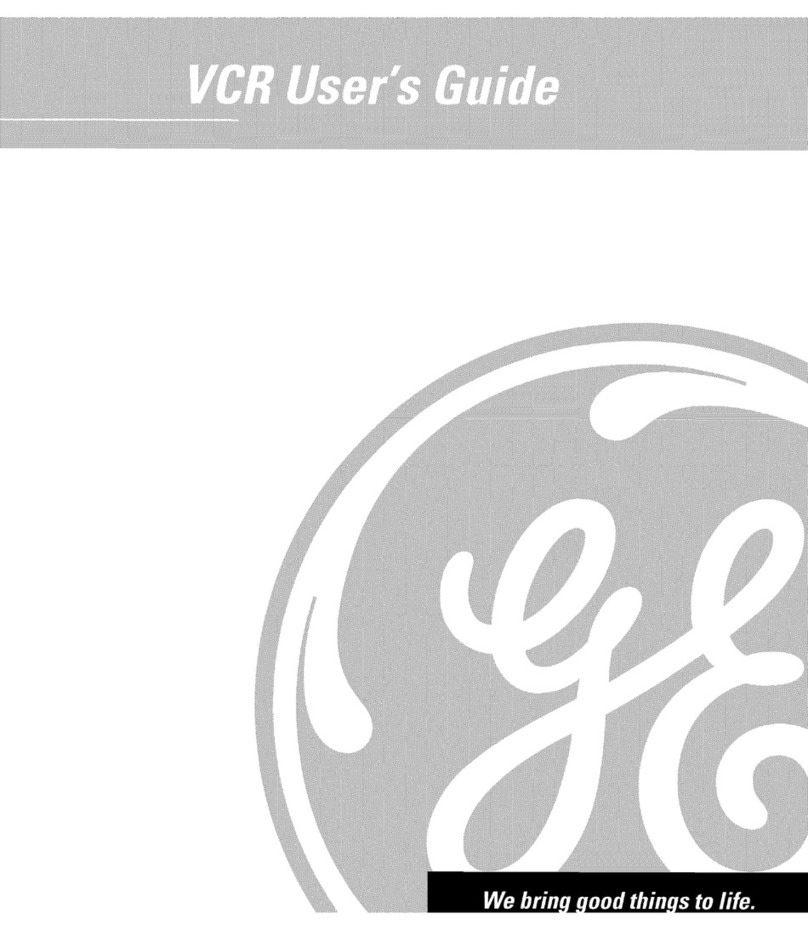

GE VG4043 User manual

To reduce the risk of electric shock, do not
remove cover (or back). No user serviceable
RISK OFELECTRICSHOCK parts inside. Refer servicing to qualified
DO NOT OPEN service personnel.
This symbol indicates _ This symbol indicates
"dangerous voltage" _, important instructions
inside the product that accompanying the
presents a risk of electric product.
shock or personal injury.
Caution: To reduce the risk of electric shock, match
wide blade of plug to wide slot, fully insert.
Attention: Pour 6viter les chocs 61ectriques,
introduire la lame la plus large de la fiche dans la
borne correspondante de la prise et pousser jusq5 au
fond.
Refer to the identification/rating label located on the back panel of your
product for its proper operating voltage.
FCC Regulations state that unauthorized changes or modifications to this
equipment may void the user's authority to operate it.
Cable TV Installer: This reminder is provided to call your attention to
Article 820-40 of the National Electrical Code (Section 54 of the Canadian
Electrical Code, Part 1) which provides guidelines for proper grounding
and, in particular, specifies that the cable ground shall be connected to
the grounding system of the building as close to the point of cable entry
as practical.
WARNING
To reduce the risk of fire or
shock hazard, do not expose
this product to rain or moisture.
Product Registration
Please fill out the product registration card and return it immediately.
Returning this card allows us to contact you if needed.
Keep your sales receipt to obtain warranty parts and service and for
proof of purchase. Attach it here and record the serial and model
numbers in case you need them. The numbers are located on the back
of the product.
Model No. VG4043
Serial No.
Purchase Date:
Dealer/Address/Phone:

First Things First .................................................. 3
Setting Up the VCR .............................................. 7
Using the Menu to Set Up Features ....................................... 8
Language ................................................................................. 8
Cable Box Setup ...................................................................... 8
VCR Channels List ................................................................. 10
To Auto Channel Search .................................................. 10
To Change the SignalType ............................................. 11
To Add or Remove Channels ......................................... 11
Time and Date ....................................................................... 12
Set Daylight-SavingTime ................................................ 12
Set theTime and Date ..................................................... 13
Additional Set-up Features in the PREFERENCES Menu ... 14
Remote VCR1/VCR2 Option ............................................. 14
Auto Play .......................................................................... 15
Auto TV/VC R ..................................................................... 15
EnergySaver ..................................................................... 16
Front Panel (VCR Display) ............................................... 16
Tape Speed ....................................................................... 16
VCR Basics ........................................................ 17
Remote Buttons ..................................................................... 18
Component Buttons ........................................................ 18
VCR Function Buttons ..................................................... 18
TV Function Buttons ........................................................ 19
Playing aTape ........................................................................ 20
Automatic Rewind ........................................................... 21
Tape Eject ......................................................................... 21
Recording ............................................................................... 21
Check the SafetyTab ........................................................ 21
Recording .......................................................... 23
Recording Features ............................................................... 24
Express Recording ................................................................ 24
Timer Recording .................................................................... 25
Stopping aTimer Recording ........................................... 26
Review and Clearing Programs ...................................... 26
Using Two VCRs for Copying and EditingTapes .................. 27

Program the Remote .......................................... 29
About Programming the Remote ......................................... 30
Programming the Remote to Control a TV .......................... 30
Operate the Cable Box or Digital Satellite Receiver ........... 32
Other Features ................................................... 33
Picture Search Options ......................................................... 34
Forward and Reverse Search .......................................... 34
Slow Motion .................................................................... 34
Commercial Scan (Search Button) ................................. 34
Frame Advance ................................................................ 35
Index Search .......................................................................... 35
Zero Search ............................................................................ 36
Pro-Tect Plus TM Locking Feature ........................................... 36
Time Counter ......................................................................... 37
On-Screen Displays ............................................................... 37
Tracking .................................................................................. 38
Connections ....................................................... 39
Connecting Your VCR ............................................................. 40
Jacks and Cables ................................................................... 40
RF Jacks and Antenna Cables (F-type) ........................... 40
Audio/Video Jacks and Cables (RCA-type) .................... 40
Choosing a VCR Connection ................................................ 41
Advantages of Audio/Video Cable Connections ........... 41
Don't Forget About the AutoTV/VCR Feature ................ 41
TVWith RF Jack Only ............................................................ 42
TV With Audio/Video Jacks ................................................... 43
TVWith Audio/Video Jacks and Cable Box
to Unscramble Pay Channels Only ................................. 44
Reference .......................................................... 45
Front Panel ............................................................................. 46
Display Panel ......................................................................... 46
Back Panel .............................................................................. 47
Troubleshooting Tips ............................................................. 48
Specifications ........................................................................ 51
Cleaning the VCR ................................................................... 51
Limited Warranty ................................................................... 52
Index ....................................................................................... 53
2

Hi, my name is Roger...
and I wrote this User's Guide. It's my job to see that
you have a rewarding user manual experience.You'll
find that I've arranged this manual to clearly explain
all your VCR's features.
I 1 FIRST THINGS FIRST
VI
Read the First Three Sections V
The first three sections of the manual introduce you to
your VCR, and show you how to set the VCR up and
use the on-screen menus. Reading these sections
gives you the basic information you need to use your
VCR. V
What's Left?
The rest of the book highlights playback and recording
information, contains a detailed connections section,
and a reference section that includes troubleshooting
tips, limited warranty, and index.
V
V
V
V
[READ ME!
These note boxes give you tips for
your new video cassette recorder.
3

STEP l: Unpack What's in the Box
The following items come packed in the box:
• VCR
• Remote control
• RF antenna cable
STEP 2: Install Batteries in the
Remote Control
Follow these steps whenever you need to install or change the
batteries in yourVCR remote.
1. Remove the cover of the battery compartment.
2. Place batteries in remote, matching the + and - ends of each
battery to the diagram inside the compartment.
3. Replace the cover.
STEP 3: Connect Your VCR
If you connect yourVCR to your home antenna or cable system
and then to yourTV, use theVCR's IN FROM ANT. and OUTTOTV
jacks for a good signal as shown.
If you have aTV with AUDIO/VIDEO jacks, use the audio/video
jacks on theTV and VCR for a better connection. Refer to the
Connections section, toward the back of the manual.
STEP 4: Plug in the VCR
Match the wide blade of the plug with the wide slot in the outlet.
Be sure to insert the plug completely.
VCR
CABLE, CABLE BOX, OR_ANTENNA
iii2-2 I
TV J
4

STEP 5: Tune the TV
Tune theTV to the VCR viewing channel. The VCR viewing
channel is channel 3 or 4 or theTV's video input.
• If you connect your VCR using the ANTENNA connectors
with RF antenna cable, set the 3CH.4 switch to channel 3 or
channel 4--the channel you want to use on yourTV.
• If you connect your VCR using the AUDIO/VIDEO jacks with
audio/video cables, select theTV's video input to see the
signal. See the TV Owner's Manual.
STEP 6: Turn On the VCR
Press POWER on the VCR's front panel orVCR on the remote to
turn on the VCR.Turning on the VCR for the first time starts the
Interactive Setup feature.
STEP 7: Interactive Setup
The first time theVCR is turned on, Interactive Setup--a brief
series of on-screen menus--appears.These menus assist in
setting up several of the VCR's features. Use the remote's
number buttons to select options.
1. Press 1 for English, 2 for Espafiol (Spanish), or 3 for Fran(;ais
(French).
Select a language.
Seleccione un idioma.
Choisissez une [angue.
1>English
2 Espafio[
3 Francais
The remaining Interactive Setup menus will appear in the
language you choose. Follow the on-screen instructions to
complete the process.
VCR Viewing Channel
When using the ANTENNA jacks to
connect your VCR, tune your TV to
channel 3 or 4.
When using the audio/video jacks
to connect yourVCR, tune yourTV
to theTV's video input channel.
5

STEP 8: Access the Menus
When you've completed Interactive Setup, try out the VCR's
regular on-screen menus.The MENU and number buttons let
you access, select, and change menu items. For example, to
change the Auto Play setting, you would do the following:
1. Press MENU to bring up theVCR MAIN MENU.
VCR MAIN MENU
1 Timer Recordings
2 Time
3 Channels
4 Preferences
5 Language
0 Exit
2. Press 4 to display the PREFERENCES menu.
PREFERENCES
1 Remote Control: VCR1
2 Auto Play: ON
3 Auto TV/VCR: ON
4 EnergySaver: 2:00
5 Front Panel: AUTO
6 Tape Speed: SLP
0 Exit
3. Press 2 to switch Auto Play to ON or OFE
PREFERENCES
1 Remote Control: VCR1
2 Auto Play: OFF
3 Auto TV/VCR: ON
4 EnergySaver: 2:00
5 Front Panel: AUTO
6 Tape Speed: SLP
0 Exit
See Setting Up the VCRfor detailed information about the
Auto Play feature. Once you understand how to use the
menus, move on to the next section.
6

Set-up Features
Below is a list of set-up features that you may want to
set up before you begin using yourVCR for the first
time:
• Select a language
• Set for use with a cable box
• Set upVCR channel list (Auto Channel Search)
• Set automatic daylight-saving time
• Set the time and date
2V
SETTING UP THE VCR
V
V
• Set the RemoteVCR1/VCR2 feature
• Set theAuto Play feature
• Set theAutoTV/VCR feature V
• Set the EnergySaver feature
• Set the Front Panel feature
• Set the preferredTape Speed V
V
V
7

Using the Menu to Set Up Features
You can set up features by using the menu system. Each feature
is explained in this section.
Language
Select your preferred language, and the on-screen displays will
appear in that language.
1. Press MENU to display theVCR MAIN MENU.
VCR MAIN MENU
1 Timer Recordings
2 Time
3 Channels
4 Preferences
5 Language
0 Exit
,Press 5 to display the LANGUAGE menu.
LANGUAGE
Select a language.
1>English
2 Espanol
3 Francais
Press MENU to continue
3. Press 1 for English, 2 for Espafiol (Spanish), or 3 for
Fran£ais (French).
Cable Box Setup
This setup applies only when all channels are received through
the cable box. The VCR will automatically enter the output
channel of the cable box when programming your VCR for timer
recordings.
8

1. Press MENU to displaytheVCR MAIN MENU.
VCR MAIN MENU
1 Timer Recordings
2 Time
3 Channels
4 Preferences
5 Language
0 Exit
2. Press 3 to display the CHANNELS menu.
CHANNELS
1 Auto Channel Search
2 Add/Remove Channels
3 Signal Type: CABLE
4 Cable Box Setup
0 Exit
.Press 4 to display CABLE BOX SETUR Then select one of the
three choices.
CABLE BOX SETUP
DO you use your cable
box to receive ALL
channels or only SOME
channels.
1 ALL channels
2 Only SOME channels
3 Cancel setup
.If you select ALL CHANNELS, enter the output channel of
your cable box, usually 03, 04, or video line input and
press MENU.
CABLE BOX SETUP
On what channel does
the VCR receive signals
from the cable box?
(usually 3. 4. or Video)
04
Press CLEAR to correct
Press MENU to continue
CABLE BOX SETUP
The VCR will now
receive all signals
from the cable box
on channel 04.
Press MENU to continue
Once you complete the setup, theVCR confirms that Cable
Box Setup is complete. All Channels
If you do not use a cable box for ALL
channels, then you will want to use a
channel list (Auto Channel Search).
9

VCR Channels List
If you use a cable box for all channels, this step is not necessary.
YourVCR may come with a channel list preset at the factory. Even
though yourVCR may come with a list, it's possible that you may
want to add or eliminate some channels depending on whether
they are active.
To Auto Channel Search
1. Press MENU to displaytheVCR MAIN MENU.
VCR MAIN MENU
1 Timer Recordings
2 Time
3 Channels
4 Preferences
5 Language
0 Exit
2. Press 3to display the CHANNELS menu.
CHANNELS
1 Auto Channel Search
2 Add/Remove Channels
3 Signal Type: CABLE
4 Cable Box Setup
0 Exit
3. Press 1 to display the AUTO CHANNEL SEARCH menu.
AUTO CHANNEL SEARCH
What type of signal
are you using?
1 Cable TV
2 Antenna
3>Detect Automatically
0 Cancel
4. Select one of the three AUTO CHANNEL SEARCH options.
Choices one and two are self-explanatory. If you choose
Detect Automatically, the VCR automatically detects which
signal system you have attached to yourVCR.
Detect Automatically
A strong cable or antenna signal in
your area may cause Auto Detect to
mis-detect. If this should happen,
select 1 or 2 for the system you have.
Auto Channel Search
Use the Auto Channel Search feature
to place all available channels in
memory.
If you ever change cable or antenna
signals, you may need to Auto
Channel Search again.
10

AUTO CHANNEL SEARCH
Now scanning channel 14
Press any key to cancel
TheVCR begins scanning for the available channels--this
takes about one to two minutes.The lowest channel is tuned
once the search is completed. Pressing CHANNEL up or
down now selects the active channels.
To Change the Signal Type
1. Press MENU to displaytheVCR MAIN MENU.
2. Press 3to display the CHANNELS menu.
3. Press 3 to change the SignalType between CABLE and
ANTENNA.
CHANNELS
1 Auto Channel Search
2 Add/Remove Channels
3 Signal Type: CABLE
4 Cable Box Setup
0 Exit
To Add or Remove Channels
You may want to add or delete channels after you Auto Channel
Search, especially if some of the channels have weak signals or
you don't want to watch them.
.
2.
3.
Press MENU to display theVCR MAIN MENU.
Press 3 to display CHANNELS menu.
Press 2 to display the ADD/REMOVE CHANNELS menu. Use
the CHANNEL up or down, or number buttons, to go to the
channels you want to delete or add.
ADD/REMOVE CHANNELS
Channel 115
is presently ADDED
Press CLEAR to remove
Press MENU to exit
ADD/REMOVE CHANNELS
Channel 115
is presently REMOVED
Press INFO to add
Press MENU to exit
rSelecting Channels
The CHANNEL up and down buttons
access those channels active in your
VCR channel list.
You can still access channels not in
the channel list by using the number
buttons on the remote control.
11

Time and Date
Before you set the time and date, set the Auto DST (Daylight
SavingTime) feature to ON or OFF for your area.
Set Daylight-Saving Time
1. Press MENU to displaytheVCR MAIN MENU.
VCR MAIN MENU
1 Timer Recordings
2 Time
3 Channels
4 Preferences
5 Language
0 Exit
,Press 2 to displayTIME menu.
TIME
1 Set Time and Date
2 Auto DST: ON
0 EXIT
3. Press 2 to turn the Auto DST ON or OFE
Select ON if you want the VCR's clock to automatically
adjust for daylight-saving time.
Select OFF if you do not want the VCR's clock to adjust
for daylight-saving time. Spring forward; Fall backward
In the Spring, daylight-saving time
begins on the first Sunday in April.
Because the clock automatically
changes from 2:00 AM to 3:00 AM
(forward one hour), remember to
include the extra hour for timer
recording that falls within this time
frame.
In the Autumn, daylight-saving time
ends on the last Sunday in October.
TheVCR clock automatically changes
from 2:00 AM to 1:00 AM (back one
hour).Therefore, it can affect your
recording length.
12

Set the Time and Date
1. Press MENU to display theVCR MAIN MENU.
VCR MAIN MENU
1 Timer Recordings
2 Time
3 Channels
4 Preferences
5 Language
0 Exit
.Press 2 to displayTIME menu.
TIME
1 Set Time and Date
2 Auto DST: ON
0 EXIT
.Press 1 to display the SETTIME AND DATE screen.
SET TIME AND DATE
Time --:--
(hh:mm)
Date --/--/--
Press MENU to cancel
4. Enter the data using the number buttons. Press 0 before
single-digit numbers and follow the on-screen directions.
SET TIME AND DATE
Time 12:34 PM
Date 10/24/97 Friday
Press CLEAR to correct
Press MENU to set I
I
Time and Date
The time and date must be set
before a timer recording can be
programmed.
Time/Date Display
Pressing INFO on the remote
displays the time and date on the
TV screen.
1
1
13

Additional Set-up Features in the
PREFERENCES Menu
The features in this section are all accessed through the
PREFERENCES menu.
1. Press MENU to displaytheVCR MAIN MENU.
VCR MAIN MENU
1 Timer Recordings
2 Time
3 Channels
4 Preferences
5 Language
0 Exit
2. Press 4to display PREFERENCES menu.
PREFERENCES
1 Remote Control: VCR1
2 Auto Play: ON
3 Auto TV/VCR: ON
4 EnergySaver: 2:00
5 Front Panel: AUTO
6 Tape Speed: SLP
0 Exit
Now you are ready to select an item from the menu to set up.
Remote VCR1/VCR2 Option
If you own a compatible GE, RCA or ProScan remote that has a
VCR2, VCR2oLD, or DVDoVCR2 button, this feature allows you to
set thisVCR to respond to that button.
Press 1 to select the Remote Control item in the menu.Then
press the VCR2, VCR2oLD, or DVDoVCR2 button to change.
PREFERENCES
1 Remote Control: VCR1
2 Auto Play: ON
3 Auto TV/VCR: ON
4 EnergySaver: 2:00
5 Front Panel: AUTO
6 Tape Speed: SLP
Exit
PREFERENCES
(PRESS VCR2 TO CHANGE)
2 Auto Play: ON
3 Auto TV/VCR: ON
4 EnergySaver: 2:00
5 Front Panel: AUTO
6 Tape Speed: SLP
0 Exit
Remote Control Option 1
Changing the Remote Control
option to VCR2 disables the remote
that came with your VCR.
14

TheVCR will only respond to the compatible remote's VCR2,
VCR2.LD, or DVD.VCR2 button. If you change the remote setting
to VCR2, the remote that came with your VCR will no longer
control the VCR.
Use the compatible remote to change the remote setting back to
VCR1. Display the PREFERENCES menu, press 1, and then press
VCR1.Then the remote that came with the VCR will be able to
control it again.
Auto Play
This feature allows theVCR to automatically start playing when
you insert a tape with the safety tab removed. Press 2 to switch
between ON or OFE
Select ON if you want a tape with its safety tab removed to
start playing automatically when the tape is inserted.
Select OFF if you do notwant a tape with its safety tab
removed to start playing automatically.
Auto TV/VCR
This feature controls whether theTV/VCR switch changes
automatically to the VCR mode when the VCR is turned on. Press
3 to switch between ON and OFE
Select ON if you want the VCR to switch to the VCR mode
when the VCR is turned on or a cassette is inserted. This
only applies if you connect the IN FROM ANT. and OUTTO TV
jacks of your VCR andTV and watch yourVCR on channel 3 or
4 ofyourTV.
Select OFF if you want the VCR to remain in theTV mode.
This is useful if you watch your VCR on theTV's video input
and you don't want your antenna/cable signal interrupted by
the VCR.
15

EnergySaver
By default, this VCR automatically turns off after two hours of
inactivity. Press 4 to change the time delay, or to disable the
feature.
OFF: The VCR will remain turned on until you shut it off.
1:00, 2:00, or 3:00:The VCR turns off after one, two, or three
hours of inactivity.
Thirty seconds before shutting off, the VCR will warn you with a
screen reading, "The VCR will turn off in 30 seconds. Press any
key to cancel"
If you use the VCR's tuner instead of yourTV to tune channels,
you may want to turn this feature off.
Front Panel (VCR Display)
You can change the brightness level of the fluorescent display
panel on the front of the VCR. Press 5 to switch between the
options.
•AUTO brightens the display when the VCR is on and dims
the display when theVCR is off.
•BRIGHT keeps the display bright.
•DIM keeps the display at a low brightness level.
Tape Speed
You can select a preferred tape speed for recording.The speed
you select appears in the timer recording menu.The default
factory setting is SLP. Press 6 to switch between SP and SLP.
When making a recording, you can override the preferred tape
speed.
•Press the SPEED button on the remote.
•Set the tape speed in the timer.
Each time you turn on the VCR, the tape speed reverts to the one
you have selected.
Tape Speeds
SP (Standard Play)
Gives the best quality recording, but
fewer programs can be recorded on
the tape. Special effects such as
pause, slow motion, picture search,
and frame advance work well when
you play back tapes recorded in this
speed.
LP (Long Play)
YourVCR is capable of playing back
tapes recorded in LR You cannot
record in the LP speed.
SLP (Super Long Play)
Gives three times the recording time
of tapes recorded in SR Special
effects such as pause, slow motion,
picture search, and frame advance
work well when you play back tapes
recorded in this speed.
Cassette
T-120
T-160
Recording Time
SP SLP
2Hr 6Hr
2Hr 8Hr
40Min
16

Learn the Basics to Get You
Started
TheseVCR basics should be enough for you to
begin enjoying yourVCR. Learning the remote
control functions, playing a recorded tape, and
recording a program should do just that.
However, there are other features that enhance the
enjoyment of yourVCR, but they aren't necessary
to get you started. If you want to learn more about
your VCR, just keep reading. 13
V
V
VCR BASICS
VI
V
V
V
V
[VCR Basics tells you what you
need to know in order to watch a
movie or tape your favorite show. J
17

Remote Buttons
The remote control is capable of controlling more than just
yourVCR, and if you have compatible GE, RCA, or ProScan
components, you may be able to control them without even
having to program the remote.
Component Buttons
POWER Turns offVCR when remote is set to control the VCR.
Also turns some compatible components on and off.
SAT CABLE Turns on a compatible GE, RCA, or ProScan digital
satellite receiver and sets the remote to control the receiver. Can
be programmed to control different brands of digital satellite
receivers. Used with the POWER button to turn on a compatible
cable box (if programmed) and sets the remote to control the
cable box.
TV Turns on a compatible GE, RCA, or ProScanTV and sets the
remote to control theTV. Also used with the POWER button to
turn on a different brand of TV (if programmed) and sets the
remote to control theTV.
VCR Turns on a compatible GE, RCA, or ProScan VCR and sets
the remote to control the VCR.
VCR Function Buttons
CHAR Up or Down Selects next higher or lower channel in
the VCR's channel memory.
CLEAR Resets time counter to 0:00:00. Allows you to change
entries when setting the clock or a timer recording.
F.ADV Lets you view one frame with each press of the button
when tape is in pause.
FIND Fast forwards the tape when the VCR is stopped. Searches
forward through a tape during playback. Starts slow motion
during play-pause and increases slow-motion speed.
GO BACK Switches between two channels. Select one channel
and then select another using the number buttons. Press GO
BACK to switch between the two channels. In menu mode, press
to go back to previous menu.
INFO Shows the status displays on theTV screen.
POWER
O SAT
VCR CABLE TV
©©©
PAUSE PLAY RECORD
0@©
o@o
F.ADV STOP SEARCH
CHAR
'o o °o O-
0'0 °0 0 ÷
MUTE VOL
°0 © O_
INPUT TV,VCR INFO MENU CLEAR
©oooo
GO BACK SPEED
© ©
SLOW TRACKING
-O O* -O O-
18
