GE JV930SCBR Training manual

SAFETY PRECAUTIONS
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING – TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
A. Use this unit only in the manner intended
by the manufacturer. If you have questions,
contact the manufacturer.
B. Before servicing or cleaning unit, switch
power off at service panel and lock the service
disconnecting means to prevent power from
being switched on accidentally. When the
service disconnecting means cannot be locked,
securely fasten a prominent warning device,
such as a tag, to the service panel.
C. Do not use this unit with any solid-state speed
control device.
D. This unit must be grounded.
WARNING – TO REDUCE THE RISK
OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
B. Always turn hood ON when cooking on high
heat or when flambeing food (i.e., Crepes
Suzette, Cherries Jubilee, Peppercorn Beef
Flambé).
C. Clean ventilating fans frequently. Grease should
not be allowed to accumulate on fan or filter.
D. Use proper pan size. Always use cookware
appropriate for the size of the surface element.
(continued next page)
30sVented Hood
Use and Care & Installation Guide
GEAppliances.com
Models: JV394 JV395 JV396 JV930
Safety Instructions ................... Front Cover, 2
Operating Instructions ...........................2, 3
Automatic Heat Sensor.............................................. 3
Controls................................................................................ 2
Cleaning ................................................................................. 3
Filter........................................................................................ 3
Light Bulb Replacement ............................................ 3
Installation ............................................................4–6
Damper/Duct Connector.......................................... 5
Electrical Wiring ............................................................. 6
Filter Panel..................................................................... 3, 5
Mounting Brackets........................................................ 5
Consumer Support .................... Back Cover
Important Phone Numbers.............. Back Cover
Warranty ............................................................................ 7
49-80421-3
01-13 GE

OPERATING INSTRUCTIONS
Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the hood run for a
few minutes to clean the air after you turn the range off. This will keep the whole kitchen cleaner.
Controls
The hood is “OFF” when the glass visor is pushed
completely in.
LIGHT–The light will turn “ON” when the glass visor
is pulled out approximately 1/2 inch.
BLOWER–The blower will turn “ON” when the
drawer is pulled out approximately 11ø2inches.
The blower speed is set using the slide control,
located to the right of the drawer.
2
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
SAFETY PRECAUTIONS
CAUTION – FOR GENERAL VENTILATING
USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR
EXPLOSIVE MATERIALS AND VAPORS.
WARNING – TO REDUCE THE RISK OF
INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING*:
A. SMOTHER FLAMES with a close-fitting lid,
cookie sheet or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do not go
out immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
B. 1(9(53,&.83$)/$0,1*3$1³<RXPD\
be burned.
C. DO NOT USE WATER, including wet dishcloths
RUWRZHOV³DYLROHQWVWHDPH[SORVLRQZLOOUHVXOW
D. 8VHDQH[WLQJXLVKHU21/<LI
1.<RXNQRZ\RXKDYHD&ODVV$%&H[WLQJXLVKHU
and you already know how to operate it.
2. The fire is small and contained in the area
where it started.
3. The fire department is being called.
4<RXFDQILJKWWKHILUHZLWK\RXUEDFNWRDQH[LW
* Based on “Kitchen Fire Safety” published by NFPA.
WARNING – To reduce the risk of fire,
electric shock or injury to persons, observe the following:
A. Installation work and electrical wiring must be done
by qualified person(s) in accordance with all applicable
codes and standards, including fire-rated construction.
B. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of fuel
burning equipment to prevent back drafting. Follow the
heating equipment manufacturer’s guideline and safety
standards such as those published by the National
Fire Protection Association (NFPA), and the American
Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
When applicable, install any makeup (replacement)
air system in accordance with local building code
requirements. Visit GEAppliances.com for available
makeup air solutions.
C. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
D. Ducted fans must always be vented to the outdoors.
WARNING – TO REDUCE THE RISK
OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO
'8&7$,52876,'(³'21279(17(;+$867$,5,172
SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS,
CRAWL SPACES OR GARAGES.
WARNING – TO REDUCE THE RISK OF FIRE,
USE ONLY METAL DUCTWORK.
• Do not attempt to repair or replace any part of your
hood unless it is specifically recommended in this guide.
All other servicing should be referred to a qualified
technician.

Automatic Heat Sensor
<RXUKRRGLVHTXLSSHGZLWKDQDXWRPDWLF
thermostat. This thermostat is a device that will turn
on or speed up the blower if it senses excessive heat
above the cooking surface.
If your blower is not on, or if it is running at low speed,
the thermostat will sense excessive cooking heat,
override the normal blower control and turn the
blower on to high speed. The blower will run until the
temperature drops to normal operating level. The
blower will then automatically return to its original
setting.
WARNING: ALWAYS DISCONNECT ELECTRIC POWER SUPPLY BEFORE SERVICING HOOD.
Light Bulb Replacement
This hood uses a 24slong F20T12 fluorescent tube
and an FS-2 starter, which are available at most
hardware stores or home centers.
To check or replace tube:
1. Pull the drawer out.
2. Rotate the filter panel clips and lower the filter
panel.
If the tube flickers or does not light, check the prongs
on the ends of the tube to make sure they are
properly seated in the tube holders.
If the tube continues to flicker or does not light,
replace the tube. Slide the tube into the holders and
rotate the tube so that the prongs in the holders grip
the tube and hold it in place.
If the ends of the tube light but the center does not,
the starter may require replacement. The starter is
located behind the filter panel on the right hand side.
Install the new starter by pushing the starter in and
turning it clockwise.
Stainless Steel (on some models)
Do not use a steel wool pad; it will scratch the
surface.
To clean the stainless steel surface, use warm
sudsy water or a stainless steel cleaner or polish.
Always wipe the surface in the direction of the
grain. Follow the cleaner instructions for cleaning
the stainless steel surface.
To inquire about purchasing stainless steel
appliance cleaner or polish, or to find the location
of a dealer nearest you, please call our toll-free
QXPEHU
National Parts Center1.800.626.2002
GEApplianceParts.com

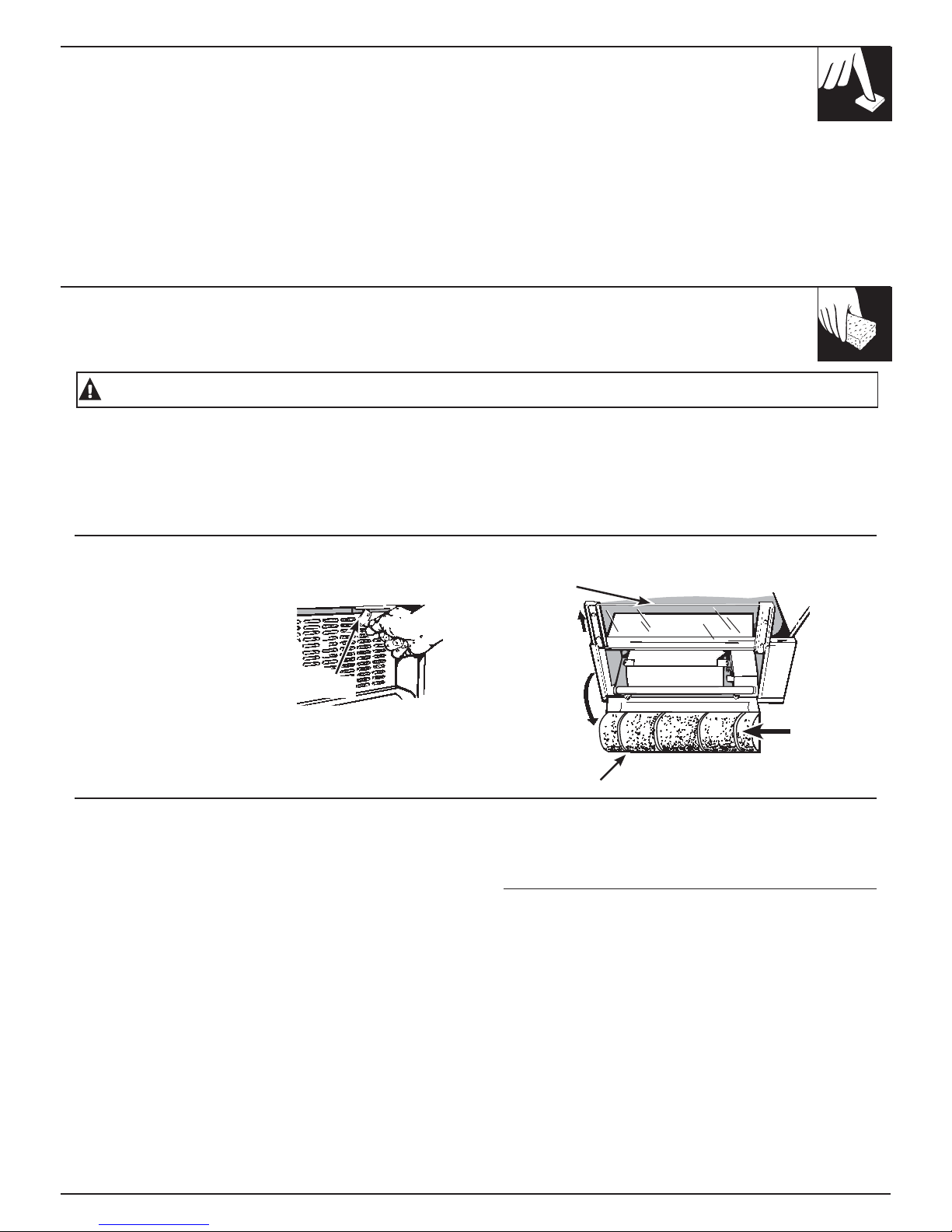

Filter
Slide the glass visor open.
Open the filter panel
by turning the two clips and
allowing it to swing free.
Flex the filter in the middle
to remove it.
Wash and rinse the filter in a
mild detergent solution.
Replace the filter before using the exhaust fan.
Panel clip
Glass visor
Filter panel
Grasp filter
and bend to
remove
CARE AND CLEANING
Use a mild detergent suitable for painted surfaces.
DO NOT USE ABRASIVE CLOTH, STEEL WOOL PADS
OR SCOURING POWDERS. Vacuum the blower to
clean it. Do not immerse the blower in water.
The glass visor assembly and light lens are easily
UHPRYDEOHIRUFOHDQLQJ
DO NOT clean in a dishwasher.
Remove the light lens by opening the filter panel and
turning the 2 metal clips holding the lens in place.
3

4

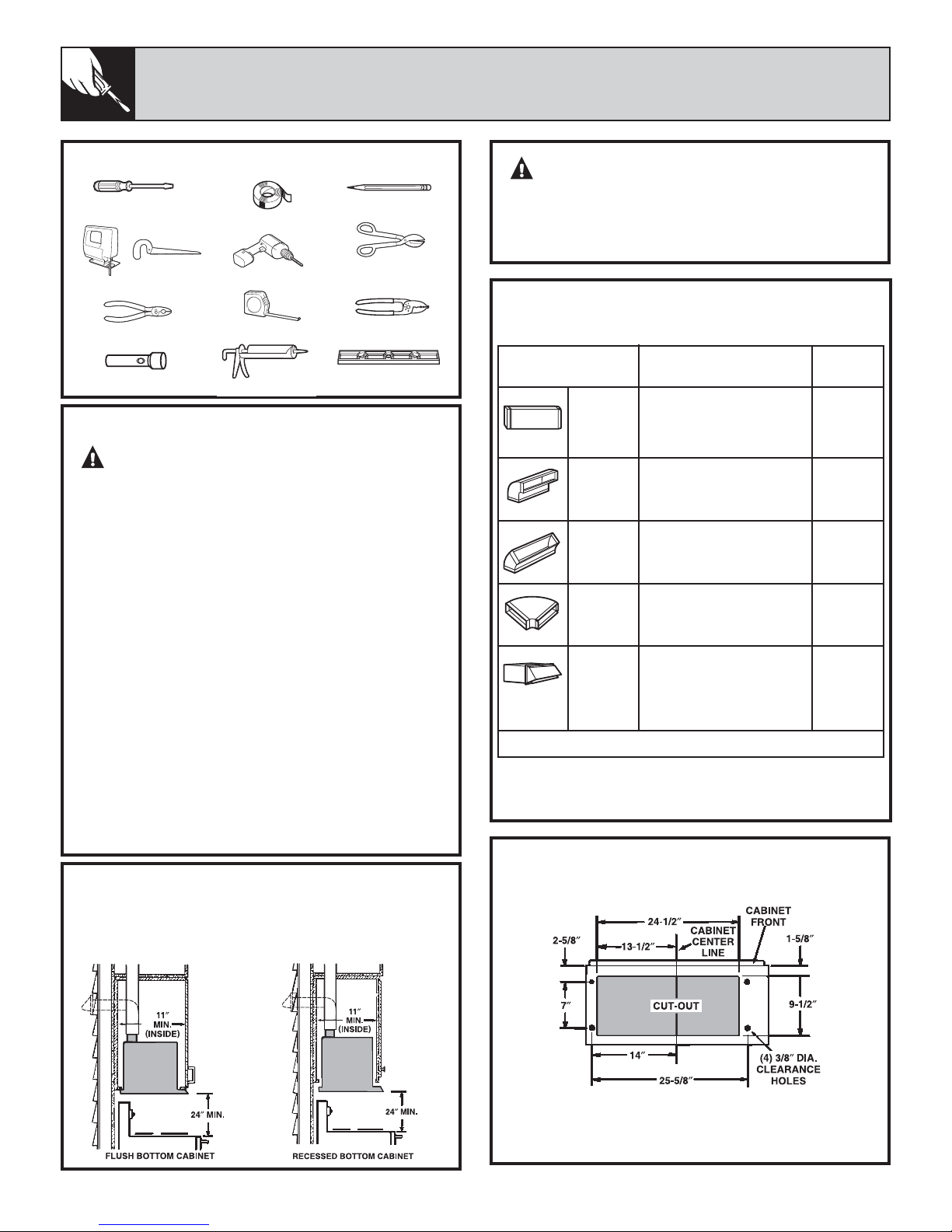

INSTALLATION INSTRUCTIONS
TOOLS YOU WILL NEED
Flat blade and Phillips
screwdrivers Pencil
Duct tape
Saw (saber or keyhole) Electric drill Metal snips
(in some applications)
Pliers Tape measure Wire stripper
Flashlight Caulking
Level
PLAN THE INSTALLATION
CAUTION: Remove the house fuse or open
the circuit breaker before beginning the installation.
<RXUQHZKRRGZLOOILWDVWDQGDUGswide flush bottom or
recessed bottom, framed or frameless kitchen cabinet which
has a minimum depth of 11sfrom the face to the inside of the
back wall.
The unit is ducted vertically. To change to horizontal ducting
see the instructions.
For safe operation, the mounted hood must be a minimum of
24sabove the cooking surface.
For easiest installation, the range hood should be installed in the
cabinet before mounting the cabinet to the wall.
NOTE: Remove the glass visor from the unit before installing the
hood in the cabinet to protect the visor from damage.
NOTE: Any home ventilation system, such as a ventilation
hood, may interrupt the proper flow of combustion air and
exhaust required by fireplaces, gas furnaces, gas water
heaters and other naturally vented systems. To minimize the
chance of interruption of such naturally vented systems, follow
the heating equipment manufacturer’s guidelines and safety
standards such as those published by NFPA and ASHRAE
When applicable, install any makeup (replacement) air
system in accordance with local building code requirements.
Visit GEAppliances.com for available makeup air solutions.
INSTALL THE HOOD
1. Mark and cut out the cabinet bottom.
Prepare the cabinet bottom as shown above. Be sure to
locate the cut-out and four holes from the front of the
cabinet to ensure a flush mount.
DUCT EQUIVALENT NUMBER
PIECES LENGTH X USED = TOTAL
3 1ø4sx 10s1 Ft. x ( ) = Ft.
Rect.,
straight
3
1ø4sx 10s14 Ft. x ( ) = Ft.
Rect. 90°
elbow
3
1ø4sx 10s8 Ft. x ( ) = Ft.
Rect. 45°
elbow
3
1ø4sx 10s33 Ft. x ( ) = Ft.
Rect. 90°
flat elbow
3
1ø4sx 10s24 Ft. x ( ) = Ft.
Rect. (18 ft. w/o
wall cap damper) x ( ) = Ft.
with damper
Total ductwork = Ft.
:25.6+((7³&$/&8/$7(727$/
EQUIVALENT DUCTWORK LENGTH
MAXIMUM DUCT LENGTH: For satisfactory air movement,
the total duct length of a 3
1ø4
sx 10srectangular duct should
not exceed 65 equivalent feet.
7KLVKRRGFDQHDVLO\EHLQVWDOOHGE\IROORZLQJWKHVHEDVLFVWHSV
• Mark and cut out the cabinet bottom.
• Secure the hood to the cabinet.
• Mount the cabinet on the wall.
• Connect the ductwork and the power cable.
WARNING – TO REDUCE THE RISK
OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE
72'8&7$,52876,'(³'21279(17(;+$867$,5
INTO SPACES WITHIN WALLS OR CEILINGS OR INTO
ATTICS, CRAWL SPACES OR GARAGES.

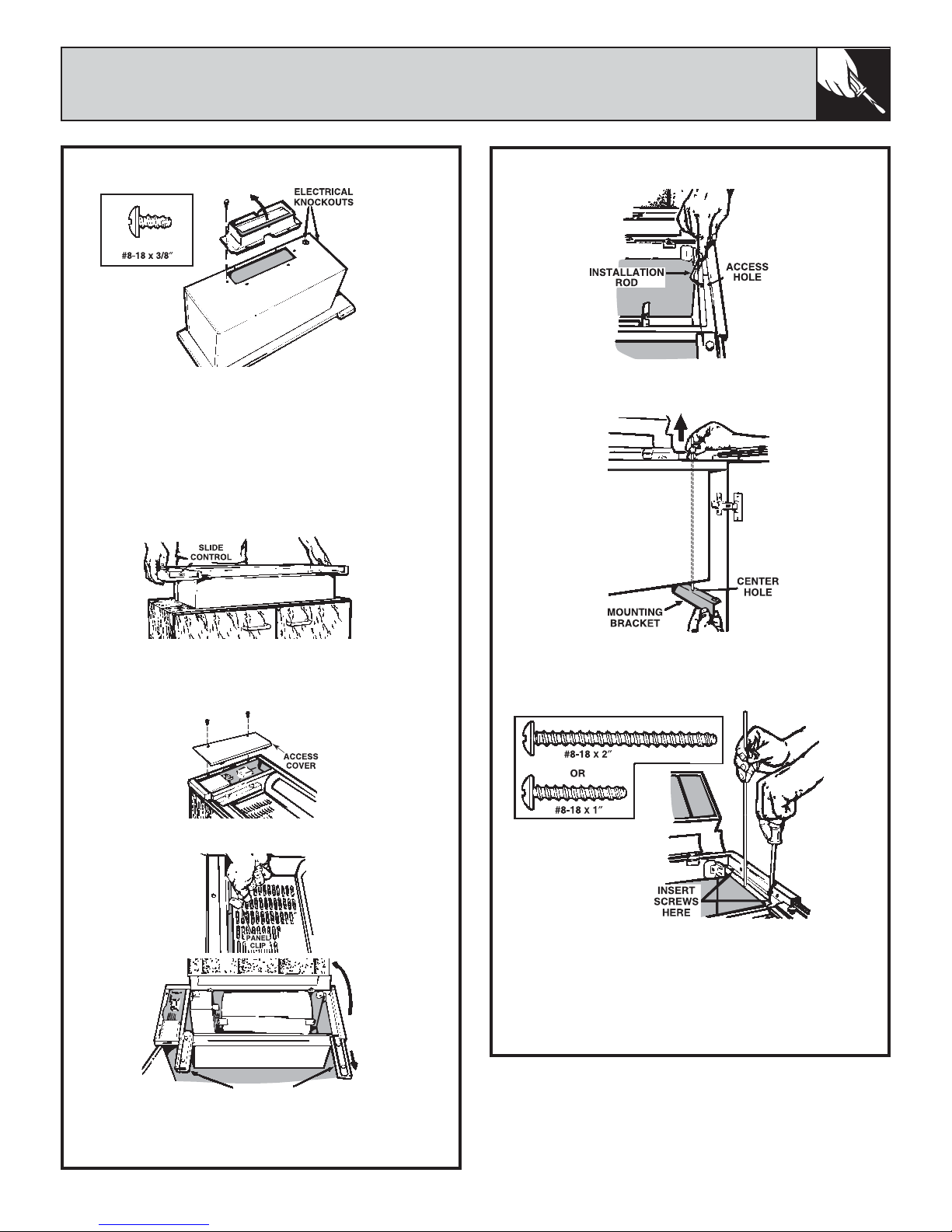

2. Attach the damper/duct connector.
Use two (2) screws (provided) to attach the connector
to the housing. The damper flap should open in the
direction indicated by the arrow.
3. Remove the electrical knockout.
Choose either the top or side of the housing for the
electrical cable entrance. Remove the appropriate
knockout.
4. Set the housing into the opening.
Carefully lower the housing into the cabinet opening
with the slide control to the front.
5. Remove the access cover.
6. Open the filter panel.
Pull the visor slides out. Rotate the panel clips and
swing the panel open.
5
INSTALLATION INSTRUCTIONS
FRONT
OF HOOD
7. Install the mounting brackets.
Insert the bent end of the installation rod into the
access hole in the housing.
Choose the mounting bracket with the center hole.
Hang the bracket from the rod, through this center hole,
as shown. Pull the bracket up between the cabinet and
housing.
Hold the mounting bracket in place with the rod. Two
sets of screws are provided. Use the short screws for
flush bottom cabinets or the long screws for recessed
bottom cabinets.
I nsert two (2) screws through the
housing and into the mounting bracket. Do not tighten
the screws completely.
VISOR
SLIDES

Insert two (2) screws, short or long as appropriate,
through the control box and into the other mounting
bracket. Do not tighten the screws completely.

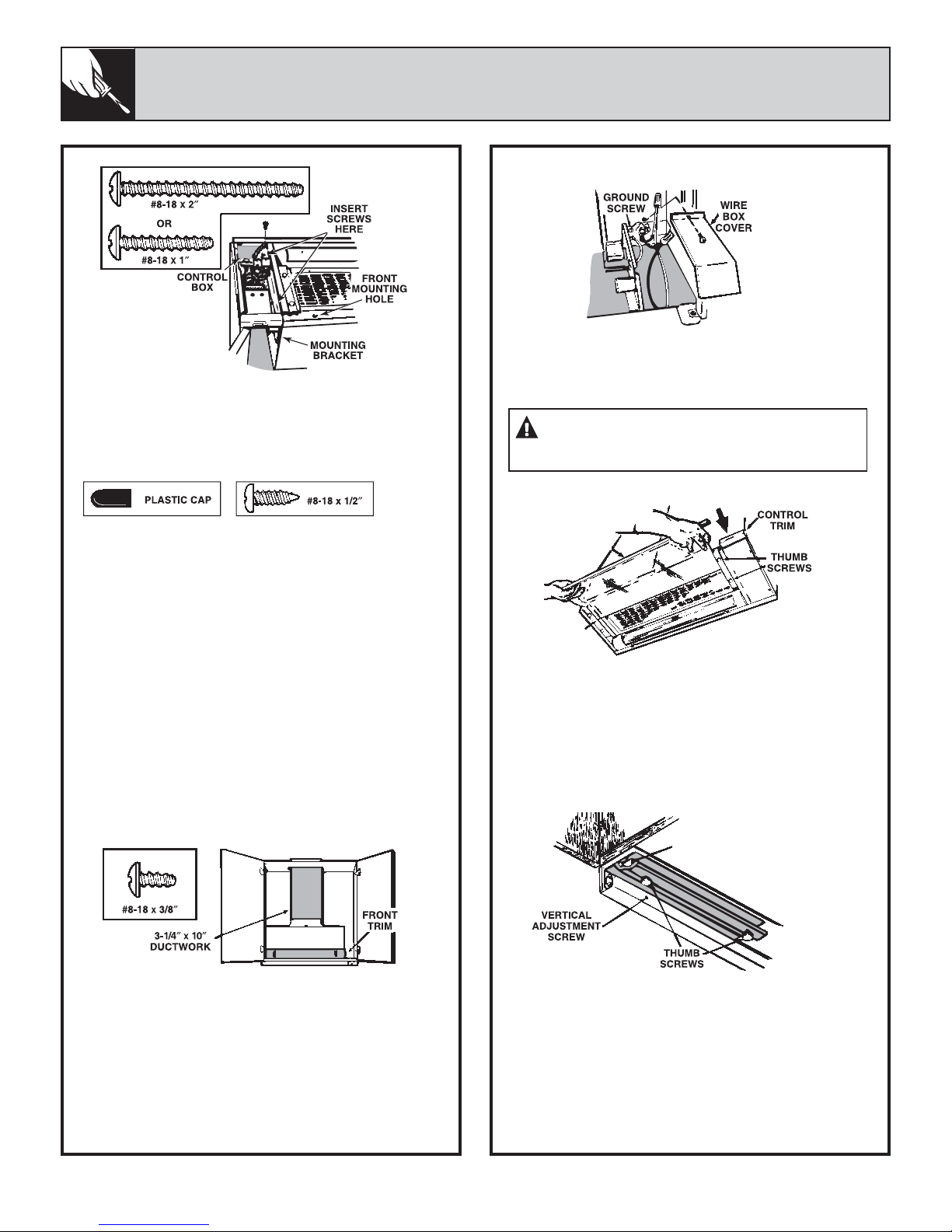

8. Secure the hood to the cabinet.
Align the hood with the sides and front edge of the
cabinet. Tighten the screws in each mounting bracket.
Place plastic caps (provided) over the ends of these
screws from the inside of the cabinet.
Install two (2) additional screws into the cabinet bottom,
through the front mounting holes along the front edge
of the hood.
9. Replace the access cover.
Secure the access cover with the two (2) screws
removed in step 5.
10. Mount the cabinet on the wall.
Make sure the cabinet is securely attached to the wall
and/or adjoining cabinets. The mounted cabinet must
be able to support the added weight of the hood.
11. Attach the ductwork and the front trim.
Complete the ductwork from the hood to the outside
using a roof cap or elbow and wall cap. Tape all
joints. Shelves may be installed if trimmed to clear the
ductwork.
The front trim piece covers the gap between the
housing and the front edge of the cabinet cut-out.
Mount the front trim to the housing with two (2) screws
(provided).
12. Connect the electrical wiring.
Remove the wire box cover. Attach the power cable to
the hood using the proper connector. Connect black to
black, white to white and green or bare wire to ground
screw. Replace the wire box cover.
13. Install the glass visor assembly.
Slide the glass into the visor slides, above each visor
clamp (see the illustration in step 14). Align the visor
trim and tighten the thumbscrews to secure the glass.
To remove the glass visor:
Simply loosen the thumbscrews and pull the glass from
the visor slides.
14. Fine adjustments to the visor trim position.
The visor slides each have a screw for adjusting the
height of the visor trim, if necessary. The vertical
adjustment screw allows the top and bottom edges of
the visor trim to be matched with the control trim.
15. Connect the power.
16. Check operation.
6
INSTALLATION INSTRUCTIONS
VISOR
SLIDE
VISOR
TRIM
CAUTION: DO NOT TURN THE BREAKER
ON OR INSERT THE HOUSE FUSE AT THIS TIME.
VISOR
CLAMP

7
WHAT IS COVERED LIMITED ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of
charge, parts and related service
labor to repair or replace any part of
the hood that fails because of
a manufacturing defect.
*******************************
This warranty is extended to the
original purchaser and any succeeding
owner for products purchased for
home use within the USA. In Alaska, the
warranty excludes the cost of shipping
or service calls to your home.
All warranty service provided by
our Factory Service Centers, or an
authorized Customer Care®technician.
To schedule service on-line, visit us
at GEAppliances.com, or call 800.
GE.CARES (800.432.2737). Please have
serial number and model number
available when calling for service.
WHAT IS NOT COVERED
• Service trips to your home to
teach you how to use the product.
• Improper installation, delivery or
maintenance.
If you have an installation problem,
contact your dealer or installer.
You are responsible for providing
adequate electrical, exhausting
and other connecting facilities
as described in the Installation
Instructions provided with the
product.
• Replacement of the replaceable
filters.
• Replacement of house fuses or
resetting of circuit breakers.
• Failure of the product if it is
used for other than its intended
purpose or used commercially.
• Damage to product caused by
accident, fire, floods or acts of
God.
• Incidental or consequential
damage caused by possible
defects with this appliance.
• Damage caused after delivery.
• Product not accessible to provide
required service.
• Installation or service for a
makeup (replacement) air system.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
To know what your legal rights are in your state, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company
YOUR 30sHOOD
WARRANTY
Staple sales slip or cancelled check here.
Proof of original purchase date
is needed to obtain service
under warranty.
(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV/LPLWHG:DUUDQW\$Q\LPSOLHG
warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest
period allowed by law.

Printed in the United States
Consumer Support.
GE Appliances Website GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order
parts or even schedule service on-line.
Schedule Service GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.
Real Life Design Studio GEAppliances.com
*(VXSSRUWVWKH8QLYHUVDO'HVLJQFRQFHSW³SURGXFWVVHUYLFHVDQGHQYLURQPHQWVWKDWFDQEHXVHGE\
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas
for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC
(800.833.4322).
Extended Warranties GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
LVVWLOOLQHIIHFW<RXFDQSXUFKDVHLWRQOLQHDQ\WLPHRUFDOOGXULQJQRUPDOEXVLQHVVKRXUV
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories GEApplianceParts.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone
at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
JHQHUDOO\VKRXOGEHUHIHUUHGWRTXDOLILHGVHUYLFHSHUVRQQHO&DXWLRQPXVWEHH[HUFLVHGVLQFHLPSURSHU
servicing may cause unsafe operation.
Contact Us GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
LQFOXGLQJ\RXUSKRQHQXPEHURUZULWHWR *HQHUDO0DQDJHU&XVWRPHU5HODWLRQV
GE Appliances, Appliance Park
/RXLVYLOOH.<
Register Your Appliance GEAppliances.com
5HJLVWHU\RXUQHZDSSOLDQFHRQOLQH³DW\RXUFRQYHQLHQFH Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise.
<RXPD\DOVRPDLOLQWKHSUHSULQWHGUHJLVWUDWLRQFDUGLQFOXGHGLQWKHSDFNLQJPDWHULDO
