GE JVB37 Original instructions

www.GEAppliances.com
JVB37
JVB67
Owner’s Manual
& Installation
Instructions
Vent Systems
Downdraft
164D3333P161-3 49-8931-3 01-01 JR
959-0278-001 Rev. B
Safety Instructions
Safety Precautions . . . . . . . . . . 2–4
Servicing . . . . . . . . . . . . . . . . . . . . . 4
Installation Instructions . . 7–17
30″Cooktops/Downdraft
Unit JVB37 . . . . . . . . . . . . . . . . . .10
36″Cooktops/Downdraft
Unit JVB67 . . . . . . . . . . . . . . . . . .11

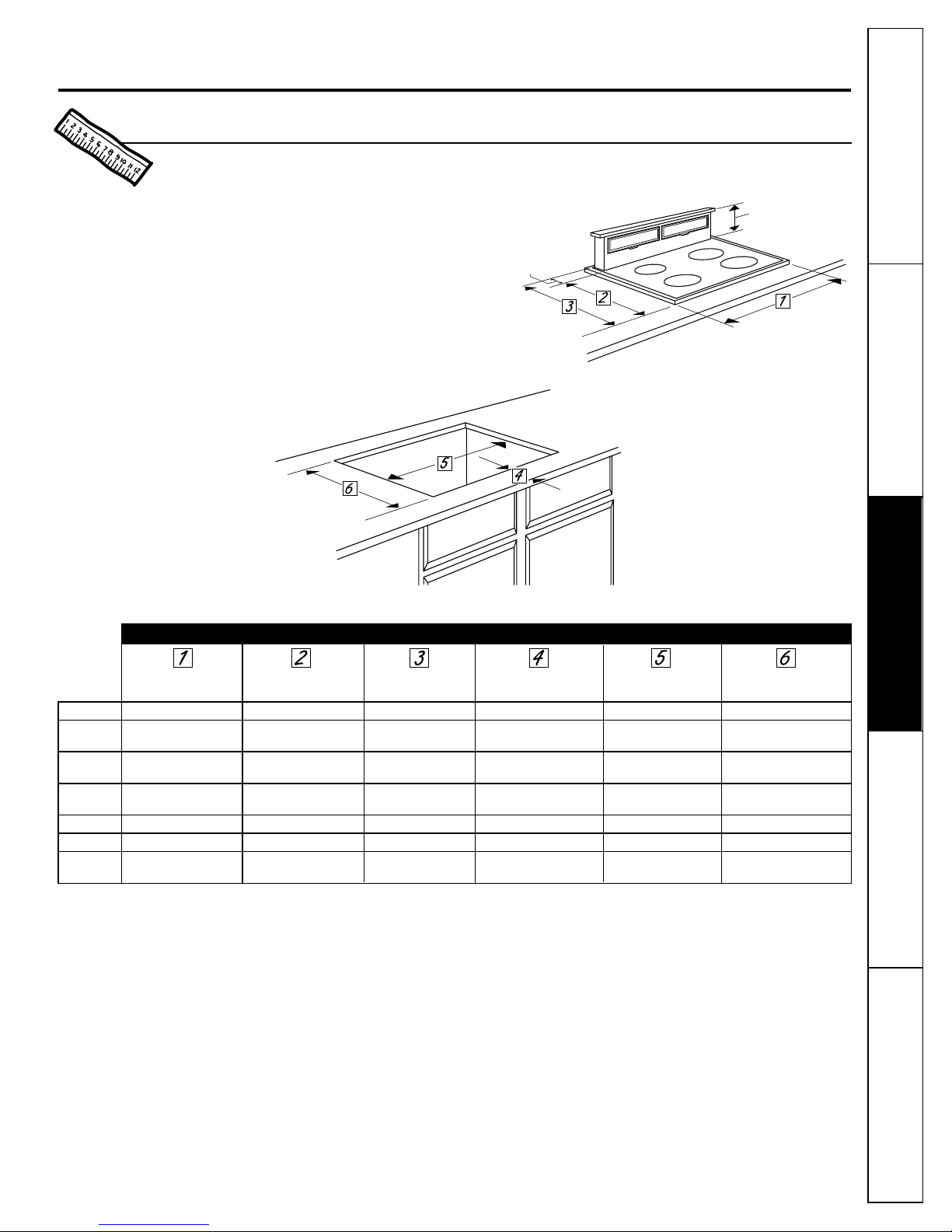

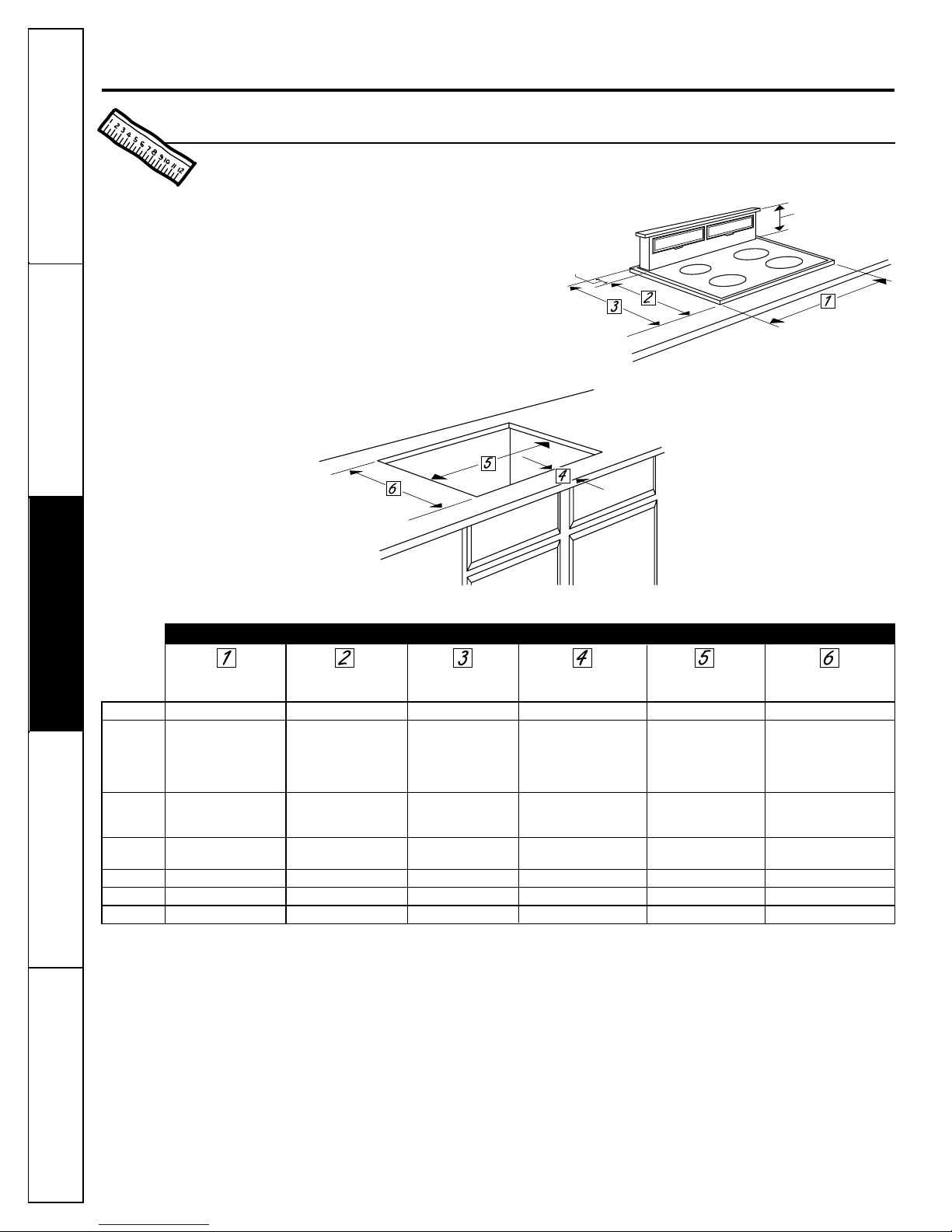

Dimensions and Clearances . . .7, 8

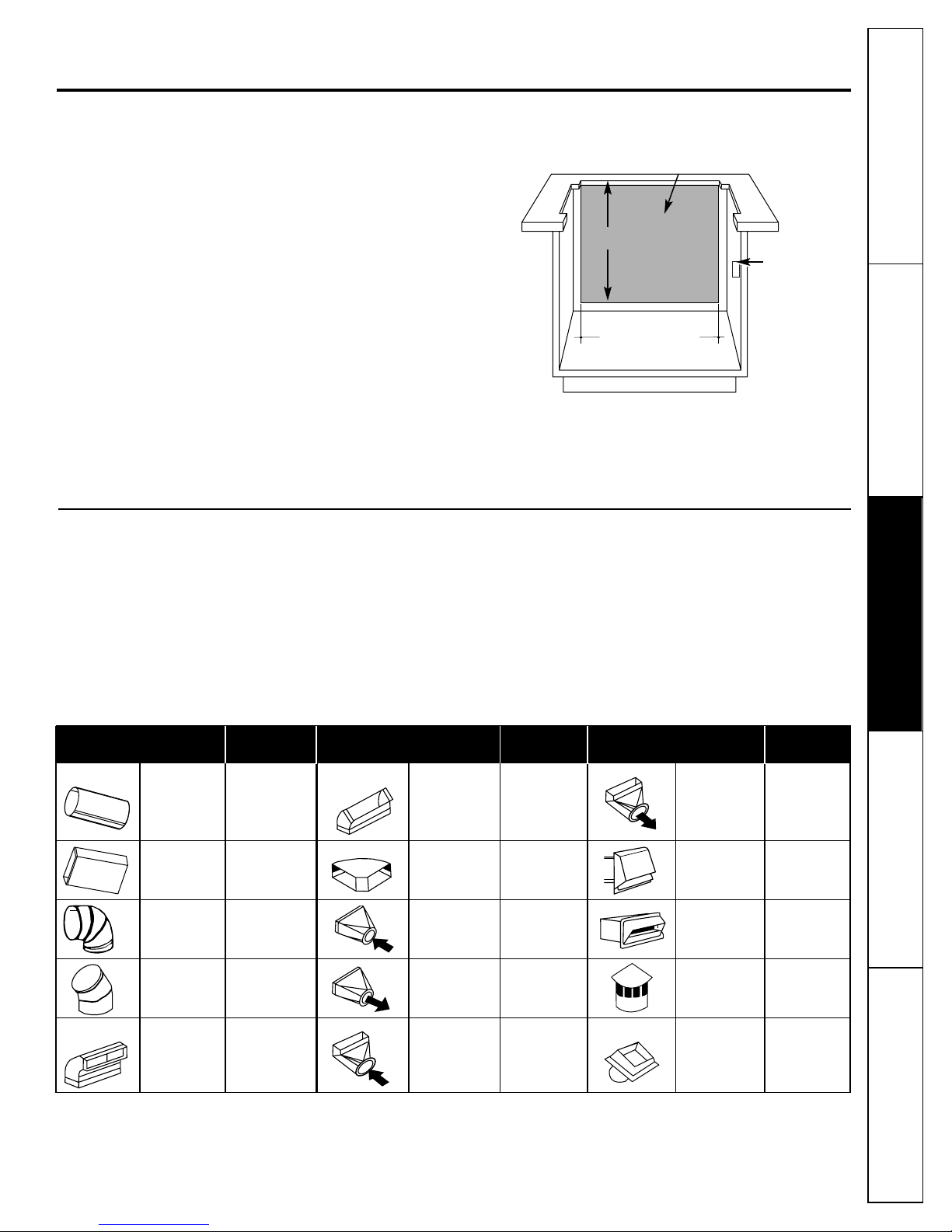

Ductwork . . . . . . . . . . . . . .9, 13, 15
Electrical and Gas Location . . . . .9
Induction Cooktops . . . . . . . . . .12
Optional Kits . . . . . . . . . . . . . . . .17
Parts Supplied . . . . . . . . . . . . . . . .9
Power Supply . . . . . . . . . . . . . . . .13
Raise/Lower Switch . . . . . . . . . .16
Tools and Materials Required . . .9
Venting . . . . . . . . . . . . . . . . . .14, 15
Operating Instructions
Cooking Tips . . . . . . . . . . . . . . . . .6
Raise/Lower Switch . . . . . . . . . . . .5
Using the Cooktop . . . . . . . . . . . .5
Using the Downdraft System . .5, 6
Care and Cleaning
Grease Filters . . . . . . . . . . . . . . . . . 6
Painted or Metal Surfaces . . . . . . 6
Troubleshooting Tips . . . . . . .18
Consumer Support
Consumer Support . . . Back Cover
Warranty . . . . . . . . . . . . . . . . . . . . 19
Write the model and serial
numbers here:
Model # ____________________
Serial # ____________________
You can find these numbers on
a label on the side of the blower
housing.

Operating Instructions
2
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion,
electric shock, or to prevent property damage, personal injury, or loss of life.
A. Use this unit only in the manner intended
by the manufacturer. If you have questions,
contact the manufacturer.
B. Before servicing or cleaning unit, switch
power off at service panel and lock the
service disconnecting means to prevent
power from being switched on accidentally.
When the service disconnecting means
cannot be locked, securely fasten a
prominent warning device, such as a tag,
to the service panel.
CAUTION: For general ventilating
use only. Do not use to exhaust hazardous or
explosive materials and vapors.
■Installation work and electrical wiring must
be done by qualified person(s) in accordance
with all applicable codes and standards,
including fire-rated construction.
■Sufficient air is needed for proper
combustion and exhausting of gases
through the flue (chimney) of fuel-burning
equipment to prevent back drafting. Follow
the heating equipment manufacturer’s
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American
Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE),
and the local code authorities.
■When cutting or drilling into wall or ceiling,
do not damage electrical wiring and other
hidden utilities.
■Ducted fans must always be vented to the
outdoors.
■To reduce the risk of fire, use only metal
ductwork.
■PVC sewer pipe can be used as duct under
concrete slab if allowed by local code board.
■This unit must be grounded.
WARNING—TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
PLEASE NOTE: The downdraft vent system you have purchased was designed to be
used with GE, GE Profile and GE Profile Performance cooktops listed in this manual.

Consumer Support
Operating Instructions
Safety Instructions
www.GEAppliances.com
Installation Instructions Troubleshooting Tips
■Never leave surface units unattended at high
settings. Boilovers cause smoking and greasy
spillovers that may ignite. Heat oils slowly on
low or medium settings.
■Always turn hood
ON when cooking at high
heat or when cooking flaming foods.
■Clean ventilating fans frequently. Grease
should not be allowed to accumulate on fan
or filter.
■Use proper pan size. Always use cookware
appropriate for the size of the surface
element.
SAFETY PRECAUTIONS
3
WARNING! TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
Operating Instructions
4
Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
WARNING!
SAFETY PRECAUTIONS
It may be necessary to remove the downdraft
blower system in order to service components
such as the blower motor or air vent
mechanism.
Disconnect power to the cooktop and remove
it first. Reverse the steps in the
Install the
Downdraft
section to remove the blower.
Service parts are available from a GE Service
and Parts Center.
SERVICING
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
READ AND SAVE THESE INSTRUCTIONS
A. SMOTHER FLAMES with a close-fitting
lid, cookie sheet, or metal tray, then turn
off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out
immediately, EVACUATE AND CALL
THE FIRE DEPARTMENT.
B. NEVER PICK UP A FLAMING PAN—
You may be burned.
C. DO NOT USE WATER, including wet
dishcloths or towels—a violent steam
explosion will result.
D.Use an extinguisher ONLY if:
1.
You know you have a Class ABC
extinguisher, and you already know how
to operate it.
2. The fire is small and contained in the area
where it started.
3. The fire department is being called.
4. You can fight the fire with your back
to an exit.
*Based on “Kitchen Fire safety Tips” published by NFPA.
CAUTION: For general ventilating
use only. Do not use to exhaust hazardous or
explosive materials and vapors.
Make sure all fingers are away from the downdraft
top when it is lowered.
If You Need Service…
Do not attempt to repair or replace any part of
the downdraft system unless it is specifically
recommended in this guide. All other servicing
should be referred to a qualified technician.
Be sure electrical power is off before servicing the unit.
WARNING! TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:*

5
Using the downdraft system. www.GEAppliances.com
Consumer SupportInstallation Instructions Troubleshooting Tips
Operating InstructionsSafety Instructions
RAISE/LOWER Switch (30” models only)
Turn the downdraft blower ON by pressing
the RAISE/LOWER switch located at the top
right of the vent (on some models). Place
your finger on the “center” of the switch
and hold until you observe the vent moving,
then release. The air vent will rise. Use the
selector switch to turn the blower ON, OFF
or to change the blower speed.
The vent may be lowered by again pressing
the RAISE/LOWER switch at the top right side
of the vent. The blower, if left on, will
automatically go off when the vent is
lowered.
NOTE: For most convenient operation, set the
blower to the speed you use most often. The
blower will come on to this speed whenever
the unit is raised.
Remote RAISE/LOWER switch
(36 ″ models only)
36″models have a remote RAISE/LOWER
switch. It operates in the same manner as
the switch located on the vent.
RAISE/LOWER switch location may vary.
Using the Cooktop
CAUTION:
Be careful when raising or lowering the
downdraft. Be sure pots, pot handles and
other objects are clear of the downdraft and
cannot be struck or tipped by the downdraft
being raised.
NOTE: There is a slight trim overhang at each
end of the vent.
■To avoid injury, be sure fingers are clear
of the downdraft cover when it is being
lowered.
■Keep hands and fingers away from all
downdraft parts.
On some models, the RAISE/LOWER
switch is located at the top right of
the vent.
Use the selector switch to turn the
blower ON, OFF or to change the
blower speed.

Using the downdraft system.
Care and cleaning of the downdraft system.
Operating Instructions Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
6
The efficiency of your downdraft depends on
a clean filter.
Frequency of cleaning depends on the type
of cooking you do. Grease filters should be
cleaned at least once a month.
Never operate the downdraft without the filters
in place.
To remove: Lift up and pull the bottom out.
Remove the left filter first, then slide the
right filter to the left and remove it.
To clean: Soak and then agitate in a hot
detergent solution. Light brushing may be
used to remove imbedded soil. Rinse, shake
and remove moisture before replacing.
Filters may be cleaned by placing in
dishwasher, although some slight color
fading may occur after several washings.
With careful handling, the filter will last for
years. If replacement becomes necessary,
order the part from your dealer.
Cooking Tips
The high air movement of this downdraft
system can increase the cooking times for
some foods. It may take longer to reach
high cooking temperatures if the downdraft
is turned to high right away. Adjust the fan
speed for best cooking results.
For best results when heating oil for deep
frying or when boiling water, use the front
surface units or wait until the water is
boiling or the oil is at frying temperatures
before turning on the downdraft.
The downdraft may not completely capture all the
steam from pans on the front burners.
Canning
When canning foods in a water-bath canner,
a gentle but steady boil must be maintained
continuously for the required time.
When canning foods in a pressure canner,
the pressure must be maintained
continuously for the required time.
Use of the blower at HIGH speed when
canning may reduce the temperature
enough to stop boiling. While canning,
we recommend using the downdraft at
LOW speed and using the front surface unit.
Painted or metal surfaces
Grease filters
Do not use a steel-wool pad; it will scratch the
surface.
To clean the stainless steel surface, use a
hot, damp cloth with a mild detergent
suitable for stainless steel surfaces. Use a
clean, hot, damp cloth to remove soap.
Dry with a dry, clean cloth.
If food soil remains, try a general kitchen
cleaner, such as Fantastik®, Simple Green®,
or Formula 409®.
For hard-to-clean soil, use a standard
stainless steel cleaner, such as Bon-Ami®
or Cameo®.
Apply cleaner with a damp sponge. Use a
clean, hot, damp cloth to remove cleaner.
Dry with a dry, clean cloth. Always scrub
lightly in the direction of the grain.
After cleaning, use a stainless steel polish,
such as Stainless Steel Magic®, Revere
Copper and Stainless Steel Cleaner®, or
Wenol All Purpose Metal Polish®. Follow
the product instructions for cleaning the
stainless steel surface.

Consumer Support
Operating InstructionsSafety Instructions
Installation of the downdraft system. Read these instructions completely and carefully.
Installation Instructions Troubleshooting Tips
Before You Begin
IMPORTANT: Save these instructions for the local
electrical inspector’s use.
IMPORTANT: OBSERVE ALL GOVERNING CODES
AND ORDINANCES.
NOTE TO INSTALLER: Leave these instructions
with the appliance after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s Manual
and Installation Instructions for future use.
NOTE: This appliance must be properly grounded.
WARNING—TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
TO PERSONS, OBSERVE THE FOLLOWING:
A. Installation work and electrical wiring must be
done by qualified persons(s) in accordance with
all applicable codes and standards, including fire-
rated construction.
B. Ducted fans must always be vented to the
outdoors.
WARNING—To reduce the risk of fire, use only metal
ductwork.
Clearances

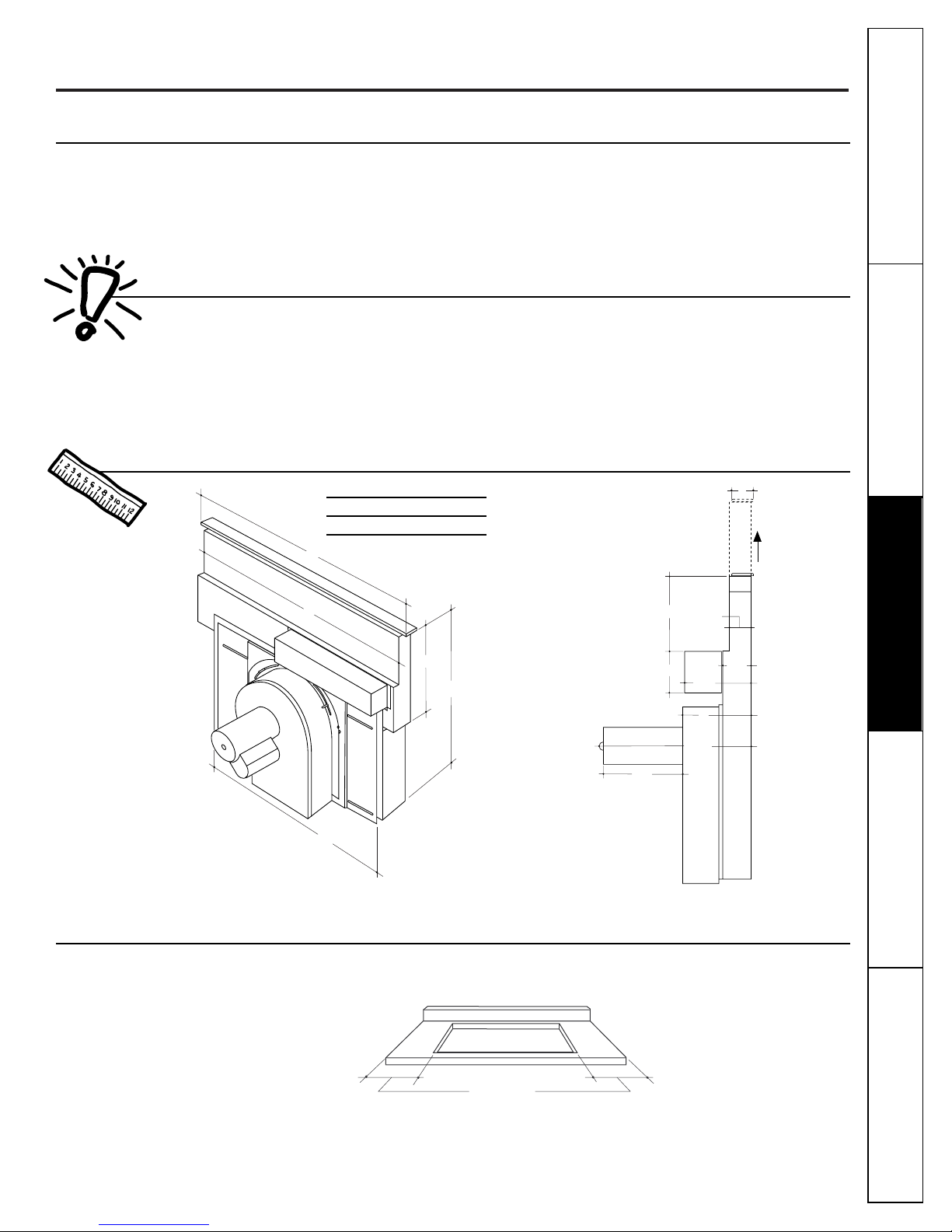

Product Dimensions
7
CAUTION: Wall coverings, countertops and cabinets should withstand 200°F. heat generated by
any cooktop.
A
B
26″
27″
2″
81⁄2″
71⁄2″21⁄4″
31⁄4″
31⁄4″63⁄8″
53⁄8″
123⁄8″
7″
143⁄4″
AB
30″Models 30″283⁄8″
36″Models 36″333⁄4″
Gas–813⁄16″
Minimum
Electric–2″
Clearance to sidewall

■The countertop must be at least 26″deep with a
flat surface area of 231⁄2″or more, front to back
( NOTE: JGP932S requires 233⁄4″flat surface area
and JP350SC, JP930SC and JP938SC require 235⁄8″
flat surface area).
In addition, other clearances to the front edge of
the countertop must be considered.
■–See specific cutout illustrations with your cooktop
model to determine requirements.
–A countertop with a raised lip or rolled front edge
may not allow enough flat area for installation.
Installation of the downdraft system. Read these instructions completely and carefully.
Installation Possibilities
When the kitchen design calls for an against the wall
installation, move 24″deep base cabinet forward,
3″to 5″. Filler panels can be angled or flat to fill the
space between adjacent cabinets.
In an island or peninsula, the countertop can be extra
deep to provide seating opposite of the cooktop.
Adding base cabinets on each side of the cooktop
provides extra storage and countertop work space.
Advance Planning—Clearances
■Installation must conform with local codes.
■The downdraft system with blower, motor and
duct work will occupy the cabinet below the
countertop and cooktop.
■The blower/motor assembly can be located below
the cabinet floor. The assembly will fit between
16″floor joists.
■ –In this installation a transition to 6 ″ round is required.
■The blower motor assembly can also be installed
outdoors. Order JXBC57 for remote blower
installations outdoors.
■Refer to “Cooktop Clearances” for information
on appropriate placement and necessary
clearances when planning installation.
■Refer to your specific cooktop installation
instruction for other appropriate clearances.
■Avoid placing cabinetry directly above the
cooking surface when possible.
If cabinetry is used above the cooking surface:
–Installation must conform with local codes.
–Use cabinets no more than 13″ deep.
–Maintain 30″minimum clearance between cooktop
and unprotected cabinets directly above cooktop.
–If clearance is less than 30″, protect cabinet
bottoms with flame-retardant millboard at least 1/4″
thick or gypsum board at least 3/16″thick covered
with 28 gauge sheet steel or .02″thick copper.
–Clearance between cooktop and protected
cabinetry must not be less than 24.″
EXCEPTION: Installation of a listed microwave
oven or cooking appliance over the cooktop shall
conform to the installation instructions packed with
that appliance.
■Working areas adjacent to the cooktop should
maintain 18″minimum clearance between
countertop and cabinet bottom.
Operating Instructions Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
8
IMPORTANT: These vents are recommended for island installations. Against-the-wall installations are
limited due to countertop depth requirements. The vent and cooktop combined depth requires an extra
deep flat countertop surface.
Maintain cutout clearances to front edge as specified
Base cabinet
Filler panel
Filler panel
B18
B18
Base to sink
BS30 to BS42
Cover panel
End panel
Countertop
overhang per
cooktop
clearances must
be maintained
Base sink
BS30 Min. for JVB37
BS36 Min. for JVB67
24″
Flat surface area

Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Advance Planning—Ductwork
Prepare ductwork to vent to the outdoors.
■Use the shortest and straightest duct run possible.
■–The maximum permissible length for duct run is
150 feet.
■–Refer to Duct Fittings chart to calculate equivalent
length for various duct configurations.
■The downdraft blower system is designed to use
31⁄4″x 10″ductwork. It can be transitioned to
6″round.
■Ductwork MUST be vented to the outside–never
into a crawl space, attic or other enclosed space.
■Determine the need for a wall cap or roof cap.
Order the cap in advance.
Advance Planning—Electrical and Gas Location
Plan the placement of the electrical outlet and gas
(if used) carefully. Gas or electrical outlets cannot
be placed on the back wall of the cabinet because
it may interfere with the downdraft plenum.
■Install a standard electrical outlet within reach
of the vents’ two foot long power cord.
–The vent and a gas cooktop combination
can operate from the same 120 volt standard
duplex outlet.
–Electric cooktops must operate from a separate
240 volt junction box.
Tools and Materials Required
■Large flat-blade screwdriver
■Jig saw
■Carpenter’s square
■Ductwork to suit the installation
Parts Supplied
Open the carton and remove parts package.
Check contents to be sure all pieces are present.
(The parts package may be attached to the
power cord.)
Remove Packaging
■Remove the shipping materials and the carton;
set carton aside. The carton can be used as a pad
when changing or adjusting vent direction.
■Remove the plastic ties on both ends at the top
of the vent.
4 Stabilizing brackets
(all models)
Remote raise/lower assembly (for 36″wide models only)
Wire box
and screws
Switch cover
plate
Plastic ties
Attachment
bracket
Plastic strain
relief
Wire and white
connector
9

Operating Instructions Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Installation of the downdraft system. Read these instructions completely and carefully.
30 ″ Cooktops/Downdraft Unit JVB37

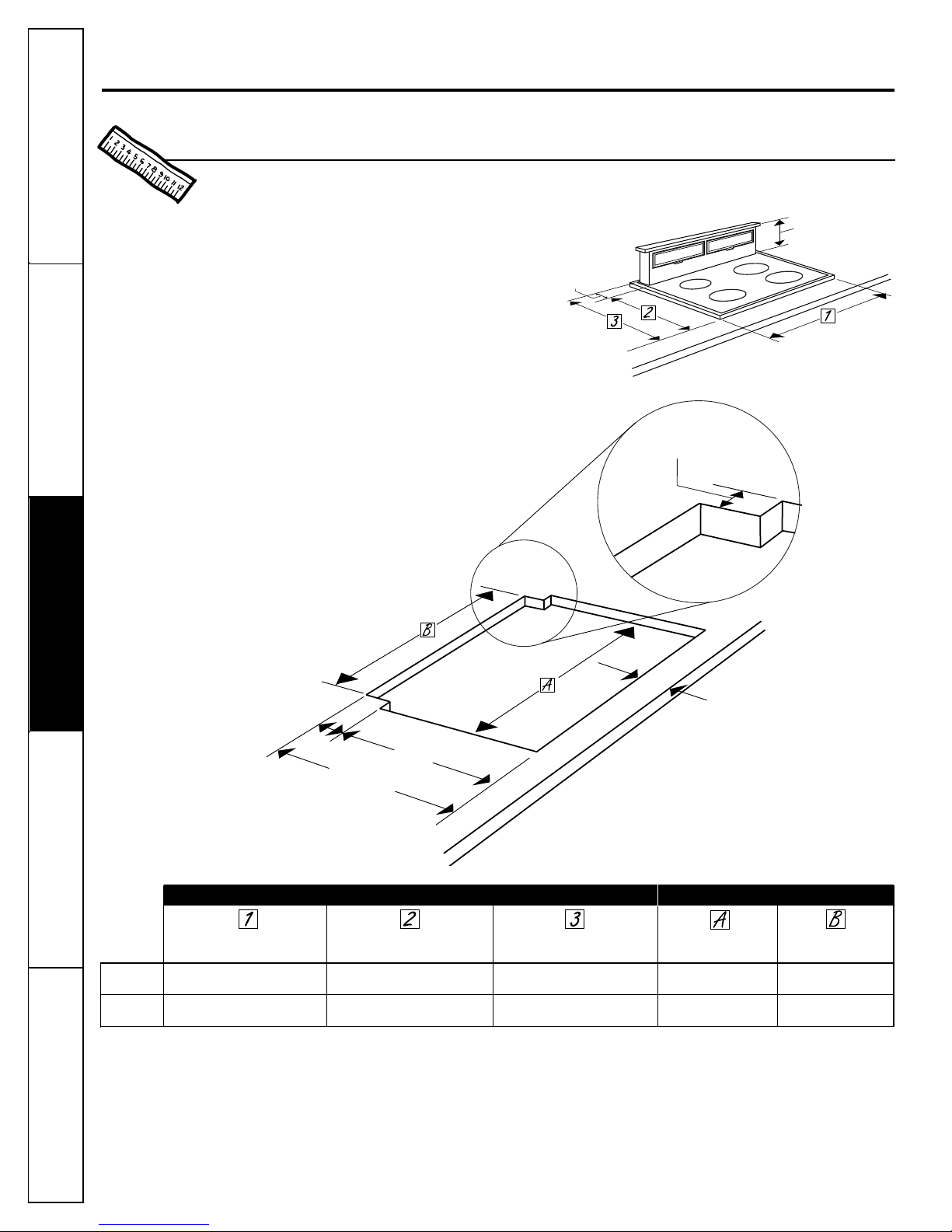

NOTE: Before you begin: Measure and mark Dimension 3 to ensure that adequate flat countertop
surface is available.
■Identify the cutout illustration for the cooktop
model you are installing with this downdraft vent.
■–Draw lines on the countertop to follow as a cutting
guide.
■–Make sure sides of the opening are parallel and
rear and front cuts are exactly perpendicular to sides.
Planning Installation 30” Electric & Gas Cooktops with Downdraft Vents Preparing Cutout
Cooktop Surface Surface Depth Minimum Setback Combined Cutout Combined Cutout
Model No. Overall Width Overall Depth with Downdraft Cutout to Front Edge Width Depth
JP326 30-1/4″21-1/4″23-3/8″2-1/2″28-1/2″22-3/8″
JP340 29-3/4″20-7/8″23″2-1/2″28-1/2″22-1/4″
JP350
JP360
JP930
JP938
JP350SC 29-7/8″21-1/2″23-5/8″2-1/2″28-1/2″22-9/16″
JP930SC
JP938SC
JGP328 30″21″23-1/8″2-1/2″28-1/2″22-5/16″
JGP933
JGP336 30″21″23-1/8″3-1/4″28-1/2″22-1/8″
JGP932 29-3/4″21″23-1/8″2-1/2″28-1/2″22-5/16″
JGP932S 29-7/8″21-5/8″23-3/4″2-1/2″28-1/2″22-5/8″
10
21⁄8″
81⁄2″

Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
11
36 ″ Cooktops/Downdraft Unit JVB67
NOTE: Before you begin: Measure and mark Dimension 3 to ensure that adequate flat countertop
surface is available.
■Identify the cutout illustration for the cooktop
model you are installing with this downdraft vent.
■–Draw lines on the countertop to follow as a cutting
guide.
■–Make sure sides of the opening are parallel and
rear and front cuts are exactly perpendicular to sides.
Planning Installation 36” Electric & Gas Cooktops with Downdraft Vents Preparing Cutout
Cooktop Surface Surface Depth Minimum Setback Combined Cutout Combined Cutout
Model No. Overall Width Overall Depth with Downdraft Cutout to Front Edge Width Depth
JP626 35-1/2″21″23-1/8″2-1/2″33-7/8″21-15/16″
JP960 36″20-3/8″22-1/2″2-1/2″33-7/8″22-1/8″
JP968
JP960S 36-1/8″21″23-1/8″2-1/2″33-7/8″22-1/16″
JP968S
JGP628 36″21″23-1/8″2-1/2″33-7/8″22-1/16″
JGP963
JGP636 36″21″23-1/8″3-1/4″34″21-15/16″
JGP962 36″20-7/16″22-9/16″2-1/2″33-7/8″21-13/16″
JGP962S 36-1/8″21-1/16″23-3/16″2-1/2″33-7/8″22-1/8″
JGP963S
21⁄8″
81⁄2″

Operating Instructions Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Installation of the downdraft system. Read these instructions completely and carefully.
30 ″ Induction Cooktops with Downdraft Unit JVB37
36
″ Induction Cooktops with Downdraft Unit JVB67
NOTE: Before you begin: Measure and mark 22
7
⁄ 8 ″ (Dimension 3) to ensure that adequate flat
countertop surface is available.
■Identify the cutout illustration for the cooktop
model you are installing with this downdraft vent.
■–Draw lines on the countertop to follow as a
cutting guide.
■–Make sure sides of the opening are parallel and
rear and front cuts are exactly perpendicular to sides.
Planning Installation 30” Electric & Gas Cooktops with Downdraft Vents Preparing Cutout
Cooktop Surface Cooktop Surface Surface Depth Cooktop Cutout Vent Cutout
Model No. Overall Width Overall Depth with Downdraft Width Width
JP392 30″20-3/4″22-7/8″29-1/8″28-1/2″
JP393
JP692 35-1/2″20-3/4″22-7/8″34-5/8″34″
JP693
12
5/16″
2″ Minimum
setback to front
edge of countertop
21⁄4″
1915⁄16″
223⁄16″
21⁄8″
81⁄2″

13
Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Power Supply
This downdraft vent must be supplied with 120V, 60Hz., and
connected to an individual, properly grounded branch circuit,
protected by a 15 or 20 ampere circuit breaker or time delay fuse.
Gas Cooktops
If this vent is installed in combination with a gas
cooktop, it may operate from the same duplex outlet.
Electric Cooktops
If this vent is installed in combination with a electric
cooktop, the vent must operate from a separate
120V outlet.
■ A properly grounded 3-prong receptacle should be located
within reach of the vents’ two foot power cord.
■ –Locate the receptacle inside the cabinet on the right side
wall. The receptacle cannot be placed on the back of the
cabinet wall where it may interfere with the downdraft
plenum. See illustration.
Do not use an extension cord or adapter plug with
this appliance. Follow National electrical codes or
prevailing local codes and ordinances.
Ductwork Length and Dust Fittings
NOTE: Do not exceed 150 ′ maximum permissible
equivalent lengths!
Flexible ducting: If flexible metal ducting is used,
all equivalent feet values in the table should be
doubled. The flexible metal duct should be straight
and smooth and extended as much as possible.
DO NOT use flexible plastic ducting.
Add equivalent lengths for all duct pieces and
transitions used to ensure that the duct run does not
exceed the maximum 150′.
Duct Equivalent Duct Equivalent Duct Equivalent
Pieces Length* Pieces Length* Pieces Length*
31⁄4″x 10″
to 6″Round
6″Round 1 ft. (per 31⁄4″x 10″Transition 12 ft.
Straight foot length) 45° Elbow 5 ft. 90° Elbow
6″Round
31⁄4″x 10″1 ft. (per 31⁄4″x 10″Wall Cap 21 ft.
Straight foot length) 90° Flat Elbow 24 ft. with Damper
6″Round 31⁄4″x 10″
6″15 ft. to 31⁄4″x 10″7 ft. Wall Cap 27 ft.
90° Elbow Transition with Damper
31⁄4″x 10″
6″to 6″Round 5 ft. 6″Round
45° Elbow 9 ft. Transition Roof Cap 20 ft.
6″Round
to 31⁄4″x 10″
31⁄4″x 10″Transition 20 ft. 6″Round
90° Elbow 16 ft. 90° Elbow Roof Vent 24 ft.
SHOULD NOT EXCEED 150 EQUIVALENT FT.
*Equivalent lengths of duct pieces are based on actual tests conducted by GE Evaluation Engineering
and reflect requirements for good venting performance. See chart for CFM Duct Length.
Electrical outlet
12″above
cabinet floor
34″for 36″models
281⁄2″for 30″models
Do not leave gas or electrical
connections within shaded area.
291⁄2″

14
Installation of the downdraft system. Read these instructions completely and carefully.
Operating Instructions Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Venting Options
Side to side adjustments:
The entire blower mounting plate can be adjusted
31⁄2″to the left or right. This will help to align vent
discharge to house ductwork.
30° Rotation
For even more flexibility, the entire blower can be
rotated up to 30° toward the left or 30° toward
the right.
Discharge direction
The blower assembly may be removed and turned
90° for a left or right side discharge.
■The downdraft vent is shipped with the discharge
outlet pointing straight down and can be changed
to the left or right side.
■A left or right 90° direction adjustment should be
performed before dropping into the countertop
opening.
■Flatten the shipping box to use as a pad.
■Lay the vent on its back onto the pad.
To change to a left or right discharge:
Remove 4 nuts holding the blower to the
mounting plate. See illustration. One nut is just
inside the blower discharge.
Remove and turn the blower to the right or left.
Reinstall the 4 nuts.
To locate the ductwork holes in the cabinet floor
or side walls:
Temporarily, place vent into the countertop
opening.
Push the vent all the way to the back of the
opening.
If you are transitioning to 6″round, place
transition piece over the discharge outlet.
– Mark the location and remove the assembly.
– Cut holes and install ductwork connections.
Order JXRB57 for installation of the blower and motor below
the floor:
Order JXBC57 for installation of the blower and motor
outdoors.
Discharge left
Discharge right
Discharge down
(as supplied)
30″Rotation left or right
Nut location inside the
blower discharge
Loosen screws to adjust
blower left to right

Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Install Downdraft Vent
Place the downdraft vent into the countertop
cutout, against the back side.
Secure the downdraft to the countertop
supplied brackets. See illustration.
Fasten brackets to top screws on the front
side of the vent, secure to cabinet side wall
just below the countertop. Or,
Fasten one bracket to vent side and secure
to cabinet back wall.
Install two brackets on the bottom of the
vent. Attach brackets to slide screws on
the vent and to the floor using wood screws
(not supplied).
When installing in a tile countertop surface, it may be
necessary to apply a locally approved caulking to cover
any gaps.
Optional method
Secure to cabinet side
with top screw on case
Or use second screw
Secure the lower brackets
to blower housing
Preferred method
Secure the upper
brackets with screws
located on the side of
case and attach to back
of cabinet

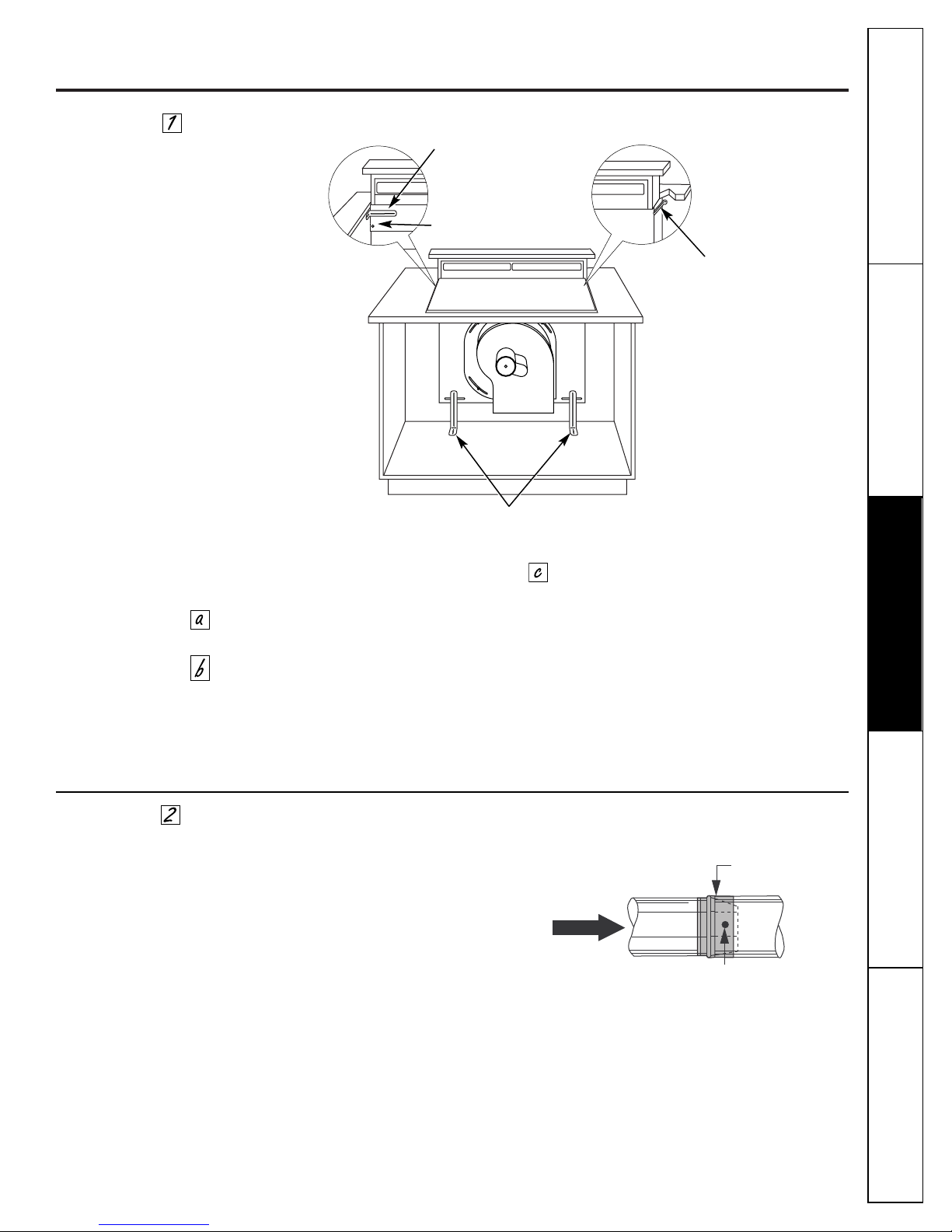

Install the Ductwork
Use minimum 26 ″ gauge galvanized or 24 gauge
aluminum duct 3
1
⁄ 4 ″ x 10 ″ or 6 ″ round. PVC duct
should be used if installing under a poured
concrete slab.
■ DO NOT USE flexible ducting.
■Always use appropriate roof or wall cap with
damper. Laundry type wall caps should never
be used.
■Use the straightest duct run possible.
■For satisfactory performance the duct run
should not exceed 150 ft. or its equivalent
length when bends or various fittings are used.
Refer to the table of equivalent lengths to
calculate your installation.
■Install ductwork so the piece of duct nearest the
downdraft unit slots INTO the next piece of the
duct. Secure the joints with self-tapping screws
and apply duct tape around the joints to ensure
an airtight seal.
15
Air
Flow
Screw
Duct tape over
seam and screw

16
Installation of the downdraft system. Read these instructions completely and carefully.
Step 3 is for 36
″ wide models only. Skip this step if installing a 30 ″ model.
Operating Instructions Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
Install Raise/Lower Switch
WARNING: Disconnect electrical power from
the unit before beginning switch installation.
Failure to do so could result in personal injury or
damage to the electrical controls.
Determine the location for the RAISE/LOWER
switch. The wiring lead is 72 ″ long.
■Drill a 3/16″hole into the desired location.
■–If the switch is mounted into a tile surface,
drill the hole between the tiles. Use locally
approved caulking to cover any gaps.
■Center the mounting bracket over the hole and
mark pilot holes. Remove the bracket and drill
pilot holes.
■Mount the metal switch bracket with screws
(not provided, choose screws for your type of
countertop or use locally approved adhesive).
■Tie a knot in the lead as close to the switch as
possible. This will prevent the lead from being
pulled away from the switch.
■Thread the wire lead through the trim mounting
bracket and the top of the countertop as shown.
■Pull the wire through the hole from the
underside of the countertop and thread the
wire lead into the end of the wire box.
■Peel film from the back of the cover trim to
expose the adhesive. Press trim onto the
mounting bracket to set the adhesive.
■Peel film from the back of the RAISE/LOWER
pad to expose the adhesive. Align with the
impression and press to set the adhesive.
■Remove protective coating from the top of the
trim frame.
IMPORTANT: Do NOT connect wire leads to
white connector until you have threaded the
lead through the countertop hole and through
the end of the wire box.
■Push wire metal leads into the white connector
plug. Pull wire through the box leaving about
2″additional length.
■Place plastic strain relief over the wire;
the wire should be flat and fit into the area.
Do NOT pinch or twist the wire. Snap the strain
relief closed.
■Push the strain relief into the hole on the wire
box. It will snap into position.
■Secure wire box to vent with screws provided.
■Coil the excess wire and position away from
moving parts and cabinet contents.
Trim
Knot
Mounting
bracket
Thread electrical
leads through hole
2 Pin connector
3⁄16″ Hole
Leads
Strain relief
Pull 2″length
out of box

Consumer Support
Operating InstructionsSafety Instructions Installation Instructions Troubleshooting Tips
Connect Power
Plug power cord into a properly grounded receptacle.
Optional Kits
JXRB57 optional accessory for indoor remote
location of the blower/motor assembly. Use this
kit when the blower and motor assembly will be
located outside or below the cabinet floor.
JXBC57 optional outdoor cover accessory for
remote installation of blower and motor assembly
on an outside wall.
Installing the Cooktop
■With the Downdraft in the “Down” position,
place the cooktop into the cutout.
■Push the cooktop back until the back edge of
the cooktop just barely touches the front edge
of the downdraft cover.
■Using a dime as a thickness gauge, align the
cooktop so that there is a minimum uniform
gap of 0.05″(the thickness of a dime) between
the cooktop and the downdraft cover.
NOTE: Do not force the downdraft cover to move
rearward when aligning the cooktop. This may
cause the downdraft cover to impact and damage
the cooktop when the vent is raised and lowered.
NOTES:
■Accurate alignment of cooktop and downdraft
is necessary to ensure that there is no
interference when air vent is raised and
lowered. There should be a gap of 0.05″
(the thickness of a dime) between the back
edge of the cooktop and the front edge of
the downdraft cover.
■Radiant cooktops cannot be flush mounted
when using this downdraft vent.
17

Operating Instructions Safety InstructionsInstallation InstructionsTroubleshooting TipsConsumer Support
18
Before You Call For Service…
Troubleshooting Tips
Save time and money! Review the tips below and you may not need to call for service.
Problem Possible Causes What To Do
Fan does not work The vent is not fully extended •Press the RAISE/LOWER switch.
The blower control switch may •Slide it to the right.
be in the OFF position
Vent does not rise Vent not plugged into an outlet •Plug vent in.
RAISE/LOWER switch did •Hold switch down for a couple of seconds to
not engage lift motor activate motor.
Circuit breaker may •Check circuit breaker—Reset if necessary.
have tripped

Consumer Support
Operating Instructions
Safety Instructions Installation Instructions Troubleshooting Tips
19
GE Downdraft System Warranty.
For The Period Of: GE Will Replace:
One Year Any part of the downdraft system which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, GE will also provide, free of charge, all labor
original purchase and in-home service to replace the defective part.
■Service trips to your home to teach you how to use the
product.
■Improper installation.
■Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
■Replacement of house fuses or resetting of circuit
breakers.
■Replacement of the replaceable filters.
■Damage to the product caused by accident, fire, floods or
acts of God.
■Incidental or consequential damage caused by possible
defects with this appliance.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate
electrical, gas, exhausting and other connecting facilities as described in the Installation Instructions provided
with the product.
Warrantor: General Electric Company. Louisville, KY 40225
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. To schedule service,
on-line, 24 hours a day, contact us at www.GEAppliances.com, or
call 800-GE-CARES.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.

Printed in the United States
Consumer Support.
GE Appliances Website
www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™”
your questions, and so much more...
Schedule Service www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience 24 hours any day of the year! Or call 800-GE-CARES (800-432-2737) during normal
business hours.
Real Life Design Studio www.GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800-TDD-GEAC (800-833-4322).
Extended Warranties www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800-626-2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at
800-626-2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.
Contact Us www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Register Your Appliance www.GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material, or detach and
use the form in this Owner’s Manual.
