GE®commercial washer and dryer 2007 product specifications
gecommerciallaundry.com

2
Feature gallery
PermaTuf®II basket
Resists peeling, chipping, rusting or
flaking for long-term durability.
ArmorGuard™protection
Provides a rust-resistant, durable
finish to the washer top and lid.
1
2
Heavy-duty commercial washer and dryer
Upfront lint filter
Easy to see and clean and is
permanently installed to protect
from vandalism.
Automatic water fill
Eliminates guesswork and water
waste. Automatically adjusts to the
load type. Water fill level remains
below the door.
Automatic dispenser
Automatically dispenses detergent,
bleach and fabric softener at just the
right time in the wash cycle. Use of high-
efficiency liquid or powder detergents
is strongly recommended.
Frontload commercial washer and dryer
3
1 2
3
1
2
1
2
Not all features available on all models.
Before purchasing an ENERGY STAR®qualified appliance, read important
information about its estimated annual energy consumption or energy
efficiency rating that is available from your retailer or at ge.com.

3
gecommerciallaundry.com
ESD Smart Card reader
Auto balance
suspension system
Keeps the washer balanced
even if the load is unbalanced.
1
2
Smart Card commercial washer and dryer
Extra-wide dryer opening
Provides easy access to the
7.0 cu. ft. of total dryer
capacity.
Stainless steel basket
Durable, won't chip or peel
and resists rust.
Auto balance
suspension system
Handles the heaviest loads
without banging, walking or
shutting itself off.
Non-coin commercial washer and dryer
Upfront lint filter
Easy to see and clean.
3
1
1
2
3
1
2
3
1
3
2
Not all features available on all models.

4
Smart Card commercial washer and dryer
WNCK2050H
GE®ESD Smart Card commercial washer
• 3.2 cu. ft. capacity
• Variable speed drive
• 5 wash cycles
• 3 wash/spin speed
combinations
• 3 wash/rinse
temperatures
• 4 water levels (adjustable)
• Digital cycle countdown
• Color Cottons
• Bright Colors
• Permanent Press
• White Cottons
• Delicates
• Quiet Package
• Lid instructions
• LED indicators
• ESD Smart Card reader
• Alphanumeric display
• Control card
• Smart Cards and value
transfer machines sold
separately
DNCK440EG/GG
GE ESD Smart Card commercial dryer
• 7.0 cu. ft. capacity
• 4 dry cycles
• 4 heat selections
• Digital cycle countdown
• Quiet-By-Design™
• Anti-theft lint filter
• Reverse-a-Door
• LED indicators
• ESD Smart Card reader
• Alphanumeric display
• Control card
• Smart Cards and value
transfer machines sold
separately
3-Year limited parts warranty; 5-Year limited parts warranty on outer tub,
inner basket, dryer drum and cabinet rust-through.
See written warranty for details.

5
gecommerciallaundry.com
Non-coin commercial washer and dryer
WNRD2050G
GE non-coin commercial washer
• 3.5 cu. ft. capacity
• Stainless steel basket
• Variable speed drive
• 5 wash cycles
• Exclusive auto balance
suspension system
• 4 water levels
• 3 wash/spin speed
combinations
• 3 wash/rinse
temperatures
• Spin only
• Digital cycle countdown
• LED indicators for fill,
wash, rinse and final spin
• Bleach dispenser
• Fabric softener dispenser
• Deluxe quiet
DNCD450EG/GG
GE non-coin commercial dryer
• 7.0 cu. ft. capacity
• 5 dry cycles
• 4 temperatures
• Air dry
• Digital cycle countdown
• Deluxe quiet
• LED indicators for door
open, drying, cool down,
clean lint filter
• Easy-clean lint filter
• Reverse-a-Door
1-year limited parts and labor warranty.
See written warranty for details.
Vision-impaired kit
The GE commercial washer and dryer
offers panel overlays for the washer
and dryer and Braille instructions for
placement on control panels. The kit also
includes an audio cassette. The washer
and dryer models (WNRD205G and
DNCD450EG/GG) shown to the left
demonstrate the overlays.
How to order a vision-impaired kit:
To purchase Braille Kit, Pub. No. 14-D242, call 800-626-2202, or go to www.geappliances.com,
select Washers and Dryers, then Parts and Accessories.
Available in 4Q 07

6
Heavy-duty commercial washers
WCCB1030H
GE heavy-duty commercial washer
• 3.2 cu. ft. capacity
• ExtrAction™basket
• Variable speed drive
• 3 wash cycles
• 3 water levels (adjustable)
• 3 wash/rinse temperatures
• 1 wash/spin speed
combination
• Large LED status lights
• 24-minute wash cycle
• Front serviceable
WCCD2050H
Similar to WCRD2050H except 3.2 cu. ft. capacity
ExtrAction™basket.
*Includes 90-day limited parts and labor warranty (except coin system).
3-year limited parts warranty; 5-year limited parts warranty on outer tub,
inner basket, dryer drum and cabinet rust-through.
See written warranty for details.
WCRD2050H
GE heavy-duty commercial washer
• 3.5 cu. ft. capacity
• Variable speed drive
• Stainless steel basket
• 5 wash cycles
• 3 water levels (adjustable)
• 3 wash/rinse temperatures
• 2 wash/spin speed
combinations
• 24-minute wash cycle
• Digital cycle countdown
• LED status lights
• Front serviceable
Coin mechanism sold separately.
Coin mechanism sold separately.
WMCD2050H*
GE®heavy-duty commercial washer
• Includes installed
Greenwald VERT 8 coin kit
• 3.2 cu. ft. capacity
• Variable speed drive
• ExtrAction™wash basket
• 5 wash cycles
• 3 water levels (adjustable)
• 3 wash/rinse temperatures
• 2 wash/spin speeds
• Digital cycle countdown
• LED status lights
• GentlePower™agitator
• Front serviceable

7
gecommerciallaundry.com
Commercial laundry security features/benefits
• Washer and dryer tops can be locked to cabinet for
added security (lock not provided).
• Threaded bolt in meter case engages a bracket on
the main washer support and dryer wrapper to
maximize the resistance to vandalism.
• Heavy-duty access door on meter case accommodates
lock to guard timing mechanism.
• Thick steel meter case with security hood protects
slide and vault areas.
• The large coin vault capacity prevents coins from
piling up and affecting coin entry.
• Tamper-resistant lid switch.
• Security screws on all coin and electrical enclosures.
Heavy-duty commercial dryers
DCCD330EG/GG (Electric/Gas)
GE heavy-duty commercial dryer
• 7.0 cu. ft. capacity
• Digital cycle countdown
• LED status lights
• 3 cycles
• 3 heat selections
Coin mechanism sold separately.
*Includes 90-day limited parts and labor warranty (except coin system).
3-year limited parts warranty; 5-year limited parts warranty on outer tub,
inner basket, dryer drum and cabinet rust-through.
See written warranty for details.
Similar to DCCD330EG/GG except no digital
cycle countdown.
DCCB330EG/GG (Electric/Gas)
DMCD330EH/GH* (Electric/Gas)
GE heavy-duty commercial dryer
• Includes installed
Greenwald VERT 8 coin kit
• 7.0 cu. ft. capacity
• 3 cycles
• 3 heat selections
• LED status lights

8
Heavy-duty stackable commercial dryers
DDC4400T/DDC4500T (Electric/Gas)
GE®stackable commercial dryer
• 5.4 cu. ft. capacity
• 3 cycles
• 3 heat selections
• Stacked pair
• “ON” indicator light
• Front serviceable
• Dryers shipped preassembled
Frontload commercial washer and matching dryer
DCCH43EH/GH (Electric/Gas)
GE frontload
commercial dryer
• 5.7 cu. ft. capacity
• 3 dry cycles
• 3 heat selections
• Lockable lint filter
• Reverse-a-Door
• DuraDrum™finish
WCCH404H
GE frontload
commercial washer
• 2.7 cu. ft. capacity
• ENERGY STAR®qualified
• Reverse wash action
• Uses up to 22 gallons
of water
• 3 wash temperatures/
1 rinse temperature
• Automatic water level
adjustment
• Multiple wash cycles (Color
Cottons, Permanent Press,
White Cottons, Delicates)
• Stainless steel wash drum
• Detergent dispenser
• Fabric softener dispenser
• Bleach dispenser 3-year limited parts warranty; 5-year limited parts warranty on outer tub,
inner basket, dryer drum and cabinet rust-through.
See written warranty for details.
Coin mechanisms sold separately.
FPDW1
Pedestal for use with frontload washer and dryer
Optional 12" pedestal raises the door opening and the
height of the washer or dryer.
Coin mechanism sold separately.
Coin mechanism
sold separately.

9
gecommerciallaundry.com
Smart Card commercial washer and dryer
GE®washer
WNCK2050H*
Capacity
Capacity (cu. ft.) 3.2
Features
Variable speed drive ●
Wash/spin speed comb. 3
Wash/rinse temperatures 3
Water levels Adjustable
Digital cycle countdown ●
Number of wash cycles 5
White cottons ●
Colored cottons ●
Bright colors ●
Permanent Press ●
Delicate ●
Quiet performance ●
Lid instructions ●
LED indicators ●
Smart Card features
Reader ESD
Alphanumeric display ●
Control card ●
Appearance
Colors available White
Control panel
Brushed aluminum/
black/blue
Weights & Dimensions
Approx. shipping wt. (lbs.) 170
*Smart Cards and value transfer machines sold separately.
Rear viewSide view
Washers Profile
36
25-1/2
42
51
Side View
27
Rear View
Washers Profile
36
25-1/2
42
51
Side View
27
Rear View

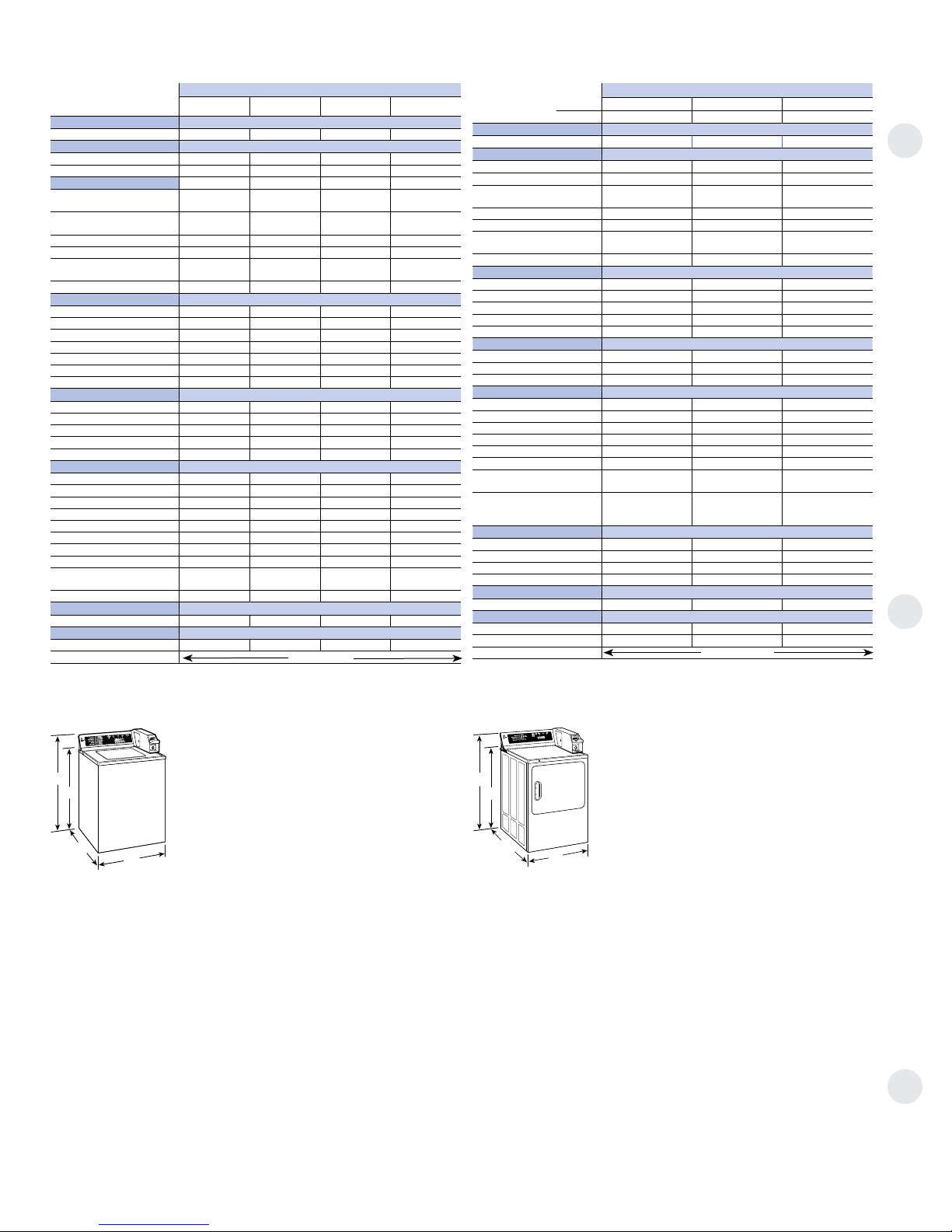

Washer dimensions (in inches)
Rear viewSide view
Dryer dimensions (in inches)
36 42
27
23-1/2
11-1/2
23-1/2
28-1/4
2-1/2
25-1/2*
Side View
24-1/2'' from the edge of the side panel to the front.
25-1/2'' from front to edge of end caps.
Rear View
Super Capacity Dryers
8-1/2
GE dryer
DNCK440EG*
DNCK440GG*
Capacity
Capacity (cu. ft.) 7.0
Features
Heat selections 4
Dry cycles 4
High Heat ●
Medium Heat ●
Low Heat ●
Cool down ●
Digital cycle countdown ●
Quiet performance ●
Lockable lint filter ●
LED indicators ●
Door swing Reverse-a-Door
Drum finish White DuraDrum™
Smart Card features
Reader ESD
Alphanumeric display ●
Control card ●
Appearance
Colors available White
Control panel
Brushed aluminum/
black/blue
Weights & Dimensions
Approx. shipping
wt. (lbs.)
Elect. 130
Gas 125
*Smart Cards and value transfer machines sold separately.
Non-coin commercial washer and dryer
GE washer
WNRD2050G
Capacity
Capacity (cu. ft.) 3.5 stainless steel
Features
Variable speed drive ●
Wash/spin speed
combinations 3
Wash/rinse temperatures 3
Water levels 4
Digital cycle countdown ●
Number of wash cycles 5
White cottons ●
Colored cottons ●
Bright colors ●
Permanent Press ●
Delicate ●
Spin only ●
Bleach dispenser ●
Fabric softener dispenser ●
Quiet performance Deluxe quiet
Lid instructions ●
LED indicators ●
Appearance
Colors available White
Braille kit 14-D242
Weights & Dimensions
Approx. shipping wt. (lbs.) 160
Available in 4Q 07
GE dryer
DNCD450EG
DNCD450GG
Capacity
Capacity (cu. ft.) 7.0
Features
Dry cycles 5
Cottons/high heat ●
Mixed loads/high heat ●
Perm. press/medium heat ●
Knits/low heat ●
Delicates/extra low heat ●
Temperatures 4
Air dry ●
Digital cycle countdown ●
Quiet performance Hush quiet
Easy-clean lint filter ●
LED indicators ●
Door swing Reverse-a-Door
Drum material White DuraDrum
Appearance
Colors available White
Braille kit 14-D242
Weights & Dimensions
Approx. shipping
wt. (lbs.)
Elect. 130
Gas 125

10
Commercial washers and dryers
36
27
25-1/2
42
Washer dimensions (in inches)
See Pub. No. 31-15400 for installation instructions.
Note: Coin slide or coin drop, coin vault, and locks for cover
and meter case access door are not provided with washer.
Energy saving:
All wash cycles include energy-saving cold water rinse.
Total cycle time—24 minutes plus fill time. Actual wash time is
8 minutes with a final spin speed of approximately 630 RPM.
Circuit requirement:
An individual, properly grounded
15- or 20-amp branch circuit is required.
Electrical rating:
115V, 60Hz
Exhaust options:
Electric: 4-way venting: left, right, bottom and rear. Maximum
recommended exhaust duct length is 45 feet of 4" rigid
ducting with two 90° elbows and 4" dampered wall cap.
Gas: 3-way venting: left, bottom and rear. Maximum
recommended exhaust duct length is 15 feet of 4" rigid
ducting with two 90° elbows and a dampered wall cap.
Dryer is shipped with exhaust to the rear.
(See Installation Instructions.)
See Pub. No. 31-1746 for installation instructions.
DCD330EB
6/10/03
36
27
25-1/2
42
Dryer dimensions (in inches)
Circuit requirements:
Electric An individual branch circuit fused
for 30 amps is required for each dryer.
Electric dryer rating:
240V, 60Hz, 5600W, 24A
208V, 60Hz, 4400W, 22A
Gas: An individual branch circuit fused for
15 or 20 amps is required for each dryer.
Gas dryer rating: 120V, 60Hz
Gas (BTU/Hr): 20,000. Factory equipped
for natural gas. Tested for LP gas. A
conversion kit is required for LP gas.
Check installation instructions for correct
kit number. Have a qualified technician
install the conversion kit. Equipped with
energy saving Glo-Bar ignition.
Dryer note: Dryer wall outlet must be
located within 36" of service cord entry
and accessible when dryer is mounted
in position.
Note: Dimensions and specifications
shown here are correct at the time this
sheet was printed. Before proceeding
with construction or rough-in, check
installation instructions that came with
your unit. Specifications, dimensions and
design are subject to change without notice.
GE®washers
WCRD2050H WCCD2050H WMCD2050H WCCB1030H
Capacity
Capacity (cu. ft.) 3.5 3.2 3.2 3.2
Features
Wash time (excludes fill) 24 min. 24 min. 24 min. 24 min.
Water usage 29, 32/35 gal. 29, 32/35 gal. 29, 32/35 gal. 29, 32/35 gal.
Controls Coin-op Coin-op Coin-op Coin-op
Coin box/card reader
Box shipped
attached
Box shipped
attached
Box shipped
attached
Box shipped
attached
Coin slide/dropbox/card reader
Customer-
supplied
Customer-
supplied
Greenwald VERT 8
included
Customer-
supplied
Installed coin kit ●
Display LED LED LED
Control type
Pushbutton w/
LED countdown
Pushbutton w/
LED countdown
Pushbutton w/
LED countdown Pushbutton
Cycle indicator lights ● ● ● ●
Washing features
Wash/rinse temperatures 3 3 3 3
Wash/spin speed combinations 2 2 2 1
Variable speed drive ● ● ● ●
Water levels 3 - adjustable 3 - adjustable 3 - adjustable 3 - adjustable
Agitator type GentlePower™ GentlePower GentlePower GentlePower
Wash basket type Stainless steel ExtrAction™ ExtrAction™ ExtrAction
Number of wash cycles 5 5 5 3
Cycles
Whites/cotton regular ● ● ● ●
Colors/cotton ● ● ●
Bright colors ● ● ●
Permanent press ● ● ● ●
Delicates cycle ● ● ● ●
Unit features
Color lid instructions ● ● ● ●
Lid opening Rear Rear Rear Rear
Front serviceable ● ● ● ●
Armor guard protection ● ● ● ●
Steel drive transmission ● ● ● ●
Galvanized/E-coated steel ● ● ● ●
Auto balance suspension system ● ● ● ●
Spin speeds 630 RPM 630 RPM 630 RPM 630 RPM
Front leveling legs/rear self
leveling system
● ● ● ●
Drain pump TURBO 6-ft TURBO 6-ft TURBO 6-ft TURBO 6-ft
Appearance
Colors available White White White White
Weights & Dimensions
Approx. shipping weight (lbs.) 190 171 171 174
Dimensions (HxWxD in inches) 42 x 27 x 25-1/2
Note: Coin box is preassembled to the washer. Includes accumulator. Coin mechanism must be ordered
separately from supplier.
GE dryers
Electric DCCD330EG DCCB330EG DMCD330EH
Gas DCCD330GG DCCB330GG DMCD330GH
Capacity
Capacity (cu. ft.) 7.0 7.0 7.0
Features
Control Coin-op Coin-op Coin-op
Coin box/card reader Box shipped attached Box shipped attached Box shipped attached
Coin slide/drop box/card reader
Customer
supplied
Customer
supplied
Greenwald VERT 8
included
Installed coin kit ●
Display LED
Control type
Pushbutton w/LED
countdown
Pushbutton Pushbutton
Cycle indicator lights ● ●
Heating features
Heats 3 3 3
Lint filter Upfront Upfront Upfront
Dryer baffles/paddles Plastic Plastic Plastic
Dryer drum type Painted Painted Painted
Number of dry cycles 3 3 3
Cycles
Whites/cottons/mixed loads ● ● ●
Knits/synthetics/delicates cycle ● ● ●
Permanent press ● ● ●
Unit features
Quiet package Quiet-By-Design™ Quiet-By-Design Quiet-By-Design
Door opening Reversible Reversible Reversible
Front serviceable ● ● ●
Armor guard protection ● ● ●
Galvanized steel cabinet ● ● ●
Leveling system 4-leg adjustable 4-leg adjustable 4-leg adjustable
Electric-vent positions
4 way-rear, bottom,
left, right
4 way-rear, bottom,
left, right
4 way-rear, bottom,
left, right
Gas-vent positions
3 way-rear,
bottom & left
viewed from front
3 way-rear,
bottom & left
viewed from front
3 way-rear,
bottom & left
viewed from front
Gas requirements
Gas rate 22000 BTU/Hr 22000 BTU/Hr 22000 BTU/Hr
Type Natural gas Natural gas Natural gas
Options LP kit available LP kit available LP kit available
Ignition Glo-Bar Glo-Bar Glo-Bar
Appearance
Colors available White White White
Weights & Dimensions
Approx. shipping wt. electric (lbs.) 125 125 125
Approx. shipping wt. gas (lbs.) 135 135 135
Dimensions (HxWxD in inches) 42 x 27 x 25-1/2
Note: Coin box is preassembled to the washer. Includes accumulator. Coin mechanism must be ordered
separately from supplier.

11
gecommerciallaundry.com
Frontload commercial washer
GE
WCCH404H
Capacity
Capacity (cu. ft.) 16 pound (2.7–3.1 per IEC)
Features
Efficiency ENERGY STAR® rated
Reverse wash action ●
Total water usage Up to 22 gallons maximum
Wash/rinse temp. 3/1
Automatic water levels ●
Wash program
Standard wash + 3 rinses
(26 min., excl. fill times)
Wash options
Color cottons ●
Permanent press ●
White cottons ●
Delicates ●
Extraction 850rpm/210 G’s
Automatic dispensing opt.
Detergent, liquid bleach,
fabric softener
Suspension Soft Mount
Drain pump 13 gpm @ 36 in head
Leveling system Front leveling legs/rear rollers
Wash basket Stainless steel
Door style Glass
Pedestal available at
additional cost
FPDW1
(12"H x 27"W x 24-3/8"D)
Appearance
Colors available White
Control panel Brushed alum./black/blue
Weights & Dimensions
Dimensions (HxWxD inches) 36 x 26-3/4 x 24-3/4 (without coin box)
Approx. shipping wt. (lbs.) 217
Power Ratings
Electrical requirements 120v, 60hz, 12.0 amps
Note: Coin box is preassembled to the washer. Includes accumulator.
Coin mechanism must be ordered separately from supplier.
36
26-3/4
11-3/4 2-7/8
Water
Inlets
31-5/8"
Roller Wheels Adjustable Legs
Power
Cord
33-1/2"
REAR VIEW SIDE VIEW
60
124-3/43/4
17
1-1/2
43-1/2
4-3/8
17-1/2
36
26-3/4
11-3/4 2-7/8
Water
Inlets
31-5/8"
Roller Wheels Adjustable Legs
Power
Cord
33-1/2"
REAR VIEW SIDE VIEW
60
124-3/43/4
17
1-1/2
43-1/2
4-3/8
17-1/2
Washer dimensions (in inches)
Rear view
Side view
Frontload commercial dryer
GE
Electric DCCH43EH
Gas DCCH43GH
Capacity
Capacity (cu. ft.) 5.7
Features
Heat selections 3
Dry cycles 3
High heat ●
Medium heat ●
Low heat ●
Lockable lint filter ●
Door swing Reverse-a-Door
Drum finish White DuraDrum™
Front serviceable ●
Pedestal available at
additional cost
FPDW1
(12"H x 27"Wx24-3/8"D)
Appearance
Colors available White
Control panel
Brushed alum./
black/blue
Weights & Dimensions
Approx. shipping
wt. (lbs.)
Elect. 116
Gas 116
Stacked commercial dryers
Exhaust options:
Electric: 3-way venting: left, right,
or rear. Maximum recommended
exhaust duct length is 25 feet
of 4" rigid ducting with two 90°
elbows and 4" dampered wall cap.
Gas: 2-way venting: left or rear.
Maximum recommended exhaust
duct length is 15 feet of 4" rigid
ducting with two 90° elbows and
a dampered wall cap.
Dryer is shipped with exhaust
to the rear. (See Installation
Instructions.)
Circuit requirements:
Electric: An individual branch
circuit fused for 30 amps is
required for each dryer.
Electric dryer rating:
240V, 60Hz, 5600W, 24A
208V, 60Hz, 4400W, 22A
A special 208-volt heater, part
number WE11X0101, is available
to reduce drying time in 208-volt
installations.
Gas: An individual branch circuit,
properly grounded for a 3-prong
outlet, fused for 15 or 20 amp, is
required for each dryer.
Gas dryer rating: 115V, 60Hz
Gas (BTU/Hr): Maintains
thermostatically controlled heat
flow to dry clothes gently. Longer
cool-down period on Permanent
Press cycle helps prevent heat-set
wrinkles. Separate thermostat
controls lower temperatures
for Knit cycle drying. Factory
equipped for natural gas. Tested
for LP gas. A conversion kit,
WE25X0217, is required for LP gas.
Check installation instructions
for correct kit number. Have a
qualified technician install the
conversion kit.
See Pub. No. 31-1723 for
DDC4400T and Pub. No.
31-1724 for DDC4500T
installation instructions.
Note: Dimensions and
specifications shown here are
correct at the time this sheet was
printed. Before proceeding with
construction or rough-in, check
installation instructions that came
with your unit. Specifications,
dimensions and design are
subject to change without notice.
Note: Wall anchor chain provided
for gas models only.
77
27
27
Gas Dryer
only
Cmmrcl. Front.eps
Access
Panel
Access
Panel
11-3/4
41-5/8
3-1/2
3/4
1-7/8
2-3/8
DDC4400S Back View
Access
Panel
Access
Panel
11-3/4
41-5/8
41-5/8
Gas Inlet
Gas Inlet
3-1/2
3/4
1-7/8
2-3/8
DDC4500S back view
DDC4400T Back view DDC4500T Back view
GE dryers
Electric DDC4400T
Gas DDC4500T
Capacity
Capacity (cu. ft.) 5.4
Features
Automatic dry control ●
Anti-theft lint filter ●
Heat selections 3
Number of cycles 3
Cottons ●
Permanent press ●
Delicates/Synthetic/Knits ●
Front serviceable ●
Reverse-a-Door ●
Heavy-duty 1/4 HP motor ●
Appearance
Colors available White
Weight & Dimensions
Approx. shipping
wt. (lbs.)
Electric 275
Gas 274
Stacked (HxWxD in inches) 77 x 27 x 27
Note: Coin box is preassembled to the washer.
Includes accumulator. Coin mechanism must be
ordered separately from supplier.
Dimensions
(in inches)
Front view
Dryer dimensions (in inches)
SIDE VIEW
25-3/4
47-1/2
4-3/4
Optional
Vent Knockout
Door Open
90°
4-3/8
3/4
REAR VIEW
26-7/8
3-3/4
1
36
Under
Counter
34-5/8"
3/16"
Gas Pipe Connection
Electric
Connection
2-9/16
13-9/16
27" Min.
27" Min.
70-5/8
Note:
Closet Installation Requires Additional
Minimum Clearances:
A Minimum of 120 Square Inches of Opening,
Equally Divided at the Top and Bottom of
the Closet Door is Required.
Top of Dryer to Ceiling 15"
Back of Dryer to Wall 4"
Front of Dryer/Washer 1"
to Closet Door
27"
Min. 34-5/8"
Min.
Custom Sized
Countertop Required
54" Min.
SIDE VIEW
25-3/4
47-1/2
4-3/4
Optional
Vent Knockout
Door Open
90°
4-3/8
3/4
REAR VIEW
26-7/8
3-3/4
1
36
Under
Counter
34-5/8"
3/16"
Gas Pipe Connection
Electric
Connection
2-9/16
13-9/16
27" Min.
27" Min.
70-5/8
Note:
Closet Installation Requires Additional
Minimum Clearances:
A Minimum of 120 Square Inches of Opening,
Equally Divided at the Top and Bottom of
the Closet Door is Required.
Top of Dryer to Ceiling 15"
Back of Dryer to Wall 4"
Front of Dryer/Washer 1"
to Closet Door
27"
Min. 34-5/8"
Min.
Custom Sized
Countertop Required
54" Min.

A century of quality and innovation
For more than a century, GE has been committed to producing innovative products
that change the way people live. The result of thorough research and rigorous testing,
GE appliances are designed for years of dependable performance.
Today, the GE tradition of quality and innovation continues.
GE®commercial laundry
Offering the best value with innovative features, benefits and durability!
GE has a policy of continuous improvement of
its products and reserves the right to change
materials and specifications without notice.
© 2007 GE Company
Pub. No. 14-S117 PC48435
GE commercial laundry features
•ArmorGuard™protection—Tested, rust-resistant, durable finish. No rust or chips.
•E-coated base cabinet for enhanced rust resistance.
•PermaTuf®II basket—No rust. No chipping.
•Auto balance suspension system—Helps reduce off-balanced loads.
Featuring the innovative floating suspension system and balance ring.
•3 adjustable water levels
•24-minute wash cycle—24 minutes plus fill time.
•Front serviceable—All operational parts can be serviced without
moving the units.
•Tamper-resistant lid switch—Helps reduce vandalized lid switches.
•Plus Smart Card capability—Accessory kit designed exclusively for GE.
GE Answer Center®saves you time.
800.626.2000
• The GE Answer Center®service is available to answer
questions about Monogram®, GE Profile Performance
Series™, GE Profile™, GE®and Hotpoint®features and
installations.
• You and your customers can call toll-free before, during
and after the sale.
GE Sales Support
800.861.7206
GE Parts
800.626.2002
When You Want Parts To Fix It Yourself!
• We offer a complete line of parts, accessories and
appliance care products for GE appliances and
most other major brands too!
• Fast, convenient delivery direct to you.
To learn more about GE commercial laundry:
Go to www.gecommerciallaundry.com, or contact
one of the support centers listed below:
Sales support 800.861.7206
Technical questions 901.387.2754
Parts fax number 866.841.9442
ESD 800.523.1510
Greenwald 800.221.0982
Listed by
Underwriters Laboratories
