GE PXRQ400T Original instructions

Write the model and serial
numbers here:
Model #_________________
Serial # _________________
You can find them on the rating
label on the front side of your
water heater.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
OWNER’S MANUAL
& INSTALLATION
INSTRUCTIONS
REVERSE OSMOSIS
Filtration System
49-6000289 Rev. 0 08-22 GEA
PXRQ400T
SAFETY INFORMATION..........3
SPECIFICATIONS .................5
USING THE REVERSE OSMOSIS
SYSTEM ............................6
INSTALLATION
INSTRUCTIONS ...................7
CARE AND CLEANING ..........15
TROUBLESHOOTING TIPS......16

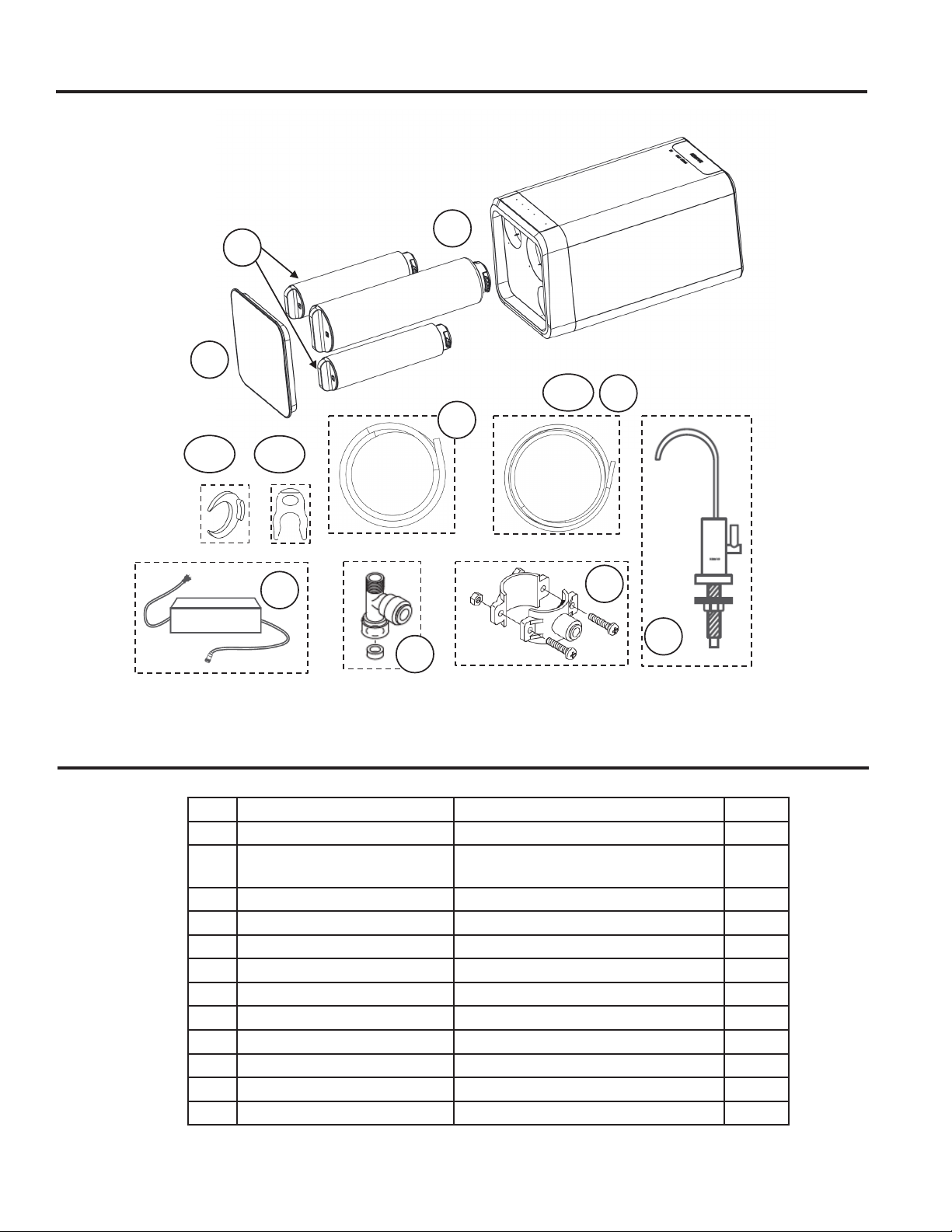

PARTS LIST.......................17
LIMITED WARRANTY ...........19
CONSUMER SUPPORT ......... 20
ENGLISH
System certied by
IAPMO R&T against NSF/
ANSI Standards 42 and
58 for the reduction of
claims specied.

249-6000289 Rev. 0
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME.
Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family.
We take pride in the craftsmanship, innovation and design that goes into every GE Appliances
product, and we think you will too. Among other things, registration of your appliance ensures that we
can deliver important product information and warranty details when you need them.
Register your GE appliance now online. Helpful websites and phone numbers are available in the
Consumer Support section of this Owner’s Manual. You may also mail in the pre-printed registration
card included in the packing material.

49-6000289 Rev. 0 3
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
WARNING To reduce the risk associated with choking:
■ Do not allow children under 3 years of age to have access to small parts during the installation of this product.
WARNING To reduce the risk associated with the ingestion of contaminants:
■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain
filterable cysts.
WARNING
■ For Indoor Use Only.
■ Connect only to a circuit that is protected by a ground-fault circuit-interrupter (GFCI).
■ Risk of Electric Shock. Disconnect power before servicing.
■ If Connection Is Made To A Potable Water System, The System Shall Be Protected Against Backflow.
Read, understand, and follow all safety information contained in these instructions prior to installation and use of the GE
Appliances Reverse Osmosis system. Retain these instructions for future reference.
Intended use:
The GE Appliances Reverse Osmosis system is intended for use in filtering potable water in Residential applications,
and has not been evaluated for other uses. The system is typically installed at the point of use, and must be installed as
specified in the installation instructions. Contact a plumbing professional if you are uncertain how to install.
SAFETY PRECAUTIONS
Be sure the water supply conforms with the Specification Guidelines. If the water supply conditions are unknown,
contact your municipal water company or your local health department for a list of contaminants in your area and a list
of laboratories certified by your state to analyze drinking water.
This system has been tested for the treatment of water containing pentavalent arsenic (also known as As(V), As(+5) or arsenate)
at concentrations of 0.050 mg/L or less. This system reduces pentavalent arsenic, but may not remove other forms of arsenic.
This system is to be used on water supplies containing a detectable free chlorine residual or on water supplies that have been
demonstrated to contain only pentavalent arsenic. Treatment with chloramine (combined chlorine) is not sufficient to ensure complete
conversion of trivalent arsenic to pentavalent arsenic. Please see the Arsenic Facts section of the Performance Data Sheet for further
information.
This reverse osmosis system contains a replaceable component critical to efficiency of the system. Replacement of the reverse
osmosis component should be with one of identical specifications, as defined by the manufacturer, to assure the same efficiency and
contaminant reduction performance.

449-6000289 Rev. 0
READ AND SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE
SAFETY INFORMATION
BE SURE TO FOLLOW ALL APPLICABLE STATE AND LOCAL CODES.
Extended non-use of the Reverse Osmosis system:
■ If the system has not been used for one week or more, open the RO water faucet and allow the system to drain.
Close the RO water faucet and allow the system to regenerate the water supply.
NOTICE: To reduce the risk associated with property damage due to water leakage:
■ Read and follow these instruction before installation
and use of this system.
■ Installation and use MUST comply with all state and
local plumbing codes.
■ Protect from freezing, remove filter cartridge when
temperatures are expected to drop below 40° F (4.4°
C).
■ Do not install systems in areas where ambient
temperatures may go above 110° F (43.3° C).
■ Do not install if water pressure exceeds 100 psi (689
kPa). If your water pressure exceeds 80 psi (552
kPa), you should install a pressure limiting valve.
Contact a plumbing professional if you are uncertain
how to check your water pressure.
■ Do not install where water hammer conditions may
occur. If water hammer conditions exist, you should
install a water hammer arrester. Contact a plumbing
professional if you are uncertain how to check for this
condition.
■ Where a backflow prevention device is installed on a
water system, a device for controlling pressure due to
thermal expansion should be installed.
■ Do not use a torch or other high temperature sources
near filter system, cartridges, plastic fittings or plastic
plumbing.
■ On plastic fittings, never use pipe sealant or pipe
dope. Use PTFE thread sealing tape only, as pipe
dope properties may deteriorate plastic.
■ Take care when using pliers or pipe wrenches to
tighten plastic fittings, as damage may occur if over
tightening occurs.
■ Do not install in direct sunlight or outdoors.
■ Locate the system in such a position as to prevent it
from being struck by other items used in the area of
installation.
■ Ensure that the location will support the weight of the
system when installed and full of water.
■ Ensure all tubing and fittings are secure and free of
leaks.
■ Do not install unit if any collets are missing. Contact
800-952-5039 if collets are missing from any fittings
to obtain replacements.
■ Replace the disposable prefilter and postfilter
cartridges every 6 months, at the rated capacity, or
sooner if a noticeable reduction in flow rate occurs.
■ Replace the disposable RO cartridge every 12
months, or sooner if a noticeable reduction in filtration
efficiency occurs.
Location:
The recommended location for the installation is under
the sink.
a) The power-supply receptacle for the appliance shall
be installed in a cabinet or on a wall adjacent to the
undercounter space in which the appliance is to be
installed;
b) There shall be an opening through the partition
between the compartments specified in (a) that is
large enough for the attachment plug to pass through.
The longest dimension of the opening shall not be
more than 1-1/2 in (38 mm);
c) The edges of the opening specified in (b) shall, if the
partition is wood, be smooth and rounded, or, if the
partition is metal, be covered with an edge protector
provided for this purpose by the manufacturer; and
d) Care shall be exercised, when the appliance is
installed or removed, to reduce the likelihood of
damage to the supply cord.
This Reverse Osmosis system contains a replaceable
treatment component critical for effective reduction
of total dissolved solids. This product water shall be
tested periodically to verify that the system is performing
satisfactorily. See the The Water Test Kit section.

49-6000289 Rev. 0 5
Reverse Osmosis System:
Models: PXRQ400T
This system conforms to NSF/ANSI 58 for the specific performance claims as verified and substantiated by test data.
Non-potable Water Sources: Do not attempt to use this product to make safe drinking water from non-potable water
sources. Do not use the system on microbiologically unsafe water, or water of unknown quality without an adequate
disinfection before or after the system. This system is certified for cyst reduction and may be used on disinfected water
that may contain filterable cysts.
Arsenic Reduction: This system shall only be used for arsenic reduction on chlorinated water supplies containing
detectable residual free chlorine at the system inlet. Water systems using an inline chlorinator should provide a one
minute chlorine contact time before the reverse osmosis system.
Nitrate/Nitrite Test Kit: This system is supplied with a nitrate/nitrite test kit. Product water should be monitored
periodically according to the instructions provided with the test kit.
Installations In the Commonwealth of Massachusetts: The Commonwealth of Massachusetts requires installation
be performed by a licensed plumber and do not permit the use of saddle valves. Plumbing code 248-CMR of the
Commonwealth of Massachusetts must be followed in these cases.
Product Water Testing: The Reverse Osmosis system contains a replaceable treatment component critical for the
effective reduction of total dissolved solids. Product water should be tested periodically to verify that the system is
performing properly.
Replacement of the reverse osmosis component: This reverse osmosis system contains a replaceable component
critical to the efficiency of the system. Replacement of the reverse osmosis component should be with one of identical
specifications, as defined by the manufacturer, to assure the same efficiency and contaminant performance.
Specifications
Specifications
Supply water pressure limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15- 60psi (0.1-0.4 MPa)
Supply water temperature limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41-100 °F (5-38 °C)
Maximum total dissolved solids (TDS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2000 ppm
Maximum water hardness @ 6.9 pH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 gpg
Maximum iron, manganese, hydrogen sulfide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Chlorine in water supply (max. ppm) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.0
Supply water pH limits (pH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-10
Product (quality) water, 24 hours1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .634 gal. (2,400 liters)
CARTRIDGE SPECIFICATIONS
Performance Data – Filtration System PXRQ400T Using Filter FQ400PT and FQ400MT
Rated/certied capacity = 240 gallon for FQ400PT
Performance data sheet is available at gewaterlters.com

649-6000289 Rev. 0
Using the Reverse Osmosis System
How the Reverse Osmosis System Works
Reverse Osmosis reduces Total Dissolved Solids (TDS) and organic matter from water by diffusing it through a
special membrane (see Performance Data Sheet). The membrane separates minerals and impurities from the water
and they are flushed to the drain. For the reduction of the claims specified, see Performance Data Sheet. High
quality product water goes directly to the drinking water faucet. The system makes a good supply of drinking water
each day. How much it makes depends on the feed water supply pressure, temperature and quality.
The prefilter and postfilter are replaceable cartridges. The carbon prefilter reduces chlorine while also filtering
sediments. The postfilter reduces any other undesirable tastes and odors before you use the water.
The system includes an electronic display with a prefilter, postfilter and membrane change reminder. When six
months have passed for the pre and post filter, a flashing light will remind you to change the filters. Similarly, when
12 months have passed, a flashing light will remind you to change the filter.
Description of the Reverse Osmosis System
Prefilter - Water from the cold supply pipe is directed
to the prefilter cartridge. The prefilter is a replaceable
sediment cartridge containing activated carbon. The
prefilter reduces chlorine taste and odor in the feed
water because CHLORINE DESTROYS THE REVERSE
OSMOSIS MEMBRANE. Filtered, clean, chlorine-
reduced water flows from the prefilter to the Reverse
Osmosis cartridge.
Reverse Osmosis Cartridge - The left upper corner
cartridge includes a tightly wound, special membrane.
Water is forced through the cartridge where the
membrane reduces the dissolved solids and organic
matter. High quality product water exits the Reverse
Osmosis cartridge and goes to the storage tank. Reject
water, with the dissolved solids and organic matter,
leaves the cartridge and is discharged to the drain
through 1/4” tubing.
Postfilter - After leaving the membrane, but before going
to the system faucet, product water goes to the post
filter cartridge. The postfilter is an enhanced replaceable
sediment cartridge containing activated carbon designed
to reduce select pharmaceuticals, select herbicides/
pesticides, VOCs, BPA and PFOA/ PFOS as well as
remaining tastes, odors, and sediments. Clean, high
quality drinking water flows through the tubing and to the
system faucet.
RO Product Water Faucet - The countertop faucet
dispenses filtered drinking water when opened. It has a
variable flow handle. To comply with plumbing codes, an
air gap is built into the faucet drain water connection.
USING THE REVERSE OSMOSIS SYSTEM: How the System Works

49-6000289 Rev. 0 7
Installation Instructions
INSTALLATION INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED
FOR INSTALLATION
■ Electric Drill and 1-3/8” Drill Bit (type as required) if
mounting hole is needed for faucet
■ Electric Drill and 3/8” Drill Bit (type as required) if
installing the included drain adapter
■ Two (2) Adjustable Wrenches
■ Tape Measure
■ Phillips and Flat Blade Screwdrivers
■ Utility Knife
■ PTFE Thread Sealing Tape
■ If your main water line is a rigid pipe, you will require
a compression fitting and possibly other plumbing
hardware to complete the installation.
IMPORTANT: To avoid damaging the sink, consult a
qualified plumber or installer for drilling procedures.
Special drill bits may be needed for stone, porcelain or
stainless steel.
CONTENTS INCLUDED WITH
SYSTEM
■ Reverse Osmosis Assembly and Tubing
■ Product Literature (Owner’s Manual and Installation
Instructions)
■ Water Supply Fitting
■ Faucet Assembly
■ Drain Adapter
■ Power supply/adatpter

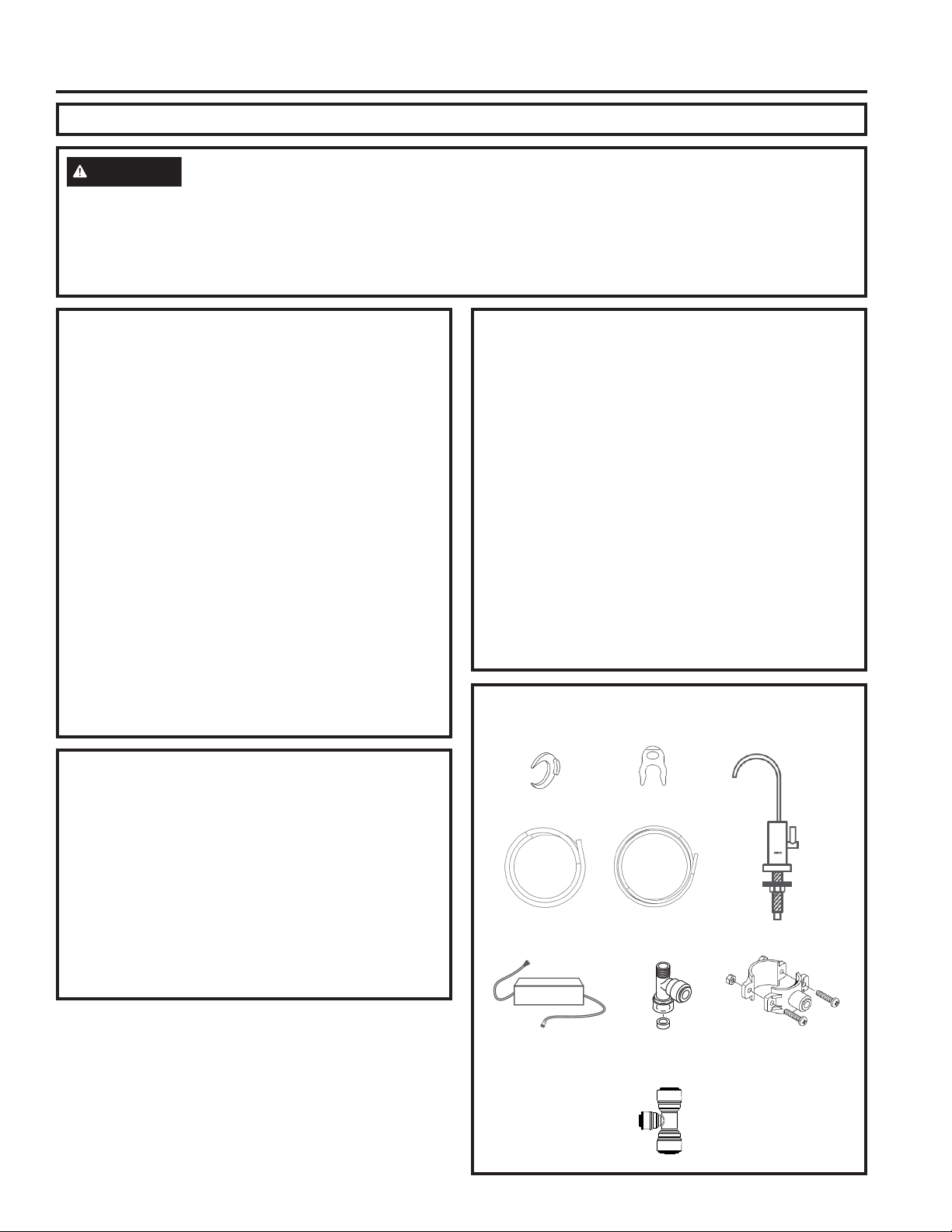

PARTS INCLUDED
3/8" clip 1/4" clip
3/8" PE – white
3/8" PE - Red
1/4" PE – white
1/4" PE - red
DC adapter Water
supply
inlet
Faucet with air gap
Drain saddle
BEFORE YOU BEGIN
Read these instructions completely and carefully.
■ IMPORTANT: Save these instructions for local
inspector’s use.
■ IMPORTANT: Observe all governing codes and
ordinances.
■ Note to Installer: Be sure to leave these instructions
with the consumer.
■ Note to Consumer: Keep these instructions for
future reference.
■ Proper installation is the responsibility of the installer.
■ Product failure due to improper installation is not
covered under the warranty.
■ A shutoff valve must be available or added near the
installation point.
WARNING Read entire manual. Failure to follow all guides and rules could cause personal injury or
property damage.
■ Check with your state and/or local public works department for plumbing codes. You must follow their guides as
you install the Reverse Osmosis system.
NOTE: Failure to comply with these installation instructions will void the product warranty, and the installer will be
responsible for any service, repair or damages caused thereby.
Questions? Call 1-800-952-5039 or visit our Website at: GEAppliances.com/ge/service-and-support/contact.htm
1/4" PE - Yellow
T-connector

849-6000289 Rev. 0
FEED WATER
The water supply to the Reverse Osmosis system must
have the qualities listed in the specifications. Municipal
water supplies most often will have these qualities.
Well water may need conditioning; have the water
tested by a water analysis laboratory and get their
recommendations for treatment.
IMPORTANT: For water with a hardness greater
than 10 grains (at 6.9 pH) the use of a softener is
recommended. Failure to install a softener will reduce
the life of the Reverse Osmosis cartridge.
REVERSE OSMOSIS (RO) FAUCET
The RO product water faucet installs on the sink or on
the countertop next to the sink. It may be installed in an
existing sink spray attachment hole, or a hole may be
drilled. Space is required underneath for tubing to and
from the faucet, and for securing the faucet in place. All
three faucet tubes are supplied already connected at
one end to the faucet.
RO DRAIN CONNECTION
A suitable drain point and air gap (check your state
and/or local codes) are needed for reject water from
the Reverse Osmosis membrane cartridge.
Installation Instructions
INSTALLATION INSTRUCTIONS
THINGS TO CHANGE BEFORE BEGINNING INSTALLATION
PREPARE FOR INSTALLATION
1. Before starting, close the hot and cold water shutoff valves.
2. Temporarily place the filter assembly into planned location. Check position of items and space required for
installation. Ensure tubes may be routed without kinking.
3. Remove the filter from planned location and set aside.
PLAN THE INSTALLATION
The Reverse Osmosis System should be installed under a sink.

49-6000289 Rev. 0 9

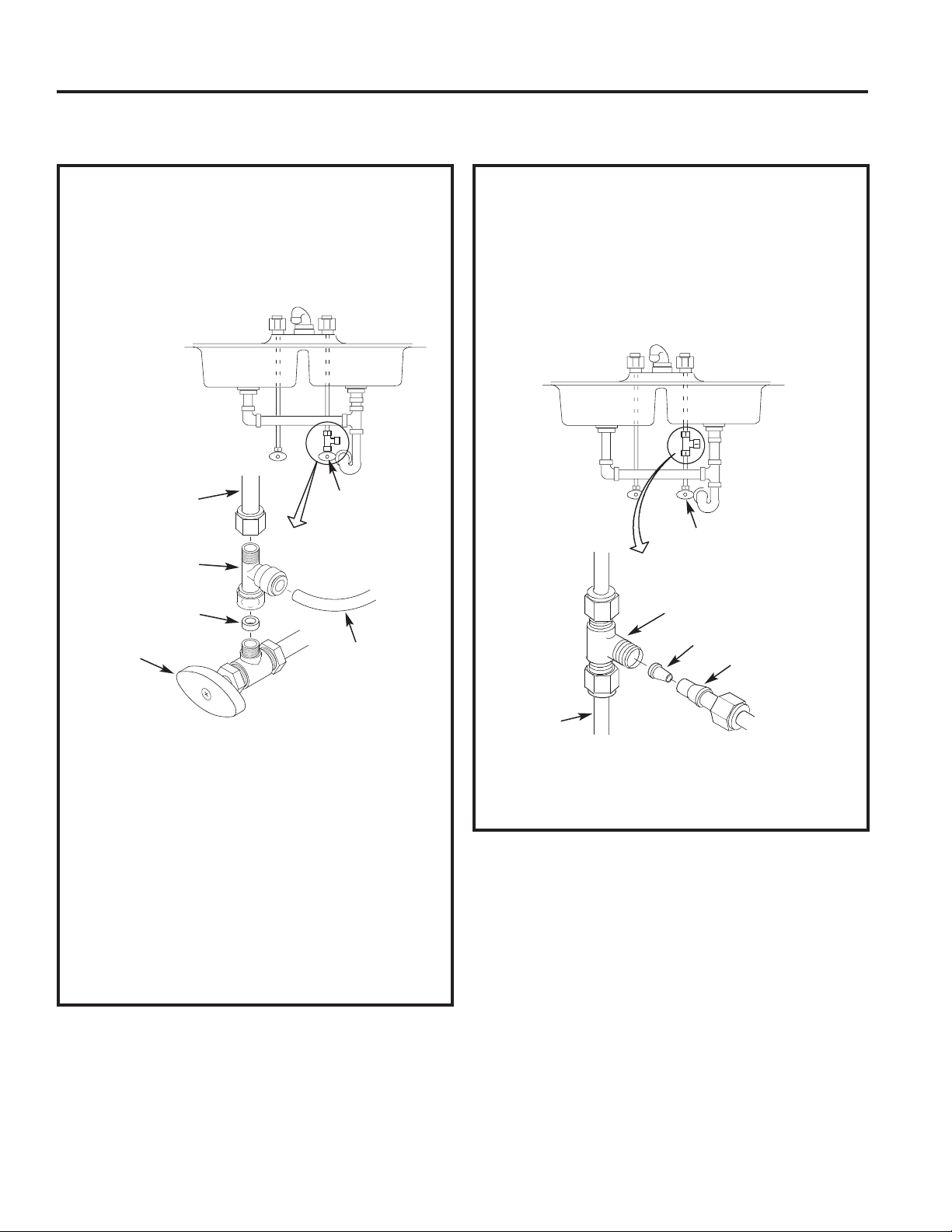

A. PREFERRED INSTALLATION
A typical connection using the included water supply
fitting is shown in the illustration below.
1. Close the cold water shutoff valve and open the
faucets to relieve pressure and drain water from the
sink cold water pipe.
1/4” red
tubing to
Reverse
Osmosis inlet
Cold Water
Shutoff Valve
Cold Water
Shutoff Valve
cold water
pipe
1/4” compression
fitting
insert
ferrule
1/4” red
tubing to
Reverse
Osmosis inlet
cold water
shutoff
cold water
pipe
water supply
fitting
gasket
2. Disconnect the existing cold water line from the
water shutoff valve.
3. Make sure that the water supply fitting’s gasket is
inside the female threaded portion of the fitting.
4. Install the water supply fitting onto the cold water
shutoff valve, where the existing cold water line was
removed, and hand tighten. Be careful not to cross
thread or overtighten.
5. Connect the existing cold water line to the male
threaded portion of the water supply fitting and hand
tighten. Be careful not to cross thread or overtighten.
B. OPTIONAL INSTALLATION
A typical connection using a compression type fitting
(not included).
NOTE: Be sure to turn off the water supply and open
a faucet to drain the pipe. Complying with plumbing
codes, install a fitting on the cold water pipe to adapt
1/4" OD tubing. A typical connection is shown in the
illustration below.
1/4” red
tubing to
Reverse
Osmosis inlet
Cold Water
Shutoff Valve
Cold Water
Shutoff Valve
cold water
pipe
1/4” compression
fitting
insert
ferrule
1/4” red
tubing to
Reverse
Osmosis inlet
cold water
shutoff
cold water
pipe
water supply
fitting
gasket
NOTE: If threaded fittings are used, be sure to use
pipe joint compound (metal fittings only) or thread
sealing tape on outside threads.
INSTALLATION INSTRUCTIONS
Installation Instructions
FEED WATER SUPPLY
Check and comply with local plumbing codes as you plan, then install a cold water supply fitting.
3/8" white

10 49-6000289 Rev. 0
Installation Instructions
INTRODUCTION
A suitable drain point is needed for the drain water
from the Reverse Osmosis system. Options are:
• Install the included Drain Adapter As shown below,
install the included drain adapter onto the sink’s
drain pipe above the P-trap. This is normally used
for under sink installations.
Drain
Tube
P–Trap
Drain Adapter
RO
Faucet
Single Basin
Sink
Double Basin Sink
P–Trap
Drain
Adapter
Drain
Adapter
Garbage
Disposal
P–Trap
Nuts Sink Drain Pipe
Screws
3/8” Quick
Connect
Fitting
Drain
Adapter
Halves
P-Trap
3/8” Hole - Do not drill
through Q.C. Fitting
NOTE: Do not install drain adapter on a line coming
from a garbage disposal.
• Use another existing drain in the home Run
the drain tube from the RO system directly to an
open drain. This is often used for remote location
installations.
NOTE: An incorrectly connected drain point can
cause water to leak from the faucet’s air gap.
NOTE: Local code may restrict the type of drain
installation to use. Either drain installation type, if
permitted by code, may be used in under sink or
remote location installations. Consult a plumber if you
are not familiar with plumbing procedures.
INSTALL DRAIN ADAPTER
The drain adapter included with the RO system is
designed to fit around a standard 1-1/2” O.D. drain
pipe. In the following procedure, install the drain
adapter above (upstream of) the P-trap. Be sure to
comply with local plumbing codes.
NOTE: Before starting this procedure, inspect the
drain pipe under the sink for corrosion, and replace if
necessary, before continuing with installation.
1. Test fit the two halves of the drain adapter onto the
sink drain pipe, about 6 inches above the Ptrap.
Make sure that the quick connect (Q.C.) fitting is
toward the direction of the RO faucet.
NOTE: Locate so that the drain tubing from the
Reverse Osmosis faucet will run straight to the
adapter, with no dips, loops, or kinks.
INSTALL DRAIN ADAPTER (cont.)
P–Trap
Drain Adapter
RO
Faucet
Single Basin
Sink
Double Basin Sink
P–Trap
Drain
Adapter
Drain
Adapter
Garbage
Disposal
P–Trap
Nuts Sink Drain Pipe
Screws
3/8” Quick
Connect
Fitting
Drain
Adapter
Halves
P-Trap
3/8” Hole - Do not drill
through Q.C. Fitting
2. Using the hole through the drain fitting as a guide,
mark the pipe where a 3/8” hole will be drilled, and
remove the drain adapter from the pipe.
NOTE: Do not drill through the drain adapter’s Q.C.
fitting, as this could damage the o-ring.
Drain
Tube
P–Trap
Drain Adapter
RO
Faucet
Single Basin
Sink
Double Basin Sink
P–Trap
Drain
Adapter
Drain
Adapter
Garbage
Disposal
P–Trap
Nuts Sink Drain Pipe
Screws
3/8” Quick
Connect
Fitting
Drain
Adapter
Halves
P-Trap
3/8” Hole - Do not drill
through Q.C. Fitting
3. Drill a 3/8” dia. hole in the pipe and remove flash.
4. Clean the sink tailpiece to assure a leak-tight fit.
5. Place the halves of the drain fitting back onto the
sink drain pipe. Use a pencil or similar pointed
object to align the Q.C. fitting so that it is centered
on the hole you drilled.
6. Assemble the nuts and screws, as shown in the
illustration above, and tighten both sides equally to
secure the drain adapter halves onto the pipe. Do
not overtighten.
7. Do not connect gray tubing to the Q.C. fitting at
this time. It is done after the RO faucet is installed.
INSTALLATION INSTRUCTIONS
REVERSE OSMOSIS DRAIN ADAPTER (for under sink installation)

49-6000289 Rev. 0 11
INSTALLATION INSTRUCTIONS
INSTALL THE FAUCET
Select the location of the Reverse Osmosis product
water faucet. Be sure there is room underneath and
above the sink to make the needed connections.
Options are:
• Use an existing sink top hole for the spray hose or
soap dispenser (Must be between 1-1/4” and 1-1/2”
in diameter)
• Drill a new hole in the sink top
• Drill a new hole in the countertop next to the sink
NOTE: Check to ensure the Reverse Osmosis faucet
will mount flat against the mounting surface.
NOTE: Visually review the routing of the tubes from
the Reverse Osmosis assembly to the faucet. Check
to ensure there is adequate tube routing space
between the faucet and Reverse Osmosis assembly.
Connect To Filtered Water
Faucet
Star Washer
Air Gap Window
Brine Input For 1/4" Tube
Brine Output for 3/8" Tube
Washer
Escutcheon
Spacer
O-ring
Mounting Nut
Gasket
Cone Washer
1/4” Compression Nut
1/4” Tube
Size 22 mm Hole
Countertop
Washer
INSTALL THE FAUCET (cont.)
1. If drilling is needed, drill a 1-3/8" diameter hole in
the mounting surface. Be sure to use the proper
procedure for drilling stone, porcelain or stainless
steel. Special drill bits may be needed. Consult a
qualified plumber.
2. Unscrew the plastic wing nut from the RO faucet’s
threaded stud. Slide this wing nut and the adjacent
metal washer off the tubing ends and set them
aside to reinstall in step 4, below.
NOTE: Be sure the black rubber gasket and metal
base ring remain in place on the faucet stud.
3. Work tubing and the faucet stud down into the
mounting hole. Be sure that the faucet body
seats squarely into the base ring, and that the
black rubber gasket sits flat against the sink or
countertop.
4. On the underside of the sink or countertop, slide
the metal washer and wing nut (removed in step 2)
back over the tubing ends and onto the stud. With
the washer in place between the countertop and
wing nut, tighten the wing nut securely.
Installation Instructions
FAUCET
(connect to 1/4" red tubing)
(connect to 3/8" red tubing)
(connect to 1/4" white tubing)

12 49-6000289 Rev. 0
Installation Instructions
HOW TO CONNECT TUBES
The Reverse Osmosis system includes push-in
fittings for quick tubing connection. Review the
following instructions before connecting the tubes in
the next step. Failure to follow these instructions may
lead to future leaks.
CUT TUBES TO LENGTH
1. Use a sharp cutter or knife to cut the end of tubing.
Always cut the tubing end square and smooth, with
no nicks or rough spots.
the end of this manual.
Push-in Fitting
Tube
Tube Partially Engaged
Collet O-Ring
Tube Fully Engaged
Collet O-Ring
Tubing
Collet (depress to
remove tubing)
NOTE: Tubing lengths should allow the RO assembly
to be moved for servicing.
2. Inspect the tube up to 1” from the end to be sure
there are no nicks, scratches or other rough spots.
If needed, cut the tubing again.
CONNECT TUBES
1. Push tubing through collet, until it engages the
o-ring. Continue pushing until the tube bottoms out
against the back of the fitting. Do not stop pushing
when the tube engages the o-ring. Failure to follow
these instructions may lead to future leaks. When
a 1/4” tube is fully engaged, 11/16” of the tube
has entered the fitting. When a 3/8” tube is fully
engaged, 3/4” of the tube has entered the fitting.
Mark tube with a piece of tape or marker.
2. If additional tubing is required, see parts list at the
end of this manual.
the end of this manual.
Push-in Fitting
Tube
Tube Partially Engaged
Collet O-Ring
Tube Fully Engaged
Collet O-Ring
Tubing
Collet (depress to
remove tubing)
MAKING TUBING CONNECTIONS
Drain
1. Use the red tube (1/4" from Reverse Osmosis
assembly to faucet and 3/8" for faucet to saddle
valve)
2. Fully fasten onto faucet spigot
3. Locate and insert tube into "Drain" fitting, adjusting
length by cutting appropriately.
Out
1. Use the white tube (3/8" from inlet three way ball
valve to Reverse Osmosis assembly and 1/4" from
Reverse Osmosis assembly to faucet)
2. Insert firmly into "Out" fitting on the system
3. Cut to appropriate length.
HOW TO CONNECT TUBES (cont.)
TO DISCONNECT TUBES (If necessary)
1. Push the collet inward with a finger tip.
2. Continue holding collet inward while pulling the
tubing out.
the end of this manual.
Push-in Fitting
Tube
Tube Partially Engaged
Collet O-Ring
Tube Fully Engaged
Collet O-Ring
Tubing
Collet (depress to
remove tubing)
INSTALLATION INSTRUCTIONS

49-6000289 Rev. 0 13
INSTALLATION INSTRUCTIONS
3/8" WHITE TUBE
Connected from inlet three way ball valve to
reverse osmosis assembly
1. Connect one end of the 3/8" white tube to the inlet three
way ball valve.
2. Route the loose end of this tube to the white collet fitting
on the Reverse Osmosis assembly.
3. Cut tube square and to length.
4. Insert all the way into the fitting.
5. Pull on the tube to be sure it is held firmly in the fitting.
3/8" RED TUBE
Connected from reverse osmosis faucet to drain
adapter
1. Connect one end of the 3/8" red tube to the reverse
osmosis faucet by sliding the tube into the 3/8" brine
output.
2. The loose end needs to be attached to the quick connect
fitting on the sink drain adapter.
3. Cut this tube as needed to route it as straight as
possible, without loops, dips, or kinks.
4. Cut the end of the tube square.
5. Insert all the way into the fitting.
6. Pull on the tube to be sure it is held firmly in the fitting.
7. With remaining tube connect the other end of the
T-connector.
8. The loose end needs to be attached to the quick connect
fitting on the sink drain adapter.
9. Repeat step 3 thought 5.
1/4" WHITE TUBE
Connected from reverse osmosis assembly to
faucet
1. Connect one end of the 1/4" white tube to the reverse
osmosis faucet by sliding tube into the 1/4" tube input.
2. Route the loose end of this tube to the white collet fitting
on the Reverse Osmosis assembly.
3. Cut tube square and to length.
4. Insert all the way into the fitting.
5. Pull on the tube to be sure it is held firmly in the fitting.
1/4" RED TUBE
Connected from reverse osmosis assembly to
reverse osmosis faucet
1. Connect one end of the 1/4" red tube to the reverse
osmosis faucet by sliding tube into the 1/4" brine tube
input.
2. Route the loose end of this tube to the red collet fitting
on the Reverse Osmosis assembly.
3. Cut tube square and to length.
4. Insert all the way into the fitting.
5. Pull on the tube to be sure it is held firmly in the fitting.
1/4" YELLOW TUBE
Connected from reverse osmosis assembly to
T-connector
1. Connect one end of the 1/4" yellow tube to the yellow
collet fitting on the Reverse Osmosis assembly.
2. Route the loose end of this tube to the 1/4" quick
connect on the T-connector.
3. Cut tube square and to length.
4. Insert all the way into the fitting.
5. Pull on the tube to be sure it is held firmly in the fitting.
Installation Instructions

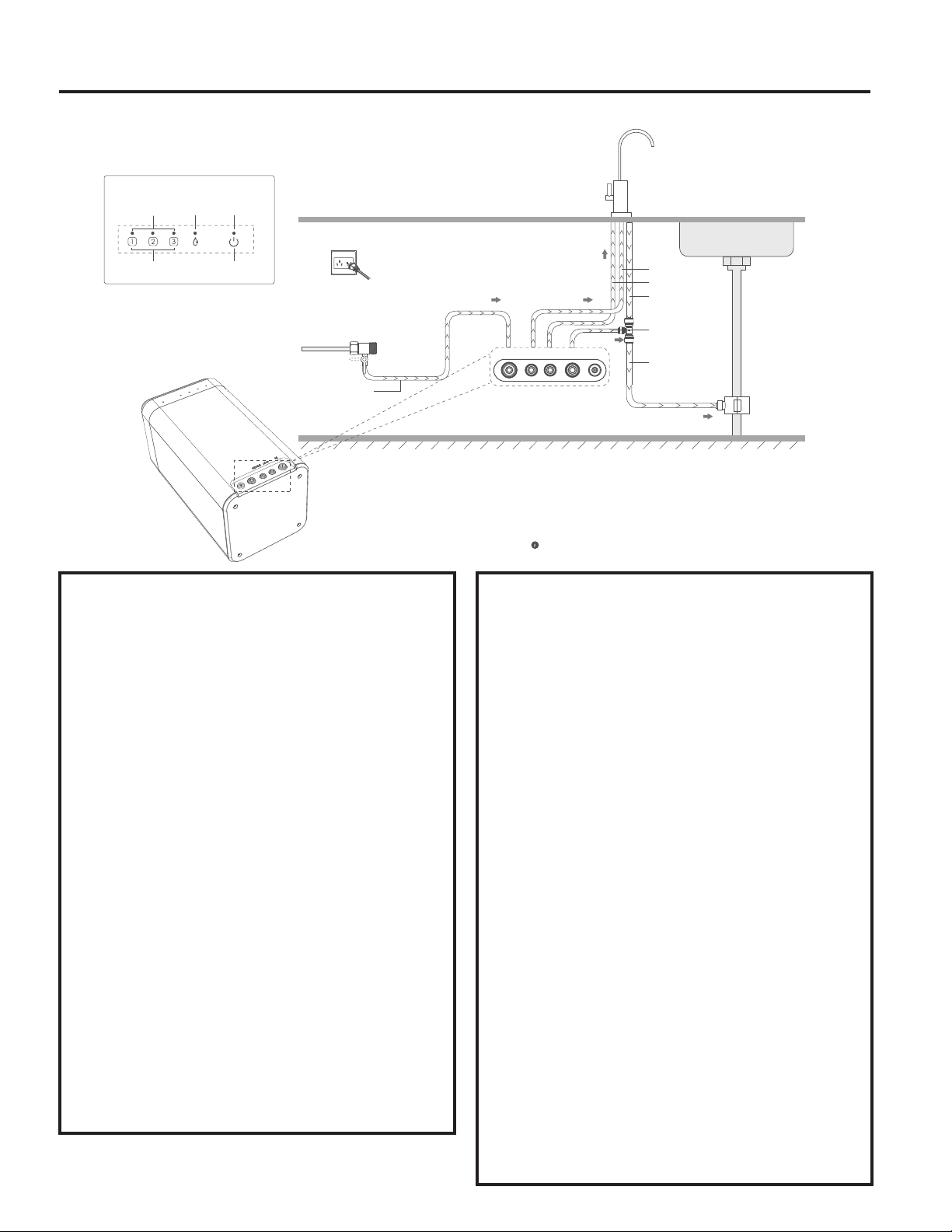

MAKE TUBING CONNECTIONS (cont.)
The illustration is for reference only, the actual product shall prevail
Faucet
Concentrated water
Concentrated water
Drain Clamp
Water inlet
Inlet three-way ball valve
Municipal tap water
Purified water
Drainage
POWER
INLET OUTLET
DRAIN 1 DRAIN 2
Filter element
indicator
Filter element touch key Power supply touch key
Failure indicator
Power supply
indicator
Interactive interface
Water purifier
3/8"White Tube
1/4"White Tube
1/4"Red Tube
1/4"Yellow Tube
3/8"Red Tube
3/8"Red Tube

14 49-6000289 Rev. 0
INSTALLATION INSTRUCTIONS
Installation Instructions
PURGE THE SYSTEM
To purge the system, complete the following steps.
1. Open the Reverse Osmosis faucet and let water flow through the system for a 24 hour period. Water flow will
be a slow trickle at this time.
NOTE: Do not consume water from the RO system until purging is complete.
2. Close the Reverse Osmosis faucet after the 24 hour purging period is complete.
3. When the purging is finished, your Reverse Osmosis system is ready for use.
TEST AND PURGE THE SYSTEM

49-6000289 Rev. 0 15
PREFILTER / POSTFILTER CARTRIDGE
REPLACEMENT (every 6 months)
Complete the following steps to replace the prefilter and
postfilter cartridges. Skip to step 3 if it is the first time
installing the filter.
1. Remove (turn counterclockwise) the prefilter cartridge
from the manifold. Then remove the postfilter
cartridge.
2. Discard the cartridges in a proper manner.
3. Remove wrapping from the new filters.
4. Install new cartridges in reverse order: postfilter first,
then prefilter. Turn cartridges clockwise to reattach to
the manifold. Do not overtighten.
5. Reset the timer by holding down the button for prefilter
(Filter#1) for 3 seconds or until the light flashes and
turns OFF. Repeat the same step for the postfilter
(filter#2).
6. Once filters are installed, Purge the Reverse Osmosis
system. See previous page for instructions.
7. When the purging is finished, close the faucet and
your Reverse Osmosis system is ready for use.
REVERSE OSMOSIS MEMBRANE
CARTRIDGE REPLACEMENT
(every 12 months)
Complete the following steps to replace the RO
membrane. Skip to step 3 if it is the first time installing
the filter.
1. Remove the Reverse Osmosis cartridge by turning
clockwise.
2. Discard the cartridges in a proper manner.
3. Remove wrapping from the new reverse osmosis
membrane.
4. Install new cartridge by turning clockwise into the
manifold. Do not overtighten.
5. Reset the timer by holding down the button for the RO
membrane (Filter#3) for 3 seconds or until the light
flashes and turns OFF.
6. Once filter is installed, Purge the Reverse Osmosis
system. See previous page for instructions.
7. When the purging is finished, close the faucet and
your Reverse Osmosis system is ready for use
CARTIDGE LIFE AND REPLACEMENT
When the filter indicator on the reverse osmosis assembly flashes or stays on, it's time to replace your filter.
The number indicate which filters need to be replaced. The pre- and post- filter should be replaced at the same time
(Filter#1 & filter#2).
See instructions below.
To obtain replacement filters, call toll-free GE Appliances Parts and Services at 1-800-952-5039, or
visit the store where you purchased your reverse osmosis system.
Prefilter /Postfilter Cartridge Replacement FQ400PT
Reverse Osmosis Cartridge Replacement FQ400MT
CARE AND CLEANING
Care and Cleaning

16 49-6000289 Rev. 0
Troubleshooting
Before you call for service....
Save time and money! Review the chart below first and you may not need to call for service.
Problem Possible Causes What To Do
Water has air bubbles
and is cloudy
Air in system after installation. Will go away after it runs for a while.
Chlorine taste and/
or odor in the Reverse
Osmosis product water
The ppm of chlorine in
your water supply exceeds
maximum limits and has
destroyed the Reverse
Osmosis membrane.
If the water supply contains more than 2.0 ppm of chlorine,
additional filtering of the water supply to the Reverse Osmosis is
needed. Correct this condition before doing maintenance on the
Reverse Osmosis system.
The prefilter is no longer
reducing chlorine from the
water supply.
Replace the Reverse Osmosis membrane cartridge, prefilter,
postfilter and battery in the faucet handle.
Other taste and/or odor High quality product water
may have a different taste than
what you’re used to.
This is normal.
Low water usage. Completely drain the system and allow to refill.
Contamination in product water
storage.
Use sanitizing procedure.
Prefilter and postfilter need to
be changed.
Replace the prefilter and postfilter. Sanitize system.
Water leaking from
faucet air gap hole
Drain side of faucet air gap
(3/8” tubing) plugged, restricted
or incorrectly connected to the
drain.
Inspect and eliminate restriction or plug. It is important that there
are no dips, loops or low spots in the drain line from the faucet air
gap to the drain pipe. Refer to Installation Instructions for proper
drain connection. If drain line adapter was used as the drain point,
periodic inspection/cleaning is recommended.
System makes product
water slowly
This is normal. Water flow rate will be lower than a regular faucet.
Water supply to the Reverse
Osmosis system not within
specifications.
Increase water pressure, precondition the water, etc., as needed to
conform before doing maintenance on the Reverse Osmosis system.
Prefilter cartridge plugged with
sediments.
Replace the prefilter. If rate does not increase, replace the postfilter,
Reverse Osmosis membrane cartridge and battery in the faucet
handle.
Reverse Osmosis membrane
plugged with sediments.
Replace Reverse Osmosis membrane cartridge and battery in the
faucet handle.
No water Water supply valve not turned
on.
Turn water supply valve on.
Leaks at fittings Improperly installed Reinstall. See Installation Instructions.
Sounds you may hear Sink drain, drain water from
system.
This is normal.
Drain line can be installed to an alternate drain, such as a basement
drain.
Faucet air gap drain water
flowing through the faucet air
gap. This may be associated
with high pressure water
supply, generally 80 psi or
greater.
Install a pressure regulator in the house water supply to reduce the
pressure below 80 psi.
TROUBLESHOOTING
If you are still having trouble, please visit GEAppliances.com/ge/service-and-support/contact.htm or
call us at 1-800-952-5039.

49-6000289 Rev. 0 17
PARTS LIST
Parts List
No. Part Number Part Name QTY
001 FQR400PT
R
eplacement filters 1
002 FQR400MT
R
eplacement membrane 1
003 WS02X23543
F
ront panel 1
004 WS21X23541 DC Adapter 1
005 WS10X23542 Faucet with air gap 1
006 WS01X23608
D
rain saddle 1
007 WS22X23604
W
ater Supply inlet 1
008 WS07X23603
3
/8" PE tube 1.5 meter - white 1
009 WS07X23602
1
/4" PE tube L:1.5m - white 1
010 WS07X23605
1
/4" PE tube L:1.5m - red 1
011 WS01X23606
3
/8" clip, POM, blue 2
012 WS01X23607
1
/4" clip, POM, blue 1
12
4
3
5
6
7
8
9
10
12
11
Parts Catalog
No. Part Number Part Name QTY
001 FQ400PT Replacement Filters 1
002 FQ400MT Replacement Membrane 1
003 WS02X23543 Front Panel 1
004 WS21X23541 DC Adapter 1
005 WS10X23542 Faucet with air gap 1
006 WS01X23608 Drain Saddle 1
007 WS22X23604 Water Supply Inlet 1
008 WS07X23603 3/8" PE tube 1.5 meter - white 1
009 WS07X23602 1/4" PE tube L:1.5m - white 1
010 WS07X23605 1/4" PE tube L:1.5m - red 1
011 WS01X23606 3/8" clip, POM, blue 2
012 WS01X23607 1/4" clip, POM, blue 1

18 49-6000289 Rev. 0
NOTES
Notes

49-6000289 Rev. 0 19
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
GE Appliances Gas Water Heater Limited Warranty
What GE Appliances will not Cover:
■ Service trips to your home to teach you how to use the
product.
■ Improper installation, delivery, or maintenance.
■ Failure of the product if it is abused, misused, modified,
or used for other than the intended purpose or used
commercially.
■ Use of this product where water is microbiologically unsafe
or of unknown quality, without adequate disinfection.
Systems certified for cyst reduction may be used on
disinfected water that may contain filterable cysts.
■ Filter cartridges, membrane cartridges and batteries after 30
days from date of purchase.
■ Damage to the product caused by accident, fire, floods or
acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided
in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or
fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
LIMITED WARRANTY
This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within
the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may
be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for
service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you
specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult
your local or state consumer affairs office or your state’s Attorney General.
For product purchased outside of the US, contact your dealer for Warranty and Service information.
Warrantor for Products Purchased in the United States:
GE Appliances, aHaier company
Louisville, KY 40225
GEAppliances.com
All warranty services are provided by our SmartWaterTM Authorized Servicer Network. To schedule service, contact us toll free at
1-800-952-5039. Please have your serial number and model number available when calling for service.
For The Period Of: We Will Replace:
One Year
From the date of the
original purchase
Any part of the Reverse Osmosis Filtration System that fails due to a defect in materials or
workmanship.

20 49-6000289 Rev. 0
Printed in USA
Consumer Support
CONSUMER SUPPORT
Register Your Appliance
Register your new appliance online at your convenience! Timely product registration will allow for enhanced
communication and prompt service under the terms of your warranty, should the need arise.
• Scan the QR Code on the product registration card or on the product itself.
NOTE: This is just an example of what a QR code represents visually.
• Go to GEAppliances.com/register
• Mail in the registration card provided in the packaging with your water heater.
Consumer Service
If you have a question or need assistance with adjustments, repairs or routine maintenance for your new water
heater:
• Review the Troubleshooting Tips and Care and Cleaning sections of this Use & Care Manual.
• Contact your local installer, plumbing contractor or call GE Appliances Service and Support at 1-800-952-5039
NOTE: Your installer phone number may be located on the product label. If you still have issues, contact GEA
Customer Support at GEAppliances.com/waterheater
Contact Us
If you are ultimately not satisfied with the service you receive, contact us on our website with all the details including
your phone number, or write to:
In the US: General Manager, Customer Relations | GE Appliances, Appliance Park | Louisville, KY 40225
GEAppliances.com/contact
Parts and Accessories
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes.
(VISA, MasterCard and Discover cards are accepted). Order on-line today 24 hours every day.
In the US, go to GEApplianceparts.com
