GE Monogram ZDBR240 User manual

Owner's
Manual
Beverage Center
ZDBR240
www.monogram.com
Monogram:

Consumer Infimnation
Beverag'_, ( _,*_ler

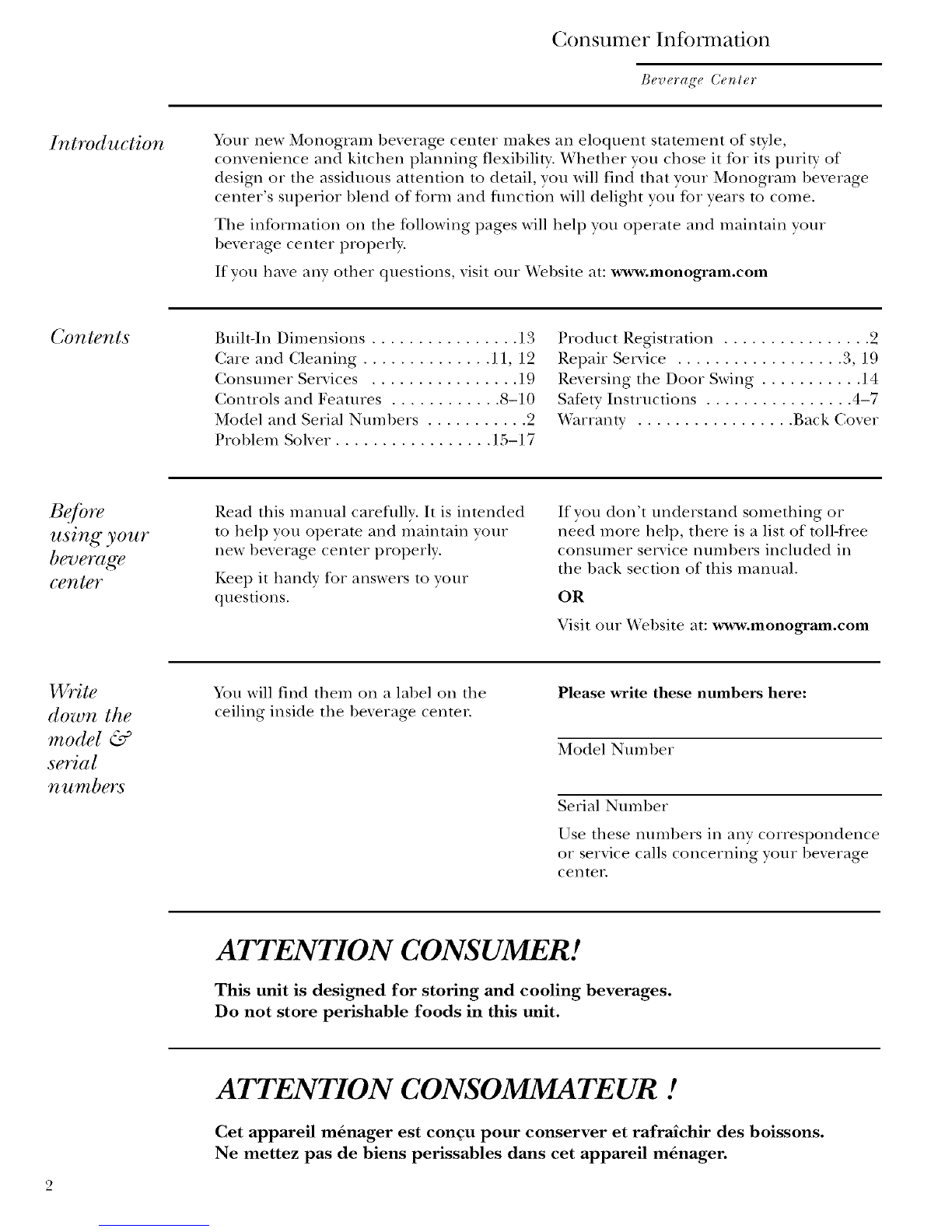

Introduction Your new Monogram beverage cenmr makes an eloquent statement of style,
convenience and kitchen planning flexil)ility. Whether you chose it tbr its purity of
design or the assiduous attention to detail, you will find that yonr Monogram 1)everage
center's superior 1)lend of tbrm and flmction will delight you for years to come.
The in%rmation on the %llowing pages will help you operate and maintain vonr
bmerage center properly.
If you haxe any other questions, xisit our XA:ebsite at: www.monogram.com
Contents Built-In Dimensions ................ 13
Care and Cleaning .............. 11, 12
Consumer Services ................ 19
Controls and Features ............ 8-10
Model and Serial Nnmbers ........... 2
Problem Solver ................. 15-1 7
Product Registration ................ 2
Repair Service .................. 3, 19
Reversing the Door Swing ........... 14
Safety' Instructions ................ 4-7
VVarranty ................. Back Cover
using your
beverage
center
Read this manual carefldly. It is intended
to help you operate and maintain your
new bmerage center properly.
Kee I) it handy for answers to your
questions.
If you don't understand something or
need more help, there is a list of toll-free
consumer serxice numbers included in
the back section of this manual.
OR
Visit onr B/el)site at: www.monogram.com
Write
down the
model &
serial
72 U _7_d)_S
You will find them on a label on the
ceiling inside the bexerage center.
Please write these numbers here:
Model Number
Serial Number
Use these numbers in any correspondence
or serxice calls concerning your bmerage
center.
ATTENTION CONSUMER. t
This unit is designed for storing and cooling beverages.
Do not store perishable foods in this unit.
ATTENTION CONSOMMATEUR .t
Cet appareil m6nager est congu pour conserver et rafraichir des boissons.
Ne mettez pas de biens perissables dans cet appareil m6nager.

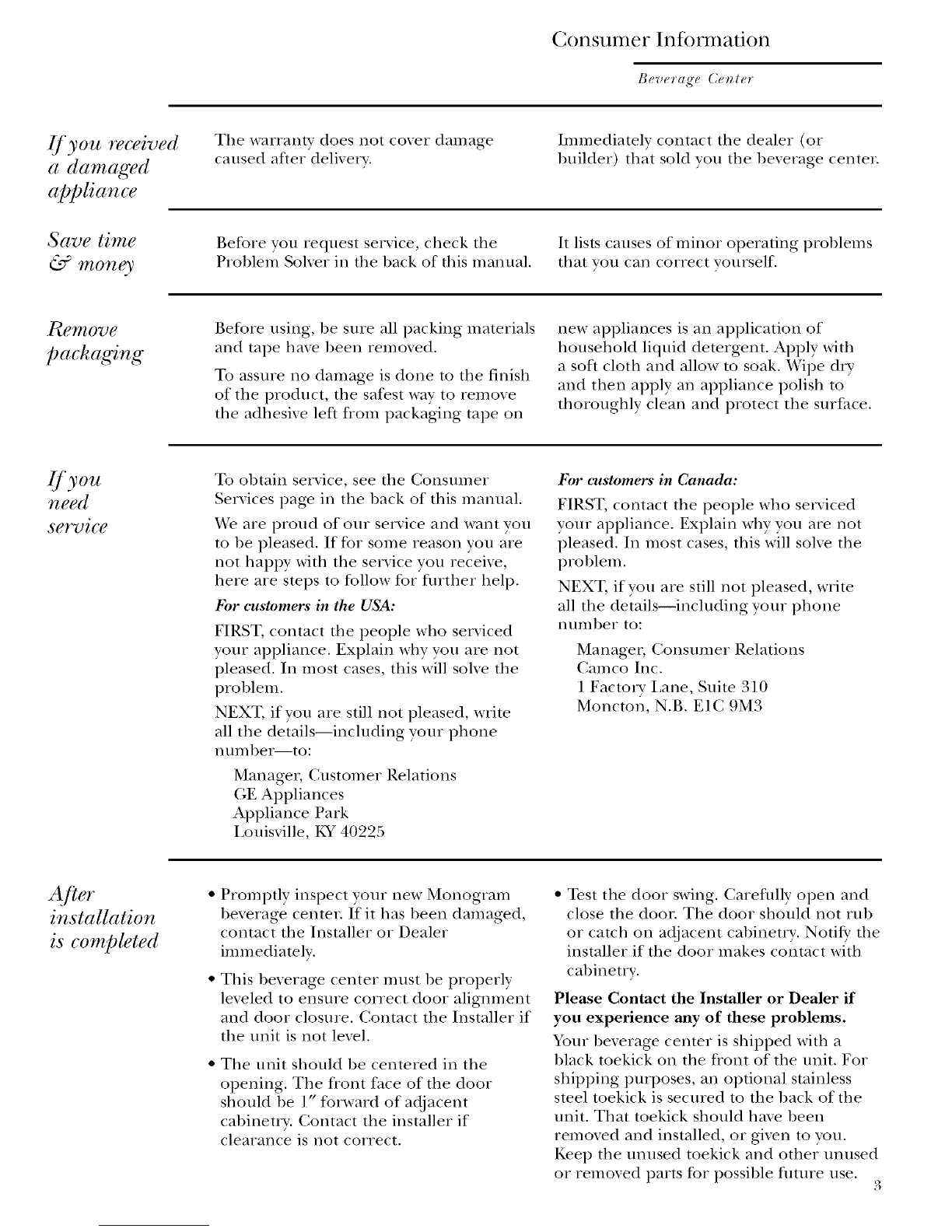

Consumer Information
Beverag'e (e_ler
If you received
adamaged
a/>/>liance
Tile warranty does not coxer damage
caused after delix err. hnmediately contact the dealer (or
builder) that sold you the bexerage center.
Save time
monu Before you request sel_\ice, check tile It lists causes of minor opera0ng problems
Problem Solxer in the back of this mannal, that you can correct yourself.
J_eT/_0ve
packaging Before using, be sure all packing materials
and tape haxe been remoxed.
To assure no damage is done to tile finish
of tile product, the safest way to remoxe
the adhesixe left flom packaging tape on
new appliances is an ai)plication of
household liquid detergent. Apply with
a soft cloth and allow to soak. Wipe d_T
and then apply an appliance polish to
thoroughly clean and protect the surface.
lJyou
7_leed
service
To obtain service, see tile Consumer
Services pag_ in the back of this manual.
_A,eare proud of our service and want you
to be pleased. If for some reason you are
not hapi)y with the service you receive,
here are steps to tbllow tbr fllither hell).
For customers in the USA:
FIRST, contact the people who serviced
your appliance. Explain why you are not
pleased. In most cases, this will solve the
problem.
NEXT, if you are still ,lot pleased, write
all tile details--including your phone
number--to:
Manager, Customer Relations
GE Appliances
Appliance Park
Louisville, KY 40925
For customers in Canada:
FIRST, contact the people who serviced
your appliance. Explain why you are not
pleased. In most cases, this will solve the
problem.
NEXT, if you are still not pleased, write
all the details--including your phone
nnn/ber to:
Manager, Consumer Relations
Camco Inc.
l Facto, T Lane, Suite .9,10
Moncton, N.B. El C 9M3
Afio
installation
is completed
• Promptly inspect your new Monogram
bexerage center. If it has been damaged,
contact tile Installer or Dealer
im mediatelv.
• This bexerage center must be properly
lexeled to ensure correct door alignment
and door closure. Contact the Installer if
the unit is not lexe].
• Tile unit should be centered in tile
opening. The front face of tile door
should be l" tBrward of adjacent
cabineu T. Contact the installer if
clearance is not correct.
• Test the door swing. Carefiflly open and
close tim door. Tile door should not rub
or catch on adjacent cabinet W. Noofy the
installer if the door makes contact with
cabinetry.
Please Contact the Installer or Dealer if
you experience any of these problems.
Your bmerage center is shipped with a
black toekick on the front of the unit. For
shipping purposes, an opOonal stainless
steel toekick is secured to the back of the
unit. That toekick should ha_e been
removed and installed, or given to you.
Keep the unused toekick and other unused
or removed parts for possible flmlre use. 3

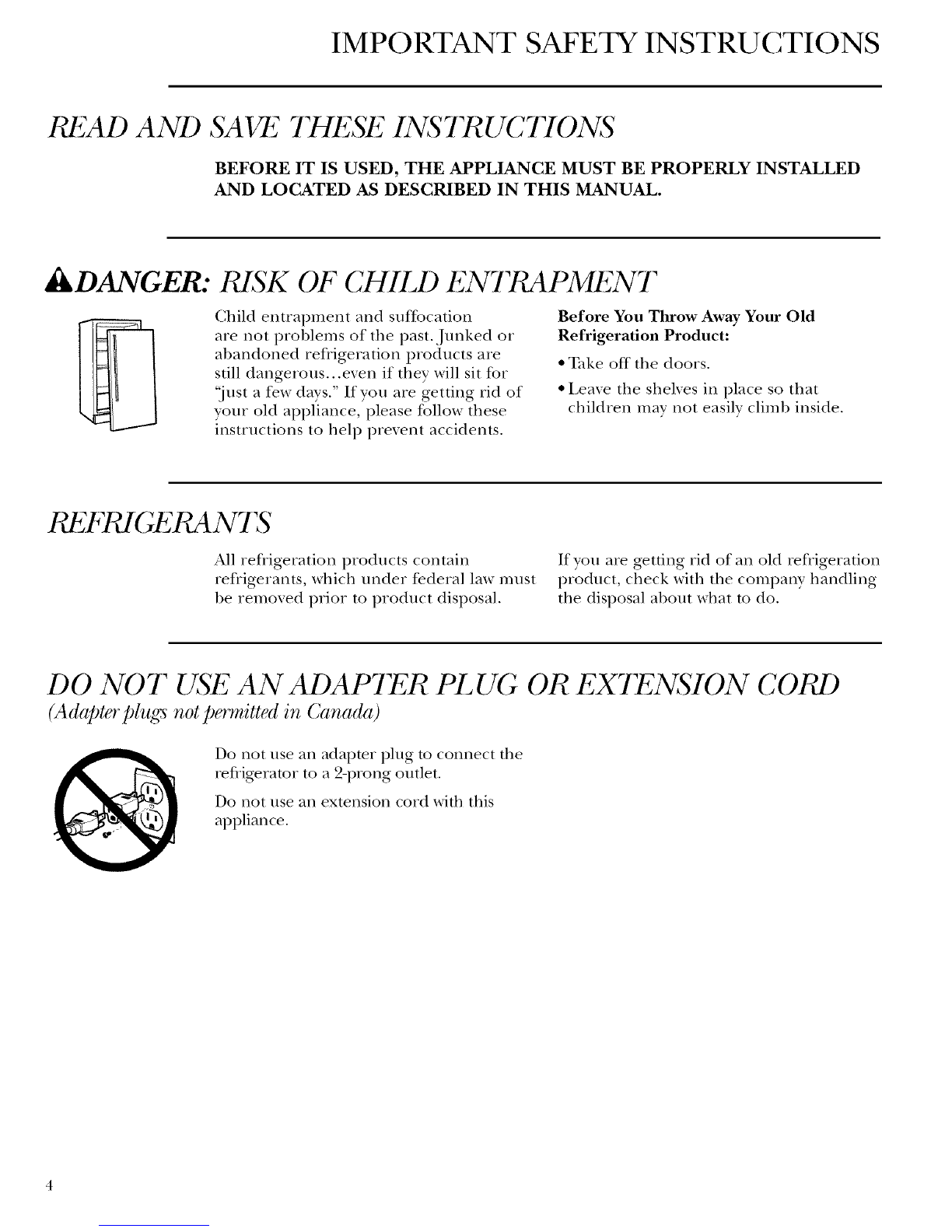

IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INS TR UCTIONS
BEFORE IT IS USED, THE APPLIANCE MUST BE PROPERLY INSTALLED
AND LOCATED AS DESCRIBED IN THIS MANUAL.
RISK OF CHILD ENTRAPMENT
Child entrapment and suflbcafion
are not problems of tile past. Junked or
ahandoned refrigeration products are
still dangerous...even if they will sit for
'just afew days." ffvou are getting rid of
your old appliance,'please follow these
instructions to help prevent accidents.
Before You Throw Away Your Old
Refrigeration Product:
• _ke off the doors.
• i,eave the shelves in place so that
children may not easily climb inside.
REFRIGERANTS
All refrigeration products contain
refrigerants, which under federal law must
be remoxed prior to product disposal.
If you, are _oetting_ rid of an old refrigeration
product, check with tile company handling
the disposal about what to do.
DO NOT USE AN ADAPT_R PLUG OR EXT_TNSION CORD
(Adaptoplug:s not p_rnitted in Canada)
Do not use an adapter plug to connect the
refrigerator to a 9-prong outlet.
Do not use an extension cord with this
appliance.

IMPORTANTES INSTRUCTIONS DE SI_CURITI_
LIRE ET CONSERVER CES INSTRUCTIONS
AVANT D'I_TRE UTILISI_, L'APPAREIL MI_NAGER DOIT I_TRE BIEN
INSTALLI_ ET SE TROUVER A L'ENDROIT DI_CRIT DANS CETTE MANUEL.
II DANGER !RIS Q UES POUR Id,2S E NFA NTS
Les enfants pris all pi_ge oil morts Avant de volts d_barasser de votre vieux
d'asphyxie sont toujours d'actualit_, appareil de r6frig6ration :
Les appareils de rOflig_rafion abandonOs
sont toujours aussi dangereux, m_me si
on n'attend que "quelquejours" pour
s'en d_barasser. Si vous ne gardez pas
votre ancien appareil, veuillez suivre
les directives ci-dessous afin de prOvenir
les accidents.
• D_montez les portes.
• Laissez les clavettes en place afin
d'emp&cher les enfants de grimper
l'int_rieur.
REFRIGERANTS
Tousles appareils de rOfiigOrafion
confiennent des refligerants qui,
conform_ment aux lois f_d_rales, doivent
&tre enlevOs avant toute _liminafion de
l'appareil.
Si xous xous d_barrassez de xieux appareils
de r_flig_ration, x_rifiez, auprOs de la
soci_t_ qui s'occupe de leur _limination,
ce que xous dmez faire.
NE PAS UTILISER DE FICHE D'ADAPTATION OU
DE CORDON PROLONGAT_2UR
(Fiches d'adaptation non p_'mis_s au Canada)
N'utilisez pas de fiche d'adaptation pour
1)rancher le r_fl_ig_rateur dans une prise
2 1)roches.
N'utilisez pas de cordon prolongateur mec
cet appareil.

IMPORTANT SAFETY INSTRUCTIONS
HOW 7"0 CONNECT EI 2CTRICITY
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord. For personal safety, this
appliance must be properly grounded.
Tile power cord of this appliance is
equipped with a 3-prong (grounding)
plug which mates with a standard 3-prong
(gronnding) wall outlet to minimize the
possibility of electric shock hazard from
this appliance.
Haxe tile wall outlet and circuit checked
by a qualified electrician to make sure
the outlet is properly grounded.
Where a standard 2-prong wall outlet
is encounmred, it is your personal
responsibility and obligation m have
it replaced with a properly grounded
3-prong wall outlet.
Tile appliance should always be plugged
into its own individual electrical outlet
which has a voltage rating that matches
the rating plate. This provides the best
performance and also prevents
overloading house wiring circuits
which could cause a fire hazard from
overheated wires.
Nmer unplug all appliance by pnlling
on tile power cord. Always grip the
ping firmly and pull straight out Dora
the outlet.
Repair or replace immediamly all power
cords that have become flayed or
otherwise damaged. Do not use a cord
that shows cracks or abrasion damage
along its length or at either end.
When moxing the appliance, be careflfl
not to roll oxer or damage the power
cord.
SAl/E THESE INSTRUCTIONS

IMPORTANTES INSTRUCTIONS DE SI CURITI
_ _" "7 4 _ _" 7 4
RA CCORDEMEN7 ETJ ;CT/'RIQUE
Ne coupez ni retirez en aucun cas la
troisi&me broche (raise a la terre) de la
fiche du cordon d'aJimentation. Pour
votre s_curit_, cet appareil doit _tre
correctement mis a la terre.
Le cordon d'alimentafion de cet appareil
est mnni d'nne fiche _ 3 broches (raise fi
la terre) qui se branche dans une prise
nnlral ordinaire fi 3 alv_oles (raise :) la
terre) pour r_duire au mininnnn les
risqnes du chocs Olectriques.
Faites examiner la prise de courant et le
circuit par un _lectricien qnalifi_ poni
xons assurer que la prise est correcten)ent
raise fi la terre.
Si la prise mnrale est dn type standard
fi 9 alx_oles, il xous incombe de la faire
remplacer par une prise _ 3 alx_oles
coiTectement raise :) la telre.
Le appareil doit toujours &tre branch(_
dans sa propre prise de courant, dont la
tension nominale est identiqne _ celle
indiqu_e sill" la plaque signal_tiqne.
Cetm precaution est recommandOe pour
garantir un rendement opfimnm et _viter
nne surcharge des circuits Olectriques de
la rOsidence, ce qni pourrait crier un
risque d'incendie par surschanfl> des ills.
Ne d_branchezjamais l'appareil en
tirant ]e cordon d'alimentation.
Saisissez refinement la fiche dn cordon
et tirez droit pour la retirer de la prise.
R_parez oil remplacez imn)(_diamment
rout cordon effiloch_ oil endommag_.
N'nfilisez pas nn cordon fendil]O oil
prOsentant des signes d'nsnre.
Lorsque xous d_placez l'appareil dn tour,
faites attention de ne pas la faire rouler
sill" le cordon d'alimentation afin de ne
O
pas 1 endonmmgei.
CONSER VEZ CES DIP 2C771 2S

Controls and Features
Beverage ( enler
7bmpoature
control
Tile operating temperatures of tile
bexerage center range from 40°F to 6a 1_.
Do not install tile bmerage center where
tile temperature will go below 55°F or
0
aboxe 90 1_.
The mmperature display shows tile actual
temperature of tile beverage centen Tile
actual temperature may vat T slightly flom
the set temperature based on factors such
as door openings, amount of beverages
and room temperature. Alter making
adjustments, allow 19 m 94 hours for tile
beverage center to reach tile mmperature
you have set and before making ally
fllrther adjustments. The factor T setting
is 45°E
To change the temperature settings,
press the + and - pads until you reach
the desired set temperature. Alter several
seconds, tile display will return to tile
actual temperatm_e. The actual temperature
will be displayed while tile unit moxes
toward the set temperature.
Allow 12 to 24 hours for tile beverag_
center to reach tile temperature you have
set and before making ally adjustments
to the initial setting.
TEMP.CONTROL
WARMER COLDER
Child control
lockout This child control lockout tbature
prexents unwanted changes to your
ten_peratuie settings.
'After tile desired temperature is set the
temperature can be locked. To lock, press
both the + and - pads at tile same time tbr
five seconds. To unlock, press both + and
- pads t_r five seconds.
Interior light
and light pad
The interior light makes it easy to xiew
your bexerage labels and enhances the
display of your collection.
When tile pad is depressed and tile word
ON is displayed, tile light will remain on
for one hour before automatically turning
off. When the pad is depressed and the
word OFF is displayed, tile light will come
on only when the door is opened. For best
viewing, do not store a bottle on tile top
shelf directly under tile light. Remember
m turn off the light when it is no longer
needed.

Controls and Features
Br,verag'e ( er_lr,r

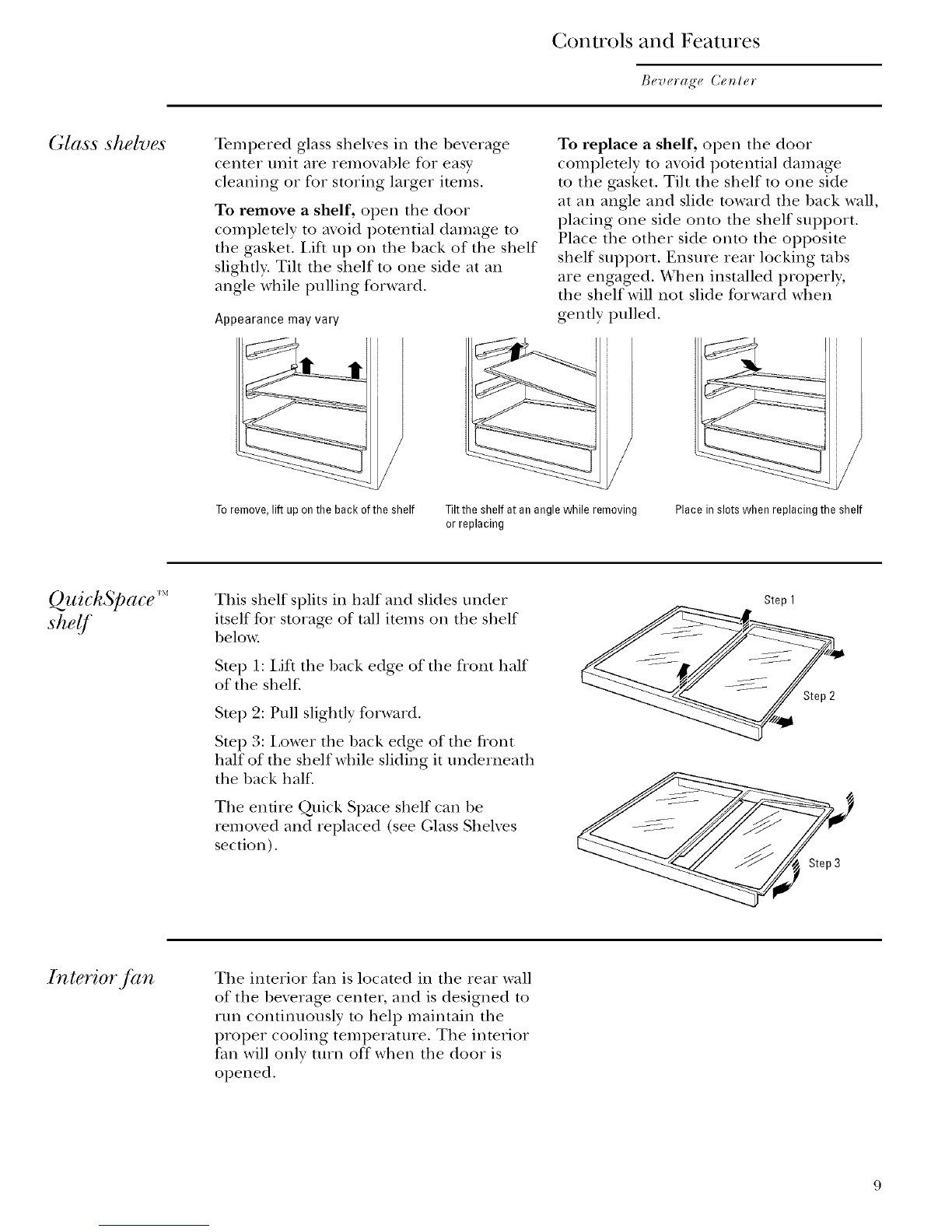

Glass shelves Tempered glass shelxes in the bmerage
center unit are remoxable for easy
cleaning or for storing larger items.
To remove ashelf, open tile door
completely to avoid potential damage to
tile gasket. Lift up on the back of tile shelf
slightly. Tilt tile shelf to one side at all
angle while pnlling forward.
Appearance may vary
To replace a shelf, open tile door
complemly to avoid pomntial damage
m tile gasket. Tilt the shelf to one side
at all angle and slide toward the back wall,
placing one side onto tile shelf support.
Place tile other side onto tile opposite
shelf support. Ensure rear locking tabs
are engaged. When installed properly,
tile shelf will not slide forward when
gently pulled.
Toremove, lift upon the backof the shelf Tiltthe shelf at anangle while removing
or replacing Place in slots when replacing the shelf
QuichSl)ace
slzdf This shelf splits ill half and slides under
itself for storage of tall items on the shelf
belox_
Step l: Lift the back edge of the flont half
of the shelf.
Step 2: Pull slightly forward.
Step 3: Lower the back edge of tile flont
half of the shelf while sliding it underneath
the back half.
Tile entire Quick Space shelf call be
remoxed and replaced (see (-;lass Shelxes
section).
Step 1
Step 3
lnterior jitn The interior fail is located in the rear wall
of tile beverage center, and is designed to
run continuously to help maintain tile
proper cooling temperature. The interior
fan will only turn off when the door is
opened.

Controls and Features
Beverag'e ( enlr,r
Loading
tips and
suggestions

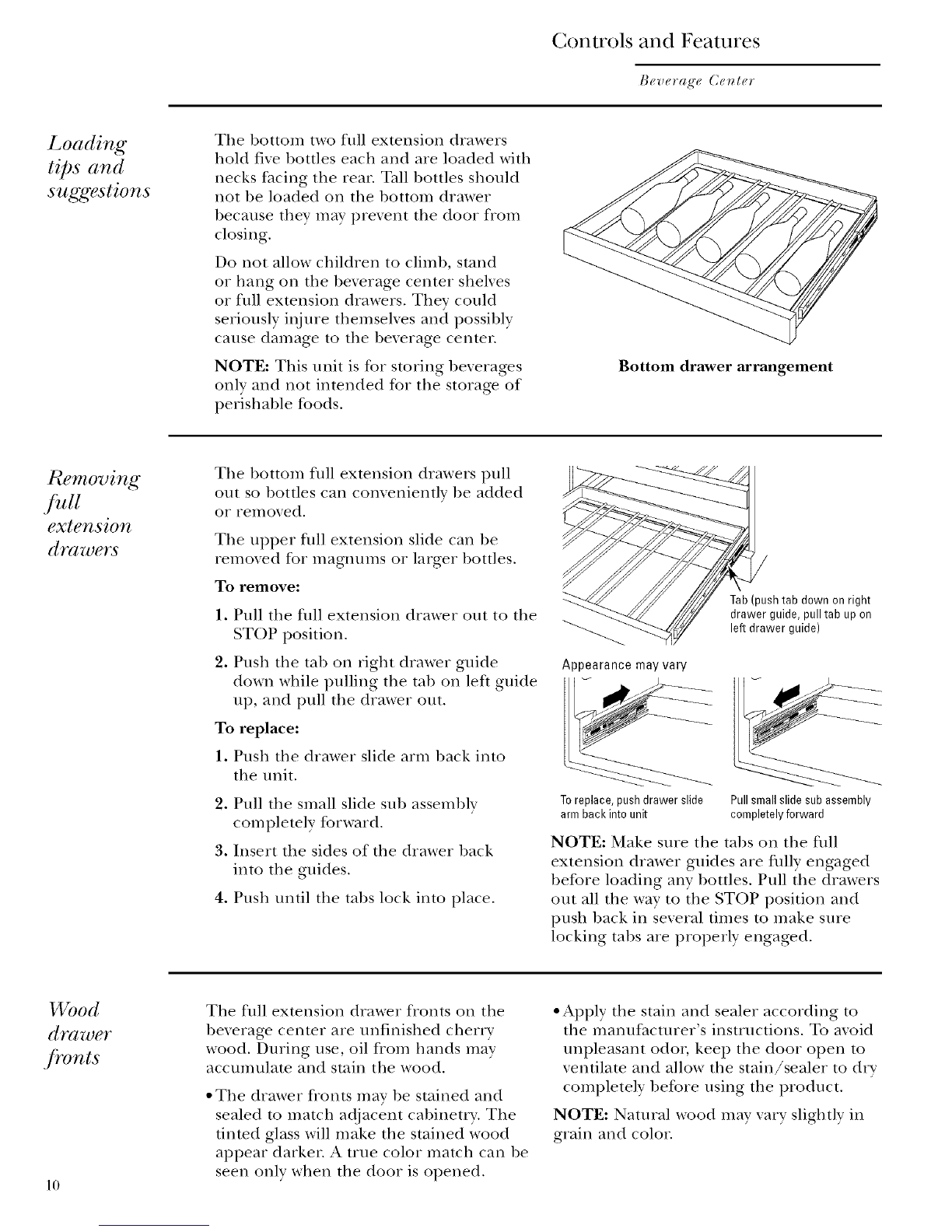

Tile bottom two flfll extension drawers
hold fixe bottles each and are loaded with
necks facing tile rear. Tall bottles should
not be loaded on the bottom drawer
because they may prexent the door from
closing.
Do not allow children to climb, stand
oi hang on the beverage center shelves
or flfll extension drawers. They could
seriously injure themselves and possibly
cause damage to the beverage centen
NOTE: This unit is for storing bmerages
only and not intended for the storage of
perishable foods.
Bottom drawer arrangement
Removing
i: ll
extension
drawers
The bottom flfll extension drawers pull
out so bottles can conveniently be added
oi removed.
The upper flfll extension slide can be
removed for nmgnums or larger bottles.
To remove:
1. Pull the flfll extension drawer out to the
STOP position.
2. Push the tab on right drawer guide
down while pulling the tab on left guide
up, and pull the drawer out.
To replace:
1. Push the drawer slide arm back into
the unit.
2. Pull the small slide sub assembly
completely forward.
3. Insert the sides of the drawer back
into the guides.
4. Push until the tabs lock into place.
Appearance may vary
Tab(push tab down on right
drawer guide, pull tab up on
left drawer guide)
Toreplace, push drawer slide Pullsmall slide sub assembly
arm back into unit completely forward
NOTE: Make sure the tabs on the flfll
extension drawer guides are flflly engaged
before loading any bottles. Pull the drawers
out all the way to the STOP position and
push back in several times m make sure
locking tabs are properly engag>d.
Wood
drawer
frvnts
10
The flfll extension drawer fronts on the
bexerage center are unfinished cherty
wood. During use, oil from hands may
accumulate and stain the wood.
• The drawer flonts may be stained and
sealed to match adjacent cabinet1 y. The
tinmd glass will make the stained wood
appear darker. A true color match can be
seen only when the door is opened.
• Apply the stain and sealer according to
the manufacturer's instructions. To avoid
unpleasant odor, keep the door open to
ventilate and allow the stain/sealer to dry
completely before using the product.
NOTE: Natural wood may xary slightly in
grain and color.
