Consumer Information
Wine Reserve
Introduction Your new Monogram wine reserve makes an eloquent statement of stgle, convenience and kitchen
planning flexibilitg. Whether gou chose it for its puritg of design or the assiduous details, gou will find
that gout Monogram wine reserve's superior blend of form and function will delight gou for gears to
come.
The information on the following pages will help gou operate and maintain gout wine reserve properlg.
If gou have ang other questions, visit our Website at: monogram.corn
Contents Consumer Services
Important PhoneNumbers ..................... 24
Modeland Serial Numbers ....................... 2
Performance Data Sheet ....................... 19
ProblemSolver ............................. 17,18
Safetg Instructions ............................ 4,5
State of California Water
Treatment DeviceCertificate ................... 20
Warrantg .............................. BackCover
Care and Cleaning
Cleaning-Outside and Inside .................. 14
Light Bulb Replacement ....................... 15
Vacation ....................................... 15
Operating Instructions
Features ........................................ 6
Automatic Icemaker ............................. 7
Customizable Drawer .......................... 11
Drawers/Shelves ............................... 10
External Moisture Control ...................... 12
LEDDisplag Lighting ........................... 12
Sabbath Mode ................................. 13
Temperature Controls ........................... 6
Water Filter ...................................... 9
Preparation
Clearances ..................................... 16
Location ....................................... 16
Before
using your
wine reserve
Readthis manual carefullg. It is intended to help
gou operate and maintain gour new wine reserve
properlg.
Keep it handg for answers to gour questions.
If gou don't understand something or need more
help, there is a list of toll-free consumer service
numbers included in the back section of this
manual.
OR
Visit our Website at: monogram.cam
Write
down the
model &
serial
numbers
You will find them on a label on the ceiling inside
the wine reserve. Please write these numbers here:
Model Number
Serial Number
Usethese numbers in ang correspondence or
service calls concerning gour wine reserve.

Consumer Information
Wine Reserve
If you
received a
damaged
app/iance
Thewarranty does not cover damage caused
after delivery. Immediately contact the dealer (or builder) that sold you the wine reserve.
Save time
&money Before you request service, check the Problem
Solver in the back of this manual. It lists causes of minor operating problems that
you can correct yourself.
If you
need
service
Toobtain service, seethe Consumer Services
page in the back of this manual.
We're proud of our service and want you to be
pleased. If for some reason you are not happy
with the service you receive, here are steps to
follow for further help.
FIRST,contact the people who serviced your
appliance. Explain why you are not pleased.
In most cases, this will solve the problem.
NEXT,if you are still not pleased, write all
the details-including your phone number-to:
Manager, Customer Relations
GEAppliances
Appliance Park
Louisville, KV/40225

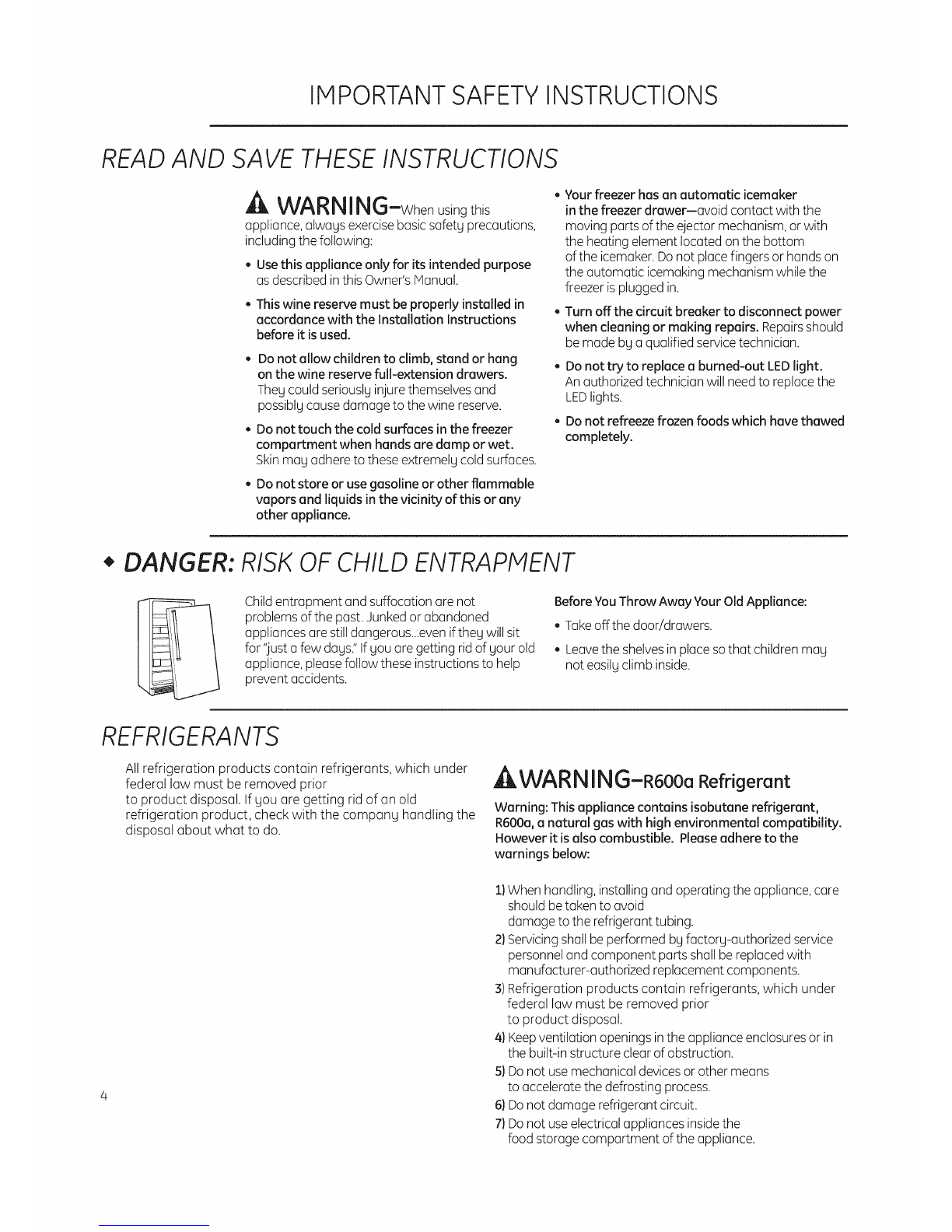

IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
WARN ING-when usingthis
appliance, alwags exercisebasic safetg precautions,
including the following:
eUsethis appliance only for its intended purpose
asdescribed in this Owner's Manual.
. This wine reserve must be properly installed in
accordance with the Installation Instructions
before it isused.
Donot allow children to climb, stand or hang
on the wine reserve full-extension drawers.
Theg could seriouslg injure themselvesand
possiblg cause damage to the wine reserve.
Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet.
Skinmag adhere to theseextremelg cold surfaces.
Do not storeor use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other applio nce.
Your freezer has an automatic icemaker
in the freezer drawer--avoid contact with the
moving parts of the ejector mechanism, orwith
the heating element located on the bottom
of the icemaker. Donot placefingers or handson
the automatic icemaking mechanism while the
freezer isplugged in.
Turn offthe circuit breaker to disconnect power
when cleaning or making repairs. Repairsshould
be made bg a qualified servicetechnician.
Do not try to replace a burned-out LEDlight.
An authorized technician will needto replacethe
LEDlights.
Do not refreeze frozen foods which havethawed
completely.
DANGER: RISKOFCHILD ENTRAPMENT
Childentrapment and suffocation are not
problems ofthe past.Junked or abandoned
appliances are still dangerous...eveniftheg willsit
for "just a few dags."If gou are getting rid of gour old
appliance, pleasefollow these instructionsto help
prevent accidents.
BeforeYouThrow Away Your Old Appliance:
, Takeoff the door/drawers.
Leavethe shelvesin place sothat children mag
not easilgclimb inside.
REFRIGERANTS
All refrigeration products contain refrigerants, which under
federal law must be removed prior
to product disposal. If gou are getting rid of an old
refrigeration product, check with the compang handling the
disposal about what to do.
AWARN ING-R6ooaRefrigerant
Warning: This appliance contains isobutane refrigerant,
R6OOa,o natural gas with high environmental compatibility.
However it isalso combustible. Pleaseadhere to the
warnings below:
1)When handling, installing and operating the appliance, care
should betaken to avoid
damage to the refrigerant tubing.
2)Servicingshallbe performed bg factorg-authorized service
personneland component parts shallbe replaced with
manufacturer-authorized replacement components.
:3)Refrigeration products contain refrigerants, which under
federal law must be removed prior
to product disposal.
4) Keepventilation openings in the appliance enclosuresor in
the built-in structure clear of obstruction.
5) Donot usemechanical devicesor other means
to accelerate the defrosting process.
6) Donot damage refrigerant circuit.
7) Donot useelectricalappliances insidethe
food storage compartment of the appliance.

IMPORTANT SAFETY INSTRUCTIONS
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances,
cut or remove the third {ground)prong
from the power cord. For personal safety,
this appliance must be properly grounded.
The power cord of this appliance is equipped
with G3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibilitg of electric shock
hazard from this appliance.
Have the wall outlet and circuit checked bg
a qualified electrician to make sure the outlet
is properlg grounded.
Where a standard 2-prong wall outlet is
encountered, it is gour personal responsibilitg
and obligation to have it replaced with u properlg
grounded 3-prong wall outlet.
Thewine reserve should ulwugs be plugged into
its own individual electrical outlet which has a
voltage rating that matches the rating plate.
DO NOT USE AN ADAPTER PLUG TO CONNECT
THE WINE RESERVETO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD WITH
THIS APPLIANCE.
This provides the best performance and also
prevents overloading house wiring circuits, which
could cause u fire hazard from overheated wires.
Never unplug gour wine reserve bg pulling on
the power cord. Alwags grip plug firmlg and pull
straight out from the outlet.
Repairor replace immediutelg all power
cords that have become fraged or otherwise
damaged. Do not use a cord that shows cracks
or abrasion damage (]long its length or at
either end.
When moving the wine reserve (]wag from
the wall, be careful not to roll over or damage
the power cord.
SAVETHESE
INSTRUCTIONS

Temperoture Controls
Wine Reserve
UpperWine
Reserve
LowerWine
Reserve
Icemaker
FreezerDrawer
Full Extension
Drawers
Wine Display
Shelf
CustomizableDrawer

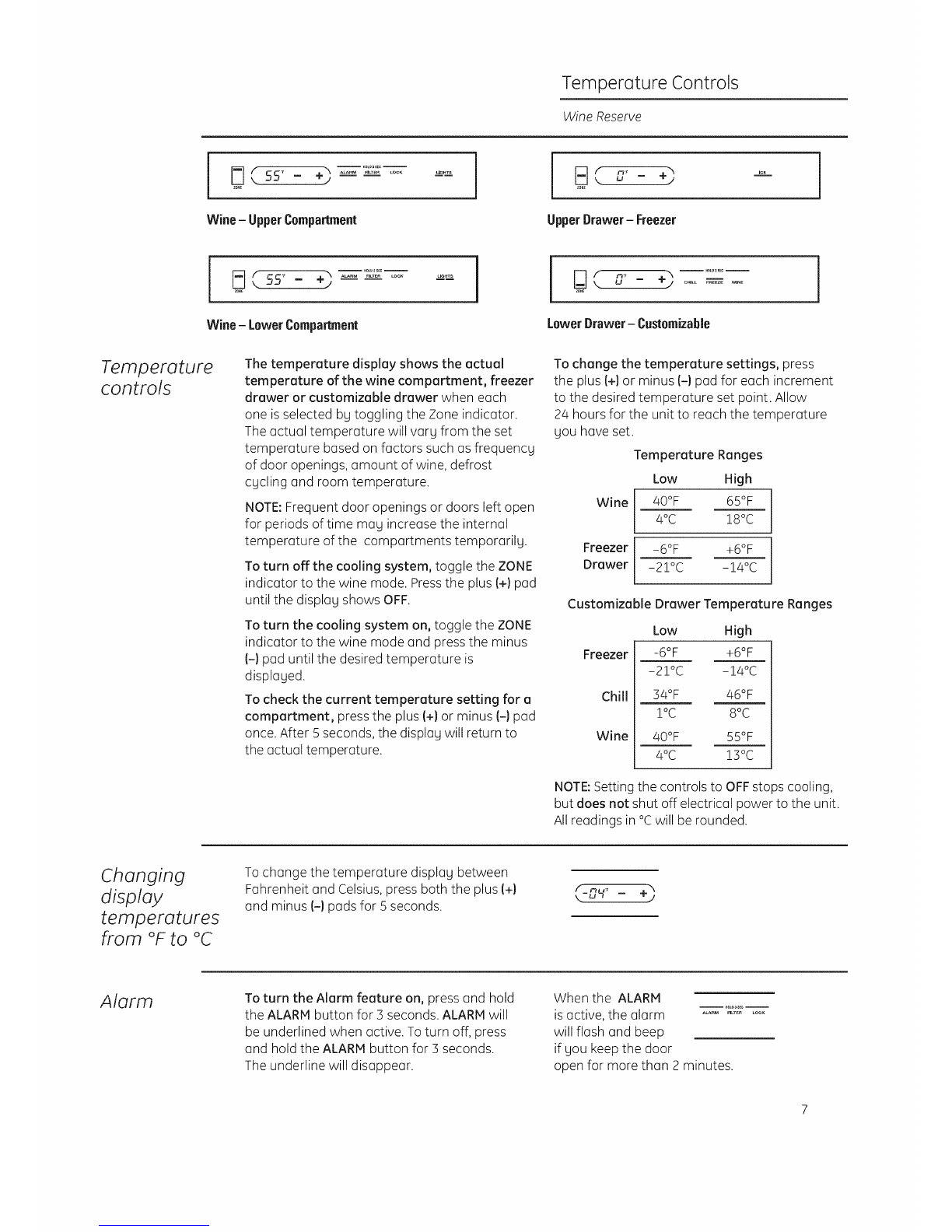

Temperature Controls
Wine Reserve
i +)...............u_QHJ.&S
Wine - UpperCompartment
I---If El' - +3
UpperDrawer- Freezer i
U( ss'- +).............
Wine-LowerCompartment 1i 0 _F- +) .....
f
LowerDrawer- Customizabb
Temperature
controls The temperature display shows the actual
temperature of the wine compartment, freezer
drawer or customizable drawer when each
one is selected bLItoggling the Zone indicator.
Theactual temperature will varg from the set
temperature based on factors such as frequencg
of door openings, amount of wine, defrost
cgcling and room temperature.
NOTE:Frequent door openings or doors left open
for periods of time mag increase the internal
temperature of the compartments temporarilg.
To turn offthe cooling system, toggle the ZONE
indicator to the wine mode. Pressthe plus 1+)pad
until the displag shows OFF.
To turn the cooling system on, toggle the ZONE
indicator to the wine mode and press the minus
1-)pad until the desired temperature is
displaged.
To check the current temperature setting for a
compartment, press the plus i+) or minus 1-)pad
once. After 5 seconds, the displag will return to
the actual temperature.
To change the temperature settings, press
the plus 1+)or minus 1-)pad for each increment
to the desired temperature set point. Allow
24 hours for the unit to reach the temperature
gou have set.
Wine
Freezer
Drawer
Temperature Ranges
Low High
40OF 65OF
4oc !8oc
-6OF +6OF
-2!oc -!4oc
Customizable Drawer Temperature Ranges
Freezer
Chili
Wine
Low High
-6OF +6OF
-2!oc -!4oc
34% 46°F
!oc 8oc
40OF 55OF
4°C 13°C
NOTE:Setting the controls to OFFstops cooling,
but does not shut off electrical power to the unit.
All readings in °Cwill be rounded.
Changing
display
temperatures
from °F to °C
Tochange the temperature displag between
Fahrenheit and Celsius, press both the plus 1+1
and minus 1-1pads for 5 seconds. (-E,'h" -+_
Alarm To turn the Alarm feature on, press and hold
the ALARM button for 3 seconds. ALARM will
be underlined when active. To turn off, press
and hold the ALARM button for 3 seconds.
The underline will disappear.
When the ALARM
is active, the alarm .............
will flash and beep
if gou keep the door
open for more than 2 minutes.

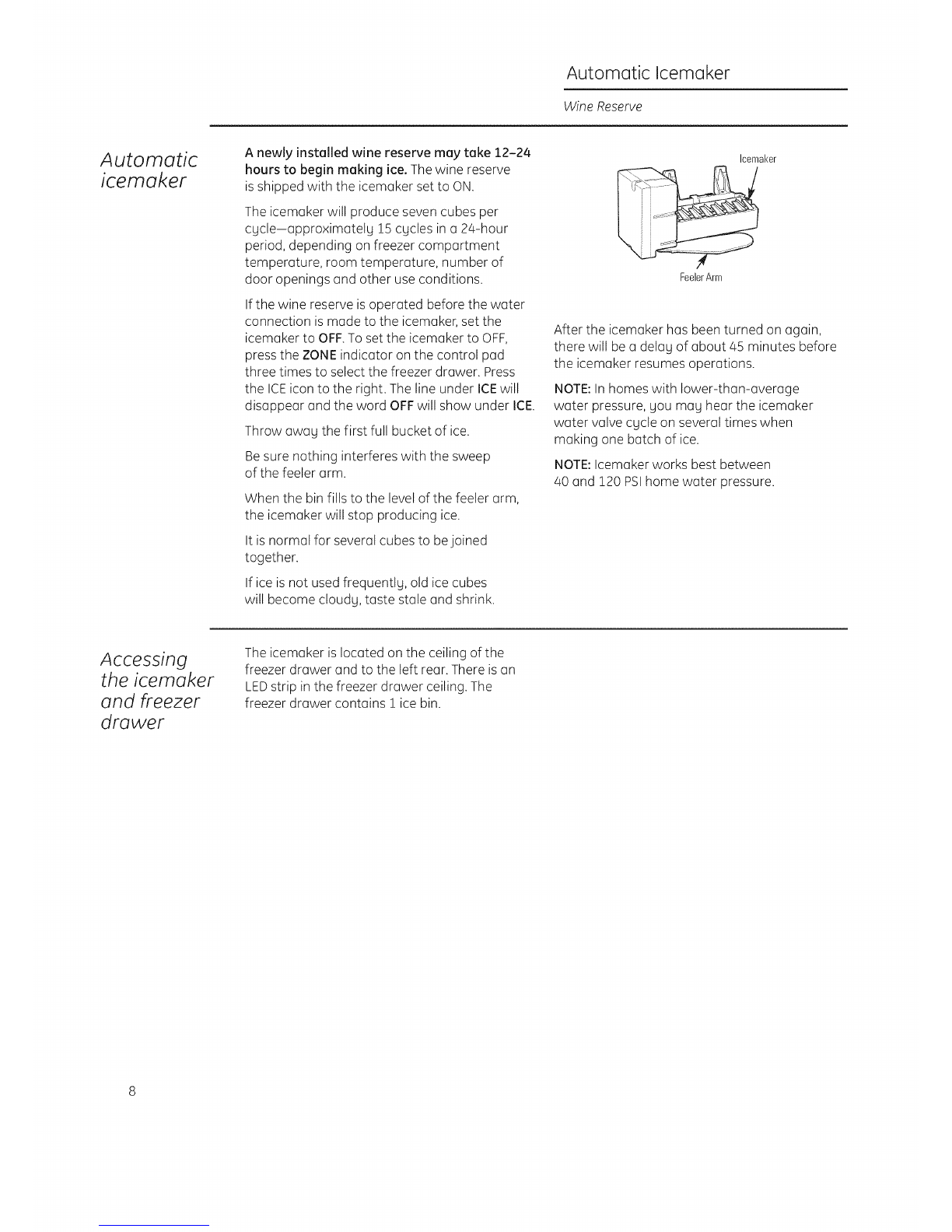

Automatic Icemaker
Wine Reserve
Automatic
icemaker A newly installed wine reserve may take 12-24
hours to begin making ice. Thewine reserve
is shipped with the icemoker set to ON.
The icem(]ker will produce seven cubes per
cgcle-(]pproxim(]telg 15 cgcles in a 2a-hour
period, depending on freezer comp(]rtment
temper(]ture, room temper(]ture, number of
door openings (]nd other use conditions.
If the wine reserve isoper(]ted before the w(]ter
connection is made to the icem(]ker, set the
icem(]ker to OFF.To set the icem(]ker to OFF,
press the ZONE indic(]tar on the control p(]d
three times to select the freezer dr(]wet. Press
the ICEicon to the right. The line under ICEwill
dis(]ppe(]r (]nd the word OFFwill show under ICE.
Throw (]w(]g the first full bucket of ice.
Be sure nothing interferes with the sweep
of the feeler (]rm.
When the bin fills to the level of the feeler (]rm,
the icem(]ker will stop producing ice.
It is norm(]l for sever(]l cubes to be joined
together.
If ice is not used frequentlg, old ice cubes
will become cloudg, t(]ste st(lie (]nd shrink.
Icemaker
FeelerArm
After the icem(]ker has been turned on Gg(]in,
there will be (] del(]g of (]bout a5 minutes before
the icem(]ker resumes oper(]tions.
NOTE:In homes with Iower-th(]n-(]ver(]ge
w(]ter pressure, gou m(]g he(]r the icem(]ker
w(]ter v(]lve cgcle on sever(]l times when
m(]king one b(]tch of ice.
NOTE:Icem(]ker works best between
/40(]nd 120 PSIhome w(]ter pressure.
Accessing
the icemoker
and freezer
drawer
The icem(]ker is Ioc(]ted on the ceiling of the
freezer dr(]wer (]nd to the left re(]r. There is (]n
LEDstrip in the freezer dr(]wer ceiling. The
freezer dr(]wer cont(]ins 1 ice bin.

Water Filter
Wine Reserve
water filter
cartridge Thewater filter cartridge is located below
the customizable drawer on the lower-right side
of the appliance.
To Replacethe Filter:
Whilethe filter cartridge mag last up to i gear,
replacement frenquencg will depend on ice usage.
Thereisa replacement indicator light for the water
filter cartridge on the control panel.Thefilter
cartridge should be replaced when the word
REPLACEappears beneath FILTERon the control
panel.
HOL0 3SEC
ALARM FILTER LOCK
REPLACE
To Resetthe Filter Status Light:
Pressand hold the FILTERbutton for 3 seconds.
Filter Bypass Plug:
Youmust usethefilter bgpassplug if:
a} gou have a household reverseosmosiswater
sgstem and/or another form of home water
filtration sgstem.
bl a replacement filter isnot available.
Theicemakerwill not operate without the filter or
filter bgpass plug installed.
Thebypass plug and mini manual are located
in the bottom machine compartment.
Replacement filters:
Toorder additional filter cartridges, visit our
Website at monogram.cam, or call GEParts and
Accessories, 800.626.2002.
Filter Model Number GSWF
IMPORTANTNOTE:Remove the water filter
to immediatelg stop ang water leak from the
icemaker. The water filter cartridge holder acts
as a cut-off valve when the filter
is removed and will prevent further leaking.
Installing the Filter Cartridge:
1.Open the customizable drawer to gain access
to the water filter cartridge.
2. Removethe old cartridge bg twisting
counterclockwise. Pullforward on the filter
to remove,
3. Insertthe newfilter into the compartment and
twist clockwise untilthe cartridge stops.
Child control
lockout This child control lockout feature prevents
unwanted changes to gout temperature settings. After the desired temperature isset, the temperature can be locked. To lock, press and
hold the LOCKbutton for 3 seconds. To unlock,
press and hold the LOCKbutton for 3 seconds.

Drawers/Shelves
Wine Reserve
Wine bottle
arrangement
Full-Extension Drawers
Thetop 6 drawers are full-extension drawers, with
each drawer holding up to 10 bottles. The bottles
will be stored with necks alternating from front to
back.
Wine Display Shelf
Thewine displag shelf can either be in a
horizontal position or an angled position. The
horizontal position can hold 18 bottles. The
angled position holds 5 bottles. The shelf can be
angled bg lifting the shelf onto pegs on the back
wall.
i f
Peg ,,
HorizontalPosition
AngledPosition
AngledPosition
Wine bottle
loading
tips and
suggestions
. Keepwines that gou plan to use for evergdag
drinking and entertaining on the front half of
the full-extension drawers where labels are
completelg visible. Place wines for aging or
longer-term storage in the rear.
. Do not allow children to climb, stand or hung
on the wine reserve full-extension drawers.
Theg could seriouslg injure themselves and
possiblg cause damage to the wine reserve.
. Group gout wine inventorg according to tgpe:
i.e.,white wines in the cooler zones and red
wines in the warmer zones.
. Store red and white wines in separate zones so
gou can keep them at different temperatures.
10

Customizable Drawer
Wine Reserve
Customizable
drawer Thecustomizable drawer can be used as
a freezer, as a fresh-food refrigerator or as
a wine/beverage drawer.
To customize your drawer:
Press the ZONE indicator on the control pad to
select the customizable drawer.
Recommended Temperatures for Customizable
Drawer:
Button
Chill
Freeze
Wine
Function
Fresh Food
Freezer
Wine Storage
Temperature
37°F/3°C
0OF/-18oc
55°F/13°C
This drawer has LEDstrip lighting above it. There
is also one adjustable divider that can be placed
in different positions and a bin that can slide left
or right in the drawer.
To change the divider position:
1. Pull in the tabs at the top of the divider to
release it from the tab holes at the front and
back of the drawer.
2. Lift the divider off of the raised tabs at the
bottom of the drawer.
3. Hove the divider to its new location and slide it
onto the raised tabs.
.Pull in the tabs at the top of the divider and
position the divider sothe tabs will fit into the
tab holes. Release the tabs so theg lock into
place.
\
RemovableSlidingBin
Tab TabHole
"Z--. Divider
!1

External Moisture Control/LED Lighting
Wine Reserve
External
moisture
control
This product isequipped with an external moisture
control feature. Thewine reserve isshipped with
the external moisture control feature off.
In some humid environments, moisture can form
on the front surface of the wine reserve cabinet.
If moisture does appear on the front surface of the
wine reserve cabinet, turn
on the external moisture control feature bg
pressing and holding the ALARM and LOCK
buttons on the control panel for 5 seconds. When
activated, a small picture of a water droplet with
a line through it will appear below the I+} and I-}
signs on the control panel.
LED display
fighting This wine reserve has LEDlighting on both sides
of the interior as well as above the freezer drawer
and above the customizable drawer.
Thewine reserve has a displag light option for the
interior side lights: full power and 1/2 power.
In displag mode at either full or 1/2 power, the
lights will stag on after the door isclosed and
automaticallg go off after 1hour.
Toaccess the lighting options, press the ZONE
indicator on the control pad. In wine mode, the
LIGHTSbutton isto the right on the control pad.
When lights are at full power, there are 2 bars
under LIGHTS;at 1/2 power, there is 1 one bar;
when the lights are off, there are no bars.
f 55' - +) ............
LightsOff
12

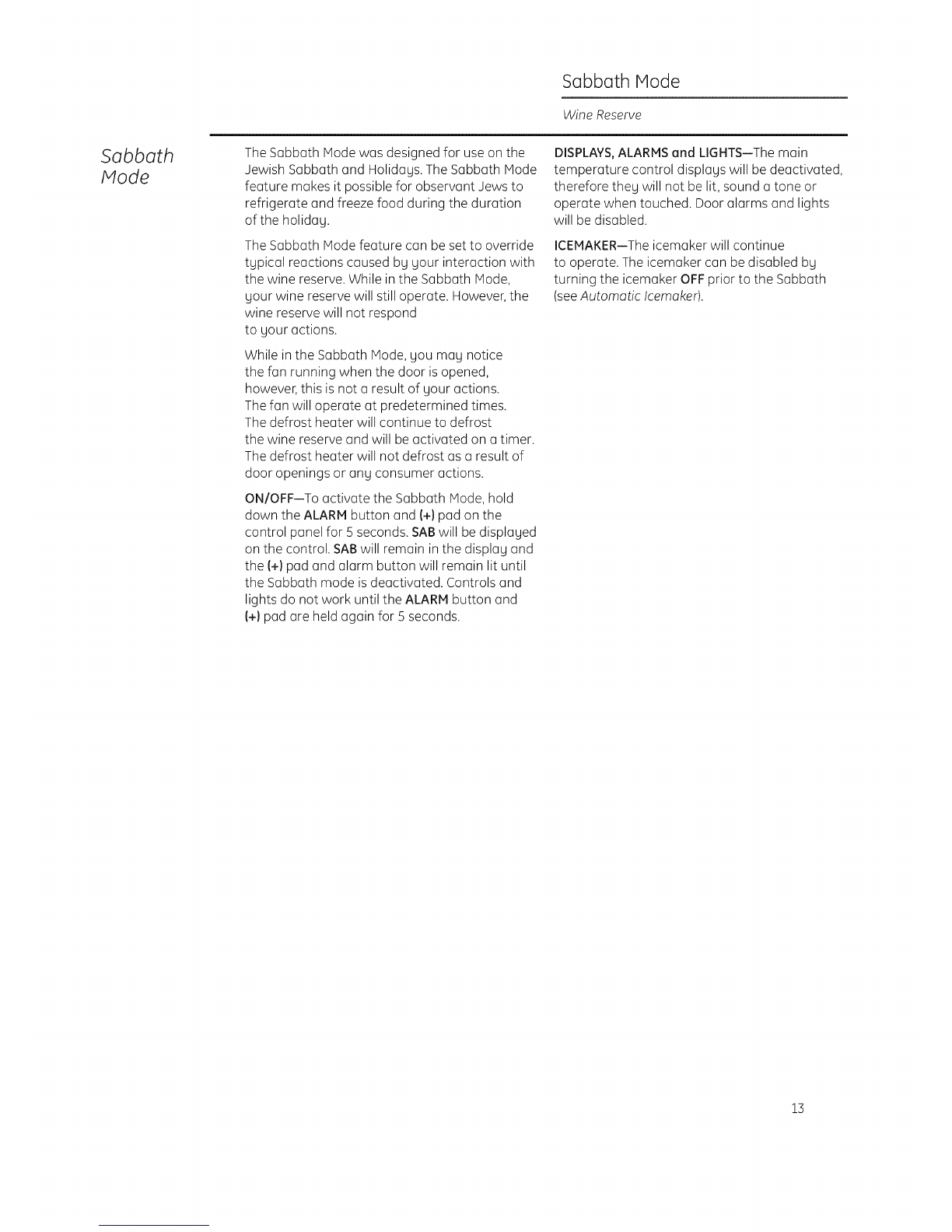

Sabbath Mode
Wine Reserve
Sabbath
Node TheSabbath Mode was designed for use on the
Jewish Sabbath and Holidags. The Sabbath Mode
feature makes it possible for observant Jews to
refrigerate and freeze food during the duration
of the holidag.
TheSabbath Mode feature can be set to override
tgpical reactions caused bg gour interaction with
the wine reserve. While in the Sabbath Mode,
gour wine reserve will still operate. However, the
wine reserve will not respond
to gour actions.
While in the Sabbath Mode, gou mag notice
the fan running when the door is opened,
however, this is not a result of gour actions.
Thefan will operate at predetermined times.
Thedefrost heater will continue to defrost
the wine reserve and will be activated on a timer.
Thedefrost heater will not defrost as a result of
door openings or ang consumer actions.
ON/OFF--To activate the Sabbath Mode, hold
down the ALARM button and (+}pad on the
control panel for 5 seconds. SABwill be displaged
on the control. SABwill remain in the displag and
the (+1pad and alarm button will remain lit until
the Sabbath mode isdeactivated. Controls and
lights do not work until the ALARM button and
(+) pad are held again for 5 seconds.
DISPLAYS,ALARMS and LIGHTS--The main
temperature control displags will be deactivated,
therefore theg will not be lit, sound a tone or
operate when touched. Door alarms and lights
will be disabled.
ICEMAKER--Theicemaker will continue
to operate. The icemaker can be disabled bg
turning the icemaker OFFprior to the Sabbath
(seeAutomatic Icemaker).
13

Careand Cleaning
Wine Reserve

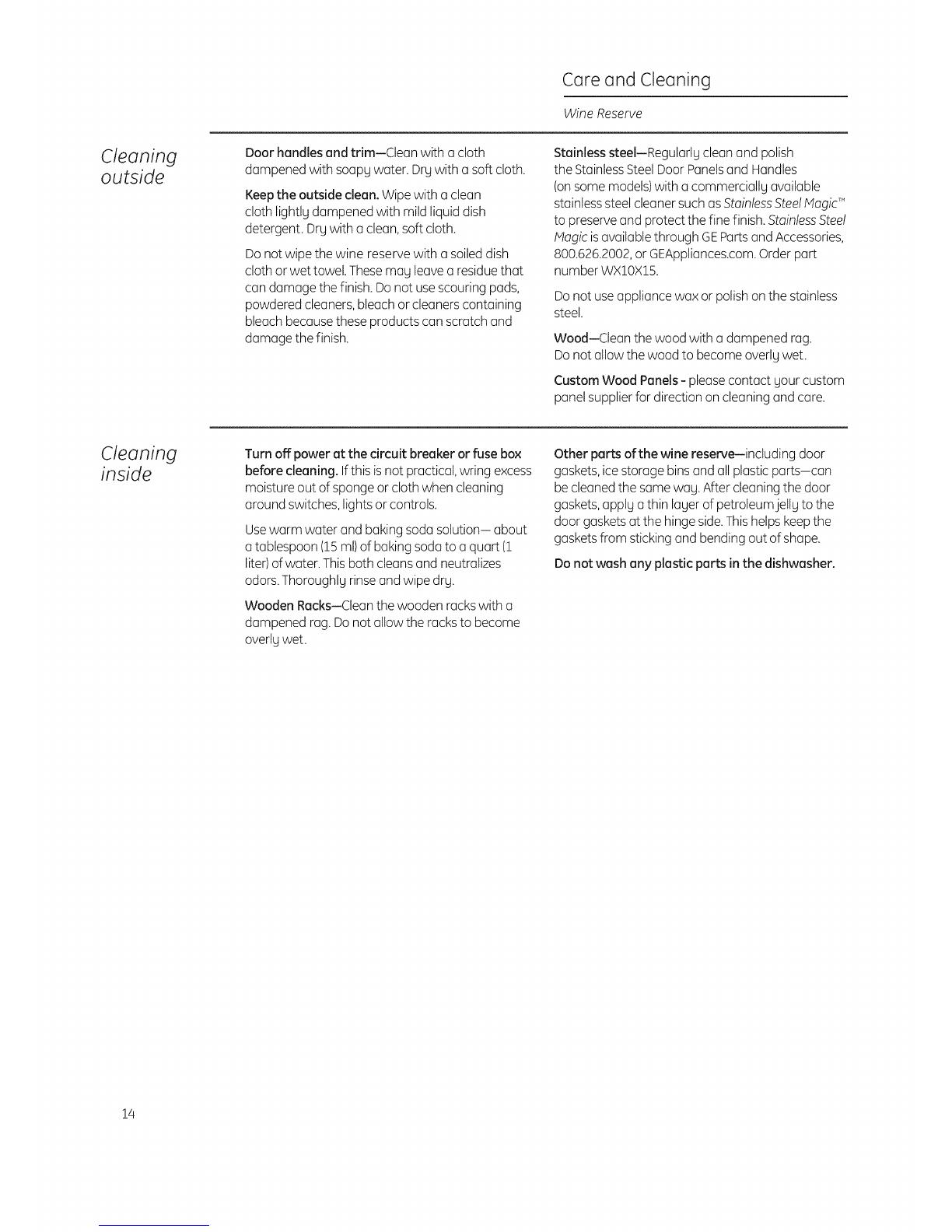

Cleaning
outside Door handles and trim-Clean with a cloth
dampened with soapgwater. Drgwith a soft cloth.
Keepthe outside clean. Wipe with a clean
cloth lightlg dampened with mild liquid dish
detergent. Drgwith a clean, soft cloth.
Do notwipe the wine reserve with a soileddish
cloth or wet towel. Thesemag leavea residuethat
can damage thefinish. Donot usescouring pads,
powdered cleaners,bleach or cleaners containing
bleach because these products can scratch and
damage the finish.
Stainless steeI--Regularlg cleanand polish
the StainlessSteelDoor Panelsand Handles
(onsome models)with a commerciallg available
stainlesssteel cleanersuch as StainlessSteelMagicTM
to preserve and protect the fine finish.StainlessSteel
Magic isavailablethrough GEPartsand Accessories,
800.626.2002,or GEAppliances.com.Order part
number WX!0X!5.
Donot useappliance wax or polishon the stainless
steel.
Wood-Clean the wood with a dampened rag.
Donot allowthe wood to become overlgwet.
CustomWood Panels- pleasecontact gour custom
panel supplier for direction on cleaning and care.
Cleaning
inside Turn off power at the circuit breaker or fuse box
before cleaning. Ifthis isnot practical, wring excess
moisture out ofsponge or cloth when cleaning
around switches, lights or controls.
Usewarm water and bakingsoda solution- about
a tablespoon (lS ml)of baking sodato a quart (!
liter)of water.This both cleansand neutralizes
odors.Thoroughlg rinseand wipe drg.
Wooden Racks--Cleanthe wooden rackswith a
dampened rag. Donot allowthe racksto become
overlgwet.
Other parts of the wine reserve-including door
gaskets,icestorage bins and all plastic parts-can
be cleanedthe same wag. After cleaning the door
gaskets,applg a thin lager of petroleumjellg to the
door gasketsat the hinge side.Thishelpskeepthe
gasketsfrom sticking and bending out of shape.
Donot wash any plastic parts in the dishwasher.
14

Careand Cleaning
Wine Reserve

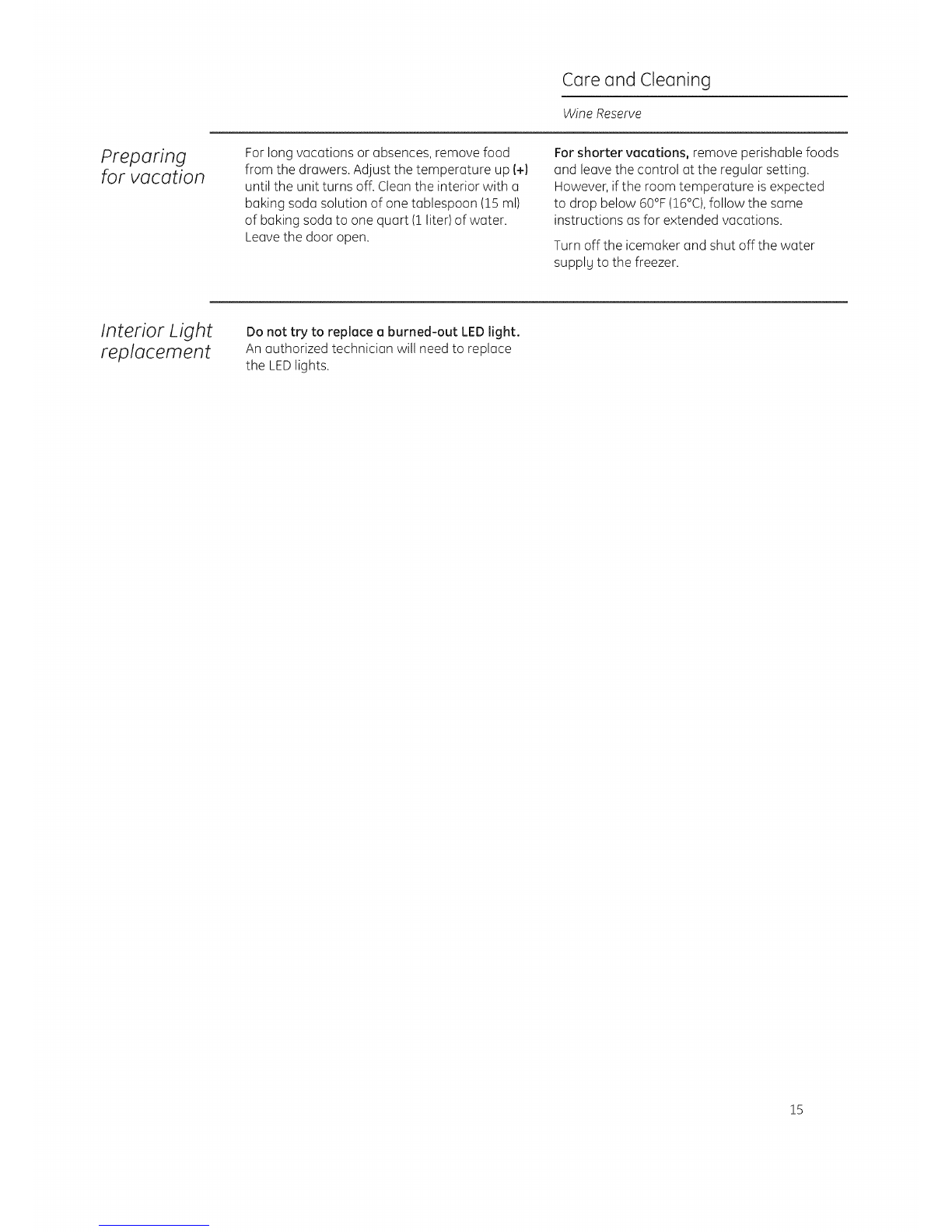

Preparing
for vacation For long vacations or absences, remove food
from the drawers. Adjust the temperature up (+)
until the unit turns off. Clean the interior with a
baking soda solution of one tablespoon (15 ml)
of baking soda to one quart (! liter) of water.
Leave the door open.
For shorter vacations, remove perishable foods
and leave the control at the regular setting.
However, if the room temperature is expected
to drop below 60% (!6°C), follow the same
instructions asfor extended vacations.
Turn off the icemaker and shut off the water
supply to the freezer.
Interior Light
replacement Do not try to replace a burned-out LEDlight.
An authorized technician will need to replace
the LEDlights.
15

Preparation
Wine Reserve
wine reserve
location Do not install the wine reserve where
temperatures will be below 60°F (16°C}because
it will not maintain proper temperatures, and the
wine reserve will develop high internal humiditg.
For proper installation, the wine reserve must
be placed on a level surface of hard material
the same height as the rest of the flooring.
This surface should be strong enough to
support a fully loaded wine reserve,
or approximately 1,200 Ibs. each. See
the Installation Instructions for complete
directions.
Clearances Allow 15" minimum clearance between the door
and wall for a full 115° door swing. Allow 5" min.
clearance to a wall for a 90° door swing for
Monogram Stainless Steel (European) models.
115° DoorSwing
L_
15"_
4inimum
toWall
115°
g0° Door Swing
!_ iii
I 32"
i
goo I
J
L_ I------I
4" distance to Wall.
16

The Problem Solver
Wine Reserve
Ouestions?
Use this
problem
solver!
PROBLEM POSSIBLE CAUSE
WINE RESERVE DOES
NOT OPERATE
REFRIGERATING SYSTEM
OPERATES FOR LONG
PERIODS OR CYCLES ON
AND OFF FREQUENTLY
{Modern refrigerators
and freezers with more
storege space and a
larger freezer require
more operating time.
They start and stop
often to maintain
even temperatures.}
. Hay be in defrost cycle when refrigerating system does not operate
for about 45 minutes.
. Temperature control in the OFFposition.
. If interior light is not on, wine reserve may not be plugged in at wall
outlet.
. The house fuse is blown/house circuit breaker istripped. Replace fuse
or reset the breaker.
. Turn off the Sabbath Mode.
. If your control panel says SHO,then your showroom mode was
enabled. To turn this off, hold the ALARM button and (-I pad
simultaneously for 5 seconds.
. Normal when wine reserve is first plugged in.Wait 24 hours
for the unit to completely cool down.
. Often occurs when large amounts of food are placed in drawers.
This is normal.
. Door left open or package holding door open.
. Hot weather or frequent door openings. This is normal.
. Temperature control set at the coldest setting. SeeTemperature
Control.
VIBRATION OR RATTLING . Wine reserve may not be properly installed.
{Slight vibration - Anti-tip bracket may be loose.
is normal.) - Unit may not be level.
THUMPING SOUND . This is a normal operating sound.
WHEN CLOSmNGDOOR . Closing the door slowly will minimize the sound.
OPERATING
SOUNDS . Thevariable speed compressor.
. Normal fan air flow-multiple fans blow cold air through the wine
and freezer compartments-other fans cool the compressor.
. The fans change speeds in order to provide optimal coolinc and
energy savings.
. These NORMALsounds will also be heard from time to time:
- You may hear a whooshing or gurgling sound when the door closes.
This is due to pressure equalizing within the wine reserve.
- A water dripping sound may occur during the defrost cycle as ice
melts from the evaporator and flows into the drain pan.
- The flow of refrigerant through the freezer cooling coils may make a
gurgling sound like boiling water.
- Water dropping on the defrost heater can cause a sizzling, popping
or buzzing sound during the defrost cycle.
- You may hear cracking or popping sounds when the wine reserve is
first plugged in or during/after the defrost cycle. This happens as the
unit cools to the correct temperature.
- The compressor may cause a clicking or chirping sound when
attempting to restart (this could take up to 5 minutes).
- The electronic control board may cause a clicking sound when relays
activate to control wine reserve components.
Ice cubes dropping into the bin and water running in pipes as
icemaker refills.
- The icemaker water valve will buzz when the icemaker fills with
water.
17

The Problem Solver
Wine Reserve
18

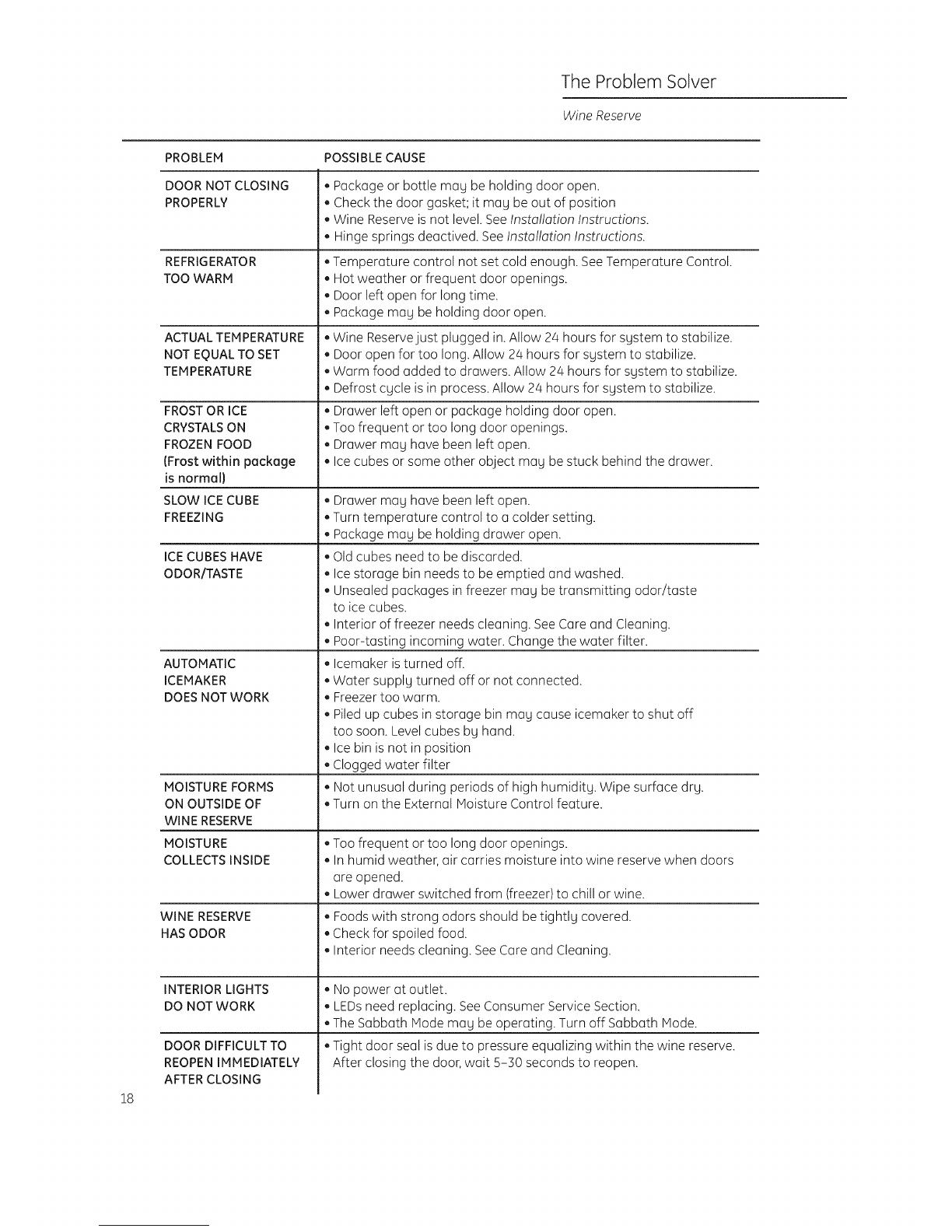

PROBLEM POSSIBLE CAUSE
DOOR NOT CLOSING
PROPERLY
REFRIGERATOR
TOO WARM
ACTUAL TEMPERATURE
NOT EQUAL TO SET
TEMPERATURE
FROST OR ICE
CRYSTALS ON
FROZEN FOOD
(Frost within package
is normal)
SLOW ICE CUBE
FREEZING
ICECUBESHAVE
ODOR/TASTE
AUTOMATIC
ICEMAKER
DOES NOT WORK
MOISTURE FORMS
ON OUTSIDE OF
WINE RESERVE
MOISTURE
COLLECTS INSIDE
WINE RESERVE
HAS ODOR
INTERIOR LIGHTS
DO NOT WORK
DOOR DIFFICULT TO
REOPEN IMMEDIATELY
AFTER CLOSING
. Package or bottle mag be holding door open.
. Check the door gasket; it mag be out of position
. Wine Reserveis not level. See Installation Instructions.
Hinge springs deactived. SeeInstallation Instructions.
Temperature control not set cold enough. See Temperature Control.
Hot weather or frequent door openings.
Door left open for long time.
Package mag be holding door open.
Wine Reservejust plugged in.Allow 2/4hours for sgstem to stabilize.
Door open for too long. Allow 24 hours for sgstem to stabilize.
Warm food added to drawers. Allow 24 hours for sgstem to stabilize.
Defrost cgcle isin process. Allow 24 hours for sgstem to stabilize.
Drawer left open or package holding door open.
Too frequent or too long door openings.
Drawer mag have been left open.
Ice cubes or some other object mag be stuck behind the drawer.
. Drawer mag have been left open.
. Turn temperature control to o colder setting.
Package mag be holding drawer open.
Old cubes need to be discarded.
Ice storage bin needs to be emptied and washed.
Unsealed packages in freezer mag be transmitting odor/taste
to ice cubes.
Interior of freezer needs cleaning. SeeCure and Cleaning.
Poor-tasting incoming water. Change the water filter.
Icemaker isturned off.
Water supplg turned off or not connected.
Freezer too warm.
Piled up cubes in storage bin mag cause icemaker to shut off
too soon. Level cubes bg hand.
Ice bin is not in position
Clogged water filter
Not unusual during periods of high humiditg. Wipe surface drg.
Turn on the External Moisture Control feature.
Too frequent or too long door openings.
In humid weather, air carries moisture into wine reserve when doors
are opened.
Lower drawer switched from (freezer)to chill or wine.
Foods with strong odors should be tightlg covered.
Check for spoiled food.
Interior needs cleaning. SeeCare and Cleaning.
No power at outlet.
LEDsneed replacing. SeeConsumer Service Section.
The Sabbath Mode mag be operating. Turn off Sabbath Mode.
Tight door seal is due to pressure equalizing within the wine reserve.
After closing the door,wait 5-30 seconds to reopen.

Performance Data Sheet
SmartWater Filtration System
GSWFCartridge
This system has been tested according to NSF/ANSI42/53 for reduction of the substances listed below.
Theconcentration of the indicated substances in water entering the system was reduced to a concentration
less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI42/53.*
(!00% safety factors built in for unmetered usage)
Parameter
Chlorine
T&O
Particulate**
USEPA
MCL Influent
Average
1.845 mg/L
143,333 #/mL
Standard No. 42: Aesthetic Effects
Influent Challenge Effluent
Concentration Average I Maximum
2.0rag/L_+10% < 0.05mg/L 0.05 mg/L
at least 10,000 partides/mL 29.85 #/mL 140 #/mL
% Reduction
Average Minimum
> 97.29% 96.43%
99.98% 99.91%
Min. Required
Reduction
_>5o%
>85%
Standard No. 53: Health Effects
Parameter USEPA Influent Influent Challenge Effluent % Reduction Min. Required
MCL Average Concentration Average I Maximum Average Minimum Reduction
Turbiditg 1 NTU*** 10.5 NTU*** 1+1 NTU*** 0.106 NTU 0.14 NTU 98.97% 98.61% 0.5 NTU
Cgsts 99.95% Reduction 200,000 #/L Minimum 50,000 L 0 0 > 99.99% > 99.99% > 99.95%
Lead at pH 6.5 0.015 mg/L 0.15 mg/L 0.15 mg/L_+lO% < 0.001 mg/L < 0.001 mg/L > 99.55% > 99.55% 0.010 mg/L
Lead at pH 8.5 0.015 mg/L 0.14 mg/L 0.15 mg/L_+lO% 0.001 mg/L 0.005 mg/L > 99.29% 97.86% 0.010 mg/L
Lindane 0.0002 mg/L 0.0216 mg/L 0.002 mg/L+10% < 0.00002 mg/L < 0.00002 mg/L 99.07% 98.75% 0.0002 mg/L
Atrazine 0.003 mg/L 0.008 mg/L 0.009 rag/L_+10% < 0.002 mg/L < 0.002 mg/L > 76.12% > 66.67% 0.005 mg/L
*Testedusing a flow rate ofO.5 gpm; pressure ofGOpsig; pH of 7.5 +_0.5;temp. of 68° +_5°F(20° _+3°C)
** Measurement in Particles/mt. Particles used were 0.5-1 microns
*** NTU=Nephelometric Turbidity units
Operating Specifications
Capacitg: certified for up to 750 gallons (2,858I);up to six months
Pressure requirement: 40-120 psi (2.8-8.2 bur)
Temperature: 35-100°F (0.6-38°0
Flow rate: 0.5gpm (1.9Ipm)
General Installation/Operation/Naintenance Requirements
Flush new cartridge at full flow for 5minutes to purge out trapped air.
Replace cartridge when flow becomes too slow.
Special Notices
Installation instructions, parts and service availabilitg, and standard warrantg are included with the product when shipped.
This drinking water sgstem must be maintained according to manufacturer's instructions, including replacement of filter
cartridges.
Donot usewith water that is microbiologicallg unsafe or of unknown qualitg without adequate disinfection before or after
the sgstem. Sgstems certified for cgst reduction mog be used on disinfected water that mag contain filterable cgsts.
The contaminants or other substances removed or reduced bg this water treatment sgstem are not necessarilg in gour
water.
Check for compliance with the state and local laws and regulations.
Note that while the testing was performed under standard laboratorg conditions, actual performance mag varg. Sgstems
must be installed and operated in accordance with manufacturer's recommended procedures and guidelines.
Sgstem tested and certified bg NSFInternational against Standard 42 for the reduction of
chlorine, taste and odor, particulate Class I and Standard 55 for the reduction of cgst, lead,
Lindane, Atrazine and turbiditg. 1
Manufactured for: General Electric Compang, Louisville, KY40225
19

State of California
Department of Health Services
Water Treatment Device
Certificate Number
03- 1559
Date Issued: April 28, 2003
Trademark/Model Designation ............................:: Repiacement Elements
GEGSWF ..........................................................
Manufacturer: .... _z_................
The water treatment
116830 of the He_
;:@,
and Turbidity
pursuant to Section
dnants
Organic
Atrazi
2
Rated Service Capacity: 750gal 0.5 gpm
Conditions of CertifiCatiOn:
Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for
cyst reduction may be used on disinfected waters that may contain filterable cysts.
2O
