GE Monogram ZDWC240NBS User instructions

Specification Revised 5/04
120024

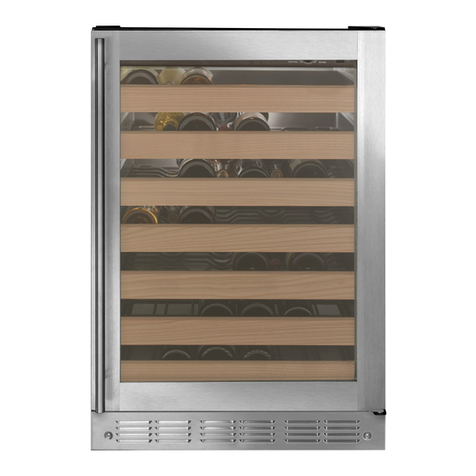

ZDWC240NBS – GE Monogram Stainless Steel Wine Chiller
Dimensions and Specifications (in inches)
For answers to your Monogram,
® GE Profile™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
The cutout depth must be 24"
The cutout dimensions shown allows for a full door swing and access
to the pull-out racks when installed as a built-in.
• The wine chiller can be installed freestanding.
• If installing between frameless cabinets, a 1/2" wide filler strip
or side panel may be needed on hinge side. The filler strip will
act as a spacer between the wine chiller case and adjacent
cabinet door swing. The width of the opening must include the
filler panels. Note: The door should protrude 1" beyond the
surrounding cabinets.
Additional Specifications:
• A 120 volt 60Hz., 15 or 20 amp power supply is required. An
individual property grounded branch circuit or circuit breaker is
recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall as shown. Electrical
must be located on rear wall as shown. Note: GFI (ground fault
interrupter) is not recommended.
The wine chiller is factory set for a 110° door swing.
When installed in a corner:
• Allow 4" min. clearance on the hinge side for the 90° door swing
and to allow racks to slide out.
• Allow 10" minimum clearance on the hinge side for a full 110°
door swing.
• The door swing is reversible on all models. If desired, change the
door swing before installation.
Choose the location:
• The wine chiller may be closed in on the top and three sides as
long as the front is unobstructed for air circulation and proper
access to the door.
• Do not install the wine chiller where the temperature will go below
55°F (13°C) or above 90°F (32°C).
• Do not install where it will be subject to direct sunlight, heat
or moisture.
Staining Wood Drawer Fronts
The wood drawer fronts on the wine chiller may be stained to match
adjacent cabinetry.
• The tinted glass will make the stained wood appear darker. A true
color match can be seen only when the door is opened.
Installation Space
Locate
Outlet
34-1/2"-35" 6" Max.
24" Min.
24" Max.
23-1/2"
24-3/8"
Including Handle
34-1/2"
22-7/8"
Product Clearances
10" Minimum
to Wall
110°
20-7/8"
23-5/8"
4" Minimum
to Wall
90°
10" Minimum
to Wall
110°
20-7/8"
23-5/8"
4" Minimum
to Wall
90°
90° Door Swing

Specification Revised 5/04
120024
ZDWC240NBS – GE Monogram Stainless Steel Wine Chiller
Dimensions and Specifications (in inches)
Side-by-Side Installations
For answers to your Monogram,
® GE Profile™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Locate
Outlet
34-1/2"-35"
24" Min.
48" Min.
6" Max.
Increase storage capacity by installing two Monogram wine chillers
together. Or for a complete refreshment center, install a beverage
center and wine chiller together.
• A side-by-side installation requires a 48" wide opening. No trim
kits required.
• Products must operate from properly grounded separate
receptacles.
Grounding the Wine Chiller
IMPORTANT – (Please read carefully)
FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY
GROUNDED.
The power cord of this appliance is equipped with a 3-prong
(grounding) plug which mates with a standard 3-prong (grounding)
wall receptacle to minimize the possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by a qualified electrician
to make sure the outlet is properly grounded.
When a standard 2-prong wall outlet is encountered, it is your
personal responsibility and obligation to have it replaced with a
properly grounded 3-prong wall out.
DO NOT, UNDER ANY CIRCUMSTANCES,
CUT OR REMOVE THE THIRD (GROUND)
PRONG FROM THE POWER CORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT THE
REFRIGERATOR TO A 2-PRONG OUTLET.
DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE.
Tools Required
• #2 Phillips screwdriver
• 1" open-end wrench
• Torx screwdriver
• Flat edge tool
Hardware Supplied
• Monogram Badge
• Hardware for changing door swing

Specification Revised 5/04
120024
ZDWC240NBS – GE Monogram Stainless Steel Wine Chiller
Features and Benefits
• Total Capacity – 57 Wine Bottles
• Adjustable Temperature Control
• 7 Full-Width Slide Out Racks
• Interior Light
• See-Thru Glass Door
• Stainless Steel Tubular Handle
• Built-In or Free-Standing Installation Options
• Model ZDWC240NBS – Stainless steel
