gebatronic 941.DCZ3.00 User manual

Safety advice
Assembly, connection and maintenance of the device may only be executed by personnel trained
accordingly. Use for the installation of the rollotimer a deep switch box. Please pay attention that no
cables are affecting the proper latching of the device. To prevent overvoltage and therewith a
malfunction, plug or unplug the operation panel only in de-energized state For this purpose
disconnect the power supply of the electric circuit by switching off the corresponding fuse.
Technical Data Ref.-No. 941.DCZ3.00
Power supply 230V / 50Hz
Switching voltage 250 V AC
Switching contact load 3 A (cos phi=1)
Ambient temperature +5°C to +45°C
Running time 2,5 minutes (max.)
Changeover delay min. 0,5 seconds
Accuracy < 5 seconds /day
Power reserve approx. 4 hours
Protection class IP 20
Safety class II
Conformity CE
Installation and
operation man al
ROLLOTIMER Comfort
Ref.-No. 941.DCZ3.00
X0470

Programming of ROLLOTIMER Comfort - witho t S/D sensor
1. Enter programming mode Press ▲ (UP) and ▼ (DOWN) simultaneously
for approx. 3 seconds.
2. Time of day
programming
Setting of the hour
18 : 32
Use ▲ (UP) to set the hour.
Press ▼ (DOWN).
Setting of the minutes
18 : 32
Use▲ (UP) to set the minutes.
Press ▼ (DOWN).
Setting of the day*
18 : 32 0
Use ▲ (UP) to set the day.
- Every day the same automatic running time: value 0
- Every day individual automatic running time: set each day (1=
MO, 2=TU, =WE, 4=TH, 5=FR, 6=SA, 7=SU)
Press▼ (DOWN).
3. A tomatic
opening day 1*
programming
Setting of the hour
18 : 32 1
Use ▲ (UP) to set the hour.
Press ▼ (DOWN).
Setting of the minutes
18 : 32 1
Use▲ (UP) to set the minutes.
Press▼ (DOWN).
4. A tomatic
closing day 1*
programming
Setting of the hour
18 : 32 1
Use ▲ (UP) to set the hour.
Press ▼ (DOWN).
Setting of the minutes
18 : 32 1
Use ▲ (UP) to set the minutes .
Press ▼ (DOWN).
5. Repeat point and 4 to set the automatic running times for each 7 days of the week, if the
idividual running times were selected in point .*
6. Operation Mode
setting
Use ▲ (UP) to set one of the following modes:
man = manual operation
auto = set automatic opening and closing time
var = a random generator changes the set
automatic opening and closing time by +/- 15
minutes
7. Exit programming
mode
Press ▼ (DOWN).
* In the weekly program (Day=0) the automatic closing and opening times or the blinds are the
same or every day o the week.
In the daily program ( Day 1...7) you can separately set the automatic closing and opening
times or every weekday.
Note: setting of the values
The value which you want to set is selected by the DOWN button and is signaled by the flashing of
the value. The value itself is set with the UP button which is raised with every push.
The values are raised automatically by pressing permanently the button. If you have reached the
desired value confirm it by pressing DOWN which will switch automatically to the next value for
programming.
The programming mode will be closed automatically if there is no input for 30 seconds. All set values
until then are set and safed. Due to the premature closing of the programming mode the operation
mode will be set to manual (man)
Operation of ROLLOTIMER
Push ▼ (DOWN) < 1 second Jog mode or STOP, if motor is running already
Push ▼ (DOWN) > 1 second DOWN command
Push ▼ (DOWN) > 6 seconds DOWN command +
time saved for DOWN command
Push ▲ (UP) < 1 second Jog mode or STOP, if motor is running already
Push ▲ (UP) > 1 second UP command
Push ▲ (UP) > 6 seconds UP command +
time saved for DOWN command
Push ▼ (DOWN) + ▲ (UP) < 1 second
simultaneously
Chance of operation mode
Push ▼ (DOWN) + ▲ (UP) > 1 second and < 3
seconds simultaneously
Activation of programming mode
Push ▼ (DOWN) + ▲ (UP) > 6 seconds
simultaneously
General reset
(restore factory settings)
Jog mode
To adjust the angle of the venetian blinds push the ▲ (UP) or ▼ (DOWN) button (up to 1 second).
The automatic mode (auto) remains unchanged.
Safety stop function
If the blind gets stopped, by pushing ▲ (UP) or ▼ (DOWN) while running in automatic operation
mode, the operation mode will switch to manual mode.
Quick programming
If the ▲ (UP) or ▼ (DOWN) button is pressed longer than 6 seconds, the blind is running in the
direction and the current time will be saved as the automatic ▲ (UP) or ▼ (DOWN) command time
(memory function).
Operation modes
Manual mode man
Automatic mode (daily program) auto
Vacation mode: automatic + random generator var
You can enable the manual mode (man) by pushing the ▲ (UP) and ▼ (DOWN) buttons
simultaneously.
Repeating this, it will be switched back to the original mode (auto or var).
The activation of the automatic mode (auto) will open and close the blinds according to
programmed times.
The activation of the vacation mode (var) will open and close the blinds according to the
programmed times with a randomly generated shift of +/- 15 minutes.
The blinds can be open and closed manually in any operation mode by pushing ▲ (UP)or ▼ (DOWN).

Programming of ROLLOTIMER Comfort - with S/D sensor
1. Enter programming mode Press ▲ (UP) and ▼ (DOWN) simultaneously for
approx. 3 seconds.
2. S n f nction
setting
(only with S/D
Sensor)
Setting of value
☼ 0 ... E
Use ▲ (UP) to set the value or E for calibration
of the current lightning conditions.
Press ▼ (DOWN).
3. D sk f nction
setting
(only with S/D
Sensor)
Setting of value
0 ... E
Use ▲ (UP) to set the value or E for calibration
of the current lightning conditions.
Press ▼ (DOWN).
Continue with point 2 programming o the Timer Comfor t- witho t S/D-Sensor
Val e S/D Sensor
Val e S n sensor D sk sensor
0 Deactivated / off Deactivated / off
1 Low brightness Low dusk
2 Medium brightness Medium dusk
3 High brightness High dusk
E Calibration of the sensor Calibration of the sensor
Settings : S n / D sk sensor, (Art. No.: 607.S000.01)
This is only available if a S/D sensor is connected and if the automatic mode is activated. For the
installation of the sensor please see the next page of the manual. The Timer will require approx. 10
seconds for the correct identification, after switching on.
S n f nction
If a S/D sensor is connected, activated and the automatic mode is activated, a sun symbol will appear
in the display. Exceeding the set brightness value is indicated by a blinking of this symbol. If the set
brightness value is exceed by more than 10 minutes, the blind will be lowered until the sensor is in the
shadow again. The Brightness is checked every 30 minutes. If the set value is underrun for 10
minutes the blind goes up again.
D sk f nction
If a S/D sensor is connected, activated and the automatic mode is activated, a moon symbol will
appear in the display. Exceeding the set dusk value is indicated by a blinking of the symbol. The
function of the dusk value is switched on by the automatic set ▼ (DOWN) operation mode. If the value
is exceeded by 10 mor e than minutes, the blinds will close completely. Please note that any light
source near the sensor can interfere with its function.
Calibration of the S/D sensor
If you experience any problems with the preset brightness values, you can calibrate the S/D sensor
individually to the desired brightness. When you have the desired brightness, select the value „E“.
Then press ▼ (DOWN) to the current brightness as value 2 – medium brightness/dusk. Define and
save.
Attachment of the S n / D sk sensors
Remove the upper part together with the two frames of the ROLLOTIMER.

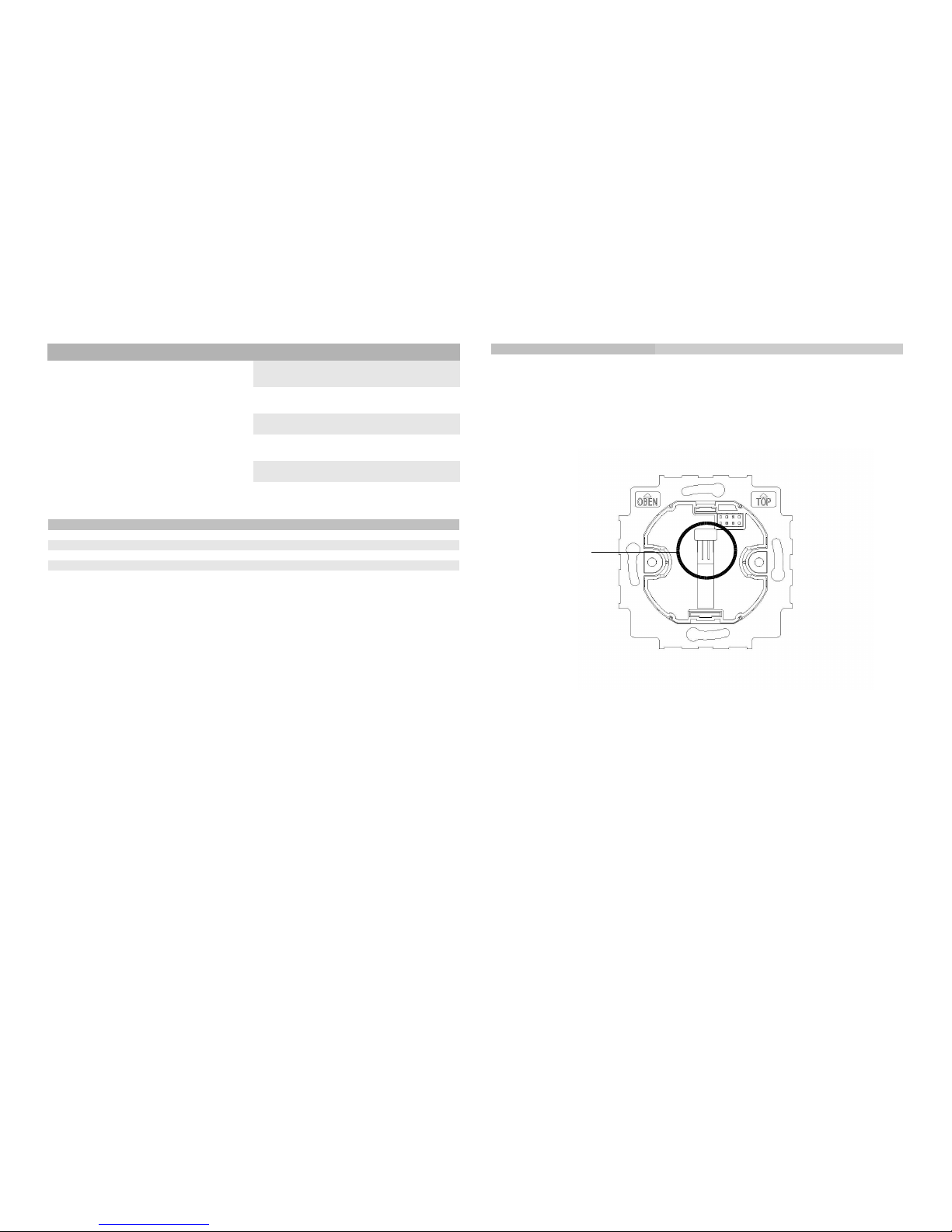

Now have a look on the image below. Connect the sun / dusk sensor with the plug.
Please make sure, that the C-frame (extremely remote frame) has a cable through hole on the
requested side.
Plug to connect the
sun / dusk sensor
