Geberit Sigma10 User manual

MAINTENANCE MANUAL

Table of contents
Safety .......................................................................................................................................................... 4
Target group ........................................................................................................................................... 4
Intended use........................................................................................................................................... 4
Safety notes............................................................................................................................................ 4
Alert levels and symbols in this manual.................................................................................................. 4
Product description...................................................................................................................................... 5
Structure ................................................................................................................................................. 5
Functional principle................................................................................................................................. 5
Operation..................................................................................................................................................... 7
Making settings using Geberit Service Handy........................................................................................ 7
Troubleshooting...................................................................................................................................... 12
Deactivating automatic flush actuation ................................................................................................... 13
Maintenance................................................................................................................................................ 15

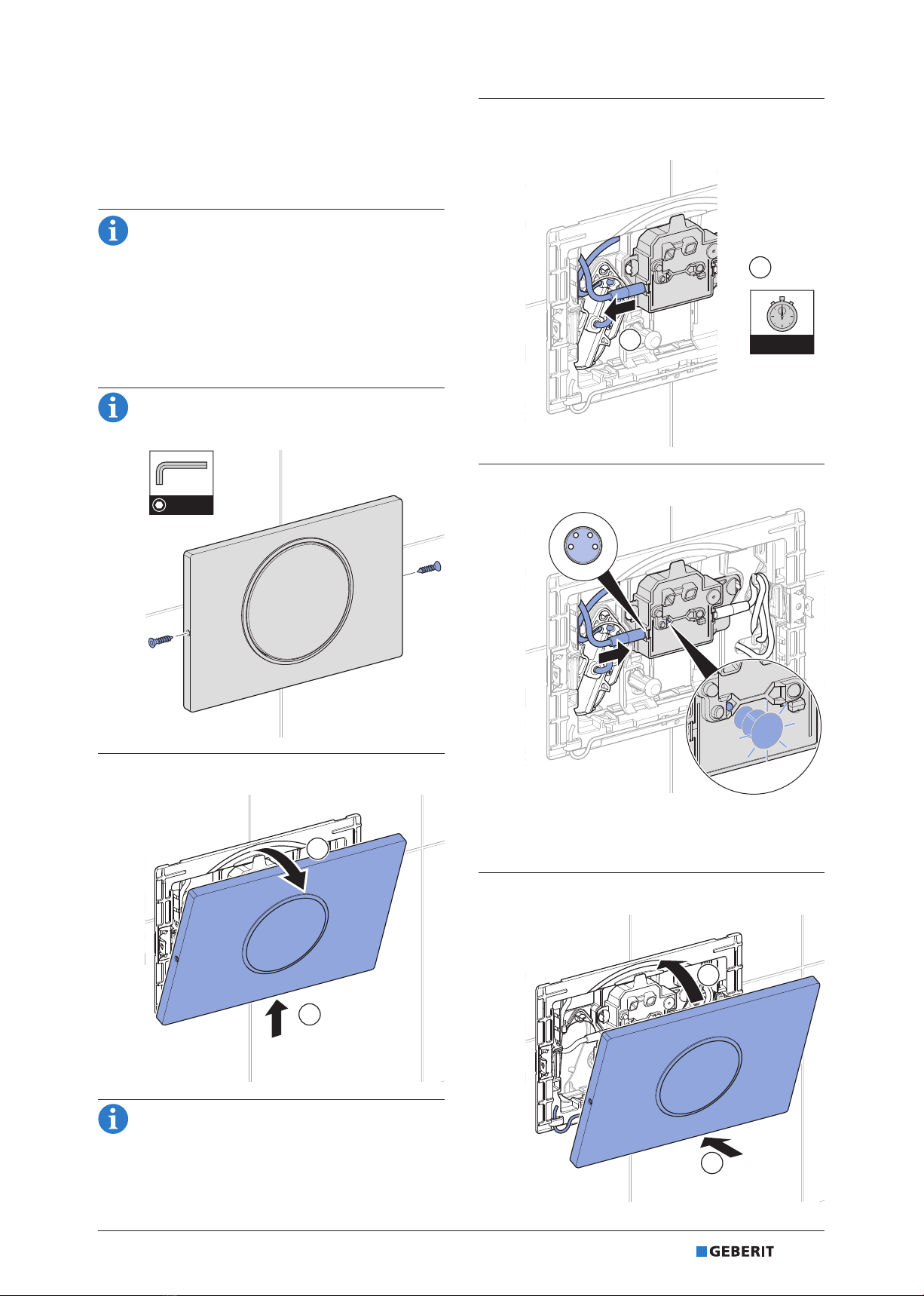

Replacing the control.............................................................................................................................. 15

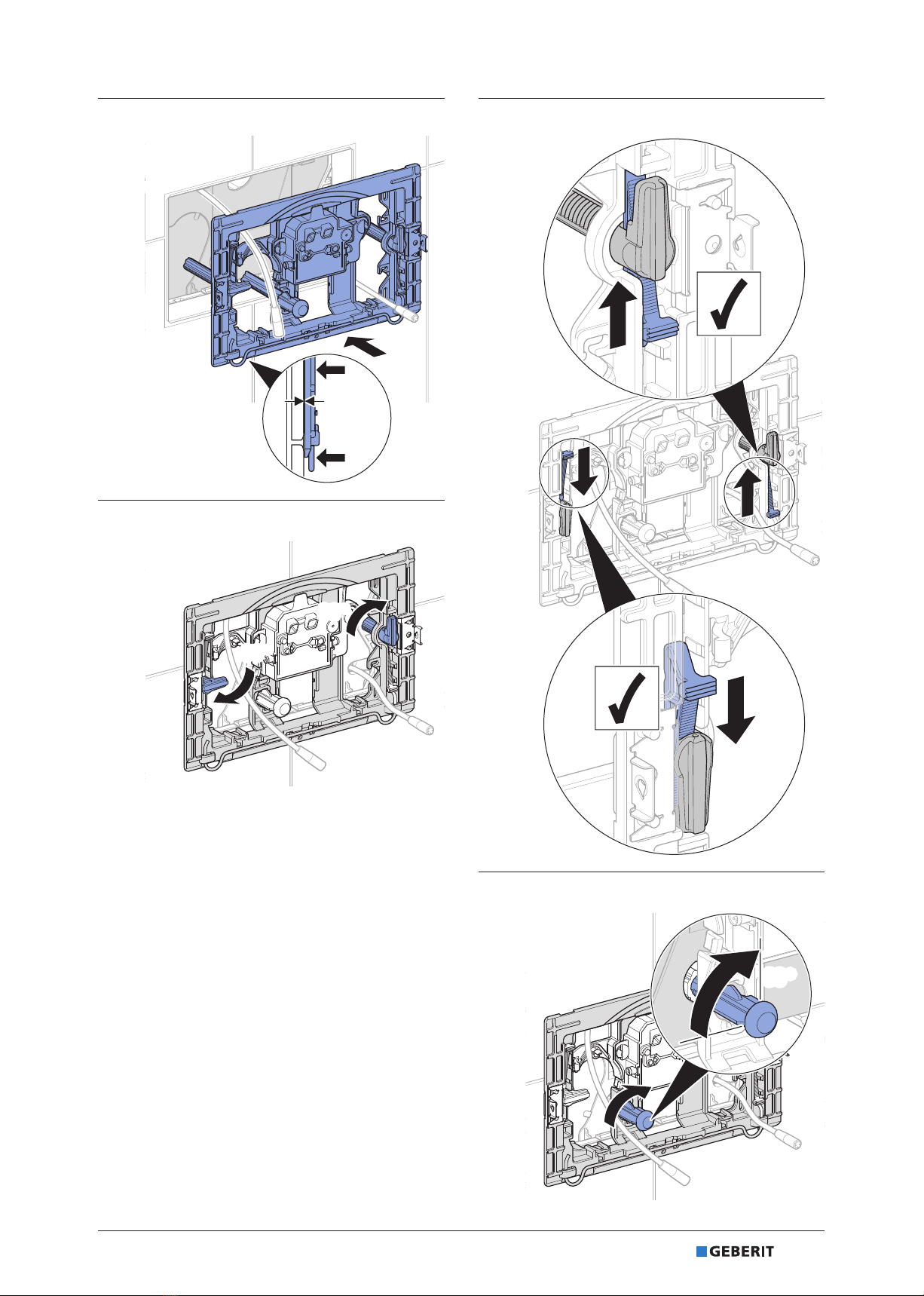

Replacing the lifting device..................................................................................................................... 17
Testing infrared user detection with manual flush actuation................................................................... 21
Testing infrared user detection with automatic flush actuation............................................................... 21
Care and cleaning .................................................................................................................................. 21
4516380043 © 10-2018
966.335.00.0 (01)
3

Safety
Target group
Maintenance and repair work on this product may only be performed by skilled persons. A
skilled person is a person who, due to their specialist education, training and/or
experience, is able to recognise risks and avoid hazards that may arise when using the
product.
Intended use
The Geberit WC flush control with Sigma10 actuator plate is intended for flush actuation
with GeberitSigma concealed cisterns.
Safety notes
• Only use original spare parts when making repairs.
• Do not modify the product or add any additional modules.
Alert levels and symbols in this manual
Alert levels and symbols
ATTENTION
Indicates a hazard which, if not avoided, can lead to material damage.
Refers to important information.
44516380043 © 10-2018
966.335.00.0 (01)

Product description

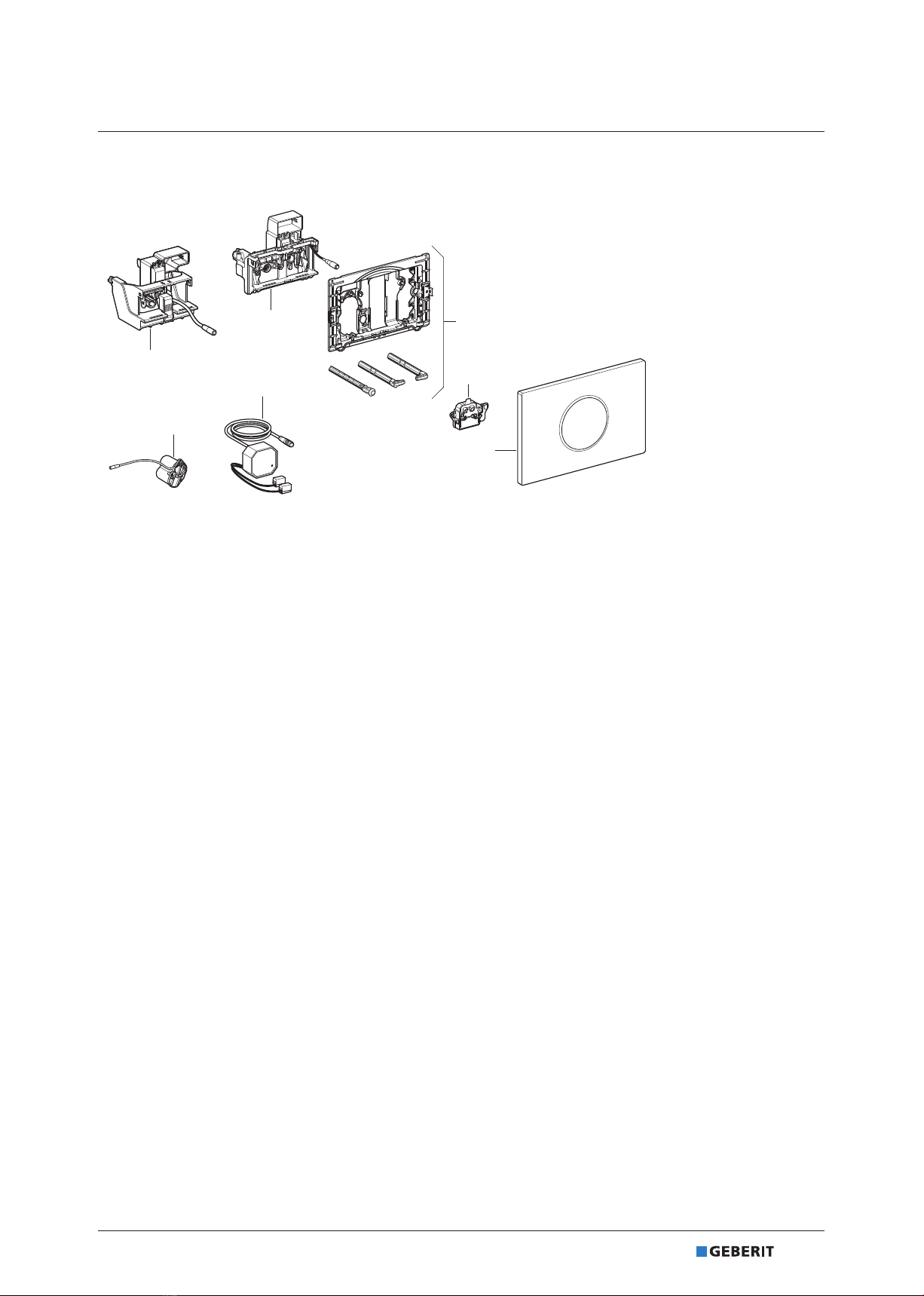

Structure

1 Lifting device for Geberit Sigma concealed cistern 12cm
2 Lifting device for Geberit Sigma concealed cistern 8cm
3 Mounting frame
4 Control
5 Geberit actuator plate Sigma10
6 Power supply unit
7 Battery compartment
Functional principle
Several IR sensors are located behind the actuator plate of the WC flush control. These sensors scan
different detection ranges.
The user detection range(1) measures whether a user is sitting or standing in front of the WC flush control. If
a sitting user is detected, manual flush actuation is deactivated. This prevents a flush from being
inadvertently released if the user leans back during use.
If the user's hand crosses the boundary of the manual flush detection range(2), the WC flush control
releases a partial or full flush. If the user's hand is held briefly in the detection range, the WC flush control
releases a full flush. If the user's hand is held for an extended time in the detection range, the WC flush
control releases a partial flush.
The proximity detection range(3) is active only in battery operation and is used for the purpose of energy
saving. The user detection range is activated as soon as there is a change in this area.
4516380043 © 10-2018
966.335.00.0 (01) 5


aïFPaïFPaïFP


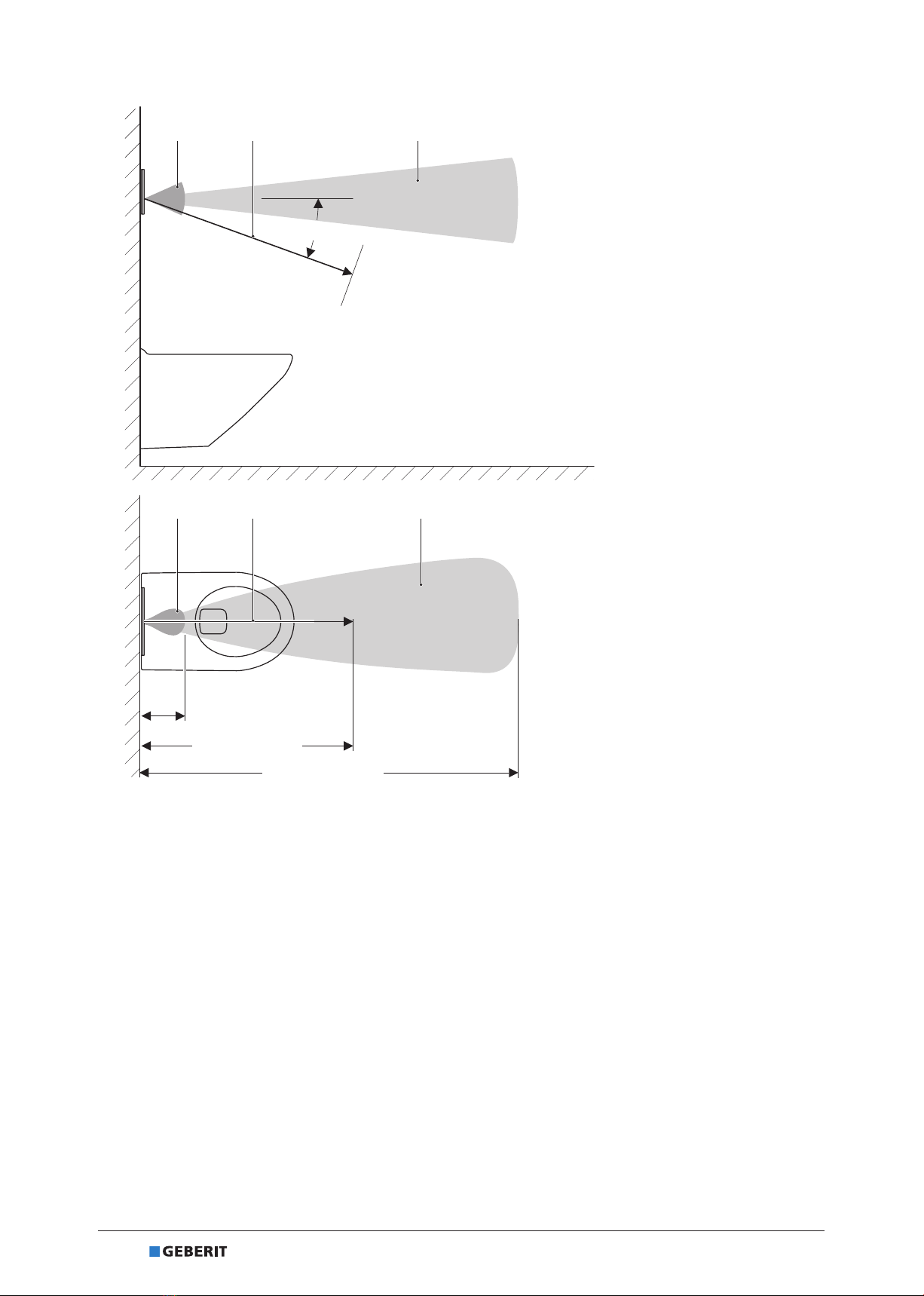

Figure1: Detection ranges
1 User detection range
2 Manual flush detection range
3 Proximity detection range
64516380043 © 10-2018
966.335.00.0 (01)

Operation
Making settings using Geberit Service Handy
The infrared interface for communication with the Geberit Service Handy is located in the middle of the
actuator plate. To enable settings to be made, the Geberit Service Handy must be aimed at the infrared
interface for communication from a distance of 20to30cm and set to bidirectional mode.

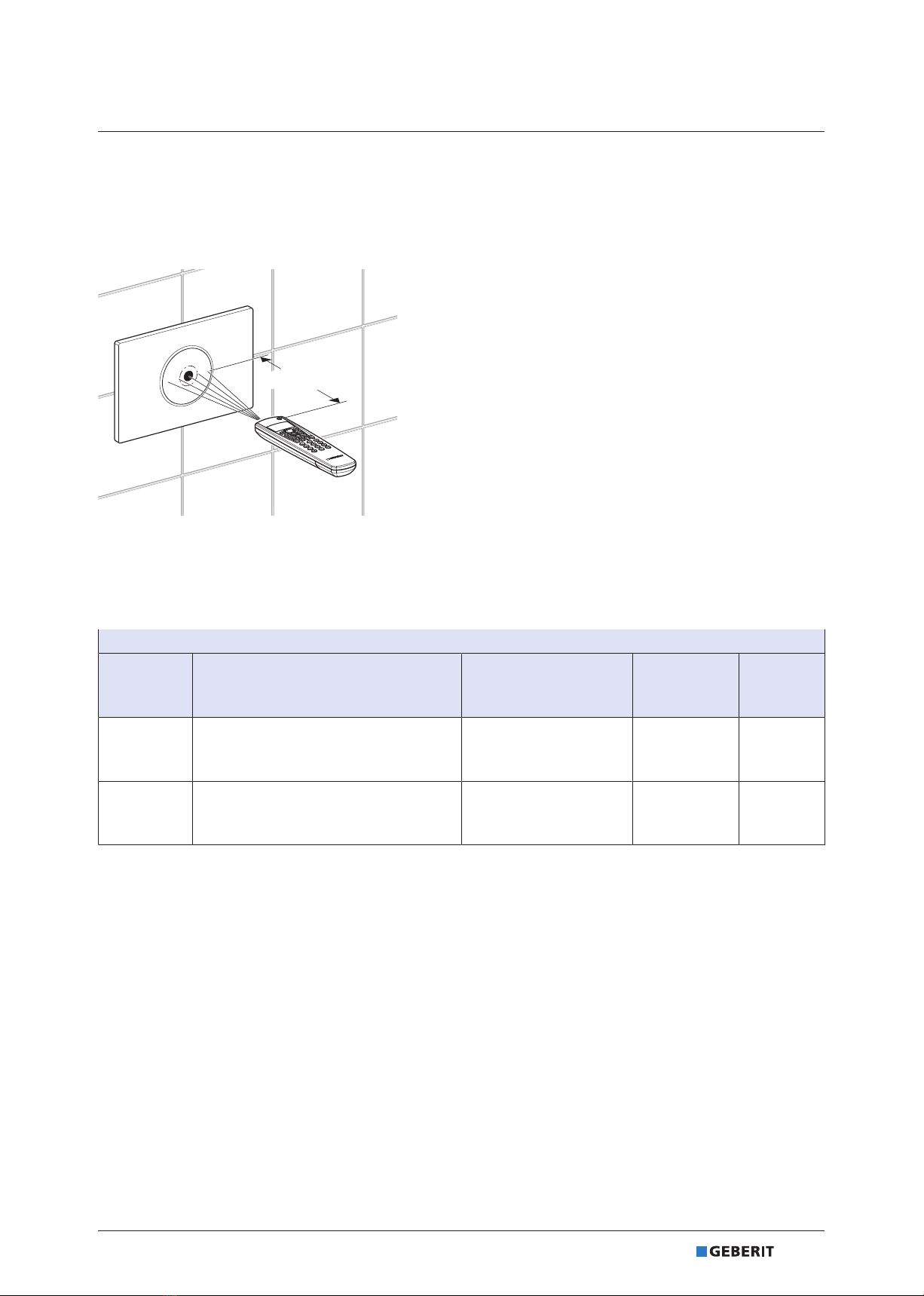

²FP²FP
Figure2: Operation using the Geberit Service Handy
With the Geberit Service Handy, additional maintenance functions can be performed and individual settings
can be made. The numbers and terms in the column "Menu item" correspond to what can be seen on the
display of the Geberit Service Handy. Further information can be found in the user manual of the Geberit
Service Handy.
Commands
Menu item
[EN]
[DE]
Description Application Value Factory
setting
20
[FullFlush]
[VollMenge]
Release full flush volume.
Triggers a full flush.
For function tests of the
lifting device Start=<OK> –
21
[PartFlush]
[TeilMenge]
Release partial flush volume.
Releases a partial flush.
For function tests of the
lifting device Start=<OK> –
4516380043 © 10-2018
966.335.00.0 (01) 7

Commands
Menu item
[EN]
[DE]
Description Application Value Factory
setting
22
[RangeTest]
[TestErfas]
Check detection range.
The boundary of the detection range
must be crossed in order to check its
function. No flush is released in this
process. The detection range is
without malfunction if the LED in the
sensor window lights up. The function
is deactivated automatically after
10minutes.
In the event of detection
malfunctions 0–3 [...] 0 [0]
0 Function is deactivated.
1
The sensor for the user detection
range is activated. LED lights
up =user has been detected.
2
The sensor for the manual flush
detection range is activated. LED
lights up =hand has been detected.
3
The sensor for the proximity
detection range is activated. LED
lights up=user movement in the
detection range.
23
[CleanMode]
[Reinigung]
Activate cleaning function.
The control is inactive for the duration
of the entered value from menu item
42[CleanTime] [ReiniZeit]. The
function is cancelled by re-establishing
connection with the Geberit Service
Handy. The LED in the sensor window
flashes in 3-second cycles.
Actuator plate and WC
can be cleaned without
releasing a flush.
Start=<OK> –
24
[BlocFlush]
[Blockiere]
Block flush.
No flush is released. Function is
cancelled upon re-establishing
connection with the Geberit Service
Handy. The function is deactivated
automatically after 10 hours.
In the event of detection
malfunctions Start=<OK> –
25
[FactrySet]
[Werkeinst]
Reset all functions to factory settings. In the event of
malfunctions
Start=<OK>
Confirm =
<R>, <OK>
–
84516380043 © 10-2018
966.335.00.0 (01)

Programs
Menu item
[EN]
[DE]
Description Application Value Factory
setting
30
[AutFlshEn]
[AutFlshEn]
Enable automatic flush.
If this function is activated, the control
always releases a flush when the user
steps back from the WC. Manual flush
actuation is no longer necessary.
Hygiene On=<ON>
Off=<OFF> [ON]
31
[ManFlshEn]
[FreiManSp]
Activate manual flush. – On=<ON>
Off=<OFF> [ON]
32
[PowOnFlsh]
[NetzEinSp]
Select power-on flush.
If the mains voltage is on, a flush is
released by the control.
• Releasing the central
flush
• Function confirmation
On=<ON>
Off=<OFF> [OFF]
33
[PreFlush]
[Vorspülng]
Select pre-flush.
The control releases a partial flush
when a user steps into the user
detection range.
Wets the WC ceramic
appliance before use to
reduce deposits.
On=<ON>
Off=<OFF> [OFF]
4516380043 © 10-2018
966.335.00.0 (01) 9

Parameters
Menu item
[EN]
[DE]
Description Application Value Factory
setting
40
[FlshTime]
[Spülzeit]
Set flush time.
The flush volume of the partial flush
can be set. (The specified flush
volumes are reference values and
depend on the WC ceramic appliance).
Optimum flushing of the
WC ceramic appliance
0–4 [...]
0=2.5l
2=3.5l
4=4.5l
3.5l [2]
41
[IntervalT]
[IntervalZ]
Set flush interval for sanitary flush.
The control automatically performs a
flush at the interval dictated by the
entered value for the flush time from
menu item 46 [HygFlshT]. The interval
is restarted with every flush.
• Filling the trap for low
usage frequency
• Flushing out stagnant
water (to prevent
stagnation)
1–168h [...]
0=Off 24 h [24]
42
[CleanTime]
[ReiniZeit]
Set cleaning time.
Defines the duration of the inactivity of
the control when menu item 23
[CleanMode] [Reinigung] is started.
– 1–30min [...] 10min [10]
43
[DetectRng]
[ErfassDis]
Specify size of WC ceramic appliance.
The size of the WC ceramic appliance
is relevant for detection of seated user.
–
0–1 [...]
0=short
1=long
1 [1]
44
[DetectT]
[VerweilZ]
Set detection time.
Minimum detection time a person must
remain within the user detection range
in order to be recognised as a standing
or seated user. Only relevant if
automatic flush actuation is switched
on.
Prevents flushes due to
unintentional entry of a
person into the user
detection range
1–60s [...] 7s [7]
45
[DelayTime]
[Spülverzö]
Set flush delay.
After the user has left the user
detection range, the set time interval
elapses before a flush is released.
Only relevant if automatic flush
actuation is switched on.
– 1–15s [...] 3s [3]
46
[HygFlshT]
[HygFlshT]
Set flush time for sanitary flush.
The control automatically performs a
flush at the interval dictated by the
entered value from menu item 41
[IntervalT] for the duration of the
entered value.
• Filling the trap for low
usage frequency
• Flushing out stagnant
water (to prevent
stagnation)
1–200s [...] 1s [1]
10 4516380043 © 10-2018
966.335.00.0 (01)

Counters
Menu item
[EN]
[DE]
Description Output
50
[Days?]
[SumBetrT?]
Total number of days of operation.
Displays the number of days of operation since commissioning. [... ] days
51
[Uses?]
[SumBenut?]
Total number of uses.
Displays the number of uses since commissioning. [... ] uses
52
[Flushes?]
[SumSpül?]
Total number of flushes.
Displays the number of flushes since commissioning. [... ] flushes
53
[AutFlush?]
[SumAutSp?]
Total number of automatic flushes.
Displays the number of automatic flushes since commissioning. [... ] flushes
54
[ManFlush?]
[SumManSp?]
Total number of manual flushes.
Displays the number of manual flushes since commissioning. [... ] flushes
55
[FullFlsh?]
[SumVollM?]
Total number of manual full flushes.
Displays the number of full flushes since commissioning. [... ] flushes
56
[PartFlsh?]
[SumTeilM?]
Total number of manual partial flushes.
Displays the number of partial flushes since commissioning. [... ] flushes
57
[IntFlush?]
[SumIntSp?]
Total number of interval flushes.
Displays the number of interval flushes since commissioning. [... ] flushes
58
[PreFlush?]
[SumVorSp?]
Total number of pre-flushes.
Displays the number of preflushes since commissioning. [... ] flushes
Device information
Menu item
[EN]
[DE]
Description Output
60
[SWVersion]
[SWVersion]
Software version.
Shows the software version of the control in the format
"DWWYY" (D = day of the week, W = calendar week, Y = year), e.g.
[41113].
[...]
61
[SerialNo]
[Serien-Nr]
Serial number.
Indicates the serial number of the control. [...]
62
[ManufDate]
[ProdDatum]
Manufacturing date of the control.
Indicates the manufacturing date of the control (e.g.
[15122012]=15December 2012).
[...]
4516380043 © 10-2018
966.335.00.0 (01) 11

Troubleshooting
The operator can perform the following measures to rectify malfunctions:
• clean the actuator plate
• replace the batteries
These measures are described in the operation manual 966.230.00.0.
Malfunction Cause Rectification
Incorrect flushes (too soon, too
late, unwanted)
Sensor window dirty or wet
▶ Clean or dry the actuator plate.
→ See operation manual
966.230.00.0.
Sensor window scratched ▶ Replace the actuator plate.
A flush is released without manual
actuation when the user steps
back from the WC.
Automatic flush actuation active ▶ Deactivate automatic flush
actuation.
Water is running continuously into
the WC ceramic appliance.
Software fault ▶ Interrupt the power supply
(mains fuse) for 10seconds.
Flat gasket for the flush valve
defective
▶ Replace the flat gasket for the
flush valve.
Fill valve defective ▶ Replace the fill valve.
The WC ceramic appliance is not
being flushed out properly. Flush volumes set incorrectly
▶ Set the correct full flush volume
on the flush valve.
▶ Set the correct partial flush
volume with the Geberit Service
Handy.
Flush cannot be released. Network failure ▶ Check the power supply (mains
fuse).
Flush cannot be released. The
LED in the sensor window flashes
when a user is in the user
detection range.
Battery capacity low ▶ Change the batteries. → See
operation manual 966.230.00.0.
Flush cannot be released. The
LED in the sensor window lights
up when a user is in the user
detection range.
Batteries flat ▶ Change the batteries. → See
operation manual 966.230.00.0.
Flush cannot be released. The
LED in the sensor window flashes
quickly.
Plug of the lifting device not
plugged in correctly
▶ Correctly plug the plug into the
lifting device.
Lifting device defective ▶ Replace the lifting device.
12 4516380043 © 10-2018
966.335.00.0 (01)

Deactivating automatic flush
actuation
The preset automatic flush actuation can be
deactivated at any time.
The procedure for activating automatic flush
actuation is the same as for deactivating it.
5 single tones will sound to indicate that
automatic flush actuation has been
activated successfully.
Prerequisite
– The WC flush control is ready for operation.
Loosen any screws that may be present on
both sides of the actuator plate.
NN
1Remove the actuator plate.

To ensure that the conversion is successful,
the following steps must be performed within
15 minutes:
2Disconnect the power supply cable from the
control for 10seconds.

3Reconnect the mains cable to the control.
✓ Indicator light lights up.
✓ After 15seconds, 5 triple tones sound to
indicate that deactivation is complete.
4Mount the actuator plate.

4516380043 © 10-2018
966.335.00.0 (01) 13

If necessary, screw in the screws on both
sides of the actuator plate.
NN
5To test that automatic flush actuation has
been deactivated, place your hand at a
distance of 2–3cm from the actuator plate.
²FP
14 4516380043 © 10-2018
966.335.00.0 (01)

Maintenance
Replacing the control
Loosen any screws that may be present on
both sides of the actuator plate.
NN
1Remove the actuator plate.

2Disconnect both cables from the control.

3Extract the control.

4Insert the new control.
4516380043 © 10-2018
966.335.00.0 (01) 15

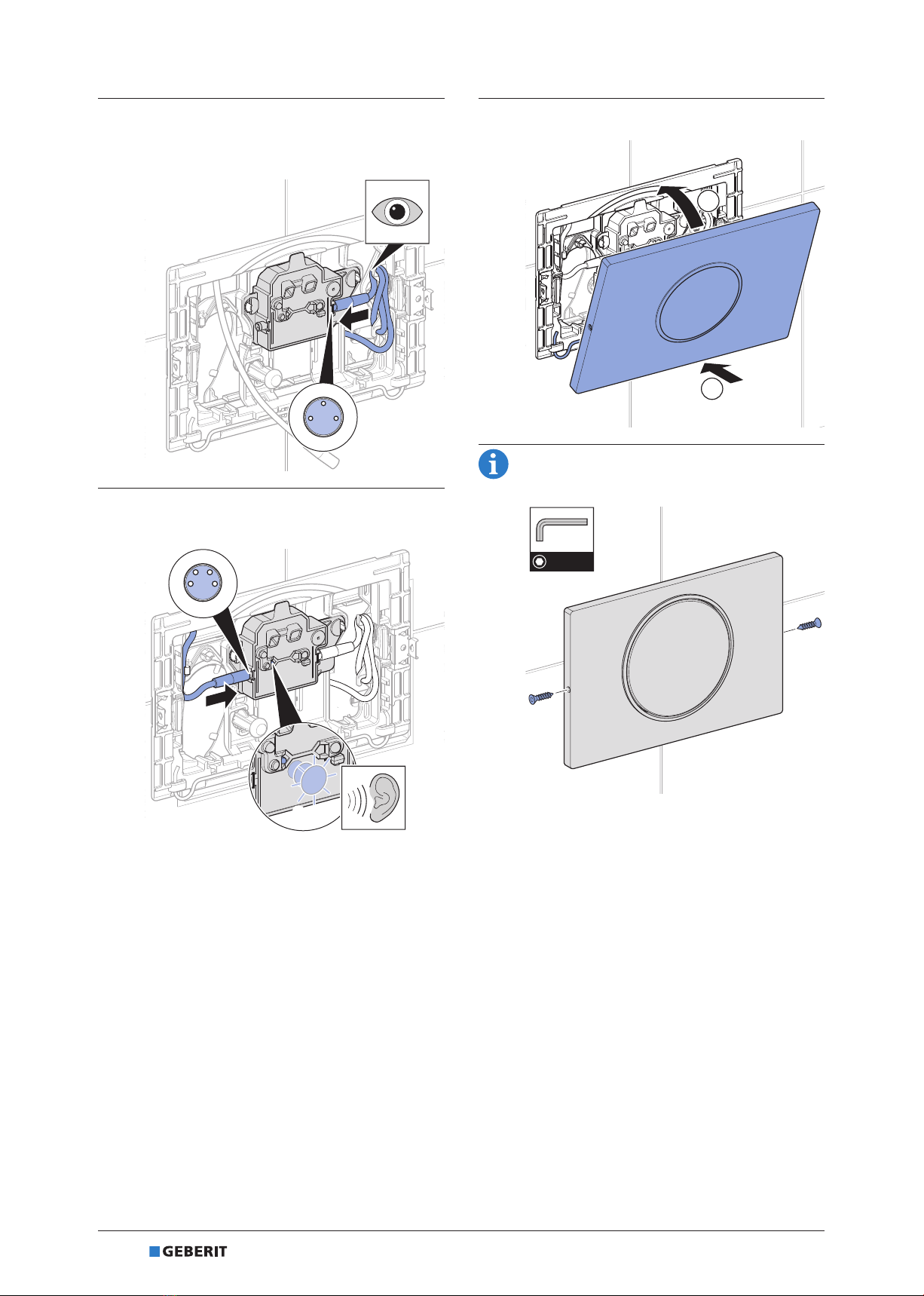

5Reconnect the cable on the right-hand side
to the control and hook the excess cable into
the cable suspension.
6Reconnect the power supply cable on the
left-hand side to the control.
[
[
✓ The indicator light flashes and a signal
tone sounds 3 times.
7Mount the actuator plate.

If necessary, screw in the screws on both
sides of the actuator plate.
NN
16 4516380043 © 10-2018
966.335.00.0 (01)

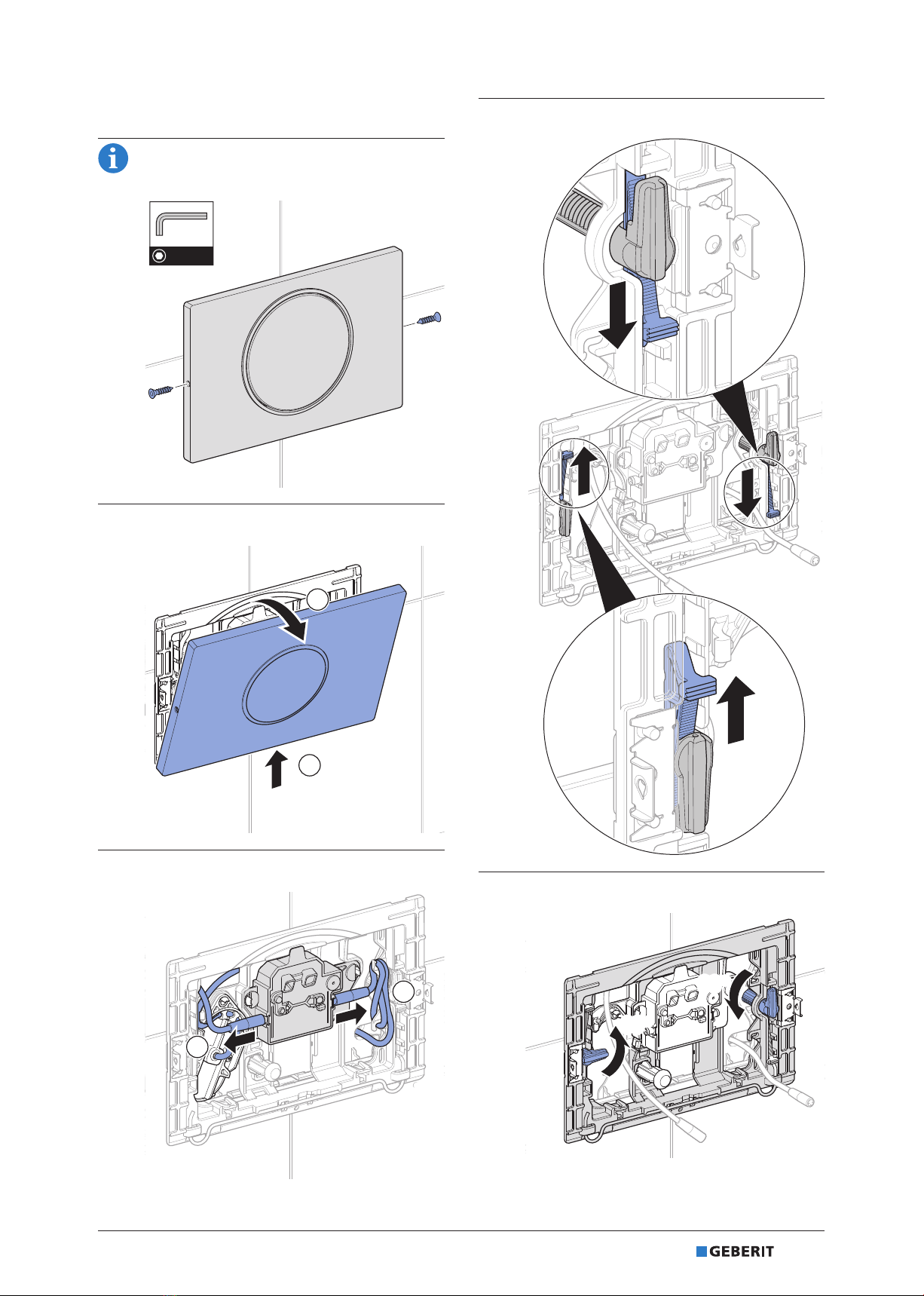

Replacing the lifting device
Loosen any screws that may be present on
both sides of the actuator plate.
NN
1Remove the actuator plate.

2Disconnect both cables from the control.

3Remove the tension wedge.
4Turn the distance bolts.

4516380043 © 10-2018
966.335.00.0 (01) 17

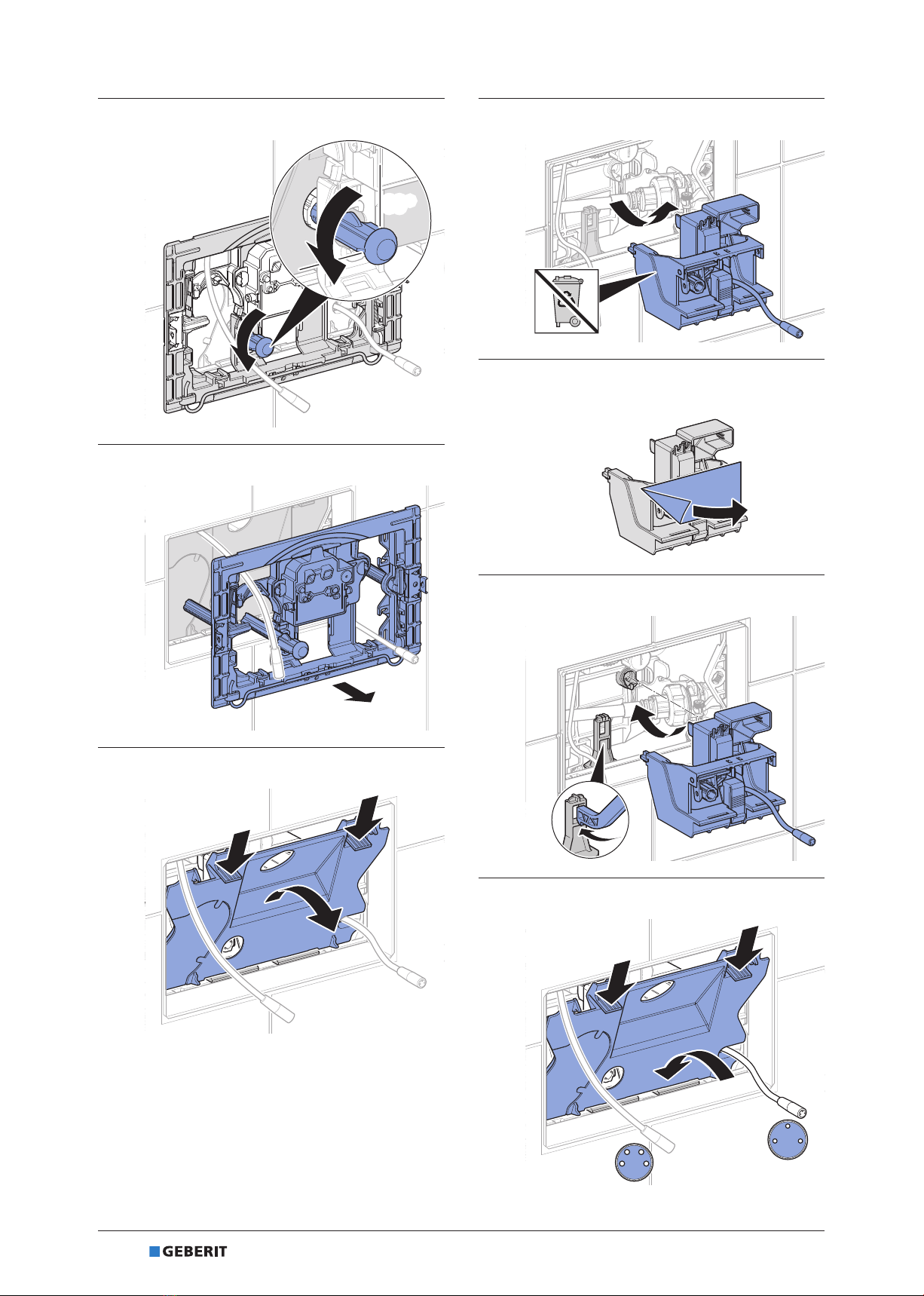

5Turn the actuator rod anticlockwise.

6Extract the mounting frame.
7Extract the protection plate.
8Extract the lifting device.
9Remove the protective foil from the new
lifting device.
10 Mount the new lifting device.
11 Mount the protection plate.
18 4516380043 © 10-2018
966.335.00.0 (01)

12 Mount the mounting frame.
PP
13 Secure the distance bolts in place.

14 Secure the tension wedge in place.
15 Turn the actuator rod clockwise.

4516380043 © 10-2018
966.335.00.0 (01) 19

16 Reconnect the cable on the right-hand side
to the control and hook the excess cable into
the cable suspension.
17 Reconnect the power supply cable on the
right-hand side to the control.
[
[
✓ The indicator light flashes and a signal
tone sounds 3 times.
18 Mount the actuator plate.

If necessary, screw in the screws on both
sides of the actuator plate.
NN
20 4516380043 © 10-2018
966.335.00.0 (01)
