Geemarc CL200+ User manual

Telephone
EASY-DIAL PHONE WITH VOLUME AND TONE ADJUSTMENT
TELEPHONE MULTIFONCTIONS A GRANDES TOUCHES
CL200+CL200+
CL200+CL200+
CL200+
User guide / Notice d’utilisation
CAUTION:THIS TELEPHONE PRODUCT IS
SPECIFICALLYDESIGNEDFORPEOPLE WITHHEARING
DIFFICULTIES AND IS PROVIDED WITH A HANDSET
EARPIECE VOLUME CONTROL FOR INDIVIDUAL
REQUIREMENTS. DUE CARE MUST BE TAKEN BY ALL
USERS THAT THE HANDSET EARPIECE VOLUME
CONTROL ISSETTOTHE LOWESTLEVEL ACCEPTABLE
BY EACH RESPECTIVE USER. CARE SHOULD
THEREFORE BE EXERCISED TO ENSURE THAT ANY
NAIVE USERS ARE ARE FAMILIAR WITH THIS
REQUIREMENT.
ATTENTION:CETELEPHONE PEUTETRE DESTINE
AUXPERSONNESAYANTDESPROBLEMESD’AUDITION.
IL POSSEDE UN ECOUTEUR A VOLUME VARIABLE. A
LA PREMIERE UTILISATION, ASSUREZ VOUS QUE LE
BOUTONDEREGLAGE DU VOLUME SOIT POSITIONNE
SURLA POSITIONVOLUME MINIMUM.LES PERSONNES
MALENTENDANTES POURRONT PAR LA SUITE
AUGMENTER LE VOLUME POUR L’ADAPTER A LEUR
AUDITION.
EF

EINDEX
Description 6
Setting up
- Connecting the telephone 8
- Alarm and ring options 9
- Ring only
- Ring and shaker
- Ring and strobe flash
- Ringer settings 10
- Tone/Pulse switch (T/P) 10
- Time break recall switch (300/100) 11
- Hotel message waiting switch 11
- Wall mounting 12
Using the phone
- Answering incoming calls 13
- Without headset
- With headset (option)
- In handsfree mode
- Volume and tone receiving 14
2

3
- Making a call 16
- Without headset
- With headset (option)
- In handsfree mode
- Last number redial 18
- Recall, * & # buttons 18
- Mute button 18
- Storing telephone numbers 19
- Dialling stored numbers 20
Options:
- Direct Vibe handset 22
- Shaker 23
- Headset with microphone 23
Guarantee 24
For product support and help visit our website at
www.geemarc.com
telephone [phone]
or fax [phone]
R

SOMMAIRE
Descriptif 26
Installation
- Raccordements 28
- Options d’alarme et de sonnerie 29
- Sonnerie seule
- Sonnerie et vibreur
- Sonnerie et flash
- Réglage de la sonnerie 29
- Fréquence vocale/décimale
(interrupteur T/P) 30
- Interrupteur 300ms/100ms 31
- Service messagerie d’hôtel 31
- Position murale 32
Utilsation
- Répondre à un appel 33
- Sans le casque
- Avec le casque (option)
- En mode mains libres
- Réglage du volume et de la tonalité
de réception 34
F
4

5
-Appeler 36
- Sans le casque
- Avec le casque (option)
- En mode mains libres
- Rappel du dernier numéro (bis) 38
- Touches R, * & # 38
- Fonction secret 38
- Mémoriser un numéro de téléphone 39
- Appel d’un numéro en mémoire 40
Options
- Combiné Direct Vibe 41
-Vibreur 42
- Casque avec microphone 42
Garantie 44
TEL. SERVICE APRES VENTE :
03 28 58 75 99
Pour tout renseignement technique ou toute
commande visitez notre site web sur
www.geemarc.com.
Parc d’Activités du Basroch
2, rue Galilée
59760 Grande Synthe
R

DESCRIPTION
6
Speaker volume adjustment (6)
Last number redial (9)
Speaker (8)
Tone reception
adjustment (4)
Clip for wall mounting (5)
Hotel message switch (1)
* Shaker socket (2)
Only ref: SHAKCL_WH
* Headset socket (3)
Only ref: HEADSCL_WH
Volume reception
adjustment (7)
Time break recall button (10)
Memory storing key (
Flashing incoming ring indicator (strobe light) (11)
P
* Only Geemarc references
can be connected to the
sockets

7
Key to activate tone and volume
adjustment function (20)
Toneandvolumeadjustmentautomaticallyactivated
each time you hang-up the phone (24)
Hotel message waiting LED (14)
Handsfree / Headset button (15)
Ringer select mode (17)
12) Mute button (13)
Direct memory buttons (16)
Ringer level
adjustment (18)
3 priority numbers (21)
Line socket (22)
*12 V DC adaptor socket (23)
DC12V
P1 P2 P3
Micro

SETTING UP
1-CONNECTINGTHETELEPHONE

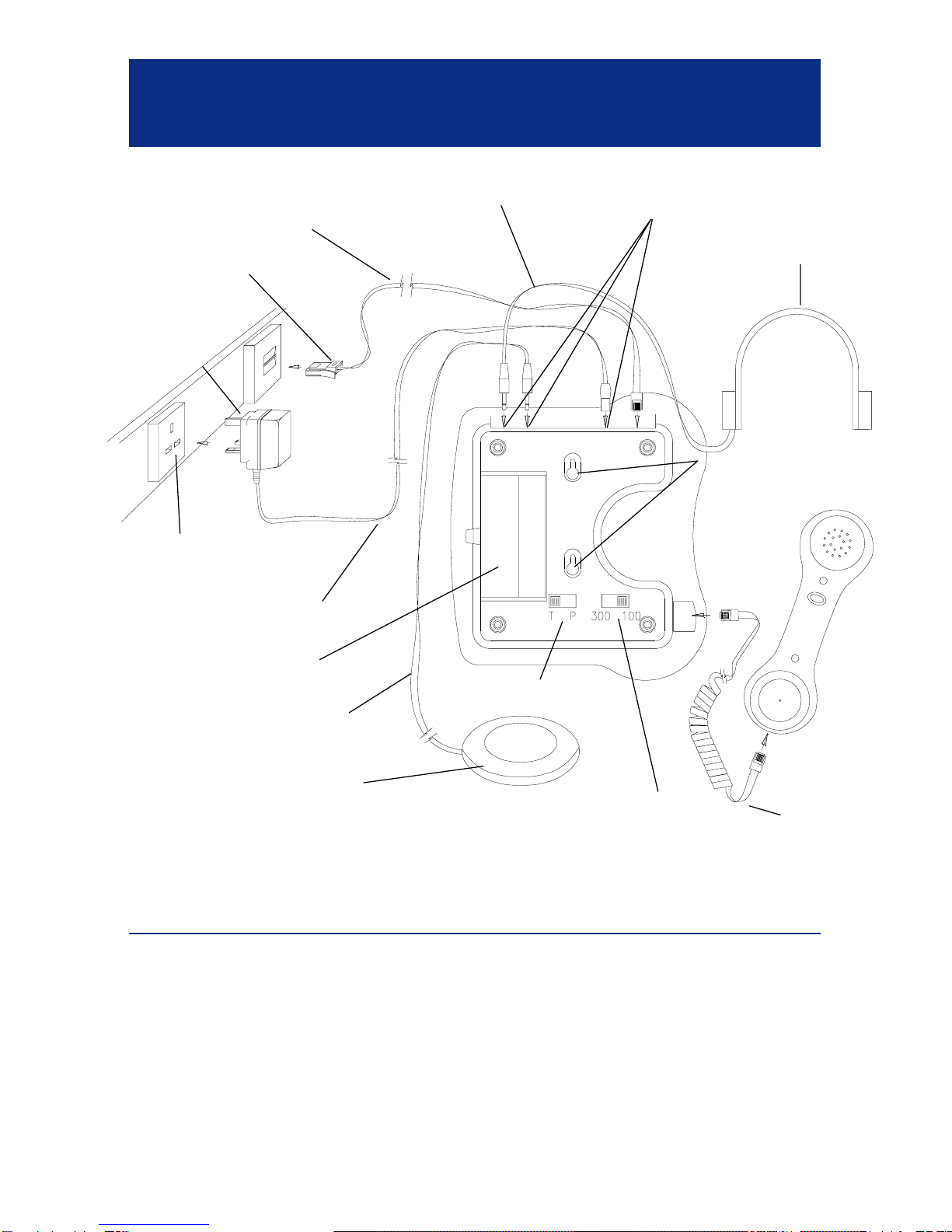

1 - Connect the handset cord (31).
2 - Open the battery door by unscrewing the
retaining screw. Insert 4 xAAAalkaline batter-
ies. Snap the battery door in place.
8
Handset
cord (31)
(*) PTT socket
Line cord (25)
Index card (28)
Shaker (option)
Shaker cord (29)
Headset
(option)
Headset cord (33)
Adaptor(26)
Adaptor cord (27)
Wall mounting
screw holes
(32)
(**)Wall socket
230V
(*)Rear sockets
Switch T/P (30)
Switch 300/100 (34)
(*) Classified TNV-3 according to EN60950 standard.
(**) Classified “hazardous voltage” according to EN60950 standard.

SETTING UP
In case of power failure, batteries are required
for the ring.
2 - Connect the line cord (25).
3 - Connect the shaker cord (optional).
4 - Connect the headset cord (optional).
5 - Connect the PTT plug to the wall socket.
6- Connectthe12V DCadaptorcord (27)tothe
telephone.
7 - Connect the 12V DC adaptor (26) to your
wall socket (**).
(**) Classified “hazardous voltage” according to EN60950 standard.
2 -ALARM AND RINGER OPTIONS
A 3 position switch (17) located on the right side
of the phone allows the settings below:
- 0 : Only the ringer is activated.
- : Ringer and shaker are activated.
-: Ringer and strobe flash are activated.
9

SETTING UP
3-RINGER SETTINGS
A switch (18) located on right side allows the
ringer to be switched HI,LOW,OFF:
: Off, : Low, : Hi
Your phone comes with the ringer switched to
«High» and the melody set to «6».
Low Mid High
Melody 1 1 2 3
Melody 2 4 5 6(by default)
Melody 3 7 8 9
Ifyoudon’tliketheringermelody,youcanchoose
a new one by changing the settings as follow:
- Lift the handset.
- Press (12) button.
- Press # button.
- Press any button 1 to 9.
Ringer will be activated on next call.
4 - TONE/PULSE SWITCH (T/P)
The Tone/Pulse switch (30) is factory pre-set to
10

SETTING UP
Toneposition(T).IntheUK,alltelephoneexchanges
now use Tone dialling.If your phone does not dial
out,itisprobablybeingusedfromanolderprivate
switch- board (PBX). In this case,theTone/Pulse
switch must be moved to Pulse.
5 - TIME BREAK RECALL SWITCH (300/100)
FortheUK,theTBRswitch (34)isfactory pre-setto
100ms. It can be switched to 300ms for other
locations or PBX’s.
6- HOTELMESSAGE WAITINGSWITCH
Theseareusedwiththenewservicesprovidedon
hotelnetwork.
Aswitch (1)locatedbehindyourphoneallows
to set ON the hotel message waiting function.
When the switch is setting ON and when you re-
ceive a message, the red light (14) is lit to in-
form you that you have a message on phone .
11

SETTINGS
7 - WALLMOUNTING
Towall-mountyourtelephone,slideouttheclip(5),
turn around and slide back into the wall mounting
position (located in the base unit, just below the
earpiece).This willensurethatthehandsetstays
firmly in position. Make 2 holes in the wall 80mm
apart(usethewallmounttemplate),insertthewall
plugs and the wall mounting screws. The screws
should protrude from the wall by 6-7 mm. Place
the phone onto the screw-heads (32) and slide
down to secure.
If you are using this telephone with a
hearing aid, set your hearing aid to
the “T” setting.
12

USING THE PHONE
1-ANSWERINGINCOMINGCALL
Without headset:
- When an incoming call is received, the phone
will ring, to answer the call lift the handset and
speak.
- On completion of the call, carefully replace the
handset in the cradle to release the line.
With headset (option):
- When an incoming call is received, and if you
wishtoanswerthecallwiththeheadset,pressthe
/(15) button and speak.
- On completion of the call, press the /
button again to release the line.
In handsfree mode:
-Whenanincomingcallisreceived,thephonewill
ring, to answer the call press the / button.
-Oncompletionofthecall,pressthe / button
to release the line.
13

USING THE PHONE
2-VOLUME AND TONE RECEIVING
ADJUSTMENT
You can increase the volume and adjust the
receiving tone according to your own hearing
requirements.The button (20) allows extra-
receivingandtonefunctionstobeactivatedornot
during the conversation.
Whenthefunctionisactivated,theredlightof extra
receivingandtonefunctionlocatednearthebutton
Is lit.Adjust the TONE (4) and VOLUME (7)
buttonsto removethelevelaccordingtoyourown
hearingrequirements.
14
Bass
+10db max
TONE
Treble
+10db max
Normal

USING THE PHONE
Note:Whenthetone(treble),earpiecevolumeand
sending levels are set to the maximum, whistling
may occur. If whistling occurs the sending level
settings should be decreased (switch (19)).
Whentheswitch (24)locatedbehindthephone
is ON, the extra-receiving and tone functions are
automatically activated each time you use the
phone.When the switch is switched OFF, you
will need to activate the function by pressing the
button (20). Tone and volume adjustment
(15dB to 30dB) is only activated when the button
is set to ON. When this button is set to OFF only
the volume can be adjusted from 0dB to 15dB.
15
VOLUME
0dB
15dB
+35db max
35dB ON
15dB OFF

3 - MAKINGACALL
Without headset:
- Lift the handset.
-Await thedial tone anddial required number.
- On completion of the call,carefully replace the
handset in the cradle.
With headset (option):
- Press the / (15) button.
-Await thedial tone anddial required number.
-Oncompletionofthecall,pressthe / button
again to clear the line.
In handsfree mode
- Press the / (15) button.
- Await the dial tone and dial required number.
-Oncompletionofthecall,pressthe / button
to release the line.
- If your correspondent doesn’t answer your call,
press the / button again to release the line.
USING THE PHONE
16

Note:
-Todeactivatethehandsfreefunctionduringacall,
lift the handset.
To activate the handsfree function during a call,
press the / button and place the handset on
the cradle.
- During a call in handsfree, you can adjust the
speaker volume to a desirable level.
Simply use the slide control VOLUME (6) located
on the left of the unit.
USING THE PHONE
17

4- LAST NUMBER REDIAL
- Lift the handset.
-Await the dial tone and press (9) button.
-Thepreviouslydiallednumberwillbeautomatically
redialled(notinuseformemorynumbers).
5 - RECALL, * & # BUTTONS
Theseareusedwiththenewservicesprovidedon
digitalexchanges.Fordetailsplease contact your
network operator.
6 - MUTE BUTTON
If you wish to speak privately to someone else in
the room without your caller overhearing, press
andholdthe button(13).Youwillstillbeableto
hear the callers but they cannot hear you during
the mute operation.To resume normal conversa-
tion, release the button.
USING THE PHONE
18

7- STORINGTELEPHONE NUMBER
Yourphonecanstore12directmemories including
3 priorities numbers (21 digits maximum for each
memory).
For example, the 3 priority P1, P2, P3 memories
(21) allow you to store the 3 numbers below:
- Local,Police station,
- Your doctor
- 1471
Tostoreanumberpleasefollowinstructionsbelow:
- Lift the handset.
- Press button (12).
-PressM1, M2,..., orM9 (16)oroneof3priorities
numbers (21) to store your number.
-Dialthe number.
- Press button again.
Numbers will be lost after a few hours if you
disconnectyourphone.Enteringanewnumberin
memory will automatically erase the previous
number.
USING THE PHONE
It is recommended to
store these numbers
during installation
19

8-DIALLINGSTORED NUMBER
- Lift the handset and await the dial tone.
- Press appropriate button M1, M2, ..., or M9 (16)
oroneofthe3prioritiesP1,P2,P3 numbers(21),
thestorednumberwillbedialledautomatically.
To register your stored phone numbers,use the
index card located under the base.
Use this table below to prepare the phone book:
Example:
USING THE PHONE
1
2
3
4
5
6
7
8
9
1
Bruce 01 64 57 .. ..
20
