Gefen CAT5-7000 User manual

CAT5•7000
USER MANUAL
www.gefen.com

Technical Support:
Telephone [phone]
[phone]
Fax [phone]
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen, Inc.
c/o Customer Service
20600 Nordhoff Street
Chatsworth, CA 91311
www.gefen.com
[email protected]
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
CAT5•7000 is a trademark of Gefen Inc.
Macintosh is a trademark of Apple Computer Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE

TABLE OF CONTENTS
Introduction and Operation Notes
How it Works
CAT5•7000S Front Panel Layout
CAT5•7000R Front Panel Layout
CAT5•7000S Back Panel Layout
CAT5•7000S Back Panel Function Descriptions
CAT5•7000R Back Panel Layout
CAT5•7000R Back Panel Function Descriptions
CAT5 Cable Length Setup
Link Cable Wiring Diagrams
CAT5•7000 - Wiring Diagram
CAT5•7000 Rack Mount
System Specifications
Warranty
1
2
3
4
5
6
7
8
9
10
11
12
13
14

INTRODUCTION
Thank you for purchasing the new ex•tend•it CAT5•7000 series by Gefen, Inc.
The ex•tend•it CAT5•7000 by Gefen allows users the benefits of extending USB, audio in,
audio out, PS/2, RS232, and video signals beyond the desktop. In a growing number of
applications,broadcaststationsandproductionfacilitiesthereisaneedtolocateacomputer
remotely, from the keyboard, mouse, and video monitor. A CPU may need to be shared
between several users or moved to another room because of annoying fan noise.
The CAT5•7000 series can be used to extend computers with noisy fans, printers, hard
drives, scanners, cameras, keyboards, mouse, and any other USB-type peripherals. The
CAT5•7000 has the potential to cover the distance of 330 feet over industry standard
Category 5 (CAT-5) cables. One can connect additional CAT5•7000 series to the same
computer, allowing access to the same computer from other locations up to 330 feet
apart.
1
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE CAT5•7000 SYSTEM
• Industry standard Category-5 (CAT-5) cables are used to operate CAT5•7000 systems.
• One CAT-5 cable extends video 1 and USB. A second CAT-5 ca-
ble extends video 2. A third CAT-5 cable is used to extend PS/2 and
RS232. A forth CAT5 cable is used to extend audio in and audio out.
• When two monitors are used in the local and remote locations, the video
monitors must be a multi-resolution type. This pertains to monitors placed re-
motely, and those divided between local and remote locations. The vid-
eo monitors will not initialize correctly at start-up if they are different types.
• The CAT5•7000 units are housed in a metal box for better RF shielding.
OPERATION NOTES

2
CONTENTS
The CAT5•7000 system consists of:
(1) CAT5•7000S (sender unit)
(1) CAT5•7000R (receiver unit)
(2) 5 VDC power supply
(2) Video cables (6FT)
(1) USB cable (6FT)
(2) PS/2 cables (6FT)
(1) Audio cable (6FT)
(1) Rack Ears
(1) User Manual
HOW IT WORKS
In its most basic application, the CAT5•7000S sender unit resides next to the computer.
Supplied with the system, VGA cables, PS/2 keyboard, PS/2 mouse, audio, and USB
cables, they connect the computer to the CAT5•7000S sender unit.
The CAT5•7000R receiver unit is placed next to the monitors, keyboard, mouse, and
USB peripherals at the remote location. The monitor and keyboard are connected to the
CAT5•7000R, similar to the way they are connected to the back of the computer (PC or
Macintosh).
Industry standard Category 5 (CAT-5) cables are used to link CAT5•7500S sender and
CAT5•7500Rreceiver units together. Monitor1and USB areextendedby oneCAT-5cable,
monitor 2 is extended with a second CAT5 cable. PS/2 and RS232 are extended with a
third CAT-5 cable and audio with a fourth CAT-5 cable.
HOW IT WORKS

CAT5•7000S FRONT PANEL DESCRIPTIONS
3
1
Front Panel Function Descriptions
Power On Indication - Indicates that the unit is on and plugged in.1

CAT5•7000R FRONT PANEL LAYOUT
Front Panel Function Descriptions
BRIGHTNESS 1 - Trim pot settings adjust video brightness for monitor 2
BRIGHTNESS 2 - Trim pot settings adjust video brightness for monitor 1
POWER ON INDICATOR - Indicates that the unit is on and plugged in.
4
123
1
2
3

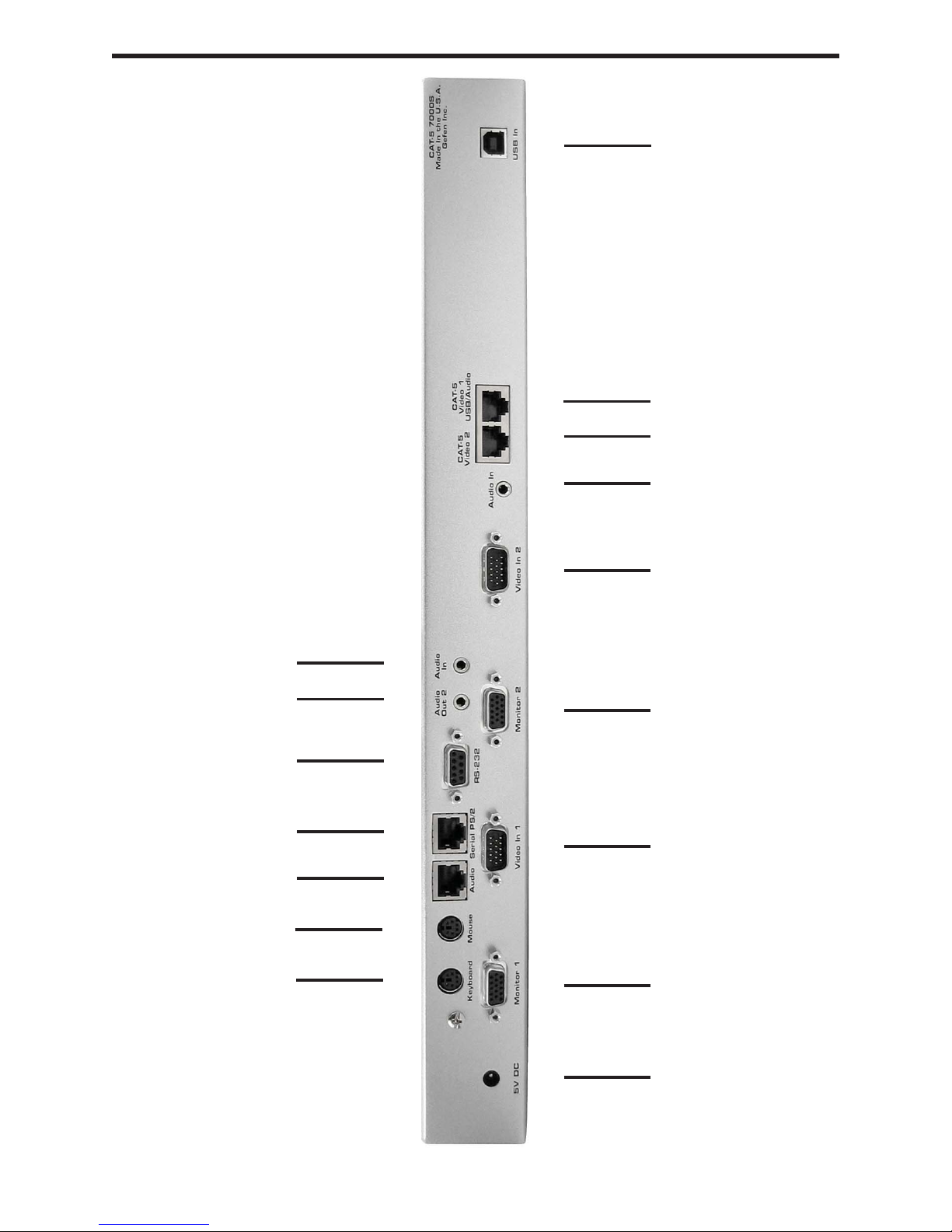

CAT5•7000S BACK PANEL LAYOUT
5
12 3 4 5678 9
10 11 12 13 14 15 16

CAT5•7000S BACK PANEL LAYOUT
POWER - 5 VDC external power supply
MONITOR 1 - HD15 output connects to the monitor 1 for local video
VIDEO IN 1 - HD15 input from computer
MONITOR 2 - HD15 output connects to the monitor 2 for local video
VIDEO IN 2 - HD15 input from computer
AUDIO IN 1 - Audio mini jack input connects to computers audio output
CAT5 VIDEO 2 - RJ-45 input extends video input 2 with CAT-5 cable
CAT5 1 VIDEO1/USB/AUDIO1 - RJ-45 input extends video, audio 1, and USB
signals with CAT-5 cable
USB IN - USB input from computer
KEYBOARD - PS/2 keyboard input from computer
MOUSE - PS/2 mouse input from computer
AUDIO - RJ-45 input extends audio in and audio out 2
SERIAL PS/2 - RJ-45 input extends RS-232 and PS/2 signals
RS232 IN - RS232 input from computer
AUDIO OUT - Audio mini jack input connects to computers microphone input
AUDIO IN 2 - Audio mini jack input connects to computers audio output (Audio 2
offers improved signal to noise ratio by using differential signal technics)
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

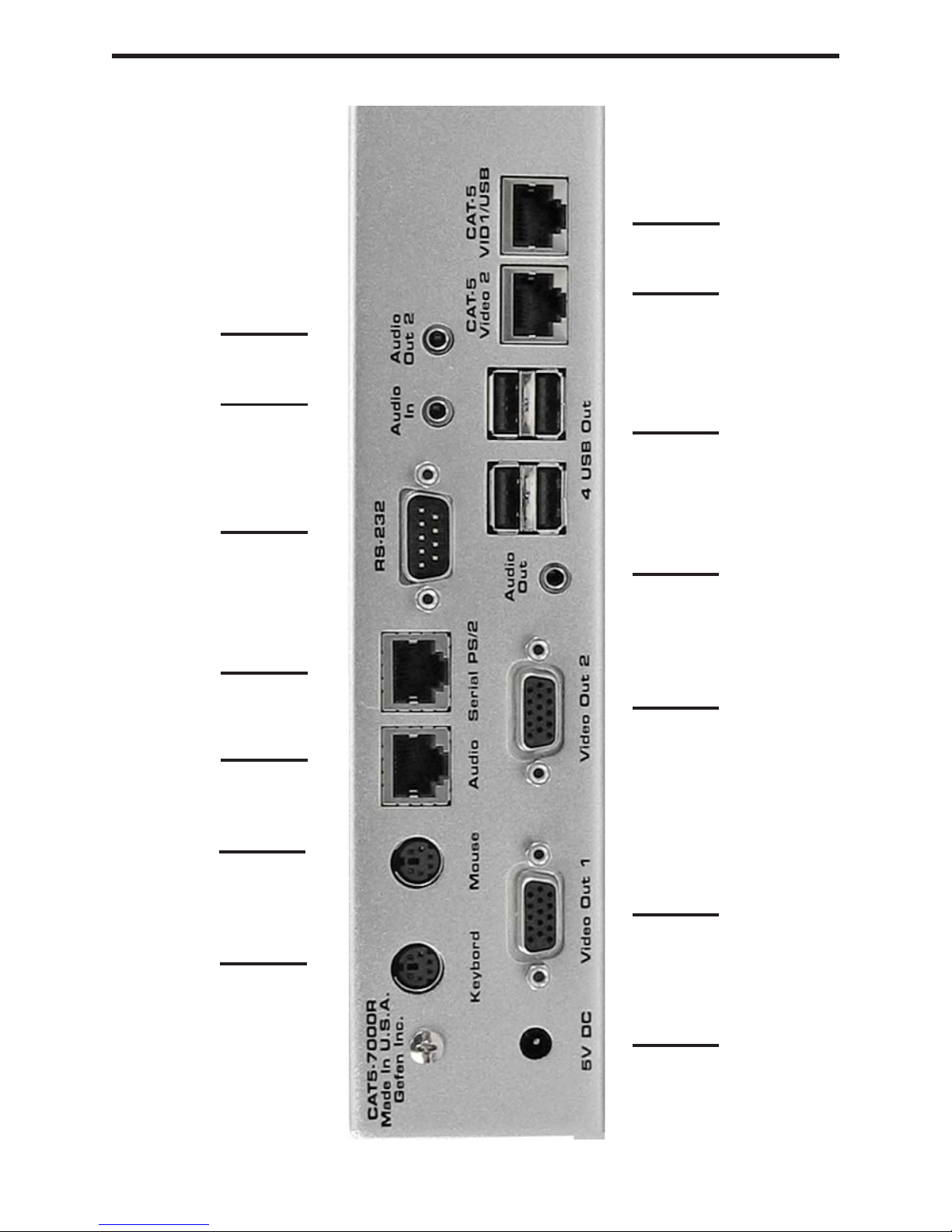

CAT5•7000R BACK PANEL LAYOUT
7
8910 11 12 13 14
12 34 5 67

POWER - 5 VDC external power supply
VIDEO OUT 1 - HD15 output connecting to the video monitor 1
VIDEO OUT 2 - HD15 output connecting to the video monitor 2
AUDIO 1 - Audio mini jack connects to speakers
USB OUT - 4 port power USB hub, connects to USB devices
CAT-5 VIDEO 2 - RJ-45 input connects CAT-5 cable to receive extended video
signals
CAT-5 VIDEO/USB/AUDIO - RJ-45 input connects CAT-5 cable to receive
extended video, audio 1, and USB signals
KEYBOARD - PS/2 mini din connects to PS/2 keyboard
MOUSE - PS/2 mini din connects to PS/2 mouse
AUDIO - RJ-45 input connects CAT-5 cable to receive extended audio in and
audio out 2 signals
SERIAL PS/2 - RJ-45 input connects CAT-5 cable to receive extended RS-232
and PS/2 signals
RS232 - DB-9 connector connects to RS-232 devices
AUDIO IN - Audio mini jack connector connects to microphone
AUDIO OUT 2 - Audio mini jack connects to speakers
CAT5•7000R BACK PANEL FUNCTIONS
8
1
2
3
4
5
6
7
8
9
10
11
12
13
14

9

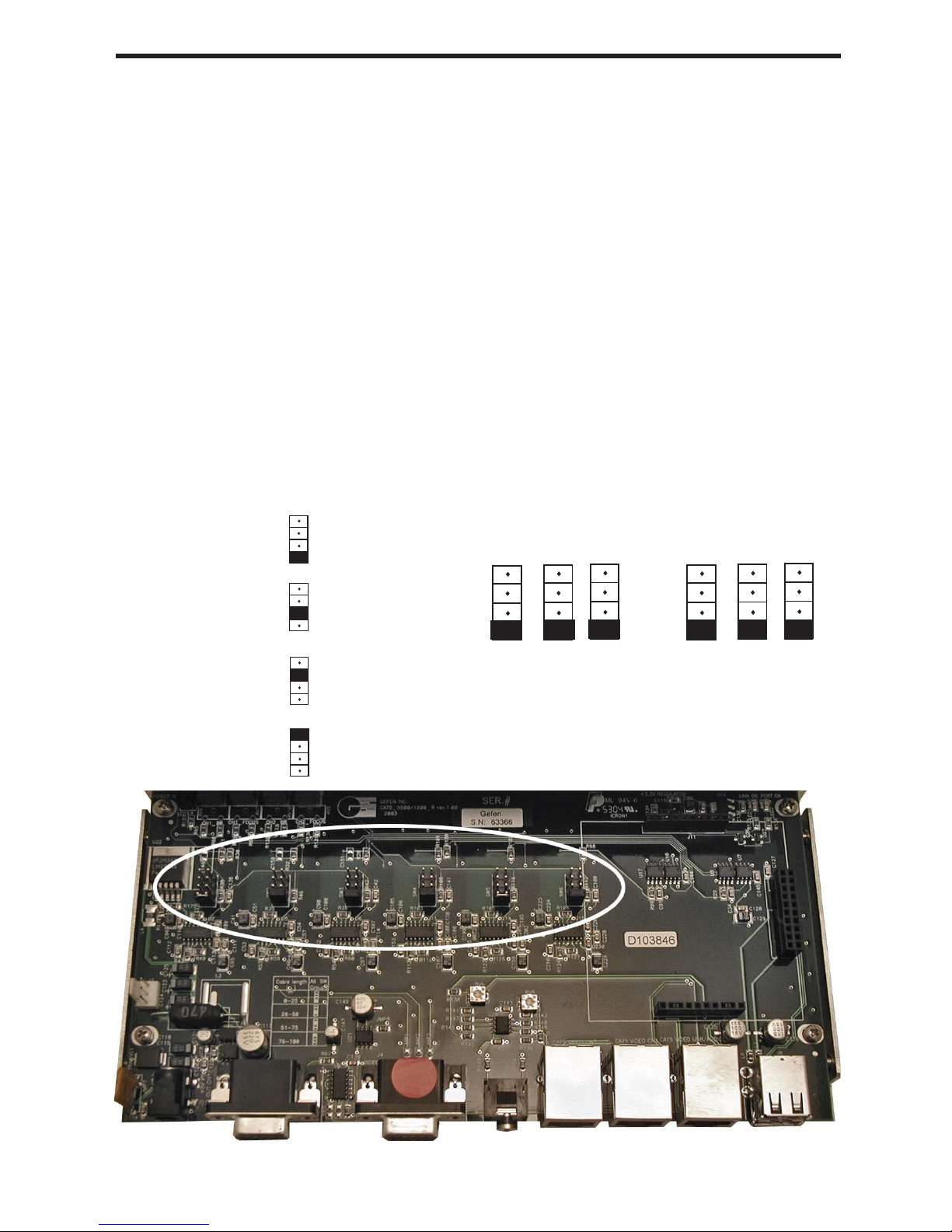

CAT5 CABLE LENGTH SETUP
Jumpersettings are usedto setthe focus ofthe picture andcharacters tothe best possible
sharpness.The jumpersin theCAT5•7000R are setat thefactory as shownin thediagram
below. The first step to adjusting the video is to have the CAT5•7000S and CAT5•7000R
connected together with the CAT-5 cable that is going to be used in the installation. Then
set your computer to the resolution and refresh rate that you will be using most frequently
be using. Then open up the CAT5•7000R by unscrewing the bottom three screws on back
end of the box. Then two screws on each side of the box and the top. That is 9 screws in
total that need to be removed. Lastly the 4 hex bolts around the Monitor Out port and the
Video In port need to also be removed. After that look at some text on the monitor and
set the jumpers to the recommended jumper setting based on the length of your CAT-5
cable. If you still see some smearing try moving all the jumpers up or down one from the
recommended setting. If you see smearing of just one color adjust an individual jumper
for the color that is smearing (it can be two colors). Repeat the same steps for monitor 2
Cable length
0-132 feet
133-198 feet
199-264 feet
265-330 feet
Recommended Jumper Settings
*As shown in picture
Jumper Settings
Video 1 on the
left
Red Green Blue
Video 2 on the
right
Red Green Blue
4
3
2
1
Position

CAT5 LINK CABLE - WIRING DIAGRAM
10
White/Orange
Orange
White/Green
Blue
White/Blue
Green
White/Brown
Brown
RJ-45 Jack RJ-45 Jack
2 3 4 5
6
7 8 1
2 3 4 5
6
7 8 1
1818

CAT5•7000 WIRING DIAGRAM
11

CAT5•7500S RACK MOUNT DIAGRAM
12

Video Amplifier Bandwidth .................................................................................. 350 MHz
Actual Bandwidth ................................................................................................ 120 MHz
Input Video Signal ......................................................................................... 1.2 Volts p-p
Input Sync Signal ................................................................................... 5 Volts p-p (TTL)
Horizontal Frequency Range ........................................................................... 15-70 KHz
Vertical Frequency Range ................................................................................ 30-170 Hz
Video In................................................................................................................... HD-15
Focus/Brightness Control ............................................................................. 25 to 450 FT
Video out ................................................................................................................ HD-15
Link Connector ........................................................................................................ RJ-45
USB - "A" Connector ........................................................................................... USB Out
USB - "B" Connector ............................................................................ USB Device Input
Power Consumption ................................................................................ 15 Watts (max.)
Power Supply ......................................................................................... 5 VDC (External)
Dimensions Send Unit ..................................................................... 16”W x 1 3/4”H x 4”D
Dimensions Receive Unit .. ............................................................. 8”W x 1 3/4”H x 4”D
Rack Mountable ........................................................................................ 2 Rack Spaces
Shipping Weight ....................................................................................................... 9 Lbs
SPECIFICATIONS
13

Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notified within two (2) year
from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment,
provided that the equipment has not been subjected to mechanical, electrical, or other
abuse or modifications.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the time of repair. Such repairs are warranted
for ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose, all
of which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cable must be free from any
scratches, markings, and neatly coiled.
Theinformationin this manualhasbeen carefully checkedandis believed tobeaccurate.
However, GefenInc. assumes noresponsibility foranyinaccuracies thatmaybe contained
in this manual. In no event will Gefen Inc., be liable for direct, indirect, special, incidental,
or consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding CAT5•7000 features and specifications is subject to change without notice.
WARRANTY
14
