Gefen EXT-DP-4K600-1SC User manual

EXT-DP-4K600-1SC
User Manual
Release A1
*Preferred
DisplayPort 1.2 Extender
over one SC-Terminated Fiber-Optic Cable
™
60Hz, 4:4:4
600 MHz
4K ULTRA
R
High Dynamic Range
H
D

ii
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install or place this product near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. To reduce the risk of electric shock and/or damage to this product, never handle or
touch this unit or power cord if your hands are wet or damp. Do not expose this
product to rain or moisture.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
15. Batteries that may be included with this product and/or accessories should never be
exposed to open ame or excessive heat. Always dispose of used batteries
according to the instructions.
Important Safety Instructions

iii
Gefen warrants the equipment it manufactures to be free from defects in material and
workmanship.
If equipment fails because of such defects and Gefen is notied within two (2) years from
the date of shipment, Gefen will, at its option, repair or replace the equipment, provided
that the equipment has not been subjected to mechanical, electrical, or other abuse or
modications. Equipment that fails under conditions other than those covered will be
repaired at the current price of parts and labor in effect at the time of repair. Such repairs
are warranted for ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or tness for any particular purpose, all of
which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cables must be in their original
condition.
The information in this manual has been carefully checked and is believed to be accurate.
However, Gefen assumes no responsibility for any inaccuracies that may be contained
in this manual. In no event will Gefen be liable for direct, indirect, special, incidental, or
consequential damages resulting from any defect or omission in this manual, even if
advised of the possibility of such damages. The technical information contained herein
regarding the features and specications is subject to change without notice.
For the latest warranty coverage information, refer to the Warranty and Return Policy under
the Support section of the Gefen Web site at www.gefen.com.
Warranty Information

iviv
Contacting Gefen Technical Support
Technical Support
[phone] [phone]
8:00 AM to 5:00 PM Monday - Friday, Pacic Time
Email
[email protected]
Web
http://www.gefen.com
Mailing Address
Gefen
Core Brands, LLC
c/o Customer Service
1800 S McDowell Blvd
Petaluma, CA 94954 USA
Product Registration
Register your product here: http://www.gefen.com/kvm/Registry/Registration.jsp

vv
Operating Notes
• This product operates with SC-terminated single strand OM3 or OM4 (50/125 μm)
multimode ber optic cable. Single mode ber is not supported.
4K 600 MHz DisplayPort 1.2 Extender over one SC-Terminated Fiber Optic Cable is a trademark of Core Brands,
LLC.
© 2017 Core Brands, LLC. All Rights Reserved. All trademarks are the property of their respective owners.
Core Brands, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation
without prior written notice.
Pb
This product uses UL or CE listed power supplies.

vi
Features*
• Supports Full-Bandwidth 4K 60 Hz 4:4:4 (600 MHz)
• Fully compliant with DisplayPort 1.2 standard
• Supports WQUXGA (4K; 3840x2400), 4K Ultra HD (3840 x 2160), and
• 4K Cinema - DCI (4096 x 2160) at 60Hz, 4:4:4
• Extension up to 200m (660 feet) over one (1) SC-terminated multi-mode
• OM3 or better (50/125um) ber-optic cable
• HDCP 2.2, HDCP 1.4, and DPCP compliant
• Supports DisplayPort Auxiliary/l²C channel
• Supports DisplayPort Multi-stream technology
• Compact enclosures are easy to install and can be hidden away.
• Sturdy metal construction of the enclosures help provide further immunity against
• Electro-Magnetic Interference (EMI) and radiated noise (RFI).
• Plug & Play – no conguration or set-up required for most applications
• EQ switches on Sender & Receiver ensure compatibility with most sources & displays
• Medical Safety (EN 60601-1) & EMC Compliant (EN 60601-1-2) when used with two
EXT-PS52AU-M-1.3-6-AL power supplies (available separately)
*Features and specications are subject to change without notice. All trademarks and registered trademarks are
properties of their respective owners. Copyright© 2017 Core Brands, LLC
Packing List
The following items are shipped with the 4K 600 MHz DisplayPort 1.2 Extender over one
SC-Terminated Fiber Optic Cable. If any of these items are not present in the box when
you rst open it, immediately contact your dealer or Gefen.
• 1 x EXT-DP-4K600-1SC-TX - Sender unit
• 1 x EXT-DP-4K600-1SC-RX - Receiver unit
• 2 x DisplayPort Male-to-Male cables, 6 feet
• 2 x USB-to-DC cables, 2.3 feet
• 2 x EXT-PS52AIP-1.3-6-AL power supplies and 2 sets of regional AC plugs (US, UK,
EU, and AU)
• 1 x Quick Start Guide
Features and Packing List

This page left intentionally blank.

viii
Table of Contents
1 Getting Started
Introduction............................................................................................................ 2
Sender Unit ................................................................................................... 2
Receiver Unit................................................................................................. 4
Installation ............................................................................................................. 6
Connection Instructions................................................................................. 6
EQ Switch Conguration ............................................................................... 6
Sample Wiring Diagram ................................................................................ 7
2 Appendix
Specications ...................................................................................................... 10
Index.....................................................................................................................11

This page left intentionally blank.

This page left intentionally blank.

4K 600 MHz DisplayPort 1.2 Extender
over one SC-Terminated Fiber-Optic Cable
1 Getting Started

page | 2

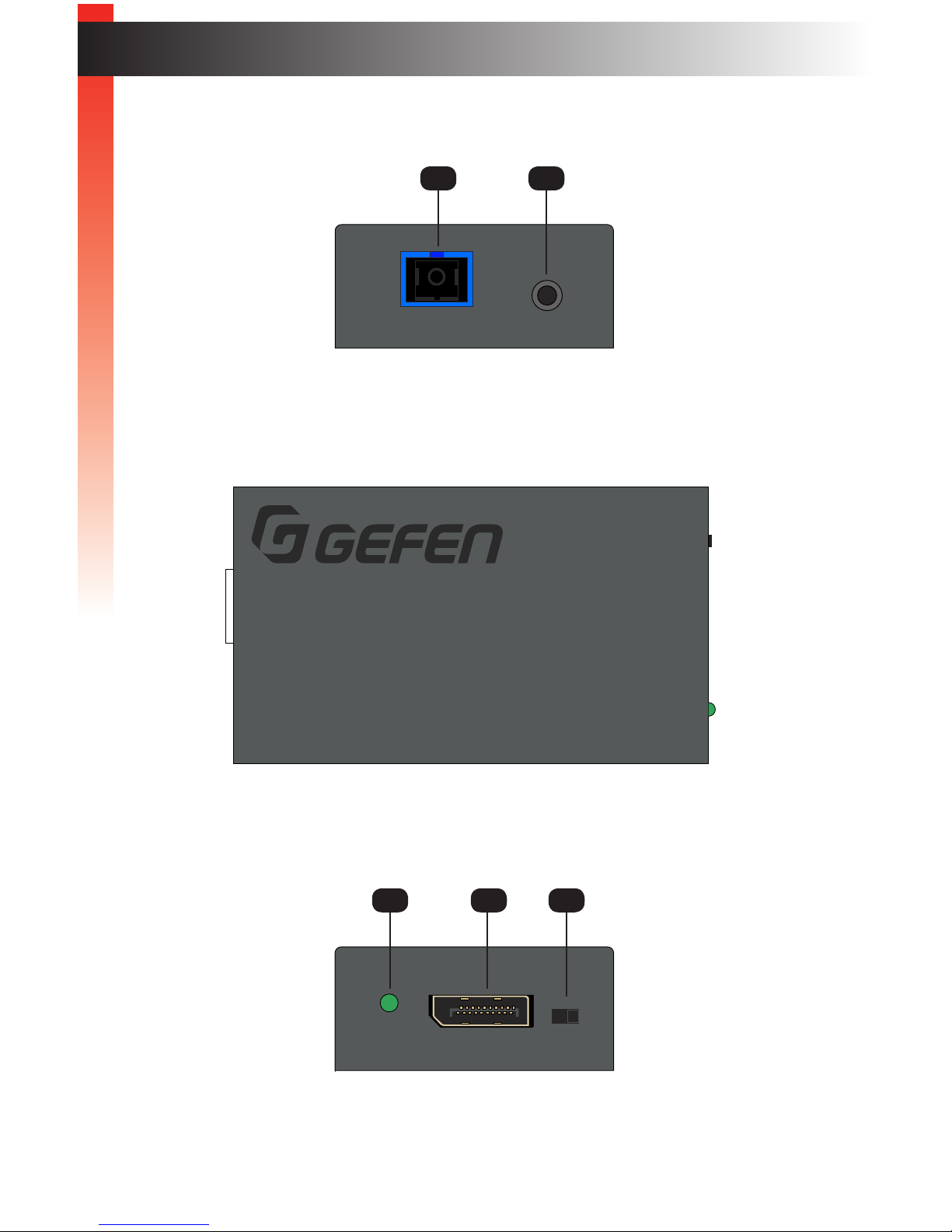

Sender Unit
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Sender
Input
Link EQ
EXT-DP-4K600-1SC-TX
Off DE
Link 5V DC
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Sender
Input
Link EQ
EXT-DP-4K600-1SC-TX
Off DE
Link 5V DC
Introduction
53 4
21
Getting Started Getting Started
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Sender
Input
Link EQ
EXT-DP-4K600-1SC-TX
Off DE
Link 5V DC

page | 3
Introduction
ID Name Description
1 Link Connect an SC-terminated multimode ber
optic cable from this connector to the Fiber
connector on the Receiver unit.
2 5V DC Connect the included 5V DC power supply or
USB to DC cable to this power receptacle.
3 Link Under normal operating conditions, this
LED indicator will glow bright green.
4 Input Use the included DisplayPort cable to
connect to a DisplayPort 1.2 source.
5 Off / DE De-emphasis switch. By default this is
set to the “Off” position. See EQ Switch
Conguration (page 6) for more
information.
Getting Started

page | 4
Introduction
Getting Started Getting Started
Receiver Unit
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Receiver
Output
Link EQ
EXT-DP-4K600-1SC-RX
Off PE
Link 5V DC
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Receiver
Output
Link EQ
EXT-DP-4K600-1SC-RX
Off PE
Link 5V DC
74 5
21
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Receiver
Output
Link EQ
EXT-DP-4K600-1SC-RX
Off PE
Link 5V DC

page | 5
Introduction
Getting Started
ID Name Description
1 Link Connect an SC-terminated multimode ber
optic cable from this connector to the Fiber
connector on the Receiver unit.
2 5V DC Connect the included 5V DC power supply or
USB to DC cable to this power receptacle.
3 Link Under normal operating conditions, this
LED indicator will glow bright green.
4 Input Use the included DisplayPort cable to
connect to a DisplayPort 1.2 display.
5 Off / PE Pre-emphasis switch. By default this is
set to the “Off” position. See EQ Switch
Conguration (page 6) for more
information.

page | 6
Installation
Connection Instructions
►Video
1. Connect the included DisplayPort cable between the DisplayPort 1.2 source and the
Input port on the Sender unit.
2. Connect a DisplayPort 1.2 display to the Output port on the Receiver unit, using the
included DisplayPort cable.
►Fiber
3. Connect a single SC-terminated OM3 or OM4 (50/125 μm) multimode ber optic
cable, up to 660 feet (200 meters), between the Link port on the Sender unit and the
Link port on the Receiver unit.
►Power
4. Connect the included 5V DC power supplies to the 5V DC port on both the Sender
and Receiver unit.
5. Connect the opposite end of the power supplies to available electrical outlets.
6. The Link indicators on both units will light once all connections are complete and the
units, the source, and the display are powered up.
EQ Switch Configuration
Sender unit - By default, this switch is in the “Off” position. Set the switch to the “DE”
(signal de-emphasis) setting, if the source output is very high.
Receiver unit - By default, this switch is set to the “Off” position . Set to the “PE”
(signal pre-emphasis) position if the sink device requires a higher than normal input level.
Getting Started Getting Started
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Sender
Input
Link EQ
EXT-DP-4K600-1SC-TX
Off DE
Link 5V DC
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Receiver
Output
Link EQ
EXT-DP-4K600-1SC-RX
Off PE
Link 5V DC

page | 7

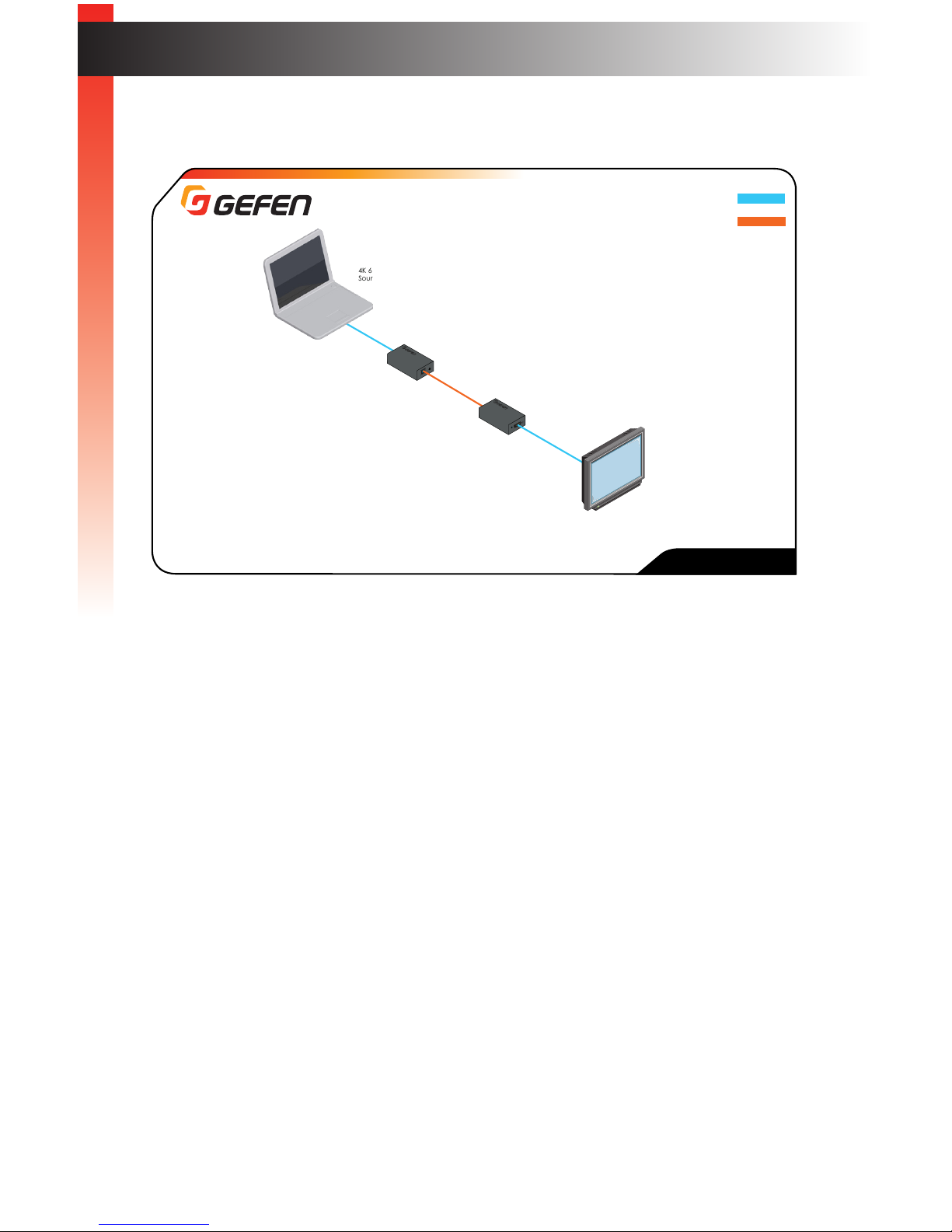

Sample Wiring Diagram
Getting Started
EXT-DP-4K600-1SC
DISPLAYPORT CABLE
4K 600 MHz DisplayPort 1.2
Source
4K 600 MHz DisplayPort 1.2
Display
4K 600 MHz DisplayPort 1.2
Extender
(Sender unit)
4K 600 MHz DisplayPort 1.2
Extender
(Receiver unit)
Link 5VDC
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Sender
®
4K 600 MHz
DisplayPort Extender
over one Fiber
Receiver
Output
Link EQ
EXT-DP-4K600-1SC-RX
Off PE
FIBER OPTIC (SC-SC) CABLE

2 Appendix
4K 600 MHz DisplayPort 1.2 Extender
over one SC-Terminated Fiber-Optic Cable

page | 10
Supported Formats
Video • 3840 x 2160 @ 60 Hz
• WQUXGA (4K; 3840x2400 @ 60Hz)
• 4K Ultra HD (3840 x 2160 @ 60Hz)
• 4K Cinema - DCI (4096 x 2160 60Hz)
Connectors & Indicators
Input (Sender) • 1 x DisplayPort, 20-pin, female
Output (Receiver) • 1 x DisplayPort, 20-pin, female
Link (Sender / Receiver) • 1 x SC-type, female
Link (Sender / Receiver) • 1 x LED, green
Power • 1 x 1.3 mm barrel jack
Operational
Video Bandwidth • 21.6 Gbps (5.4 Gbps per lane, 4 lanes)
Optical Wavelength • 850 nm
Power Input • 5V DC
Power Consumption (Sender) • 1.75 W
Power Consumption (Receiver) • 2.0 W
Optical Power Budget • 6.5 dB
Operating Temperature • +32 to +122 ºF (0 to +50 ºC)
Operating Humidity • 10% to 85% RH, non-condensing
Storage Temperature • -4 to +158 °F (-20 to +70 °C)
Storage Humidity (RH) • 10% to 85% RH, non-condensing
Physical
Dimensions (W x H x D)
(Sender / Receiver),
not including connectors
• 1-3/4” x 7/8” x 3-1/8” (45 mm x 22 mm x
79 mm)
Unit Weight (each) • 4.8 oz. (0.135 kg)
Shipping Weight • 2.5 lbs (1.2 kg)
NOTE: Features and specications are subject to change without notice. All trademarks and registered trademarks are
properties of their respective owners. Copyright© 2017 Core Brands, LLC
Specications
Appendix Appendix
