Venetian blind motor:
GEIGER RESCUEline (GJ5606 AE100)
with electronic control and battery operation
For Venetian blinds and exterior blinds

2
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
1. General information
Dear customer,
By purchasing a GEIGER motor you have decided on a quality product from GEIGER.
Thank you very much for your decision and the condence placed in us.
Before you put this drive into operation please observe the following safety instructions.
It serves for the prevention of danger and for the avoidance of personal injury and damage
to property.
The installation and operating instructions contain important information for the installer,
the specialist electrician and the user. Please pass on these instructions if you transfer the
product. These instructions should be kept by the user.
2. Guarantee
In the case of incorrect installation contrary to the installation and operating instructions
and/or constructional modication, the legal and contractual guarantee for property damage
and product liability lapses.
Index
1. General information ............................................................................2
2. Guarantee.............................................................................................2
3. Intended use ........................................................................................3
4. Safety instructions ..............................................................................3
5. Safety Instructions for batteries .......................................................4
6. Safety instructions for assembly.......................................................4
7. Assembly note.....................................................................................6
8. Installation instructions......................................................................7
9. Electrical connections and safety instructions................................9
10. Battery replacement..........................................................................10
11. LED indication ...................................................................................11
12. Setting of the end stops ...................................................................13
13. Activate the programming mode ....................................................13
14. Programming/changing the end stops............................................14
15. Referencing on the limit stop switch...............................................14
16. Enable/disable reference cycles ......................................................14
17. Resetting to factory settings............................................................15
18. Antifreeze protection ........................................................................15
19. Recommissioning after use ............................................................15
20. What to do if… ...................................................................................16
21. Maintenance.......................................................................................16
22. Declaration of conformity.................................................................17
23. Technical data....................................................................................18
24. Notes on waste disposal ..................................................................19
25. Spare parts.........................................................................................19

3
www.geiger.de EN
EN
3. Intended use
The motors of the model range GJ5606 AE100 with electronic control and battery power are
designed exclusively for the operation of Venetian blinds.
The motors may not be used for the operation of roller grilles, garage doors, furniture and lifting
tools.
I Please rst make sure that the use of the GJ5606AE100 is approved
by your local re and rescue authorities.
GJ 56 06 AE100
Design options
Torque in Nm
For head rails at least 56 mm
GEIGER Venetian blinds motor
4. Safety instructions
I ATTENTION: Important safety instructions. For personal safety,
it is important to follow these instructions. Please keep these
instructions for future reference.
fDo not allow children to play with stationary controls. Keep remote controls away
from children.
fThe installation is to be checked regularly for defective balance, signs of wear or
damaged cables and springs, if relevant.
fDo observe the moving sun protection system and keep persons away until it has
closed completely.
fWhen operating the manual release with the sun protection system open, please be
cautious as it can fall down quickly if springs or tapes wear off or are broken.
fDo not operate the device if operations such as, for example, window cleaning are to
be carried out in the vicinity.
fDisconnect the automatic controlled device from the mains power supply if opera-
tions such as, for example, window cleaning are being carried out in the vicinity.
fDuring operation observe the danger zone.
fDo not use the installation if people or objects are in the danger zone.
fUrgently shut down damaged installations until repair.
fUnconditionally shut down the unit during maintenance and cleaning operations.
fPinching and shearing points are to be avoided and must be secured.
fThis appliance can be used by children aged 8 and above and persons whose
physical, sensorial or mental capacities are impaired, or who have no experience or
know-how if they have been supervised or been given instructions on the use of the
appliance and if they understand the possible resulting dangers. Children are not
permitted to play with the device. Cleaning and maintenance should not be carried
out by children.
fThe rated sound pressure level is less than 70 dB(A).
fDisconnect the device from the mains power supply for maintenance and replace-
ment of parts.
If the motor is disconnected via a plug connection the operator must be able to
control - from any place to which it has access – that the plug is removed.
If this is not possible - due to design or installation - the disconnection from the
power supply must be ensured via locking in the disconnected position (e.g. isolator).
fThe motor tube can get very hot during prolonged use.
When working on the unit, do not touch the tube before it has cooled down.
fAll necessary settings must be made for safe operation of the system. If required,
GEIGER also provides training courses.
fIf the control does not function correctly, the system must be disconnected from the
power supply.

4
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
5. Safety Instructions for batteries
I Warning: Important safety instructions. Failure to comply with the
safety instructions may cause damage to property, re, explosion and
cause serious injuries.
Battery handling
fThe battery may only be charged in the electronic control unit. If an unsuitable
charger is used, the battery may be damaged and there is a risk of re.
fOnly use the original GEIGER battery. The battery may only be replaced by an original
replacement battery (see section spare parts). If other batteries are used, the function
of the device can no longer be guaranteed.The use of other batteries may result in
personal injury, property damage and re hazard.
fDo not use non-rechargeable batteries. The use of non-rechargeable batteries may
result in personal injury, property damage and re hazard.
fBefore replacing the battery, the device must be disconnected from the mains.
fOnly use the battery in connection with your GEIGER Venetian blind drive. This is the
only way to protect the battery against overload.
fKeep non-installed batteries away from paper clips, keys, nails, screws or other small
metal objects that can make a connection from one terminal to another. A short
circuit between the battery contacts can cause burns and re.
fProtect the battery from heat – no prolonged exposure to sunlight and re –
(Tmax. = 60°C) as well as from water and humidity. There is a risk of explosion.
fDo not open the battery. There is a risk of a short circuit.
fIf used incorrectly, liquid may leak out of the battery. Avoid the contact with it.
In case of accidental contact, rinse with water. If the uid gets into your eyes, call for
additional medical attention. Leaking battery uid can cause skin irritation and burns.
fIf the battery is damaged or used improperly, vapours may be emitted. Allow for
fresh air and consult a doctor in case of any discomfort. The vapours can irritate the
respiratory tract.
6. Safety instructions for assembly
I ATTENTION: Important safety instructions. Follow all installation
instructions, as incorrect installation can lead to serious injuries.
fWhen mounting the motor without any mechanical protection of the driven parts and
of the tube which may become hot, the motor must be installed at a height of at least
2.5 m above the ground or of another level which provides access to the drive.
fBefore the motor is installed, all cables which are not needed are to be removed and
all equipment which is not needed for power-operated actuation is to be put out of
operation.
fThe actuating element of a manual release must be mounted at a height of less than
1.8 m.
fIf the motor is controlled by a switch or pushbutton, the switch or pushbutton must
be mounted within eyeshot of the motor. The switch or pushbutton must not be
located in the vicinity of moving parts. The height of installation must be at least
1.5 m above the oor.
fPermanently installed control devices must be attached visibly.
fIn case of devices extending horizontally, a horizontal distance of at least 0.4 m must
be respected between the fully extended part and any other xed element.
fThe rated speed and the rated torque of the motor must be compatible with the
device.
fThe mounting accessories that are used must be designed in accordance with the
selected rated torque.
fGood technical knowledge and good mechanical skills are necessary for the motor
installation. Incorrect installation can lead to serious injury.
Electrical work must be carried out by a qualied electrician in accordance with the
regulations in force locally.

5
www.geiger.de EN
EN
fOnly use connecting cables that are suitable with the environmental conditions and
which meet the construction requirements. (see accessories catalogue)
fIf the device is not equipped with a connecting cable and a plug, or other means for
disconnecting from the mains with a contact opening on each pole according to the
conditions of the overvoltage category III for full disconnection, a disconnecting
device of this type must be incorporated into the permanently installed electrical
installation according to the wiring rules.
fDo not mount the connecting cables near hot surfaces.
fA plug for the disconnection of the motor from the power supply must be accessible
after installation.
fDamaged connecting cables must be replaced by GEIGER connecting cables of the
same type.
fThe device must be mounted as described in the installation instructions.
fParts that are inserted must be correctly positioned or locked in place.
fScrew fastenings must be sufciently tight. Make sure that the screw length is correct
so that the parts behind it are not damaged.
fFor the required stability, all specied parts must be installed.
fFixations shall not be made with adhesives since they are regarded as unreliable.

6
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
7. Assembly note
Since the RESCUEline is exclusively powered by the battery, the electronic control
unit must be supplied with mains voltage during installation. If the control unit is not
connected to the mains after installation, the battery may be deeply discharged.(See
operating mode: deep discharge state, point 11).
The GEIGER RESCUEline has been designed as a battery-powered emergency system espe-
cially for the 2nd escape route. The 2nd escape route leads through an emergency exit which
serves as access for emergency services into the building.
However, as there is no standardized regulation in Europe, the respective country regulations
must be observed. The use of the GJ5606AE100 must be approved by your local re and
rescue authorities.
The system consists of a Venetian blind motor, an electronic control unit with limit stop switch
and a LED display that shows the system status at any time over colour LEDs.
The system can be connected to a central re alarm system.
In case of re or in the event of an error case the electronic control ensures the immediate
opening of the blind in order to clear the emergency exits. The system is independent of the
supply voltage in the event of re, failure or tests.
When viewed from inside the room, the
electronic system of the GJ5606AE100 is
located on the left side together with the
limit stop switch.
The electronic control is also available for
right-hand installation, so that it is on the
right side viewed from the inside of the
room.
The blind stripes are wound up from the
outside on the winding rolls.
The GJ5606 AE100 must be in alignment
with the turner bars.
The GJ5606 AE100 must be installed
centrally. Make sure that you have a
uniform load distribution.
230 V~/50 Hz
Central fire alarm
system
LED displayControl switch
Electronic system Drive
Electric mains
Inside the room
Direction
OPEN

7
www.geiger.de EN
EN
8. Installation instructions
I Prior to installation please check to ensure there is no visible damage
to the motor like cracks or open cables.
I Before installation, it is essential to check the drive and the electronic
control for visible damage such as breakage or open cables.
I The RESCUEline may only be put into operation if mains voltage is
available at the installation site.

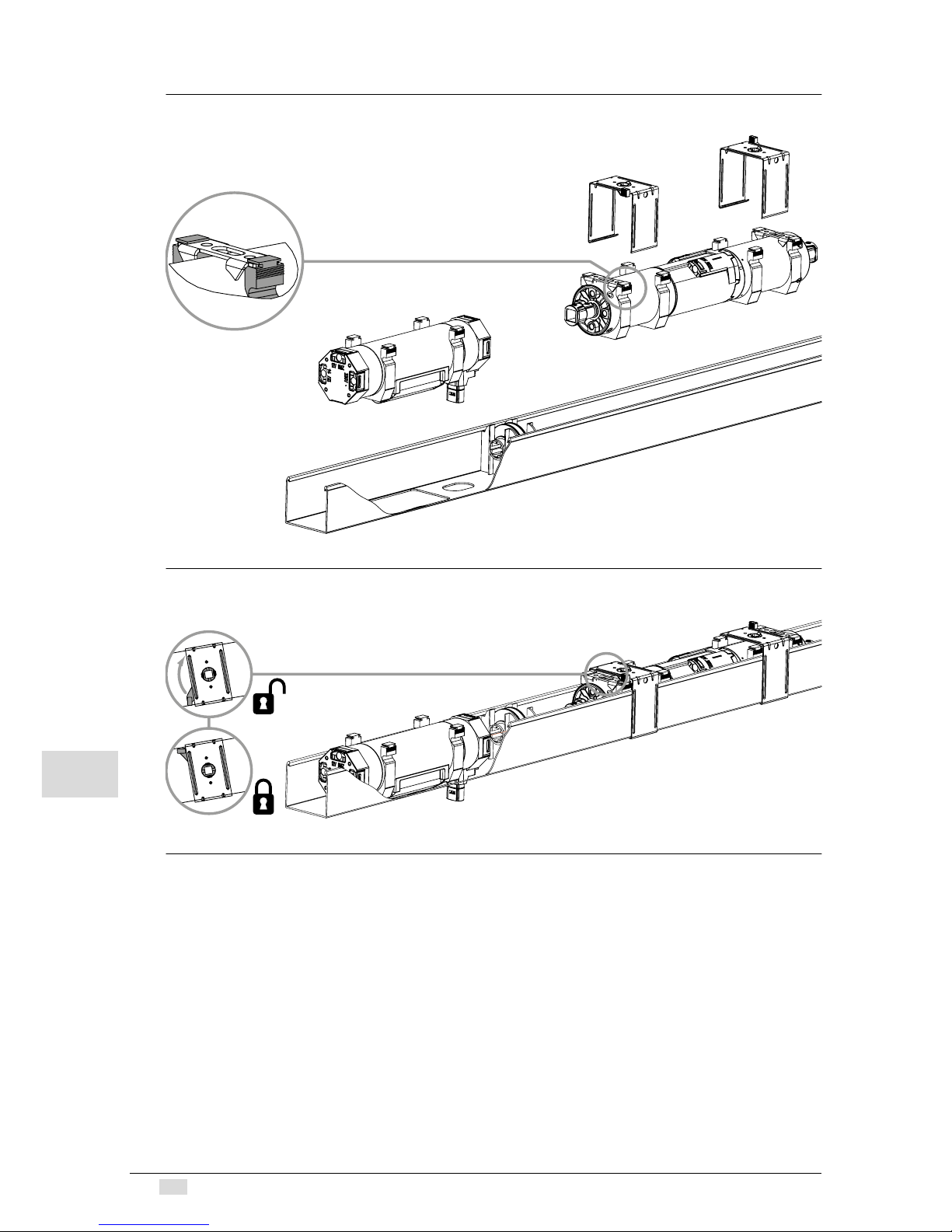

Head rail opening at bottom:

8
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
Head rail opening at top:

9
www.geiger.de EN
EN
9. Electrical connections and safety instructions
H Caution: Important installation instructions.
Please follow all instructions since incorrect installation can lead to
the destruction of the motor and the switching unit.
H Before commissioning, all connections must be made correctly.
Drive and electronic control connections
The 230 V connection is coded in such a way that it is impossible to
insert it incorrectly into the 12 V connections. The maximum distance
between drive and electronics must not exceed 2,5 m.
Electric mains
H Work on the electrical installation may only be
carried out by a qualied electrician.
Connecting cables with plug connectors of the Hirschmann Company
are tested and approved with couplings of the Hirschmann Company.
I The battery is not plugged in on delivery. Before
commissioning, connect the connectors in the
battery compartment. Please note the warning in
chapter 10 „Battery replacement“.
12V connections
I Wires and contacts which are marked with nc (not connected) have
no function. Wires without a function are cut at the end of the sheath
(green-yellow or orange and grey).
Connection of operating and setting switch
H Danger of electric shock!
Potential-free contacts must be used for opera-
tion and setting.
Only the setting switch M56F155 may be used for the setting
(see spare parts).
Do not connect plug connectors that are used for 230V to 12V
connections.
If 230V is connected incorrectly to 12V connections, the device will
be destroyed and all 12V circuits will be put under mains voltage.
H Incorrect connection can lead to death and
serious injuries due to electric shock.







AB C
AB C
L
N
PE
green-yellow blue brown
PE N nc nc L
grey black
grey blue brown green/ yellow black
grey
Setting switch
Operating switch
blue brown green/ yellow black
up down 12 V
nc
up
down
12 V
1 Encoder
with hall sensor
2 Motor/brake
3 LED display
4 Operating switch
5 Central re alarm
system
6 Mains connection

10
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
Connection to the central re alarm system
The system is delivered with a cable to the central re alarm system.
If the device is not connected to the central re alarm system, the
input must be terminated with an 8.2 kOhm resistor (see connection
diagram). A suitable resistance is enclosed. The open end with the
resistance must be insulated, e.g. mounted in a cable socket.
The length of the cable should not exceed 100 meters.
10. Battery replacement
The battery must be replaced in case of power loss or defect.
The LED display indicates when the battery needs to be replaced.
In order to replace the battery please proceed as follows:
1. If necessary, move the sun protection down for better accessibility
2. Disconnect the electronic control unit from the mains
3. Open 4 screws (Torx T10). See picture
4. Pull the battery compartment down
5. Disconnect the battery connector
The installation is carried out in reverse order.
Please note:
fIf „battery defective/replace battery“ is displayed, the normal driving mode is
blocked. See section emergency manual operation.
fThe battery is supplied partially charged. After installation, the battery is charged in
the electronic control unit. The charging process takes approx. 5 hours. The device is
then ready for use.
fUnder a protective sticker in the battery compartment there is a plug connection
for applications of the manufacturer. Removing the protective sticker will void the
warranty.
I IMPORTANT: Crushes and damage to the insulation of the battery
connection cable must be avoided. Damage to the battery connection
cable, the plug connection and the battery cell or battery compartment
will void the statutory or contractual warranty for material defects and
product liability.
Transport of batteries
The lithium iron phosphate batteries are subject to the requirements of dangerous goods law.
The rechargeable batteries can be transported on the road without any further requirements,
grey blue
12VAC 60VDC 1A
brown
M2
BMZ
BMZ
12 V
M1
green/ yellow black
8,2kΩ
KLICK
4 x
4 x

11
www.geiger.de EN
EN
observing the dangerous goods regulations for Li-Ion batteries of less than 100Wh. In case of
shipment by third parties (e.g.: air transport or forwarding), special requirements for packaging
and labelling must be observed. A dangerous goods expert must be consulted when preparing
the package. Only send batteries if the housing is undamaged. Tape open contacts and pack
the battery so that it does not move in the packaging. Please also observe any further national
regulations.
11. LED indication
Depending on the delivery, the LED display for outdoor use (M56F157)
or the LED display for indoor use (M56F158) is supplied.
The LED display for indoor use must be connected with the cable to a
junction box (not included in scope of delivery) by a qualied electrician.
The length of the cable should not exceed 100 meters.
For both types, three different coloured LED´s (green/yellow/red) indicate
the different states of the system:
Functionality / LED display:
Permanent light signals (permanently lit LEDs)
Green Yellow Red Significance
PAll system functions OK / manual operation
PReference run
P P Learning run upper end position
P P Learning run lower end position
P P Shutdown by overload protection
Flashing signals (simultaneous flashing of various colour LEDs)
pFreezing protection activated (≤ 3°C)
pDefective battery / replace battery
pNo mains voltage
p p Ambient temperature too high (battery) (≥ 45°C)
p p Ambient temperature too low (battery) (≤ 0°C)
p p Battery has reached critical level
pppFire alarm / wire break
Flashing signals (alternate flashing of various colour LEDs)
p p Deep discharge
p p Device temperature too high (only fire alarm is triggered)
(≥ 60°C)
Flashing signals (moving lights of various colour LEDs)
pppEmergency manual operation (only to lower end stop)
Permanent light signals and flashing signals
(combination of lit and flashing LEDs)
P p Minimum operating temperature not met (≤ -10°C)
Operating mode: Programming mode (commissioning):
The unit will be learned through an unlocked switch.
fSee point „Commissioning“
The green/yellow or green/red LEDs light depending on the direction of travel.
Operating mode: Manual operation
After teaching, a blocked switch is used (standard operation). The blind is opened/closed via
the locked switch (manual operation or emergency manual operating).
The green LED lights up.
blue brown
black
green
grey yellow
brown
white
LED (inside)

12
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
Operating mode: Emergency manual operation
To replace the battery, it may be necessary to move the curtain away from the upper end
position. If the electronics are in another mode such as „All system functions OK“, the drive can
be switched to the emergency manual operation.
I Please note: A pause of at least 5 seconds must be observed between
the driving movements.
After that the drive can only be moved downwards and the battery can be replaced. To end the
emergency manual operation, the limit switch must be pressed briey twice.
Operating mode: Mains voltage failure
In the event of a power failure, the status indicator ashes red, but the system remains ready
for operation. Only when the critical battery capacity is reached the drive automatically moves
the blind to the upper end position and remains there. After the mains power failure has been
rectied, the battery can be recharged. The system cannot be put back into operation until the
charge level exceeds the critical battery capacity (>50% capacity).
The red LED ashes.
Operating mode: Critical battery status
If the charge level is <50% the system runs automatically in the upper end position and remains
there. The system only operates again when the charge level is > 50% or after replacement of
the battery.
Yellow and red LEDs ash.
Operating mode: Deep discharge state
If the battery charge drops below the critical battery capacity, the drive retracts the curtain in the
upper end position and then a bit downwards so that the battery can be replaced.
Yellow and red LEDs ash alternately.
Operating mode: Minimum operating temperature not reached
If the operating temperature falls below the minimum permissible operating temperature, the
system runs automatically to the upper end position and the blind remains there. The system
can only operate again when the ambient temperature is above the minimum operating
temperature again.
The yellow LED lights up permanently and the red LED ashes.
External triggering by re alarm (potential-free contact)
Via the potential-free contact (input - re alarm) the re control centre gives the triggering
command (re alarm signal). The drive then moves independently to the upper end position
and remains there until the release command (re alarm signal) is switched off. During this
time, the blind cannot be moved.
To move the blind back to the lower end position, the mains voltage must be applied.
Green/yellow and red LEDs ash.
Operation in general:
Operation via a locked control switch. Move via the corresponding key as long as this is
actuated and no end position has been reached or overload occurs in this direction.
Special feature on UP travel, the stop switch stops the travel immediately as long as it is
activated.
Operation:
UP = UP key
DOWN = DOWN key
AS = stop switch
SET = Prog or AS + DOWN
5 sec1 sec 5 sec1 sec 5 sec1 sec 1 sec
breakUP –– ––––breakDOWN break
5 sec
–break
5 sec
–breakUP UP

13
www.geiger.de EN
EN
12. Setting of the end stops
General information
The end positions are set via the 12V SELV circuit of the device.
For setting the end positions of the RESCUEline drives, only a special potential-free setting
switch can be used.
Learning can only be started via the programming button or the limit switch and the DOWN key.
H Attention danger to life: When connecting a usual setting switch with
mains connection, the 12V SELV circuit is connected under mains
voltage.
Article number / GEIGER setting switch
M56F155 with service terminal (D), 5 wires
I Important: please observe the connecting diagram on the back of the
setting switch.
Factory setting
• The motor is set on the lower end position at the factory. The upper end stop is at the very
other end (at least lower end stop + 200 motor rotations).
• The motor command is in normal operation.
• The referencing is enabled on delivery.
✎Note: If the motor is installed in a closed Venetian blind and if the
limit stop switch is used the motor can be operated without further
settings.
I If the factory setting has been carried out and if the programming
mode is activated, max. 100 revolutions can be done downwards.
Reset to factory settings for a further run downwards.
13. Activate the programming mode
I Prerequisite: The motor is positioned between the upper and the
lower end position. The limit stop switch should not be pressed.
Activate the programming mode
via limit stop switch
Press the programming key of the setting switch until, after
about 3 seconds, the motor conrms “end position
programming activated” with 1 x click-clack. Then release
the key.
Activate learning mode on the electronic
control unit
Press the limit stop switch and also press the DOWN key
on the locked Venetian blind switch.
The motor moves for 1 second.
Keep both keys pressed for another 3 seconds. The motor
conrms with a short movement downwards.
1 x
Press programming
key for about
3 seconds
Click-clack
PROG
PROG
Press key
+

14
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
14. Programming/changing the end stops
The upper and lower end stops can be programmed and changed independently
of each other.
• Activate the programming mode.
• Run the motor in the direction of the desired end
position. The motor interrupts its run just to show that it
is in the programming mode:
• The direction in which the motor moves after the break*
determines the end stop to be programmed.
(UP = upper end stop, DOWN = lower end stop)
• When the desired end position is reached, move the
motor in the opposite direction until 2 short breaks*
show the last saved position.
• The programming is completed.
* As long as the interruption of movement has not yet
occurred, corrections can be done.
Start the setting process again to adjust another end position.
The referencing is automatically activated if the upper end position is programmed.
Limit stop switch instead of upper end position
• If the direction of rotation UP is to be switched off via the limit stop switch, no upper end
position may be learned. The blind moves against the limit stop switch every time.
• If an upper end position has already been learned and is now to be switched off via the
limit switch, the learning mode must be activated and the blind moved against the limit stop
switch. The lower end position is unchanged and the programming is completed.
• From now on, the drive always moves against the limit stop switch.
Cancel the programming mode:
In order to cancel the programming mode, press the programming keys (programming key/UP/
DOWN keys/limit stop switch and DOWN key) until the motor conrms the cancellation of the
programming mode after about 3 seconds with 2 x click-clack.
15. Referencing on the limit stop switch
The referencing on the limit stop switch can compensate a possible drifting of the upper end
position due to the modied winding behaviour of the lifting tapes.
If the referencing has been activated (see below), the next UP run is done till the limit stop
switch.
The variation in distance between the upper limit position and the limit stop switch is stored.
After 1, 5, 20 and then every 50 cycles on the upper end stop, the motor runs against the limit
stop switch in order to test if the variations in distance have changed. If this is the case, the
upper end position is readjusted.
The motor stops on the limit stop switch by the reference runs.
16. Enable/disable reference cycles
The referencing is enabled on delivery. The referencing can be enabled only if the upper end
position is set on position.
Switching on/off referencing:
Press the programming keys (programming key/UP/DOWN keys/limit stop switch and DOWN
key) between 6 and 9 seconds until the motor jerks 1 x after about 3 seconds and another time
after 6 seconds for feedback “Switching on/off referencing”.
A subsequent UP command with 1 x jerking enables the referencing, a DOWN command with
2 x jerking disables it.
PROG
PROG

15
www.geiger.de EN
EN
17. Resetting to factory settings
Press the programming keys (programming key/UP/DOWN keys/limit stop switch and DOWN
key) about 10 seconds until the motor jerks 1 x after 3 seconds, 1 x after 6 seconds and 4 x
after 10 seconds. Then the motor is reset to factory settings and the referencing is activated.
18. Antifreeze protection
The electronic control can monitor the ambient temperature and respond to it. This function is
enabled in the standard delivery state.
If a xed outdoor temperature is reached, the blind moves up a little bit to prevent the end rail
from freezing.
If the temperature exceeds or falls below the threshold for safe charging of the battery, this will
be indicated on the LED display.
Temperature too high: green and yellow LEDs ash.
Temperature too low: green and red LEDs ash.
The blind can still be operated until the critical battery status is reached. As soon as this
happens, the blind is moved to the upper position and remains there until the battery is fully
charged.
Yellow and red LEDs ash.
19. Recommissioning after use
The system can only be put back into operation if the mains voltage is restored and the
signalling contact (central re alarm system connection) is closed again or when the critical
battery capacity is again above the set level (>50% capacity).
If these requirements are met, the system returns to manual operation.
After operation, the entire system (Venetian blinds, operating switch, drive and electronics)
needs to be checked again.
Green LED lights up.

16
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
20. What to do if…
Problem Solution
Motor does not run. • Motor not plugged in.
Please check the plug connection.
• Check connecting cable for possible
damage.
• Check the connections of all cables for
correct positioning.
• Check the mains voltage and allow the
cause of the voltage breakdown to be
tested by a specialist electrician.
LED display without display. • The two cables to the drive are reversed.
Replace cables and check plug connections
for correct positioning.
• Battery not inserted. Check the plug
connection of the battery.
• Battery damaged or defective for some
time. Replace the battery with a new
battery of the same type (M56F156).
Motor only runs in one
direction.
• Motor in the end position.
Run motor in the opposite direction.
Readjust the end positions, if necessary.
After running several times,
the motor breaks down and
no longer responds.
• The motor became too hot and has
switched off.
Try it again after a cooling time of about
15 min.
• Critical battery capacity. Observe LED
status display.
The blind is in the upper position,
actuates the limit stop switch and can
no longer be moved downwards.
• The motor was installed upside down or the
lower end position has been overrun and
the lift tapes were wound up incorrectly.
Allow free mobility of the limit stop switch.
Reset the end stops.
LED display flashes. • See point « LED display ».
21. Maintenance
The drive is maintenance-free.
The battery is a wearing part and therefore excluded from the warranty. Please check the
status regularly via the LED displays. We recommend replacing the battery every two
years.

17
www.geiger.de EN
EN
22. Declaration of conformity
Current declarations of conformity are available under www.geiger.de
Schleifmühle 6 |D-74321 Bietigheim-Bissingen
Phone [phone] |Fax [phone] |[email protected] |www.geiger.de
Sitz Bietigheim-Bissingen |Amtsgericht Stuttgart HRA 300591 | USt-IdNr. DE145002146
Komplementär: Geiger Verwaltungs-GmbH |Sitz Bietigheim-Bissingen |Amtsgericht Stuttgart HRB 300481
Geschäftsführer: Roland Kraus |WEEE-Reg.-Nr. DE47902323
Gerhard Geiger GmbH & Co. KG
EU Declaration of Conformity
Bietigheim-Bissingen, 25.10.2018 Roland Kraus (General Manager)
Product designation:
Venetian blinds motor, motor for rolling shutters, motor for awnings
Type designation:
GR45.. GJ56..
GS45.. GS56..
GU45.. GSI56..
Applied directives:
2006/42/EC
2014/30/EU
2014/53/EU
2011/65/EU
Applied standards:
DIN EN 60335-1 (VDE 0700-1):2012-10; EN 60335-1:2012
DIN EN 60335-1 Ber.1 (VDE 0700-1 Ber.1):2014-04; EN 60335-1:2012/AC:2014
EN 60335-1:2012/A11:2014
DIN EN 60335-2-97 (VDE 0700-97):2017-05; EN 60335-2-97:2006+A11:2008+A2:2010
+A12:2015
DIN EN 62233 (VDE 0700-366):2008-11; EN 62233:2008
DIN EN 62233 Ber.1 (VDE 0700-366 Ber.1):2009-04; EN 62233 Ber.1:2008
DIN EN ISO 12100:2011-03; EN ISO 12100:2010
DIN EN 55014-1:2012-05; EN 55014-1:2006 + A1:2009 + A2:2011
DIN EN 55014-2:2016-01; EN55014-2:2015
DIN EN 61000-3-2:2015-03; EN 61000-3-2:2014
DIN EN 61000-3-3:2014-03; EN 61000-3-3:2013
ETSI EN 301 489-1 V1.9.2(2011-09)
ETSI EN 301 489-3 V1.6.1(2013-08)
ETSI EN 300 220-2 V3.1.1(2017-02)
Authorized representative for technical data:
Gerhard Geiger GmbH & Co. KG
Address:
Schleifmühle 6, D-74321 Bietigheim-Bissingen
en
Gerhard Geiger GmbH & Co. KG
Antriebstechnik
Schleifmühle 6
D-74321 Bietigheim-Bissingen
1018100W1518

18
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
23. Technical data
Technical data GJ5606 AE...
Motor
Voltage 100 ..230 V 50/60 Hz
Current 35 mA (max. load current)
Power 8 W
Couple 2 x 3 Nm
Normal operating torque 22 1/min
Emergency operation torque 27 1/min
Protection class IP 44
Limit switch range > 200 rotations
Operating mode S2 4 min
Dimensions (without coupling) 346 mm
Diameter 55 mm
Gewicht 1,60 kg
Ambient temperature / humidity Operation: T = -10°C .. +60°C / H max. 90%
Storage : T = -15°C .. +45°C / H max. 50%
Electronic control
Dimensions 220 mm
Diameter 55 mm
Weight (without battery) 0,30 kg
Battery
Type LiFePo4
Capacity 14,08 Wh / 1,1 Ah
Charging temperature range 0°C to 45°C
Operating time in case of mains voltage
failure (UPS operation)
> 4 min. (battery mode)
Battery buffer > 6 Wh (incl. reserve) at 12 VDC
> 0,5 Ah (500mAh)
Weight 0,20 kg
Indoor LED display
Dimensions 53 x 13 x 8 mm (L x H x B)
Outdoor LED display
Dimensions 57 x 17 x 17 mm (L x H x B)
Subject to technical modifications. Please find information to the ambient
temperature range of our GEIGER motors under www.geiger.de
Note: The drive is always operated via the battery backup.
The battery is designed in such a way that at all times (even at 50% capacity) the drive is
operational at least 4 minutes.

19
www.geiger.de EN
EN
24. Notes on waste disposal
Recycling of packaging materials
In the interest of environmental protection, please contact your local government’s recycling or
solid waste management department to learn more about the services it provides.
Waste disposal of electric and electronic equipment and batteries
Electrical and electronic equipment, accessories and batteries must be recycled in an envi-
ronmentally friendly manner. Do not dispose of electrical appliances, electronic devices and
batteries in household waste.
According to European directives, no longer usable electrical appliances, electronic devices and
defective or used batteries/rechargeable batteries are collected separately. Reception points
are recycling centres and collection points.
Please follow the instructions in the transport section.
25. Spare parts
Art.-Nr. Description
M56F8422 Drive
M56B908 Left electronic control without battery
M56B942 Right electronic control without battery
M56F155 Adjustment switch
M56F156 Battery for electronic control type 4IFR19/66
M56F157 Outdoor LED display, L= 500 mm
M56F158 Indoor LED display, L= 3000 mm
M56E845 Connection cable, L= 500 mm with STAS 3
M56E846 Connection cable, L= 900 mm with STAS 3
M56E847 Connection cable, L= 3000 mm with open end cable
M56E789 For connection to the LED display, with plug and open end cable, inside,
L= 300 mm
M56E791 For connection to the LED display, with plug and open end cable, inside,
L= 3000 mm
M56E790 For connection to a control switch, with plug and cable open end, L= 300 mm
M56E792 For connection to a control switch, with plug and cable open end, L= 3000 mm
M56E742 For connection to the fire alarm system, with socket and resistance 8,2 kOhm,
L= 3000 mm
M56E787 Connecting cable motor/brake, L= 300 mm
M56E785 Connecting cable motor/brake, L= 500 mm
M56E781 Connecting cable motor/brake, L= 1000 mm
M56E783 Connecting cable motor/brake, L= 2000 mm
M56E788 Encoder connection cable, L= 300 mm
M56E786 Encoder connection cable, L= 500 mm
M56E782 Encoder connection cable, L= 1000 mm
M56E784 Encoder connection cable, L= 2000 mm

20
Gerhard Geiger GmbH & Co. KG | 100W1590 0519V001en
EN
EN
For technical questions, please call our service team at: [phone].
They will be happy to assist you.
Gerhard Geiger GmbH & Co. KG
Schleifmühle 6 | D-74321 Bietigheim-Bissingen
T [phone] | F [phone]
[e-mail] | www.geiger.de
