INSTALLATION, OPERATION AND
MAINTENANCE MANUAL
Positioner for Pneumatic
Linear Actuators
Ref. GENEBRE: 5952 00 –5952 04

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
2
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
1. Product Description ................................................................................. 3
2. Technical Data and Specifications ......................................................... 3
3. Safety Instructions ................................................................................. 4
4. Transport and Storage Conditions ………………………................... 5
5. Preliminary Checks ……………………………………………........... 5
6. Positioner Installation ..…………………………………………......... 5
6.1 Installation of support and positioner over the valve ..……….... 5
6.2 Connection to the transmission lever …………………………….. 6
6.3 Modification of the Adjustment device (SPAN) ………...……... 6
6.4 Air connection …….…..……………………………………....... 7
6.5 Electrical Connection ………………………………………...... 8
7. Exploded View…..…………….……………………………………….... 10
8. Start-up (Settings) ……………………………………………............ 10
8.1. Zero Setting ……..………………………………………..... 10
8.2. Span Setting …….………………………….………................ 11
8.3. Auto / Manual Switch ………….….…………………………….. 11
8.4. Seat Adjustment ……………..……….……………………….. 11
8.5 Air throttle in pilot valve……….…………………........................ 12
8.6 Regulating the position transmitter (only article 5952 04) ……...13
9. Maintenance ………..…………………………………………………... 14
10. Cleaning the A / M switch ……………..…..………………………... 15

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
3
1. Product Description.
The electro-pneumatic positioner is used for linear valve operations with pneumatic
actuators via an electric controller or control system using an analogue output signal of 4
–20 mA.
This can be used on double or single effect actuators. Easy adjustment from zero to
span. Easy to change rotation (clockwise / anti-clockwise).
Low consumption of air and easy connection of air tubes.
2. Technical Data and Specifications
Positioner Technical Specifications
Input signal
4 ~ 20 mA DC
Impedance
250 ± 15Ω
Input pressure
1.4 ~ 7 kgf/cm2(20 ~ 100psi)
Stroke
Lineal 10 –150 mm
Air connection
G (NPT)1/4”
Gauge connection
G (NPT)1/8”
Duct
M20 x 1.5
ATEX protection
Non-Explosion
Protection
IP66
Ambient temperature
-20°C ~ 70°C
Linearity
± 1.5 % F.S. (full scale)
Hysteresis
± 1.5 % F.S. (full scale)
Sensitivity
± 0.4 % F.S. (full scale)
Repeatability
± 0.5%
Air consumption
3 LPM (Sup =1.4kgf/cm2, 20psi)
Flow capacity
80 LPM (Sup =1.4kgf/cm2, 20psi)
Material
Aluminium alloy
Weight
2.8 kg (6.2 Ib)

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
4
Retransmitter Technical Specifications
Connection Type
2 Wire
Output signal
4 –20 mA DC
Impedance
0 –600 Ohm
Power voltage
15 –30V DC
Noise range
50m V pp
Temperature Range
-20ºC / 60ºC ( -4 / 140ºF)
Linearity
+- 1% F.S
Hysteresis
+- 0.2 F.S
Sensitivity
+- 0.2% F.S
3. Safety Instructions
The scope of this manual is to allow technically competent users to install, start up,
operate and inspect Genebre electro-pneumatic positioners. Qualified personnel must be
well versed with all the warnings and notes detailed in these instructions. Failure to
observe the warnings and notes could result in personal injury and material damage.
Certain parts of the positioner are subject to mechanical movement which
could cause injury.
Any work carried out on the system or electrical equipment must be performed
by qualified technicians or by specially trained personnel under the control and
supervision of said technicians, in accordance with safety regulations and
standards, as well as any other applicable national legislation.
Any misuse could cause serious damage to the components, installations and
the equipment itself as well as personal injury. Under no circumstances must
any component or part of the positioner be modified or altered. Any such
alterations or modifications shall automatically invalidate the intended use of
the positioner.

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
5
4. Transport and Storage Conditions
•The positioners are dispatched from the Genebre, S.A. facilities in suitable
packaging to prevent any blows.
•Any sling, rope or chain used to lift or transport the motorised valves must NOT
be attached to the positioner under any circumstances.
•The supports of the positioner are designed to bear operating stresses, NOT
the total weight of the valve, nor any other type of load or stress.
•Do NOT knock the positioner against walls, floors or other devices. This may
cause severe damage to the positioner or its components.
•Store in a dry and well ventilated place, protected from weather conditions.
Avoid placing directly on the floor. Use pallets. shelving or wooden bases.
•Genebre, S.A. recommends a visual inspection to check for any possible
damage during transport and storage. The visual inspection must include the
interior of the compartments.
5. Preliminary Checks
•Verify that the characteristics of the positioner correspond to the characteristics
required prior to installation and start-up These data can be found on the
nameplate.
•In the case of a deviation or non-conformity, contact Genebre, S.A.
•Maximum air supply pressure 7 kgf/cm² (100 psi)
6. Positioner Installation
6.1 Installation of Support and Positioner over the valve
•The installation of the positioner over the valve will depend on its design.
The positioner comes with a series of accessories within its packaging to cover
practically all different types of assembly.

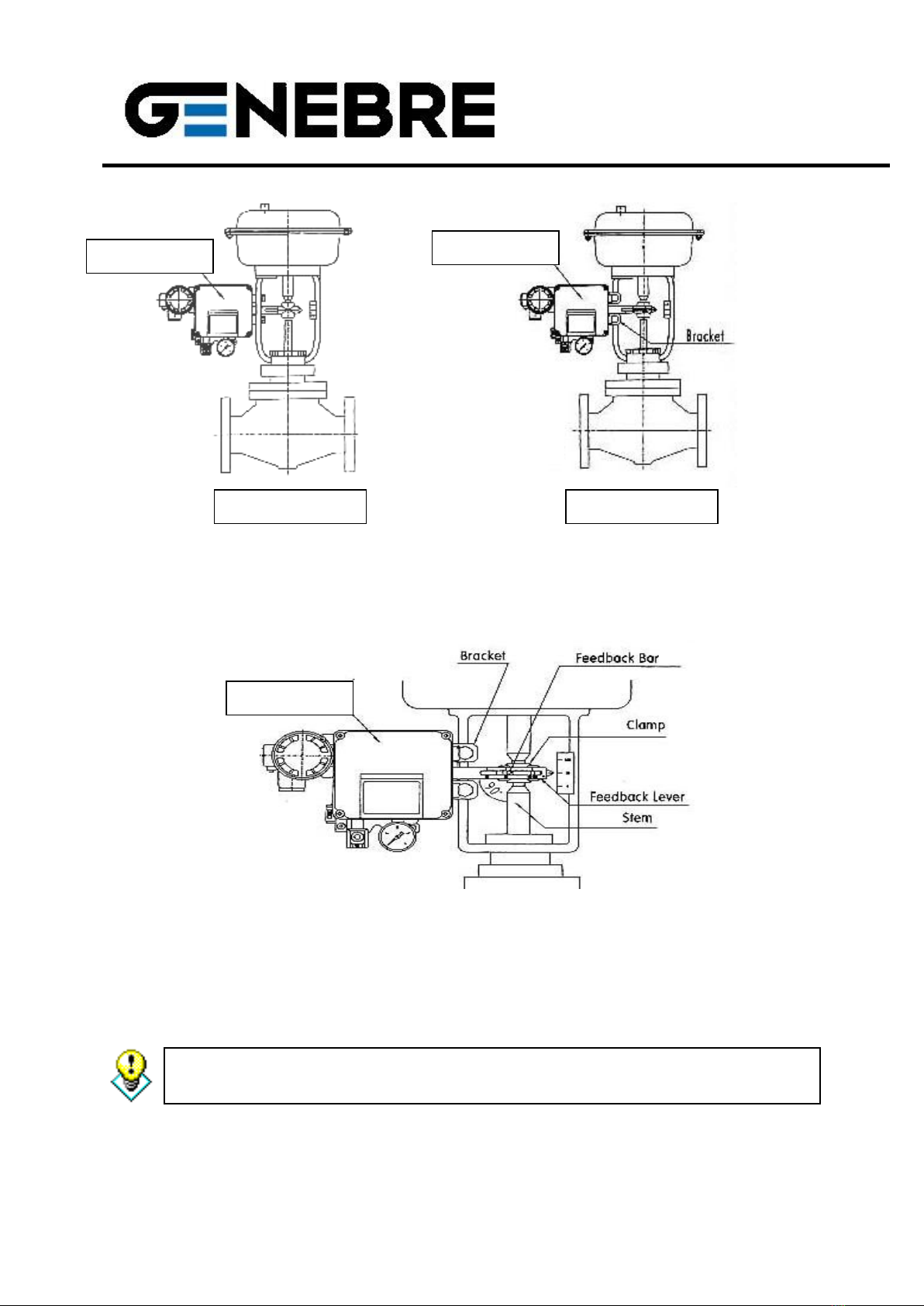

Installation examples over a Regulator and Control Valve:
Ensure that the air supply to be used is dry, clean and filtered as a
poor quality air supply could severely damage the positioner.

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
6
6.2 Connection to the transmission lever
The position of the valve stem and the lever must form a right angle when the
input signal is at 50%.
6.3 Modification of the Adjustment Device (SPAN)
Caution: Do not supply air to the equipment during this operation, as this may
be extremely dangerous.
Positioner
Side support
Positioner
Front support
Positioner

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
7
Note: The positioner leaves the factory with the SPAN stroke adjustment device in the "DA"
(direct action) position.
In the case of it being necessary to change the action direction (Reverse Action), proceed
as follows:
•Remove the cover of the positioner.
•Remove the support screw from the Regulation lever.
•Rotate the Span Regulation device 180º until the span adjustment screw is in the
position opposite the gauge (see diagram).
•Secure the Regulation Lever in place with the screw.
•If it is necessary to reverse the position of the lever, remove the spring holding it in
place and then when the lever is in place once again place it in its original position.
6.4 Air Connection
Caution: Ensure that the supply air to be used is dry, clean and filtered
Direct Action
Reverse Action
Support Screw
for regulation lever
Span Regulation
Device
Stroke Adjustment
Screw
Support Screw
for regulation lever
Span Regulation
Device
Stroke Adjustment
Screw

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
8

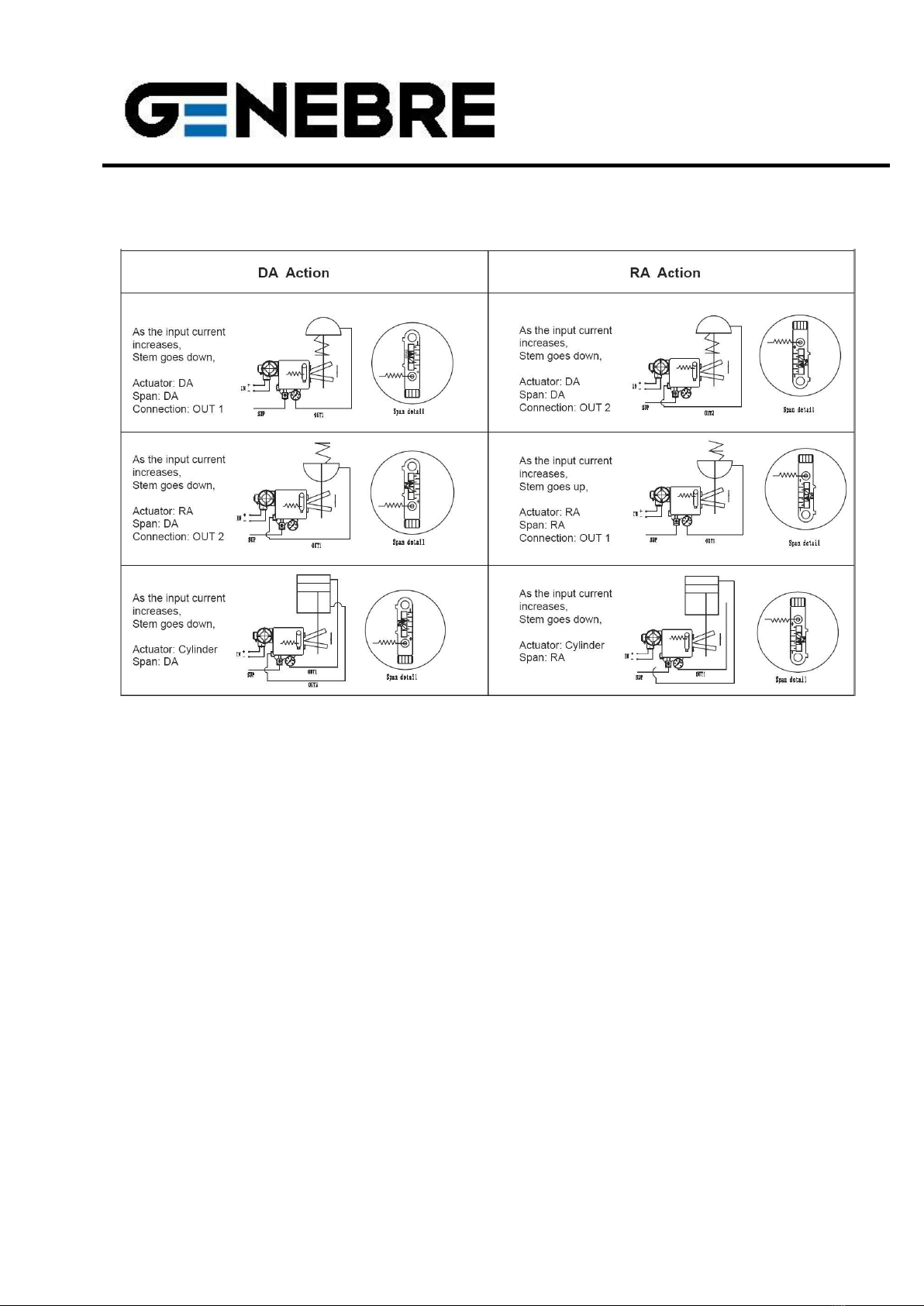

Depending on the need and configuration of the valve, the possible
air connection combinations are as follows:
1. Use a regulator with a filter to maintain a constant air supply pressure
(optimum supply pressure of 6 bar to operate the actuator)
2. Completely purge the circuit of air to avoid any foreign bodies.
3. On applications with simple effect actuator (spring return) outlet seal OUT1 or
OUT2 as applicable.
6.5 Electrical connection (transmission signal).
Connect the (+) and (-) supply terminals to the respective (+) and (-) input terminals of the
positioner or retransmitter, as appropriate.

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
9

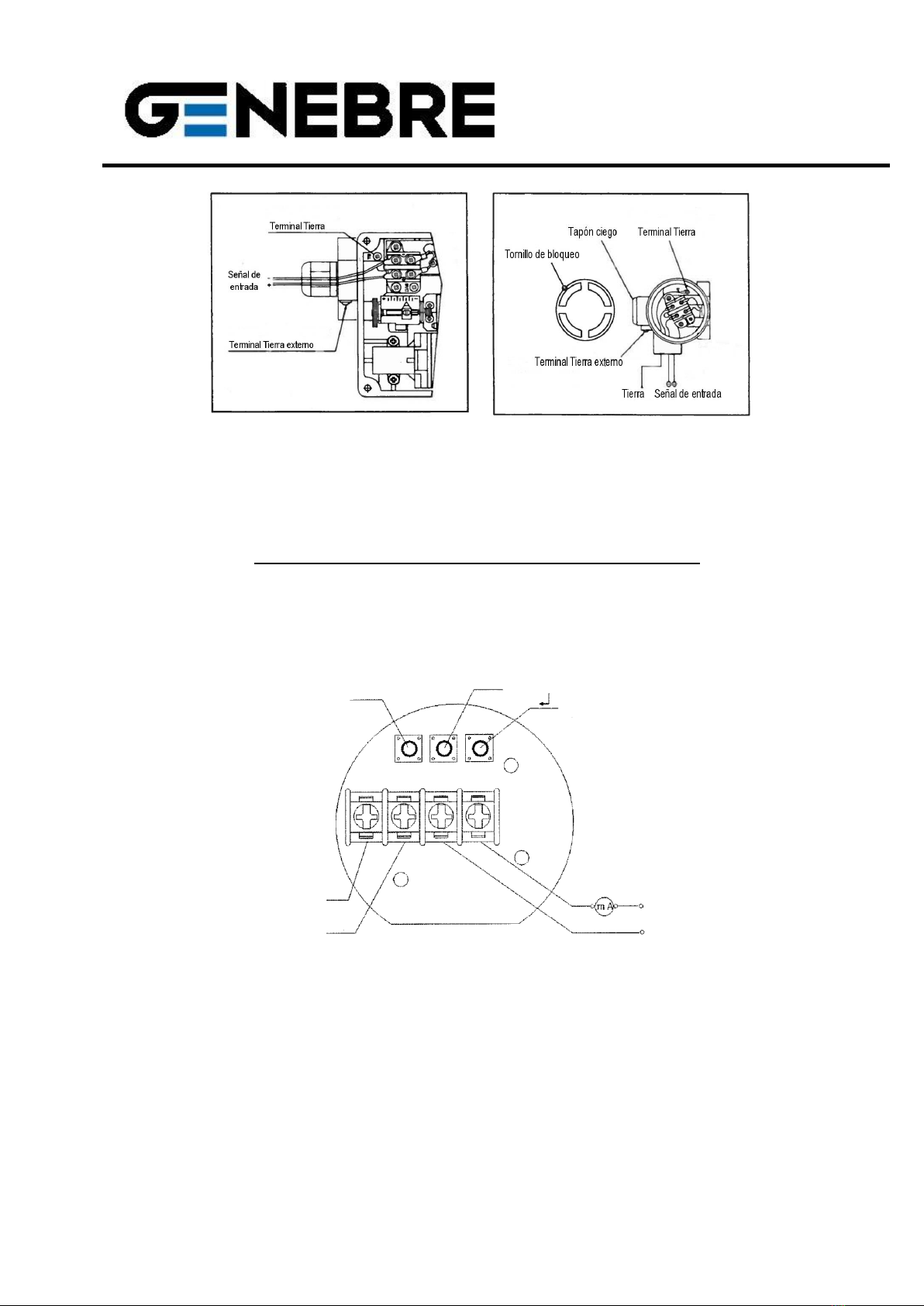

Art. 5952 00 Art. 5952 04
Detail of connection to the transmitter Art. 5951 04
Once the connections are completed, replace the cover and close using the screws.
Botones de Ajustes / Adjust button
+ -
Boton de confirmación /
Confirmation button
Entrada / Input
4 –20 mA
-
Salida / Output
4 –20 mA at 24VDC
+
+
-

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
10

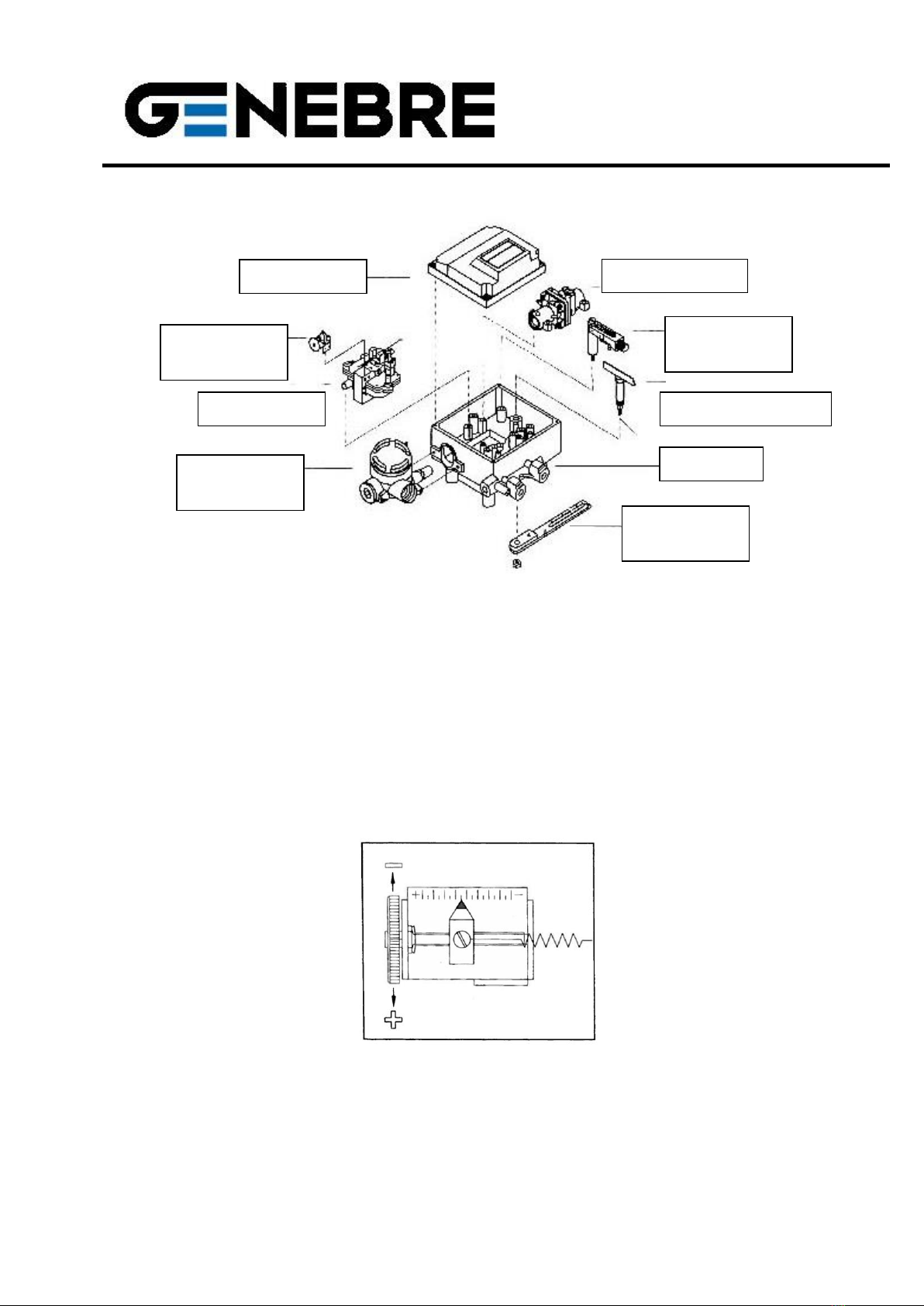

7. Exploded view
8. Start-up (Settings)
Note: The positioner is already calibrated when leaving the factory
8.1 Zero Setting
•This sends the stroke start signal (4 mA).
•Rotate the ZERO adjustment wheel clockwise or anti-clockwise until the reference
lines of the indicator cam match the closed position of the valve.
ZERO
•In the case of a simple effect actuator, check that it is at the zero point at standard
pressure. Otherwise repeat the Zero Adjustment.
Cover
Zero
Adjustment
Torque
Transmitter
(art. 5952 04)
Pilot Valve
Span
Adjustment
Stroke transmitter
Casing
Transmission
lever

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
11
8.2 Span Setting
•Adjust the range so that the actuator stops at 0% position of the stroke with 0% of
the input signal (4 mA), and that it stops at 100% position with 100% of the input
signal (20 mA) respectively.
•Check the Zero point and repeat the Span adjustment as many times as
necessary.
•Once the equipment has been adjusted, tighten the locking screw.

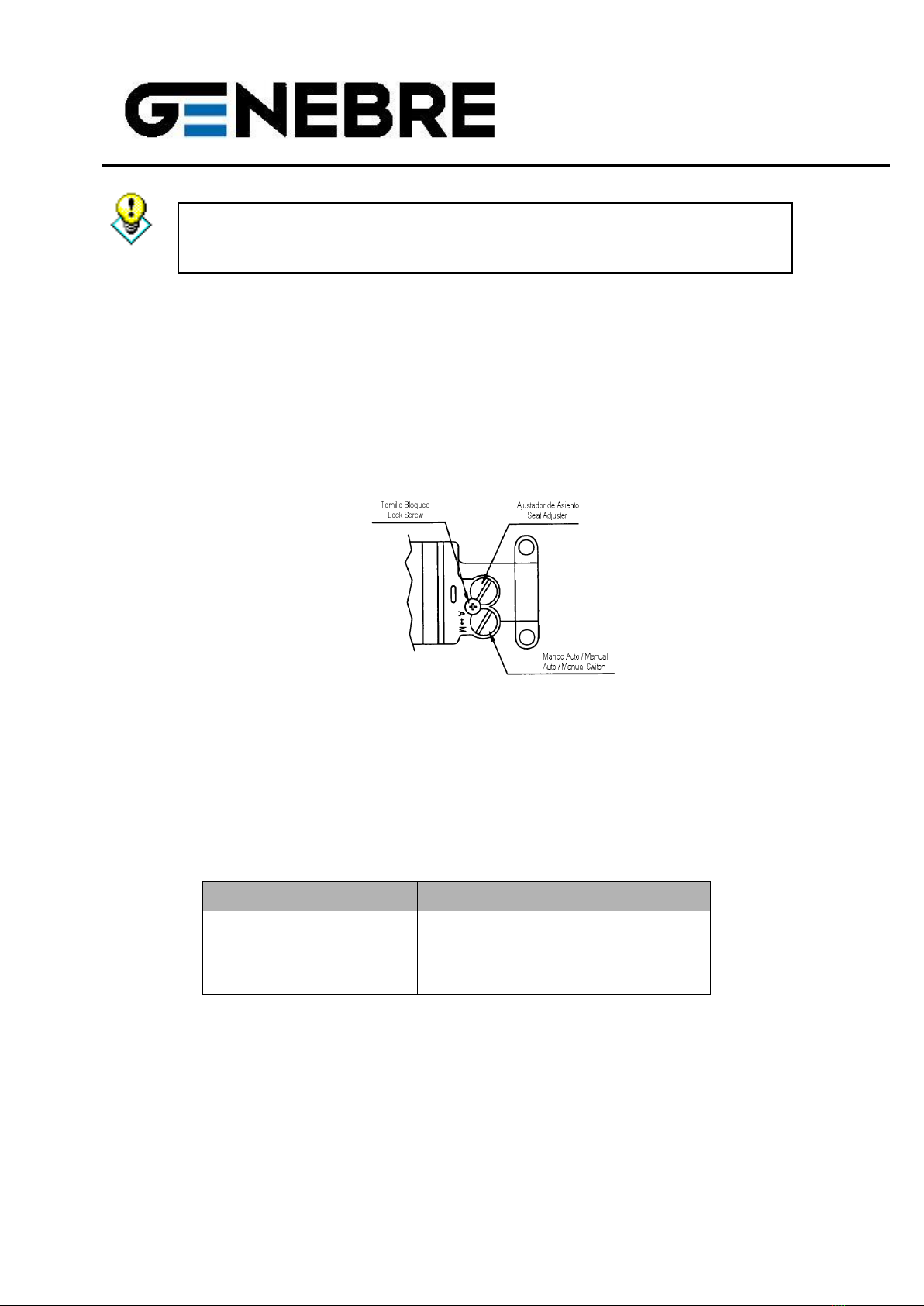

8.3 Auto / Manual Switch
This control is used to switch between Auto and Manual mode. The equipment leaves the
factory in Auto mode. To change to manual mode, turn the A/M regulator anti-clockwise.
In Manual mode, the network pressure connects directly to the actuator. Return to Auto
mode after using.
Option not applicable to a simple effect actuator connected to the OUT2 output.
8.4 Seat Adjustment
Caution: This adjustment is performed in factory, therefore no
further manipulation is required.

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
12
•In the case that the sensitivity is very low due to the actuator operating at full load,
turn the Seat Adjuster clockwise. If the equipment remains in continual oscillation,
turn anti-clockwise until a balance is obtained. Take care not to loosen the locking
screw as the seat adjuster may come off.
•In the case that there is oscillation due to the assembly with the actuator with a low
air capacity, consult point 8.5.
8.5 Air throttle in pilot valve
In the case of actuators with low air capacity, this could cause oscillation on the
equipment, rendering it inoperable. In this case, use air throttles in outlets OUT1 and
OUT2 in the pilot valve. There are two sizes available that are supplied with the
equipment.
Actuator Volume
Output Orifice Diameter
Less than 90 cm3
Ø 0.7
Between 90 ~ 180 cm3
Ø 1.0
Greater than 180 cm3
None
•Remove the pilot valve.
•Remove the O ring, position the throttle and replace the O ring. Take care not to
leave any foreign bodies in the orifice of the throttle.
•Perform the same operation on the two air outputs (OUT 1 and OUT 2).
•Replace the pilot valve on the equipment.
CAUTION! This adjustment must only be carried out by qualified
technicians, otherwise, the equipment may become completely
unconfigured.

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
13
If after performing this action the oscillation continues without stopping, please contact
Genebre S.A.
8.6 Regulating the transmitter (only article 5952 04)
In the case that it is necessary to be able to calibrate the transmission settings so that the
output signal values match the sent signal values (4 / 20 mA).
8.6.1 Connect 24VDC power source, series connect amperemeter convenient for
observing the feedcack signal’s current value.
Observe the value of the amperemeterr: it must be between 4mA and 20 mA.
8.6.2 Press the "enter" button until the indicator light comes on, release the “enter”button
and the indicator light flashes indicating that regulation begins.
Observe the aperemeter value: the value should be 4 mA, if there is deviation, can press
the “+”button or “-“button, adjust the current value.
8.6.3 Feedback signal 0% (4 mA) position adjusting
The valve locate in original 0% (4 mA) position. Press the “+” button or “-“button , adjust
the current value, then press the “enter” button.
Observe the amperemeter value: if the amperemeter value jump from 4 mA to 8 mA
around, means the feedback signal 0% (4 mA) position confirmed. Module waiting for the
feedback signal 25% (8 mA) position confirm.
8.6.4 Feedback signal 25% (8 mA) position adjusting
The valve locate in feedback 25% (8 mA) position. Press the “+” button or “-“button ,
adjust the current value, then press the “enter” button.
Observe the amperemeter value: if the amperemeter value jump from 8 mA to 12 mA
around, means the feedback signal 25% (8 mA) position confirmed. Module waiting for
the feedback signal 50% (12 mA) position confirm.

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
14
8.6.5 Feedback signal 50% (12 mA) position adjusting
The valve locate in feedback 50% (12 mA) position. Press the “+” button or “-“button ,
adjust the current value, then press the “enter” button.
Observe the amperemeter value: if the amperemeter value jump from 12 mA to 16 mA
around, means the feedback signal 50% (12 mA) position confirmed. Module waiting for
the feedback signal 75% (16 mA) position confirm.
8.6.6 Feedback signal 75% (16 mA) position adjusting
The valve locate in feedback 75% (16 mA) position. Press the “+” button or “-“button ,
adjust the current value, then press the “enter” button.
Observe the amperemeter value: if the amperemeter value jump from 16 mA to 20 mA
around, means the feedback signal 75% (16 mA) position confirmed. Module waiting for
the feedback signal 100% (20 mA) position confirm.
8.6.7 Feedback signal 100% (20 mA) position adjusting
The valve locate in feedback 100% (20 mA) position. Press the “+” button or “-“button ,
adjust the current value, then press the “enter” button.
Observe the amperemeter value: the amperemeter value should be reduce at first, after
the value stable, it will comeback to 20mA, at the same time, the indicator light on module
will flash some times.
After finished step 8.6.7, the module automatic enter normal run state
9. Maintenance
Although this equipment is maintenance free it is recommended to carry out frequent
inspections, which must include:
•Checking the assembly / alignment of the actuator and positioner.
•Verifying the electrical signal connection.
•Ensuring that all the screws are present and are firmly tightened.
•Checking the status of the air filters of the installation to ensure the quality of the
air reaching the equipment.

Edificio Genebre. Av. de Joan Carles I, 46-48
08908 L'Hospitalet de Llobregat. Barcelona (Spain)
[e-mail] - www.genebre.es
GENEBRE S.A.
LAST UPDATE: 17/06/2019 UPDATE NUMBER: 1
15

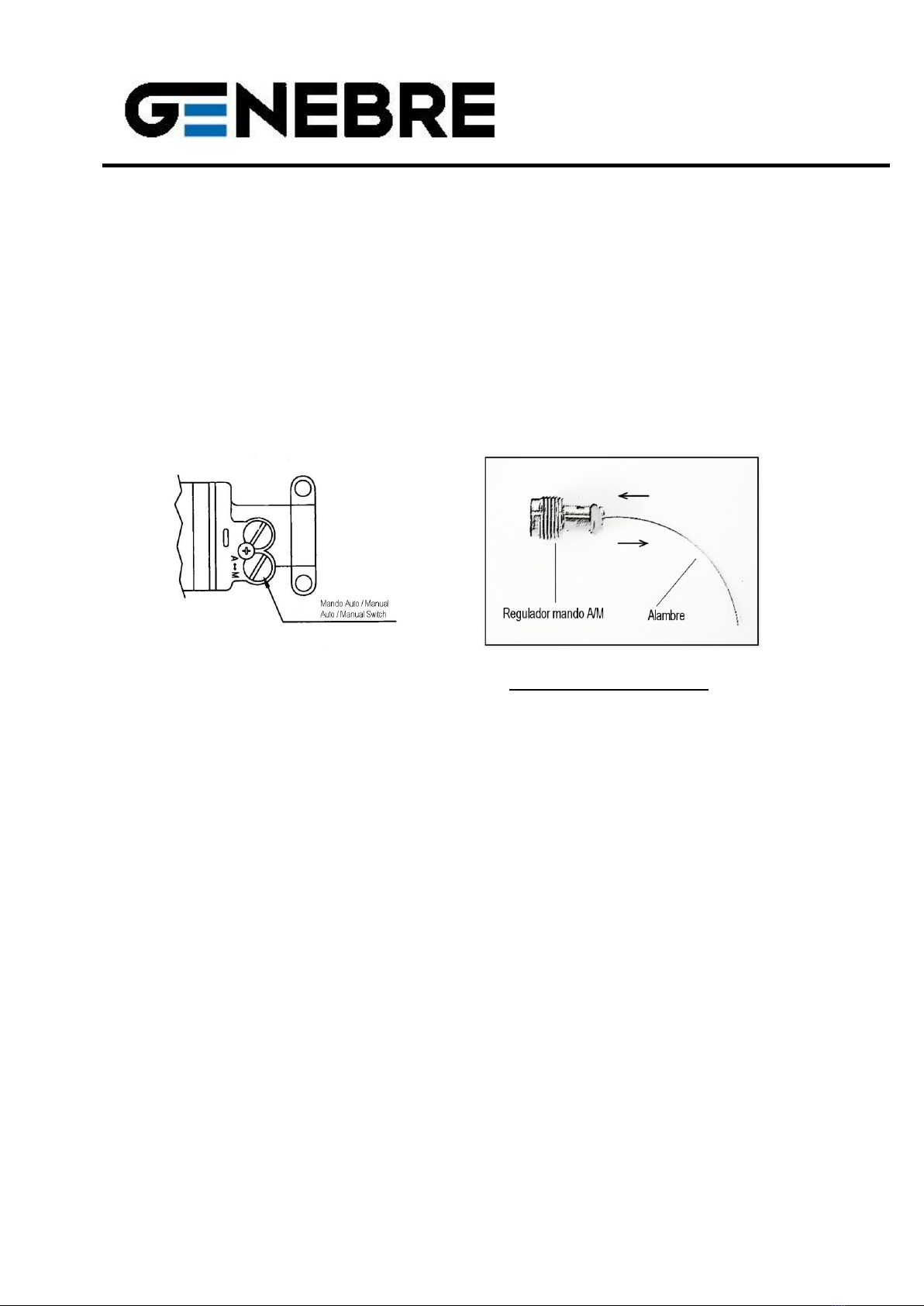

10. Cleaning the A / M switch
In the case that the positioner does not correctly respond to the input signals, proceed
as set out below:
•Disconnect any air or electricity supply.
•Remove the A / M Switching regulator from the pilot valve.
•Insert the wire (attached to the interior of the cover) through the air inlet
located in the A/M regulator in order to eliminate any particle that may have
become trapped inside.
Cleaning the A/M switch
•Finally, clean the A/M Switching regulator with compressed air and return it to its
housing. Do not forget to secure it with the locking screw.
•The equipment is ready for operation.
