Generac Portable Products 1281-0 User manual

1300PSI
Pressure Washer
Owner’s Manual Problems?
Questions?
Before taking your unit
back to the store,
call the pressure washer
helpline at
1-800-2 0-1408
M-F 8-5 CT
GENERAC
The Reliable Ones
This symbol points out important safety instructions, which, if not followed, could endanger the
personal safety and/or property of yourself and others. Read and follow all instructions in the
manual before attempting to operate this unit.
Model No. 12810 (1300 PSI High Pressure Washer) Manual No. B3 25 Revision 0 (4/12/99)

2
Generac Portable Products 1300 PSI Pressure Washer
CAUTION! Read all instructions before using
this product to reduce the risk of injury
DANGER!  Never discharge high pressure
stream at people or animals The high pressure
stream of fluid that this equipment can produce
may pierce skin and its underlying tissues,
creating a pressure puncture wound, leading
to serious injury, amputation or death. Seek
immediate surgical treatment if you receive a
pressure puncture wound
 Inspect hose each time before using it The high
pressure hose can develop leaks from wear, kinking,
abuse, etc Check all hoses for cuts, leaks,
abrasions, bulging of cover, damage or movement
of couplings If any of these conditions exist, replace
hose immediately with another that meets the
maximum pressure rating of your pressure washer
Never repair a high pressure hose. Water
spraying from a leak is capable of creating a
pressure puncture wound Seek immediate surgical
treatment if you receive a pressure puncture wound
 Keep the hose connected to machine or the spray
gun while the system is pressurized Disconnecting
the hose while the unit is pressurized can cause a
pressure puncture wound
DANGER! Risk of electrocution!
 Inspect cord before every use Do not use if cord is
damaged
 Keep all connections dry and off the ground
 Never touch plug with wet hands
Connect the pressure washer to a power supply
receptacle protected by a Ground Fault Circuit
Interrupter (GFCI). This is done to comply with
National Electrical Code (NFPA 70) and to provide
additional protection from risk of electrical shock
 Keep water spray away from electric wiring or fatal
electric shock may result
WARNING! To reduce the risk of injury, close
supervision is necessary when product is used
near children Do not allow CHILDREN to
operate the Pressure Washer at any time
 Know how to stop the product and bleed the
pressure quickly Be thoroughly familiar with
controls
 Stay alert Watch what you are doing
 Do not operate the product when fatigued or under
the influence of alcohol or drugs
 Keep operating area clear of all people
 Do not overreach or stand on unstable support
Keep good footing and balance at all times
 Operate this pressure washer only in areas away
from combustible materials, combustible fumes or
dust
 Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea, fainting
or poisoning The harmful elements may cause
property damage or severe injury Always use
detergents and chemicals approved for use with
pressure washers and follow the manufactures
instructions for proper use.
 Before starting the pressure washer in cold weather,
check all parts of the equipment and be sure ice has
not formed Never use pressure washer in icy
conditions
 Units with broken or missing parts, or without
protective housing or covers should NEVER be
operated
DANGER! Risk of Explosion  Never spray
flammable liquids
Save these instructions
IMPORTANT!  SAFETY INSTRUCTIONS  IMPORTANT!

3
Generac Portable Products 1300 PSI Pressure Washer
Always wear eye protection when you use this
equipment or when you are in vicinity where the
equipment is in use High pressure spray can cause
paint chips or other particles to become airborne
and fly at high speeds
 Never move the machine by pulling on high
pressure hose Use the handle provided on the top
of the unit
 Use a respirator or mask whenever there is a
chance that vapors may be inhaled Read all
instructions with the mask so you are certain the
mask will provide the necessary protection against
inhaling harmful vapors
 High pressure spray may damage fragile items
including glass Do not point spray gun at glass
when in high pressure.
 Hold the spray gun firmly in your hand before you
start the unit Do not leave the pressure washer
unattended while the machine is turned on
 Cleaning area should have adequate slopes and
drainage to reduce possibility of a fall due to
slippery surfaces
 Do not bypass any safety device on this machine
 Operate and store this unit on a stable, level
surface
 Store in a clean, dry frostfree room
Servicing a Double Insulated
Product
In a doubleinsulated product, two systems of
insulation are provided instead of grounding No
means of grounding is provided on a
doubleinsulated product, nor should a means for
grounding be added
Servicing a doubleinsulated product requires
extreme care and knowledge of the system and
should be done only by qualified service
personnel. Replacement parts for a doubleinsulated
product must be identical to the parts they replace
Use only genuine replacement parts A
doubleinsulated product is marked with the words
DOUBLE INSULATION or DOUBLE INSULATED
The symbol may also be marked on the product
Extension Cords
Use only extension cords that are approved for
outside use. These extension cords are identified by
a marking ACCEPTABLE FOR USE WITH
OUTDOOR APPLIANCES; STORE INDOORS
WHILE NOT IN USE  Use only extension cords
having an electrical rating greater than the rating of
the product
Do not use damaged extension cords Examine
extension cord before using and replace if damaged
Do not abuse extension cord and do not yank on any
cord to disconnect it Keep cord away from heat and
sharp edges Always disconnect the extension
cord from the receptacle before disconnecting the
pressure washer from the extension cord.
Save these instructions
IMPORTANT!  SAFETY INSTRUCTIONS  IMPORTANT!

4
Generac Portable Products 1300 PSI Pressure Washer
CONGRATULATIONS on your purchase of a
GENERAC electric high pressure washer It has been
designed, engineered and manufactured to give you
the best possible dependability and performance
Should you experience any problem you cannot
easily remedy, please contact your nearest
GENERAC Authorized Service facility, or call
18002 01408 We have competent, welltrained
technicians and the proper tools to service or repair
this unit
Please read and retain this manual The instructions
will enable you to assemble and maintain your high
pressure washer properly Always observe the
SAFETY INSTRUCTIONS 
CUSTOMER
RESPONSIBILITIES
 Read and observe the safety rules
 Follow regular schedule in maintaining, caring for
and using your high pressure washer
 Follow the instructions under Maintenance and
Storage sections of this Owner's Manual
PRODUCT
SPECIFICATIONS
Pressure Washer Specifications
Pressure 1300 pounds per square inch
(PSI)
Flow Rate 1 5 gallons per minute (GPM)
Detergent Mix Use Undiluted Detergent
Water Supply Inlet water not to exceed
Temperature 104°F
Motor Brush Type (Universal)
Rated Voltage 120 Volts
Current 14 Amperes
Read these instructions and Operators Manual in its
entirety before you attempt to assemble or operate
your new high pressure washer Your high pressure
washer has, for the most part, been assembled at the
factory Before you can operate your new high
pressure washer, you must properly connect the high
pressure hose and the water supply
If you have any problems with the assembly of your
pressure washer, please call the pressure washer
helpline at 18002 01408.
Model
Number 12810
Serial
Number_________________________________
Date of
Purchase________________________________
The model and serial numbers will be found on a
decal attached to the pressure washer Record
both serial number and date of purchase and keep
in a safe place for future reference

KNOW YOUR PRESSURE WASHER
Read this owners manual and safety rules before operating your high pressure washer. Compare the
illustrations with your high pressure washer to familiarize yourself with the locations of various controls and
adjustments Save this manual for future reference
5
Generac Portable Products 1300 PSI Pressure Washer
Bayonet Adapter (not shown)  Connector
accommodates the connection of a utility and rotating
brush to the spray gun
Foamer  Used to apply detergent Mixes water
and detergent in outlet water flow
Goggles (not shown)  Always wear eye protection
when operating your pressure washer
Grip Start System  Pressing and releasing the
spray gun trigger starts and stops the electric motor in
the pressure washer
High Pressure Hose  Connect ends to spray gun
and high pressure outlet
High Pressure Outlet  Connection for high
pressure hose
Master On/Off Switch  This switch ONLY enables
the Grip Start system to function
QuickConnect (not shown)  Allows rapid
connection of your garden hose to the water inlet
Spray Gun  Controls the application of water onto
cleaning surface with trigger device Includes safety
latch
Turbo Nozzle with Extension  Attaches to the
spray gun and allows you to clean or rinse surfaces at
high pressure You cannot apply detergent using the
turbo nozzle
Utility Brush  Attaches to the spray gun with the
bayonet adapter Use this brush to scrub a variety of
surfaces
Water Inlet  Connection for garden hose
Spray Gun
Grip Start
System
Master On/Off Switch
High Pressure Outlet
High Pressure Hose
Water Inlet
Utility Brush
Turbo Nozzle with
Extension
Foamer

6
Generac Portable Products 1300 PSI Pressure Washer
CARTON CONTENTS
Items in the carton include:
 Main Unit
 Cart Base
 Cart Box (which includes hardware to assemble the
cart)
 Parts Box (which includes the following):
 Goggles
 Owners Manual
 Spray Gun
 Turbo Nozzle with Extension
 Foamer
 High Pressure Hose
 Utility Brush
 Parts Bag (which includes the following)
 Nozzle Cleaning Kit
 Bayonet Adapter, must be used to attach the
utility brush to the gun
 QuickConnect (male and female ends)
Refer to the above list for an illustrated listing of all
items included with your pressure washer Become
familiar with each piece before assembling the
pressure washer Check all contents against list If any
parts are missing, call the pressure washer helpline at
18002 01408.
CART ASSEMBLY AND
INSTALLATION
To assemble your cart you need the following
tools:
 Hammer
 Adjustable Wrench
 Phillips Screwdriver
 Wood Block
Assemble Cart as follows:
1 Place wood block (not supplied) on hard surface
2 Place axle (Item 6) on wood block and tap axle
cap (Item 3) onto axle
3 Install wheel (Item 4) on axle with raised hub away
from axle cap Install axle spacer (item 5) and
insert axle through mounting holes on cart base
4 Turn cart base on its side, resting axle cap on
wood block
5 Install axle spacer (Item 5) and then wheel (Item
4) on axle with raised hub toward cart base Tap
axle cap (Item 3) onto axle
6 Attach cart handle (Item 10) using one carriage
bolt (Item 7) and one knob (Item 8) on both sides
of handle
7 Slide two T-Head bolts (Item 11) into slots on
bottom of pressure washer unit
8 Align bolts on pressure washer to holes on cart
base Tighten to cart base with nuts (Item 2)
9 Insert wire frame accessory holder (Item 9) into
cart handle as shown
Figure 1  Assemble the Cart

7
Generac Portable Products 1300 PSI Pressure Washer
HOW TO SET UP
PRESSURE WASHER
 Unwind the high pressure hose and attach it to spray
gun (Figure 2)
 Attach the high pressure hose to the high pressure
outlet and tighten by hand (Figure 3)
 Included with this unit is a quick-connect fitting that
you must attach to the water inlet and your garden
hose You can install the male connector by hand
but you may need to use an adjustable wrench to
tighten it (Figure 4)
 Check the screen on the female connector Make
sure it is clean and check for damage If you see
any damage in the screen, do not use that
female connector. Call the pressure washer
helpline to order a replacement
 Attach the female quick connect to your garden
hose
 Attach garden hose to the water inlet using the
quickconnect The quickconnect should lock in
place (Figure 5)

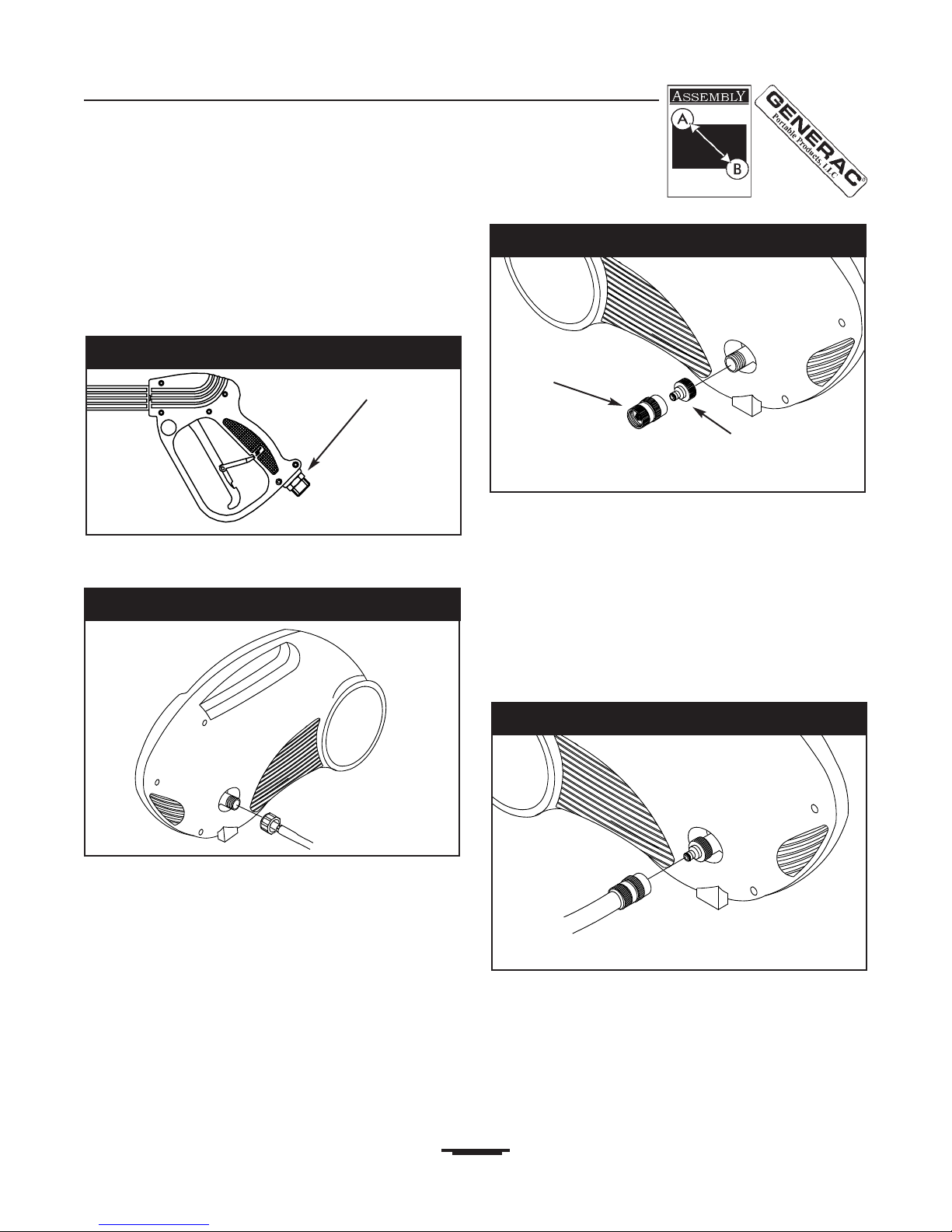

Figure 2  Attach High Pressure Hose to Spray Gun
Connect high pressure
hose here
Figure 3  Attach High Pressure Hose to Main Unit
Figure 4  Install QuickConnect
Figure 5  Connect Garden Hose to Water Inlet
Male
QuickConnect
Female
QuickConnect

8
Generac Portable Products 1300 PSI Pressure Washer
DANGER! When connecting the unit to a
power supply receptacle, use ONLY a
receptacle protected by a Ground Fault Circuit
Interrupter (GFCI) This will help protect against
electrical shock
CAUTION! Before starting you should be sure
the electrical supply is rated at 120 volts, 15
amps
WARNING! To reduce the risk of
electrocution, keep ALL connections dry and off
the ground DO NOT touch plug with wet
hands
HOW TO OPERATE YOUR
PRESSURE WASHER
Note: We do not recommend that you use extension
cords with this pressure washer If, however, your
application requires that you need an extension cord,
use only extension cords that are approved for outside
use These extension cords are identified by a marking
ACCEPTABLE FOR USE WITH OUTDOOR
APPLIANCES; STORE INDOORS WHILE NOT IN
USE  Use only extension cords having an electrical
rating not less than the rating of the product Do not
use damaged extension cords
 Turn on the water.
NOTE: Inlet water temperature should not exceed
104°F
 Squeeze trigger to purge pump of system air and
impurities
 Attach the turbo nozzle extension to spray gun by
aligning the locking tabs on the extension with the
grooves in the gun Push extension inward and twist
clockwise to lock in place (Figure 6)
 Press the master On/Off Switch to the On position
(Figure 7)
DANGER! You must be careful at this point
Anytime you squeeze the trigger, the motor will
start and water will spray out of the gun
DANGER! You must attach the spray gun and
all hoses before you start the motor
WARNING! Before starting the pressure
washer, be sure you are wearing adequate eye
protection Goggles are included with this unit
Figure 6  Connect the Turbo Nozzle Extension to the
Spray Gun
Figure 7  Press the Master On/Off Switch to the On
Position

9
Generac Portable Products 1300 PSI Pressure Washer
WARNING! Gun kicks back Use both hands
DANGER! Risk of injury or injection to people
and animals Never discharge stream at people
or animals
 Squeeze trigger to produce spray
NOTE: Behind the trigger to the gun is a SAFETY
LATCH You can place this latch as shown (Figure 8)
to keep the washer from accidentally spraying while
you are changing the nozzle head or foamer or
performing other tasks
STOPPING YOUR
PRESSURE WASHER
 If the pressure washer is running, release the trigger
DANGER! Releasing the trigger will shut off
the motor but does not shut off the unit You
must also place the Master On/Off Switch to
the OFF position
 Place Master On/Off switch in Off position Simply
shutting OFF motor will not release pressure in the
system Squeeze the trigger on the gun to relieve
the pressure in the hose
DANGER! Never leave your pressure washer
unattended even when turned off
HOW TO USE YOUR
PRESSURE WASHER
Applying Detergent With Foamer
IMPORTANT: Use soaps designed specifically for
pressure washers Household detergents could
damage the pump
NOTE: Never use garden hose inlet to siphon
detergent or wax
DANGER! You MUST attach all hoses and the
spray gun before you start the motor
WARNING! Before removing any spray gun
extension, be sure to turn off the pressure
washer and relieve pressure by pressing the
trigger You could be injured if you try to
remove an extension if the pressure washer is
running and there is pressure in the system
Pressure washers are useful cleaning tools designed
to clean almost any surface in two easy steps
 First, apply an appropriate detergent/solvent solution
to penetrate and loosen grime Apply detergent at
low pressure to avoid splashing, overspraying
and waste. Leave the solution on surface for 3 to 5
minutes to allow solution to work Reapply as
necessary to keep solution from drying
 The second step involves cleaning the surface you
have prepared with the pressure washer and then
rinsing it clean
To apply detergent follow these steps:
 Detach the turbo nozzle extension from the spray
gun
 Remove the bottle from the foamer
 Align the locking tabs on the foamer with the
grooves in the gun Push inward and twist clockwise
to lock in place (Note: make sure that when you
lock the foamer into place you have the hose that
connects to the foamer bottle hanging downward )
(Figure 10)
 Prepare your detergent solution as required by the
manufacturer and fill bottle with the solution
Figure 8  Apply the Safety Latch

10
Generac Portable Products 1300 PSI Pressure Washer
 Attach bottle onto foamer making sure the bottle
hangs down
 Start washer and apply detergent to a dry surface,
starting from the bottom and working up
 To rinse, YOU MUST, stop the pressure washer,
remove the foamer and connect the adjustable
nozzle extension
Note Detergents are most effective applied to a dry
surface
How to Use the Turbo Nozzle
The turbo nozzle rotates the high pressure stream in a
rapid circular pattern The high pressure spray is most
effective when the tip of the wand is held between 8 to
24 inches from the surface being cleaned
Always start the turbo nozzle at a distance, gradually
getting closer to the surface until you get the cleaning
force you want
CAUTION! The turbo nozzle produces an
extremely high pressure spray which is capable
of removing paint and cutting holes through
surfaces if held too close Always make sure
the surface you will clean will not be damaged
by the high pressure spray by testing in a
hidden area
Note: You cannot apply detergent with the turbo
nozzle
How to Use the Utility Brush
The utility brush allows you to scrub surfaces with
water filtering through the bristles
To attach the utility brush to the gun:
 Attach the bayonet adapter to the base of the brush
Tighten
 Remove the turbo nozzle extension from the gun if
attached
 Attach the brush with the bayonet adapter to the
spray gun by aligning the locking tabs on the
adapter with the grooves in the gun Push the brush
inward and twist clockwise to lock in place
Note: You must use the bayonet adapter to attach the
brush to the gun
To Clean
Start at lower portion of area to be washed and work
upward, using long, even overlapping strokes
Detergent or degreaser works best when you apply it
to a dry surface first Let it set for 35 minutes before
washing and rinsing
Rinse
Start at the top of area to be rinsed, working down with
the same action as for cleaning
Figure 10  Connecting the Foamer

11
Generac Portable Products 1300 PSI Pressure Washer
CUSTOMER
RESPONSIBILITIES AND
MAINTENANCE
The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negligence To receive full value from the
warranty, operator must maintain high pressure
washer as instructed in this manual
BEFORE EACH USE
Check and Clean Inlet Screen
Remove the quickconnect and examine the inlet
screen Clean the inlet screen if clogged replace it if
damaged
Check High Pressure Hose
DANGER! Water spraying from a leak is
capable of injecting material into skin Inspect
hose each time before using it Never repair
high pressure hose Replace it with another
hose that meets minimum pressure rating of
your pressure washer
High pressure hose can develop leaks from wear,
kinking, and abuse Check all hoses for cuts, leaks,
abrasions or bulging of cover, or damage or movement
of couplings If any of these conditions exist, replace
hose immediately
Check Gun and Wand
Examine hose connection and make sure it is secure
Test trigger by pressing it and making sure it springs
back into place when released Put safety latch in ON
position and test trigger You should not be able to
press trigger
Purge Pump of Air and Debris
To remove the air from the pump, follow these
steps:
 Set up the pressure washer as described in the
ASSEMBLY section and connect the water supply
 Remove the turbo nozzle extension from the gun
 Pull the trigger on the gun and hold
To remove the contaminant from the pump, follow
these steps:
 Set up the pressure washer as described in the
ASSEMBLY section, connect the water supply and
start the pressure washer according to instructions
in the OPERATION section
 Remove the turbo nozzle extension from the gun
 Pull the trigger on the gun and hold
 When the water supply is steady and constant, you
may refasten the turbo nozzle extension and use
pressure washer normally
PREPARING THE UNIT FOR
STORAGE
Water should not remain in the unit for long periods of
time Sediments of minerals can deposit on pump
parts and freeze pump action If you do not plan to
use the Pressure Washer for more than 30 days,
follow this procedure:
1 Shut off the pressure washer, unplug it and let it
cool, then remove all hoses
2 Store the pressure washer and its components in
such a way as to protect it from freezing
5 Store in a clean, dry, frostfree area
6 Coil the high pressure hose and inspect it for
damage Cuts in the hose or fraying of it could
result in leaks and loss of pressure Should any
damage be found, replace the hose DO NOT
attempt to repair a damaged hose Replace the
hose with the genuine Generac part
7 Drain water from hose and properly store it to
prevent cuts and general wear

TROUBLESHOOTING
12
Generac Portable Products 1300 PSI Pressure Washer
Problem Cause Correction
Pressure washer will not
start
1 No electrical power
2 Motor overheats
3 Trigger not open
4 Low voltage
5 Electrical defect
1 Check Cord, receptacle, plug power,
electrical supply and circuit breaker/fuse
2 Turn off the unit Press trigger to relieve
pressure Allow unit to cool about 2
minutes It should run when you turn it
on again
3 Pull on trigger
4 Contact Generac Service Facility
5 Contact Generac Service Facility
Pressure washer does not
come up to pressure.
1 Pump is sucking air
2 Water Inlet is clogged
3 Pump not bled to remove
air
4 Pump is faulty
1 Water hose must be ½ or greater in
diameter Make sure the water supply is
all the way on and clean Check all
connections for leaks or blockage Turn
off the unit, hold trigger in open position
to relieve pressure and allow air in the
system to escape With the trigger still in
the open position, turn on the unit
Repeat if necessary
2 Clean water inlet screen
3 Switch the pressure washer off, press
trigger, switch on washer while pressing
trigger Repeat if necessary
4 Contact Generac Service Facility
High Pressure Spray is
irregular.
Water supply is inadequate Turn on water to full

NOTES
13
Generac Portable Products 1300 PSI Pressure Washer

14
Generac Portable Products 1300 PSI Pressure Washer
EXPLODED VIEW  PUMP AND MOTOR

15
Generac Portable Products 1300 PSI Pressure Washer
PARTS LIST  PUMP AND MOTOR
Item Part # Qty Description
1 B1514 1 ASSY, Motor Complete
2 40945 3 BOLT, SHCS M6-1 0 x 20mm
3 97835 1 O RING, Hsg Seal, dia 82 2
x 2 62mm
4 20610 2 WASHER, Brg dia 35 x 55 x
3mm
5 97822 1 BEARING, Ndle Thrust dia 35
x 52mm
6 B2663 1 ASSY , Cam/Gear
7 97826 1 WASHER, Brg dia 40 x 60 x
1mm
8 97824A 1 BEARING, Needle dia 40 x
60mm
9 97825 1 WASHER, Brg dia 36 x 60 x
6mm
10 97833 1 SHAFT, Idler Axial Cam
11 97830 3 RETAINER, Piston Spring
12 97832 3 PISTON, dia 15 x 65mm
13 99503 3 SPRING, Piston Return
14 A1495 2 TAPTITE, M4-0 7x10mm SW
MTG
15 21055 1 GROMMET, Rubber
16 28739A 1 TIE, Wrap
17 20138 1 SWITCH, Auto
18 20928 1 HOUSING, Auto-Switch
19 B3660 1 SPRING, PA S S
20 B3568 1 PISTON ASSY, P A S S
21 21126 1 RING, Backup dia 26 0 Id
22 21125 1 O RING dia 25 07 Id x 2 62
Cs [ 103"]
23 20217 1 STOP, Piston Return
Item Part # Qty Description
24 21124 1 RING, Backup dia 4 34 Id x
1 24
25 20218 1 CAP, Retainer
26 21123 1 O RING dia 3 68 Id x 1 78
Cs [ 070"]
27 B1124 1 CAP, Inlet
28 97855 1 O RING, dia 6 5 x 2 01mm
29 97100 1 CAP, High Pressure
30 B3570 1 HOUSING, Piston
31 93680 3 SEAL, Oil-piston dia 15 TC4
32 97831 3 SPACER, Pilot
33 97929 1 SPRING, Check Valve
34 B3569 1 VALVE, Shuttle
37 97841 3 CAP, Check Valve
38 97840 3 O RING, Hi-press dia 15 6 x
1 78mm
39 B1449 6 ASSY , Check Valve
40 97934 7 O RING, Chk Valve dia 12 4
x 78mm
41 76353A 1 PLUG, Taper dia 5 4
42 97852 1 BALL, dia 3/16" Pop-off Valve
43 B2240 1 SCREW, Lock Socket
44 A1130 1 SPRING, Pop-off Valve
45 B1960 1 SEAT, Ball
46 40946 4 BOLT, SHCS M6- 1 0 x 35mm
48 B3571 1 PUMP, Head
49 93667 3 SEAL, Piston U Cup
50 B2020 1 O-RING, 3 68 I D x 1 78 CS
ELF

16
Generac Portable Products 1300 PSI Pressure Washer

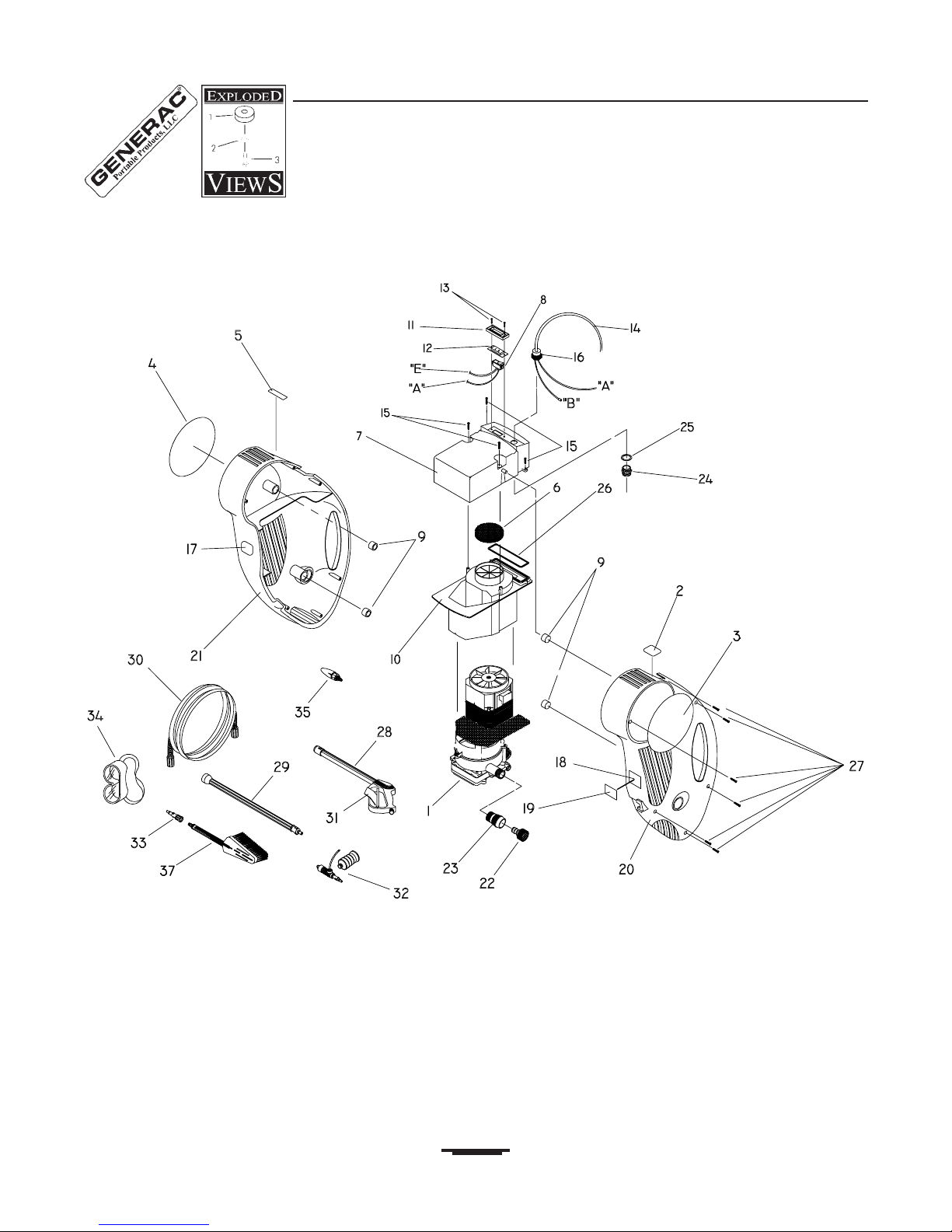

EXPLODED VIEW  MAIN UNIT

17
Generac Portable Products 1300 PSI Pressure Washer
PARTS LIST  MAIN UNIT
1 N/A 1 ASSY , Motor and Pump (see pump exp view)
2 B1415 1 DECAL, Circuit
3 A1252 1 DECAL, Unit
4 B2525 1 DECAL, Instructions
5 B3767 1 DECAL, 1-800 #
6 98806 1 FOAM, Air In, Fan-end
7 97893 1 HOUSING, Switch and Cord
8 20984 1 SWITCH, Rocker 16A
9 98801 4 MOUNT, Rubber
10 B1566 1 COVER, Motor
11 20985 1 ENCLOSURE, Rocker Switch Boot
12 20986 1 BOOT, Rocker Switch
13 84543B 2 SCREW, 3 5mm x 12mm Plastite
14 98805 1 CORD, Power
15 84358 4 SCREW, #6-19 x 75 mm Plastite
16 99349 1 STRAIN RELIEF, Cord
17 B1053 1 DECAL, ETL
18 B3729 1 DECAL, Data
19 79552 1 OVERLAMINATE
20 21334 1 HOUSING, Inlet
21 21335 1 HOUSING, Outlet
22 21265 1 QUICK DISCONNECT, Male
23 96016 1 QUICK DISCONNECT, Female
24 A1484 1 NUT, Strain Relief Lock
25 A1485 1 SEAL RING, Strain Relief
26 97835 1 O RING, Hsg Seal, dia 82 2 x 2 62mm
27 99350 6 SCREW, #6 Plastite
28 21336 1 GUN, Spray
29 21337 1 WAND, Extension
30 B3337 1 HOSE, High Pressure
31 B1866 1 DECAL, EPW Gun Warning
32 B1935 1 FOAMER
33 B1051 1 ADAPTOR, Accessories
34 87815 1 GOGGLES
35 B1300D 1 NOZZLE, Turbo
37 88185 1 BRUSH, Utility

18
Generac Portable Products 1300 PSI Pressure Washer
Item Part # Qty Description
1 B2446 1 BASE, Cart
2 21497 2 NUT, M6 Plastic Wing
3 75402B 2 CAP, Axle
4 B2238 2 WHEEL
5 B3102 2 Spacer, Axle
6 B2215 1 AXLE
7 B3083 2 BOLT, Carriage, M6 x 1 0 x 30 Lg
8 21497 2 KNOB, Handle
9 B2212 1 ACCESSORY, Holder
10 B2611 1 HANDLE, Cart
11 21498 2 BOLT, M6 T-Head (to fit in unit housing)
CART EXPLODED VIEW AND PARTS LIST

NOTES
19
Generac Portable Products 1300 PSI Pressure Washer

Limited Pressure Washer Warranty
Generac Portable Products LLC (hereafter referred to as GENERAC LLC) warrants to the original retail
purchaser, the pressure washer manufactured by GENERAC LLC to be free from defects in material and
workmanship for the period(s) set forth below from the date of original purchase This warranty is not transferable
The term original purchaser means the person for whom the pressure washer is originally purchased
Warranty Schedules
Electric Power Washer 1 year (does not apply to commercial or rental applications)
CONSUMER* COMMERCIAL*
All Other Engine-driven Engine: Warranted solely by Warranted solely by
Engine Manufacturer Engine Manufacturer
Pump: 1 year 90 days
* NOTE: For the purpose of this warranty consumer use means personal residential household use by
original purchaser. Commercial Use means all other uses, including rental, construction, commercial
and income producing purposes. Once a pressure washer has experienced commercial use, it shall
thereafter be considered a commercial use pressure washer for the purposes of this warranty.
During said warranty period, GENERAC LLC will, at its option, repair or replace any part which, upon examination
by GENERAC LLC or GENERAC LLC Authorized Dealers, is found to be defective under normal use and
service** All transportation costs under warranty, including return to the factory if necessary, are to be borne by
the purchaser and prepaid by the purchaser
** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and
replacement to perform well. This warranty does not cover repair when normal use has exhausted the life
of a part or pressure washer pump.
This warranty does not include: Used products and demonstration equipment Parts, such as GUNS, HOSES,
WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing,
etc Pumps which have been run without water supplied Damage or malfunctions resulting from: accidents,
abuse, modifications, alterations, or improper servicing Freezing or chemical deterioration Normal maintenance
such as adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc )
THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
SPECIFICALLY, GENERAC LLC MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE THE DURATION OF ANY IMPLIED WARRANTIES
WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PERIOD AS SPECIFIED IN THE
EXPRESS WARRANTY LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL
DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES ARE
A DIRECT RESULT OF GENERAC LLC'S NEGLIGENCE GENERAC LLC ALSO DISCLAIMS ANY
RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SUCH AS THE LOSS OF
TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE
FAILURE OF THE EQUIPMENT: AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you This warranty
gives you specific legal rights and you may also have other rights, which vary from state to state
For service, see your nearest GENERAC LLC authorized warranty service facility or call 1-877-544-0982
Warranty service can be performed only by a GENERAC LLC authorized service facility This warranty will not
apply to service at any other facility At the time of requesting warranty service, evidence of original purchase date
must be presented
Generac Portable Products LLC
Jefferson, Wisconsin U S A
