Generac Portable Products 1295-0 User manual

This symbol points out important safety instructions, which, if not followed, could endanger
the personal safety and/or property of yourself and others. Read and follow all instructions in
the manual before attempting to operate this unit.
Model No. 12950 (3200 psi High Pressure Washer) Manual No. B38 2 Revision 2 (4/28/1999)
3200PSI
Pressure Washer Owner’s Manual
Problems?
Questions?
Before taking your unit
back to the store,
call the pressure washer
helpline at
-800-270- 408
M-F 8-5 CT
GENERAC
The Reliable Ones

2
Generac Portable Products 3200PSI High Pressure Washer
CAUTION! Always disconnect spark plug
wire and place wire where it cannot contact
spark plug to prevent accidental starting when
setting up, transporting, adjusting or making
repairs to your high pressure washer.
 Engine exhaust gases contain DEADLY carbon
monoxide gas. This dangerous gas, if breathed in
sufficient concentrations, can cause
unconsciousness or even death. Operate this
equipment only in the open air where adequate
ventilation is available.
 Gasoline is highly FLAMMABLE and its vapors are
EXPLOSIVE. Do not permit smoking, open flames,
sparks or heat in the vicinity while handling
gasoline. Avoid spilling gasoline on a hot engine.
Allow unit to cool for 2 minutes before refueling.
Comply with all laws regulating storage and
handling of gasoline.
 Locate this pressure washer in areas away from
combustible materials, combustible fumes or dust.
 The high pressure equipment is designed to be
used with Generac authorized parts only. If you use
this equipment with parts that do not comply with
minimum specifications, the user assumes all risks
and liabilities.
 Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting or poisoning. The harmful elements may
cause property damage or severe injury.
 Do not allow CHILDREN to operate the Pressure
Washer at any time.
 Operate engine only at governed speed. Running
the engine at excessive speeds increases the
hazard of personal injury. Do not tamper with parts
which may increase or decrease the governed
speed.
 Do not wear loose clothing, jewelry or anything that
may be caught in the starter or other rotating parts.
 Before starting the Pressure Washer in cold
weather, check all parts of the equipment and be
sure ice has not formed there.
 Units with broken or missing parts, or without
protective housing or covers should NEVER be
operated.
 The muffler and air cleaner must be installed and in
good condition before operating the Pressure
Washer. These components act as spark arrestors
if the engine backfires.
 Check the fuel system for leaks or signs of
deterioration such as chafed or spongy hose, loose
or missing clamps or damaged tank or cap. Correct
all defects before operating the Pressure Washer.
 Do not spray flammable liquids.
 Never aim the gun at people, animals or plants.
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects, or other reproductive harm.
WARNING:
IMPORTANT!  SAFETY RULES  IMPORTANT!

3
Generac Portable Products 3200PSI High Pressure Washer
 High pressure spray can cause paint chips or other
particles to become airborne and fly at high speeds.
 Never allow any part of the body to come in contact
with the fluid stream. DO NOT come in contact with
a fluid stream created by a leak in the high pressure
hose.
 The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
 Always wear eye protection when you use this
equipment or when you are in the vicinity where the
equipment is in use.
 Operate the pressure at no more than the PSI fluid
pressure rated for your pressure washer.
 Never move the machine by pulling on the high
pressure hose. Use the handle provided on the top
of the unit.
 Always be certain the spray gun, nozzles and
accessories are correctly attached.
 Never use a spray gun which does not have a
trigger lock or trigger guard in place and in working
order.
 Use a respirator or mask whenever there is a
chance that vapors may be inhaled. Read all
instructions with mask so you are certain the mask
will provide the necessary protection against
inhaling harmful vapors.
 High pressure spray may damage fragile items
including glass. Do not point spray gun at glass
when in the jet spray mode.
 Keep the hose connected to machine or the spray
gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.
 Hold the spray gun firmly in your hand before you
start the unit. Failure to do so could result in an
injury from a whipping spray gun. Do not leave the
spray gun unattended while the machine is running.
 The cleaning area should have adequate slopes
and drainage to reduce the possibility of a fall due
to slippery surfaces.
 Keep water spray away from electric wiring or fatal
electric shock may result.
 Do not secure trigger gun in the pullback (open)
position.
 Do not bypass any safety device on this machine.
 The muffler and engine heat up during operation
and remain hot immediately after shutting it down.
Avoid contact with a hot muffler or engine or you
could be severely burned.
 Operate and store this unit on a stable surface.
 High pressure hose can develop leaks from wear,
kinking, abuse, etc. Water spraying from a leak is
capable of injecting material into skin. Inspect hose
each time before using it. Check all hoses for cuts,
leaks, abrasions or bulging of cover, or damage or
movement of couplings. If any of these conditions
exist, replace hose immediately. Never repair high
pressure hose. Replace it with another hose that
meets minimum pressure rating of your pressure
washer.
IMPORTANT!  SAFETY RULES  IMPORTANT!

4
Generac Portable Products 3200PSI High Pressure Washer
CONGRATULATIONS on your purchase of a
GENERAC high pressure washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.
Should you experience any problem you cannot
easily remedy, call the pressure washer helpline at
1-800-270-1408.
Please read and retain this manual. The instructions
will enable you to assemble and maintain your high
pressure washer properly.
CUSTOMER
RESPONSIBILITIES
 Read and observe the safety rules.
 Follow regular schedule in maintaining, caring for
and using your high pressure washer.
 Follow the instructions under Customer
Responsibilities and Storage sections of this
Owner's Manual.
PRODUCT
SPECIFICATIONS
Pressure Washer Specifications
Outlet Pressure . . . . 3200 psi
Flow Rate . . . . . . . . . 4.0 gallons per minute (gpm)
Detergent . . . . . . . . . Use detergent approved for
pressure washers
Water Supply . . . . . . Not to Exceed 140°F
Temperature
Automatic Cool . . . . Will cycle when water
Down System reaches 140°-145°F
Engine Specifications
Engine Model . . . . . . Honda
Rated Horsepower . . 11 HP
Displacement . . . . . . 337cc (20. cu. in.)
Spark Plug
Type . . . . . . . . BPR ES (NGK)
Set Gap To: . . 028-.031 inch (.7-.8mm)
Gasoline Capacity . . 1.7 U.S. Gallons ( .5l)
Oil . . . . . . . . . . . . . . . SAE 10W30
In the State of California a spark arrestor is required
by law (Section 4442 of the California Public
Resources Code). Other states may have similar
laws. Federal laws apply on federal lands.
NOTE: If you equip the muffler with a spark arrestor, it
must be maintained in effective working order.
You can order a spark arrestor through your
authorized Honda service dealer.
Model Number 2950
Serial Number
Date of Purchase
The model and serial numbers will be found on a
decal attached to the pressure washer. Record
both serial number and date of purchase and
keep in a safe place for future reference.

5
Generac Portable Products 3200PSI High Pressure Washer
Nozzle Extension
with QuickConnect
Fitting
Choke Lever
High Pressure Outlet
Pump equipped with
Automatic Cool Down
System
Spray Gun
Water Inlet
Oil Fill Cap
Pressure Control Knob
High Pressure Hose
Fuel Tank
Recoil Starter
Throttle Lever
Air Cleaner
Chemical Injection Tube

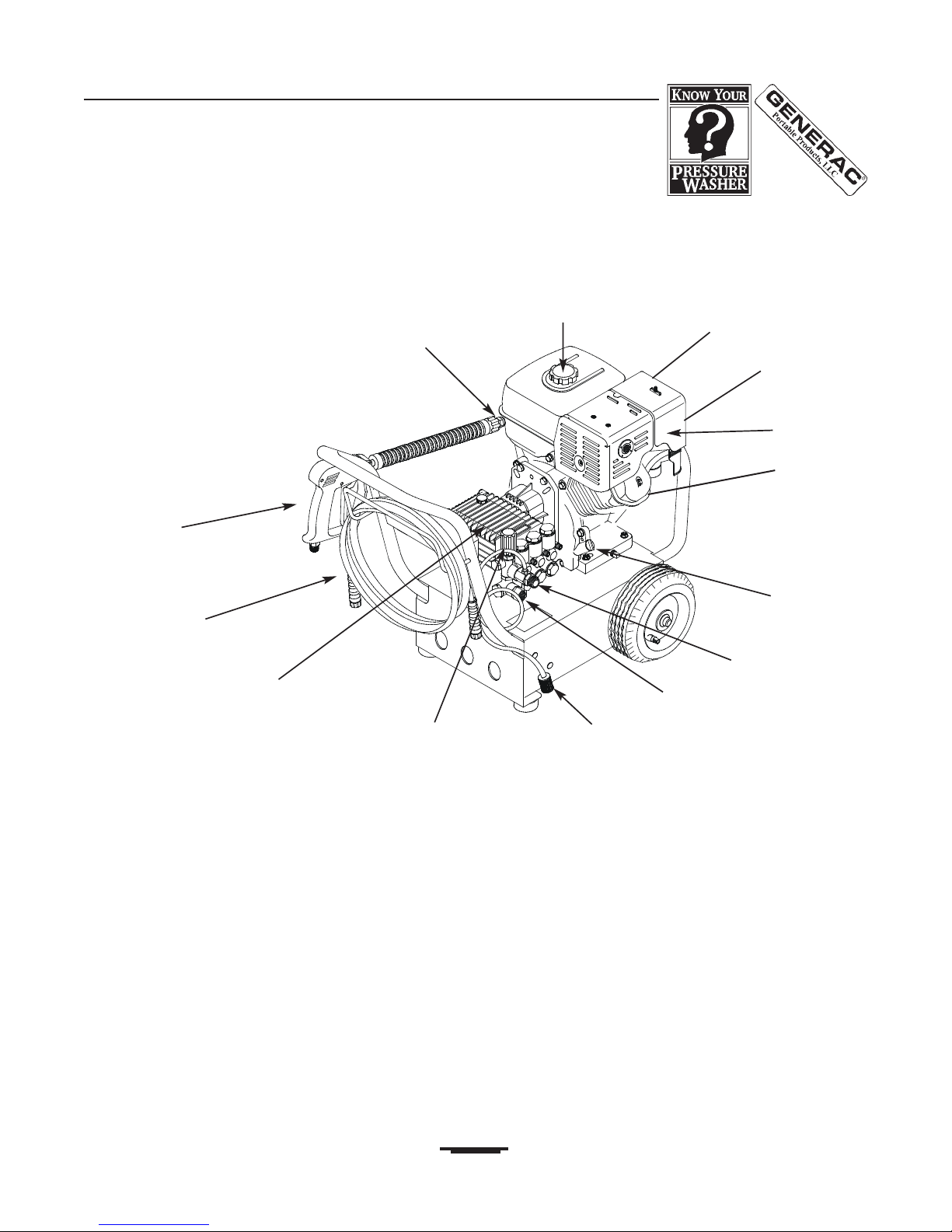

KNOW YOUR PRESSURE WASHER
Read this owners manual and safety rules before operating your high pressure washer.
Compare the illustrations with your high pressure washer to familiarize yourself with the location of the controls.
Save this manual for future reference.
Air Cleaner  Dry type filter element limits the amount
of dirt and dust that gets in the engine.
Automatic Cool Down System  Cycles water
through pump when water reaches 140°-145°F. Warm
water will discharge from pump onto ground. This
system prevents internal pump damage.
Chemical Injection TubeUsed to siphon chemical
from the detergent container to the pump.
Chemical Nozzle  (Not Shown) Use this nozzle to
apply chemical.
Choke Lever  Prepares a cold engine for starting.
Fuel Tank  Fill engine with regular unleaded gasoline
here.
High Pressure Hose  Connect one end to water
pump and the other end to spray gun. Store hose on
hook on the rear of the unit
High Pressure Nozzles (not shown) Use these
nozzles to clean and scour a surface. These nozzles
vary the spray pattern of the high pressure stream and
cannot be used to apply chemical.
High Pressure Outlet  Connection for high pressure
hose.
Nozzle Extension with QuickConnect Fitting 
You must attach this to the spray gun to use the
nozzles. The quickconnect fitting lets you quickly
exchange the five provided nozzles to adjust the spray
pattern of the high pressure spray and apply chemical.
Oil Fill Cap Fill engine with oil here. See page 8 for
oil requirements.
Pressure Control Knob  Varies the pressure of the
high pressure spray.
Pump  Develops high pressure.
Recoil Starter  Used for starting the engine
manually.
Spray Gun  Controls the application of water onto
cleaning surface with trigger. Includes safety latch.
Throttle LeverSets engine in starting mode for recoil
starter and stops a running engine.
Water Inlet  Connection for garden hose.

Generac Portable Products 3200PSI High Pressure Washer
WARNING! Read entire owners manual
before you attempt to assemble or operate
your new pressure washer.
REMOVE PRESSURE
WASHER FROM CARTON
 Remove the handle and parts box included with
pressure washer.
 Slice two corners at the end of carton from top to
bottom so the panel can be folded down flat, then
remove all packing material.
 Roll pressure washer out of carton.
CARTON CONTENTS
Items in the carton include:
 Main Unit
 High Pressure Hose
 Handle
 Parts Bag (hanging on pump) (includes the
following):
 Oil Dipstick for pump.
 Parts Box (includes the following):
 (2) 20oz Oil Bottles
 Goggles
 Nozzle Cleaning Kit
 Bag Containing 5 MultiColored Nozzles
 ORing Maintenance Kit
 Owners Manual
 Engine Manual
 Engine Warranty
 Emissions Control Warranty
 Spray Gun
 Nozzle Extension with QuickConnect Fitting.
 Parts Bag (containing hardware to attach handle
to pressure washer)
 4 Carriage Bolts
 4 Flange Nuts
If any of the above parts are missing or damaged, call
the pressure washer helpline at 800270 408.
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged,
call the Pressure Washer Helpline at
800270 408.
To prepare your pressure washer for operation you
will need to perform these tasks:
 Remove shipping cap from the pump and install oil
dipstick.
 Attach the handle to the main unit.
 Add oil to the engine.
 Add fuel to the fuel tank.
 Connect the high pressure hose to the spray gun
and the pump.
 Connect the water supply to the pump.
 Connect nozzle extension to gun.
 Select and Install desired nozzle.

7
Generac Portable Products 3200PSI High Pressure Washer
Attach Handle to the Pressure
Washer
Use either a 13mm wrench or adjustable wrench to
attach the handle to the pressure washer.
To attach handle to the pressure washer
(Figure ):
 Slowly tip the pressure washer forward and let it
gently rest on the front bumper.
 Align the holes on the handle with the holes on the
base.
 Insert the carriage bolts provided to hold the handle
in place.
 Secure handle to the pressure washer using the
four provided flange nuts.
 Slowly tip the pressure washer back in place and
insert the multicolored nozzles in the spaces
provided in the handle.
Install Oil Dipstick on Pump
WARNING! You must remove the shipping
cap located on the pump and install the oil
dipstick. Failure to do so will void your
warranty and damage the pump.
To install the oil dipstick:
 Make sure your unit is on a level surface.
 Remove the shipping cap located on the pump.
 Install the oil dipstick.
Figure 1  Attach Handle to Pressure Washer
Figure 2  Install Oil Dipstick onto the Pump
Shipping Cap
Oil Dipstick
Remove shipping cap and
install oil dipstick here.

8
Generac Portable Products 3200PSI High Pressure Washer
Add Engine Oil
WARNING! Any attempt to crank or start the
engine before it has been properly serviced
with the recommended oil will result in an
engine failure.
Use only high quality detergent oil rated with API
service classification SF or SG rated 0W30. Do
not use SAE 0W40 oil. Other viscosities shown
in the chart below may be used when the average
temperature in your area is within the
recommended range.
 Place the pressure washer on a level surface.
 Clean the area around oil fill and remove the oil
dipstick (Figure 3).
 Wipe the dipstick clean.
 Insert and remove the dipstick without screwing it
into the filler neck. Check the oil level shown on the
dipstick.
 If the oil level is low, fill to the edge of the oil filler
hole with the recommended oil. DO NOT
OVERFILL.
 Reinstall the oil dipstick, hand tighten securely.
Note: Check Oil Often During Engine Breakin.
Add Gasoline
DANGER! Never fill fuel tank indoors. or
when engine is running or hot. Do not smoke
when filling fuel tank.
WARNING! Never fill fuel tank completely
full. Fill tank to about 1/2" below the bottom of
the filler neck to provide space for fuel
expansion. Wipe away any fuel spillage from
engine and equipment before starting.
 Use clean fuel and store in approved, clean
covered containers. Use clean fill funnels. Never
use stale gasoline left over from last season or
gasoline stored for long periods.
 Clean the area around the fuel fill cap, remove the
cap (Figure 4).
 Add regular UNLEADED gasoline, slowly, to fuel
tank. Use a funnel to prevent spillage.
 Install the fuel cap and wipe up any spilled gasoline.
Figure 3  Add Oil to Engine Crankcase
Oil Fill Cap/Dipstick
Upper Limit
Lower Limit
Figure 4  Add Regular Unleaded Gasoline to Fuel
Tank.
Maximum Fuel Level

9
Generac Portable Products 3200PSI High Pressure Washer
Connect Hose and Water Supply to
Pump
IMPORTANT: You must assemble the wand and
attach all hoses before you start the engine. Starting
engine without all hoses connected and water
supplied will damage the pump.
 Uncoil the high pressure hose and attach one end
of the hose to the base of the spray gun. (Figure 5).
Tighten by hand.
 Attach the other end of the high pressure hose to
the high pressure outlet on the pump (Figure ).
Tighten by hand.
 Before you connect your garden hose to the water
inlet, inspect the Inlet Screen (Figure 7). Clean the
screen if it contains debris or have it replaced if
damaged. DO NOT RUN THE PRESSURE
WASHER IF THE SCREEN IS DAMAGED.
 Run water through your garden hose for 30
seconds to clean out any debris .
 Connect the garden hose to the water inlet. Tighten
by hand (Figure 7).
 Turn ON the water.
 Squeeze the trigger on the gun until you have a
steady stream of water to purge the pump system
of air and impurities.
CAUTION: Before starting the pressure
washer, be sure you are wearing adequate eye
protection.
 Attach the nozzle extension to the spray gun.
Tighten by hand (Figure 8).
Figure 7  Connect the Garden Hose to Water Inlet
and Turn ON the Water.
Inspect inlet
screen, do not use
if damaged, clean
if dirty.
Figure 8  Connect Nozzle Extension to Spray Gun
Figure  Connect High Pressure Hose to Pump
Connect high
pressure hose here.
Figure 5  Connect High Pressure Hose to Spray Gun
Connect high pressure
hose here.

10
Generac Portable Products 3200PSI High Pressure Washer
CHECKLIST BEFORE
STARTING ENGINE
If you have reached this point, look back over the
assembly to see if you have performed all of the
following.
 Removed shipping cap from pump and installed
dipstick.
 Check for properly tightened hose connections
(high pressure and water supply). Also, check to
make sure that there are no kinks, cuts, or damage
to the high pressure hose.
 Check that oil has been added to the proper level in
the engine crankcase before trying to start the
pressure washer.
 Add the proper gasoline to fuel tank.
 Provide a proper water supply (not to exceed
140°F).
 Be sure to read the Safety Rules and Operation
sections before using the pressure washer.
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure
washer, please call the pressure washer helpline at
-800-270- 408.
How to Start Your Engine
The best way to start your enginepowered pressure
washer for the first time is to follow these instructions
stepbystep. This starting information also applies
whenever you start the engine after you have let the
pressure washer sit idle for at least a day.
 Place the pressure washer in an area close enough
to an outside water source that can flow at a rate of
4.4 gallons per minute.
 Make sure the unit is in a level position.
 Check that the high pressure hose is tightly
connected to the spray gun and to the pump. See
Preparing Pressure Washer for Use on page .
 Connect the garden hose to the water inlet on the
pressure washer pump and turn on the water.
WARNING! Do not run the pump without the
water supply connected and turned on. You
must follow this caution or the pump will be
damaged.
 Squeeze the trigger on the spray gun (make sure
the nozzle is in low pressure mode) to relieve the
air pressure caused by turning ON the water. Water
will spew out of the gun in a thin stream. Hold the
trigger until a steady stream of water appears. This
will make it easier to pull start the engine. Release
the trigger.
 Apply the safety latch to the spray gun trigger
 Move the fuel valve to the ON position (Figure 9).
 Move the throttle lever to the FAST position
(Figure 10).
Figure 9  Fuel Valve
Figure 10  Throttle Positions
Throttle Lever
Fast
Slow
On
Off

11
Generac Portable Products 3200PSI High Pressure Washer
To start a cold engine, move the choke lever to
the CLOSED position. To restart a warm
engine, leave the choke lever in the OPEN
position (Figure 11).
 Set the engine switch to the ON position
(Figure 12).
 Grasp starter grip and pull slowly until you feel
some resistance. Then pull cord out with rapid full
arm stroke. Let rope return slowly. Do not let rope
snap back against starter.
 If the choke lever has been moved to the
CLOSED position to start the engine, gradually
move it to the OPEN position as the engine
warms up.
How to Stop Your Pressure Washer
 Move the throttle lever to the Slow position.
 Wait for the engine to idle down.
 Move the engine switch to the OFF position.
 Simply shutting off the engine will not release
pressure in the system. Squeeze trigger on the
spray gun to relieve pressure in the hose.
Note: A small amount of water will squirt out when
you release the pressure.
How to Use the Nozzles
If you have any problems operating your pressure
washer, please call the pressure washer helpline at
-800-270- 408.
DANGER! Never exchange nozzles without
locking the safety latch on the trigger.
The quickconnect on the nozzle extension allows
you to switch between five different nozzles. The
nozzles vary the spray pattern as shown below
(Figure 13).
Figure 13  Nozzles
White
40° Green
25°
Black
65° Yellow
5° Red
0°
Low
Pressure Use
to apply
chemical
Figure 12  Engine Switch
Figure 11  Choke Positions
Choke Lever
Closed
Open
Off
Engine Switch
On

12
Generac Portable Products 3200PSI High Pressure Washer
Follow these instructions to change nozzles:
 Engage the safety latch on the spray gun.
 Pull back the collar on the quickconnect and pull
the current nozzle off. Store the nozzle in the space
provided on the control panel.
Note: For a more gentle rinse, select the white 40° or
green 25° nozzle. To scour the surface, select the
yellow 15° or red 0° nozzle. To apply chemical, select
the black 5° nozzle.
 Pull back on the collar, insert the new nozzle and
release the collar. Pull on the nozzle to make sure it
is securely in place.
 For most effective cleaning, keep the spray nozzle
between 8 to 24 inches away from the cleaning
surface. If you get the spray nozzle too close, you
may damage the cleaning surface.
Cleaning and Applying Chemical
WARNING! You must attach all hoses
before you start the engine. Starting the engine
without all the hoses connected and without
the water turned ON will damage the pump.
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could
damage the pump.
To apply detergent follow these steps:
 Review the use of the nozzles.
 Prepare the detergent solution as required by the
manufacturer.
 Place the small filter of the chemical injection tube
tube into the detergent container.
CAUTION! Keep the chemical injection tube
from coming in contact with the hot muffler.
This will damage the chemical injection tube.
When inserting the filter into a chemical bottle,
route the tube so as to keep it from
inadvertently contacting the hot muffler.
 Make sure the black nozzle is installed on the
nozzle extension.
Note: Detergent cannot be applied with the high
pressure nozzles (White, Green, Yellow, or Red).
 Make sure the garden hose is connected to the
water inlet. Check that the high pressure hose is
connected to the spray gun and the pump and start
the engine.
 Apply the detergent to a dry surface, starting at
lower portion of area to be washed and work
upward, using long, even, overlapping strokes. Do
not allow the detergent to dry on. This will
prevent streaking.
 Allow the detergent to soak in between 35 minutes
before washing and rinsing. Reapply as needed to
prevent surface from drying.
Pressure Washer Rinsing
WARNING! Be extremely careful if you must
use the pressure washer from a ladder,
scaffolding or any other relatively unstable
location. Pressure in a running washer builds
as you climb. When you press the trigger, the
recoil from the initial spray could force you to
fall. The high pressure spray could also force
you to fall if you are too close to the cleaning
surface.
After you have applied detergent, scour the
surface and rinse it clean as follows:
 Apply Safety Latch to Spray Gun.
 Remove the black chemical nozzle from the nozzle
extension.
 Select and install the desired high pressure nozzle
following the instructions How to Use the Nozzles
on page 11.
 Keep the spray gun a safe distance from the area
you plan to spray.
 Increase or decrease the pressure of the spray by
turning the pressure control knob counterclockwise
or clockwise respectively (Figure 14). Use lower
pressure to wash items such a as a car or boat.
Use higher pressure to strip paint and degrease
driveways.

13
Generac Portable Products 3200PSI High Pressure Washer
 Apply a high pressure spray to a small area and
then check the surface for damage. If no damage is
found, you can assume it is okay to continue
cleaning.
 Start at the top of the area to be rinsed, working
down with same overlapping strokes as you used
for cleaning.
Automatic Cool Down System
(also known as Thermal Relief)
If you run the engine on your pressure washer for 35
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach a temperature
between 140145°F. When the water reaches this
temperature, the automatic cool down system
engages and cools the pump by discharging the
warm water onto the base and ground. This
system prevents internal damage to the pump.
GENERAL MAINTENANCE
RECOMMENDATIONS
The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negligence. To receive the full value from
the warranty, the operator must maintain the high
pressure washer as instructed in this manual.
 Some adjustments will need to be made periodically
to properly maintain your high pressure washer.
 All adjustments in the Service and Adjustments
section of this manual should be made at least once
each season.
 Once a year you should clean or replace the spark
plug and clean or replace the air filter and check the
gun and wand assembly for wear. A new spark plug
and clean air filter assure proper fuelair mixture
and help your engine run better and last longer.
Before Each Use
 Check engine oil level.
 Check water inlet screen for damage.
 Check high pressure hose for leaks.
 Check chemical injection tube and filter for damage.
 Check gun and nozzle extension assembly for
leaks.
 Rinse out garden hose to flush out debris.
PRESSURE WASHER
MAINTENANCE
Check and Clean Inlet Screen
Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.

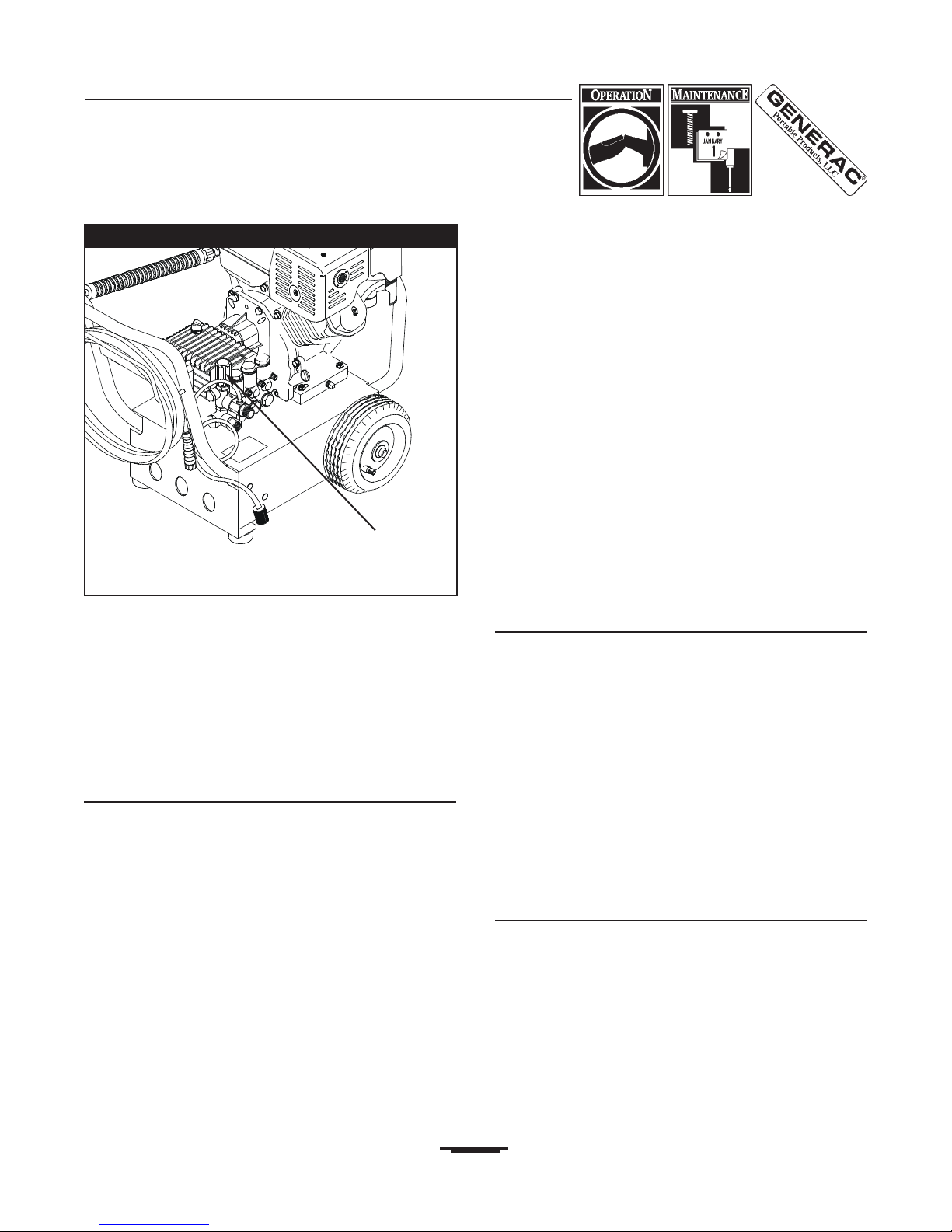

Figure 14  Pressure Control Knob
Pressure
Control Knob

14
Generac Portable Products 3200PSI High Pressure Washer
Check High Pressure Hose
The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before
using it. Check for cuts, leaks, abrasions or bulging of
cover, damage or movement of couplings. If any of
these conditions exist, replace the hose immediately.
DANGER! Water spraying from a leak is
capable of injecting material into skin. Inspect
hose each time before using it. Never repair a
high pressure hose. Replace it with another
hose that meets the maximum pressure rating
of your pressure washer.
Check Gun and Nozzle Extension
Examine the hose connection to the gun and make
sure it is secure. Test the trigger by pressing it and
making sure it springs back into place when you
release it. Put the safety latch in the ON position and
test the trigger. You should not be able to press the
trigger.
Check In-Line Filter
Refer to Figure 15 and service the in-line filter if it
becomes clogged, as follows:
1. Detach gun and lance from high pressure hose.
Detach lance from gun and remove o-ring and
screen from lance. Flush the screen, gun, and
lance with clean water to clear debris.
2. If the screen is damaged, the o-ring kit contains a
replacement in-line filter screen and an o-ring. If
undamaged, reuse screen.
3. Place the in-line filter screen into the threaded
end of the lance. Direction does not matter. Push
the screen in with the eraser end of a pencil until
it rests flat at the bottom of the opening. Take
care to not bend the screen.
4. Place the o-ring into the recess. Push the o-ring
snugly against the in-line filter screen.
5. Assemble the lance to the spray gun, as
described earlier in this manual.
Check Chemical Injection Tube
Examine the filter on the detergent hose and clean if
clogged. The tube should fit tightly on the barbed
fitting. Examine the tube for leaks or tears. Replace
the filter or tube if either is damaged.
Purge Pump of Air and
Contaminants
To remove the air from the pump, follow these steps:
 Set up the pressure washer as described in the
Preparing the Pressure Washer for Use and
connect the water supply.
 Remove the nozzle extension from the gun.
 Pull the trigger on the gun and hold.
To remove the contaminants from the pump, follow
these steps:
 Set up the pressure washer as described in the
HOW TO USE YOUR PRESSURE WASHER
section, and connect the water supply.
 Remove the nozzle extension from the gun.
 Start the engine according to instructions in
OPERATION section.
 Squeeze the trigger on the gun and hold.
 When the water supply is steady and constant,
engage the safety latch and refasten the nozzle
extension.
Cleaning Chemical Injection Tube
If you have used the chemical injection tube you must
flush it with clean water before stopping the engine.
 Place the chemical injection tube in a bucket full of
clean water.
 Flush for 12 minutes.
 Shut off the engine.
Important: Simply shutting OFF engine will not
release pressure in the system. When the engine has
shut down, squeeze the trigger on the gun to relieve
the pressure in the hose.
Figure 15  Service In-Line Filter
Lance
O-Ring
Filter Screen

15
Generac Portable Products 3200PSI High Pressure Washer
Nozzle Maintenance
If the nozzles becomes restricted or clogged with
foreign materials, such as dirt, excessive pump
pressure may develop. If the nozzles become partially
clogged, it can cause a pulsing sensation during use.
This generally is not a pump related problem, but
rather a clogged or partially restricted nozzle.
If the nozzles become clogged or partially restricted,
immediately clean the nozzles with the kit included
with your pressure washer by following these
instructions:
 Shut off the engine and turn off the water supply.
 Remove the nozzle from the end of the nozzle
extension.
 Use the wire included in the kit or a small paper clip
to free the foreign materials clogging or restricting
the nozzle (Figure 1 ).
 Remove additional debris by rinsing out the nozzle.
Rinse between 30 to 0 seconds.
 Reinstall the nozzle into the nozzle extension.
 Reconnect the water supply, turn on the water, and
start the engine.
 Test the pressure washer.
ENGINE MAINTENANCE
See the Engine Owners Manual for instructions on
how to properly maintain the engine.
ENGINE SERVICE
See the engine Owners Manual for instructions on
how to properly service and adjust the engine.
PREPARING UNIT FOR
STORAGE
Water should not remain in the unit for long periods of
time. Sediments of minerals can deposit on pump
parts and freeze pump action. If you do not plan to
use the pressure washer for more than 30 days,
follow this procedure:
1. Flush chemical injection tube by placing the filter
into a pail of clean water while running pressure
washer with the black chemical nozzle. Flush for
one to two minutes.
2. Shut off the engine and let it cool, then remove all
hoses.
3. Place the throttle lever in STOP position.
WARNING! Be sure lever is in STOP
position before you continue. If you start
engine without proper water supply connected,
you can damage pump.
4. Empty the pump of all pumped liquids by pulling
the recoil handle about times. This should
remove most of the liquid in the pump.
NOTE: To protect the unit from freezing temperatures,
draw RV antifreeze (no alcohol) into the pump by
pouring the antifreeze into a 3foot section of garden
hose connected to inlet adapter and pulling recoil
handle twice.
5. Store in a clean, dry area.
STORING THE ENGINE
See the Engine Owners Manual for instructions on
how to properly store the engine.

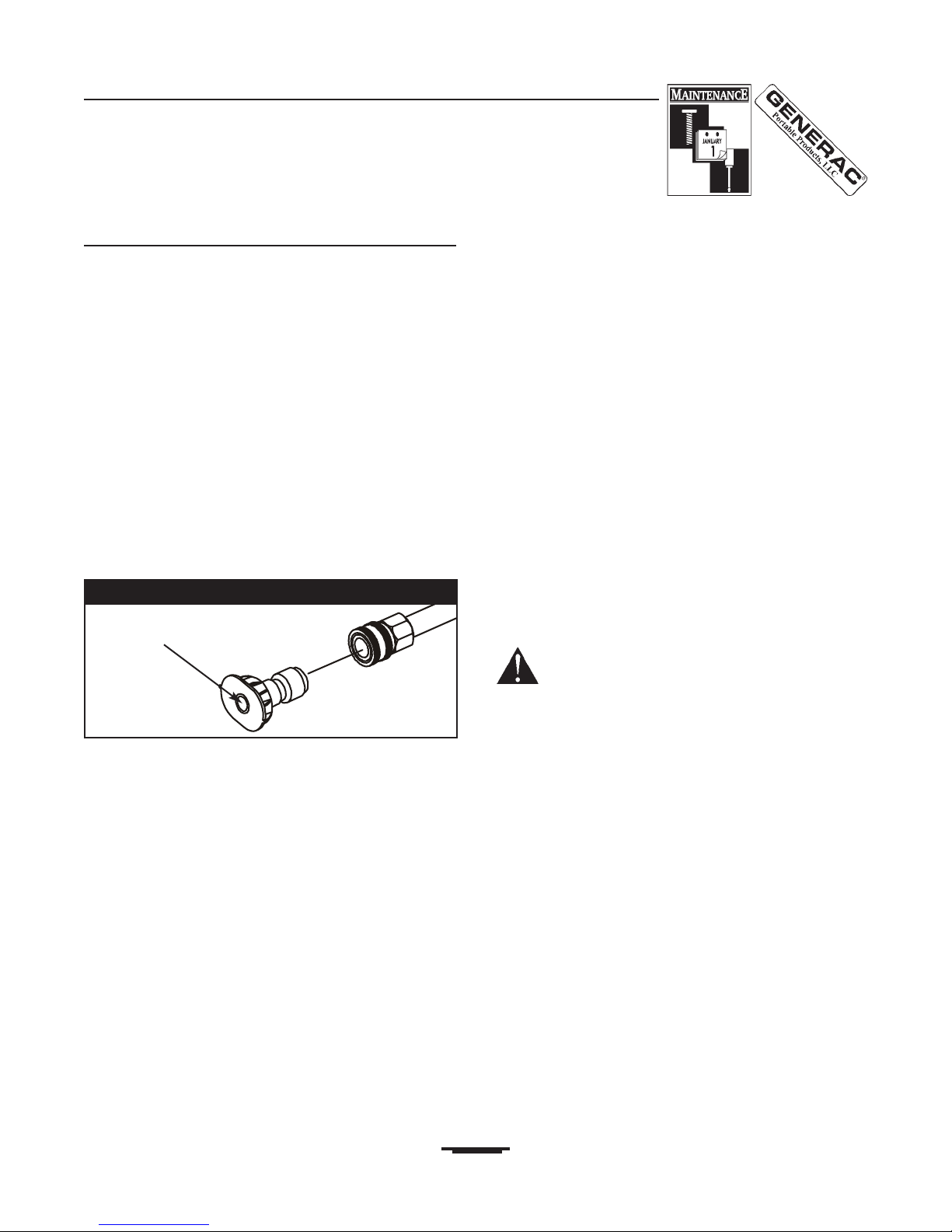

Figure 1  Nozzle Maintenance
Use wire here
to remove
debris.

1
Generac Portable Products 3200PSI High Pressure Washer
TROUBLESHOOTING
Problem
Pump has following problems: Failure
to produce pressure, erratic
pressure, chattering, loss of
pressure, low water volume.
Detergent fails to mix with spray.
Engine runs good at no-load but "bogs"
when load is added.
Engine will not start; or starts and runs
rough.
Engine shuts down during operation.
Engine lacks power.
Engine "hunts" or falters.
Cause
1. Nozzle in low pressure mode.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Inlet hose is kinked or leaking.
5. Clogged inlet hose strainer.
. Water supply is over 140°F.
7. Outlet hose is blocked or leaks.
8. Gun leaks.
9. Nozzle is obstructed.
10. Pump is faulty.
1. Chemical injection tube is not
submerged.
2. Chemical filter is clogged.
3. High pressure nozzle attached.
Engine speed is too slow.
1. Low oil level.
2. Dirty air cleaner.
3. Out of gasoline.
4. Stale gasoline.
5. Spark plug wire not connected to
spark plug.
. Bad spark plug.
7. Water in gasoline.
8. Overchoking.
9. Excessively rich fuel mixture.
10. Intake valve stuck open or closed.
11. Engine has lost compression.
1. Out of gasoline.
2. Low oil level.
Dirty air filter.
Choke is opened too soon.
Correction
1. Pull nozzle backward for high
pressure mode.
2. Clear inlet.
3. Provide adequate water flow.
4. Straighten inlet hose, patch leak.
5. Check and clean inlet hose
strainer.
. Provide cooler water supply.
7. Clear blocks in outlet hose.
8. Replace gun.
9. Clean nozzle.
10. Contact Generac service facility.
1. Insert chemical injection tube into
detergent.
2. Clean or replace filter/detergent
siphoning tube.
3. Use low pressure, black chemical
nozzle to apply detergent.
Move throttle control to FAST position.
If engine still "bogs down" contact
Generac service facility.
1. Fill crankcase to proper level.
2. Clean or replace air cleaner.
3. Fill fuel tank.
4. Drain gas tank; fill with fresh fuel.
5. Connect wire to spark plug.
. Replace spark plug.
7. Drain gas tank; fill with fresh fuel.
8. Open choke fully and crank engine.
9. Contact Honda service facility.
10. Contact Honda service facility.
11. Contact Honda service facility.
1. Fill fuel tank.
2. Fill crankcase to proper level.
Replace air filter.
Move choke to halfway position until
engine runs smoothly.

NOTES
17
Generac Portable Products 3200PSI High Pressure Washer

18
Generac Portable Products 3200PSI High Pressure Washer
EXPLODED VIEWMAIN UNIT

19
Generac Portable Products 3200PSI High Pressure Washer
Item Part # Qty Description
1 NSP 1 ENGINE, Honda 11HP
2 B2043 8 BOLT, 5/1 " - 18 x 1-3/4"
Carriage
3 BB222 B 1 BASE
4 CB38 1A 1 HANDLE
5 B41 0 1 DECAL, Instructions
99583 9 NUT, 5/1 " - 18 Hex Flange
7 B2150 1 HOOK, 5/1 " Square Neck
Gun
8 B251 2 CAP, Black Vinyl .280"
9 CB4105 1 BUMPER
10 30809 5 GROMMET, 1/8" - 11/1 "
11 B4159 1 DECAL, 5 QD Nozzles
12 B4158 1 DECAL, Unit
13 88521 2 ASSEMBLY, Wheel 10" Dia.
14 75402 2 PUSHNUT, .50"
15 48031G 1 CLAMP, Hose 7/1 " Dia.
1 A1040D 1 HOSE, 54" Chemical Inject
17 A1041 1 FILTER, Chemical Hose
18 B3 3 1 HOSE, 3/8" x 50'
19 87815 1 GOGGLES, Safety
20 B143 A 1 GUN, with Molded Grip
21 88 81 1 CARD, Owners Registration
Item Part # Qty Description
22 B4155 1 KIT, Nozzles QD
23 B38 2 1 MANUAL, Owners
24 B3858 1 ASSY, Wand Ext. with QD
25 B14 4 1 MANUAL, Honda
2 NSP 2 BOTTLE, Oil
27 B21 3 1 KIT, Nozzle Cleaning
28 B4175 1 KIT, O-Ring Maintenance
29 42909 2 HHCS, M8 - 1.25 x 30
30 50190 2 FLAT WASHER, 10GA
31 27007 2 VIB MOUNT, Donut Type
32 7989 2 NUT, Locking M8 - 1.25
33 B1554 1 VALVE, Thermal Relief
34 441 4 BOLT, M10 - 1.5 x 45 mm Lg.
35 52859 4 NUT, Locking M10 - 1.50
3 3281 1 KEY, 1/4" sq. x 2" Lg.
37 22237 4 LOCKWASHER, 3/8"
38 23 45 4 SHCS, 3/8" - 1 1/4"
39 B1843 1 PUMP, 3200PSI @ 4GPM
40 95320 1 CONNECTOR, Garden Hose
41 97098 1 CAP, Garden Hose Inlet
42 95457 1 ADAPTER
43 97100 1 CAP, High Pressure Adapter
PART LISTMAIN UNIT

20
Generac Portable Products 3200PSI High Pressure Washer
EXPLODED VIEWPUMP
