Generac Portable Products 1900PSI User manual

GEN RAC °]
Portable Products
1900PSI
Owner's Manual/Manual del Propietario
Generac Portable Products isa licensed trademark of Briggs& Stratton Power Products.
Generac Portable Products es una marca registrada llcenciada de Briggs& Stratton Power Products.
Questions? Help is just amoment away!
Preguntas? La ayuda es justa un momento lejos!
Call: Generac Pressure Washer Helpline
Llame:Linea Directa del Lavador a Presi6n de Generac -1-800-270-1408 M-F 8-5 CT
Web: www.generac-por tables.corn
Model No. 1908-0 (1900 PSIPressureWasher)Manual No. 192236GS Revision2 (03/19/2003)I!!!!!!]!Ul
oo

Generac Portable Products 1900 PSIPressureWasher

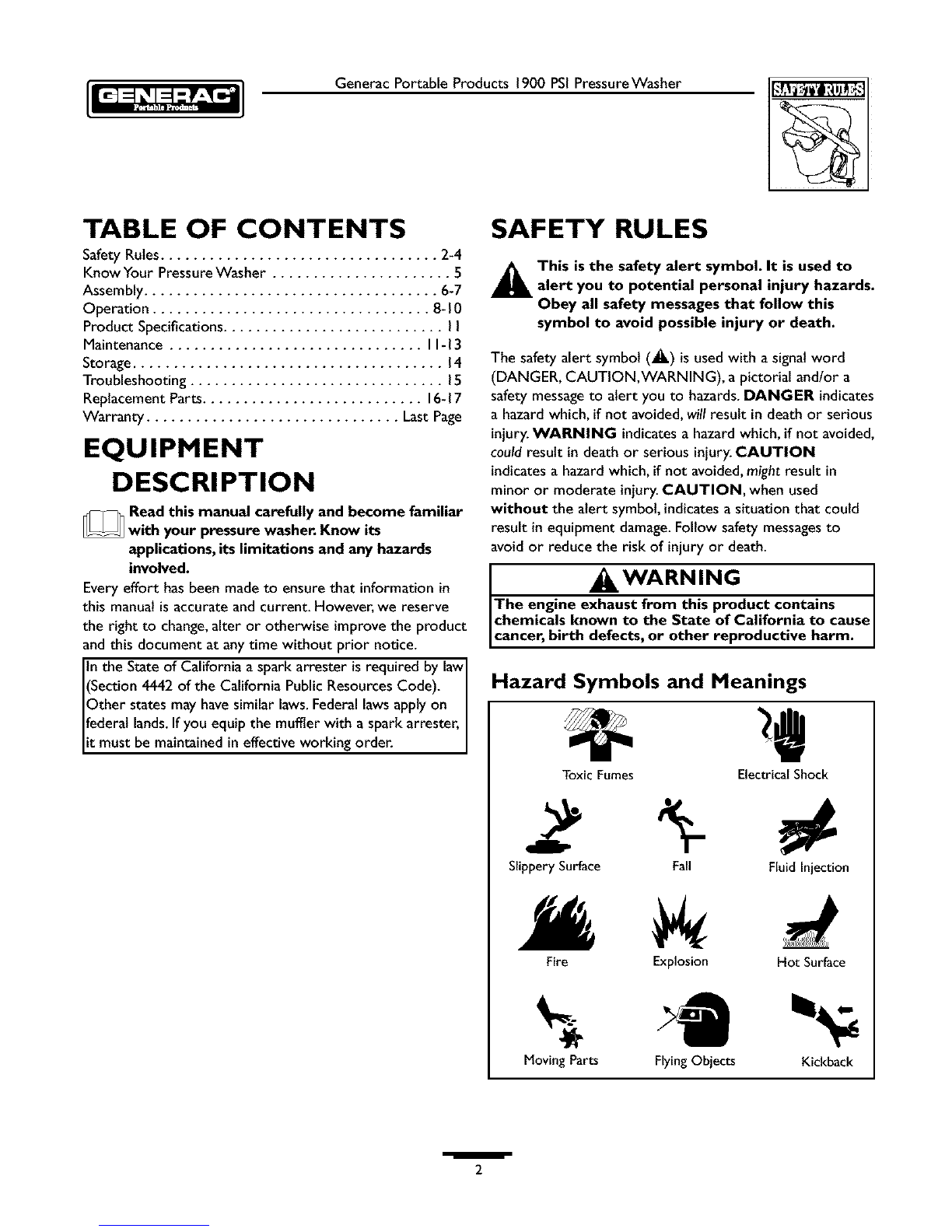

TABLE OF CONTENTS
SafetyRules.................................. 2-4
Know Your PressureWasher ...................... 5
Assembly.................................... 6-7
Operation .................................. 8- I0
Product Specifications........................... I I
Maintenance ............................... I I- 13
Storage...................................... 14
Troubleshooting ............................... 15
Replacement Parts........................... 16-17
Warranty ............................... Last Page
EQUIPMENT
DESCRIPTION
_Read this manual carefully and become familiar
with your pressure washer.Know its
applications, its limitations and any hazards
involved.
Every effort hasbeen madeto ensure that information in
this manualisaccurate and current. However, we reserve
the right to change,alter or otherwise improve the product
and this document at anytime without prior notice.
In the State of California a spark arrester is required by lawI
(Section 4442 of the California PublicResourcesCode). I
Other states may havesimilar laws.Federallawsapply on
federal lands.If you equip the muffler with a spark arrester,
it must be maintained ineffective working order.
SAFETY RULES
Ahis is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
The safety alert symbol (_.) isused with a signalword
(DANGER, CAUTION,WARNING), a pictorial and/or a
safety messageto alert you to hazards.DANGER indicates
a hazard which, if not avoided,will result in death or serious
injury.WARNING indicatesa hazardwhich,if not avoided,
couldresult in death or serious injury.CAUTION
indicates a hazardwhich, if not avoided,might result in
minor or moderate injury. CAUTION, when used
without the alert symbol, indicates a situation that could
result in equipment damage.Follow safety messagesto
avoid or reduce the risk of injuryor death.
WARNING I
The engine exhaust from this product contains I
chemicals known to the State of California to cause
cancer, b rth defects, or other reproduct ve harm.
Hazard Symbols and Meanings
Toxic Fumes ElectricalShock
Slippery Surface Fall Fluid Injection
Fire Explosion Hot Surface
Moving Parts FlyingObjects Kickback
/2

Generac Portable Products 1900 PSIPressureWasher
DANGER
Operate pressure washer ONLY outdoors.
Use a respirator or mask whenever there isa chance that
vapors may be inhaled.
Readall instructions with mask so you are certain the maskwi[[
provide the necessaryprotection againstinhalingharmful vapors.
WARNING
Keepwater sprayawayfrom electric wiring or fatal electric
shock may result.
WARNING
Keepspray nozzle between 8to 24 inchesawayfrom cleaning
surface.
Operate this unit on a stable surface.
The cleaning area should have adequateslopes anddrainage to
reduce the possibility of a fall due to slippery surfaces.
Beextremely careful if you must usethe pressure washer from
a [adder,scaffolding or any other relatively unstable [oca'don.
Firmly grasp spraygun with both handswhen usinghigh
pressure sprayto avoid iniuryif gun kicks back.
WARNING
WHEN ADDING FUEL
Turnpressure washer OFF and let it cool at least2 minutes
before removing gascap.
Fill fuel tank outdoors.
DO NOT overfill tank.Allow spacefor fuel expansion.
Keep fuel awayfrom sparks,open flames,pilot lights, heat,and
other ignitionsources.
DO NOT light a cigarette or smoke.
eVHEN OPERATING EQUIPMENT
DO NOT tip engine or equipment at angle which causesfuel
to spill.
DO NOT sprayflammable liquids.
'HEN TRANSPORTING OR REPAIRING EQUIPMENT
Transport/repair with fuel tank EMPTY or with fuel shutoff
valve OFE
eVHEN STORING FUEL OR EQUIPMENT WITH FUEL
IN TANK
Store awayfrom furnaces,stoves,water heaters, clothes
dryers or other appliancesthat havepilot light or other
ignition source becausethey can ignite fuel vapors.
WARNING
NEVER aim spray gun at people, animalsor plants.
DO NOT allow CHILDREN to operate pressure washer.
NEVER repair high pressure hose.Replaceit.
Keep high pressure hose connected to pump and spray gun
while system is pressurized.
/3

Generac Portable Products 1900 PSIPressureWasher
WARNING
DO NOT touch hot surfaces.
Stay dear of exhaust gases.
Allow equipment to cool before touching.
WARNING
DO NOT wear loose clothing, jewelry or anything that may
be caught in the starter or other rotating parts.
Tie up long hair and remove jewelry.
WARNING
Always wear eye protection when using this equipment or in
vicinity of where equipment is in use.
WARNING
Disconnect spark plug wire from spark plug and place wire
where it cannot contact spark plug.
CAUTION
DO NOT tamper with governed speed.
DO NOT operate pressure washer above rated pressure.
CAUTION
DO NOT secure spraygun in open position.
DO NOT leavespray gun unattended while machine is
running.
NEVER use aspraygun which does not haveatrigger lock or
trigger guard in place and in working order.
Always be certain spraygun, nozzles and accessories are
correctly attached.
CAUTION
DO NOT point spraygun at glasswhen in jet spray mode.
NEVER aim spray gun at plants.
CAUTION
tf you have questions about intended use,ask dealer or
contact Briggs& Stratton Power Products.
NEVER operate units with broken or missing parts, or
without protective housing or covers.
DO NOT by-pass any safety device on this machine.
Before starting pressure washer in cold weather, check all
parts of the equipment to be sure ice has not formed there.
NEVER move machineby pulling on high pressure hose.Use
handle provided on unit.
Check fuel system for leaksor signsof deterioration, such as
chafed or spongy hose,loose or missingclamps,or damaged
tank or cap.Correct all defects before operating pressure
washe_
This equipment is designed to be used with Briggs& Stratton
Power Products authorized parts ONLY. If equipment isused
with parts that DO NOT comply with minimum specifications,
user assumesall risks and liabilities.
/4

Generac Portable Products 1900 PSIPressureWasher

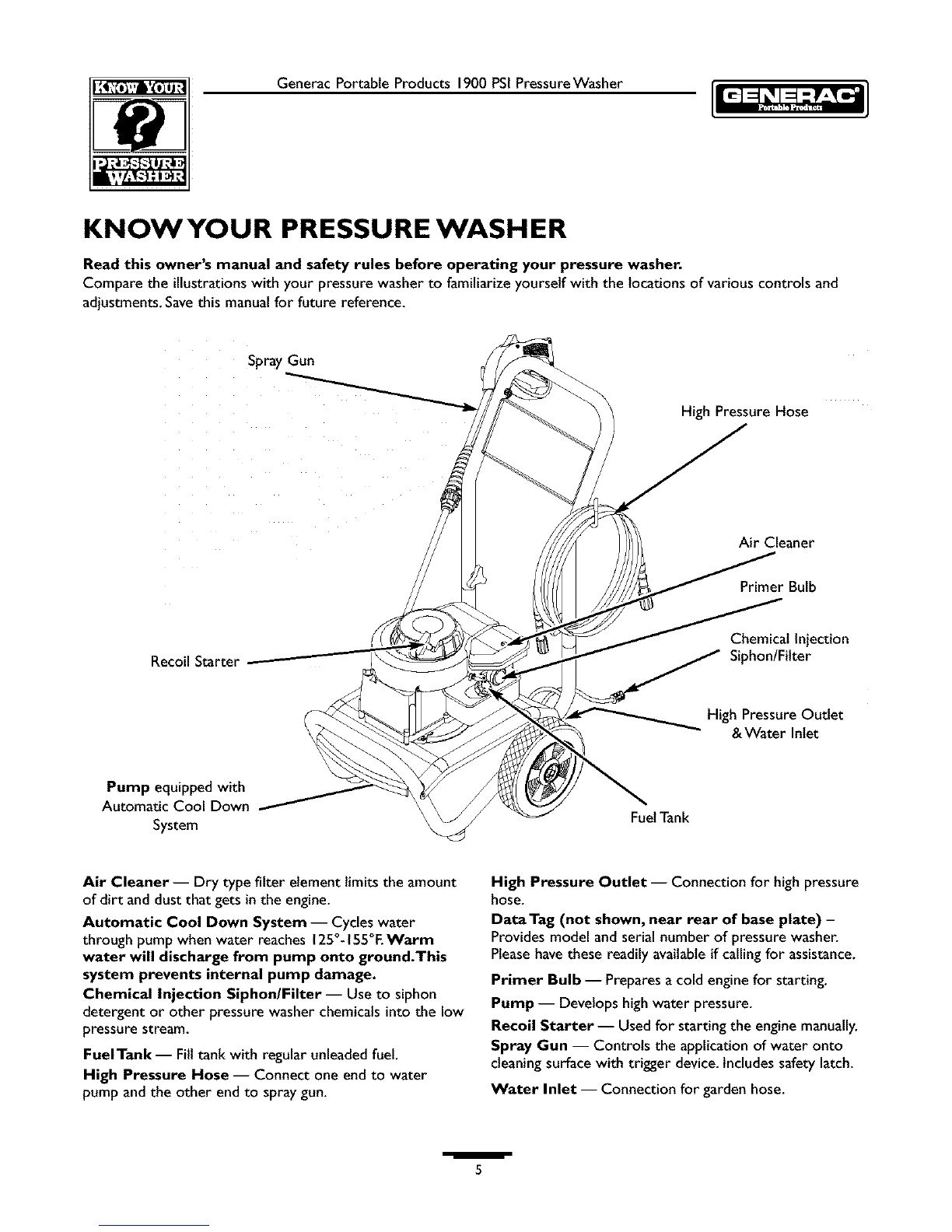

KNOWYOUR PRESSURE WASHER
Read this owner's manual and safety rules before operating your pressure washer.
Compare the illustrationswith your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Savethis manualfor future reference.
Spray Gun
High Pressure Hose
Air Cleaner
Primer Bulb
Recoil Starter Chemical Injection
Siphon/Filter
High PressureOutlet
& Water Inlet
Pump equipped with
Automatic Cool Down
System FuelTank
Air Cleaner-- Dry type filter element limitsthe amount
of dirt and dust that gets inthe engine.
Automatic Cool Down System -- Cycles water
through pump when water reaches 125°-155°EWarm
water will discharge from pump onto ground.This
system prevents internal pump damage.
Chemical Injection Siphon/Filter -- Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream.
FuelTank- Filltank with regular unleaded fuel.
High Pressure Hose -- Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet -- Connection for high pressure
hose.
DataTag (not shown, near rear of base plate) -
Provides model and serial number of pressure washer.
Pleasehavethese readily availableif calling for assistance.
Primer Bulb -- Preparesa cold enginefor starting.
Pump -- Develops high water pressure.
Recoil Starter -- Used for starting the engine manually.
Spray Gun -- Controls the application of water onto
cleaningsurface with trigger device. Includessafety latch.
Water Inlet -- Connection for garden hose.
/5

GeneracPortableProducts1900PSIPressureWasher
ASSEMBLY
IMPORTANT: Readentire owner's manualbefore you
attempt to assembleor operate your new pressure washer.
Remove Pressure Washer From
Carton
I. Removethe parts bag,accessories,and insertsincluded
with pressure washer.
2. Slicetwo corners at the end of carton from top to
bottom so the panel can be folded down fiat.
3. Removepressure washer from carton.
Carton Contents
Items in the carton include:
Main Unit
Handle
High Pressure Hose
SprayGun
Nozzle Extension
SafetyGoggles
Oil Bottle
Parts Bag(which includesthe following):
Owner's Manual
EngineManual
Owner's Registration Card
HandleAttachment Hardware
PREPARING PRESSURE
WASHER FOR USE
Ifyou haveany problems with the assemblyof your
pressure washer or if parts are missingor damaged,call the
pressure washer helpline at 1-800-270-1408. If callingfor
assistance,pleasehavethe model, revision, and serial
number from the data tag available.
To prepare your pressure washer for operation, you
will need to perform these tasks:
I. Fillout and send in registration card.
2. Attach handleto main unit.
3. Add oil to engine crankcase.
4. Add fuel to fuel tank.
5. Connect high pressure hose to spray gun and pump.
6. Connect water supply to pump.
7. Attach nozzle extension to spray gun.
Attach Handle
]. Placehandleassemblyonto handlesupportsconnected
to main unit.Make sure holes in handle align with
holes on handle supports (Figure I).
Alig
Handle
Supports
NOTE: It may be necessaryto move the handle supports
from side to side in order to alignthe handle so it will slide
over the handle supports.
2. Insert carriage bolts through holes from outside of
unit and attach a plastic knob from insideof unit
(Figure 2).Tighten by hand.
.Insert one "L" hooksthrough hole just under billboard
on leftside of handle (viewing from rear of unit). Hold
hook in place with pliers and attach locknut with
7/16" wrench (Figure 3).
;prayGun
Hook
4. Insert other"L" hook through hole just above
billboard on right side of handle (viewing from rear of
unit). Hold hook in place with pliers and attach locknut
with 7/16" wrench (Figure 3).
/6

GeneracPortableProducts1900PSIPressureWasher

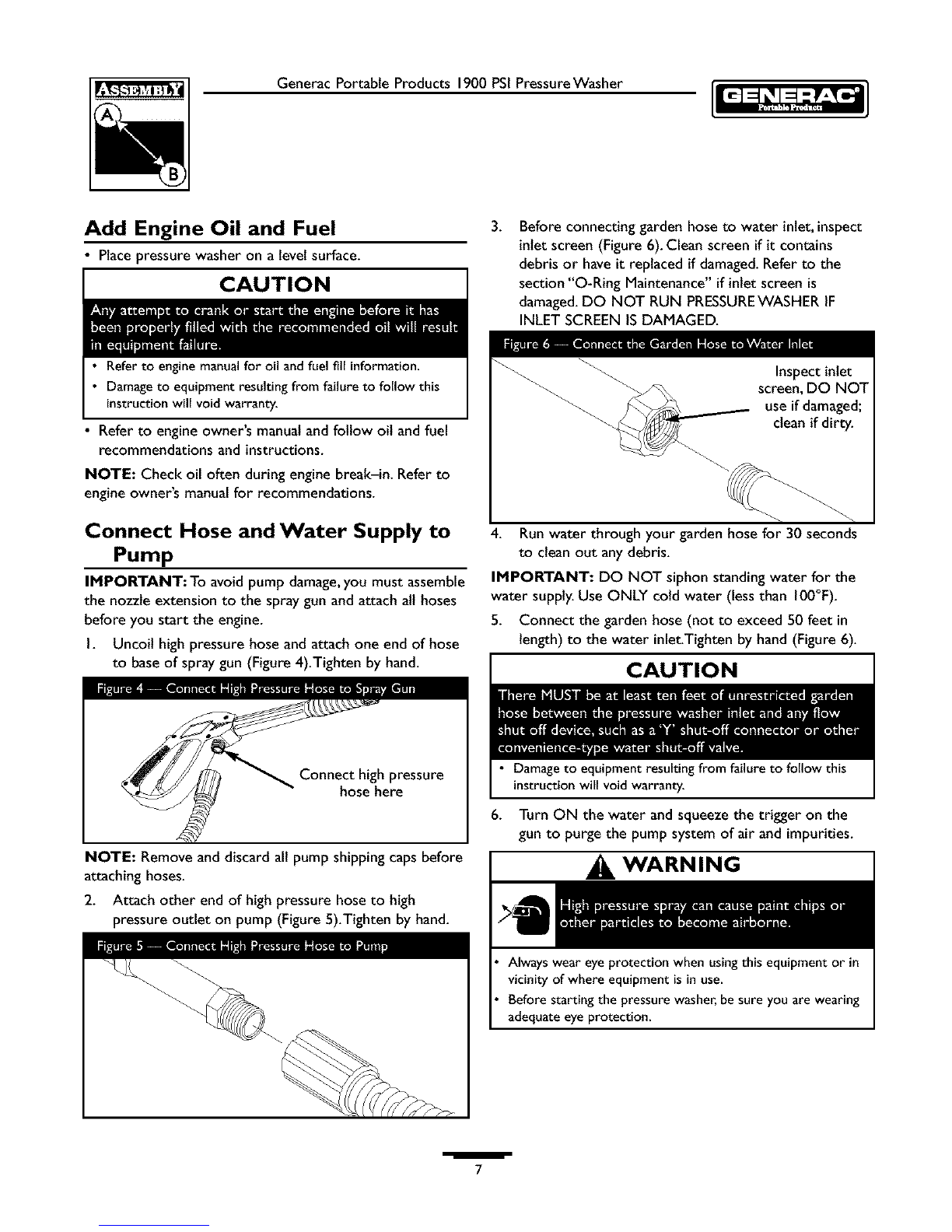

Add Engine Oil and Fuel
• Placepressure washer on a level surface.
CAUTION
•Refer to engine manual for oil andfuel fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
• Refer to engine owner's manualand follow oil and fuel
recommendations and instructions.
NOTE: Check oll often during engine break-in. Refer to
engine owner's manualfor recommendations.
Connect Hose and Water Supply to
Pump
IMPORTANT: To avoid pump damage,you must assemble
the nozzle extension to the spray gun and attach all hoses
before you start the engine.
I. Uncoil high pressure hose and attach one end of hose
to baseof spray gun (Figure4).Tighten by hand.
Connect high pressure
hose here
NOTE: Remove and discard all pump shippingcaps before
attaching hoses.
2. Attach other end of high pressure hoseto high
pressure outlet on pump (Figure 5).Tighten by hand.
.Before connecting garden hose to water inlet,inspect
inlet screen (Figure 6). Clean screen ifit contains
debris or haveit replaced if damaged.Refer to the
section "O-Ring Maintenance" ifinlet screen is
damaged.DO NOT RUN PRESSUREWASHERIF
INLET SCREENISDAMAGED.
Inspect inlet
screen, DO NOT
use if damaged;
clean if dirty.
4. Run water through your garden hose for 30 seconds
to cleanout any debris.
IMPORTANT: DO NOT siphon standing water for the
water supply. Use ONLY cold water (less than 100°E).
5. Connect the garden hose (not to exceed 50 feet in
length) to the water inlet.Tighten by hand (Figure 6).
CAUTION
• Damage to equipment resulting from failure to follow this
instructionwill voidwarranty.
6. Turn ON the water and squeezethe trigger on the
gun to purge the pump system of air and impurities.
WARNING
Always wear eye protection when usingthis equipment or in
vicinity of where equipment isin use.
Before starting the pressure washer,be sure you are wearing
adequate eye protection.
/7

Generac Portable Products 1900 PSIPressureWasher

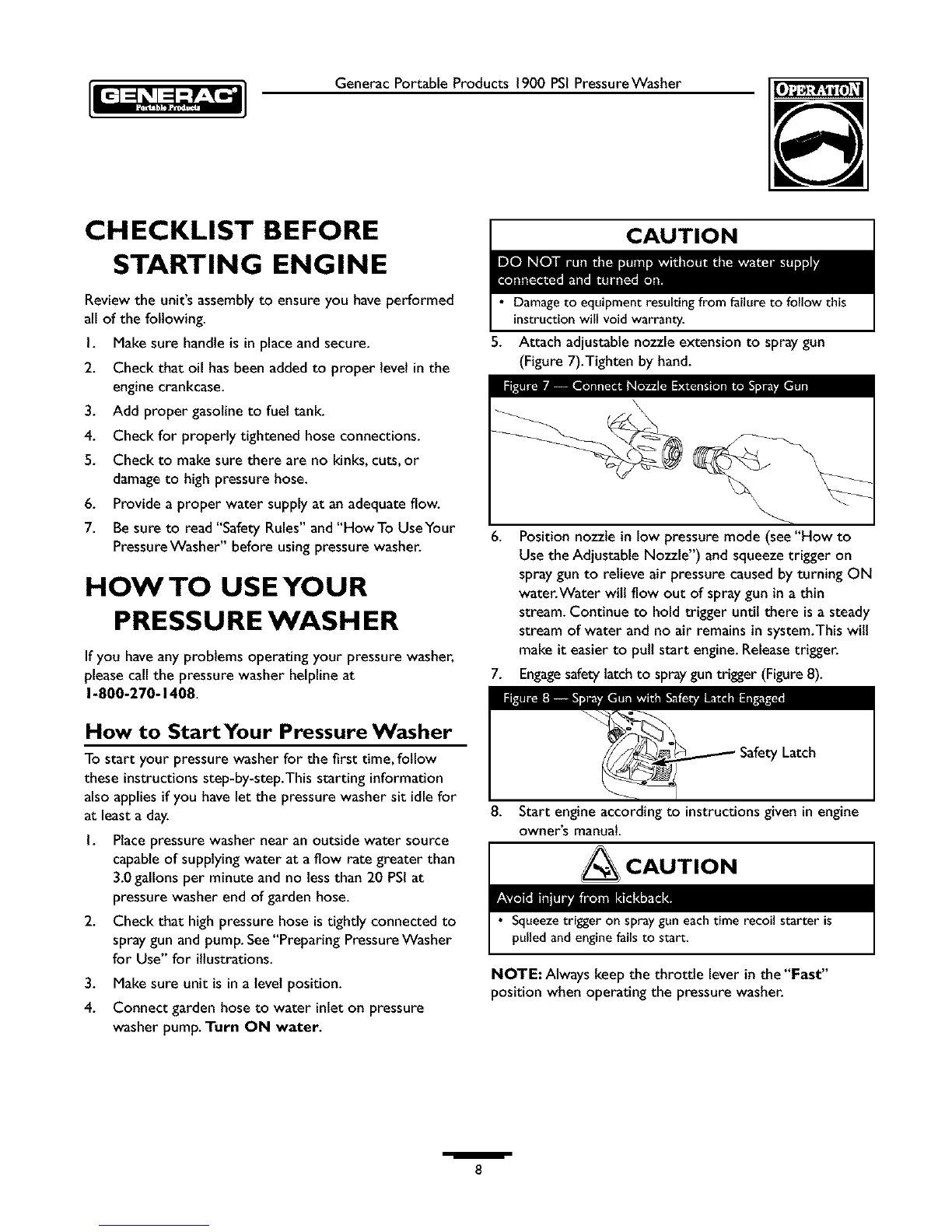

CHECKLIST BEFORE
STARTING ENGINE
Reviewthe unit'sassemblyto ensure you haveperformed
all of the following.
I. Make sure handle isin placeand secure.
2. Check that oil hasbeen added to proper level inthe
engine crankcase.
3. Add proper gasolineto fuel tank.
4. Check for properly tightened hose connections.
5. Check to make sure there are no kinks, cuts, or
damageto high pressure hose.
6. Provide a proper water supply at an adequate flow.
7. Be sure to read"Safety Rules" and "HowTo UseYour
PressureWasher" before usingpressure washer.
HOW TO USE YOUR
PRESSURE WASH ER
If you haveany problems operating your pressure washer,
pleasecall the pressure washer helpline at
1-800-270-1408.
How to StartYour Pressure Washer
To start your pressure washer for the first time, follow
these instructionsstep-by-step.This starting information
also appliesif you havelet the pressure washer sit idlefor
at least a day.
I. Placepressure washer near an outside water source
capableof supplying water at a flow rate greater than
3.0gallons per minute and no lessthan 20 PSIat
pressure washer end of garden hose.
2. Check that high pressure hose is tightly connected to
spray gun and pump. See"PreparingPressureWasher
for Use" for illustrations.
3. Make sure unit is in a level position.
4. Connect garden hose to water inlet on pressure
washer pump. Turn ON water.
CAUTION
•Damage to equipment resulting from failure to follow this
instructionwill void warranty.
5. Attach adjustable nozzle extension to spray gun
(Figure 7).Tighten by hand.
6. Position nozzle in low pressure mode (see"How to
Use the Adjustable Nozzle") and squeezetrigger on
spray gun to relieve air pressure caused by turning ON
water.Water witl flow out of spray gun in a thin
stream. Continue to hold trigger until there is a steady
stream of water and no air remains in system.Thls witl
make it easierto putl start engine.Releasetrigger.
7. Engagesafety latch to spray gun trigger (Figure 8).
SafetyLatch
8. Start engine according to instructionsgiven in engine
owner's manual.
• Squeezetriggeron sprayguneachtime recoilstarter is
pulledandenginefailsto start.
NOTE: Always keep the throttle lever in the "Fast"
position when operating the pressure washer.
/8

GeneracPortableProducts1900PSIPressureWasher

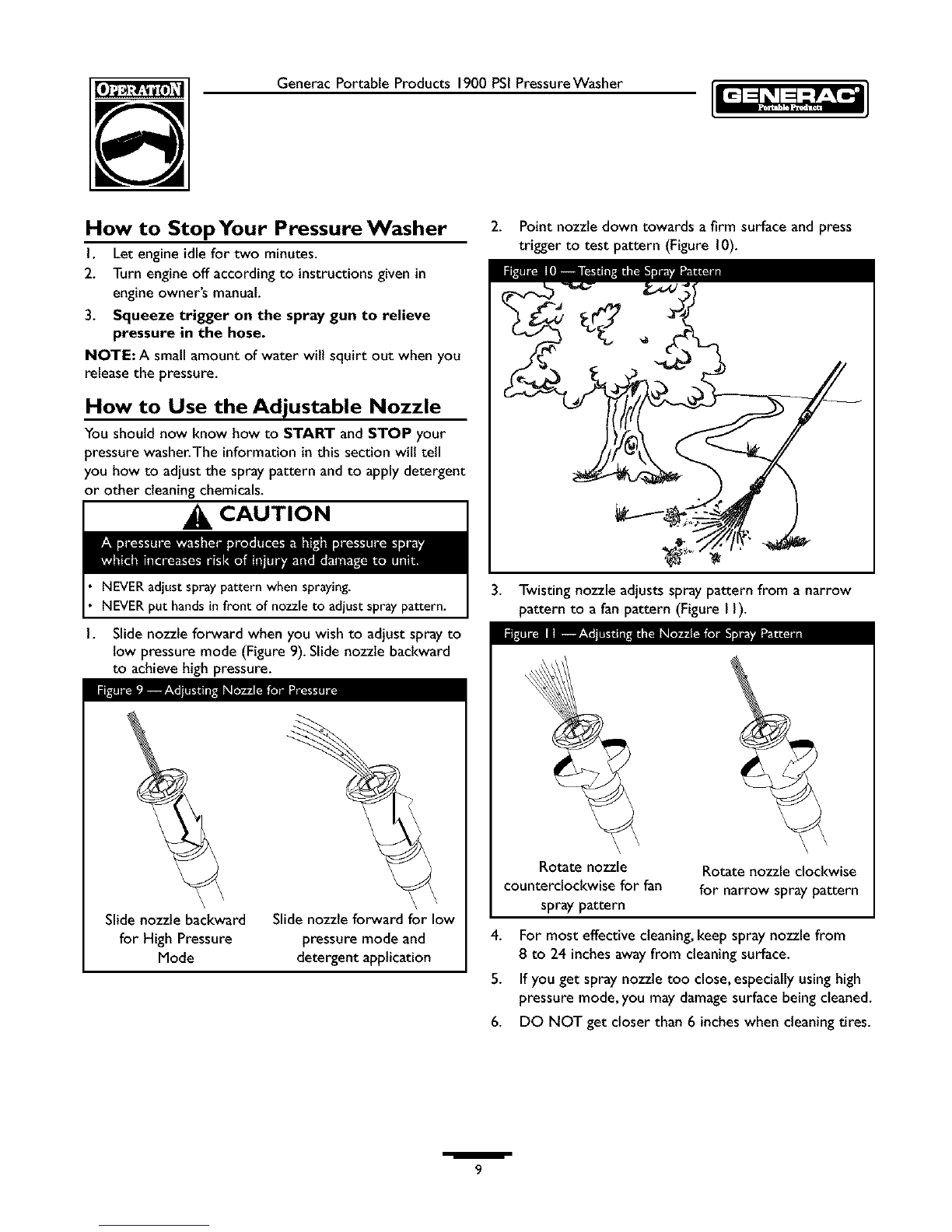

How to StopYour Pressure Washer
I. Let engine idle for two minutes.
2. Turn engine off according to instructionsgiven in
engine owner's manual.
3. Squeeze trigger on the spray gun to relieve
pressure in the hose.
NOTE: A small amount of water will squirt out when you
releasethe pressure.
How to Use the Adjustable Nozzle
You should now know how to START and STOP your
pressure washer.The informationin this section will tell
you how to adjust the spray pattern and to applydetergent
or other cleaningchemicals.
CAUTION
I.
NEVERadjust spray pattern when spraying.
NEVERput hands infront of nozzle to adjust spray pattern.
Slide nozzle forward when you wish to adjust spray to
low pressure mode (Figure 9). Slide nozzle backward
to achieve high pressure.
Slide nozzle backward
for High Pressure
Mode
Slide nozzle forward for low
pressure mode and
detergent application
2.
.
Point nozzle down towards a firm surface and press
trigger to test pattern (Figure I0).
Twisting nozzle adjusts spray pattern from a narrow
pattern to a fan pattern (Figure I I).
Rotate nozzle
counterclockwise for fan
spray pattern
Rotate nozzle clockwise
for narrow spray pattern
4. For most effective cleaning, keep spray nozzle from
8 to 24 inches away from cleaning surface.
5. If you get spray nozzle too close, especially using high
pressure mode, you may damage surface being cleaned.
6. DO NOT get closer than 6 inches when cleaning tires.
I9

Generac Portable Products 1900 PSIPressureWasher
Applying Detergent with the
Adjustable Nozzle
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could damage
the pump. CAUTION
•Starting the engine without all the hosesconnected and
without the water turned ON will damagethe pump.
• Damage to equipment resulting from failure to follow this
instructionwill void warranty.
To apply detergent, follow these steps:
I. Reviewuse of adjustable nozzles.
2.
3. Prepare detergent solution asrequired by job.
Placefilter end of chemical injectionhose into
detergent container.
CAUTION
• When insertingthe filter into a detergent solution bottle,
route the tube so asto keep it from inadvertentlycontacting
the hot mufflec
4. Slide adjustable nozzle forward to low pressure mode.
Detergent cannot be applied with nozzle in high
pressure position.
5. Make sure garden hose isconnected to water inlet.
Check that high pressure hose isconnected to spray
gun and pump. Start engine.
6. Apply detergent to a dry surface,starting at lower
portion of area to be washed and work upward,using
long,even,overlapping strokes.
7. Allow detergent to "soak in"for 3-5 minutes before
washing and rinsing. Reapplyasneeded to prevent
surface from drying. DO NOT allow detergent to dry
on (prevents streaking).
IMPORTANT: You must flush the chemical injection
system after each useby placingthe filter intoa bucket of
clean water,then run the pressure washer in low pressure
for I-2 minutes.
Pressure Washer Rinsing
For Rinsing:
I. Slide the nozzle backward to high pressure, pressthe
trigger and wait for the detergentto clear.
NOTE:You can also stop detergent from flowing by simply
removing chemical injection hose from bottle.
2. Keep the spraygun a safe distancefrom the area you
plan to spray.
3. Apply a high pressure spray to a small area,then check
the surface for damage.If no damageisfound, it isokay
to continue cleaning.
WARNING
Keep spray nozzle between 8 to 24 inchesawayfrom cleaning
surface,
Operate this unit on a stable surface.
Be extremely careful if you must usethe pressure washer from
a ladder,scaffolding or anyother relatively unstable location.
Firmlygrasp spraygun with both handswhen using high
pressure sprayto avoid iniuryif gun kicks back.
4. Start at the top of the areato be rinsed,working
down with same overlapping strokes asyou usedfor
washingand applyingdetergent
Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressingthe trigger on the spray gun,
circulating water in the pump can reachtemperatures
above 125°EThe systemengagesto cool the pump by
discharging the warm water onto the ground.
/10

Generac Portable Products 1900 PSIPressureWasher
SPECIFICATIONS
Outlet Pressure ..... 1900psi
Flow Rate .......... 2.0 gallonsper minute (gpm)
Detergent .......... Use detergent approvedfor
pressure washers
Water Supply ...... Not to Exceed 100°F
Temperature
Automatic Cool .... Will cyclewhen water
Down System reaches 125°-155°F
ShippingWeight .... 54 Ibs.
GENERAL MAINTENANCE
RECOMMENDATIONS
The pressure washer warranty does not cover itemsthat
havebeen subjected to operator abuseor negligence.To
receive full valuefrom the warranty, the operator must
maintain the pressure washer asinstructedin this manual.
•Some adjustments will need to be made periodically to
properly maintain your pressure washer.
• All maintenance in this manualand the engine owner's
manual should be made at least once eachseason.
• Once a year you should cleanor replace the spark plug,
clean or replacethe air filter and check the spray gun
and adjustable nozzle extension assemblyfor wear.A
new spark plug and clean air filter assure proper fuel-air
mixture and help your engine run better and last longer.
Pleaserefer to your engine owner's manualfor more
details.
• If equipped with inflatabletires, keep the air pressure at
the value marked on the tire or within 15 and 40 psi.
Before Each Use
I. Check engine oil level.
2. Check water inletscreen for damage.
3. Check in-linefilter for damage.
4. Check high pressure hose for leaks.
5. Check chemical injection hose and filter for damage.
6. Check spray gun and adjustable nozzle extension
assemblyfor leaks.
7. Rinseout garden hose to flush out debris.
PRESSURE WASH ER
MAINTENANCE
Check and Clean Inlet Screen
Examine the screen on the water inlet.Clean it ifthe
screen isclogged or replace it if screen isdamaged.
Check High Pressure Hose
The high pressure hose can develop leaksfrom wear,
kinking,or abuse.Inspect the hoseeach time before using
it. Check for cuts,leaks,abrasions or bulging of cover,
damageor movement of couplings.If anyof these
conditions exist, replacethe hose immediately.
WARNING
NEVER repair high pressure hose.Replace it.
Replacement hose rating MUST exceed maximum pressure
rating of unit.
Check Chemical Injection Hose
Examine the filter on the detergent tube and clean if
clogged.The tube should fit tightly on the barbed fitting.
Examine the tube for leaks or tears. Replace the filter or
tube if either isdamaged.
Check Gun and Adjustable Nozzle
Extension
Examine the hose connection to the spray gun and make
sure it issecure.Test the trigger by pressingit and making
sure it "springs back" into place when you releaseit. Put
the safety latch in the ON position and test the trigger.You
should not be able to press the trigger.
/II

Generac Portable Products 1900 PSIPressureWasher

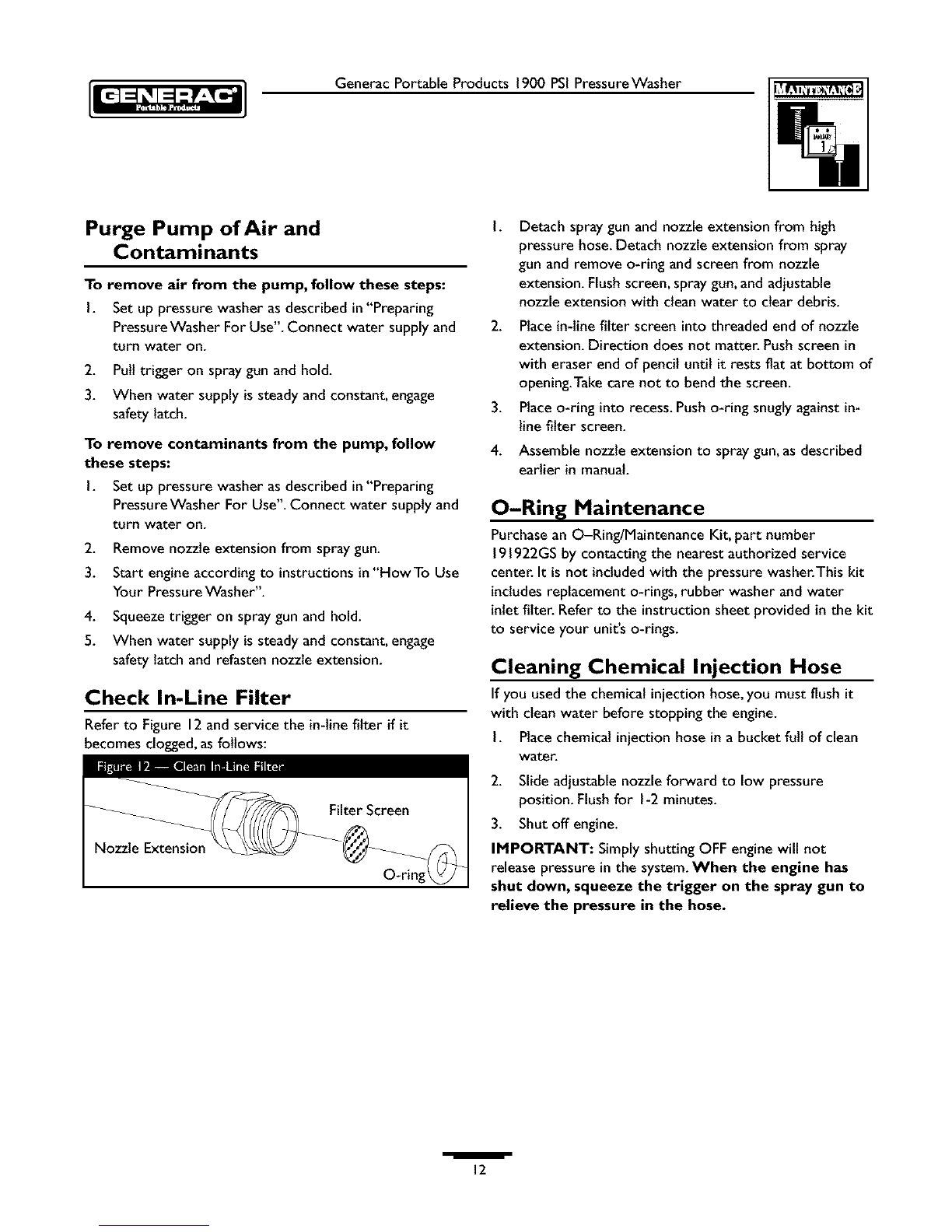

Purge Pump of Air and
Contaminants
To remove air from the pump, follow these steps:
I. Set up pressure washer asdescribed in"Preparing
PressureWasher For Use". Connect water supply and
turn water on.
2. Pull trigger on spray gun and hold.
3. When water supply issteadyand constant, engage
safety latch.
To remove contaminants from the pump, follow
these steps:
I. Set up pressure washer asdescribed in"Preparing
PressureWasher For Use". Connect water supply and
turn water on.
2. Remove nozzle extension from spray gun.
3. Start engine according to instructions in"HowTo Use
Your Pressure Washer".
4. Squeeze trigger on spray gun and hold.
5. When water supply is steadyand constant, engage
safety latch and refasten nozzle extension.
Check In-Line Filter
Refer to Figure 12and service the in-linefilter if it
becomes clogged,asfollows:
Nozzle Extension
O-rin
I.
2.
.
4.
Detach spray gun and nozzle extension from high
pressure hose.Detach nozzle extension from spray
gun and remove o-ring and screen from nozzle
extension. Flushscreen,spray gun,and adjustable
nozzle extension with cleanwater to clear debris.
Placein-linefilter screen into threaded end of nozzle
extension. Direction does not matter. Pushscreen in
with eraser end of pencil until it rests fiat at bottom of
opening.Takecare not to bend the screen.
Placeo-ring into recess.Pusho-ring snuglyagainst in-
linefilter screen.
Assemble nozzle extension to spray gun,asdescribed
earlier in manual.
O-Ring Maintenance
Purchasean O-Ring/Maintenance Kit, part number
191922GSby contacting the nearest authorized service
center. It isnot included with the pressure washer.This kit
includes replacement o-rings, rubber washer and water
inlet filter. Refer to the instructionsheet provided in the kit
to service your unit's o-rings.
Cleaning Chemical Injection Hose
If you usedthe chemical injectionhose, you must flush it
with clean water before stopping the engine.
I. Placechemical injectionhose in a bucket full of clean
water.
2. Slide adjustable nozzle forward to low pressure
position. Flushfor I-2 minutes.
3. Shut off engine.
IMPORTANT: Simply shutting OFF engine will not
release pressure in the system.When the engine has
shut down, squeeze the trigger on the spray gun to
relieve the pressure in the hose.
/12

Generac Portable Products 1900 PSIPressureWasher

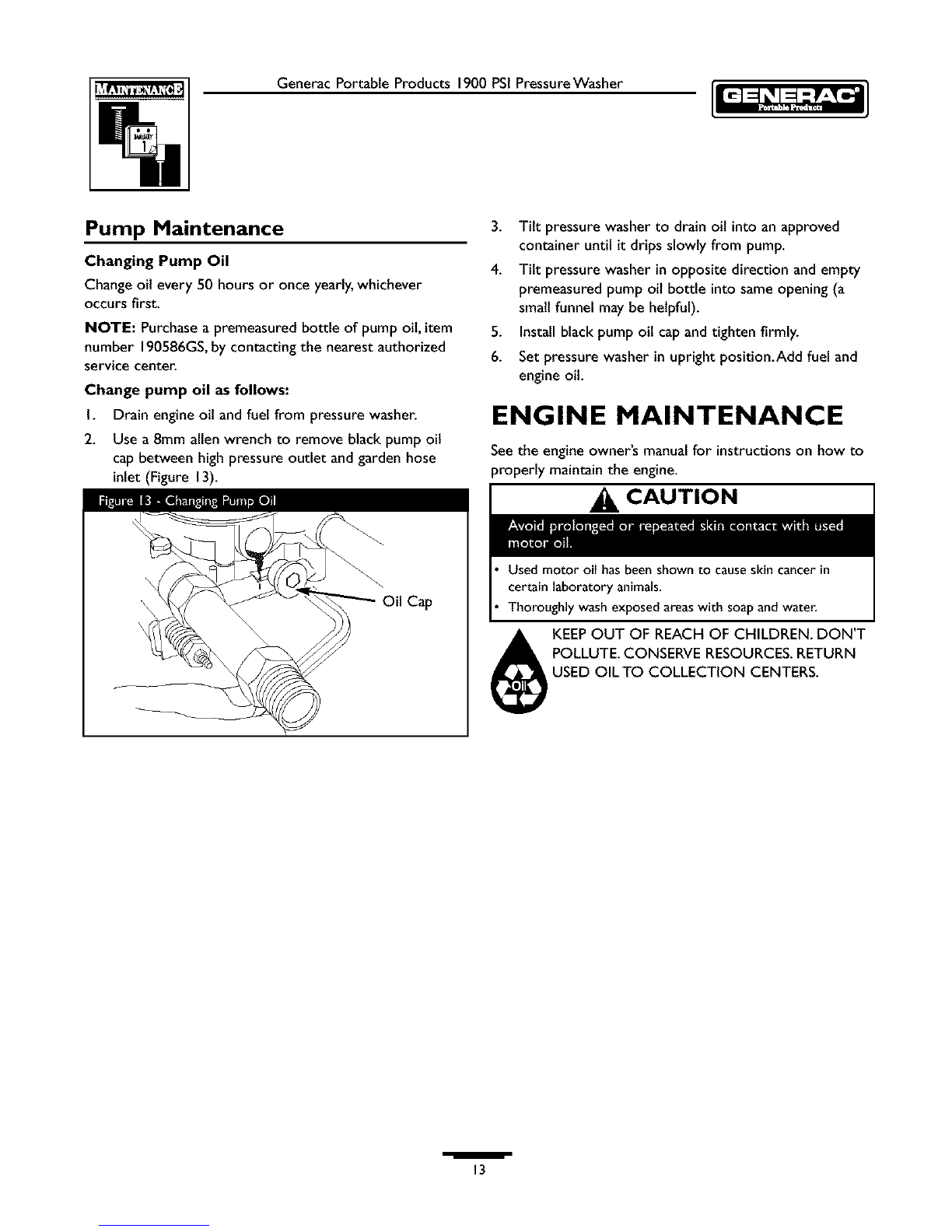

Pump Maintenance
Changing Pump Oil
Change oit every 50 hours or once yearly,whichever
occurs first.
NOTE: Purchasea premeasured bottle of pump oil, item
number 190586GS,by contacting the nearest authorized
service center.
Change pump oil as follows:
I. Drain engine oil and fuel from pressure washer.
2. Use a 8mm allen wrench to remove black pump oil
cap between high pressure outlet and garden hose
inlet (Figure 13).
\
\Oil Cap
3. Tilt pressure washer to drain oil into an approved
container until it drips slowly from pump.
4. Tilt pressure washer in opposite direction and empty
premeasured pump oil bottle into sameopening (a
small funnel may be helpful).
5. Install black pump oil cap and tighten firmly.
6. Set pressure washer in uprightposition.Acid fuel and
engine oil.
ENGINE MAINTENANCE
See the engine owner's manual for instructions on how to
properly maintain the engine.
CAUTION
Used motor oil has been shown to cause skin cancer in
certain laboratory animals.
Thoroughly wash exposed areas with soap and water.
KEEPOUT OF REACH OF CHILDREN. DON'T
POLLUTE.CONSERVE RESOURCES.RETURN
USED OIL TO COLLECTION CENTERS.
/13

GeneracPortableProducts1900PSIPressureWasher
PREPARING THE UNIT
FOR STORAGE
Water should not remain in the unitfor longperiods of
time. Sedimentsor minerals candeposit on pump parts and
"freeze" pump action. If you do not plan to usethe
pressure washer for more than 30 days,follow this
procedure:
I. Flushchemical injectionhose by placing filter into a pail
of cleanwater while running pressure washer in low
pressure mode (adjustable nozzle inforward position).
Flushfor one to two minutes.
2. Shut off engine and let it cool, then remove high
pressure and garden hoses.Disconnect spark plug wire
from spark plug.
3. Empty pump of all pumped liquids by pulling recoil
handle about 6 times.This should remove most liquid
in pump.
4. Use PumpSaverto prevent corrosion build up and
freezing of pump.
5. Store unitin a clean,dry area.
Protecting the Pump
To protect the pump from damagecaused by mineral
deposits or freezing,use PumpSaverto treat pump.This
prevents freeze damageand lubricates pistons and seals.
NOTE: PumpSaveris availableas an optional accessory.It
is not included with the pressure washer.Contact the
nearestauthorized servicecenter to purchasePumpSaver.
CAUTION
•Failure to do so will permanently damage your pump and
renderyour unit inoperable.
•Freezedamageisnot coveredunderwarranty.
CAUTION
Always wear eye protection when using PumpSaver.
To use PumpSaver, make sure the pressure washer is
turned off and disconnected from supply water. Read and
follow all instructions and warnings given on the PumpSaver
container.
NOTE: PumpSaver will drip from pump after treatment
and will stain wood and concrete.
NOTE: If PumpSaver is not available, draw RV antifreeze
(non-alcohol) into the pump by pouring the solution into a
3-foot section of garden hose connected to inlet adapter
and pulling recoil handle twice.
STORING THE ENGINE
See the engine owner's manual for instructions on how to
properly prepare the engine for storage.
I14

Generac Portable Products 1900 PSIPressureWasher
TROUBLESHOOTING
Problem
Pump has following
problems: failure to
produce pressure, erratic
pressure, chattering, loss
of pressure, low water
volume.
Detergent fails to mix
with spray.
Cause
I. Nozzle in low pressure mode.
2. Water inlet isblocked.
3. Inadequate water supply.
4. Inlet hose iskinked or leaking.
5. Clogged inter hose strainer.
6. Water supply isover 100°F.
7. High pressure hose is blocked or
leaks.
8. Gun leaks.
9. Nozzle is obstructed.
10. Pump isfaulty.
I. Detergent siphoning tube is not
submerged.
2. Chemical filter is clogged or cracked.
3. Dirty in-line filter.
4. Nozzle is in high pressure mode.
Engine runs good at no- Engine speed istoo slow.
load but "bogs" when
load is added.
Pressure washer stops Out of gasoline.
during operation.
Correction
I. Pultnozzle backward for highpressure
mode.
2. Clear inlet.
3. Provide adequatewater flow.
4. Straighten inlet hose, patch leak.
5. Check and clean inlethose strainer.
6. Provide cooler water supply.
7. Clear blocks in outlet hose.
8. Replacegun.
9. Clean nozzle.
10. Contact Generac service facility.
1. Insertdetergentsiphoning tube into
detergent.
2. Cleanor replace fitter/detergent
siphoningtube.
3. See"Check In-Line Filter".
4. Pushnozzle forward for low pressure
mode.
Move throttle control to FASTposition. If
enginestill "bogs down", contact Briggsand
Stratton servicefacility.
Fitlfuel tank.
/15

Generac Portable Products 1900 PSIPressureWasher
_rs
EXPLODED VIEWAND PARTS LIST- MAIN UNIT
900 -_ 2
Item Part # Description Item Part #
I 192419GS BASE 10 21760GS
2 BI91874GS HANDLE I 1 192309GS
3 191909GS BILLBOARD 12 192050GS
4 190249GS HOSE 13 B3335HGS
5 192525GS KIT,Pump Mounting Hardware 14 19231IGS
6 192128GS KIT,Hook 15 23139GS
7 190132GS GUN 16 191693GS
8 B2203GS KIT,Handle Connector 900 NSP
9 192310GS KIT,Vibration Mount
Items Not Illustrated:
Part # Description
192236GS MANUAL, Owner's
192421GS KIT,Decals
BB3061BGS OIL, Engine
Description
ORIFICE
KIT,Hook
KIT,E-Ring
WAND, Adjustable Nozzle
KIT,Wheel
KEY
ASSY,Pump (see page 17)
ENGINE
/16

_rs
Generac Portable Products 1900 PSI Pressure Washer

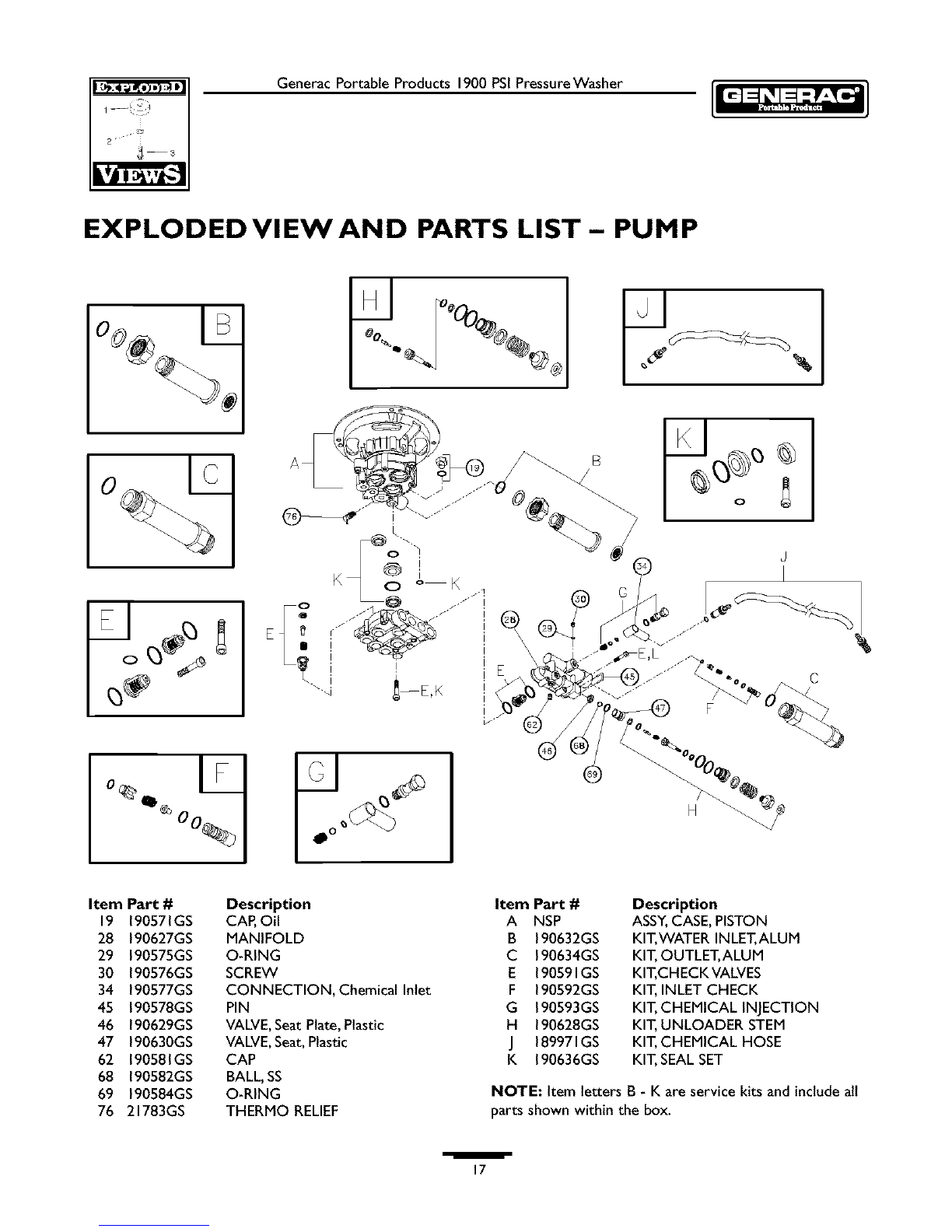

EXPLODEDVIEWAND PARTS LIST- PUMP
½
®®
Item PaX #
19 190571GS
28 190627GS
29 190575GS
30 190576GS
34 190577GS
45 190578GS
46 190629GS
47 190630GS
62 190581GS
68 190582GS
69 190584GS
76 21783GS
Description
CAP,Oil
MANIFOLD
O-RING
SCREW
CONNECTION, Chemical Inlet
PIN
VALVE,Seat Plate,Plastic
VALVE,Seat,Plastic
CAP
BALL,SS
O-RING
THERMO RELIEF
Item Part #
A NSP
B 190632GS
C 190634GS
E 190591GS
F 190592GS
G 190593GS
H 190628GS
J 189971GS
K 190636GS
Description
ASSY,CASE,PISTON
KIT,WATER INLET,ALUM
KIT,OUTLET,ALUM
KIT,CHECK VALVES
KIT,INLET CHECK
KIT,CHEMICAL INJECTION
KIT,UNLOADER STEM
KIT,CHEMICAL HOSE
KIT,SEALSET
NOTE: Item letters B - K are service kits and include all
parts shown within the box.
/17

Lavadorade Presibn 1900 PSIde Generac Portable Products
TABLA DE CONTENIDOS
ReglasDe Seguridad .............................. 18-20
Conozca Su Generador .............................. 21
Ensamblaje...................................... 22-23
Funeionamiento.................................. 24-26
EspecificacionesDel Producto ......................... 27
Mantenimiento ................................... 27-29
AImacenamiento .................................... 29
Diagnosticos De Avertas .............................. 30
PiezasDe Recambio .............................. 16-17
Garantia .......................................... 31
DESCRIPCI( N DEL EQUIPO
Lea este manual de manera cuidadosa y
_familiaricese con su lavadora a presi6n. Conozca
sus usos, sus limitaciones y cualcluier peligro
relacionado con el mismo.
Se ha hecho cada esfuerzo posible para asegurarse que la
informacibnque aparece en este manual es exacta y se encuentra
actualizada.Sin embargo,nosotros se reserva el derecho a
cambiar,alterar ode otra manera mejorar, el producto y este
documento en cualquier momento, sin previo aviso.
Enel estado de California es obligatorio, seg_n la ley,el uso de
_pagachispas(Secci6n 4442 del C6digo de Recursos P_blicos de
_.alifornia).Otros estados pueden tener leyessimilares.Lasleyes
_ederalesse aplican en tierras federales.Si equipa el silenciador
:on un apagachispas,este deber_ ser mantenido en buenas
:ondiciones de trabaio.
REGLAS DE SEGURIDAD
_k _ste es el simbolo de alerta de seguridad. Sirvepara advertir al usuario de un posible riesgo para
su integridad fisica. Siga todos los mensajes de
seguridad que figuren despu_s de este simbolo
para eqitar lesiones o incluso la muerte.
Elsimbolo de alerta de seguridad (_.) esusado con una palabra
(PELIGRO,ADVERTENCIA, PRECAUCI_)N), un mensaje por
escrito ounailustracibn,para alertarlo acerca de cualquier
situacibn de peligro que pueda existir. PELIGRO indicaun riesgo
el cual,si no se evita,causar_la muerte ouna herida grave.
AOVERTENCIA indicaun riesgo el cual,si no se evita,puede
causar la muerte ouna herida grave. PRECAUCI_)N indicaun
riesgo,el cual,si no seevita, puede causar heridas menores o
moderadas. PRECAUCI_)N, cuando se usasin el simbolo de
alerta, indicauna situacibn que podrta resultar en el daho del
equipo. Sigalos mensajesde seguridad para evitar oreducir los
riesgos de heridas e inclusivela muerte.
ADVERTENCIA
El escape del motor de este producto contiene
elementos quimicos reconocidos en el Estado de
California pot producir cgncer, defectos de nacimiento u
otros da_os de tipo reproductivo.
Simbolos de Peligro ySigniflcados
GasesTbxicos Descarga El_ctrica
2' 5-
SuperficiesResbalosas Caer InyeccidnLtquida
Fuego Explosi6n Superficie Caliente
Partes en Movimiento ObjetosVoladores Contragolpe
i18

Lavadorade Presi6n 1900 PSIde Generac Portable Products
PELIGRO
Opere el lavadorade presiOn SOLAMENTE al aire libre.
Utilice un respirador o m_scara siempre que exista la posibilidad de
inhalarvapores.
Lea todas las instrucciones de la m_scarapara asegurarse de que le
brindar_ la protection necesaria contra la inhalaci6n de vapores
nocivos.
ADVERTENCIA
Mantenga el chorro del agua alejado de alambrados el_ctricos,de Io
contrario podrlan ocurrir descargasel_ctricas fatales.
ADVERTENCIA
Mantenga laboquilla de rociado de 8 a24 pulgadas de lasuperficie de
limpieza,
Opere y almacene esta unidad sobre una superfide estable.
Elgrea de limpieza deber_ tenet inclinaciones y drenajes adecuados
para disminuir la posibilidad de caldas debido a superficies resbalosas.
Sea extremadamente cuidadoso si usa lamgquina lavadora a presi6n
desde una escalera,andamio o cualquier superficie relativamente
inestable.
Sujete la pistola de la hidrolavadora firmemente con ambasmanos
cuando utilice el rociado aalta presi6n. De esta manera evitarg
lesiones producidas pot el posible golpe de la pistola hacia atr_s.
ADVERTENCIA
CUANDO AI_IADA COMBUSTIBLE
Apague el generador (posici6n OFF) y d_jelo enfriar al menos por
2 minutos antes de remover la tapa de la gasolina.
Llene el tanque al aire libre.
NO Ilene demasiado el tanque. Permita al menos espacio para la
expansi6n del combustible.
Mantenga la gasolinaalejada de chispas,llamasabiertas, pilotos, calory
otras fuentes de ignici6n.
NO encienda un cigarrillo o fume.
:UANDO OPERE EL EQUIPO
NO inclineel motor o el equipo,de tal manera que la gasolina se
pueda derrama_
NO rocle liquidos inflamables.
:UANDOTRANSPORTE 0REPARE EL EQUIPO
Transporte o repare el equipo con el tanque de combustiblevaclo,o
con la vglvula paraapagarel combustible,apagada(posici6n OFF).
:UANDO ALMACENE OGUARDE EL EQUIPO CON
COMBUSTIBLE EN ELTANQUE
Almacene alejado de calderas,estufas,calentadoresde agua,sec_doras
de ropa u otros aparatos electrodom_sticos que posean pilotos u
otras fuentes de ignici6n, porque ellos pueden encender los vapores
de la gasolina.
ADVERTENCIA
NUNCA apunte la pistola a la genre,animales oplantas.
NO permita en ning_n momento que NliqOS operen la m_quina
lavadora a presi6n.
NUNCA repare la manguera de alta presi6n. Remplacela.
Mantenga conectada la manguera a la m_quina o a la pistola de
rociado cuando el sistema est_ presurizado.
i19

Lavadorade Presibn 1900 PSIde Generac Portable Products
ADVERTENCIA
NO toque {assuperficies calientes.
Mant_ngasea[ejado de los gasesde escape.
Permita que el equipo se enfHe antes de tocar[o.
ADVERTENCIA
NO use ropa sue{ta,joyas o elementos que puedanquedar atrapados
en el arranque o en otras partes rotatorias.
Ate para arriba el pe[o [argo y quite [ajoyeria.
ADVERTENCIA
Siempre use protecci6n para los ojos cuando utilice este equipo o
cuando est_ cerca de donde se est_ usando el equipo.
ADVERTENCIA
Siempre desconecte el alambre de la buila y col6quelo donde no
puedaentrar en contacto con labujla.
PRECAUCION
NO juegue con partes que puedan aumentar o disminuir la velocidad
de mando.
NO opere la mgquina lavadora a presi6n con un valor de presi6n
superior a su clasificaci6n de presi6n.
PRECAUCION
NO asegure la pistola de rociado en la posici6n (open = abierto).
NO abandone la pistola de rociado cuando la mgquina est_ en
funcionamiento.
NUNCA utilice una pistola de rociado que no tenga un seguro para
gatillo o protecci6n para gati]lo en su lugar yen buenas condiciones.
Siempre aseg6rese de que la pistola de rociado, boquillas y accesorios
est_n conectados correctamente.
PRECAUCION
NO apunte la pistola de rociado al vidrio cuando est_ en el modo de
rociado a chorro.
NUNCA apunte la pistola a plantas.
PRECAUCION
Si usted tiene alguna pregunta acerca de las finalidades de uso del
generador, preg_ntele a su concesionario o contacte a Briggs &
Stratton Power Products.
NUNCA deber_n ser operadas las unidades con partes rotas o
ausentes, o sin la caja ocubiertas de protecciSn.
NO e]uda ning_n dispositivo de segurid_d de esta m_quina.
Antes de porter en marcha la mgquina lavadora a presi6n en dima
frio, revise todas las partes del equipo y aseg_rese de que no se haya
formado hielo sobre elias.
NUNCA mueva la m_quina halando la manguera de alt_ presi6n.
Utilice la manija que viene con la unidad.
Revise que el sistema de combustible no presente fugas o signos de
deterioro, como mangueras desgastadas o porosas, sujetadores flojos
o ausentes, tapa o tanque daffados. Corriia todos los defectos antes
de operar la m_quina lavadora a presiOn.
El equipo de alia presi6n est_ diseffado para ser utilizado
UNICAiVlENTE con las partes autorizadas Briggs & Stratton Power
Products. Si utiliza este equipo con partes que no cumplan con las
especificaciones mlnimas, el usuario asume todos los riesgos y
responsabilidades.
i20
