Pressure Washer Owner’s Manual
Problems?
Questions?
Before taking your unit
back to the store,
call the pressure washer
helpline at
1-800-270-1408
M-F 8-5 CT
Model No. 1467-0 (1,700 PSI Pressure Washer) Manual No. 186482 Revision 1 (8/14/2000)
Visit our Generac website: www.generac-portables.com
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
1700PSI

Generac Portable Products 1,700 PSI Pressure Washer
2
EQUIPMENT
DESCRIPTION
CONGRATULATIONS on your purchase of a Generac
Portable Products pressure washer. It has been designed,
engineered and manufactured to give you the best possible
dependability and performance.
This manual contains information for an high pressure
washer that operates at 1,700 PSI at a flow rate of
2.0 gallons per minute. This light-weight residential system
features sturdy wheels, a pump equipped with an automatic
cool-down system, a chemical injection system, safety
goggles, a 25 foot high pressure hose, and an adjustable
nozzle spray gun.
Please read and retain this manual. The instructions will
enable you to assemble your unit and maintain your
pressure washer properly.
Every effort has been made to ensure that the information
in this manual is both accurate and current. However,
Generac reserves the right to change, alter, or otherwise
improve the product and its documentation at any time
without prior notice.
Should you experience any problem you cannot easily
remedy, please contact your nearest Generac Portable
Products Authorized Service facility, or call
1–800–270–1408.
CUSTOMER
RESPONSIBILITIES
• Read and observe the safety rules.
• Follow regular schedule in maintaining, caring for and
using your high pressure washer.
• For off-season storage, review “Preparing The Unit For
Storage” on page 14.
SAFETY RULES
CAUTION! When setting up, transporting,
adjusting or making repairs to your pressure
washer, always disconnect the spark plug wire from
the spark plug and place the wire where it cannot
contact spark plug.
DANGER! Engine exhaust contain DEADLY
carbon monoxide gas. This dangerous gas, if
breathed in sufficient concentrations, can cause
unconsciousness or even death. Operate this
equipment only in the open air where adequate
ventilation is available.
DANGER! Gasoline is highly FLAMMABLE and its
vapors are EXPLOSIVE. Do Not permit smoking,
open flames, sparks or heat in the vicinity while
handling gasoline. Avoid spilling gasoline on a hot
engine. Allow unit to cool for 2 minutes before
refueling. Comply with all laws regulating storage
and handling of gasoline.
Read this manual carefully and become familiar
with your pressure washer. Know its applications,
its limitations, and any hazards involved.
• Locate this pressure washer in areas away from
combustible materials, combustible fumes or dust.
• The high pressure equipment is designed to be used with
Generac authorized parts ONLY. If you use this
equipment with parts that do not comply with minimum
specifications, the user assumes all risks and liabilities.
•Do Not allow CHILDREN to operate the pressure
washer at any time.
• Always be certain the spray gun, nozzles and accessories
are correctly attached.
The engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects, or other
reproductive harm.
WARNING:

Generac Portable Products 1,700 PSI Pressure Washer
3
•Do Not wear loose clothing, jewelry or anything that
may be caught in the starter or other rotating parts.
• Before starting the pressure washer in cold weather,
check all parts of the equipment and be sure ice has not
formed there.
• Units with broken or missing parts, or without
protective housing or covers, should NEVER be
operated.
• Use a respirator or mask whenever there is a chance
that vapors may be inhaled. Read all instructions with
mask so you are certain the mask will provide the
necessary protection against inhaling harmful vapors.
• Always wear eye protection when you use this
equipment or when you are in the vicinity where the
equipment is in use.
• The cleaning area should have adequate slopes and
drainage to reduce the possibility of a fall due to slippery
surfaces.
•Do Not by–pass any safety device on this machine.
• Some chemicals or detergents may be harmful if inhaled
or ingested, causing severe nausea, fainting or poisoning.
The harmful elements may cause property damage or
severe injury.
•Do Not spray flammable liquids.
•Never allow any part of the body to come in contact
with the fluid stream. Do Not come in contact with a
fluid stream created by leaks in high pressure hose.
• High pressure spray can cause paint chips or other
particles to become airborne.
•Do Not operate the pressure washer above the rated
pressure.
• High pressure spray may damage fragile items including
glass. Do Not point spray gun at glass when in the jet
spray mode.
• Keep water spray away from electric wiring or fatal
electric shock may result.
•Never use a spray gun which does not have a trigger
lock or trigger guard in place and in working order.
•Never aim the spray gun at people, animals or plants.
The high pressure stream of water that this equipment
produces can pierce skin and its underlying tissues,
leading to serious injury and possible amputation.
• Operate and store this unit on a stable surface.
• Hold the spray gun firmly in your hand before you start
the unit. Failure to do so could result in an injury from a
whipping spray gun. Do Not leave the spray gun
unattended while the machine is running.
•Do Not secure the spray gun in the (open) position.
• Keep the hose connected to machine or the spray gun
while the system is pressurized. Disconnecting the hose
while the unit is pressurized is dangerous.
•Never move the machine by pulling on the high pressure
hose. Use the handle provided on the unit.
• High pressure hose can develop leaks from wear, kinking,
abuse, etc. Water spraying from a leak is capable of
injecting material into skin. Inspect hose each time before
using it. Check all hoses for cuts, leaks, abrasions or
bulging of cover, or damage or movement of fittings. If
any of these conditions exist, replace hose immediately.
Never repair high pressure hose. Replace it with
another hose that meets maximum pressure rating of
your unit.
• Check the fuel system for leaks or signs of deterioration,
such as chafed or spongy hose, loose or missing clamps,
or damaged tank or cap. Correct all defects before
operating the pressure washer.
• Operate engine only at governed speed. Running the
engine at excessive speeds increases the hazard of
personal injury. Do Not tamper with parts which may
change the governed speed.
• The muffler and engine heat up during operation and
remain hot immediately after shutting it down. Avoid
contact with a hot muffler or engine as you could be
severely burned.
• The muffler and air cleaner must be installed and in good
condition before operating the pressure washer. These
components act as spark arresters if the engine backfires.
In the State of California a spark arrestor is required by law
(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply on
federal lands.
NOTE: If you equip the muffler with a spark arrestor, you
must maintain it in effective working order. See the engine
owner’s manual for part number and ordering instructions.

Generac Portable Products 1,700 PSI Pressure Washer
4
Adjustable Nozzle — Always attached to nozzle
extension. Adjustable nozzle allows you to adjust pressure
of spray and spray pattern.
Air Cleaner — Dry type filter element limits the amount
of dirt and dust that gets in the engine.
Automatic Cool Down System — Cycles water
through pump when water reaches 140°-145°F. Warm
water will discharge from pump onto ground. This
system prevents internal pump damage.
Gas Tank — Fill tank with regular unleaded gasoline.
High Pressure Hose — Connect one end to water pump
and the other end to spray gun.
High Pressure Outlet — Connection for high pressure
hose.
Nozzle Extension — Attach to spray gun to use
adjustable nozzle.
Primer Bulb — Prepares a cold engine for starting.
Pump — Develops high water pressure.
Recoil Starter — Used for starting the engine manually.
Safety Goggles — Always use the enclosed goggles or
other eye protection when running your pressure washer.
Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes safety latch.
Water Inlet — Connection for garden hose.
Spray Gun
Adjustable Nozzle
Nozzle Extension
High Pressure Hose
Safety Goggles
Air Cleaner
Primer Bulb
Gas Tank
Water Inlet
Pump equipped with
Automatic Cool Down
System
Recoil Starter
High Pressure Outlet
KNOW YOUR PRESSURE WASHER
Read this owner’s manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.

Generac Portable Products 1,700 PSI Pressure Washer
5
Read this entire owner’s manual before you attempt
to assemble or operate your new pressure washer.
REMOVE PRESSURE
WASHER FROM
CARTON
• Remove parts box included with pressure washer.
• Slice two corners at guide handle end of carton from top
to bottom so the panel can be folded down flat, then
remove all packing material.
• Roll pressure washer out of carton.
CARTON CONTENTS
Items in the carton include:
• Main Unit
• Parts Box (which includes the following):
• Wireform
• Safety goggles
• One bottle engine oil
• Nozzle cleaning kit
• Owner’s manual
• Engine manual
• Spray gun
• Nozzle extension
• High pressure hose
• Handle
• Utility brush
• Accessory adapter
• O–Ring maintenance kit
• Owner’s registration card
• Parts bag, which contains:
2 Carriage bolts
2 Knobs
If any of the above parts are missing or damaged, call the
pressure washer helpline at 1–800–270–1408.
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged, call the
pressure washer helpline at 1-800-270-1408.
To prepare your pressure washer for operation, you
will need to perform these tasks:
• Attach the handle and the wire form to store high
pressure hose and spray gun.
• Add oil to engine crankcase.
• Add fuel to fuel tank.
• Connect high pressure hose to the spray gun and the
pump and connect water supply to the pump.
Attach the Handle
• Place the top of the handle onto the bottom of the
handle already connected to the main unit making sure
the holes in the top align with the holes on the bottom
(Figure 1).
• Insert carriage bolts through the holes and attach the
plastic knobs. Tighten the knobs by hand (Figure 2).
Make sure the
holes on the top
of the handle are
aligned with the
holes in the
bottom of the
handle
Figure 1 — Attach Handle to Handle Supports on the Unit’s
Base

Generac Portable Products 1,700 PSI Pressure Washer
6
• Standing at the rear of the unit, insert the wire support
with the longer arm positioned on the left. From the
rear, the hook should resemble a “J”. (Figure 3)
Add Engine Oil
WARNING! Any attempt to crank or start the
engine without adding the recommended oil may
result in an engine failure.
• Place pressure washer on a level surface.
• Refer to the engine owner’s manual for the method used
to fill the engine with the recommended oil.
NOTE: Check oil often during engine break–in.
Add Gasoline
DANGER! Never fill fuel tank indoors. Never fill
fuel tank when engine is running or hot. Do Not
smoke when filling fuel tank.
WARNING! Never fill fuel tank completely full.
Fill tank to provide space for fuel expansion. Wipe
away any fuel spillage from engine and equipment
before starting.
Use fresh, clean unleaded regular automotive gasoline.
Store fuel in approved, clean covered containers. Use clean
fill funnels. Never use “stale” gasoline left over from last
season or gasoline stored for long periods.
• Clean area around fuel fill cap, remove cap.
• Slowly add “UNLEADED” regular gasoline to fuel tank,
one inch below the lowest portion of the fuel fill neck.
Use a funnel to prevent spillage (Figure 4).
• Install fuel cap and wipe up any spilled gasoline.
Connect Hose and Water Supply to
Pump
IMPORTANT: You must attach all hoses before you start
engine. Starting engine without all hoses connected and
water supplied will damage pump.
• Uncoil high pressure hose and attach one end of hose to
the base of the spray gun (Figure 5). Tighten by hand.
Figure 3 — Attach Wireform to Handle
Figure 2 — Attach Carriage Bolts and Knobs
Fuel Cap
Figure 4 — Add Gasoline to Fuel Tank
Longer Wire
Arm

Generac Portable Products 1,700 PSI Pressure Washer
7
• Attach other end of high pressure hose to the high
pressure fitting on the pump (Figure 6). Tighten by hand.
• Before you connect your garden hose to the water inlet,
inspect the inlet screen (Figure 7). Clean the screen if it
contains debris or have it replaced if damaged. DO NOT
RUN THE PRESSURE WASHER IF THE SCREEN IS
DAMAGED.
• Purge garden hose of debris by running water through it
for 30 seconds.
• Connect garden hose to water inlet. Tighten by hand
(Figure 7)
WARNING! There MUST be at least ten feet of
unrestricted garden hose between the pressure
washer inlet and any flow shut off device, such as a
‘Y’ shut-off connector or other convenience-type
water shut-off valve. Damage to pressure washer
resulting from disregarding this warning will not be
covered by the warranty.
• Turn ON the water.
• Squeeze trigger on spray gun to purge pump system of
air and impurities.
CAUTION! Before starting the pressure washer,
be sure you are wearing adequate eye protection.
CHECKLIST BEFORE
STARTING ENGINE
Review the assembly to ensure that you have
performed all of the following:
• Make sure the handle and wireform are in place and
secure.
• Check that oil has been added to proper level in engine
crankcase.
• Add proper gasoline to fuel tank.
• Check for properly tightened hose connections.
• Check that there are no kinks, cuts, or damage to the
high pressure hose.
• Provide proper water supply (not to exceed 140°F) at an
adequate flow.
• Be sure to read “Safety Rules” and “Preparing Pressure
Washer for Use” before using the pressure washer.
Inspect Inlet Screen
Figure 5 — Connect High Pressure Hose to Spray Gun
Figure 6 — Connect High Pressure Hose to Pump
Figure 7 — Connect Garden Hose to Water Inlet and Turn
ON the Water

Generac Portable Products 1,700 PSI Pressure Washer
8
HOW TO USE THE
PRESSURE WASHER
If you have any problems operating your pressure washer,
please call the pressure washer helpline at
1-800-270-1408.
How to Start Your Engine
The best way to start your engine-powered pressure
washer for the first time is to follow these instructions
step-by-step. You may also refer to your engine owner’s
manual. This starting information also applies whenever you
start the engine after you have let the pressure washer sit
idle for at least a day.
CAUTION: Before starting the pressure washer,
be sure you are wearing adequate eye protection.
• Place the pressure washer in an area close enough to a
water source capable of supplying water at a flow rate
greater than 2.5 gallons per minute.
• Check that the high pressure hose is tightly connected to
the spray gun and to the pump. See “Preparing Pressure
Washer for Use” on page 5.
• Make sure unit is in a level position.
• Connect the garden hose to the water inlet on the
pressure washer pump. Turn ON the water.
CAUTION: Do Not run the pump without the
water supply connected and turned on. You must
follow this caution or the pump will be damaged.
• Move the governor control lever to the “Fast” position
(shown in Figure 8 as a rabbit).
NOTE: For a warm engine, be sure the governor control
lever is in the “Fast” position.
To start the engine for the very first time:
• Make sure the governor control lever is in the “Fast”
position (indicated on the engine as a rabbit).
• Push primer bulb firmly 5 times, waiting 2 seconds
between each push. Review specific engine start
instructions in the engine owner’s manual.
To start engine thereafter:
• Make sure the governor control lever is in the “Fast”
position (indicated on the engine as a rabbit).
• Press the primer bulb firmly 3 times, waiting 2 seconds
between each push. For a warm engine, Do Not press
the prime button.
• Ensure that the nozzle extension is NOT attached to the
spray gun. The spray gun should be held in the left hand,
as shown in Figure 9. The left hand should also be used
to steady the unit.
• Place your left foot on the unit’s base, as shown.
Governor
Control
Lever in
STOP
position
Stop
Fast
Figure 8 — Governor Control Lever - Stop Switch
Figure 9 — Recommended Engine Starting Posture
Right Hand
pulls recoil
starter handle
Safety Glasses
Left Foot holds base
Left Hand
stabilizes unit
and squeezes
trigger
Do Not
attach
nozzle
extension

Generac Portable Products 1,700 PSI Pressure Washer
9
• Standing at the front of the unit, squeeze the trigger on
the spray gun. Water will flow out of the spray gun in a
thin stream. Continue to squeeze the trigger.
• Grasp the recoil starter handle with your right hand and
pull slowly until you feel some resistance. Then pull
rapidly to start the engine.
• Return the starter handle slowly. Do Not let the rope
“snap back” against the starter.
NOTE: Always keep the governor control lever in the
“Fast” position when operating the pressure washer.
• If the engine fails to start repeat above steps or refer to
the engine owner’s manual.
• With the engine running, engage the safety latch to the
spray gun trigger (Figure 10).
• Attach the nozzle extension to the spray gun. Tighten by
hand (Figure 11).
How to Stop Pressure Washer
• Move the governor control lever to the “Slow” position
(indicated on the engine as a turtle).
• Let the engine idle for two minutes.
• Move the governor control lever to the “Stop” position
(fully to the right as you face the lever).
• Simply shutting off the engine will not release pressure in
the system. Squeeze trigger on the spray gun to
relieve pressure in the hose.
NOTE: A small amount of water will squirt out when you
release the pressure.
How to Use the Adjustable Nozzle
You now should know how to START your pressure
washer and how to STOP it. The information in this
section will tell you how to adjust the spray pattern and to
apply detergent or other cleaning chemicals.
DANGER! Never adjust spray pattern when
spraying. Never put hands in front of nozzle to
adjust spray pattern.
Your pressure washer is equipped with an adjustable nozzle
that permits you to adjust the spray pattern and spray
pressure, as follows:
• Slide the nozzle forward when you wish to adjust the
spray to low pressure mode (Figure 12). Slide the nozzle
backward to achieve high pressure.
Figure 12 — Adjusting Nozzle for Pressure.
Slide nozzle backward
for High Pressure
Mode
Slide nozzle forward for low
pressure mode and
detergent application
Safety Latch
Figure 10 — Engage Safety Latch
Figure 11 — Connect Nozzle Extension to Spray Gun

Generac Portable Products 1,700 PSI Pressure Washer
10
• Point the nozzle down towards a firm surface and press
the trigger to test the pattern (Figure 13).
• Twisting the nozzle adjusts the spray pattern from a
narrow pattern to a fan pattern (Figure 14).
• For most effective cleaning, keep spray nozzle between 8
to 24 inches away from cleaning surface.
• If you get the spray nozzle too close, especially using high
pressure mode, you may damage the cleaning surface.
•Do Not get closer than 6 inches when cleaning
automobile tires.
Applying Detergent with the
Adjustable Nozzle
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could damage
the pump.
IMPORTANT: You MUST attach all hoses before you
start the engine. Starting the engine without all the hoses
connected and without the water turned ON will damage
the pump.
To apply detergent, follow these steps:
• Review the use of adjustable nozzles.
• Prepare the detergent solution as required by the job.
• Hang the detergent solution container on the hook
provided on the handle (Figure 15).
• Place small filter of the detergent siphoning tube into the
detergent container.
CAUTION! Keep the plastic siphon tube from
coming in contact with the hot muffler as this will
damage the tube. When inserting the filter into a
cleaning agent container, route the tube so as to
keep it from inadvertently contacting the hot
muffler.
• Slide the adjustable nozzle forward to low pressure
mode. Detergent cannot be applied with nozzle in high
pressure position.
IMPORTANT: Detergent cannot be applied without the
water source turned ON.

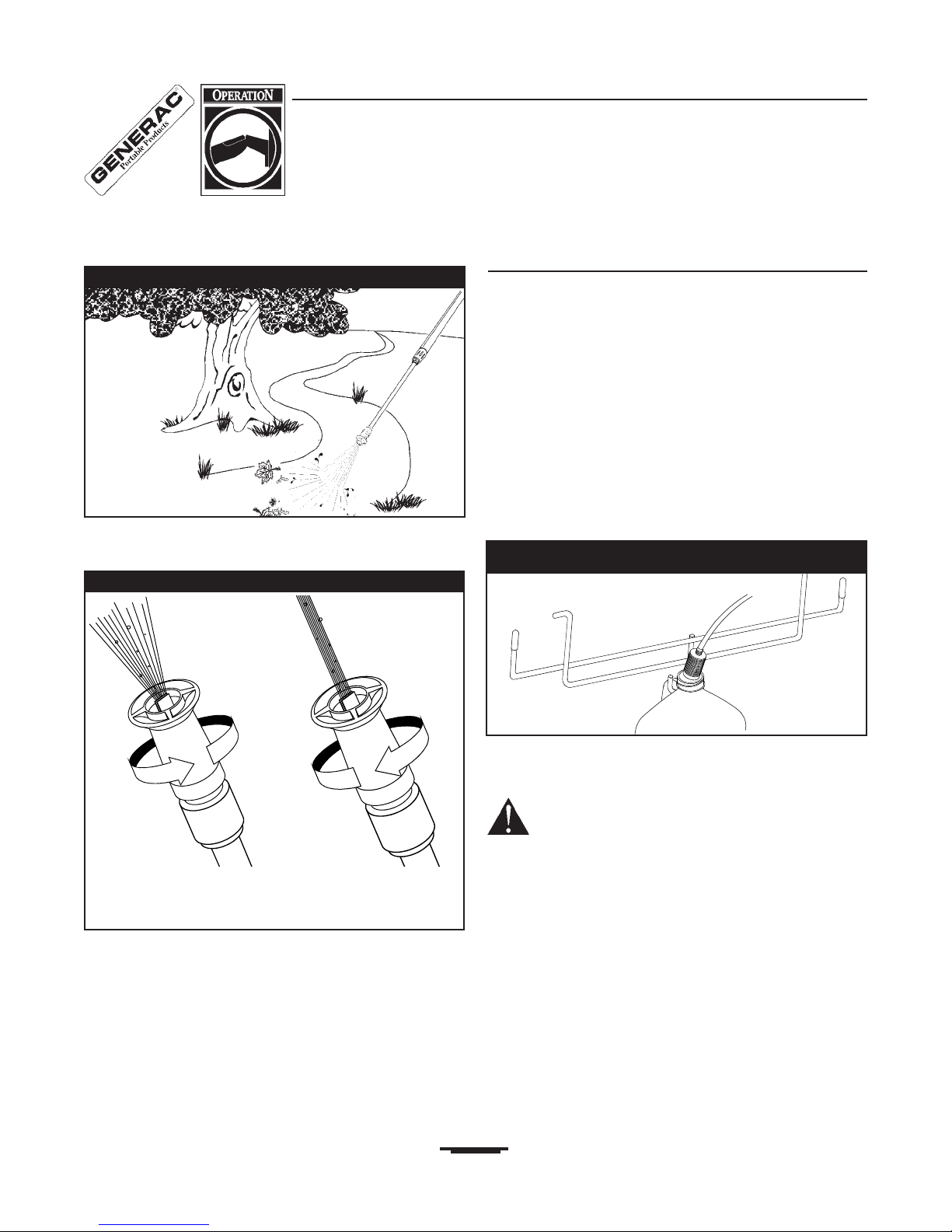

Figure 15 — Hang Cleaning Solution Container on Hook and
Insert Small Filter into Container
Figure 14 — Adjusting the Nozzle for Spray Pattern
Rotate nozzle
counterclockwise for fan
spray pattern
Rotate nozzle clockwise
for narrow spray pattern
Figure 13 — Testing the Spray Pattern

Generac Portable Products 1,700 PSI Pressure Washer
11
• Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray gun
and pump.
• Start engine and attach nozzle extension.
• Apply detergent to a dry surface, starting from the
bottom and working up.
• Allow the detergent to soak in between 3-5 minutes
before washing and rinsing. Reapply as needed to prevent
surface from drying.
• For washing, start at lower portion of area to be washed
and work upward, using long, even overlapping strokes.
Pressure Washer Rinsing
WARNING: Be extremely careful if you must use
the pressure washer from a ladder, scaffolding or any
other relatively unstable location. Pressure in a
running washer builds as you climb. When you press
the trigger, the recoil from the initial spray could
cause you to fall. The high pressure spray could also
cause you to fall if you are too close to the cleaning
surface.
For Rinsing:
• Slide nozzle backward to high pressure and wait for
detergent to clear.
NOTE: You can also stop detergent from flowing by
simply removing siphon tube from bottle.
• Keep the spray gun a safe distance from the area you
plan to spray.
• Apply the high pressure spray to a small area and check
the surface for damage. If no damage is found, you can
assume it is okay to continue cleaning.
• Start at top of area to be rinsed, working downward
with the same overlapping strokes as you used for
applying chemical.
Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach a temperature
between 140–145°F. When the water reaches this
temperature, the automatic cool down system engages and
cools the pump by discharging the warm water onto
the ground. This system prevents internal damage to the
pump.
SPECIFICATIONS
Outlet Pressure . . . . 1,700 psi
Flow Rate . . . . . . . . . . 2.0 gallons per minute (gpm)
Detergent Mix . . . . . . Use undiluted detergent approved
for pressure
washers
Water Supply . . . . . . Not to Exceed 140°F
Temperature
Automatic Cool . . . . Will cycle when water
Down System reaches 140°-145°F

Generac Portable Products 1,700 PSI Pressure Washer
12
GENERAL MAINTENANCE
RECOMMENDATIONS
The pressure washer warranty does not cover items that
have been subjected to operator abuse or negligence. To
receive full value from the warranty, the operator must
maintain the pressure washer as instructed in this manual.
• Some adjustments will need to be made periodically to
properly maintain your pressure washer.
• All procedures described in the Maintenance section of
this manual should be performed at least once each
season.
• Once a year you should clean or replace the spark plug
and clean or replace the air filter. A new spark plug and
clean air filter assure proper fuel-air mixture and help
your engine run better and last longer. Check the spray
gun and nozzle extension for wear.
Before Each Use
• Check engine oil level.
• Check water inlet screen for damage.
• Check high pressure hose for leaks.
• Check detergent siphon tube and filter for damage.
• Check spray gun and nozzle extension for leaks.
• Rinse out garden hose to flush out debris before
connecting to pressure washer.
PRESSURE WASHER
MAINTENANCE
Check and Clean Inlet Screen
Examine screen on the water inlet. Clean if the screen is
clogged or replace if screen is damaged.
Check High Pressure Hose
A high pressure hose can develop leaks from wear, kinking,
or abuse. Inspect the hose each time before using it. Check
for cuts, leaks, abrasions or bulging of cover, damage or
movement of couplings. If any of these conditions exist,
replace hose immediately.
DANGER! Water spraying from a leak is capable
of injecting material into skin. Inspect hose each
time before using it. Never repair a high pressure
hose. Replace it with another hose that meets the
maximum pressure rating of your pressure washer.
Check Detergent Siphon Tube
Examine the filter on the detergent siphon tube and clean if
clogged. Tube should fit tightly on barbed fitting. Examine
tube for leaks or tears. Replace the filter or tube if either is
damaged.
Check Gun and Nozzle Extension
Examine hose connection to spray gun and make sure it is
secure. Test trigger by pressing it and making sure it springs
back into place when you release it. Put safety latch in ON
position and test trigger. You should not be able to press
trigger.
Check In-Line Filter
Refer to Figure 16 and service the in-line filter if it
becomes clogged, as follows:
Filter Screen
Nozzle Extension
O-ring
Figure 16 — Check In-Line Filter

Generac Portable Products 1,700 PSI Pressure Washer
13
1. Detach spray gun from high pressure hose. Detach
nozzle extension from spray gun and remove o-ring
and screen from nozzle extension. Flush the screen,
spray gun, and nozzle extension with clean water to
clear debris.
2. If the screen is damaged, the o-ring kit contains a
replacement in-line filter screen and an o-ring. If
undamaged, reuse screen.
3. Place the in-line filter screen into the threaded end of
the nozzle extension. Direction does not matter. Push
the screen in with the eraser end of a pencil until it
rests flat at the bottom of the opening. Take care to
not bend the screen.
4 Place the o-ring into the recess. Push the o-ring snugly
against the in-line filter screen.
5. Assemble the nozzle extension to the spray gun, as
described earlier in this manual.
Purge Pump of Air and
Contaminants
To remove air from the pump, follow these steps:
• Set up the pressure washer as described in “Preparing
Pressure Washer for Use” and connect the water supply.
• Pull the trigger on the spray gun and hold.
To remove contaminants from the pump, follow
these steps:
• Set up the pressure washer as described in “Preparing
Pressure Washer for Use” and connect the water supply.
• Start the engine according to instructions in “How To
Start Your Engine”.
• Squeeze the trigger on the spray gun and hold.
• When the water supply is steady and constant, engage
the safety latch and attach the nozzle extension.
Cleaning Chemical Siphon Tube
If you have used the chemical siphon tube you must flush it
with clean water before stopping the engine.
• Place chemical siphon tube filter into a bucket full of
clean water.
• Flush for five minutes.
• Shut off the engine.
IMPORTANT: Simply shutting OFF engine will not
release pressure in the system. When engine has shut
down, squeeze the trigger on the spray gun to relieve
the pressure in the hose.
Nozzle Maintenance
If an adjustable nozzle becomes restricted or clogged with
foreign materials, such as dirt, a pulsing sensation during
use may occur. If pulsing occurs or the nozzle becomes
partially restricted, immediately clean the nozzle with the
kit included with your pressure washer.
To clean the nozzle:
• Shut off the engine and turn off the water supply.
• Detach the nozzle extension from the spray gun.
• Adjust the nozzle extension to the stream position.
• Remove nozzle from the end of the nozzle extension
(Figure 17) using a 2mm or 5/64 allen wrench (included
in the kit).
Figure 17 — Remove and Clean Nozzle

Generac Portable Products 1,700 PSI Pressure Washer
14
• Use the wire included in the kit (Figure 17) or a small
paper clip to free the foreign materials clogging or
restricting the nozzle.
• Remove additional debris by back flushing water supply
through nozzle extension (Figure 18). Back flush between
30 to 60 seconds. Turn nozzle extension to stream spray
and move nozzle from low to high while flushing.
• Reinstall nozzle into the nozzle extension. Do Not over
tighten.
• Reconnect the water supply, turn on the water, and start
the engine.
• Reconnect the nozzle extension to the spray gun.
• Test the pressure washer by operating with nozzle in the
high and in the low position.
O-RING MAINTENANCE
O-rings keep the connections of the hoses and spray gun
tight and leak-free. Through the normal operation of your
pressure washer, o-rings may become worn or damaged.
Provided with your pressure washer is an O–Ring
Maintenance Kit which includes replacement o-rings,
rubber washer and water inlet filter. Refer to the
instruction sheet provided in the kit to service your unit’s
o-rings. Note that not all of the parts in the kit will be used
on your unit.
To remove a worn or damaged o–ring:
• Use a small flathead screwdriver to get underneath the
o-ring and pry it off.
ENGINE MAINTENANCE
See the engine owner’s manual for instructions on how to
properly maintain the engine.
PREPARING THE UNIT
FOR STORAGE
Water should not remain in the unit for long periods of
time. Sediments of minerals can deposit on pump parts and
“freeze” pump action. If you do not plan to use the
pressure washer for more than 30 days, follow this
procedure:
1. Flush detergent siphon tube by placing the siphon tube
filter into a pail of clean water while running pressure
washer with nozzle in low pressure mode. Flush for
five minutes.
2. Shut off the engine and let it cool, then remove all
hoses.
3. Place governor control lever in “Stop” position.
CAUTION! Be sure lever is in “Stop” position
before you continue. If you start engine without
proper water supply connected, you can damage
pump.
4. Empty the pump of all pumped liquids by pulling recoil
handle about 6 times. This should remove most of the
liquid in the pump.
NOTE: To protect unit from freezing temperatures, draw
windshield washer fluid into pump by pouring windshield
washer fluid into a 3-foot section of garden hose
connected to inlet adapter and pulling recoil handle twice.
5. Store in a clean, dry area.
STORING THE ENGINE
See the engine owner’s manual for instructions on how to
properly store the engine.
Figure 18 — Backflush the Nozzle

Generac Portable Products 1,700 PSI Pressure Washer
15
TROUBLESHOOTING
Problem Cause Solution
Pump has the following
problems:
Failure to produce adequate
pressure, erratic pressure,
chattering, loss of pressure or
low water volume.
1. Nozzle in low pressure.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Garden hose is kinked or leaking.
5. Clogged water inlet screen.
6. Water supply is over 140°F.
7. Outlet hose is blocked or leaks.
8. Gun leaks.
9. Nozzle is obstructed.
10. Pump is faulty.
1. Move nozzle to high pressure.
2. Clear inlet.
3. Make sure you have at least a
2.5 GPM flow for your garden hose.
4. Straighten garden hose or patch leak.
5. Check and clean water inlet screen.
6. Provide cooler water supply.
7. Clear blocks in outlet hose. Replace
immediately if leaking.
8. Replace gun.
9. Clear nozzle.
10. Contact Generac service facility.
Detergent fails to mix with
spray.
1. Chemical injector hose is not
submerged.
2. Chemical injector hose is clogged.
3. Nozzle is in high pressure mode.
1. Insert chemical injection filter into
detergent.
2. Clean or replace filter/chemical
injector hose.
3. Move nozzle into low pressure mode.
Engine runs well when not
spraying but “bogs down”
when trigger is squeezed.
Engine speed is too slow. Contact Briggs & Stratton service facility.
Engine will not start; or starts
and runs rough.
1. Low oil level.
2. Dirty air cleaner.
3. Out of gasoline.
4. Stale gasoline.
5. Spark plug wire not connected to
spark plug.
6. Bad spark plug.
7. Water in gasoline.
8. Excessively rich fuel mixture.
9. Intake valve stuck open or closed.
10. Engine has lost compression
1. Fill crankcase to proper level.
2. Clean or replace air filter.
3. Fill fuel tank.
4. Drain gas tank; fill with fresh fuel.
5. Connect wire to spark plug.
6. Replace spark plug.
7. Drain gas tank; fill with fresh fuel.
8. Contact Briggs & Stratton service
facility.
9. Contact Briggs & Stratton service
facility.
10. Contact Briggs & Stratton service
facility.
Engine shuts down during
operation.
1. Out of gasoline.
2. Low oil level.
1. Fill fuel tank.
2. Fill crankcase to proper level.
Engine lacks power. Dirty air filter. Replace air filter.
Engine “hunts” or falters. Engine is not operating properly. Contact Briggs & Stratton service facility.

Generac Portable Products 1,700 PSI Pressure Washer
16
EXPLODED VIEW — PRESSURE WASHER

Generac Portable Products 1,700 PSI Pressure Washer
17
PARTS LIST — PRESSURE WASHER
Item Part # Qty Description
1 AB1939 1 BASE, VSPW
2 B1460 1 CAP, Vinyl Black
3 30809 1 GROMMET, Chemical Hose
4 186481 1 DECAL, Logo 1700 PSI
5 B1631B 1 BILLBOARD, Plastic
6 B1932 1 DECAL, Instructions
7 49808 2 WASHER, M12 Flat
8 B2142 2 TIRE, 2" X 9" Black Mag
9 75402 2 PUSHNUT, 1/2"
10 NSP 1 ENGINE
11 AB1945 1 HANDLE, VS PW
12 88185 1 BRUSH, Utility
13 88935 1 ADAPTER, Brush Extension
14 87815 1 GOGGLES, Safety
15 B1953A 1 WIREFORM
16 B3263 1 SPRAY GUN, High Pressure
17 BB3061B 1 OIL, 20oz
18 B5693 1 HOSE, 1/4" X 25'
19 B5830 1 KIT, O-Ring Maintenance
20 B2163 1 KIT, Nozzle Cleaning
21 21761 1 NOZZLE, Replacement
22 B4224 1 SCREEN, Gun Inlet
23 97566 1 HANG TAG, Nozzle
24 B3335 1 EXTENSION, Adjustable Nozzle
25 B2203 1 KIT, Handle Fastening
26 186539 1 MANUAL, Engine
27 186482 1 MANUAL, Owner's
28 97837 1 O-RING, Hi Pressure Transfer
29 48031G 1 CLAMP, Hose 3/16"
30 A1041 1 FILTER, Chemical Hose
31 B1210A 1 CARD, Starting Instructions
32 A1040B 1 HOSE, Chemical
33 98300 1 SEAL, Engine Donut
34 52858 2 NUT, M8 Locking Flange
35 27007 2 MOUNT, Rubber Foot
36 50190 2 WASHER, M8 Flat
37 B1214 2 HHCS, M8 X 1.25 X 45
38 B1735 3 STUD, Double Ended
39 B1880 3 NUT, With Washer
40 21424 1 CONNECTOR, Garden Hose
41 B3468A 1 PUMP (See pages 18-19)

Generac Portable Products 1,700 PSI Pressure Washer
18
EXPLODED VIEW — PUMP

Generac Portable Products 1,700 PSI Pressure Washer
19
PARTS LIST — PUMP
Item Part # Qty Description
1 98300 1 SEAL, Engine Donut
2 97962 3 SHCS, M6 - 1 x 25
3 96795 3 SLEEVE, Grommet Spacer
4 21429 6 BUSHING, Rubber Mount
5 97835 1 O-RING, Housing Seal
6 21783 1 THERMAL RELIEF
7 93680 3 SEAL, Oil Piston 15 TC4
8 97831 3 SPACER, Pilot
9 B2702 1 HOUSING, Piston
10 98227 1 ADAPTER, Engine
11 B2310 0 KIT, AXIAL CAM SERV
1 . . . . . . 1 SEAL, Engine Donut
2 . . . . . . 3 SHCS, M6 - 1 x 25
5 . . . . . . 1 O-RING, Housing Seal
12 . . . . . . 1 WASHER, Brg. 36 x 65 x 6Thk
13 . . . . . . 1 ASSY., Brg. Cage 45 x 65
14 . . . . . . 1 WASHER, Brg. 45 x 65 x 1
15 . . . . . . 1 CAM, Axial 5.6 VS
16 . . . . . . 1 BALL BEARING, 35 x 72 x 17
17 185287 0 KIT, CHEM INJECT
18 . . . . . . 1 FITTING, Chem Inject
19 . . . . . . 1 BALL, Chem Inject
20 . . . . . . 1 SPRING, Chem Inject
21 . . . . . . 1 O-RING, Venturi & Seat, Black
22 . . . . . . 1 VENTURI, Chem Inject
28 . . . . . . 1 O-RING, Venturi, Yellow
23 185711 0 KIT, UNLOADER
21 . . . . . . 1 O-RING, Venturi & Seat, Black
24 . . . . . . 1 CAP, Unloader
25 . . . . . . 1 O-RING, Unloader Cap
26 . . . . . . 1 SPRING, 2000 Unloader
27 . . . . . . 1 PISTON, Unloader
29 . . . . . . 1 SEAT, 2000 Unloader
30 B3513 0 KIT, CHECK VALVES
31 . . . . . . 6 O-RING, Check Valve
32 . . . . . . 6 ASSY., Check Valve
37 . . . . . . 4 SHCS, M6-1.0 x 35
33 B3286 3 SEAL, Double-Lip
Item Part # Qty Description
34 97837 1 O-RING, Hi-Pressure
Transfer
35 97841 3 CAP, Outlet Check Valve
36 97840 3 O-RING, Outlet CV Cap
37 40946 4 SHCS, M6-1.0 x 35
38 B4186 0 KIT, HEAD CASTING SFG
37 . . . . . . 4 SHCS, M6-1.0 x 35
39 . . . . . . 1 HEAD, Pump
40 . . . . . . 1 PLUG, 1/8-28 W/VIBR
41 B2312 0 KIT, PISTON & SPRING
1 . . . . . . 1 SEAL, Engine Donut
2 . . . . . . 3 SHCS, M6 - 1 x 25
7 . . . . . . 3 SEAL, Oil Piston 15 TC4
5 . . . . . . 1 O-RING, Housing Seal
33 . . . . . . 3 SEAL, Double-Lip
34 . . . . . . 1 O-RING, High Pressure Transfer
37 . . . . . . 4 SHCS, M6-1.0 x 35
42 . . . . . . 3 RETAINER, Piston Spring
43 . . . . . . 3 PISTON, Dia. 15 x 65
44 . . . . . . 3 SPRING, Piston Return
45 B1933 0 KIT, O-RING/SEAL SERV
1 . . . . . . 1 SEAL, Engine Donut
2 . . . . . . 3 SHCS, M6 - 1 x 25
5 . . . . . . 1 O-RING, Housing Seal
7 . . . . . . 3 SEAL, Oil Piston 15 TC4
21 . . . . . . 2 O-RING, Venturi & Seat, Black
25 . . . . . . 1 O-RING, Unloader Cap
28 . . . . . . 1 O-RING, Venturi, Yellow
31 . . . . . . 6 O-RING, Check Valve
33 . . . . . . 3 SEAL, Double-Lip
34 . . . . . . 1 O-RING, High Pressure Transfer
36 . . . . . . 3 O-RING, Outlet CV Cap
37 . . . . . . 4 SHCS, M6-1.0 x 35
Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits
and include all parts shown within the box. Items
previously described are not listed under the service kit
number. Certain items are only available as a part of a kit.

LIMITED PRESSURE WASHER WARRANTY
GENERAC PORTABLE PRODUCTS (hereafter referred to as the COMPANY) warrants to the original retail purchaser, the
pressure washer manufactured by the COMPANY to be free from defects in material and workmanship for the period(s)
set forth below from the date of original purchase. This warranty is not transferable. The term “original purchaser” means
the person for whom the pressure washer is originally purchased.
Warranty Schedules
Electric Power Washer 1 year (does not apply to commercial or rental applications)
CONSUMER* COMMERCIAL*
All Other Engine-driven Engine: Warranted solely by Warranted solely by
Engine Manufacturer Engine Manufacturer
Pump: 1 year 90 days
* NOTE: For the purpose of this warranty “consumer” use means personal residential household use by
original purchaser. “Commercial” use means all other uses, including rental, construction, commercial and
income producing purposes. Once a pressure washer has experienced commercial use, it shall thereafter be
considered a commercial use pressure washer for the purposes of this warranty.
During said warranty period, the COMPANY will, at its option, repair or replace any part which, upon examination by the
COMPANY or COMPANY-Authorized Dealers, is found to be defective under normal use and service**. All transportation
costs under warranty, including return to the factory if necessary, are to be borne by the purchaser and prepaid by the
purchaser.
** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and
replacement to perform well. This warranty does not cover repair when normal use has exhausted the life
of a part or pressure washer pump.
This warranty does not include: Used products and demonstration equipment. Parts, such as GUNS, HOSES, WANDS,
NOZZLES or other wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing, etc. Pumps which
have been run without water supplied. Damage or malfunctions resulting from: accidents, abuse, modifications, alterations,
or improper servicing. Freezing or chemical deterioration. Normal maintenance such as adjustments, fuel system cleaning
and obstruction (due to chemical, dirt, carbon or lime, etc.).
THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, SPECIFICALLY,
THE COMPANY MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES WHICH CANNOT BE
DISCLAIMED IS LIMITED TO THE TIME PERIOD AS SPECIFIED IN THE EXPRESS WARRANTY. LIABILITY
FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL DAMAGES UNDER ANY AND ALL WARRANTIES IS
EXCLUDED, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF THE COMPANY'S NEGLIGENCE. THE
COMPANY ALSO DISCLAIMS ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES SUCH AS THE LOSS OF TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY
COMMERCIAL LOSS DUE TO THE FAILURE OF THE EQUIPMENT: AND ANY IMPLIED WARRANTIES
ARE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal
rights and you may also have other rights, which vary from state to state.
For service, see your nearest COMPANY-Authorized warranty service facility or call 1-877-544-0982. Warranty service can
be performed only by a COMPANY-Authorized service facility. This warranty will not apply to service at any other facility.
At the time of requesting warranty service, evidence of original purchase date must be presented.
Generac Portable Products
Jefferson, Wisconsin U.S. A.
