Generac Portable Products 1418-2 User manual

Pressure Washer Owner’s Manual
3000PSI
Model No. 1418-2 (3,000 PSI Pressure Washer) Manual No. 191658GS Revision 1 (03/05/2003)
Questions? Help is just a moment away!
Call: Generac Pressure Washer Helpline - 1-800-270-1408 M-F 8-5 CT
Web: www.generac-portables.com
Generac Portable Products is a licensed trademark of Briggs & Stratton Power Products.

2
Generac Portable Products 3000 PSI Pressure Washer
TABLE OF CONTENTS
Safety Rules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Know Your Pressure Washer . . . . . . . . . . . . . . . . . . . . . . 5
Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
Product Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-14
Storage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

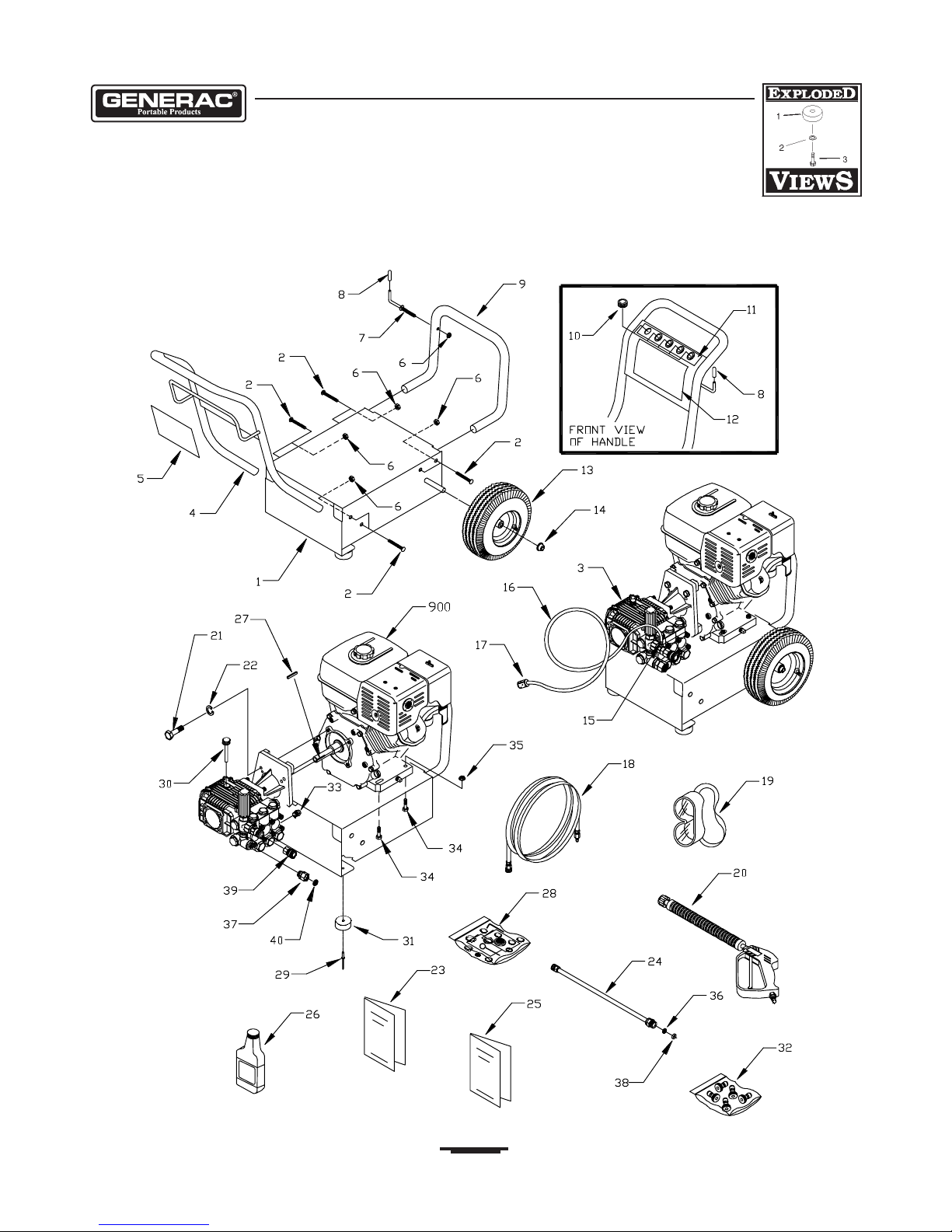

Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . 18-23
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Last Page
EQUIPMENT
DESCRIPTION
Read this manual carefully and become
familiar with your pressure washer. Know its
applications, its limitations and any hazards
involved.
Every effort has been made to ensure that information in this
manual is accurate and current. However, we reserve the
right to change, alter or otherwise improve the product and
this document at any time without prior notice.
SAFETY RULES
This is the safety alert symbol. It is used to
alert you to potential personal injury
hazards. Obey all safety messages that follow
this symbol to avoid possible injury or death.
The safety alert symbol ( ) is used with a signal word
(DANGER, CAUTION, WARNING), a pictorial and/or a
safety message to alert you to hazards. DANGER
indicates a hazard which, if not avoided, will result in death
or serious injury. WARNING indicates a hazard which, if
not avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided, might
result in minor or moderate injury. CAUTION, when
used without the alert symbol, indicates a situation that
could result in equipment damage. Follow safety messages
to avoid or reduce the risk of injury or death.
Hazard Symbols and Meanings
The engine exhaust from this product contains
chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING
In the State of California a spark arrester is required by law
(Section 4442 of the California Public Resources Code).
Other states may have similar laws. Federal laws apply on
federal lands. If you equip the muffler with a spark arrester,
it must be maintained in effective working order.
Fire Explosion
Toxic Fumes
Hot Surface
Moving Parts
Electrical Shock
Slippery Surface Fall
Kickback
Flying Objects
Fluid Injection

3
Generac Portable Products 3000 PSI Pressure Washer
• Keep water spray away from electric wiring or fatal electric
shock may result.
Spray contact with electrical wiring can result in
electrocution.
WARNING
• Operate pressure washer ONLY outdoors.
• Use a respirator or mask whenever there is a chance that
vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will
provide the necessary protection against inhaling harmful vapors.
Running engine gives off carbon monoxide, an
odorless, colorless, poison gas.
Some chemicals or detergents may be harmful if
inhaled or ingested, causing severe nausea,
fainting or poisoning.
Breathing carbon monoxide will cause nausea,
fainting or death.
DANGER
• Keep spray nozzle between 8 to 24 inches away from cleaning
surface.
• Operate this unit on a stable surface.
• The cleaning area should have adequate slopes and drainage to
reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury if gun kicks back.
Use of pressure washer can create puddles and
slippery surfaces.
High pressure spray could cause you to fall if
you are too close to the cleaning surface.
WARNING
WHEN ADDING FUEL
• Turn pressure washer OFF and let it cool at least 2 minutes
before removing gas cap.
• Fill fuel tank outdoors.
• DO NOT overfill tank. Allow space for fuel expansion.
• Keep fuel away from sparks, open flames, pilot lights, heat, and
other ignition sources.
• DO NOT light a cigarette or smoke.
WHEN OPERATING EQUIPMENT
• DO NOT tip engine or equipment at angle which causes fuel
to spill.
• DO NOT spray flammable liquids.
WHEN TRANSPORTING OR REPAIRING EQUIPMENT
• Transport/repair with fuel tank EMPTY or with fuel shutoff
valve OFF.
WHEN STORING FUEL OR EQUIPMENT WITH FUEL
IN TANK
• Store away from furnaces, stoves, water heaters, clothes
dryers or other appliances that have pilot light or other
ignition source because they can ignite fuel vapors.
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or
death.
WARNING
• NEVER aim spray gun at people, animals or plants.
• DO NOT allow CHILDREN to operate pressure washer.
• NEVER repair high pressure hose. Replace it.
• Keep high pressure hose connected to pump and spray gun
while system is pressurized.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
WARNING

4
Generac Portable Products 3000 PSI Pressure Washer
• DO NOT tamper with governed speed.
• DO NOT operate pressure washer above rated pressure.
Excessively high or low operating speeds increase risk
of injury and damage to pressure washer.
CAUTION
WHEN ADJUSTING OR MAKING REPAIRS TO YOUR
PRESSURE WASHER
• Disconnect spark plug wire from spark plug and place wire
where it cannot contact spark plug.
Unintentional sparking can result in fire or
electric shock.
WARNING
• DO NOT point spray gun at glass when in jet spray mode.
• NEVER aim spray gun at plants.
High pressure spray may damage fragile items including
glass.
CAUTION
• DO NOT wear loose clothing, jewelry or anything that may
be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.
Starter and other rotating parts can entangle
hands, hair, clothing, or accessories.
WARNING
• Always wear eye protection when using this equipment or in
vicinity of where equipment is in use.
High pressure spray can cause paint chips or
other particles to become airborne.
WARNING
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is
running.
• NEVER use a spray gun which does not have a trigger lock or
trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are
correctly attached.
A pressure washer produces a high pressure spray
which increases risk of injury and damage to unit.
CAUTION
• If you have questions about intended use, ask dealer or
contact Briggs & Stratton Power Products.
• NEVER operate units with broken or missing parts, or
without protective housing or covers.
• DO NOT by–pass any safety device on this machine.
• Before starting pressure washer in cold weather, check all
parts of the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on high pressure hose. Use
handle provided on unit.
• Check fuel system for leaks or signs of deterioration, such as
chafed or spongy hose, loose or missing clamps, or damaged
tank or cap. Correct all defects before operating pressure
washer.
• This equipment is designed to be used with Briggs & Stratton
Power Products authorized parts ONLY. If equipment is used
with parts that DO NOT comply with minimum specifications,
user assumes all risks and liabilities.
Improper treatment of pressure washer can damage it
and shorten its life.
CAUTION
• DO NOT touch hot surfaces.
• Stay clear of exhaust gases.
• Allow equipment to cool before touching.
Running engines produce heat and hot exhaust
gases. Temperature of muffler and nearby areas
can reach or exceed 150°F (65°C).
Fire or severe burns can occur.
WARNING

5
Generac Portable Products 3000 PSI Pressure Washer

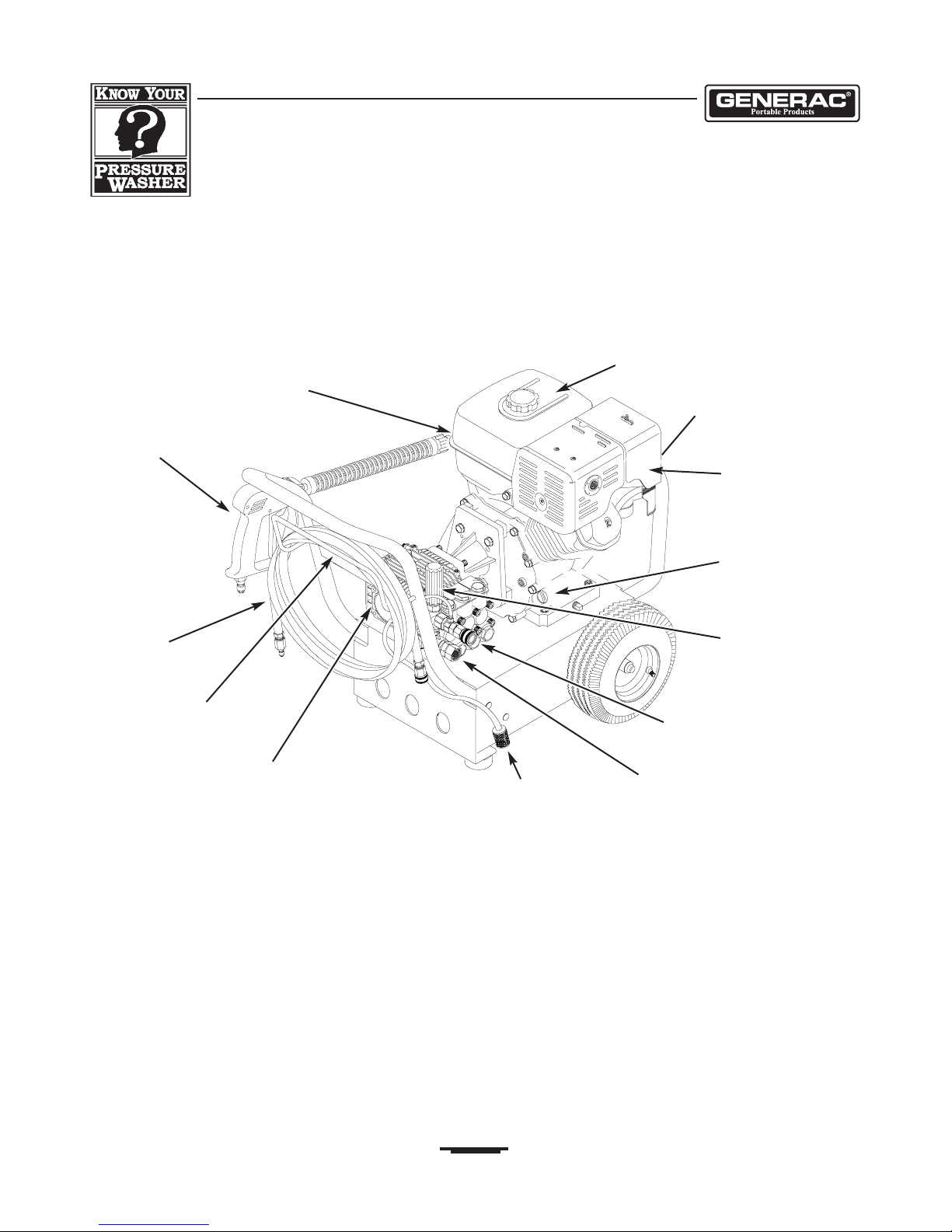

KNOW YOUR PRESSURE WASHER
Read this owner’s manual and safety rules before operating your pressure washer.
Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and
adjustments. Save this manual for future reference.
Chemical Injection Siphon/Filter
Air Filter — Protects engine by filtering dust and debris out
of intake air.
Automatic Cool Down System — Cycles water through
pump when water reaches 125°-155°F. Warm water will
discharge from pump onto ground. This system prevents
internal pump damage.
Chemical Injection Siphon/Filter — Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream.
Fuel Tank — Fill tank with regular unleaded gasoline. Always
leave room for fuel expansion.
High Pressure Hose — Connect one end to the water
pump and the other end to the spray gun.
High Pressure Outlet — To connect high pressure hose.
Nozzle Extension with Quick Connect — Allows you to
switch between five different spray tips.
Oil Fill Cap — Fill engine with oil here.
Pressure Control Knob — Varies the pressure of the high
pressure spray.
Pump — Develops high pressure.
Recoil Starter — Use for starting the engine manually.
Spray Gun — Controls the application of water onto
cleaning surface with trigger device. Includes safety latch.

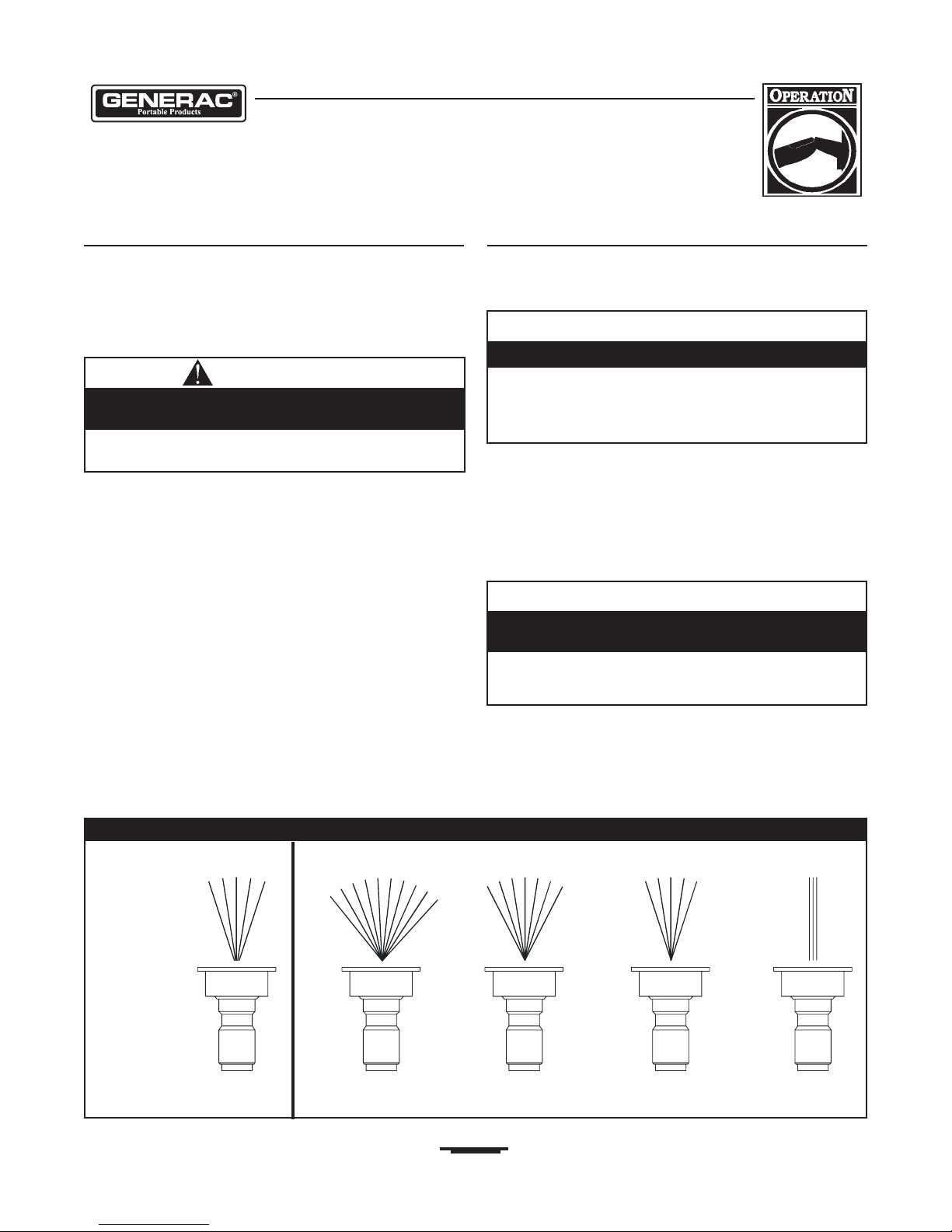

Spray Tips — Chemical injection, 0°, 15°,and 40°: for
various cleaning applications.
Water Inlet — Connect garden hose here.
Spray Gun
Nozzle Extension with
Quick Connect
High Pressure Hose
Recoil Starter
Air Filter
Fuel Tank
Water Inlet
Pressure
Control Knob
Pump equipped with
Automatic Cool Down System
High Pressure Outlet
Oil Fill Cap
Spray Tips

6
Generac Portable Products 3000 PSI Pressure Washer

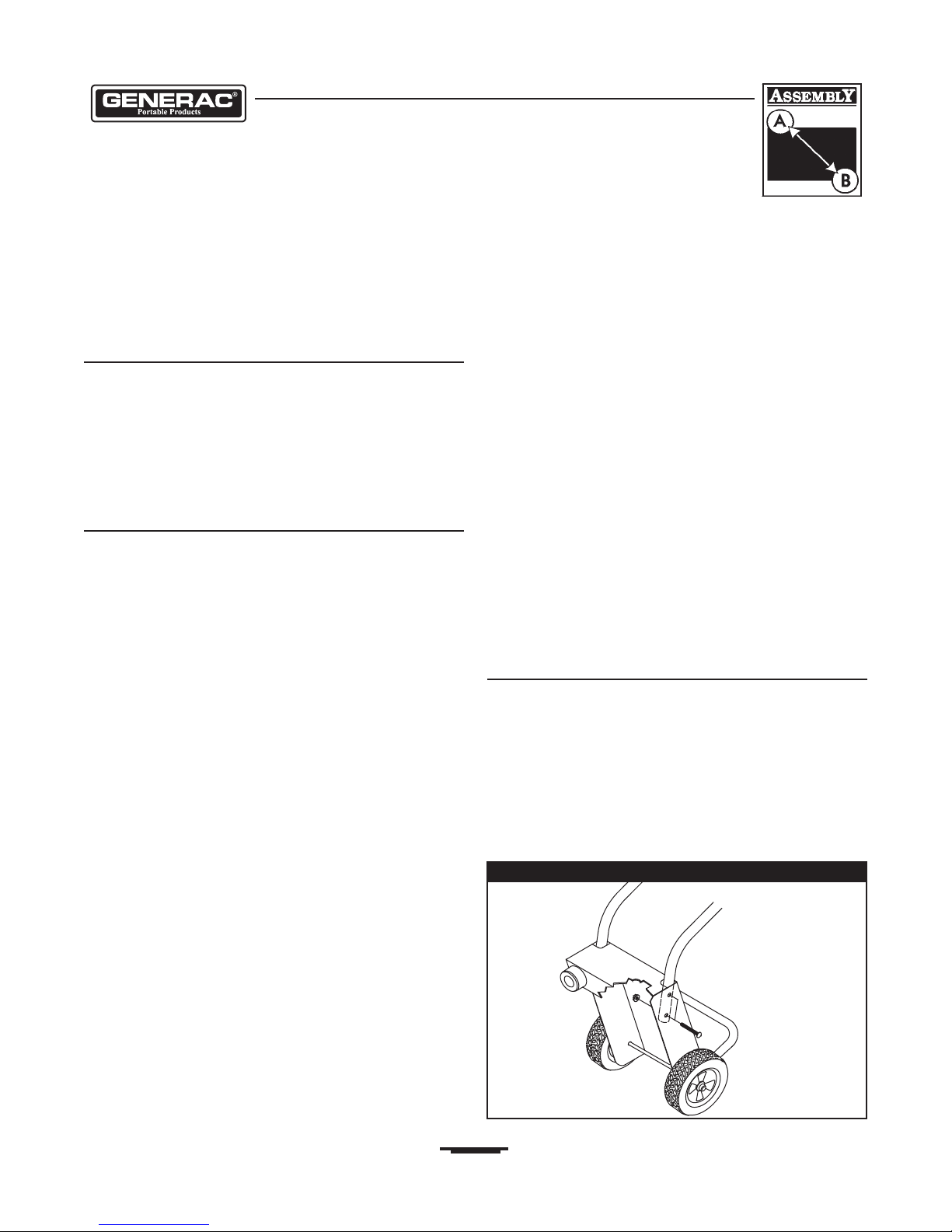

ASSEMBLY
IMPORTANT: Read entire owner’s manual before you
attempt to assemble or operate your new pressure washer.
Remove Pressure Washer From
Carton
• Remove the high pressure hose and parts box included
with pressure washer.
• Slice two corners at the end of carton from top to
bottom so the panel can be folded down flat, then
remove all packing material.
• Roll pressure washer out of carton.
Carton Contents
Items in the carton include:
• Main Unit
• High Pressure Hose
• Handle
• Pump Oil Dipstick (hanging on pump)
• Accessory Box (includes the following):
• (2) Bottles of engine oil
• Owner’s registration card
• Safety Goggles
• Bag containing 5 multi–colored quick connect
spray tips
• Maintenance kit
• Owner’s manual
• Engine manual
• Engine warranty card
• Emissions control warranty card
• Spark arrester screen
• Spray Gun with quick connect fitting
• Nozzle extension with quick connect fitting
• Handle hardware, including 4 carriage bolts and
4 flange nuts
If any of the above parts are missing or damaged, call the
pressure washer helpline at 1–800–270–1408.
PREPARING PRESSURE
WASHER FOR USE
If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged, call the
pressure washer helpline at 1-800-270-1408.
To prepare your pressure washer for operation, you
will need to perform these tasks:
1. Fill out and send in registration card.
2. Attach handle to main unit.
3. Install oil dipstick onto pump.
4. Add oil to engine.
5. Add fuel to fuel tank.
6. Connect high pressure hose to spray gun and pump.
7. Connect water supply to pump.
8. Connect nozzle extension to spray gun.
9. Select and install desired nozzle.
Attach Handle to the Pressure
Washer
Use either a 13mm wrench or adjustable wrench to attach
the handle to the pressure washer.
To attach handle to the pressure washer:
1. Slowly tip pressure washer forward and gently rest it
on front bumper.
2. Align holes on handle with holes on base.
3. Insert carriage bolts provided to hold handle in place
(Figure 1).
Figure 1 — Attach Handle to Pressure Washer

7
Generac Portable Products 3000 PSI Pressure Washer
4. Secure handle to pressure washer using four provided
flange nuts.
5. Slowly tip pressure washer back in place and insert
multi–colored spray tips in spaces provided in handle.
Install Oil Dipstick on Pump
To install oil dipstick:
1. Make sure unit is on a level surface.
2. Remove and discard shipping cap located on pump
(Figure 2).
3. Install oil dipstick.
Add Engine Oil and Fuel
• Place pressure washer on a level surface.
• Refer to engine owner’s manual and follow oil and fuel
recommendations and instructions.
NOTE: Check oil often during engine break–in. Refer to
engine owner’s manual for recommendations.
Connect Hose and Water Supply to
Pump
IMPORTANT: To avoid pump damage, you must
assemble the nozzle extension to the spray gun and attach
all hoses before you start the engine.
1. Uncoil high pressure hose and attach quick connect
end of hose to base of spray gun (Figure 3). Pull down
on collar of quick connect, slide onto spray gun and let
go of collar. Tug on hose to be sure of a tight
connection.
NOTE: Remove and discard all pump shipping caps before
attaching hoses.
Figure 2 — Install Oil Dipstick onto the Pump
Shipping Cap
Pump Oil
Dipstick
Remove shipping cap and
install oil dipstick here.
CAUTION
• Failure to do so will void the warranty and damage the
pump.
You MUST remove the pump’s shipping cap and install
the oil dipstick.
CAUTION
• Refer to engine manual for oil and fuel fill information.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
Any attempt to crank or start the engine before it has
been properly filled with the recommended oil will result
in equipment failure.
Connect high
pressure hose
here.
Figure 3 — Connect High Pressure Hose to Spray Gun

8
Generac Portable Products 3000 PSI Pressure Washer
2. Similarly, attach other end of high pressure hose to the
high pressure outlet on pump. Pull down on collar of
quick connect, slide onto pump and let go of collar.
Pull on hose to be sure of a tight connection.

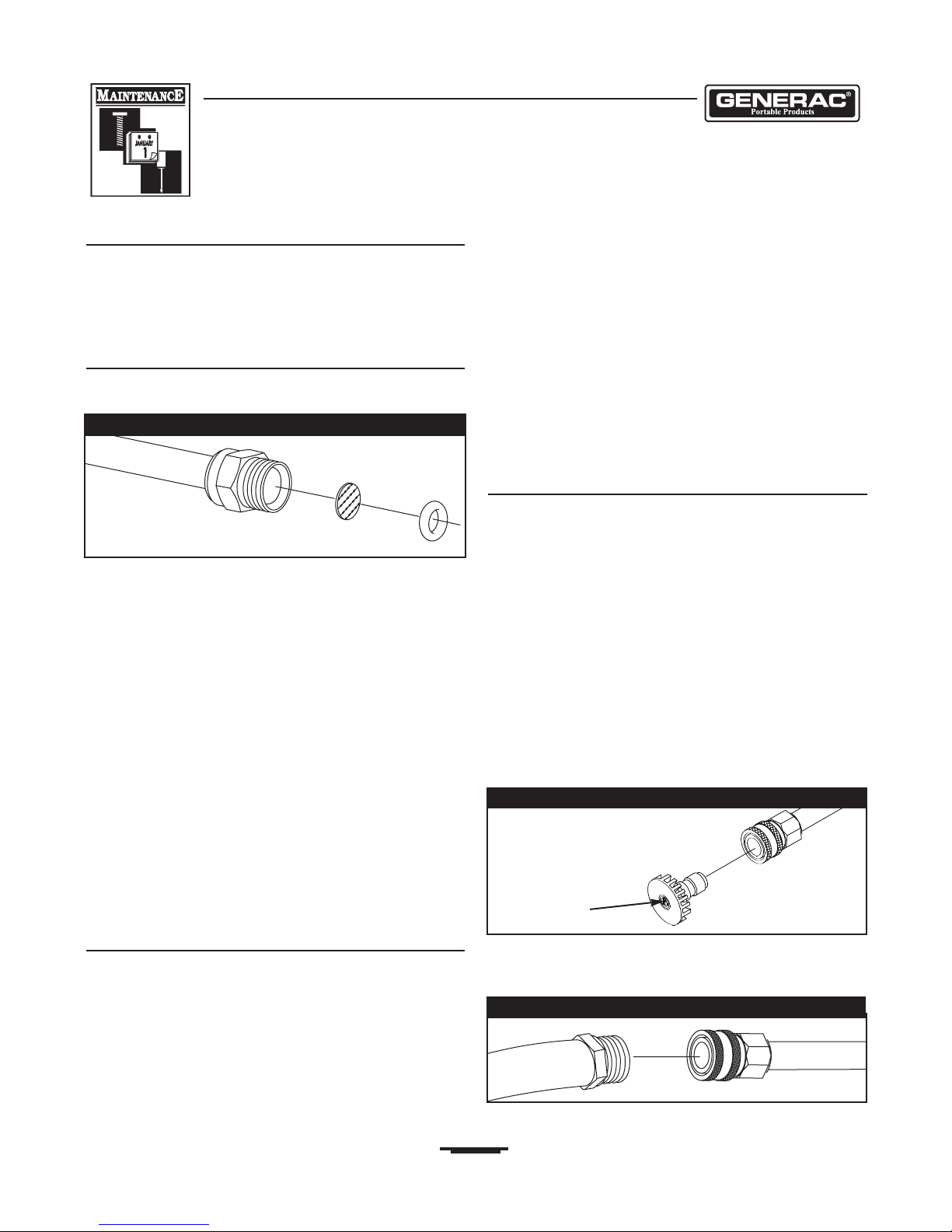

3. Before connecting garden hose to water inlet, inspect
inlet screen (Figure 4). Clean screen if it contains
debris or replace if damaged. Refer to the section
“O-Ring Maintenance” if inlet screen is damaged.
DO NOT run pressure washer if inlet screen is
damaged.
4. Run water through garden hose for 30 seconds to
clean out any debris. Turn off water.
IMPORTANT: DO NOT siphon standing water for the
water supply. Use ONLY cold water (less than 100°F).
5. Connect garden hose (not to exceed 50 feet in length)
to water inlet.Tighten by hand (Figure 4).
6. Turn ON water and squeeze trigger on spray gun to
purge pump system of air and debris.
Checklist Before Starting Engine
Review the unit’s assembly to confirm you have performed
all of the following:
1. Make sure handle is secure.
2. Make sure oil dipstick is installed onto pump.
3. Check for properly tightened hose connections.
4. Check to make sure there are no kinks, cuts, or
damage to high pressure hose.
5. Check that oil has been added to proper level in
engine crankcase.
6. Add proper gasoline to fuel tank.
7. Provide a proper water supply (not to exceed 100°F).
8. Be sure to read “Safety Rules” and “How To Use Your
Pressure Washer” before using pressure washer.
Inspect inlet
screen. DO NOT
use if damaged;
clean if dirty.
Figure 4 — Connect Garden Hose to Water Inlet
CAUTION
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
There MUST be at least ten feet of unrestricted garden
hose between the pressure washer inlet and any flow
shut off device, such as a ‘Y’ shut-off connector or other
convenience-type water shut-off valve.
• Always wear eye protection when using this equipment or in
vicinity of where equipment is in use.
• Before starting the pressure washer, be sure you are wearing
adequate eye protection.
High pressure spray can cause paint chips or
other particles to become airborne.
WARNING

9
Generac Portable Products 3000 PSI Pressure Washer
HOW TO USE YOUR
PRESSURE WASHER
If you have any problems operating your pressure washer,
please call the pressure washer helpline at 1-800-270-1408.
How to Start Engine
The best way to start your pressure washer for the first
time is to follow these instructions step–by–step. This
starting information also applies if have let the pressure
washer sit idle for at least a day.
1. Place pressure washer near an outside water source
capable of supplying water at a flow rate greater than
4.0 gallons per minute and no less than 20 PSI at
pressure washer end of garden hose.
2. Check that high pressure hose is tightly connected to
spray gun and pump. See “Preparing Pressure Washer
for Use” for illustrations.
3. Make sure unit is in level position.
4. Connect garden hose to water inlet on pressure
washer pump. Turn ON water.
5. Squeeze spray gun trigger until a steady stream of
water occurs.
6. Attach nozzle extension to spray gun (Figure 5).
Tighten by hand.
7. Select desired quick connect spray tip and insert it into
end of nozzle extension (see “How To Use Spray
Tips”).
8. Engage safety latch to spray gun trigger (Figure 6).
9. Start engine according to instructions given in engine
owner’s manual.
NOTE: Always keep the throttle lever in the “Fast”
position when operating the pressure washer.
How to Stop Pressure Washer
1. Let engine idle for two minutes.
2. Turn engine off according to instructions given in
engine owner’s manual.
3. Squeeze trigger on spray gun to relieve
pressure in hose.
NOTE: A small amount of water will squirt out when
pressure is released.
Safety Latch
Figure 6 — Spray Gun with Safety Latch Engaged
Figure 5 — Connect Nozzle Extension to Spray Gun
CAUTION
• Squeeze trigger on spray gun each time recoil starter is
pulled and engine fails to start.
Avoid injury from kickback.
CAUTION
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
DO NOT run the pump without the water supply
connected and turned on.

10
Generac Portable Products 3000 PSI Pressure Washer
How to Use Spray Tips
The nozzle extension quick–connect allows the use of
several different spray tips. Each spray tip provides a
different spray pattern (Figure 7).
Follow these instructions to change spray tips:
1. Engage safety latch on spray gun.
2. Pull back collar on quick–connect and pull current
spray tip off.
3. Select desired spray tip:
• For gentle rinse, select white 40° or green 25°
spray tip.
• To scour surface, select yellow 15° or red 0° spray
tip.
• To apply chemical, select black spray tip.
4. Pull back on collar, insert new spray tip and release collar.
Tug on spray tip to make sure it is securely in place.
5. For most effective cleaning, keep spray tip from 8 to
24 inches away from cleaning surface. DO NOT get
closer than 6 inches when cleaning automobile tires.
Cleaning and Applying Chemical
IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could damage
the pump.
To apply detergent follow these steps:
1. Review spray tip use.
2. Prepare detergent solution as required by
manufacturer.
3. Place chemical injection siphon/filter into detergent
container.
4. Make sure black spray tip is installed.
NOTE: Detergent cannot be applied with high pressure
spray tips (White, Green, Yellow, or Red).
White
40°
Green
25°
Black Yellow
15°
Red
0°
Low Pressure
Use to apply
chemical
High Pressure
Figure 12 — Spray Tips
• NEVER exchange spray tips without locking the safety latch
on the trigger.
A pressure washer produces a high pressure spray
which increases risk of injury and damage to unit.
CAUTION
CAUTION
• Starting the engine without all the hoses connected and
without the water turned ON will damage the pump.
• Damage to equipment resulting from failure to follow this
instruction will void warranty.
You must attach all hoses before you start the engine.
CAUTION
• When inserting the filter into a detergent solution bottle,
route the tube so as to keep it from inadvertently contacting
the hot muffler.
Keep the chemical injection tube from coming in contact
with the hot muffler.

11
Generac Portable Products 3000 PSI Pressure Washer
5. Make sure garden hose is connected to water inlet.
Check that high pressure hose is connected to spray
gun and pump; start engine.
6. Apply detergent to a dry surface, starting at lower
portion of area to be washed and work upward, using
long, even, overlapping strokes. DO NOT allow
detergent to dry on (prevents streaking).
7. Allow detergent to soak in between 3–5 minutes
before washing and rinsing. Reapply as needed to
prevent surface from drying.
Pressure Washer Rinsing
After you have applied detergent, scour the surface
and rinse it clean as follows:
1. Apply safety latch to spray gun.
2. Remove black chemical spray tip from nozzle
extension.
3. Select and install desired high pressure spray tip
following the instructions in “How to Use Spray Tips”.
4. Increase or decrease spray pressure by turning
pressure control knob counterclockwise or clockwise
respectively (Figure 8). Use lower pressure to wash
items such as a car or boat. Use higher pressure to
strip paint and degrease driveways.
5. Apply high pressure spray to small area and then check
surface for damage. If no damage is found, you can
assume it is okay to continue cleaning.
6. Start at top of area to be rinsed, working down with
same overlapping strokes as used for cleaning.
Automatic Cool Down System
(Thermal Relief)
If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach temperatures
above 125°F. The system engages to cool the pump by
discharging the warm water onto the ground.

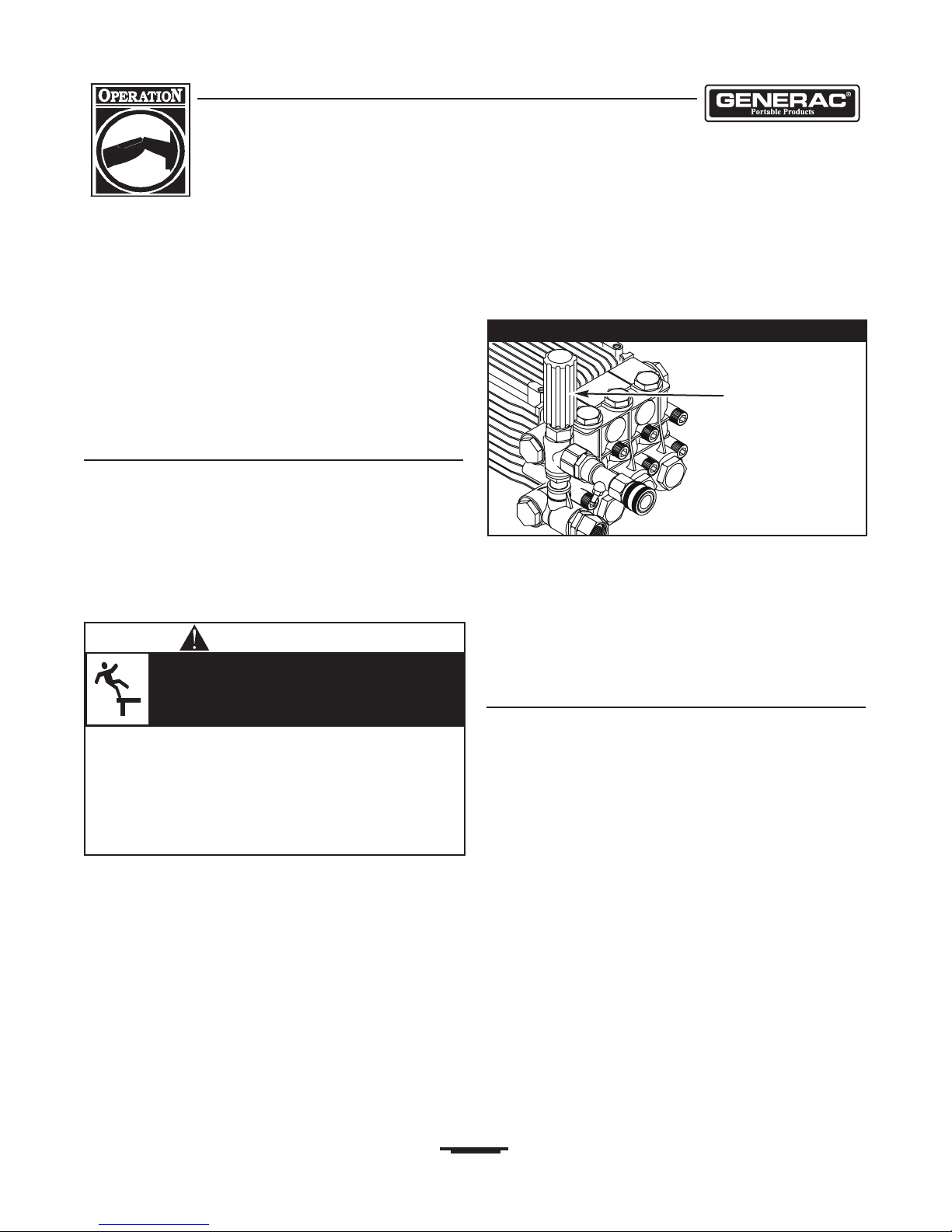

Pressure
Control
Knob
Figure 13 — Pressure Control Knob.
• Keep spray nozzle between 8 to 24 inches away from cleaning
surface.
• Operate this unit on a stable surface.
• Be extremely careful if you must use the pressure washer from
a ladder, scaffolding or any other relatively unstable location.
• Firmly grasp spray gun with both hands when using high
pressure spray to avoid injury if gun kicks back.
High pressure spray could cause you to fall if
you are too close to the cleaning surface.
WARNING

12
Generac Portable Products 3000 PSI Pressure Washer
SPECIFICATIONS
Rated Pressure . . . . . 3,000 PSI
Flow Rate . . . . . . . . . . 3.0 gallons per minute (gpm)
Detergent . . . . . . . . . . Use detergent approved for
pressure washers
Water Supply
Temperature . . . . . . . Not to Exceed 100°F
Automatic Cool . . . . Will cycle when water
Down System reaches 125°-155°F
Shipping Weight . . . . 145 lbs.
GENERAL MAINTENANCE
RECOMMENDATIONS
The pressure washer warranty does not cover items that
have been subjected to operator abuse or negligence. To
receive full value from the warranty, the operator must
maintain the high pressure washer as instructed in this
manual.
• Some adjustments will need to be made periodically to
properly maintain your high pressure washer.
• All maintenance in this manual and the engine owner’s
manual should be made at least once each season.
• If equipped with inflatable tires, keep the air pressure at
the value marked on the tire or within 15 and 40 psi.
Before Each Use
1. Check engine oil level.
2. Check water inlet screen for damage.
3. Check in-line filter for damage.
4. Check high pressure hose for leaks.
5. Check detergent siphoning tube and filter for damage.
6. Check spray gun, nozzle extension, and nozzles for
leaks.
7. Rinse out garden hose to flush out debris.
PRESSURE WASHER
MAINTENANCE
Check and Clean Inlet Screen
Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.
Check High Pressure Hose
The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before using
it. Check for cuts, leaks, abrasions or bulging of cover,
damage or movement of couplings. If any of these
conditions exist, replace the hose immediately.
Check Detergent Siphoning Tube
Examine the filter on the detergent tube and clean if
clogged. The tube should fit tightly on the barbed fitting.
Examine the tube for leaks or tears. Replace the filter or
tube if either is damaged.
Cleaning Detergent Siphoning Tube
If you used the detergent siphoning tube, you must flush it
with clean water before stopping the engine.
1. Place chemical injection siphon/filter in a bucket full of
clean water.
2. Attach black low pressure spray tip.
3. Flush for 1-2 minutes.
4. Shut off engine.
IMPORTANT: Simply shutting OFF engine will not
release pressure in the system. When the engine has
shut down, squeeze the trigger on the spray gun to
relieve the pressure in the hose.
• NEVER repair high pressure hose. Replace it.
• Replacement hose rating MUST exceed maximum pressure
rating of unit.
The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.
WARNING

13
Generac Portable Products 3000 PSI Pressure Washer
Check Gun and Nozzle Extension
Examine the hose connection to the gun and make sure it
is secure. Test the trigger by pressing it and making sure it
springs back into place when you release it. Put the safety
latch in the on position and test the trigger. You should not
be able to press the trigger.
Check In-Line Filter
Refer to Figure 14 and service the in-line filter if it
becomes clogged, as follows:
1. Detach spray gun and nozzle extension from high
pressure hose. Detach nozzle extension from spray
gun and remove o-ring and screen from nozzle
extension. Flush the screen, spray gun, and adjustable
nozzle extension with clean water to clear debris.
2. If screen is damaged, the o-ring kit contains a
replacement in-line filter screen and o-ring. If
undamaged, reuse screen.
3. Place in-line filter screen into threaded end of nozzle
extension. Direction does not matter. Push screen in
with eraser end of pencil until it rests flat at bottom of
opening. Take care to not bend screen.
4. Place o-ring into recess. Push o-ring snugly against
in-line filter screen.
5. Assemble nozzle extension to spray gun, as described
earlier in this manual.
Purge Pump of Air and
Contaminants
To remove air from the pump, follow these steps:
1. Set up pressure washer as described in “Preparing
Pressure Washer For Use”. Connect water supply and
turn water on.
2. Pull trigger on spray gun and hold.
3. When water supply is steady and constant, engage
safety latch.
To remove contaminants from the pump, follow
these steps:
1. Set up pressure washer as described in “Preparing
Pressure Washer For Use”. Connect water supply and
turn water on.
2. Start engine according to instructions in “To Start
Pressure Washer”.
3. Remove nozzle extension from spray gun.
4. Squeeze trigger on spray gun and hold.
5. When water supply is steady and constant, engage
safety latch and reattach nozzle extension.
Nozzle Maintenance
A pulsing sensation felt while squeezing the spray gun
trigger may be caused by excessive pump pressure. The
principal cause of excessive pump pressure is a nozzle
clogged or restricted with foreign materials, such as dirt,
etc. To correct the problem, immediately clean the nozzle
using the tools included with your pressure washer and
follow these instructions:
1. Shut off engine and turn off water supply.
2. Remove spray tip from end of nozzle extension.
3. Remove in-line filter from other end of nozzle
extension.
4. Use wire included in kit (or a small paper clip) to free
any foreign material clogging or restricting spray tip
(Figure 10).
5. Using a garden hose, remove additional debris by back
flushing water through nozzle extension (Figure 11).
Back flush between 30 to 60 seconds.
Nozzle Extension
Filter Screen
O-ring
Figure 14 — Clean In-Line Filter
Figure 16 — Backflushing the Nozzle Extension
Use wire here
to remove
debris
Figure 10 — Nozzle Maintenance

14
Generac Portable Products 3000 PSI Pressure Washer
6. Reinstall spray tip and in-line filter into nozzle
extension.
7. Reconnect nozzle extension to spray gun.
8. Reconnect water supply, turn on water, and start
engine.
9. Test pressure washer by operating with each Quick
Connect spray tip.
O–Ring Maintenance
Through the normal operation of your pressure washer,
o–rings, which keep the connections of the hoses and spray
gun tight and leak–free, may become worn or damaged.
An O-Ring Maintenance Kit is provided with your pressure
washer which includes replacement o-rings, rubber washer
and water inlet filter. Refer to the instruction sheet
provided in the kit to service your unit’s o-rings. Note that
not all of the parts in the kit will be used on your unit.
To remove a worn or damaged o–ring; use a small flathead
screwdriver to get underneath the o-ring and pry it off.
Pump Maintenance
Changing Pump Oil
Change oil after first 50 hours of operation and then every
200 hours or 3 months, whichever occurs first.
NOTE: When changing pump oil, use only high quality
nondetergent 30 weight oil. Use no special additives.
Change pump oil as follows:
1. Clean area around brass oil drain plug at bottom of
pump.
2. Remove oil drain plug. Drain oil completely into an
approved container.
3. When oil has completely drained, install oil drain plug
and tighten firmly.
4. Clean area around pump oil dipstick. Remove dipstick
and fill pump with recommended oil to “Full” mark on
dipstick.
5. Install pump oil dipstick.
6. Wipe up any spilled oil.
ENGINE MAINTENANCE
See the engine owner’s manual for instructions on how to
properly maintain the engine.
KEEP OUT OF REACH OF CHILDREN. DON'T
POLLUTE. CONSERVE RESOURCES. RETURN
USED OIL TO COLLECTION CENTERS.
• Used motor oil has been shown to cause skin cancer in
certain laboratory animals.
• Thoroughly wash exposed areas with soap and water.
Avoid prolonged or repeated skin contact with used
motor oil.
CAUTION

15
Generac Portable Products 3000 PSI Pressure Washer
PREPARING THE UNIT
FOR STORAGE
Water should not remain in the unit for long periods of
time. Sediments or minerals can deposit on pump parts and
“freeze” pump action. If you do not plan to use the
pressure washer for more than 30 days, follow this
procedure:
1. Flush chemical injection hose by placing filter into a pail
of clean water while running pressure washer in low
pressure mode. Flush for one to two minutes.
2. Shut off engine and let it cool, then remove high
pressure and garden hoses. Disconnect spark plug wire
from spark plug.
3. Empty pump of liquids by pulling engine recoil handle
about 6 times. This should remove most liquid from
pump.
4. Use pump saver to prevent corrosion build up and
freezing of pump.
5. Store unit in a clean, dry area.
Protecting the Pump
To protect the pump from damage caused by mineral
deposits or freezing, use PumpSaver to treat pump. This
prevents freeze damage and lubricates pistons and seals.
NOTE: PumpSaver is available as an optional accessory. It is
not included with the pressure washer. Contact the nearest
authorized service center to purchase PumpSaver.
To use PumpSaver, make sure the pressure washer is
turned off and disconnected from supply water. Read and
follow all instructions and warnings given on the PumpSaver
container.
NOTE: PumpSaver will drip from pump after treatment
and will stain wood and concrete.
NOTE: If PumpSaver is not available, draw RV antifreeze
(non-alcohol) into the pump by pouring the solution into a
3-foot section of garden hose connected to inlet adapter
and pulling recoil handle twice.
STORING THE ENGINE
See the engine owner’s manual for instructions on how to
properly prepare the engine for storage.
CAUTION
• Failure to do so will permanently damage your pump and
render your unit inoperable.
• Freeze damage is not covered under warranty.
You must protect your unit from freezing temperatures.
• Always wear eye protection when using PumpSaver.
Read and follow all cautions and warnings on the
PumpSaver can label.
CAUTION

16
Generac Portable Products 3000 PSI Pressure Washer

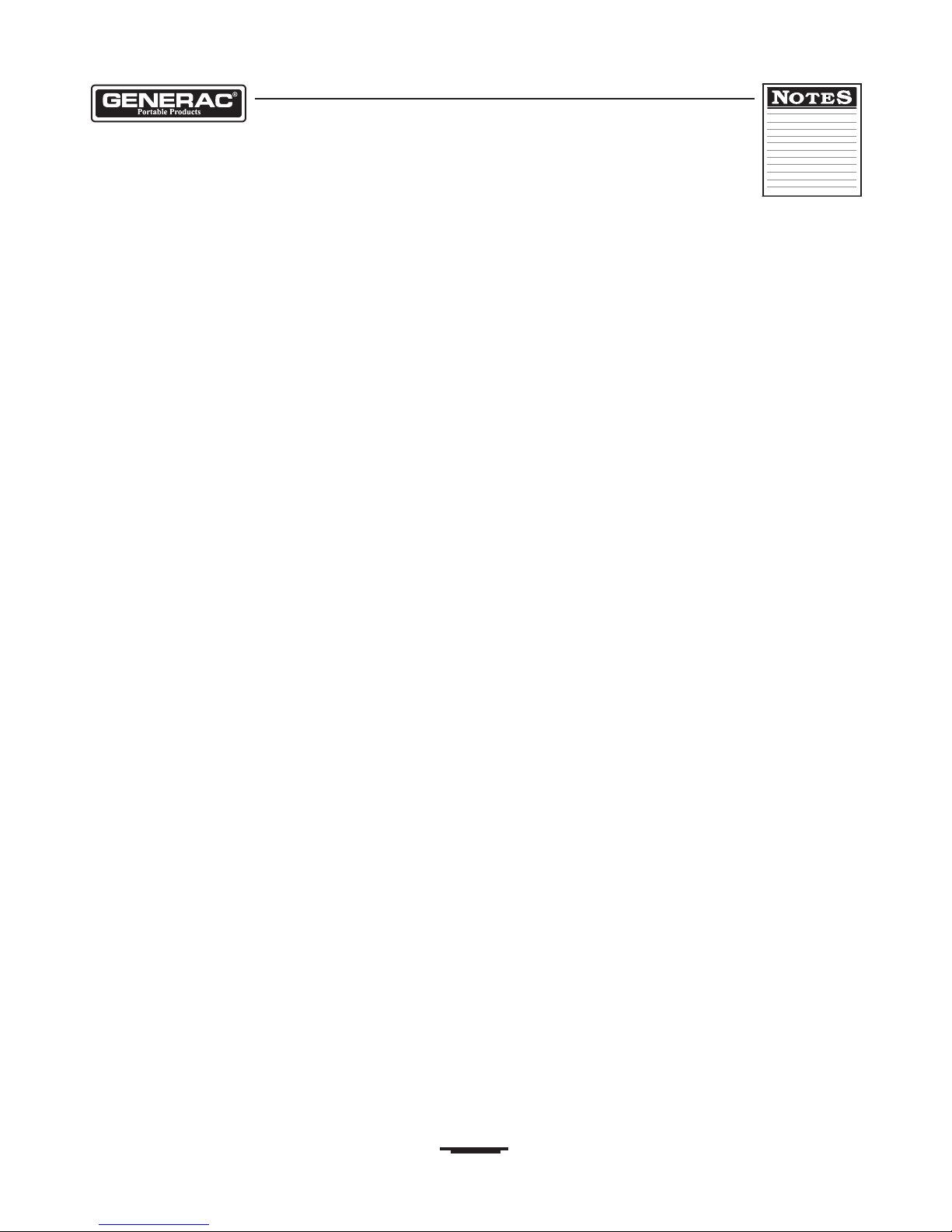

NOTES

17
Generac Portable Products 3000 PSI Pressure Washer
TROUBLESHOOTING
Problem
Pump has following problems:
failure to produce pressure,
erratic pressure, chattering, loss
of pressure, low water volume.
Detergent fails to mix with spray.
Engine shuts down during
operation.
Cause
1. Low pressure spray tip installed.
2. Water inlet is blocked.
3. Inadequate water supply.
4. Inlet hose is kinked or leaking.
5. Clogged inlet hose strainer.
6. Water supply is over 100°F.
7. High pressure hose is blocked or
leaks.
8. Gun leaks.
9. Spray tip is obstructed.
10. Pump is faulty.
1. Detergent siphoning tube is not
submerged.
2. Chemical filter is clogged or
cracked.
3. Dirty in-line filter.
4. High pressure spray tip installed.
Out of gasoline.
Correction
1. Replace spray tip with high
pressure spray tip.
2. Clear inlet.
3. Provide adequate water flow.
4. Straighten inlet hose, patch leak.
5. Check and clean inlet hose
strainer.
6. Provide cooler water supply.
7. Clear blocks in outlet hose.
8. Replace gun.
9. Clean spray tip.
10. Contact authorized service
facility.
1. Insert detergent siphoning tube
into detergent.
2. Clean or replace filter/detergent
siphoning tube.
3. See "Check In-Line Filter".
4. Replace spray tip with low
pressure spray tip.
Fill fuel tank.

18
Generac Portable Products 3000 PSI Pressure Washer
EXPLODED VIEW — UNIT

19
Generac Portable Products 3000 PSI Pressure Washer
PARTS LIST — UNIT
Item Part # Qty.Description
1 B190548GS 1 BASE
2 B2043GS 8 BOLT, Carriage
3 B2126AGS 1 ASSY, Pump (see pages 20-23)
4 CB3861CGS 1 HANDLE
5 B4160GS 1 DECAL, Instructions
6 99583GS 9 NUT
7 B2150GS 1 HOOK, Square Neck
8 B2516GS 2 CAP, Vinyl
9 CB4105GS 1 BUMPER
10 30809GS 5 GROMMET
11 187947AGS 1 DECAL, 5 QD Spray Tips
12 191663GS 1 DECAL, Unit
13 88521GS 2 ASSY, Wheel
14 190146GS 2 NUT, Push
15 48031GGS 1 CLAMP, Hose
16 A1040DGS 1 HOSE, Chemical Inject
17 A1041GS 1 FILTER, Chemical Hose
18 B4805GS 1 HOSE
19 87815GS 1 GOGGLES, Safety
20 B1436BGS 1 GUN
21 23645GS 4 SCREW
22 22237GS 4 WASHER, Lock
23 191658GS 1 MANUAL, Owners
24 B3858GS 1 ASSY, Wand Ext. with QD
25 B1464GS 1 MANUAL, Honda
26 BB3061BGS 2 OIL BOTTLE
27 63281GS 1 KEY
28 191922GS 1 KIT, Maintenance
29 188194GS 2 RIVET, Blind
30 11287628PGS 1 DIPSTICK, Pump
31 191413GS 2 VIB MOUNT, with Washer
32 186301GS 1 KIT, Spray Tips, QD
33 B1554GS 1 VALVE, Thermal Relief
34 64416GS 4 BOLT
35 52859GS 4 NUT, Lock
36 B4224GS 1 SCREEN, Gun Inlet
37 186839GS 1 GARDEN HOSE CONNECTOR
38 97837GS 1 O-RING, High Pressure Hose
39 95458GP 1 QUICK CONNECT
40 B2384GS 1 FILTER, Garden Hose Connector
900 NSP 1 ENGINE

20
Generac Portable Products 3000 PSI Pressure Washer
EXPLODED VIEW — PUMP
