GENERATION HB50 Operation instructions

HybridHeatPumpWaterHeater
TouchScreenDisplay
UserOperatingInstructions

StartUpScreen
•WaterHeaterisOFF
•ControlBoardhas240V
power
•TSDandcommunications
linkareOK
•Notice“WaterHeater
Disabled”
•PressStandbytostart
machine
2

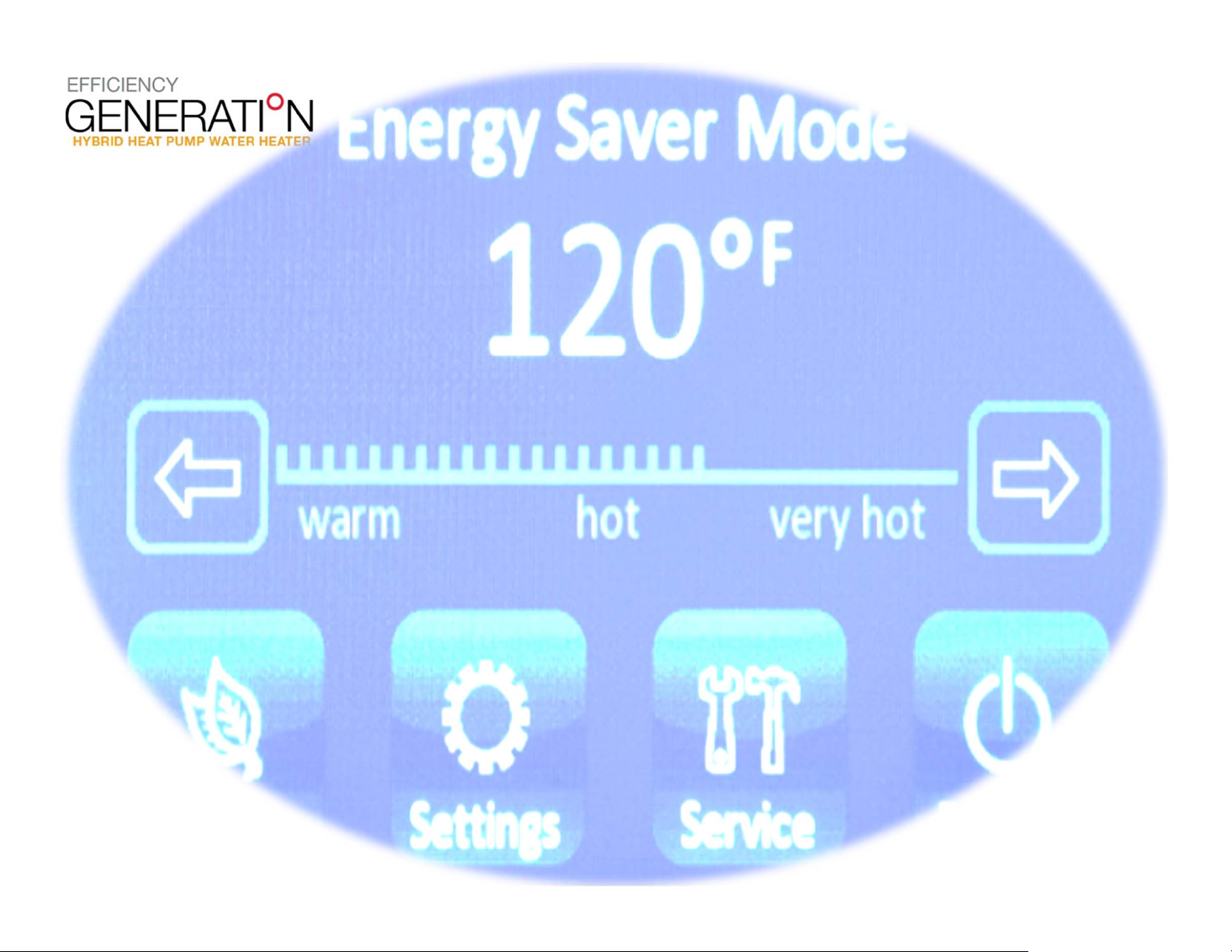

HomeScreen
•HB50isfactorysettorunin
EnergySaverMode
•Watertemperaturesetting
isfactorysetto1200F
•Notice“Standby”changed
to“Enabled”
•Thisbuttonwillcyclethe
waterheaterONandOFF
3

Mode
•EnergySaverMode
–Combinationofheatpumpand
elements
•HeatPumpOnlyMode
–HighestEFrating
–Doesnotuseelements
•HighDemandMode
–Combinationofheatpumpand
elements
–Bestperformance
•ElectricHeatOnlyMode
–Non‐simultaneousheatingelements
•VacationMode
–Select2–28days
–“HOLD”settingforindef
4

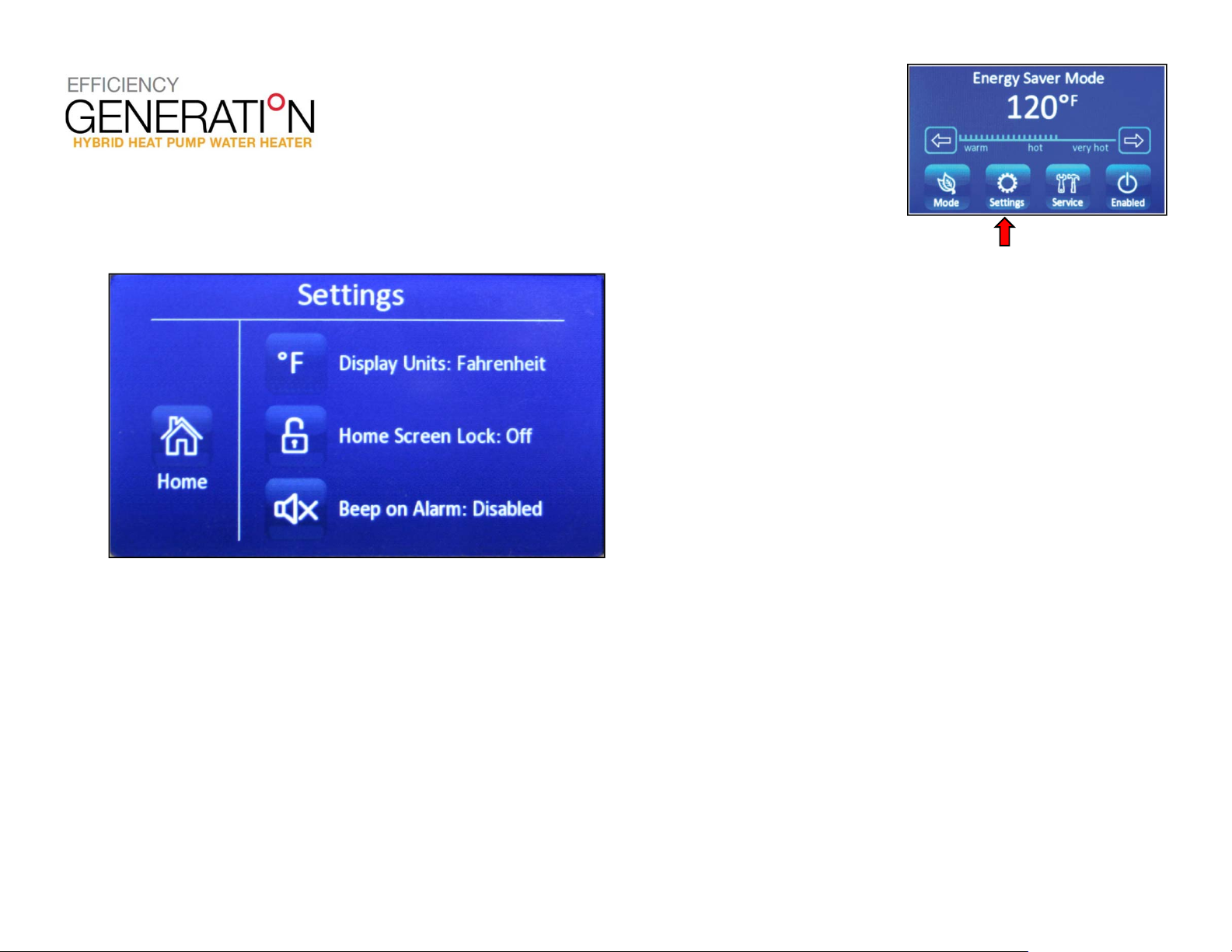

Settings
•Select
–Fahrenheit
–Celsius
•Lock/UnlocktheHome
Screen
•Enable/DisableAudible
Alarms
5

Service
•Displayscurrentstatusof
themachine
•System
•Sensors
•Alarms
6

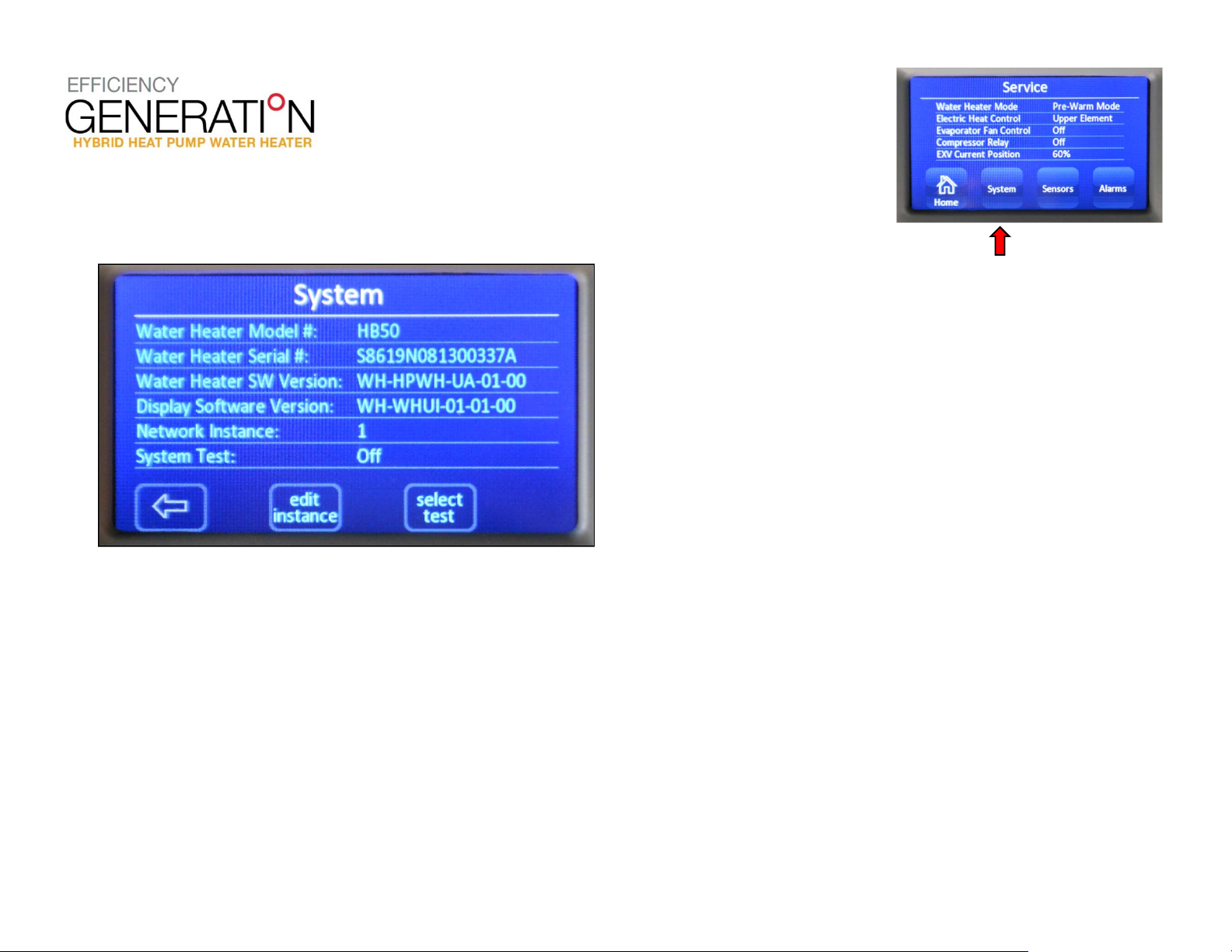

System
•ModelNumber
•SerialNumber
•SoftwareVersions
–ControlBoard
–Display(TSD)
•NetworkInstancefor
EcoNetTM
•SystemTest
–SelectTest
7

SelectTest
•SelectTest
–UpperElement
–LowerElement
–Compressor
–Evap FanLoSpeed
–Evap FanHISpeed
•PressStartTest
8

StartTest
•PressStartTest
•ControlBoardsends
currenttothepart
•Youcanverifycurrentwith
amultimeter
•Partshouldbeworking
•PressEndTestwhen
completed
9

Sensors
•Showsthermistor
temperaturereadingof
areasbeingmonitored
•Shortedthermistorwill
read“2500F”
•Openthermistorwillread
“‐400F”
10

Alarms
•Showscurrentalarms
–PressClearAlarmsto
reset
•Showsalarmhistory
–PressClearHistoryto
reset
11

HybridHeatPumpWaterHeater
TouchScreenDisplay
UserOperatingInstructions
800‐995‐0982
