Geniatech X5075 Instructions for use

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
1
PCI Express Hybrid ATSC/QAM X5075
Quick Install Manual
Introduction
Defining the PCI Express Hybrid ATSC/QAM X5075
Important Notice: “All channels are subject to coverage and may be changed from time to
time. Reception may depend on the type and condition of your existing aerial. Aerial
upgrade may be required. Please confirm coverage in your area.” We strongly recommend
that youinstall an outdoors antenna when you use the DTV receiver indoors.
Defining X5075
X5075 is a small board that is plugged into a PCI Express slot of your computer. It’s fully
compatible with your desktop PC use. Lets you enjoy digital(FTA) Radio and TV programs
andAnalog TV programs.
Feature
• Advanced TV Application
Supports Digital HDTV for ATSC/QAM &Analog TV for NTSC
Rewind and fast forward live TV shows with Always Time Shifting recording

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
2
Electronic Program Guide (EPG, by 3rd partysoftware)
Support HDTV Receiving up to 1920 X 1080i
• Listen to digital radio
Receive digital radio stations from your PC
Automatic stationsearching
Create favorite stations for convenient listening
• Digital Personal Video Recording
Schedule TV recording and save directly to your PC’s hard drive
Installing the Hybrid DVB-T X5075device
Summary
In this chapter the system requirements and the installation of the Hybrid ATSC/QAM X5075
device are described.
System requirements
Recommended OS system（Watching TV and recording）
 IBM compatible PC with Pentium 4, 2.0GHz or above,
 At least 256 MB RAM, 512 MB RAM recommended
 At least 30MB free hard disc space
 Sound Blaster compatible audio card
 3D graphic card recommended (withhardware overlay support, up to date
Drivers)
One free PCI Express interface
Sound card for audio
 Supported operating systems:
Windows XP
Windows Vista
Windows 7
 Additional requirements:
DirectX9 or higher
MediaPlayer 9 or higher
At least 10GB hard disc space or above, that’s necessary for DVR functionality
Additional system requirements for PCI Express devices
 1 available PCI Express slot for each PCIExpress card (do not use the one directly under AGP
graphic card connector).
If you use a multiple number of PCIExpress cards, you have to calculate with a current of 4Aon the
5Vrail for each of the used PCI Express Hybrid ATSC/QAM X5075PCIExpress card.
Recommended system requirements for HDTV reception
Hybrid ATSC/QAM X5075
 IBM compatible PC with Intel Pentium 4 or AMD Athlon XP CPU with 2400MHz or above
 3D AGP or PCI express graphic card recommended (with MPEG2 hardware acceleration,
hardware overlay support and up to date drivers)
 Recommended operating systems:

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
3
Windows XP
Windows Vista
Windows 7
Important information
For best results, a screen resolution of 800 x 600 pixels with 16 bit color dept or higher is
recommended for use with DTVapplications. Ascreen resolution of at least 1280x1024 pixels with
24 bit color dept or higher is recommended for HDTV.
You should update all your system drivers (main board, graphics, sound and network adapter
drivers) to the current version before installing the driver for the DTV-PC TVdevice. You also should
update your operating system with all service packs and hot fixes available.
Package contents
X5075 ATSC/QAM Hybrid Device x1
Remote Cable x1
Remote Controller x1
Multi-FunctionCable x1
Quick installation Guide x1 (PDF format only)
Software CD (Driver and ApplicationSoftware)
Installation of the Hybrid ATSC/QAM X5075 Device
Installation of the PCI Express device
To install the Hybrid ATSC/QAM X5075 PCIExpress board make certain that the computer is
turned off. Precede the following steps to install the PCIExpress card into your PC system:
1. Turn off the PC.
2. Open the case of your computer to expose the PCIExpress slots.
3. Now you have to choose a free PCIExpress slot. If possible choose a different slot than the slot
next to your AGP connector.
4. Unscrew the metal dust protector of the slot you have chosen.
5. Put the Hybrid ATSC/QAM X5075 board into the PCIE slot.
Figure 2.1: Inserting the DTV board into a PCI EXPRESS slot
6. Tighten the screw on the Hybrid ATSC/QAM X5075 board.
7. Repeat the steps 3 to 6 for anyadditional PCIExpress card you want to install.
8. Close the case of your computer case.
Your Hybrid ATSC/QAM X5075 hardware is installed now.
Installing the driver and software
Summary
In this chapter the installation of Hybrid ATSC/QAM X5075 PCIEXPRESS is exemplary
described for the operating system Windows XP ,Windows vista and Windows7.
Install the driver

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
4
Turn onthe PC. Insert the install CD to CD ROM. Thenplug the X5075into one of the PCIE
port:
Step1: When you start your computer for the first time after installing the Hybrid DVB-T X50753
PCIExpress card, the message “Found New Hardware” appears. Please choose “Cancel”.
Step2: When insert CD, OS will promote setup automatically

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
5

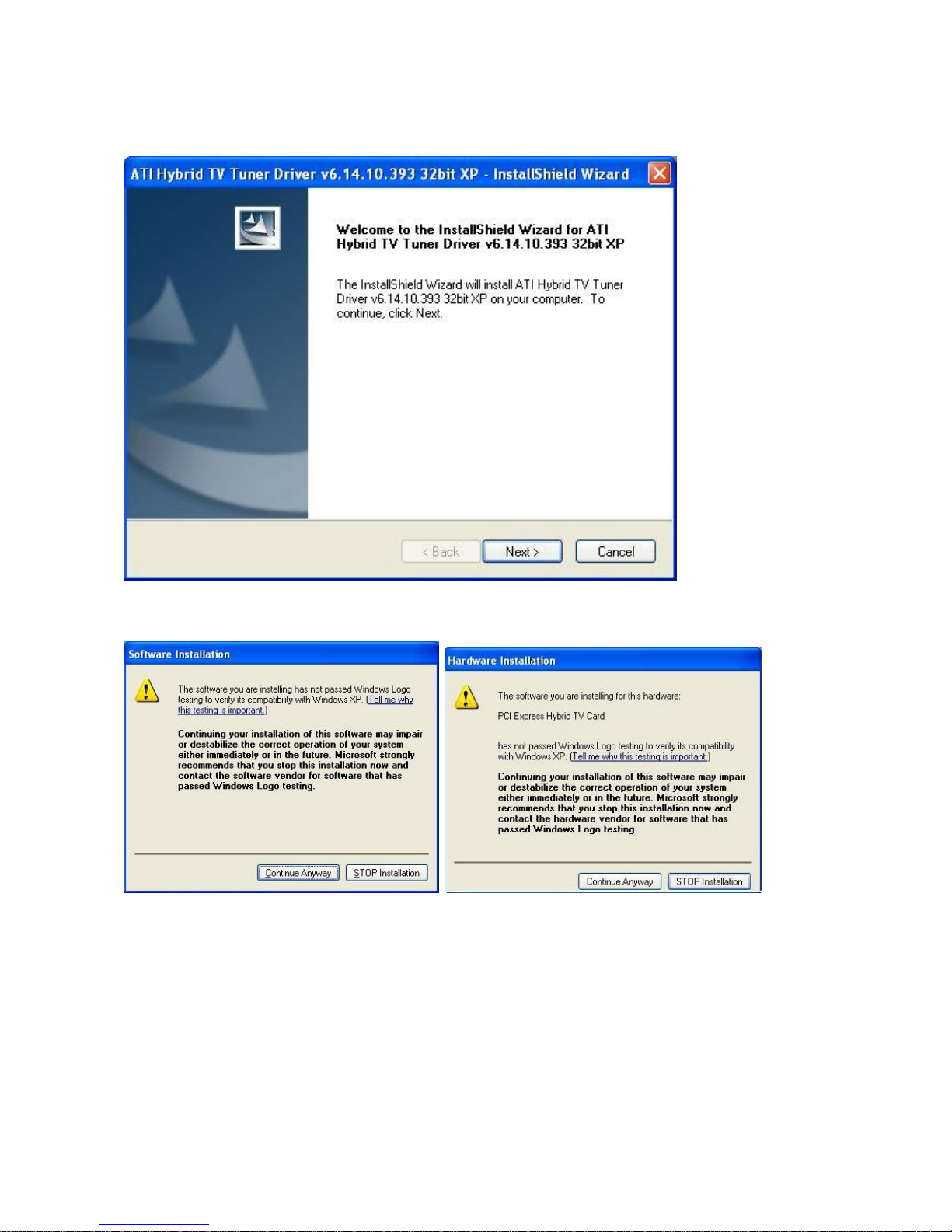

Step3: Run “Software Install”Computer will now automatically show an install page, click
“Next”
Step4: OS will promote to install devices，Click “Continue Anyway”

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
6
Step5: Click “Finish” to completely install the Driver Software
Installing TotalMedia
Step6: Installation of Total Media,Choose setup languag
Step7: Click “Next” to continue installation

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
7
Step8: Click “Yes” and then it will install “Arcsoft TotalMedia”

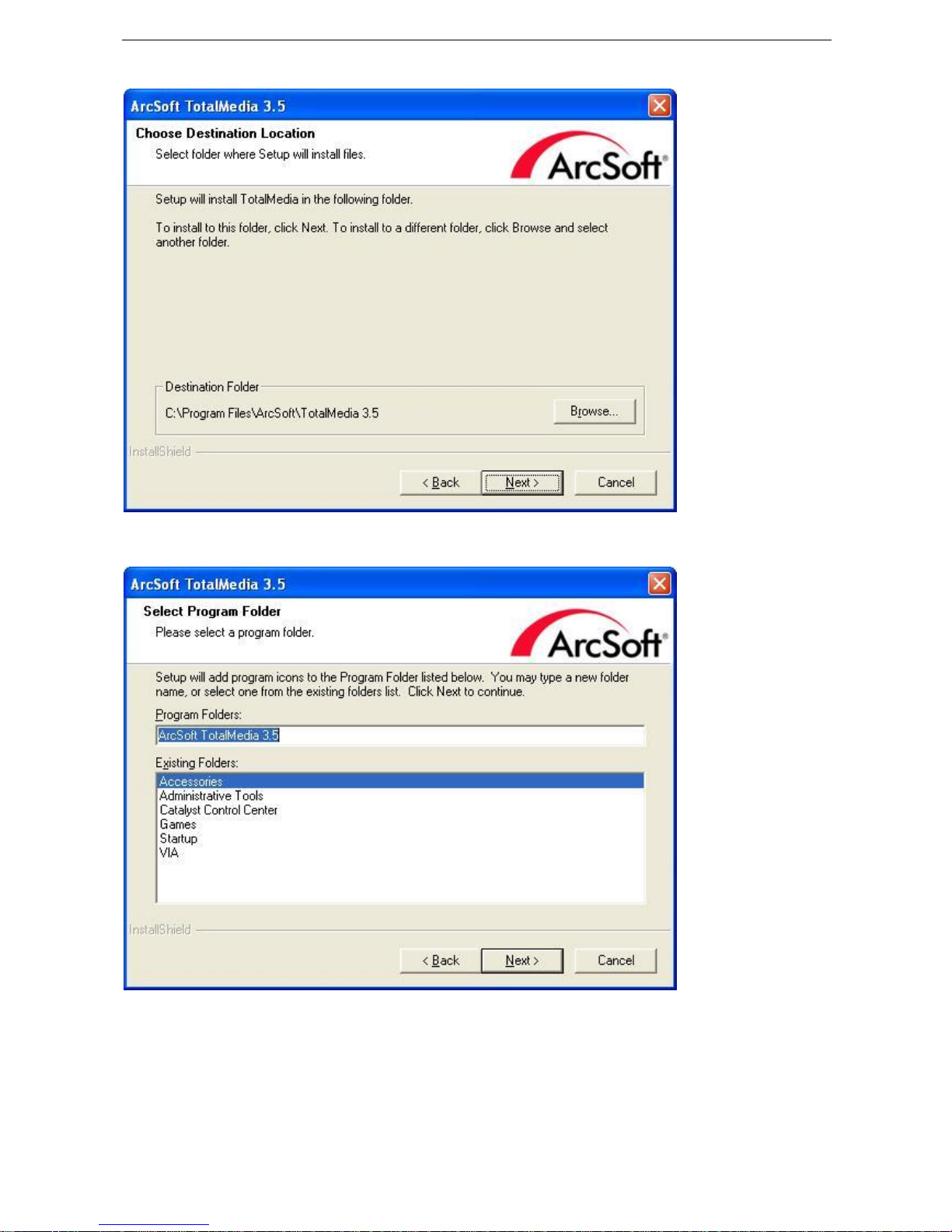

Step9: If you want to change the destination folder, please click “Browse” and click “next”
(Recommended is better)

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
8
Step10: Please click “Next”
Step11: Program starts to copy files.

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
9
Step12: Click “Finish”, the Arcsoft TotalMedia software is installed on your computer.
Step13: You will see that DVB-T application icons will appear on your desktop.

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
10

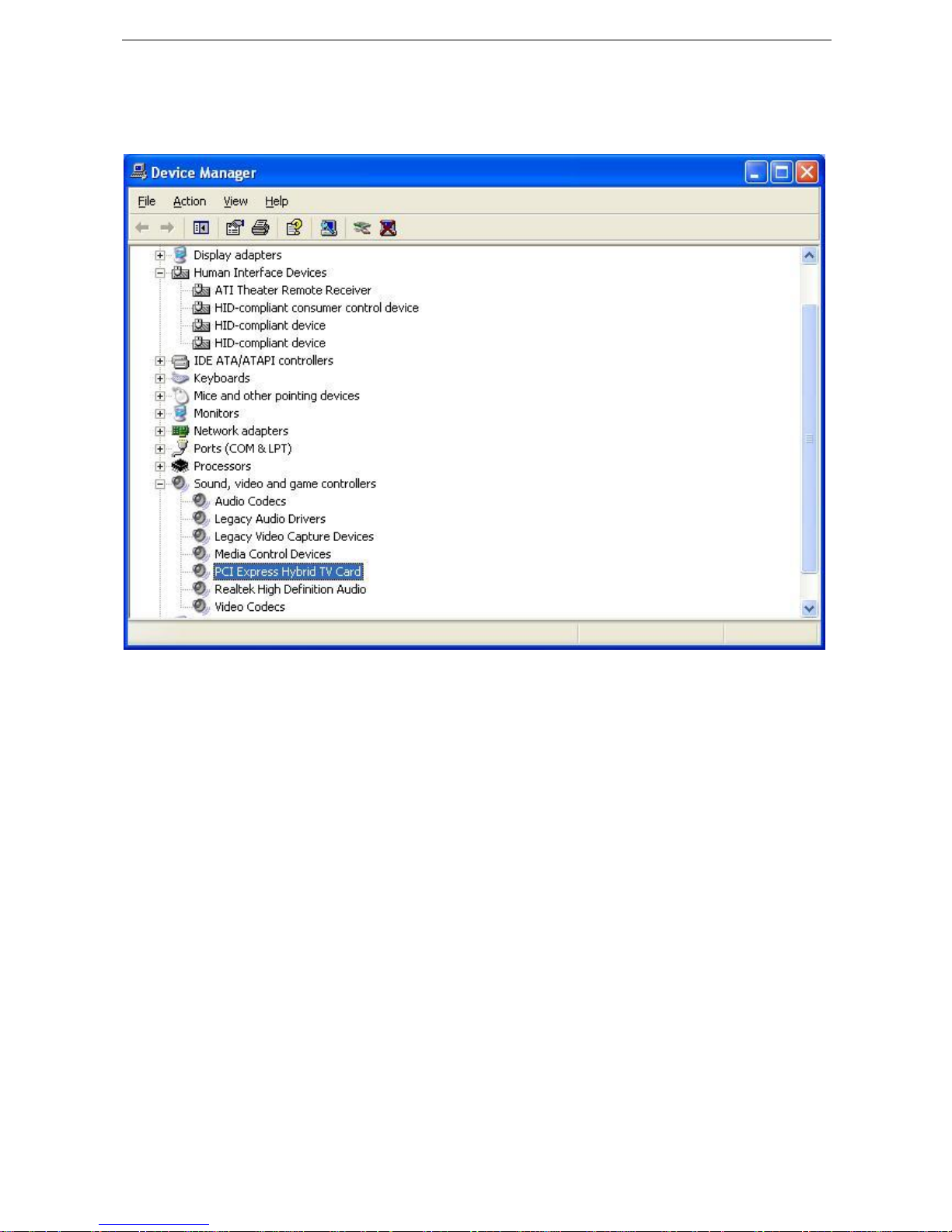

Whenall finished, please check on Control panel, select “System”—“System
properties”—“Device Manager”, youcan see one device installed.
Arcsoft Total Media Users
How to use TotalMedia, you canget online help.
Connection
Summary

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
11

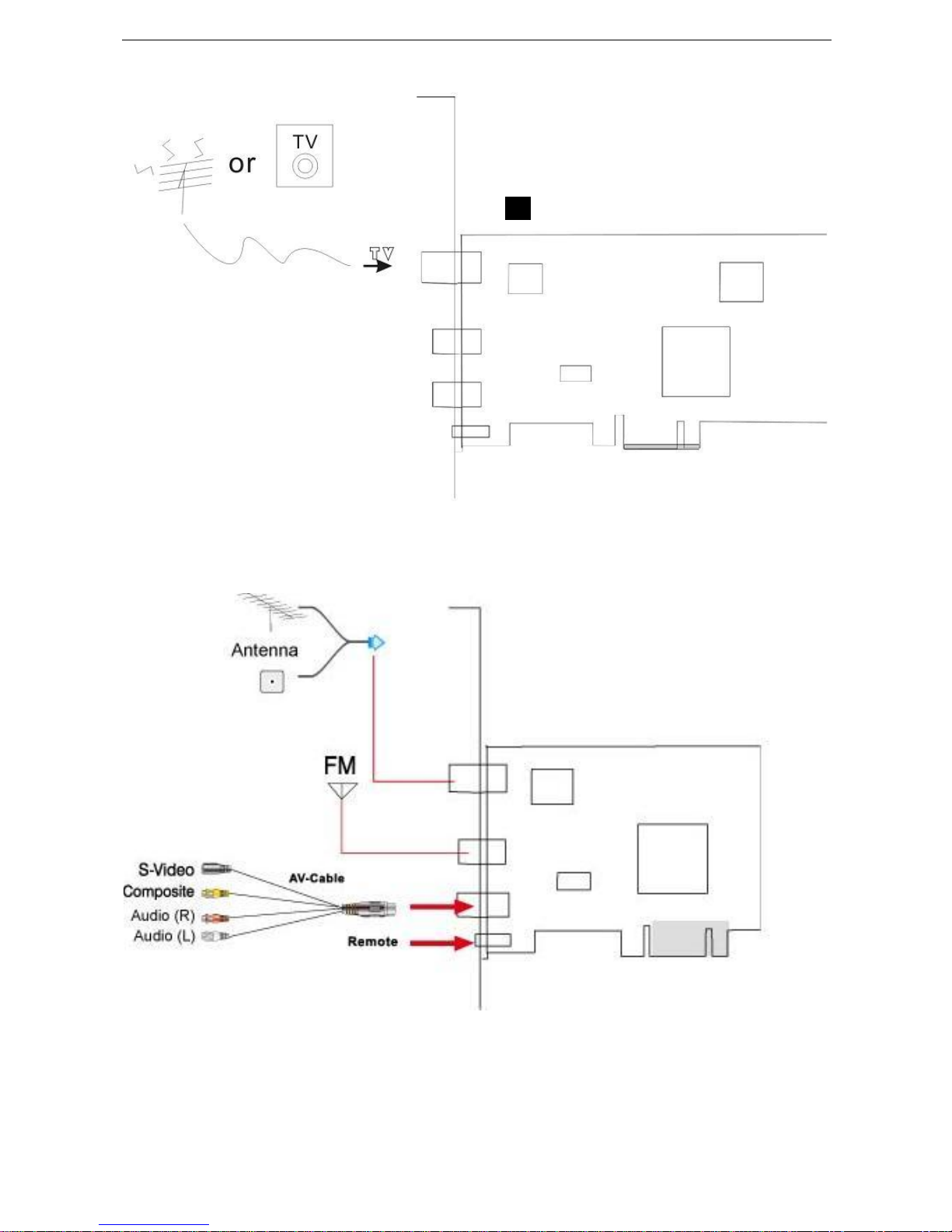

X5075 Connection
Connecting Hybrid ATSC/QAM X5075 TV Receiver to PCI Express interface on
your PC
1. Connecting Analog TV Cable (for analog TV) or digitalantenna (for digital TV) to Hybrid
X5075 TV Receiver.

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
12
3. When you want to switchAnalog, please switch to Analog Cable
4. Input & Output Connections
Remote Controller Button List

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
13
1
TV/AV: Switch between S-Video, Composite, and TV
2
TotalMedia: Open/Close TotalMedia Software
3
0 - 9: Channel Number Keys
4
ESC: Return
5
MUTE: On/Off volume mute
6
Up
Down
Left
Right
OK
7,8
CH+/CH-: Channel Up/Channel Down
9、10
VOL-/VOL+: Volume Down/Volume Up
11
Record: Record/Stop recording the current program
Play: Play a recorded program
Pause: Pause a program
Stop: Stops pre-recorded viewing and returns to live TV
Forward: Forward the current movie clip
Rewind: Rewind the current movie clip
Time-Shift: Time-Shift function
Snapshot: Takes a picture of what is on screen
Show/Hide Control Center: Show/hides the display panel
Full Screen/Restore: Switches from full screen to the
default screen
Shuffle: TV wall function
Power: Turns computer off
Trouble shooting
1. Can not lock any program channel when auto scan.
1. Please check if there is ATSC/QAM broad casting program in yourarea;
2. Please check if your signal condition is too weak, try to move the antenna around
and re-scanagain,itis better to move the antenna near the window
3. Please check you connect the antenna and tightly
4. Please check you select right country in the Total Media software scan function
page.
5. Please try to use an outdoor antenna and scanonce more.

PCI Express Hybrid ATSC/QAM X5075 V 6.14.10.393
14
2. I do find some channels, but this time I get fewer channels than last time
1. Maybe you moved antenna’s position or angle, try to find the better position and keep
the antenna vertical
2. The weather also canalso affect your receiving signalquality, if the weather is bad today,
that is the reason
3. In some new start ATSC/QAM broadcasting area, the provider of ATSC/QAM
broadcasting may change their broadcasting power day by day, try to find the best
power strength.
4. If you put a CANof cola on the antenna, that will make signal weak, please move them
away.
3. When I watch program, Screen blacked out when playing or freezes on first
picture.
Unfortunately, youare in a weak signal condition.
4. Video playing but Audio failed
Please check the sound card or the volume setting.
5. Remote control does not work
1. Check remote controller batteries.
2. Check remote receiver: the light will be on when receive, that is showing it is getting
signal.
3. Check if youare in 5m between the Remote Receiver, don’t keep to far away.
4. Please point the receive window, that is to say, the angle of the receiving and sending is
important
6. Watching TV some time freeze or slow, also audio stroke
1. Please check your PC is not Pentium 3 or 2, X5075need a highCPU to decoding DVB-T
stream
2. Please check you VGAdriver is properlyinstalled and updated
3. Please don’t run other high CPU loading software such as game and CAD.
