Genie GCG350L User manual

il
Check your ceiling where the power
head of your new unit will be mounted.
Plan how you will be mounting the power head.
It is possible that ceiling joists may not be in the
position needed with respect to the garage door
operator. It may be necessary to add an
additional bracket and fasteners (not included
with your new door operator kit).
You need a 110-120 Volt power supply
available. The outlet should be no more than 3
feet from the power head once it is mounted. (The
cord is 4 ft. in length.) SEE WARNING BELOW.
Check the wall directly above the garage
door. The door operator's header bracket
must be securely fastened to this wall. Insure
that the structure will provide a strong mounting
location.
Check to see if the mounting location
for the Safe-T-Beam ® System "STB" is
clear from obstruction and has a wood
surface available for attaching the "STB"
brackets. The brackets may be attached to
concrete if necessary but extra tools and special
fasteners (not supplied) will be required.
as<_flsb/@ tthrx>u£h you_" Iota[ Gen/® D®a @,:
Is your garage door made of
light-weight steel, aluminum, fiberglass
or glass panels? Additional support bracing
must be added to these type doors. If this is the
case, please contact the door distributor or
manufacturer so that they can furnish you with a
"bracing kit."
To avoid damage to your door and/or
operator, make sure you disable any door
locks prior to installing your operator.
Insure that your door is properly balanced
and moving freely. SEE WARNING BELOW.
(NOT SHOWN) If your garage does not have
a separate entry door, you should consider
an emergency release kit (GER-2) for installation on
your garage door. See page B at the center of this
manual.

48" POWER
TO
120V GROUNDED
OUTLET
EXTENSION
®
TYPICAL
SUPPORT
BRACKET
OR
TORSION SPRING'
@
ADDED
HEADER BRACKET
MOUNTING BOARD
BRACES
®
SECTmONAL DOOR I-PmECE DOOR

SECTION......................................... PAGE
PRE-INSTALLATIONCHECKS.......................... 2-3
OPERATORFEATURES................................. 4
SAFETYFEATURES.................................... 4
TOOLSRECOMMENDED................................ 5
PARTSIDENTIFICATION.............................. 5-7
SAFETYINFORMATION................................. 7
OPERATOR.............................................
1 ASSEMBLY.................................... 8-10
2 INSTALLATION................................ 11-14
ELECTRICALINSTALLATION......................... 15-18
3 SAFE-T-BEAM®SYSTEMINSTALLATION.......... 15-16
4 WALLCONTROLINSTALLATION.................... 17
INTELLICODE ®Roiling Code Security System.
An electronic rolling code system that enhances the security of
the door operator by continuously changing the access code
each time the remote control is used. The door operator
responds to each new code only once. An access code copied
from a working system and tried again will not control the door
operator.
INTELLICODE ®1, 2 or 3-Button Remote Control (included
with some models).
Operates 1, 2 or 3 garage doors from car.
Lighted Wall Button*.
Operates door operator from inside garage.
Lighted Wall Console* (included with some models).
Security vacation lock switch disables all controls. LED
Indicator shows whether system is locked or unlocked. Makes
console easy to find in dark. Controls door operator from inside
garage. Independent light control allows convenient manual
control of the automatic lighting system.
5CONNECTOPERATORTOPOWER................. 18 NOTE: Your garage door operator may not come with all above
ADJUSTMENTS.................................... 19-21 items included as standard equipment.
6 LIMITSWITCHES&FORCEADJUSTMENT........... 19.
CONTACTREVERSE............................. 20
7PROGRAMMINGREMOTECONTROLS........... 20-21
8 BATTERY/VISORCLIPINSTALLATION............... 21
9 LIGHTBULBANDLENSINSTALLATION.............. 21
SAFETYINSTRUCT!ONS............................... 22
MAINTENANCE&TROUBLESHOOTING............... 22-24
SAFE-T-BEAM®................................. 22
OPERATOR/RADIO.............................. 23
WIRINGDIAGRAM............................... 24
ACCESSORIES...................................... A-B
WARRANTY.......................................... C
Safe-T-Beam ®(STB) Non-Contact Reversing System**.
Puts an invisible beam across the door opening. The door stops
and reverses to the full open position if anything passes
through the beam. Red and green LED indicators provide a self
diagnostic code if an operational problem exits.
Safe-T-Reverse ®Contact Reversing System.
Automatically stops and reverses a closing door within 2
seconds of contact with an object.
Safe-T-Stop ®Timed Reversed System.
Automatically opens a closing door if it fails to close completely
within 30 seconds.
Force Guard ®Control.
Features adjustable open and close force settings. For
maximum safety, these must be set to the minimum force
required to fully open and close the door.
Relay Monitoring System.
Automatically stops and reverses a closing door if the closing
relay malfunctions.
Watch Dog ®Monitoring System.
Automatically stops and reverses a closing door if the
Safe-T-Beam System** has an operational problem.
Automatic Lighting System.
One bulb lighting supplies up to 100 Watts of light for safer
evening exits and entries. Turns on when door _sactivated and
automatically turns off 5 minutes later.
Manual Emergency Release.
Manually releases door from door operator. Use during a power
failure or other emergency to allow manual opening and closing
of door.

Stepladder
Drill
r_
5/32"DrillBit
Ratchet
©
7/16"and 9/16"
Sockets
Pencil
%
Tape measure
Carpenter's level
Phillipsscrewdriver
Adjustablewrench
Wire strippers ii
#6 x 1-1t4" Pan (32)
Head Phillips
Screw Wallconsole
#6 x 1-1/4" Pan
Head Phillips
Screw Wallbutton
@
Safety Brochure
#10-16 x 1-1t4"
Machine Screw
@
SourceSTB SensorSTB
(Red LED) (Green LED)
oRI
Single-button Multi-button
remote control remote control
,&WARNING
@
EntrapmentWarning
Label
Q
@
Wire
lnsu_taple
STBBracket
[9]
Bolt - 1/4"-20 x 5/8"
0
[10]
Nut - 1/4'L20
[24]C,evispin
[22]
Lag screw - 1/4" x 2"
[25]Cotter0in
[27]
Bolt - 3/8"-16 x 7/8"
[28]
Nut - 3/8"-16
[39]
Screw -#8-32 x 1"
[46]
Bolt - 5/16"-18 x 3/4"
[41]Wirec'i0
[42]
Self-drilling Screw
1/4'L20x 3/4"
[47]
Nut - 5/16"-18

@
/
\\

ItemPartName NumberRequired
1pc,rail 3pc,rail
Powerheadassembly(box) 1 1
Railassembly(1-piece#box) 1
Rail(1-piece)(box) 1
Railassembly(3-piece)(items5,6,7)(box) 1
Firstrailsection(box) 1
Middlerailsection(box) 1
Endrailsection(box) 1
Railclamp(bluebag) 4
1/4"-20x 5/8"hexheadbolt(blueba@) 4 12
10 1/4"-20hexflangenut(bluebag) 4 12
11 Carriageassembly(box) 1 1
12 Railstrap(bluebag) 1 1
13 LimitswitchOPEN(whitewire)(greenbag) 1 1
14 LimitswitchCLOSE(brownwire)(greenbag) 1 1
15 Releasecord(greenbag) 1 1
16 Releaseknob(greenbag) 1 1
17 Emergencyreleasetag(greenbag) 1 1
18 Headerbracket(orangebag) 1 1
!0 Doorbracket(orangebag) 1 1
!2 1/4"x2"lagscrew(orangebag) 8 8
!3 Straightdoorarm(box) 1 1
!4 Clevispin(yellowbag) 2 2
!5 Cotterpin(yellowbag) 2 2
!6 Curveddoorarm(box) 1 1
!7 3/8"-16x 7/8"hexheadbolt(yellowbag) 2 2
!8 3/8"-16hexflangenut(yellowbag) 2 2
!9 Wire(box) 1 1
30 Insulatedstaple(redbag) varies/modelvaries/model
31 Wallbutton(redbag) varies/modelvaries/model
32 Wallconsole(box) varies/modelvaries/model
33 No.6x 1-1/4"panheadphillipsscrew(redbag) varies/modelvaries/model
34 EntrapmentWARNINGlabel(manual) 1 1
35 Safe-T-Beam(STB)sensor(greenLEa)(box) 1 1
36 Safe-T-Beam(STB)source(redLEa)(box) 1 1
37 Safe-T-Beam(STB)bracket(yellowbag) 2 2
38 Remoteoperator(box) varies/modelvaries/model
39 #8-32x 1"machinescrew(greenbag) 2 2
_0 Safety&maintenanceguide(manual) 1 1
H Wireclip(greenbag) varies/modelvaries/model
$2 1/4"-20x 3/4"self-drillingscrew(orangebag) 3 3
N #10-16x1-1/4"phillipshexheadscrew(yellowbag) 4 4
_6 5/16"-18x 3/4"hexheadbolt(orangebag) 3 3
$7 5/16"-18hexflangenut(orangebag) 4 4
$8 MountingStraps(box) 2

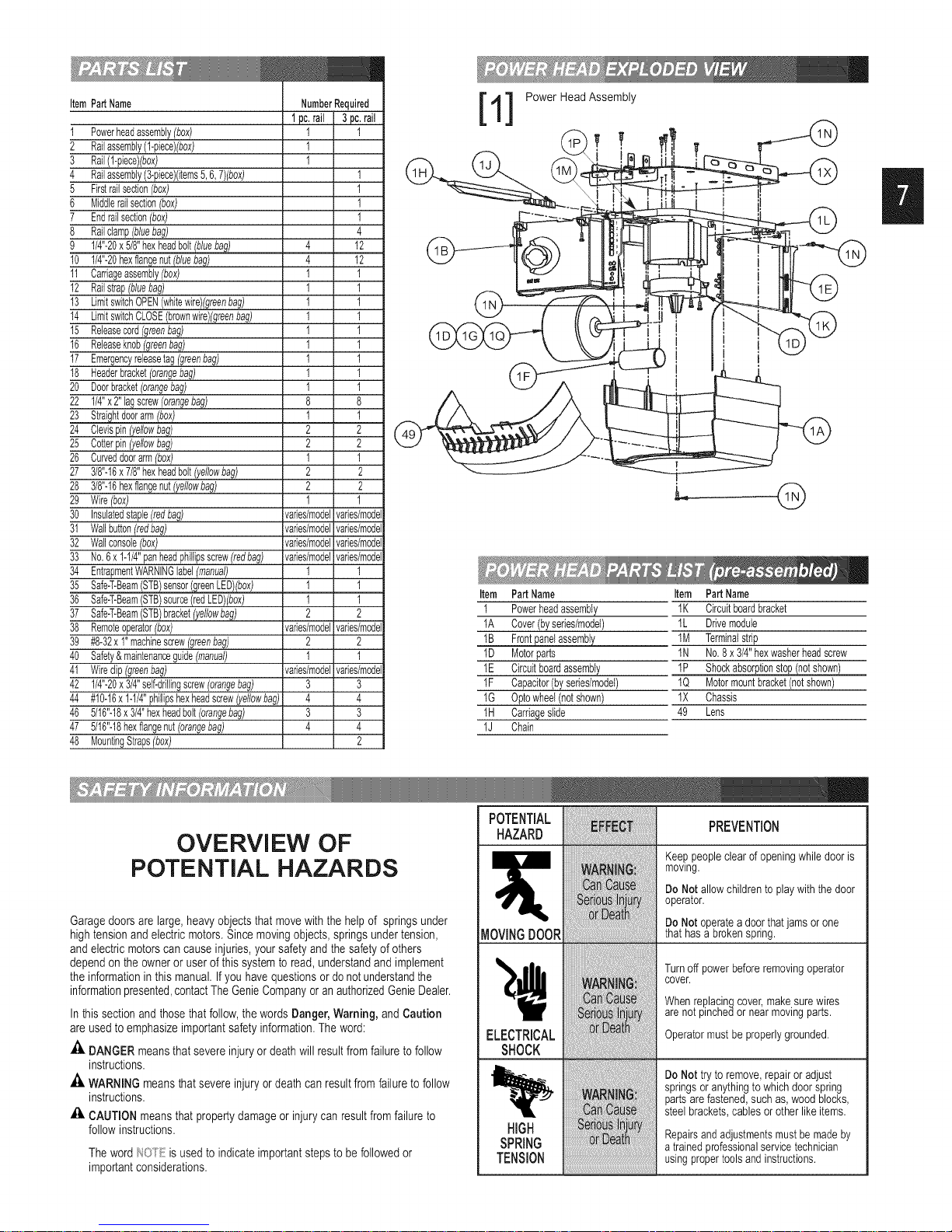

1] Power HeadAssembly
Item PartName
I Powerheadassembly
1A Cover(byseries/model)
IB Frontpanelassembly
1D Motorparts
1E Circuitboardassembly
1F Capacitor(byseries/model)
1G Optowheel(notshown)
IH Carriageslide
lJ Chain
Item PartName
IK Circuitboardbracket
1L Drivemodule
1M Terminalstrip
1N No.8x 3/4"hexwasherheadscrew
IP Shockabsorptionstopn(notshow_
1Q Motormountbracket(notshown)
1X Chassis
49 Lens
I
OVERVIEW OF
POTENTIAL HAZARDS
Garagedoors are large, heavy objectsthat movewith the helpof springs under
high tensionandelectric motors.Since movingobjects, springs under tension,
andelectric motors can cause injuries,your safetyand the safety of others
dependon the owneror user ofthis system to read,understandand implement
theinformationin this manual. Ifyou have questionsor donot understandthe
informationpresented,contactThe GenieCompanyor anauthorizedGenieDealer.
In thissection andthose thatfollow,the words Danger, Warning, andCaution
are usedto emphasizeimportant safetyinformation.The word:
DANGER meansthat severe injury or death will resultfrom failure to follow
instructions.
_. WARNING meansthatsevere injuryor death can resultfrom failure tofollow
instructions.
£i. CAUTION meansthat property damageor injury can resultfrom failure to
follow instructions.
Theword/_2Oi'Eis used to indicate importantstepsto befollowed or
importantconsiderations.
POTENTIAL
HAZARD PREVENTION
Keeppeopleclearofopeningwhiledooris
mowng.
Do Notallowchildrento playwith thedoor
operator.
Do Notoperatea doorthatjamsorone
thathasa brokenspring.
ELECTRICAL
SHOCK
HiGH
SPRING
TENSION
Turnoffpowerbeforeremovingoperator
cover.
Whenreplacingcover makesurewires
arenot pinchedor nearmovingparts.
Operatormustbeproperlygrounded.
iiiiiiiiii!iiiii!ii i iii!iiii!!i!iii!!iii!
De Nettryto remove,repairoradjust
springsoranythingtowhichdoorspring
partsarefastened,suchas,woodblocks,
steelbrackets,cablesorotherlike items.
Repairsandadjustmentsmustbemadeby
atrainedprofessionalservicetechnician
usingpropertoolsandinstructions.

1
1. Identify the rai! sections (Fig. 1-1).
• First rail section (attaches to power head).
- 2 holes each end.
- Half-circle notch 1 end.
- Motor end has no notch.
• Middle rail section.
- 2 holes & half-circle notch each end.
• End rail section (attaches to door).
- Has 4 holes on door end.
2. Arrange arrows on rail sections.
• Sections have arrows stamped into one side.
- Aim all arrows toward door. (Fig. 1-2)
ex_ensFon on an _ foot h_yh doox_ _f_;_ t_f:_the
Middle
3. Attach rail clamps to rail (Fig. 1-3).
• Use pair of clamps at both joints.
- Fasten each pair with 4 bolts (9) and nuts(10).
- Check rail sections aligned and level.
- Securely tighten bolts and nuts.
[9] 114''-20x 518" @[10] 1/4"-20
4. Attach rail strap (Fig. 1-4).
• Place rail strap against rail so that projection on
strap mates with second hole from end of rail.
- Place 2 bolts (9) through rail strap and rail.
- Ignore fourth hole. (See NOTE)
- Securely tighten bolts and nuts (10).
cxUf:,nsFon kF Ffneede&

5. Slip carriage into carriage slot of rail.
•Flip the rail assembly up side down.
•Place emergency release lever in "release"
position (See below).
- Check arrow on the side of carriage points
toward door end of rail.
- Slide carriage into rail at power head end
(Fig. 1-5).
- Flip rail assembly right-side up.
6. Attach rail to power head.
* Place rail in front of power head with rail strap at
opposite end.
* Support door end of rail (rail strap) at about same
height as power head.
- Check if magnet is in place (Fig. 1-6 inset). Insert
carriage slide into rail (Fig. 1-6). (Carriage slide is
long straight piece attached to chain.)
- Pull rail toward you as you feed chain into it.
(Fig. 1-6). When the end of the rail is within
about 2 chain links of the power head, you can
then push it the rest of the way. (It is a snug fit.)
- Securely fasten with 2 bolts (9) and nuts (10)
(Fig. 1-7).
9] 1/4"-20x 5/8" [10]
1/4"-20
7. Attach emergency release cord, knob and tag.
* Tie overhand knot in 1 end of cord. Tighten knot.
(FIG. 1-8 inset A).
- Slip opposite (no knot) end through knob.
- Slip through hole in emergency release lever
(Fig. 1-8).
- Tie overhand knot in this end also. Tighten knot,
8. Attach emergency release tag.
*Attach to hole in emergency release using metal
twist tie on tag. (Fig. 1-8 inset B).
Lever in release position.
Boverhand knot ]

g. Attach limit switches.
2 switches included, "CLOSE" limit switch (brown
wire) and "OPEN" limit switch (white wire)
(Fig. 1-10).
• Turn set screws (39) into threaded holes, just
enough so screw stays in place. (Fig. 1-10).
[39]#8_32xi,,
Point arrow on top "CLOSE" limit switch toward
door end of rail.
- Place "CLOSE" limit switch (Brown wire) on rail
about 12" from rail strap (Fig. 1-11).
- Gently tighten set screw enough to keep switch
from moving.
Point arrow on top "OPEN" limit switch toward
door end of rail.
- Place "OPEN" limit switch (white wire) on rail
where chain attaches to carriage slide. (Near
the power head.)
- Gently tighten set screw enough to keep switch
from moving.
10.Attach limit switch wires.
•Uncoil limit switch wires.
-Place into channels located along top of rail.
-Run wires back to power head through hole in top
of power head (Fig. 1-12).
-Use wire clips to hold wires in place (Fig. 1-13).
[41]
•Attach limit switch wires to terminals on power
head (Fig. 1-14).
-White wire ("OPEN") to terminals #4 and #5.
- Brown wire ("CLOSE") to terminals #5 and #6.
•Bundle extra wire and lay it on top of power head
(Fig. 1-14 inset).

2iMPORTANT
Toreducetheriskofsevereinjuryordeath:
1. READAND FOLLOWALL SAFETY,INSTALLATIONAND
OPERATIONINSTRUCTIONS.If you have questions or
do not understand an instruction, call The Genie
Company or an authorized Genie Dealer.
2. Do Not install operator on an improperly balanced door.
An improperly balanced door could cause severe injury.
Repairs and adjustments to cables, spring assembly,and
other hardware must be made by a professionally trained
service technician using proper tools and instructions.
3. Remove all ropes and disable all locks connected to the
door before installing operator.
4. Install door operator 7 feet or more above floor. Mount
emergency release knob 6 feet above floor.
5. Do Not connect the operator to the source of power
until instructed to do so.
6. Locate the control button:
. Within sight of door.
. At minimum height of 5 feet above the highest floor
level, so small children cannot reach it.
. Away from all moving parts of the door.
7. Installthe Entrapment WARNING Label next to the wall
button or wall console. Installthe emergency release
tag on, or next to, the emergency release.
8. The operator must reverse when the door contacts a
1-1/2inch high object on the floor at the center of the
doorway.This is the size of a 2" x 4" board laid flat.
=Finding header bracket mounting location.
•Close garage door.
-Use a pencil.
a. Mark center of garage door (one-half overall
width) with 6" vertical line at top edge of door.
b. Continue this line on wall above door for
about !2" (Fig. 2-1).
•Raise garage door until top edge of door
reaches its maximum height (Fig. 2-2).
•Place door at highest point.
- Measure height from top edge of door to floor.
• Close door again.
• Mark height measurement on wall above door.
- Make your mark across vertical line
made earlier.
,Marking final height.
TI"_E2 P _s_'__'_'_vlc__::_',OtC _'_:_J',,s #*'_:_DOOR
Sect ons d®o_s,,_,_ave _oe_s on each sde w_c_ _de
One,,,F;*ece do®_s,_sw ve on a%e sp_ s9 oaded
nnges as the doo_ opens a_d coses
• For secdona! - add 2-1/2" to height mark
just made on wall. This is location for
header bracket.
2-?_/;;__ aboye s@_;,?£ or shah and mau£ 8hTsheath
,, For one-piece - add 6"- 12" to your height mark
just made on the wall. This is location for
header bracket.

NO7_iF;fhe_-_oq;)b;"scke ocs_Fo_*_needs obe
_;_bovehesde;' fb;' !is_'_!_!_i'ech::_oopenh, W you
£;,oud seco_,e@ _sched i'@s_one;'s no h_c/ @d}
_;_c;'ossw_d/suo%; o_ eFhe, sM_, of;/o mu£ £_
s f?Ycien (Fig. 2-4)
2. Mounting the header bracket.
seye_x,_ w_ys, mehod _I M pmM_,"_d f_poss b _
bec_se of _d@d s_,ng_h ore;' o_he me hodxs
(Fig, 2-5)
•Hold header bracket against wall (Fig. 2-5).
- Place left edge on vertical line.
- Bottom edge on final height line.
• Mark screw hole locations on wall.
• Drill 5/32" pilot holes at each screw hole mark.
- Fasten header bracket with 3 lag screws (22)
(Fig. 2-5).
[22]1/4" x2"
3. Finding door bracket mounting location.
• Door bracket is mounted as high on door as
possible along vertical centerline.
b_'_cke mus be moun_s_d NO LOWFZ£ N _op
set of _s_e_s (Fig. 2-7)
_ @ e@e oF @us
4. Mounting the door bracket.
•Proper bracing should be verified at this point,
- Align door bracket centered on your
vertical centerline.
-Attach using 3 self-drilling screws (42) for
sheet metal or other light weight material.
- Use lag screws (22) for solid wooden doors.
[42] 1/4"-20x3/4"
[22]
1/4"x 2"
NO'h_: F;OY'sohaJ wood do@'s c_' ,,_s£ebosLs
X/YYHOUT"SLOTXE© H£A©S pso{ ;_,s*cudis@ m#_y
atso be used fbr a _:_sch#'_!_doo_" b_s!_ceL

1. GettingStarted.
• Positionrail/powerheadassembly(Fig.2-7).
- Railstrapleaningonwallnexttoheaderbracket.
-Place materialonfloorunderpowerheadto
protectfromscratching.(Abox,stool,orsimilar
devicemaybeneededtoclearatorsion
spring,asshown.)
2, Mountingthe assembly.
• Attachrailstraptoheaderbracketusingnut(47)
(Fig.2-7inset).FINGERTIGHTONLY.
[47]
5/16"-18
• Support power head on step-ladder.
NO}_1Y Beh:_ye £_a,_ s SxJ_ch£en {to ceh£ng, msu_'e
tha£ asse _,Ls,_}/h m phspe_ a_V{i_n_'en£(Fig. 2-9).
• Attach mounting straps to ceiling using lag
bolts (22) (Fig. 2-10).
• Set height of power head according to following:
- Track guided doors.
a. Rail must clear door at highest point of travel
b. Be level or, power head slightly below level.
- Trackless doors.
a. Rail must clear door at highest point of travel
by 1" to 1-1/2".
• Securely tighten power head mounting bolts (46)
and nuts (47).
• Lower door.
• Fully tighten rail strap nut.
• DO NOT PLUG UNIT IN YET!
3. Adjusting length of emergency release cord.
• Check emergency release knob height.
-Low enough you can reach it.
-High enough to clear your vehicle, but
NO HIGHER THAN 6 FEET ABOVE FLOOR.
• Tie a new overhand knot where desired.
-Cut off any extra cord.
[22]
I/4" x2"
[46]
5/16"-18x 3/4
JHEADER BRACKET
DOOR
90 °
VIEW FROM ABOVE
(not to scale)
ANGLE IRON ON FINISHED CEILING
_ _ DRYWALL
[o ooooooo oj
Attach angle iron to beams
UNFINISHED OR OPEN BEAM
Extra framing
not needed
Mounting
[46 & [46 &
_, Extra framing
NEEDED

OPEH YELLOW RTS BAG
1. Attach the arms.
•Fasten curved door arm to door bracket using
clevis pin (24) and cotter pin (25) (Fig. 2-10).
•Straight arm to carriage using clevis pin (24) and
cotter pin (25) (Fig. 2-10).
[24] [25]
2. Connecting the arms.
•Slide carriage back and forth to adjust arm length.
-Overlap arms as much as possible.
- Make overall length as short as possible.
•Fasten arms together using 2 bolts (27) and
nuts (28) (Fig. 2-10). (Place the bolts as far
apart as possible,)
[27]
3/8"-16 x 7/8"
1. Attach the arms.
• Straight arm to door bracket using clevis pin (24)
and cotter pin (25) (Fig. 2-12).
• Curved arm to carriage using clevis pin (24)
and cotter pin (25) (Fig. 2-12).
[24] [25]
2. Connecting the arms.
• Slide carriage back and forth to adjust arm length.
-Overlap arms as little as possible.
-Make overall length as long as possible.
• Fasten arms together using 2 bolts (27) and
nuts (28) (Fig. 2-12).
[27]
3/8"-16x 7/8" [28]
3/8"-16

3
h_O_TE"%h....
1. Mounting brackets.
•Mark both sides of garage door frame or wall 5"
above floor. (Fig. 3-1).
•Hold bracket against door frame or wall.
- Check if brackets extend out from wall far
enough, so tongue of bracket is beyond door,
tracks or any door hardware.
-if not:
a. "STB" bracket extensions are available
at local dealer.
b. Blocks of wood, etc. may be substituted for
extensions.
•Center bracket on your mark (Fig. 3-2).
•Fasten each with 2 screws (44) (Fig. 3-2).
[44] #10-16 x 1-1/4"
2. Mounting "STB" source and sensor.
• If garage has only one garage door.
- Determine which side of garage receives most
direct sunlight (Fig. 3-4).
-Red LED should always be on sunny side
whenever possible (Fig. 3-4).
• For multiple doors.
-Preventing crossed signals is critical.
-Place source and sensor modules on adjacent
doors facing in opposite directions (Fig. 3-4).
• Slide source/sensor onto tongue of bracket until
it clicks into place (Fig. 3-3).
3. Wiring.
• Route wire (29) using either method shown
(Fig. 3-5).
• Wires along rail are held in place with wire clips.
[41]
-Wires can be slipped under the wire clips
already in place.
Source
A
Dashed Line = striped wire
Solid Line = white wire
1
_'lPower
U Head
Source
B
r- .i
Sensor
Power
Head
......i_:!:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;ii!_

3. Wiring (cont').
• Securely fasten wires to wall as you go.
-Use insulated staples (included).
[30]
-Staples should be snug only.
•Make wire attachments at "STB's."
-Splitting and stripping wire ends to be
connected as shown (Fig. 3-6).
-Loosen terminal screws.
-Insert wire under flat plate and tighten screw.
It does not matter which wire, white or
striped, goes on which terminal (Fig. 3-7).
•Make wire attachments at power head.
-"STB's" are connected to terminals #2 and #3
on power head (Fig. 3-8).
4. Check the following.
•Insure that no part of door or its hardware is
in path between lenses of source and sensor.
•Insure that tops of lenses are between 5"-6"
above the floor (Fig. 3-9). The brackets are
flexible, and can be adjusted slightly if needed.
pedo_ry ed [_Joyu:_ng connecd®n _ e_:_c#fcs
powe_ °(_,;eep_._ge"I_;},O0 hIOT PLUG t_d';_7S

4
1. Finding the mounting location.
• Pick a convenient location for mounting
wall control.
-Location you choose should be in direct sight
of door.
-It should be at least 5' above floor to prevent
small children from operating door.
-It must be away from any moving parts. (You
should not be able to reach the door while
standing at wall control.)
2. Wiring.
• Run wire from power head to wall control.
• Securely fasten to ceiling using insulated
staples provided.
• Split and strip ends of wire (Fig. 4-5).
• On power head:
-Attach the striped wire to terminal #1 and
white wire to terminal #2 (Fig. 5-1).
• On back of wall control:
-Attach striped wire to terminal "B", and
white wire to terminal "W." (Fig. 5-2).
3. Mounting.
•Fasten wall control to wall with 2 screws (33)
(Fig. 5-3).
[33]#6xi-1/4"
•Remove protective backing from "entrapment"
warning label (Fig. 5-4).
-Stick label on wall near wall control.

5
1. Plug the operator into aproperly grounded
electrical outlet.
2. Check Safe-T-Beam® alignment (Fig. 6-3).
1. instructions for electrician.
•Remove power from circuit.
•Remove motor cover (Fig. 6-1).
-Removing hex head screw located in center
on bottom of cover.
-Slide cover down and off.
•Remove and throw away existing power cord.
•Remove 7/8" knockout plug (Fig. 6-2).
-install a suitable entrance bushing.
•Connect permanent wiring to power head.
- White to white/black to black /ground to green,
-Use only UL recognized wire nuts.
•Wires inside power head must be at least 6"
in length.
• Replace motor cover and re-energize
the circuit.
2. Check Safe-T-Beam® alignment (Fig. 6-3).
NOT_!: _7e OenFe Co£ p_:_ny;s_no f"espo_,_s/;Ise
m@penden_ eh;_,c_,fc_n,
To correct the problem -- the brackets are
flexible and can be adjusted slightly to bring
the system into alignment.
When the STB's are in alignment the red
LED will stop blinking and stay on.

6
NO'}q_:;:©u_<;gopen_}_®_"cl,,,chW hhyfouc'®
_j ,fsm en< _he _' o_oY p<o_x,:<_c_o_may shu of7
p®we_°_o he ope_s_ ®s # _hh}soccu_,_, wv}_F_hou
20 _'ffmAes _o _/;ow _he motoJ," pm_ec_o_ _o mseL
1. Adjusting limit switches,
• Locate force control knobs on power head
(Fig, 7-1).
-Gently turn both control knobs
counter-clockwise until they stop.
• Verify emergency release lever in disengaged
position.
• Verify "OPEN" limit switch at point where chain
attaches to carriage slide (Fig. 7-2).
• Manually close door.
• Move the "CLOSE" limit switch:
-Loosen set screw.
-Slide limit switch along rail to align front edge
of switch with back edge of carriage (Fig. 7-3).
-Gently tighten set screw.
• Press wall control button.
-Carriage slide will move toward power head
and stop at the "OPEN" limit switch.
• Manually open door.
• Move the "OPEN" limit switch:
-Loosen set screw.
-Slide limit switch along rail to align front edge
of switch with back edge of carriage (Fig. 7-4).
-Gently tighten set screw.
-Manually close door.
• Place emergency release lever in engaged
position.
• Press wall control button.
-Carriage slide will move toward door, engage
with carriage and stop at "CLOSE" limit switch.
2. Adjusting "OPEN" force.
• Press wall control button.
- Door should open and stop at "OPEN" limit.
• Door does not fully open.
-Press wall control button.
- Door should close and stop at "CLOSE" limit.
-Turn "OPEN" force control knob slightly in
clockwise direction.
-Press wall control button.
a. Continue step 2 until door opens completely.
3. Adjusting "CLOSE" force.
• Door is not fully closing.
-Cycle door, turning "CLOSE" force knob
clockwise slightly each time until door reaches
fully closed.

The force adjustments and limit switch
settings MUST BE COMPLETED before testing
contact reverse.
1. Testing.
•Open garage door using wall control.
- Place a 2" x 4" board (laid flat) under center
of garage door opening (Fig. 7-5).
-Close door using wall control.
• When door hits board, it must stop and
reverse (within 2 seconds) to open position.
2. Adjustment.
• Door does not properly reverse.
-Check to see if door is at "close" limit.
-It should not have reached limit switch
before hitting board.
• Door is at close limit switch.
- Move limit switch closer to door.
• Test again. Repeat as necessary.
• Door is not reaching "close" limit, but
still does not reverse.
-Decrease "CLOSE FORCE" setting
slightly (turn it counter-clockwise).
• Test again. Repeat as necessary.
7
1. Programming.
o Locate learn code button and indicator LED
on front of power head (under force
adjustment screws) (Fig. 8-1).
• Press and release learn code button.
-Indicator LED will blink at a rate of twice
per second.
• Within 30 seconds, push remote control
button once.
-Indicator LED will stop blinking and stay on.
• Press remote control button again.
-LED will go out. Remote is now programmed.
2. Operating.
Press remote button once.
- Door will move.
• Press button again.
- Door will stop.
• Press button again.
-Door will move in opposite direction.
_lh_::_d®o__w stop ;:_.tom_t c_ y ;:stth_ ft. y
®pe_®_fl. ycosedpost®_
This device complies with FCC Part 15 and RSS
210 of Industry Canada. This equipment has been
tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide
reasonable protection against harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which may be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
Re-orient or relocate the receiver antenna.
Increase the separation between the operator
and receiver.
Connect the operator into an outlet on a circuit
different from that to which the receiver is
connected.
Consult your local dealer.
