Genie Series GCG User manual

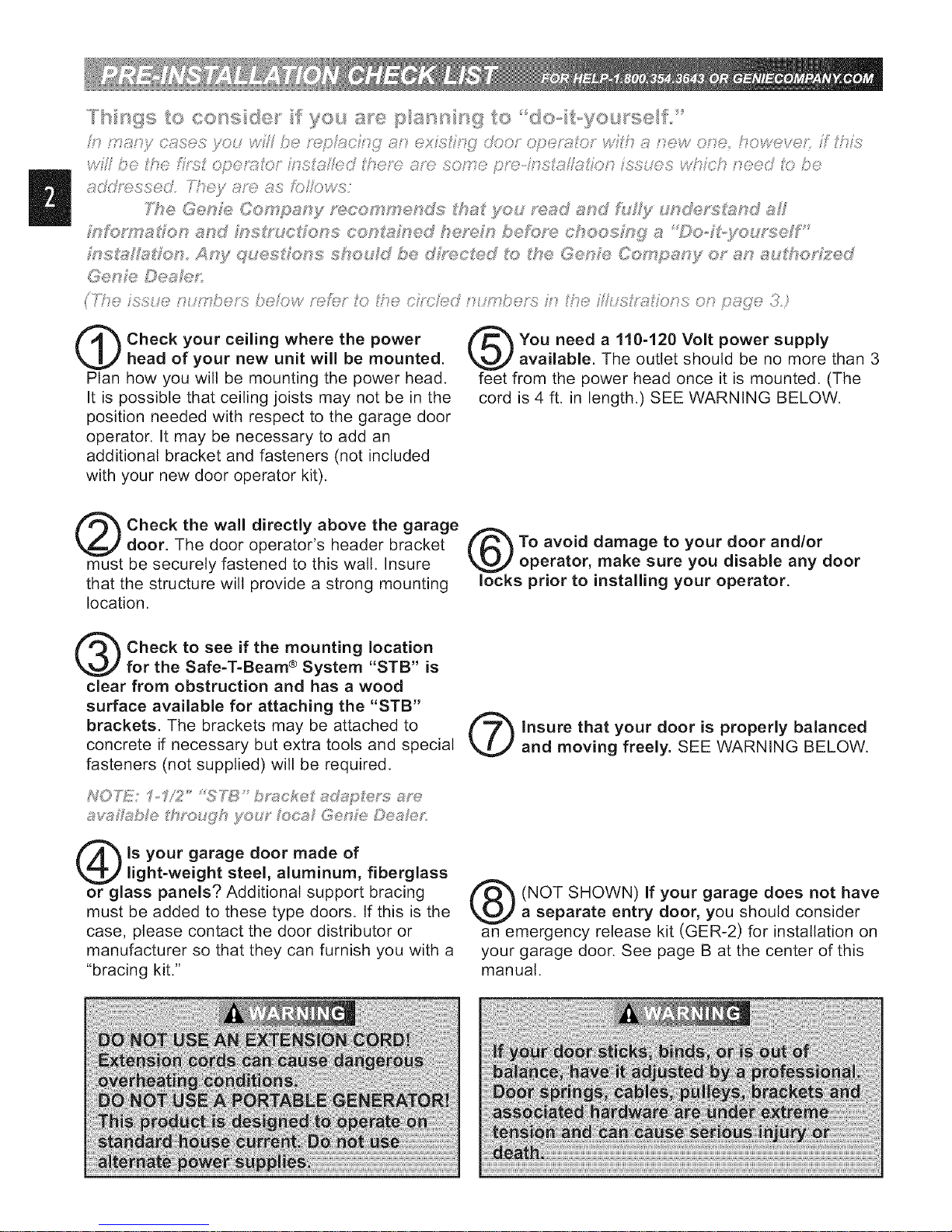

Check your ceiling where the power
head of your new unit will be mounted.
Plan how you will be mounting the power head.
It is possible that ceiling joists may not be in the
position needed with respect to the garage door
operator. It may be necessary to add an
additional bracket and fasteners (not included
with your new door operator kit).
You need a 110-120 Volt power supply
available. The outlet should be no more than 3
feet from the power head once it is mounted. (The
cord is 4 ft. in length.) SEE WARNING BELOW.
Check the wall directly above the garage
door. The door operator's header bracket
must be securely fastened to this watt. Insure
that the structure wilt provide a strong mounting
location.
To avoid damage to your door and/or
operator, make sure you disable any door
locks prior to installing your operator.
Check to see if the mounting location
for the Safe-T-Beam ® System "STB" is
clear from obstruction and has a wood
surface available for attaching the "STB"
brackets. The brackets may be attached to
concrete if necessary but extra tools and special
fasteners (not supplied) wilt be required.
NO S'_!!!:" " "s" "¢ "',_'v,,".
Is your garage door made of
ight-weight steel, aluminum, fiberglass
or glass panels? Additional support bracing
must be added to these type doors. If this is the
case, please contact the door distributor or
manufacturer so that they can furnish you with a
"bracing kit."
Insure that your door is properly balanced
and moving freely. SEE WARNING BELOW.
(NOT SHOWN) If your garage does not have
a separate entry door, you should consider
an emergency release kit (GER-2) for installation on
your garage door. See page B at the center of this
manual.

48" POWER
TO
120V GROUNDED
OUTLET
©
TYPICAL
SUPPORT
BRACKET
EXTENSION OR
TORSION SPRING _
®
ADDED
HEADER BRACKET
MOUNTING BOARD
BRACES
II
®
SECTIONAL DOOR 1-PIECE DOOR

SECTION......................................... PAGE
PRE-tNSTALLATIONCHECKS.......................... 2-3
OPERATORFEATURES................................. 4
SAFETYFEATURES.................................... 4
TOOLSRECOMMENDED................................ 5
PARTSIDENTIFICATION.............................. 5-7
SAFETYINFORMATION................................. 7
OPERATOR.............................................
1 ASSEMBLY.................................... 8-10
2 INSTALLATION................................ 1714
ELECTRICALINSTALLAtiON......................... 15-18
3 SAFE-T-BEAMsSYSTEMINSTALLATION.......... 15-16
4 WALLCONTROLINSTALLATION.................... 17
INTELLICODE ®Rolling Code Security System.
An electronic rolling code system that enhances the security of
the door operator by continuously changing the access code
each time the remote control is used. The door operator
responds to each new code only once. An access code copied
from a working system and triedagain will not control the door
operator.
INTELLICODE _ 1, 2 or 3-Button Remote Control (included
with some models).
Operates 1, 2 or 3 garage doors from car.
Lighted Wall Button*.
Operates door operator from inside garage.
Lighted Wall Console* (included with some models).
Security vacation lock switch disables all controls. LED
Indicator shows whether system is locked or unlocked. Makes
console easy to find in dark. Controls door operator from inside
garage. Independent light control allows convenient manual
control of the automatic lighting system.
5CONNECTOPERATORTOPOWER................. 18 NOTE: Your garage door operator may not come with all above
ADJUSTMENTS.................................... 19-21 items included as standard equipment.
6 LIMITSWITCHES&FORCEADJUSTMENT........... 19.
CONTACTREVERSE............................. 20
7PROGRAMMINGREMOTECONTROLS........... 20-21
8 BATTERY/VISORCLIPINSTALLATION............... 21
9 LIGHTBULBANDLENSINSTALLATION.............. 21
SAFETYINSTRUCTIONS............................... 22
MAINTENANCE&TROUBLESHOOTING............... 22-24
SAFE-T-BEAMs ................................. 22
Safe-T-Beam _ (STB) Non-Contact Reversing System**.
Puts an invisible beam across the door opening. The door stops
and reverses to the full open position if anything passes
through the beam. Red and green LED indicators provide a self
diagnostic code if an operational problem exits.
OPERATOR/RADIO.............................. 23
WIRINGDIAGRAM............................... 24
ACCESSORIES...................................... A-B
WARRANTY.......................................... C
Safe-T-Reverse _ Contact Reversing System.
Automatically stops and reverses a closing door within 2
seconds of contact with an object.
Safe-T-Stop _ Timed Reversed System.
Automatically opens a closing door if it fails to close completely
within 30 seconds.
Force Guard _ Control.
Features adjustable open and close force settings. For
maximum safety, these must be set to the minimum force
required to fully open and close the door.
Relay Monitoring System.
Automatically stops and reverses a closing door if the closing
relay malfunctions.
Watch Dog _ Monitoring System.
Automatically stops and reverses a closing door if the
Safe-T-Beam System** has an operational problem.
Automatic Lighting System.
One bulb lighting supplies up to 100 Watts of light for safer
evening exits and entries. Turns on when door is activated and
automatically turns off 5 minutes later.
Manual Emergency Release.
Manually releases door from door operator. Use during a power
failure or other emergency to allow manual opening and closing
of door.

Stepladder
Drill
5/32" Drill Bit
Ratchet
7/16"and 9/16"
Sockets
Pencil Carpenter's level
Tape measure Phillipsscrewdriver
Adjustablewrench
Wire strippers
#6 x 1-1/4" Pan (32)
Head Phillips
Screw Wall console
#6 x 1-1/4" Pan
Head Phillips
Screw Wall button
@
Safety Brochure
#10-16 x 1-1/4"
Machine Screw
SourceSTB
(Red LED) SensorSTB (Green LED)
Single-button Multi-button
remote control remote control
_WARNING
@
EntrapmentWarning
Label
@
Wire
lnsulate_Staple
STB Bracket
@
[10]
Nut- 1/#'-20
[24]clevls0lo
[22]
Lag screw - 1/4" x 2"
[25]co,te_0lo
[27]
Bolt - 3/8'c16 x 7/8"
[28]
Nut -3/8"-16
[3e]
Screw -#8-32 x 1"
[46]
Bolt - 5/16'c18 x3/4"
[41]W'rec"0
Self-drilling Screw
1/4"-20 x3/4"
O
[47]
Nut -5/16'c18

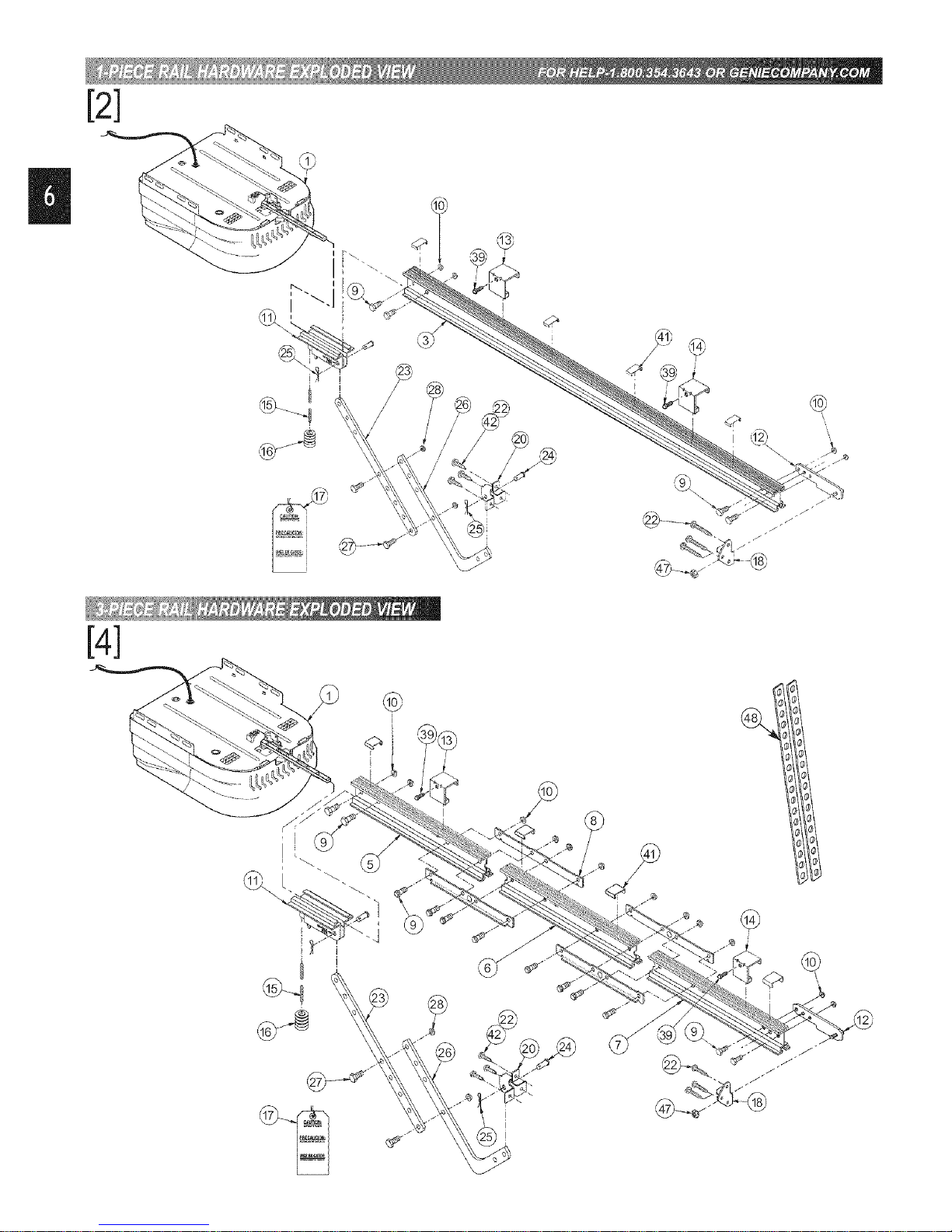

[2]
I÷i
I
E
@@
[4]
I
I
i

ItemPartName NumberRequired
1pc,rail 3pc,rail
Powerheadassembly(box) 1 1
Railassembly(1-piece)(box) 1
Rail(1-piece)(box) 1
Railassembly(3-piece)(items5,6,7)(box) 1
Firstrailsection(box) 1
Middlerailsection(box) 1
Endrailsection(box) 1
Raildamp(bluebag) 4
1/4"-20x5/8"hexheadbolt(bluebag) 4 12
l0 1/4"-20hexflangenut(bluebag) 4 12
11 Carriageassembly(box) 1 1
12 Railstrap(bluebag) 1 1
13 LimitswitchOPEN(whitewire)(greenbsg) 1 1
14 LimitswitchCLOSE(brownwire)(greenbag) 1 1
15 Releasecord(greenbag) 1 1
16 Releaseknob(greenbag) 1 1
17 Emergencyreleasetag(greenbag) 1 1
18 Headerbracket(orangebag) 1 1
!0 Doorbracket(orangebag) 1 1
!2 1/4"x2"lagscrew(orangebag) 8 8
!3 Straightdoorarm(box) 1 1
!4 Clevispin(yellowbag) 2 2
!5 Cotterpin(yellowbag) 2 2
!6 Curveddoorarm(box) 1 1
!7 3/8"-16x718"hexheadbolt(yellowbag) 2 2
!8 3/8"-16hexflangenut(yellowbag) 2 2
!9 Wire(box) 1 1
}0 Insulatedstaple(redbsg) varies/modelvaries/mode
}1 Wallbutton(redbag) varies/model_'aries/mode
}2 Wallconsole(box) varies/modal_'aries/mode
}3 No.6x 1-I/4"panheadphillipsscrew(redbag) varies/modal_'aries/mode
}4 EntrapmentWARNINGlabel(manual) 1 1
_5 Safe-T-Beam(STB)sensor(greenLED)(box) 1 1
_6 Safe-T-Beam(STB)source(redLED)(box) 1 1
_7 Safe-T-Beam(STB)bracket(yellowbag) 2 2
_8 Remoteoperater(box) varies/modelvaries/mode
}9 #8-32x 1"machinescrew(greenbag) 2 2
_O Safety& maintenanceguide(manual) 1 1
_1 Wireclip(greenbag) varies/modelvaries/mode
$2 1/4"-20x3/4"self-drillingscrew(orangebag) 3 3
$4 #I0-I6x1-I/4"phillipshexheadscrew(yellowbag) 4 4
$6 5116"-18x314"hexheadbdt(orangebag) 3 3
$7 5116"-18hexflangenut(orangebag) 4 4
$8 MountingStraps(box) 2
1] Power HeadAssembly
v
G
item PartName
1 Powerheadassembly
1A Cover(byseries/model)
1B Frontpanelassembly
1D Motorparts
1E Circuitboardassembly
1F Capacitor(bysedes/model)
1G Optowheel(notshown)
1H Carriageslide
1J Chain
item PartName
1K Circuitboardbracket
1L Drivemodule
1M Terminalstrip
1N No.8x3/4"hexwasherheadscrew
1P Shockabsorptionstop(notshown)
1Q Motormountbracket(notshown)
1X Chassis
49 Lens
ii
OVERVIEW OF
POTENTIAL HAZARDS
Garagedoors are large, heavy objectsthat movewith the help of springsunder
hightension and electric motors. Since movingobjects, springs under tension,
andelectric motors can cause injuries,your safety andthe safety of others
dependon the owneror user ofthis systemto read, understandand implement
the information in this manual, if you have questionsor do notunderstandthe
informationpresented,contactTheGenieCompanyor anauthorizedGenieDealer.
Inthis section andthosethat follow,the words Danger, Warning, andCaution
are usedto emphasizeimportant safety information.The word:
_. DANGER meansthat severe injury or death will resultfrom failure tofollow
instructions.
_'_ WARNINGmeansthat severeinjuryor death can resultfrom failureto follow
instructions.
CAUTION meansthat property damageor injury can resuttfrom failureto
followinstructions.
Theword is used to indicate importantstepsto befogowedor
importantconsiderations.
POTENTIAL
HAZARD
ELECTRICAL
SHOCK
HIGH
SPRING
TENSION
!i!ii!iii!iiiil; iiiii iiiiiili !iiiii!;!ii !i!i iii i!iiii!i!ti!ii'
PREVENTION
Keeppeopleclearofopeningwhiledooris
mowng.
Do Notallowchildrento playwiththedoor
operator.
Do Notoperateadoorthatjamsorone
thathasa brokenspring.
Turnoffpowerbeforeremovingoperator
cover.
Whenreplacinqcover makesurewires
arenot pncheoor nearmovngparts.
Operatormustbeproperlygrounded.
Do Nottrytoremove,repairoradjust
springsor anythingtowhichdoorspring
partsarefastened,suchas,woodblocks,
steelbrackets,cablesorotherlike items.
Repairsand adjustmentsmustbemadeby
atrainedprofesdonalservicetechnician
usingpropertoolsandinstructions.

/1

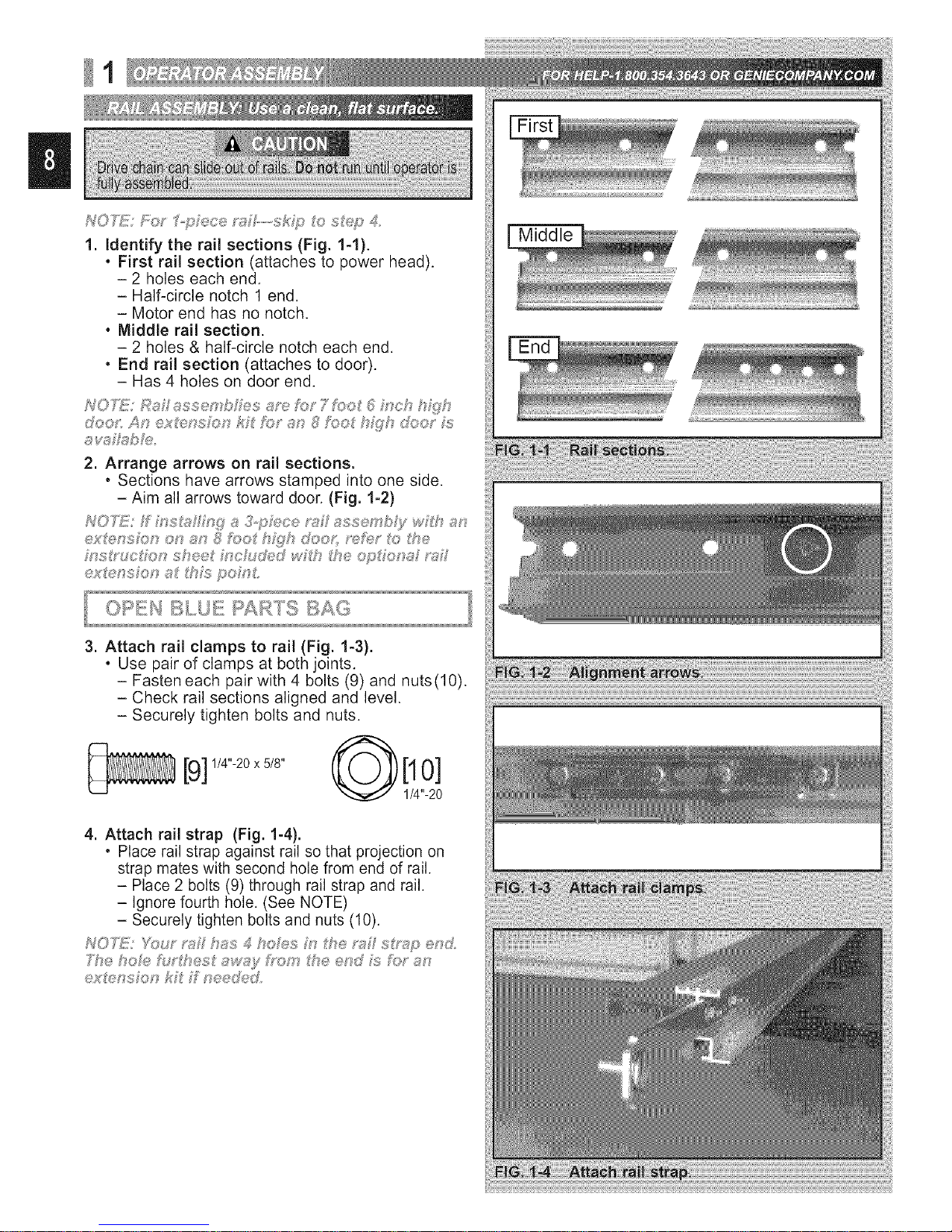

1. Identify the rail sections (Fig. 1-1).
. First rail section (attaches to power head}.
- 2 holes each end.
- Half-circle notch 1 end.
- Motor end has no notch.
*Middle rail section.
- 2 holes & half-circle notch each end.
. End rail section (attaches to door).
- Has 4 holes on door end.
svsih_bJ_:_,
2. Arrange arrows on rail sections.
•Sections have arrows stamped into one side.
- Aim all arrows toward door. (Fig. 1-2)
NOTE:/J," h"s_'_, ng _3,G:;®c_t ss_ sssembJ_y w J] s
Fns_, c h:_nshee h_cIu@d wF_h £'he_;v_;dot_s,F'_s,/;
Middle
3. Attach rail clamps to rail (Fig. 1-3).
. Use pair of clamps at both joints.
- Fasten each pair with 4 bolts (9) and nuts(10).
- Check rail sections aligned and level.
- Securely tighten bolts and nuts.
9] 1/4"-20x 5/8" [10]
1/4"-20
4. Attach rail strap (Fig. 1-4).
•Place rail strap against rail so that projection on
strap mates with second hole from end of rail.
- Place 2 bolts (9) through rail strap and rail.
- Ignore fourth hole. (See NOTE)
- Securely tighten bolts and nuts (10).
NO'ii%E:Y,,;_u_"_?_' h_s 4 _"o_;_,sM, _he s_,,_s_q_p end,
71heho}'_;;,hJyA_,es sway ¢?_<;_'__he ed h; :,f_;ssn
e_,,_,_nsion iF i,_'tee@d

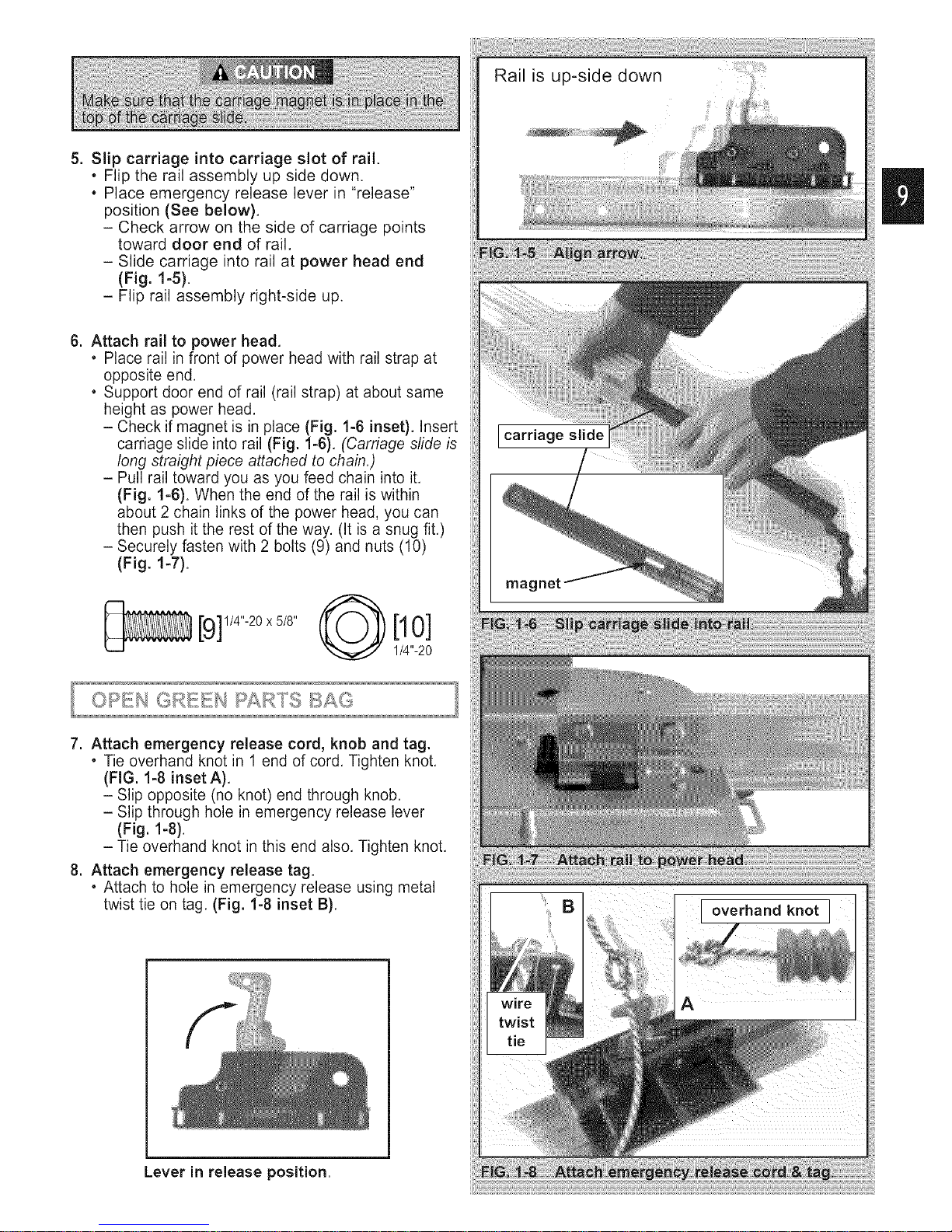

5. Slipcarriageinto carriageslot of rail.
, Fliptherailassemblyupsidedown.
, Placeemergencyreleaseleverin "release"
position(Seebelow).
- Checkarrowonthesideofcarriagepoints
towarddoor endof rail.
- Slidecarriageintorailat powerheadend
(Fig.1-5).
- Fliprailassemblyright-sideup.
6. Attachrailto powerhead.
• Placerailinfrontofpowerheadwithrailstrapat
oppositeend.
• Supportdoorendofrail(railstrap)ataboutsame
heightaspowerhead.
- Checkifmagnetisinplace(Fig.1-6inset),insert
carriageslideintorail(Fig.1-6).(Carriage slide is
long straight piece attached to chain.)
- Pull rail toward you as you feed chain into it.
(Fig. 1-6). When the end of the rail is within
about 2 chain links of the power head, you can
then push it the rest of the way. (It is a snug fit.)
- Securely fasten with 2 bolts (9) and nuts (10)
(Fig. 1-7).
[9] 1/4"-20x 5/8" [10]
1/4"-20
7. Attach emergency release cord, knob and tag.
•Tie overhand knot in 1 end of cord. Tighten knot.
(FIG. 1-8 inset A).
- Slip opposite (no knot) end through knob.
- Slip through hole in emergency release lever
(Fig. 1-8).
- Tie overhand knot in this end also. Tighten knot.
8. Attach emergency release tag.
• Attach to hole in emergency release using metal
twist tie on tag. (Fig. 1-8 inset B).
Lever in release position.
overhand knot ]

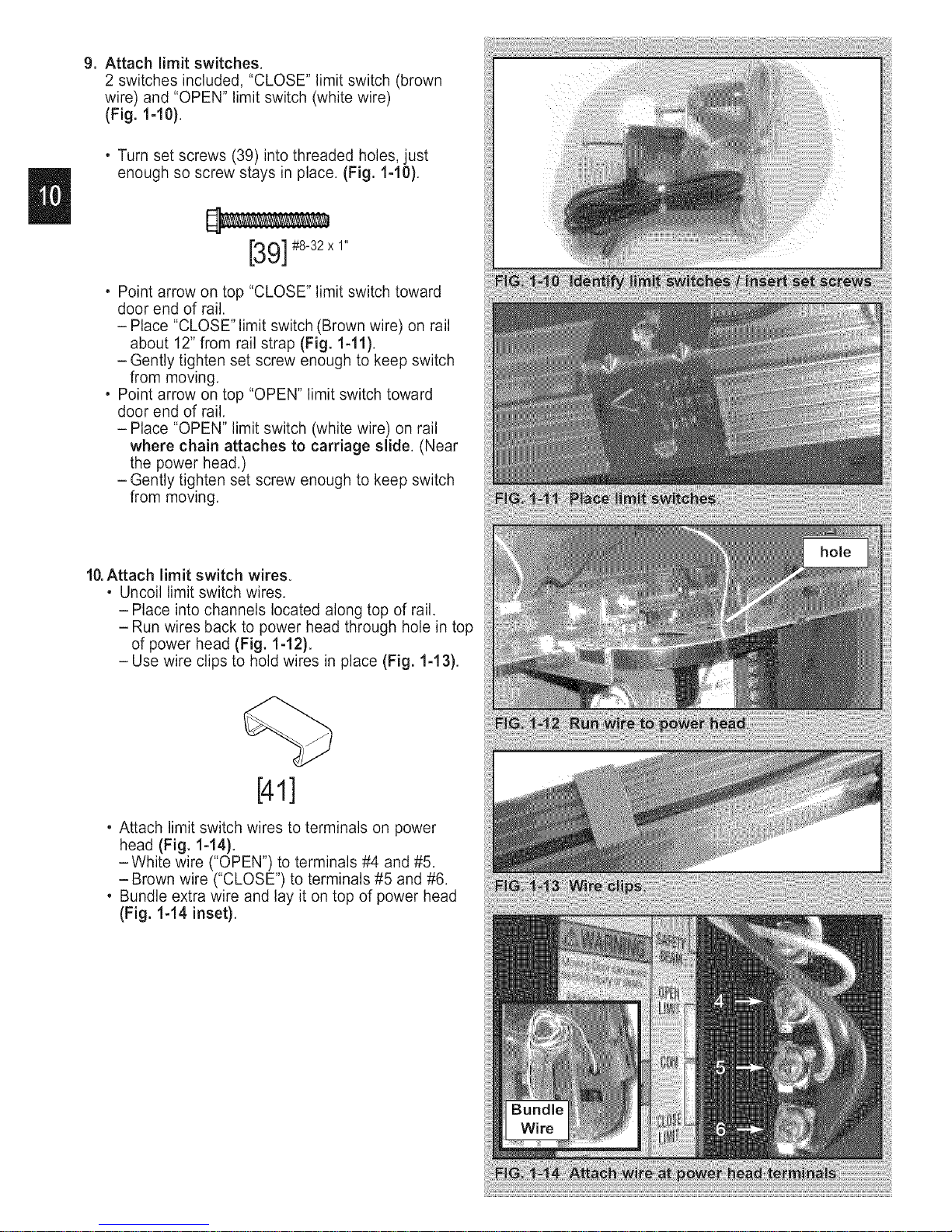

9. Attach limit switches.
2 switches included, "CLOSE" limit switch (brown
wire) and "OPEN" limit switch (white wire)
(Fig. 1-10}.
• Turn set screws (39) into threaded holes, just
enough so screw stays in place. (Fig. 1-10).
[39]#8_32x1,,
Point arrow on top "CLOSE" limit switch toward
door end of rail.
- Place "CLOSE" limit switch (Brown wire) on rail
about 12" from rail strap (Fig. 1-11}.
- Gently tighten set screw enough to keep switch
from moving.
Point arrow on top "OPEN" limit switch toward
door end of rail.
- Place "OPEN" limit switch (white wire) on rail
where chain attaches to carriage slide. (Near
the power head.)
- Gently tighten set screw enough to keep switch
from moving.
10.Attach limit switch wires.
• Uncoil limit switch wires.
- Place into channels located along top of rail.
- Run wires back to power head through hole in top
of power head (Fig. 1-12}.
- Use wire clips to hold wires in place (Fig. 1-13}.
[41]
•Attach limit switch wires to terminals on power
head (Fig. 1-14).
-White wire ("OPEN") to terminals #4 and #5.
- Brown wire ("CLOSE") to terminals #5 and #6.
• Bundle extra wire and lay it on top of power head
(Fig. 1-14 inset}.

/2 iMPORTANT
Toreducetheriskofsevereinjuryordeath:
1. READAND FOLLOWALL SAFETY,INSTALLATIONAND 5. Do Not connect the operator to the source of power
OPERATIONINSTRUCTIONS. If you have questions or
do not understand an instruction, call The Genie
Company or an authorized Genie Dealer.
2. Do Not install operator on an improperly balanced door.
An improperly balanced door could cause severe injury.
Repairs and adjustments to cables, spring assembly, and
other hardware must be made by a professionally trained
service technician using proper tools and instructions.
3. Remove all ropes and disable all locks connected to the
door before installing operator.
4. Install door operator 7 feet or moreabove floor. Mount
emergency release knob 6 feet above floor.
until instructed to do so.
6. Locate the control button:
, Within sight of door.
, At minimum height of 5 feet above the highest floor
level, so small children cannot reach it.
, Away from all moving parts of the door.
7. Install the Entrapment WARNING Label next to the wall
button or wall console. Install the emergency release
tag on, or next to, the emergency release.
8. The operator must reverse when the door contacts a
1-1/2inch high object on the floor at the center of the
doorway.This is the size of a 2" x 4" board laid flat.
1. Finding header bracket mounting location.
• Close garage door.
-Use a pencil.
a. Mark center of garage door (one-half overall
width) with 6" vertical line at top edge of door.
b. Continue this line on wall above door for
about 12" (Fig. 2-1).
, Raise garage door until top edge of door
reaches its maximum height (Fig. 2-2).
, Place door at highest point.
- Measure height from top edge of door to floor.
, Close door again.
, Mark height measurement on wall above door.
- Make your mark across vertical line
made earlier.
•Marking final height.
T_'tE 2 BASC TYF_ES OF GARAGE DOOR
ME!C/(AS_ St:_S ARE
Sections doo_s,- ave _oes on each sde w/_c/_ de
_ ....... /..... : i'/_ , _X/{} /r_ '
I ,:_s,, :> s ....... ......... "" ](W
Otse.P®cedoo_s. swie o ,_,_'ge!:l:_g os<:_d
• For sectional- add 2-1/2" to height mark
just made on wall. This is location for
header bracket.
• For one-piece - add 6"- 12" to your height mark
just made on the wall. This is location for
header bracket,

2. Mounting the header bracket.
F?OTE: A hough h®_-b,_y_by'_?_,c£®_"_sybe oy/qs _ed
seve_;s ways _e_S_ed "_h:_y,*<:d%m:_d_YpossR_e
f_eo_use oF _s,_d sgs_ tgIh over" o_he" me ?_odS,
(Fig. 2-5)
, Hold header bracket against wall (Fig. 2-5).
- Place left edge on vertical line.
- Bottom edge on final height line.
, Mark screw hole locations on wall.
, Drill 5/32" pilot holes at each screw hole mark.
- Fasten header bracket with 3 lag screws (22)
(Fig. 2-5).
[22]1/4.x2,
3. Finding door bracket mounting location.
, Door bracket is mounted as high on door as
possible along vertical centerline.
h_O'_E:n de c_se e_ secdo_'_af _%,pedoo_s, ckoe_
b_chel _;s£ he s_yO£;hSsdFgO LO "_b<¢Ps_Oic_
set o__m£ess (Fig. 2-7)
Fo_",£}'ece Uoo4s_ doo_ b_sc£e must be mou £_hd
at _£_pe@e o_ doo£
4. Mounting the door bracket.
•Proper bracing should be verified at this point.
- Align door bracket centered on your
vertical centerline.
- Attach using 3 self-drilling screws (42) for
sheet metal or other light weight material.
- Use lag screws (22) for solid wooden doors.
[42] 1/4"-20x 3/4"
[22]
1/4"x 2"
NOTE; F%Ysoid wood does c;_;£";%go os
,"_ ",'c _'N"'_"_:v"_s,_:::n¢ ...., sy
)referred

1. Getting Started.
. Position rail/power head assembly (Fig. 2-7).
- Rail strap leaning on wall next to header bracket.
- Place material on floor under power head to
protect from scratching. (A box, stool, or similar
device may be needed to clear a torsion
spring, as shown.)
2. Mounting the assembly.
. Attach rail strap to header bracket using nut (47)
(Fig. 2-7 inset). FINGER TIGHT ONLY.
[47]
5/16"-18
• Support power head on step-ladder.
"" p_®p<_' a gt' y:_<_ (Fig. 2-9).
" Attach mounting straps to ceiling using lag
bolts (22) (Fig. 2-10).
. Set height of power head according to following:
-Track guided doors,
a. Rail must clear door at highest point of travel
b. Be level or, power head slightly below level.
- Trackless doors,
a. Rail must clear door at highest point of travel
by 1" to 1-1/2".
. Securely tighten power head mounting bolts (46)
and nuts (47).
. Lower door.
. Fully tighten rail strap nut.
" DO NOT PLUG UNIT IN YET!
3. Adjusting length of emergency release cord.
, Check emergency release knob height.
- Low enough you can reach it.
- High enough to clear your vehicle, but
NO HIGHER THAN 6 FEET ABOVE FLOOR.
, Tie a new overhand knot where desired.
- Cut off any extra cord.
[46]
5/16"-18 x 3/4' p[47] 5/16"-18
HEADER BRACKET
DOOR
90 °
VIEW FROM ABOVE
(not to scale)
ANGLE IRON ON FINISHED CEILING
_ _ DRYWALL
I o ooooooo o]
Attach angle iron to beams
UNFINISHED OR OPEN BEAM
Extra framing [22]
not needed
Mountinc
[46 &
_, Extra framing
NEEDED
i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_ii_i__i_

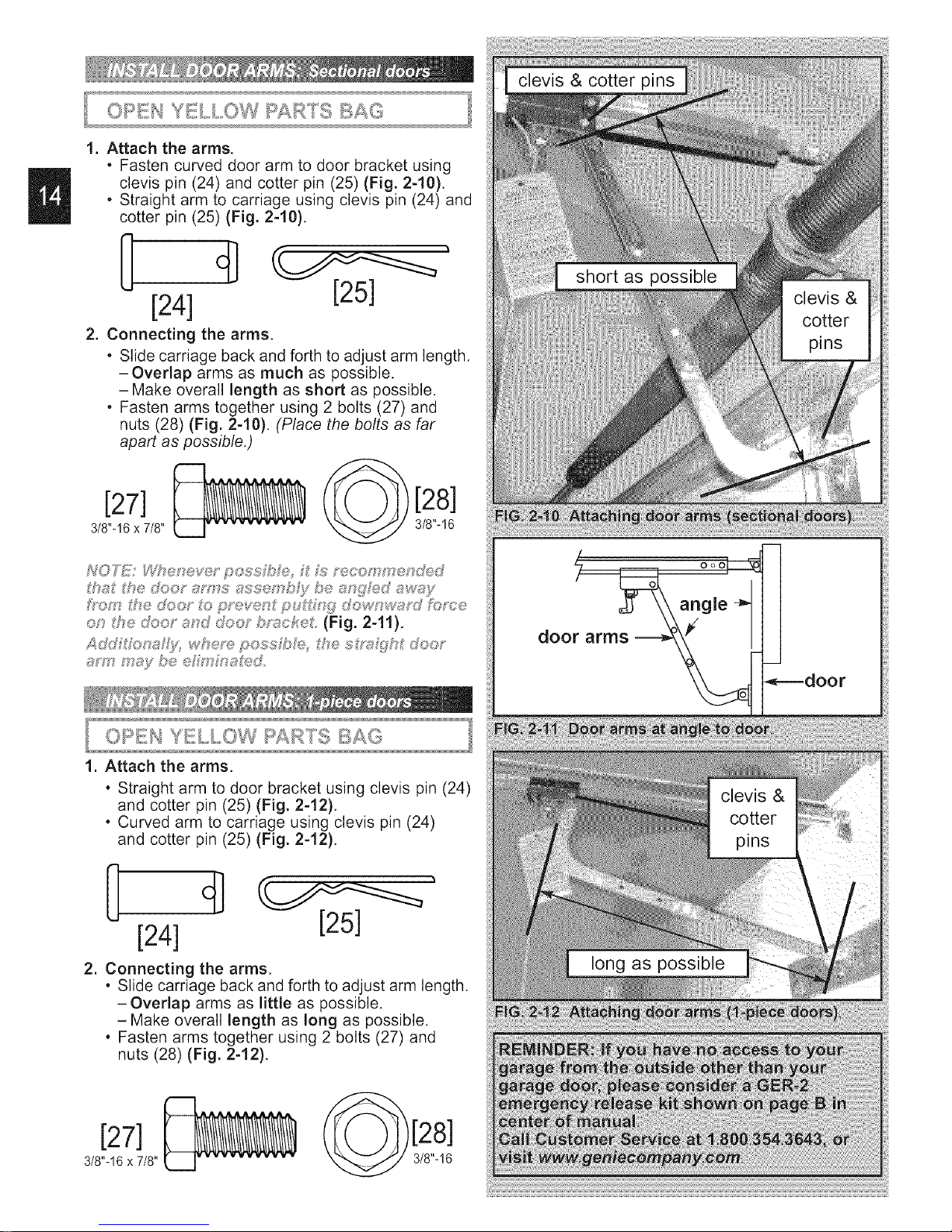

1. Attach the arms.
,Fasten curved door arm to door bracket using
clevis pin (24) and cotter pin (25) (Fig. 2-10).
,Straight arm to carriage using clevis pin (24) and
cotter pin (25) (Fig. 2-10).
[24] [25]
2. Connecting the arms.
. Slide carriage back and forth to adjust arm length.
-Overlap arms as much as possible.
- Make overall length as short as possible.
. Fasten arms together using 2 bolts (27) and
nuts (28) (Fig. 2-10). (Place the bolts as far
apart as possible.)
[27] 0128]
3/8"-16 x 7/8" 3/8"-16
I.
.
Attach the arms.
, Straight arm to door bracket using clevis pin (24)
and cotter pin (25) (Fig. 2-12).
, Curved arm to carriage using clevis pin (24)
and cotter pin (25) (Fig. 2-12).
[24] [25]
Connecting the arms.
. Slide carriage back and forth to adjust arm length.
- Overlap arms as little as possible.
- Make overall length as long as possible.
. Fasten arms together using 2 bolts (27) and
nuts (28) (Fig. 2-12).
[27]
3/8"-16x 7/8"
OoC

3
#lOh:: ope'_'_ o" ,'_"
........ y_. *#;:@@4. (<,,,._u(<" " S;_u_'f . ,._y@se; }?_;'s_"";' F@
1. Mounting brackets.
. Mark both sides of garage door frame or wall 5"
above floor. (Fig. 3-1),
. Hold bracket against door frame or wall.
- Check if brackets extend out from wall far
enough, so tongue of bracket is beyond door,
tracks or any door hardware.
-If not:
a. "STB" bracket extensions are available
at local dealer.
b. Blocks of wood, etc. may be substituted for
extensions.
, Center bracket on your mark (Fig. 3-2).
, Fasten each with 2 screws (44) (Fig, 3-2).
[44] #10-16 x 1-1/4"
2. Mounting "STB" source and sensor.
. If garage has only one garage door.
- Determine which side of garage receives most
direct sunlight (Fig. 3-4),
- Red LED should always be on sunny side
whenever possible (Fig. 3-4),
. For multiple doors.
-Preventing crossed signals is critical.
- Place source and sensor modules on adjacent
doors facing in opposite directions (Fig. 3-4).
Fns _@ws
. Slide source/sensor onto tongue of bracket until
it clicks into place (Fig. 3-3),
3. Wiring.
, Routewire (29) using either method shown
(Fig. 3-5).
. Wires along rail are held in place with wire clips.
[41]
-Wires can be slipped under the wire clips
already in place.
Oas.edLl°o-st,lpedwl,oli ii!! !iii ii
Solid Line=whitewire Jiiii!:i!ilil
I,.... ' i-P ; li!i!!iiiiiii
Source Sensor I ISource I/ Sensor Jiiiiil
i I __/ iii!;;iiiii_
ii:
III / i!:!!!ii
_ _ _ I I I _ | i!iiiil;:
_ ..... I _ ! _ _ili:iiii:iii!i
U.e_d U.e_a ji;!ii
lili!i!ii!i

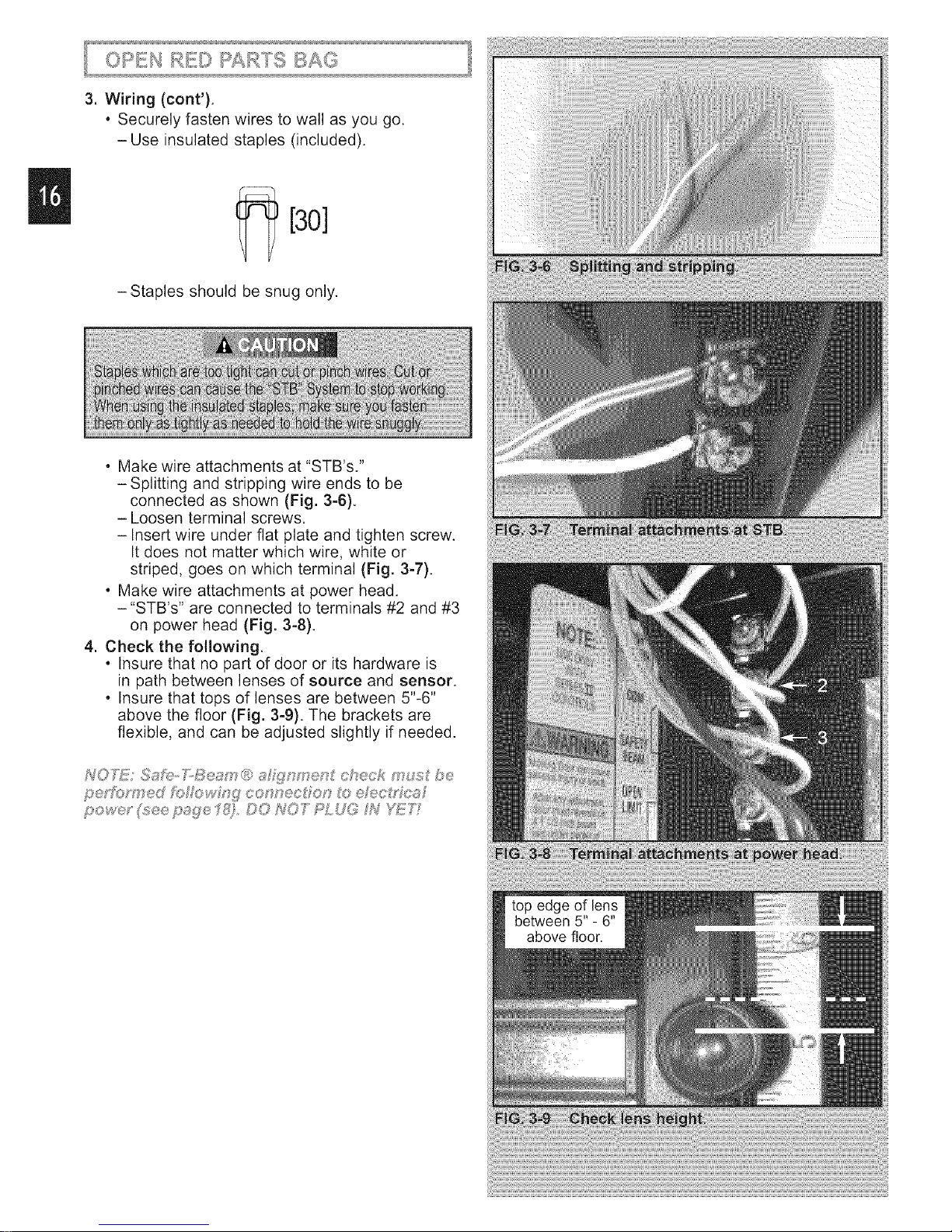

3. Wiring (cont').
, Securely fasten wires to wall as you go.
-Use insulated staples (included).
i{30]
- Staples should be snug only.
,Make wire attachments at "STB's."
- Splitting and stripping wire ends to be
connected as shown (Fig. 3-6).
-Loosen terminal screws.
- Insert wire under flat plate and tighten screw.
It does not matter which wire, white or
striped, goes on which terminal (Fig. 3-7).
,Make wire attachments at power head.
-"STB's" are connected to terminals #2 and #3
on power head (Fig. 3-8).
4. Check the following.
,Insure that no part of door or its hardware is
in path between lenses of source and sensor.
,Insure that tops of lenses are between 5"-6"
above the floor (Fig. 3-9). The brackets are
flexible, and can be adjusted slightly if needed.
pov, i®r (see page f7_ DO NOT PLUG H '_777

4
1. Finding the mounting location.
,Pick a convenient location for mounting
wall control.
- Location you choose should be in direct sight
of door.
- It should be at least 5' above floor to prevent
small children from operating door.
-It must be away from any moving parts. (You
should not be able to reach the door while
standing at wall control.)
2. Wiring.
* Run wire from power head to wall control.
* Securely fasten to ceiling using insulated
staples provided.
* Split and strip ends of wire (Fig. 4-5).
* On power head:
-Attach the striped wire to terminal #1 and
white wire to terminal #2 (Fig. 5-1).
* On back of wall control:
-Attach striped wire to terminal "B", and
white wire to terminal "W." (Fig. 5-2).
3. Mounting.
* Fasten wall control to wall with 2 screws (33)
(Fig, 5-3).
[33]=x1_1,+,
, Remove protective backing from "entrapment"
warning label (Fig. 5-4).
- Stick label on wall near wall control.

1. Plugtheoperatorinto a properly grounded
electrical outlet.
2. Check Safe-T-Beam® alignment (Fig. 6-3).
1. Instructions for electrician.
, Remove power from circuit.
, Remove motor cover (Fig. 6-1).
- Removing hex head screw located in center
on bottom of cover.
- Slide cover down and off.
, Remove and throw away existing power cord.
, Remove 7/8" knockout plug (Fig. 6-2).
- Install a suitable entrance bushing.
, Connect permanent wiring to power head.
- White to white/black to black /ground to green,
- Use only UL recognized wire nuts.
, Wires inside power head must be at least 6"
in length.
, Replace motor cover and re-energize
the circuit.
2. Check Safe-T-Beam® alignment (Fig. 6-3).
To correct the problem -- the brackets are
flexible and can be adjusted slightly to bring
the system into alignment.
When the STB's are in alignment the red
LED will stop blinking and stay on.

pov_ieP &? Lhe opey_'_o_' iF _;;>is occuus w_'_i _':#:,o,t_
1. Adjusting limit switches.
. Locate force control knobs on power head
(Fig. 7-1).
- Gently turn both control knobs
counter-clockwise until they stop.
,Verify emergency release lever in disengaged
position.
,Verify "OPEN" limit switch at point where chain
attaches to carriage slide (Fig. 7-2).
,Manually close door.
,Move the "CLOSE" limit switch:
- Loosen set screw.
-Slide limit switch along rail to align front edge
of switch with back edge of carriage (Fig. 7-3},
- Gently tighten set screw.
. Press wall control button.
- Carriage slide will move toward power head
and stop at the "OPEN" limit switch.
. Manually open door.
. Move the "OPEN" limit switch:
- Loosen set screw.
-Slide limit switch along rail to align front edge
of switch with back edge of carriage (Fig. 7-4},
- Gently tighten set screw.
- Manually close door.
. Place emergency release lever in engaged
position.
,Press wall control button.
-Carriage slide will move toward door, engage
with carriage and stop at "CLOSE" limit switch.
2. Adjusting "OPEN" force.
. Press wall control button.
- Door should open and stop at "OPEN" limit,
. Door does not fully open.
- Press wall control button.
- Door should close and stop at "CLOSE" limit.
-Turn "OPEN" force control knob slightly in
clockwise direction.
- Press wall control button.
a. Continue step 2 until door opens completely.
3. Adjusting "CLOSE" force.
. Door is not fully closing.
-Cycle door, turning "CLOSE" force knob
clockwise slightly each time until door reaches
fully closed.
.......

The force adjustments and limit switch
settings MUST BE COMPLETED before testing
contact reverse.
.
.
Testing.
,Open garage door using wall control.
- Place a 2" x 4" board (laid flat) under center
of garage door opening (Fig. 7-5).
-Close door using wall control.
,When door hits board, it must stop and
reverse (within 2 seconds) to open position.
Adjustment.
, Door does not properly reverse.
- Check to see if door is at "close" limit.
- It should not have reached limit switch
before hitting board.
, Door is at close limit switch.
- Move limit switch closer to door.
, Test again. Repeat as necessary.
, Door is not reaching "close" limit, but
still does not reverse.
-Decrease "CLOSE FORCE " setting
slightly (turn it counter-clockwise).
, Test again. Repeat as necessary.
7
1. Programming.
*Locate learn code button and indicator LED
on front of power head (under force
adjustment screws) (Fig. 8-1).
, Press and release learn code button.
- Indicator LED will blink at a rate of twice
per second.
, Within 30 seconds, push remote control
button once.
- Indicator LED will stop blinking and stay on.
, Press remote control button again.
- LED will go out. Remote is now programmed.
2. Operating.
*Press remote button once.
- Door will move.
, Press button again.
- Door will stop.
, Press button again.
- Door will move in opposite direction.
The doo_ w stop suto_'_t c_ y _t th_ f_y
op®_s o_ fl_y c os_;_dpost o_
This device complies with FCC Part 15 and RSS
210 of Industry Canada. This equipment has been
tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide
reasonable protection against harmful interference
in a residential installation. This equipment
generates, uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception, which may be
determined by turning the equipment off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
Re-orient or relocate the receiver antenna.
Increase the separation between the operator
and receiver.
Connect the operator into an outlet on a circuit
different from that to which the receiver is
connected.
Consult your local dealer.
