Genie GCL-J&H User manual

Standard Duty Operator
GCL-J&H™
JACKSHAFT/HOIST
PROPER APPLICATION
ALL TYPES
Jackshaft/Hoist
Hood Mount or
Wall Mount
Door Type Operator Type HP/Max Door Weight HP/Max Door Weight
(Sectional) (Rolling Steel)
1/2HP = 1120 lbs
3/4HP = 1370 lbs
1HP = 1620 lbs
1/2HP = 998 lbs
3/4HP = 1220 lbs
1HP = 1440 lbs
NOT FOR RESIDENTIAL USE
This Installation Manual provides the information required to install, troubleshoot and
maintain the GCL-J&H™.rotarepOrooDlairtsudnI/laicremmoC
EZ Limit™
Multivolt™
TensiBelt™

TOC
Standard Duty Operator
GCL-J&H
.....................
....................
Table of Contents
Section 1 How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1
Section 2 Safety Information & Instructions . . . . . . . . . . . . . . . . . . . . . 2.1
Section 3
Critical Installation Information . . . . . . . . . . . . . . . . . . . 3.1-3.3
Section 4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.1-4.8
FrontofHood..........................................4.1
ChainCouple......................................
Rolling Steel Door Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
SectionalDoorChart...................................3.3
ChainHoistandKeeper................................
ClutchAdjustment.....................................
Section 5 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.1-5.8
LineVoltage...........................................5.1
Low Voltage Control Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.2
External Wire Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.3
WallControl...........................................5.4
Interlock Switches(Rolling Steel) . . . . 5.5
Interlock Switches(Sectional) . . . . 5.6
PhotocellWiring.......................................5.7
Sensing Edge Switch. ..................................5.8
ExternalRadio.........................................5.9
Connecting Motor/Safety Information. . . . . . . . . . . . . . . . . 5.10
Section 6 Operator Setup Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 6.1-6.9
Setting Close Direction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.2
SettingBrakingRate......................................6.3
SettingTravelLimits......................................
......................................
6.4
Setting Limit Overrun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Monitored Reversing Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.6
Setting Open & Close Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
(Optional) Transmitter Programming . . . . . . . . . . . . . . . . . . . . . . 6.8
Setting Mid-Stop Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.9
Resetting the MRT. . 6.9
Section 7 Special Operational Features. . . . . . . . . . . . . . . . . . . . . 7.1-7.2
OperatorCycleCount.................................7.1
GDO & Display Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.1
OperatorType........................................7.2
Section 8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8.1-8.5
DisplayOperation.....................................8.1
ErrorCodes....................................... 8.1-8.2
RunCodes........................................ 8.2-8.3
LEDIndicators ........................................8.4
Safe-T-Beam® Self-Diagnostic Troubleshooting Chart . . 8.5
Section 9 Service & Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.1
Section 10 Appendixes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.1-10.13
AppendixA.....................................10.1-10.9
Operator Parts Breakdown-Hoist. . . . . . . . . . . . . . . . . .10.1
Base Electric
Section 11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.1
Operator Parts Breakdown Jackshaft . . . . . . . . . . . . . .10.2
Operator Parts Breakdown Hoist/Jackshaft Combo . .10.3
4.2-4.4
4.6
4.5
Box Parts Breakdown . . . . . . . . . . . . . . . .10.7
Electric Box Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10.8
AppendixB..........................................10.9
Screw Terminal Assignments . . . . . . . . . . . . . . . . . . . . .10.9
AppendixC...................................10.10-10.12
RunCodes ......................................10.10
Error Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.11-10.12
Shaft Parts Breakdown Hoist. . . . . . . . . . . . . . . . . . . . . . 10.4
Shaft Parts Breakdown Jackshaft . . . . . . . . . . . . . . . . . .10.5
Shaft Parts Breakdown Hoist/Jackshaft Combo. . . . .10.6

Section 1: How to use this manual
The 11 sections of this Installation Manual provide the information required to install, troubleshoot and maintain a this commercial/industrial
door operator.
Section 2
Section 3
Sections 4-6
FOR ASSISTANCE CALL 1-800-843-4084.
Sections 7-8
Sections 9-11
Failure to correctly perform all steps in sections 4-6 can result in serious injury or death.
WARNING
1.1
Standard Duty Operator
GCL-J&H

2.1
Section 2: Safety Information & Instructions
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H
WARNING
Commercial/Industrial Sectional and Rolling Steel Doors are large, heavy objects that move with the help of springs
under high tension and electric motors. Since moving objects, springs under tension, and electric motors can cause
injuries, your safety and the safety of others depend on you reading the information in this manual. If you have any
questions or do not under stand the information presented, call your nearest service representative. For the number
of your local Genie® Dealer, call 800-OK-GENIE, and for Genie® Factory Technical Advice, call 800-843-4084.
In this Manual, the words Danger, Warning, and Caution are used to stress important safety information. The word:
DANGER
indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in injury or property damage.
The word NOTE is used to indicate important steps to be followed or important considerations.
IMPORTANT
READ PRIOR TO ANY DOOR OPERATION
POTENTIAL HAZARD EFFECT PREVENTION
Do Not operate unless the doorway is in sight and free of
obstructions. Keep people clear of opening while door is moving.
Do Not allow children to play with the door operator.
Do Not change operator control to momentary contact unless an
external reversing means is installed.
Do Not operate a door that jams or one that has a broken spring.
Could result in
Serious Injury
or Death
Turn off electrical power before removing operator cover.
When replacing the cover, make sure wires are not pinched or near
moving parts.
Operator must be electrically grounded.
Do Not try to remove, repair or adjust springs or anything to which
door spring parts are fastened, such as, wood block, steel bracket,
cable or any other structure or like item.
Repairs and adjustments must be made by a trained service
representative using proper tools and instructions.
HIGH SPRING TENSION
WARNING
MOVING DOOR
1. Read manual and warnings carefully.
2. Keep the door in good working condition.
Periodically lubricate all moving parts of door.
3. If door has a sensing edge, check
operations monthly. Make any necessary
repairs to keep it functional.
4. AT LEAST twice a year, manually operate
door. The Door should open and close freely.
If it does not, the door must be taken out of
service and a trained service representative
must correct the condition causing
the malfunction.
5. The Operator Motor is protected against
overheating by an internal thermal protector.
If the operator ceases to function because
motor protector has tripped, a trained service
technician may need to correct the condition
which caused the overheating. When motor
has cooled, thermal protector will
automatically reset and normal operation can
be resumed.
6. In case of power failure, the door can be
operated manually by pulling the release
cable to disconnect the operator drive system.
7. Keep instructions in a prominent location
near the pushbutton.
Could result in
Serious Injury
or Death
WARNING
Could result in
Serious Injury
or Death
WARNING
ELECTRICAL SHOCK

3.1
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H
Multivolt
— Offers all (available) voltage combinations in both single, and 3-phase units.
E
TensiBelt™
Z Limit™
— F
— Employs a self-adjustment feature for tensioning.
eatures patent pending electro-mechanical design that sets limits through the control panel that are maintainable even through a power outage.
Job Site Issues to Consider/Concerns
The following list of items should be considered prior to selecting an operator for a given job site.
1-Available power supply.
2-Type of door.
3-Potential operator mounting obstructions. Items to consider include, but are not limited to: side room, room above door shaft, room below door shaft, available mounting
surface integrity, power supply location, and convenient chain hoist and release cable positioning.
4-Size of door for appropriate operator torque and door travel speed selection.
dustiness5-Operator mounting environment. Items to consider include operator location and dampness, and corrosiveness of the location.
6-Door activation needs/requirements. Examples include 3 button control stations, 1 button control stations, radio controls, pull cords, loop detectors, photoelectric controls,
key switches, etc. See “Entrapment Protection” section below.
7-Interlock switches are required under certain conditions for
doors with pass doors and door locks. See page 5.5.
8-Accessory equipment. Examples are reversing edges and/or photocell beams (required for
doors set to operate as momentary contact,), auxiliary control relays, warning lights, etc.
WARNING: DO NOT apply line voltage until instructed to do so.
CAUTION:
Check working condition of door before installing the operator. Door must be free from sticking and binding. If equipped, deactivat e
any door locking device(s). Door repairs and adjustments, including cables and spring assemblies MUST be made by a trained service
representative using proper tools and instructions.
Section 3:
Critical Installation Information
ENTRAPMENT PROTECTION
The installation of a fail safe external reversing device (such as a monitored reversing edge or photocell system, etc.) is required on all momentary contact electronically
operated commercial doors. If such a reversing device is not installed, the operator will revert to a constant contact control switch for operation (Closing only).
The Reversing Devices currently UL Approved with are:
MillerEdge ME, MT and CPT series monitored edge sensors used in combination with Timer-Close Module P/N OPABTCX.S, or OPAKMEIGX.S INTERFACE MODULE.
2) Residential Safe-T-Beam® Monitored Photocells from The Genie® Company, model OSTB-BX (P/N 38176R).
3) Series II Commercial Safe-T-Beam®, Monitored Photocells P/N OPAKPE.S.
4) Series II Commercial Safe-T-Beam®, Monitored Photocells for NEMA4, P/N OPAKPEN4GX.S.
1)
New Features:
Multivolt™

ENTRAPMENT PROTECTION
The operator can be used with the following UL Approved entrapment devices in compliance with UL325 requirements active starting August 29, 2010.
UNTIL ONE OF THESE MONITORED EXTERNAL ENTRAPMENT DEVICES IS INSTALLED, THE OPERATOR WILL NOT ALLOW MOMENTARY CONTACT OPERATION IN THE CLOSE DIRECTION.
Section 3: Critical Installation Information
3.2
Model HP FIRESTAR 3” SLAT FIRESTAR 3” SLAT
INSULATED SHEET DOOR
16GA. 18GA. 20GA. 22GA. 24GA. 26GA. 18GA. 20GA. 22GA. ALUM. STL/SST 20GA. 22GA.
350 240 N/A N/A
N/A
N/A
N/A
N/A
N/A
STEEL, NON-INSULATED STEEL, INSULATED
UL
L is ted
FIRESTAR 2” SLATGRILLESCOUNTER DOOR
ALUM. STL/SST
126 126
Rolling Steel Door Chart (sq. ft.)
Note: Total door weight and not square footage is the critical factor in selecting the proper operator. These Sq.Ft. measurements are based on square doors, e.g. 16' x 16'.
Unbalanced Fire Shutters have a maximum square footage of 52 for 22GA. steel and 42 for 20GA. steel.
GCL-J&H 1/2 YES
GCL-J&H 3/4 YES
GCL-J&H 1 YES
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H
297 333 333 416 476 476 238 238 274
450 310 N/A
126 126
359 419 419 552 618 N/A 276 276 309
610 450 N/A
126 126
388 461 461 606 621 N/A 297 297 382
16GA. 18GA. 20GA. 22GA.
N/A N/A N/A
20GA. 22GA. 26GA.
N/A N/A 256
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
N/A N/A N/A
APPROVED DEVICES
ANY WIDTH
30 FEET
30 FEET
30 FEET
Miller Edge ME, MT & CPT series monitored edge sensors used in combination with either the Genie®
Timer-Close Module or Direct connect through STB inputs.
Commercial Photoeye Kit—P/N OPAKPE.S.
Safe-T-Beam® from Genie®—P/N 38176R.
Monitored Photocells—P/N OPAKPEN4GX.S.
ALLOWABLE DOOR WIDTH

Type
Mounting
Max.
Door
Weight
(Lbs)
16GA.
Flush
Steel
16GA.
Flush
Steel
Insulated
20GA.
Ribbed
Steel
20GA.
Ribbed
Steel
Insulated
24GA.
Ribbed
Steel
24GA.
Ribbed
Steel
Insulated
Nominal
24GA.
Ribbed
Steel
Nominal
24GA.
Ribbed Steel
Insulated
Insulated
PU/FIP
Insulated
PU/FIP
1.38"
1/8" Glass
1.38" Glass
1.38"
Insulated
PU/FIP
2"
Insulated
PU/FIP
2"
20GA.
Y es TSC 1120 256 220 370 256 440 340 320 320 256 360 400 300 400 380 360 240
TSC 1370 330 256 440 310 530 400 320 320 256 450 450 370 460 440 400 330
TSC 1620 380 280 500 370 570 410 320 320 256 480 480 420 500 480 400 400
Y es
Yes
S=Jackshaft,SideMount C=Jackshaft,CenterMount
UL L is tedHPModel
T=Trolley
Aluminum
Door S eries ->
Section 3: Critical Installation Information
3.3
Note: Total door weight, and not the square footage, is the critical factor in selecting the proper operator.
Square footage measurements are based on "square doors." (Example=16' x 16')
NOTE: Doors that require special windloading and wide doors, normally require increased strutting (reinforcement). Strutting doors can significantly increase door
weight beyond weight shown. Consult Customer Service for the impact of wind load andstrutting on square foot limits.
NOTE: "PU-FIP" stands for "polyurethane, foamed-in-place." If no notation is present, insulation is "polystyrene, layed-iin-place."
IMPORTANT INSTALLATION INSTRUCTIONS
WARNING-To reduce the risk of severe injury or death:
1) READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.
2) Install only on a properly operating and balanced door. A door that is operating
improperly could cause severe injury. Have qualified service personnel make
repairs to cables,spring assemblies and other hardware before installing the operator.
3) Remove all pull ropes and remove, or make inoperative, all locks (unless mechanically
and/or electronically interlocked to the power unit) that are connected to the door
before installing the operator.
4) Install door operator at least 8 feet above floor if operator has exposed moving parts.
5) Do not connect the door operator to the power source until instructed to do so.
6) Locate the control station: (a) within sight of door, (b) a minimum of 5 feet above
floor so that small children cannot reach it,and (c) away from all moving parts of door.
7) Install the Entrapment Warning Placard next to the control station and in a
prominent location.
8) For products having a manual release, instruct the end user on the operation of the
manual release.
Sectional Door Chart (sq. ft.)
GCL-J&H 1/2
GCL-J&H 3/4
GCL-J&H 1
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H
216 216 ins. 220 220 ins. 2415 2415 ins. 2411 2411 ins. 125 150 200 200-20 5150 5200 451 452
CommercialSteelInsulated&Non-Insulated Thermospan Thermomark
Exterior
Insulated
PU/FIP
Raised
Panel
1.38"
Insulated 1/4" or 1/2"
PU/FIP
Raised
Panel
2"

www.geniecompany.com 0-12 4.1
Standard Duty Operator
GCL-J&H
The Rolling Steel Door Operator can be assembled for right-hand or
left-hand Fig. 1. (Each model can also be
Section 4: Installation
Front of Hood

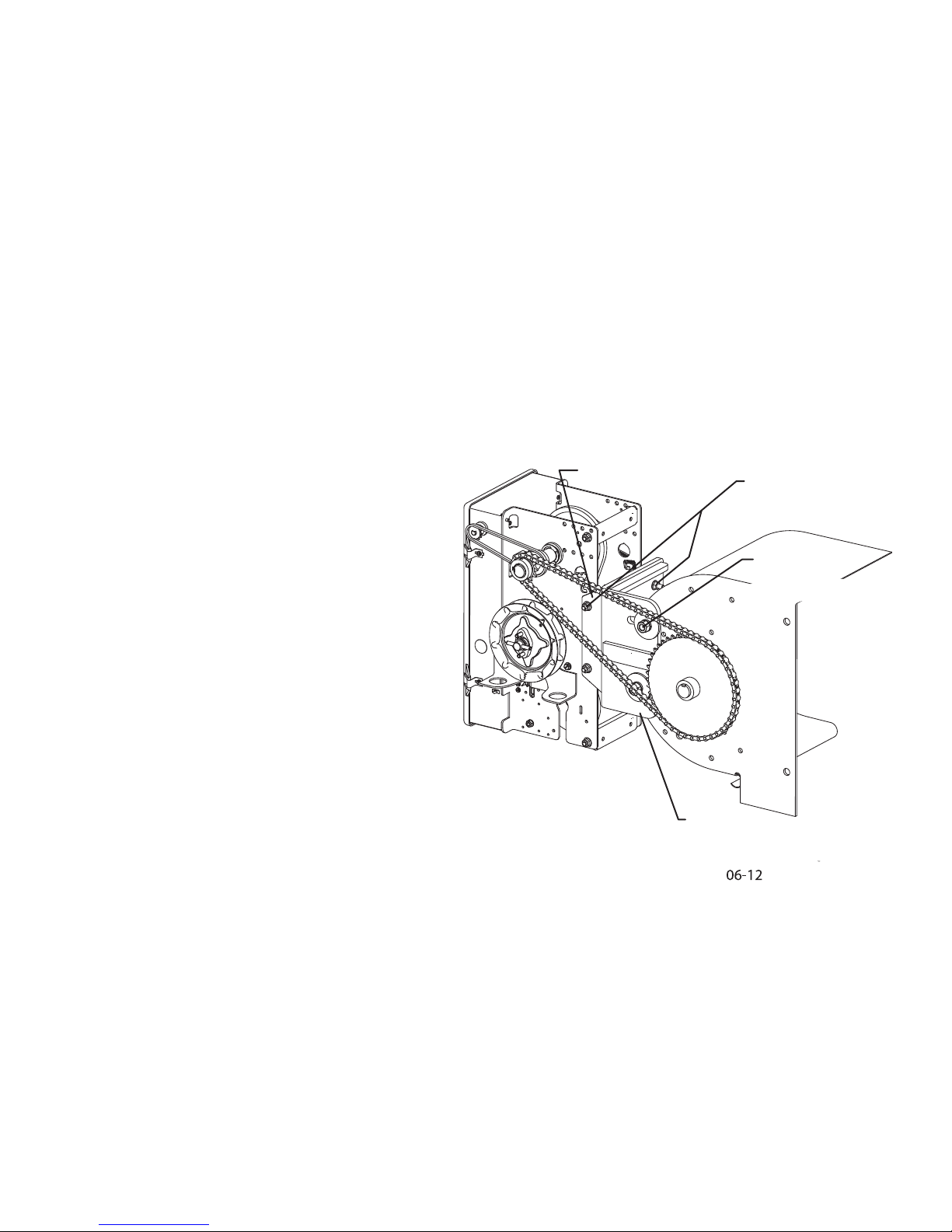

1) Attach mounting brackets (112145.0001) to operator using
5/16" hex nuts and bolts.
2) Attach operator and mounting brackets (112145.0001) to
large angle power support bracket using 5/16"-18 hex nuts and bolts.
4) Install 12 tooth #50 sprocket on output shaft of operator,
and #50 door sprocket on door shaft.
3) Attach assembly to head plate with 7/16"-14 socket button head
cap screws and hex nuts. Finger tight.
5) Align the door sprocket and operator output sprocket and
wrap #50 roller chain around both. Lock sprockets in place
by tightening their set screws.
6) Tension the drive chain by pulling the operator through the
slot in the power support bracket and tighten cap screws and nuts.
Figure 1
NOTE: On Jackshaft units, release cable must be installed on operator
before unit is installed.
mounting Front of Hood.
wall mounted. Page 4.2)
086480.2018
(Hex nut w/lkwshr, 5/16-18)
112145.0001
(GSX Mounting Bracket)
(Power Support Bracket)
086420.0506
(Bolt, 5/16-18 x 3/4)
SOCKET BUTTON
HEAD CAP SCREW
347372
SOCKET BUTTON
HEAD CAP SCREW
080352.0714
(Hex nut, 7/16-14)
FLAT WASHER

The Side Mount Operator can be assembled for right or left hand
mounting above or below the door shaft and is available with or
without hoist.
If you will be using the Tension Plate Kit shown on page 4.4, slide the
bearing plates on the operator output shaft. Assembly of the kit will be
done after the drive chain is installed.
1) Attach the operator sprocket to operator output shaft.
2) Align keyways and insert key into sprocket. Do not tighten set
screw at this time.
4) Align keyways and insert key into sprocket. Do not tighten set
screw at this time.
3) Attach sprocket to door shaft.
5) Assemble chain using chain connecting link.
6) Place assembled chain over door shaft sprocket.
7) Raise or lower operator to remove slack from the chain.
8) Be certain operator output shaft is parallel with door shaft.
9) Align chain and secure operator to wall or mounting pad. Fig. 2.
10) Tighten operator sprocket set screws.
INSTALLATION TIP:
While sprocket set screws are loose, if possible, manually operate
door to help align chain. A properly tensioned drive chain should deflect
no more than 1/2” when thumb pressure is applied mid-way between the
2 sprockets. While there is no hard and fast rule governing chain tension,
it must be tight enough to prevent clicking, popping and jumping the
teeth of the sprocket. The 1/2” guideline will insure sufficient tension.
Chain Couple
LOCK DOWN HOLE
LOCK
DOWN
HOLE
LOCK DOWN HOLES
OPERATOR
OUTPUT SHAFT
(BEHIND MOTOR)
NOTE:
OPERATOR
MUST BE
SECURELY
FASTENED TO
WALL USING
LOCK DOWN
HOLES TO
ENSURE PROPER
CHAIN TENSION.
DOOR SHAFT
IMPORTANT: DOOR SHAFT
AND OPERATOR OUTPUT
SHAFT MUST BE PARALLEL
Figure 2
NOTE: If using slotted mounting holes to mount unit,
you MUST
use at least 2 lockdown holes in opposite
corners to firmly mount unit to wall.
4.2
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H

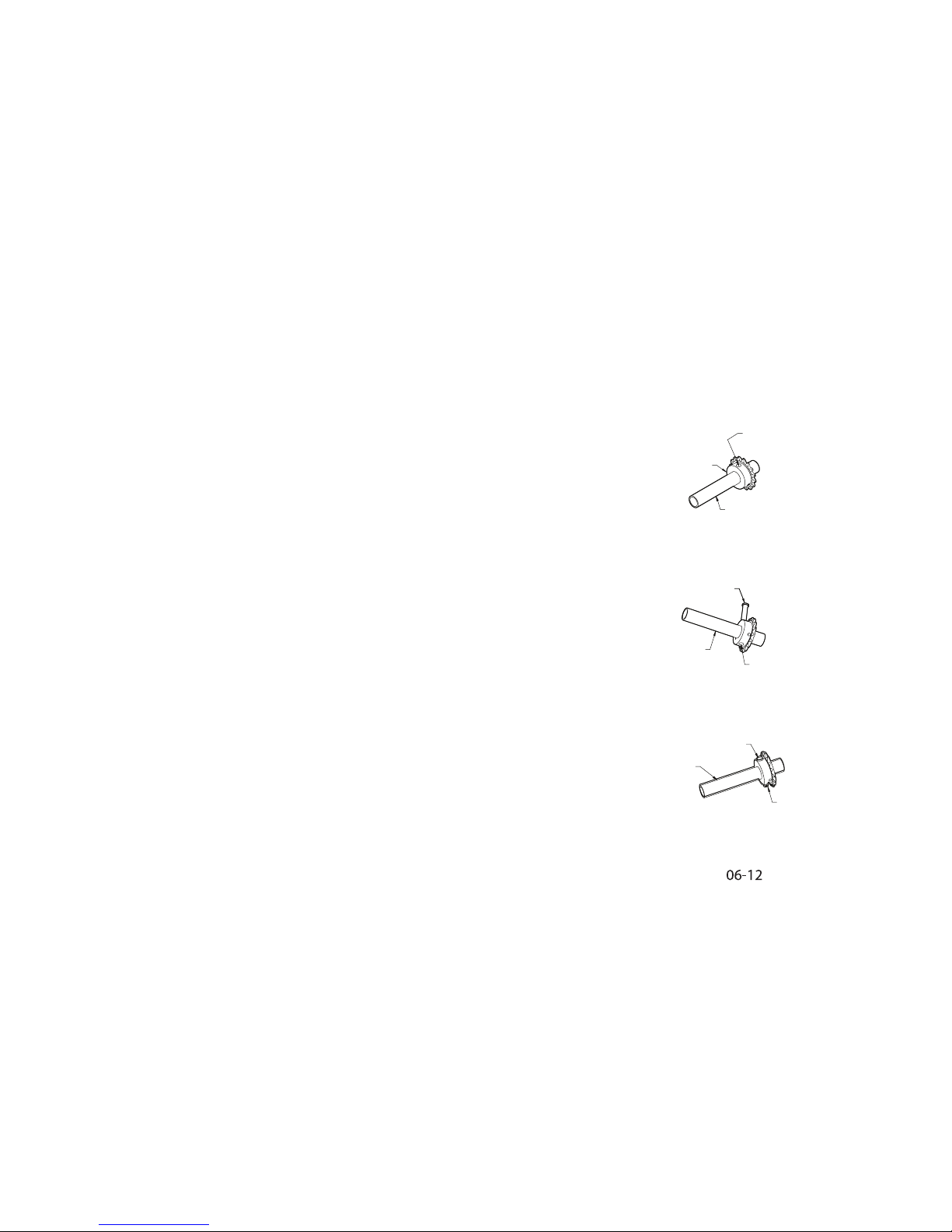

For Hollow Counterbalance Door Shaft:
1) Use non-threaded hole in door shaft sprocket as a guide and
drill a 3/8” diameter hole through one side of the door shaft.
Fig. 3A.
2) Insert clevis pin through sprocket and shaft to hold sprocket
in position.
3) Drill through opposite side of shaft to obtain proper hole
alignment. Fig. 3B.
4) Insert clevis pin through both holes and secure with cotter pin.
Fig. 3C.
For Solid Counterbalance Door Shaft:
1) Insert key into door shaft keyway.
2) Slide sprocket into place and secure with set screws.
To Complete the Installation:
If needed, realign operator sprocket with door sprocket. If you have
excessive door shaft movement, an optional chain tension plate is
available. Fig. 4 .4.4gp,
Chain Couple (continued)
SPROCKET HUB
DRILL HOLE
IN THIS SIDE
OF SHAFT
DRILL HOLE IN
OPPOSITE SIDE
OF SHAFT
DOOR SHAFT
(TUBE)
DOOR SHAFT
(TUBE)
CLEVIS PIN
CLEVIS PIN
COTTER PIN
DOOR SHAFT
(TUBE)
Figure 3A
Figure 3B
Figure 3C
4.3
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H

Kit available separately, P/N 111005.0001.S for 1" door shaft. 111005.0002.S for 11 /4" door shaft.
Installation of optional chain spreader bracket: Fig 4A & 4B
1) Place drive chain sprocket and bearing plate assembly on door
shaft as shown.
2) Place bearing plate assembly and sprocket on operator shaft
as shown.
3) Install door and operator sprockets and chain assembly as
described in preceding instructions. See page 4.2.
4) Install bolts and nuts through plates. Do not tighten.
5) Tension chain by raising or lowering the operator as needed.
Tighten operator mounting bolts.
6) Align sprockets to achieve a 90° angle between the chain and
the shafts. Tighten all set screws.
7) Tighten Tension Plate bolts.
Chain Couple (continued)
(Tension Plate Kit)
DOOR SHAFT
SPROCKET
DOOR SHAFT
CHAIN
CHAIN
TENSION
PLATE
OPERATOR
OUTPUT
SHAFT
KEY
SET SCREW
OPERATOR
SHAFT
SPROCKET
COTTER PIN
CLEVIS PIN
HOLLOW COUNTERBALANCE
DOOR SHAFT
Figure 4B
OPERATOR
SHAFT
DOOR
SHAFT
90°
Figure 4A
DOOR SHAFT
SPROCKET
DOOR SHAFT
KEY
SET SCREW
CHAIN
SET SCREW
CHAIN
TENSION
PLATE
OPERATOR
OUTPUT
SHAFT
KEY
SET SCREW
OPERATOR
SHAFT
SPROCKET
SOLID COUNTERBALANCE
DOOR SHAFT
4.4
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H

4.5
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H

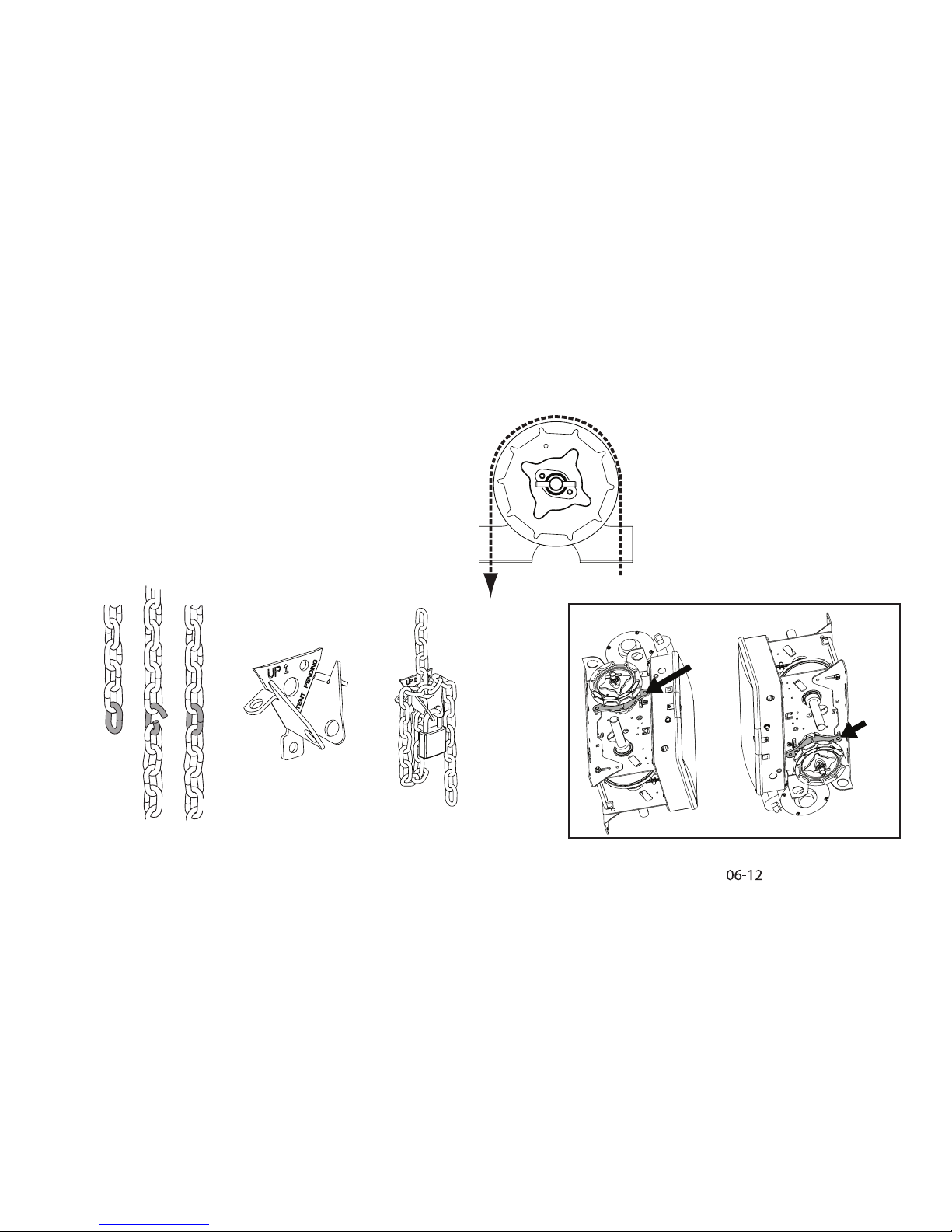

1) Route the hand chain through the chain guide, around the
pocket wheel and back through the chain guide. Fig.5.
2) Connect the hand chain ends together as shown in Fig 6.
by twisting open the last link on one end of the chain, and
slipping the last link on the opposite end onto the open link.
3) Twist open link closed again.
4) Mount chain keeper to wall in line with chain approximately
4 feet from floor.
5) Loop chain around keeper as shown. Fig. 7. Optional Padlock
not provided.
6) Install hoist cable.
•With operator installed motor DOWN, attach hoist cable to
cam arm hole closest to mounting plate. Fig. 8.
•With operator installed motor UP, attach hoist cable to cam
arm hole closest to electric box. Fig. 8.
Hand Chain and Keeper
Figure 6 Figure 7
NOTE: To insure smooth operation, make sure there is no twist in the
hand chain before connecting the link ends together.
MOUNTED
MOTOR UP
MOUNTED
MOTOR DOWN
ATTACH
HOIST
CABLE
HERE
Figure 8
ATTACH
HOIST
CABLE
HERE
Figure 5

4.6
The Operators have a friction style clutch that can be adjusted.
NOTE: The clutch is intended to provide protection for the door, the
operator and associated equipment. It is not intended for entrapment
protection.
To Adjust the Clutch
1) Decrease the compression on the clutch until the operator will
not lift the door.
•Turning the adjustment castle nut counter-clockwise will
decrease compression and clockwise will increase compression.
2) Gradually increase compression until the operator will perform a
complete open and close cycle without clutch slippage.
3) Insert a cotter pin through the adjustment castle nut and bend a
leg of the cotter pin to hold it in place.
NOTE: Periodically check the system for proper clutch action. If clutch
starts to slip after working properly for some time , check manual
operation of door BEFORE adjusting clutch. The door may not be
operating freely or the counterbalance spring may need adjusting. Repairs
and adjustments must be performed by a trained service representative
using proper tools and instructions.
Clutch Adjustment Fig. 9
CLUTCH PULLEY
WASHER
COTTER PIN
ADJUSTING NUT
CLUTCH
PAD
CLUTCH
PLATE
SPRING
www.geniecompany.com
Standard Duty Operator
GCL-J&H

5.1

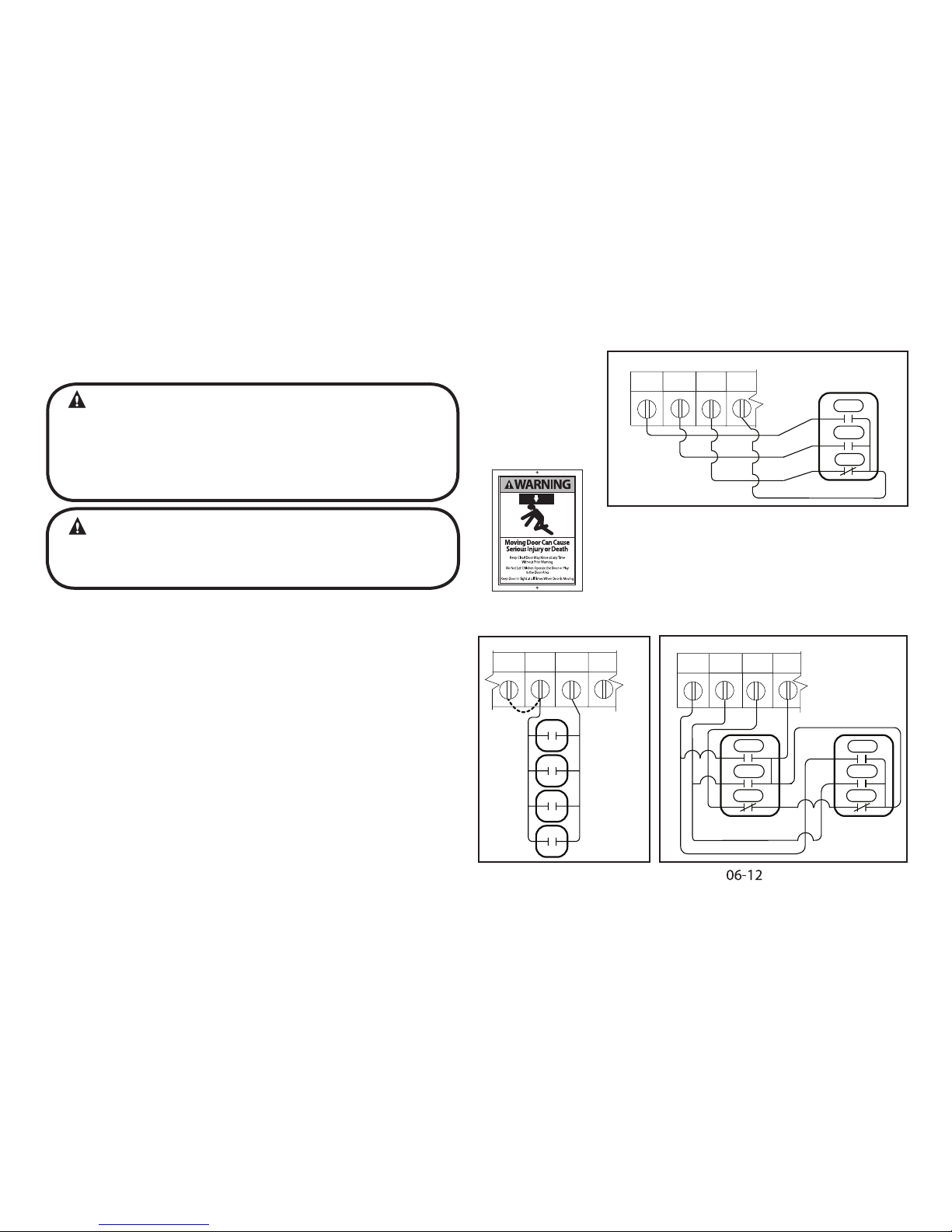

WARNING
•DO NOT apply power to operator until instructed to do so.
•Corporation recommends that line voltage wiring
be performed by a qualified electrician.
•Be sure that electrical power has been disconnected from the
input power wires being connected to the operator prior to
handling these wires. An appropriate lock-out /tag-out procedure
is recommended.
•Line voltage wiring must meet all local building codes.
•Make sure operator voltage, phase and frequency nameplate
ratings are identical to the job site line voltage ratings.
•Input power wiring must be properly sized for the operators
amperage rating located on the nameplate.
•To reduce the risk of electric shock, make sure the chassis of this
unit is properly grounded.
1) Remove LINE VOLTAGE INPUT PLUG and install proper
fittings and 1/2”conduit.
2) Route proper LINE VOLTAGE wires into operator.
3) Locate LINE INPUT terminals on circuit board. Using
correct connectors, attach wires to LINE INPUTS, and GROUND
terminal.
•Keep low voltage and line voltage wires separate.
•Route all line voltage wires as shown.
•Plug all unused conduit holes.
P
HIGH
VOLTAGE
INPUT PLUGS
(Right & Left)
ROUTE HIGH VOLTAGE WIRING
IN THE SHADED AREA AS SHOWN
LINE INPUT
TERMINALS
LINE
GROUND
LINE INPUT
TERMINALS
LINE
GROUND
ROUTE HIGH VOLTAGE WIRING
IN THE SHADED AREA AS SHOWN
LINE IN
LINE IN
POWER CONNECTIONS
12 3
GND
LINE 1 L NE 2 LINE 3
Three Phase
Single Phase
HIGH
VOLTAGE
INPUT PLUGS
(Right & Left)
Section 5: Wiring
Figure 1
Line Voltage Wiring Fig. 1
The
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H
L1 L N/ 2
GND
LINE
(HOT) NEUTRAL
LINE 1 L NE 2
115V
208V
230V

5.2
1) Connect all LOW VOLTAGE control circuit wires to this end of
electric box using 1/2” conduit or flexible convoluted tubing.
•Keep low voltage and line voltage wires separate.
•Route all low voltage control wiring as shown. This includes
all control circuit wires such as wall controls, timers and single
button input devices as well as radio control and safety
circuit wiring. See Figs 2 through 10 in this section.
•Plug all unused conduit holes.

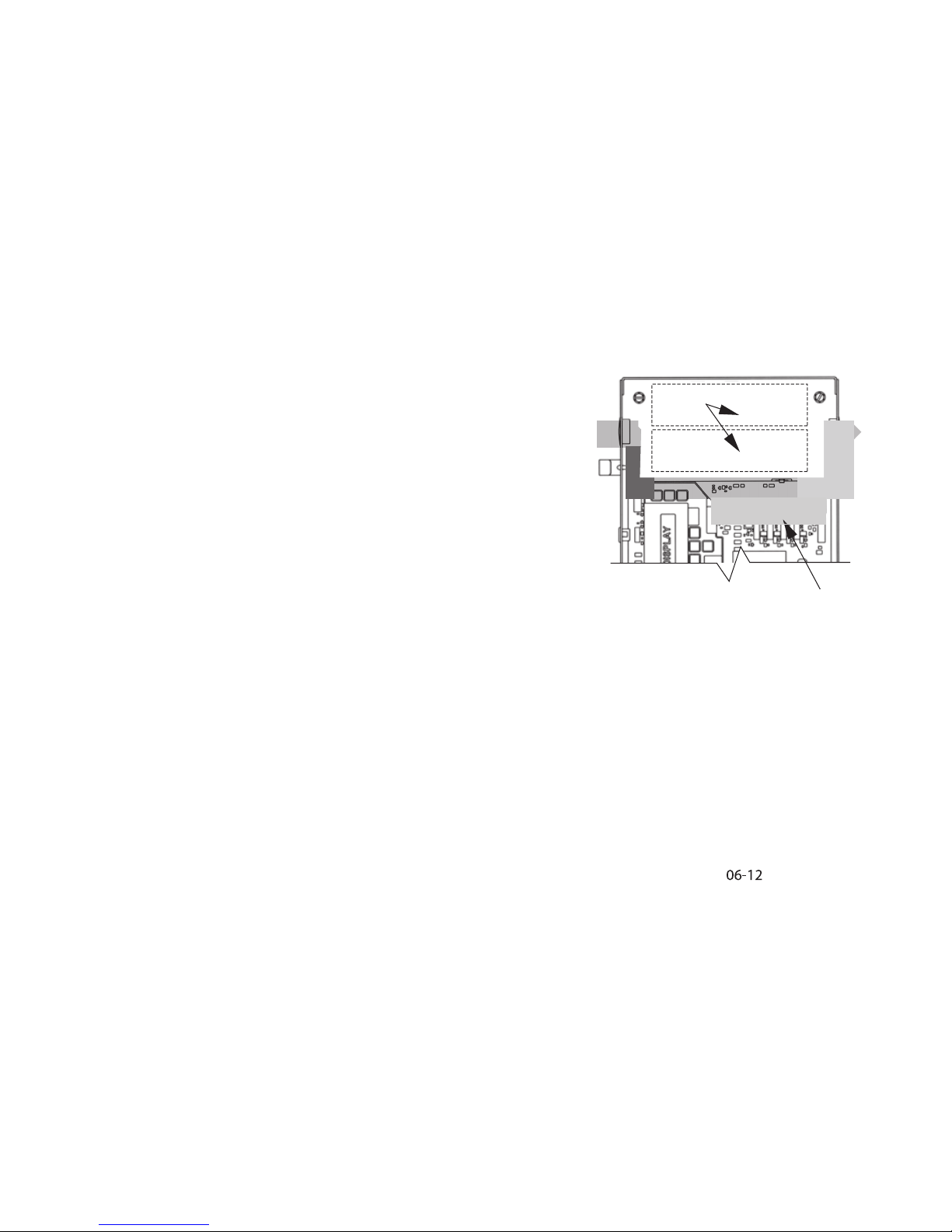

Low Voltage Control Wiring (general) Fig. 2
ROUTE LOW VOLTAGE WIRING
IN THE SHADED AREA AS SHOWN
LOW
VOLTAGE
INPUT
PLUGS
(Left &
Right)
LOW VOLTAGE
CONTROL WIRE
TERMINALS
Optional
Accessory
Modules
Figure 2
NOTE: For a detailed description of control wire terminals see Appendix B.
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H

5.3

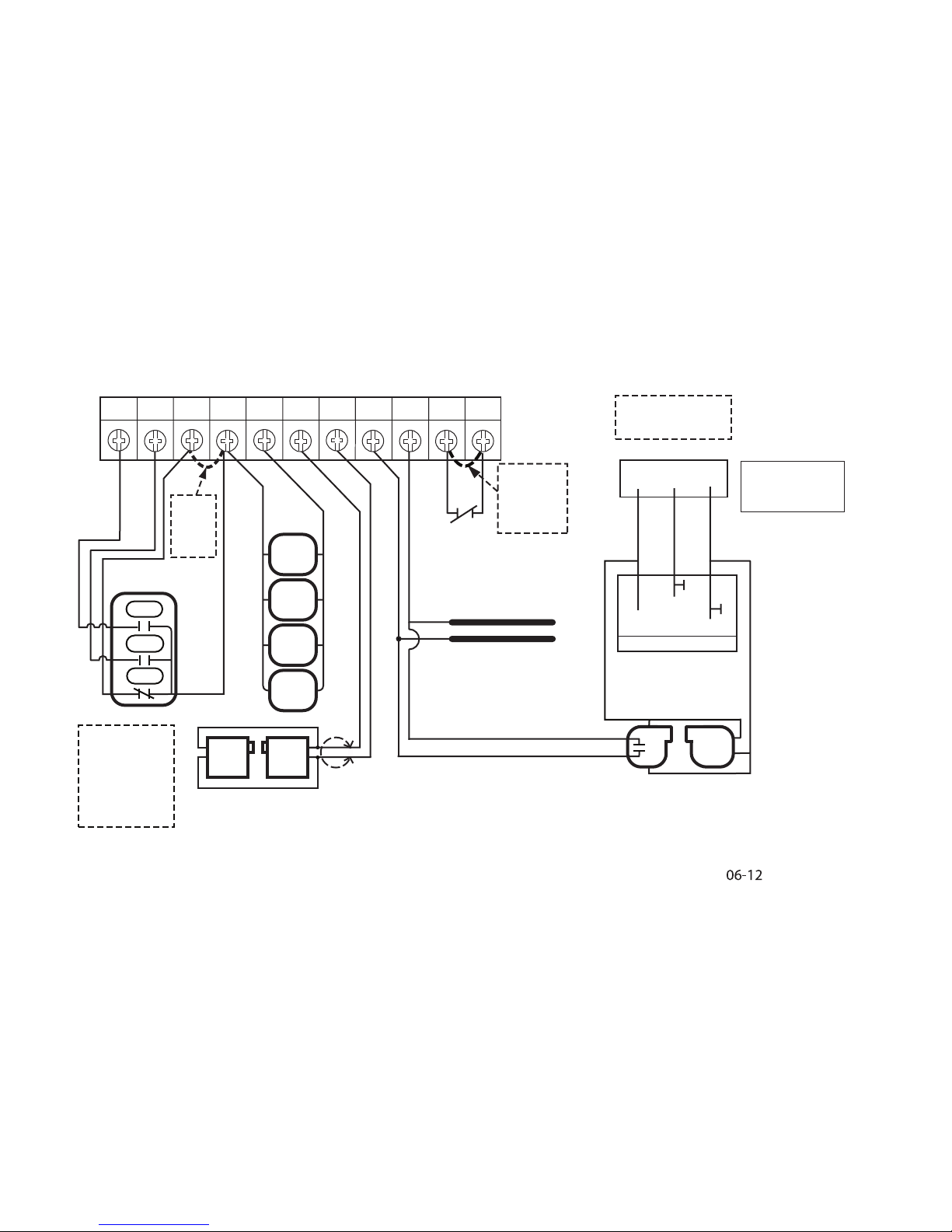

External Wire Diagram
See Appendix B for detailed description of terminals.
REMOVE
JUMPER
WHEN
INSTALLING
EXTERNAL
INTERLOCK
MULTIPLE
3-BUTTON
STATION
INSTALLATIONS
REQUIRE THE
STOP BUTTON
TO BE WIRED
IN SERIES.
See Fig. 5, pg 5.4.
*
EXT
INTLK
EXT
INTLK
N-O
REVERSE
N-O
REVERSE
ODC
STB
ODC
STB
1-BTNGNDSTOPCLOSEOPEN
EXT. RADIO CONNECTOR
SENSING EDGE SWITCH
(DO NOT CONNECT
2-WIRE MONITORED
SENSING EDGE SWITCH
TO THESE INPUTS)
THRU-BEAM PHOTOCELLS
+
-
+
-
PWR
20-40 VDC @ 250 mA
MAX.CURRENT
RADIO
STB PHOTOCELLS
(* CONNECT PHOTOCELL WIRES
TO EITHER TERMINAL)
x
REMOVE
JUMPER
IF STOP
BUTTON
IS USED
BLUE
ORANGE YELLOW
Located inside
Electric Box
RELAY
GND
NOM
+24VDC
1-BTN
STATION
N/O
CARD
READER
N/O
KEY
SWITCH
STATION
N/O
O/C
PULL
SWITCH
N/O
OPEN
CLOSE
STOP
3-BUTTON
STATION*
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H

1) For a single 3 - button installation, make connections as
shown in Fig. 3.
2) For single button accessory controls, make connections as
shown in Fig. 4.
3) For a multiple 3 - button installations, make connections as
shown in Fig. 5.
NOTE: If an External STOP button is NOT being installed, a jumper wire
must be installed between the “STOP” AND “GND” terminals as shown
on page 5.3.
NOTE: Long Distance Relay Kit wiring is not required for long
distance control runs and should not be used
5.4
Wall Control
WARNING:
•Wall Control(s) must be located so that the door is within sight of
the user and is far enough from the door, or positioned such that
the user is prevented from coming in contact with the door while
operating the controls .
•Attach the Warning placard adjacent to the Wall Control. Fig. 3A.
WARNING:
If momentary contact control is to be used, an external monitored reversing
device such as a photocell system or sensing edge switch must be used.
See pages 5.7-5.8 for installation of entrapment protection devices.
NOTE:
JUMPER BETWEEN
STOP AND GND
TERMINALS MUST
BE REMOVED
3-BUTTON
STATION
CONTROL SIGNAL TERMINAL STRIP
OPEN CLOSE STOP GND
3-BUTTON
STATION
OPEN
CLOSE
STOP
OPEN
CLOSE
STOP
Figure 4
1-BTN
STATION
KEY
SWITCH
STATION
CARD
READER
OPEN/CLOSE
PULL SWITCH
CONTROL SIGNAL TERMINAL STRIP
GNDSTOP 1-BTN
Figure 5
OPEN
CLOSE
STOP
3-BUTTON
STATION
CONTROL SIGNAL TERMINAL STRIP
NOTE:
JUMPER BETWEEN
STOP AND GND
TERMINALS MUST
BE REMOVED
OPEN CLOSE STOP GND
Figure 3
11 735
Entrapment
Warning
Placard
Figure 3A
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H
ODC
STB

5.5
Interlock Switches (Rolling Steel)
OPEN CLOSE STOP GND 1BTN NO NO
REVERSE REVERSE
ODC
STB
ODC
STB
EXT
INTLK
EXT
INTLK
CONTROL SIGNAL TERMINAL STRIP
Figure 6
NOTE: If External Interlock is used, THE JUMPER WIRE BETWEEN THE EXT INTLK TERMINALS MUST BE REMOVED.
SWITCH
075412-0000
(N.O.)
ANGLE
405964-0000
STANDARD
SLIDELOCK
TRACK
SWITCH
075396-0000
(N.C.)
Switches must
be set in
the field.
Pass door interlock:
Should be open when
door is open.
Closed when door is
closed.
Side lock interlock:
Should be open when door is locked.
Closed when door is unlocked.
B
A
1) Optional external interlock switches
are required with some Sectional or
Rolling Steel Doors to prevent the
door from operating under certain
conditions including the following:
If the door is equipped with a
functioning door lock, an
interlock switch (A) must be
installed to prevent electric
operation when the lock
is engaged.
If the door is equipped with a
pedestrian pass-through door,
an interlock switch (B) must be
installed at the pass-through
door in order to prevent
electrical operation when the
pass-through door is open.
The Switches must be set in
the field.
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H

CONTROL SIGNAL TERMINAL STRIP
EXT
NTLK
EXT
NTLK
* REMOVE
JUMPER
WHEN
INSTALLING
EXTERNAL
INTERLOCK
*
NOTE: If External Interlock is used, THE JUMPER WIRE BETWEEN THE
EXT INTLK TERMINALS MUST BE REMOVED.
1) Optional external interlock switches are
required with some Sectional or Rolling Steel
Doors to prevent the door from operating
under certain conditions including
the following:
•If the door is equipped with a
functioning door lock, an interlock
switch (A) must be installed to prevent
electric operation when the lock
is engaged.
•If the door is equipped with a pedestrian
pass-through door, an interlock switch (B)
must be installed at the pass-through
door in order to prevent electrical
operation when the pass-through door
is open.
2) The switches must be set in the field.
SWITCH
(N.O.)
ANGLE
STANDARD
SLIDELOCK
TRACK
SWITCH (N.C.)
Interlock Switches (Sectional)
5.6
A
B
Pass door interlock:
Should be open when
door is open.
Closed when door
is closed.
Side lock interlock:
Should be open when door
is locked. Closed when door
is unlocked.
Figure 6
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H

5.7
Photocell Wiring
NOTE: Installer must enable PHOTOCELL in calibration mode. See page 6.9.
2) To Mount Photocells: (Kit includes detailed Instructions).
Determine location for mounting. They do not need to be directly adjacent to
the door but must be somewhere along the wall where there will be an
unobstructed line between them. Fig 9.
They must extend out away from the wall sufficiently that no door hardware
breaks the plane of the photo-beam.

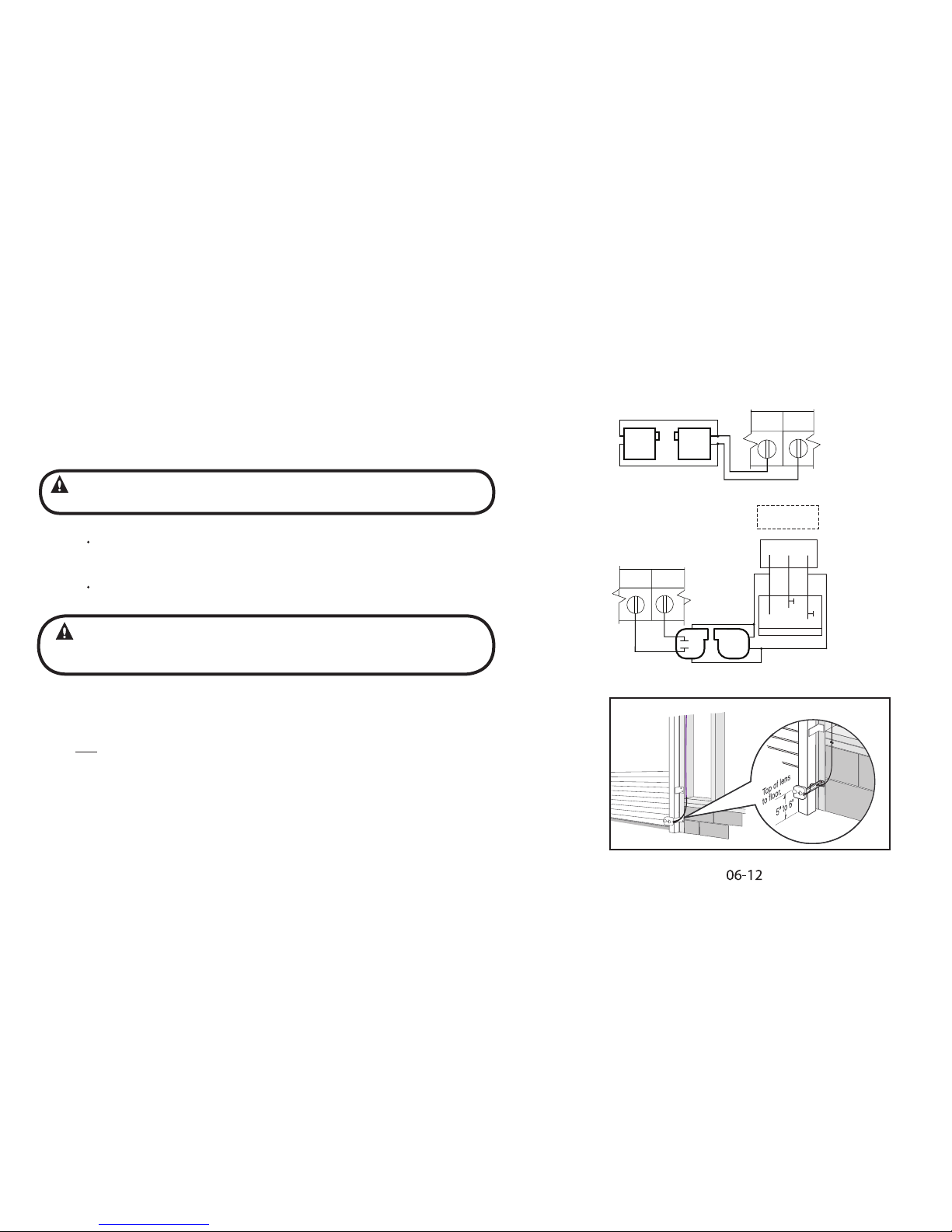

1) Nominal 24 Volt DC Commercial photocells with normally open contacts can be
connected as shown in Fig. 8.
NOTE: Blue wire supplies 20 – 40VDC. Photocells used must be compatible with this
voltage range.
NOTE: If no voltage is present at Blue wire, check fuse F-1 on Control board.
Monitored Photocells
Commercial Non-Monitored Photocells
WARNING:
Photocell systems provide entrapment protection when
mounted near the doorway in such a way that the lower portion of an individual’s
leg will break the photocell beam during normal walking conditions.
WARNING: Actuating operator using constant contact on the CLOSE button will
override external reversing devices, including photocells.
RESIDENTIAL PHOTOCELLS
CONTROL SIGNAL
TERMINAL STRIP
Figure 7
CONNECT WIRES TO EITHER TERMINAL
(NOT POLARITY SENSITIVE)
Figure 9
N-O
REVERSE
N-O
REVERSE
+
-
+
-
THRU-BEAM
PHOTOCELLS
CONTROL SIGNAL
TERMINAL STRIP
RECEIVER
TRANSMITTER
EXT RADIO CONNECTOR
PWR
20 40 VDC @ 250mA
MAX CURRENT
RELAY
GND
NOM
+24VDC
RADIO
Blue Orange Yellow
Figure 8
1) Series II Commercial Monitored photocells and Residential
photocells can be connected to either terminal (they are not polarity sensitive.
( Troubleshooting on page 8.5).
Safe-T-Beam® Monitored Photocells. Fig. 7 & 8. Wiring to these
ODC
STB ODC STB
www.geniecompany.com 0-12
Standard Duty Operator
GCL-J&H
