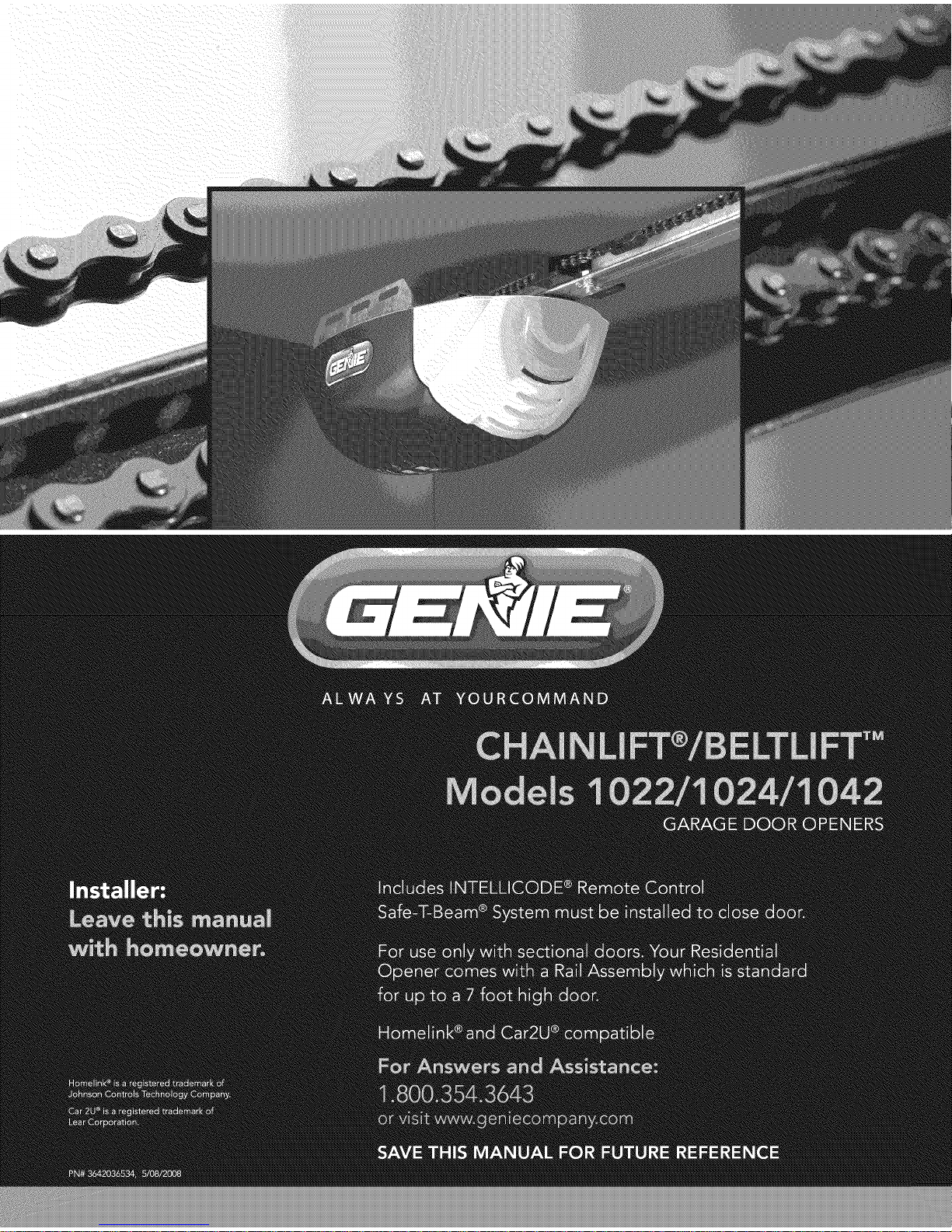

Genie Intellicode 1022 User manual

OVERVIEWOFPOTENTIALHAZARDS
READTHISSAFETYINFORMATION
Garage doors arelarge, heavy objectsthat move with the help of springs under high tension and electric motors.Since moving
objects, springs under tension, and electric motorscan cause injuries, your safety and the safety of others depend on the owner or
user of this system to read, understandand implementthe informationin this manual. If you havequestionsor do NOT
understandthe informationpresented,contact The Genie Companyor an authorized Genie®Dealer.
The safety alert symboland following signalwords DANGER,WARNING, and CAUTIONare used throughout this manualto call
attentionto and identifydifferent levels of hazard and special instructions.
,& This isthe safety alert symbol. This symbol is placed next to signalwords and messagesto help you identify
importantsafety information
Theword:
,& DANGERindicatesan imminently hazardoussituation which, if NOT avoided,will result in death or serious injury.
,& WARNING indicatesa potentiallyhazardoussituation which, if NOT avoided, could result in death or serious injury.
,& CAUTION indicatesa potentially hazardoussituationwhich, if NOTavoided, may result in injuryor property damage.
Theword 1,t_.__iJ!is used to indicate importantstepsto be followed,important considerations,or location of parts.
IMPORTANTSAFETYINSTRUCTIONS
READANDFOLLOWALLINSTRUCTIONS
SAVETHESEINSTRUCTIONS
POTENTIAL
HAZARD
MOVINGDOOR
ELECTRICAL
SHOCK
HIGH
SPRING
TENSION
EFFECT
CouldresultinDeath
orSeriousInjury
CouldresultinDeath
orSerousnjury
CoudresultnDeath
orSerousInjury
PREVENTION
Keep people clear of openingwhile door is moving.
Do NOTallow children to playwith the door operator.
Do NOToperate adoor that jams or one that hasabrokenspring.
Turn OFF power before removingoperator cover.
When replacingcover, make surewires are not pinchedor near
moving parts.
Operator mustbe properlygrounded.
Do NOTtry to remove,install,repair or adjustsprings or anythingto
which door springparts arefastened,such as, wood blocks,steel
brackets,cablesor otherlike items.
Installations,repairsand adjustmentsmustbe done bya traineddoor
systemtechnicianusingpropertools and instructions.
PN# 36420Supplement, 10/27/2008

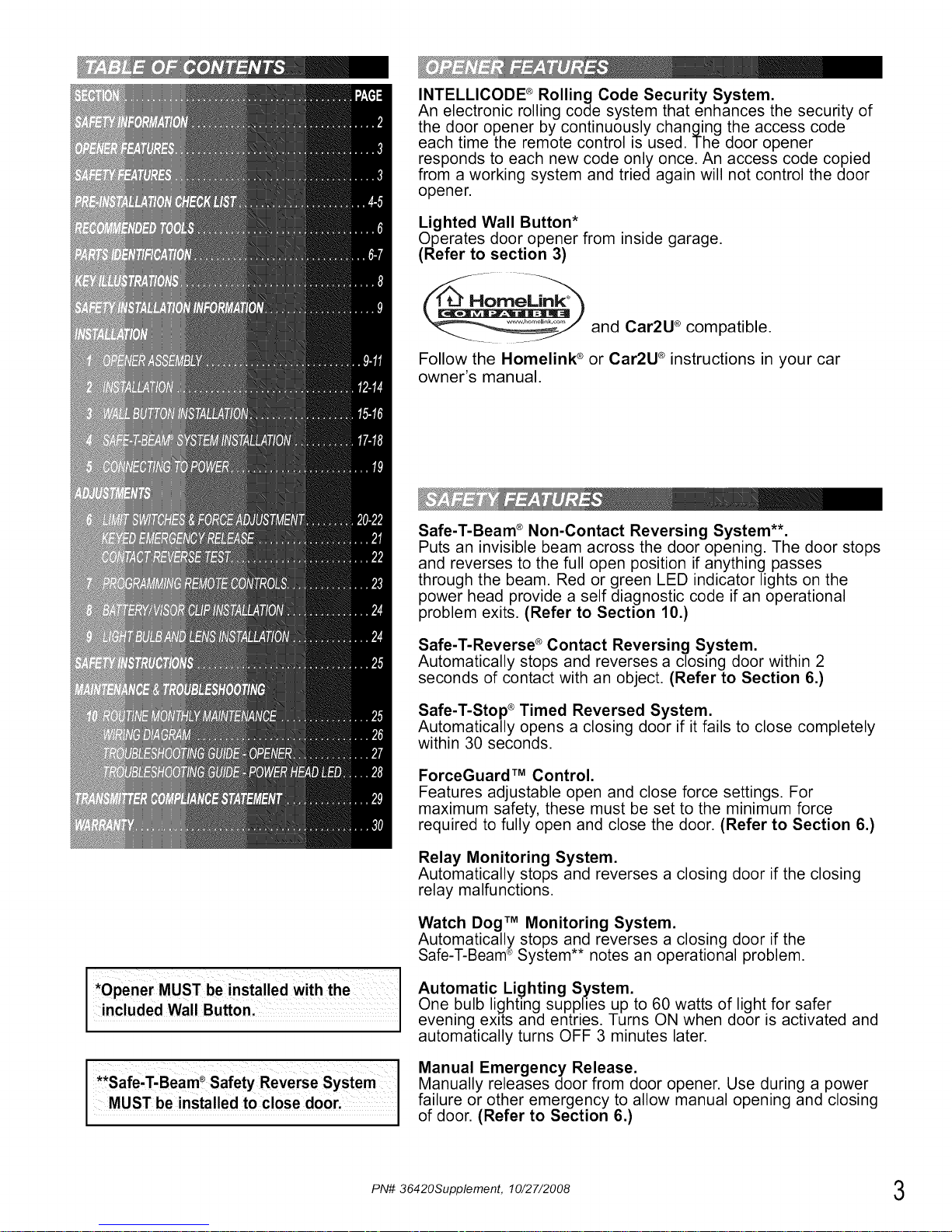

INTELLICODE ®Rolling Code Security System.
An electronic rolling code system that enhances the security of
the door opener by continuously changing the access code
each time the remote control is used. The door opener
responds to each new code only once. An access code copied
from a working system and tried again will not control the door
opener.
Lighted Wall Button*
Operates door opener from inside garage.
(Refer to section 3)
and Car2U ®compatible.
Follow the Homelink ®or Car2U ®instructions in your car
owner's manual.
I *Opener Must be installed with the
included Wall Button,
**Safe'T-geam® Safety Reverse System
MUST be installed to close door,
Safe-T-Beam ®Non-Contact Reversing System**.
Puts an invisible beam across the door opening. The door stops
and reverses to the full open position if anything passes
through the beam. Red or green LED indicator lights on the
power head provide a self diagnostic code if an operational
problem exits. (Refer to Section 10.)
Safe-T-Reverse ®Contact Reversing System.
Automatically stops and reverses a closing door within 2
seconds of contact with an object. (Refer to Section 6.)
Safe-T-Stop ®Timed Reversed System.
Automatically opens a closing door if it fails to close completely
within 30 seconds.
ForceGuard TM Control.
Features adjustable open and close force settings. For
maximum safety, these must be set to the minimum force
required to fully open and close the door. (Refer to Section 6.)
Relay Monitoring System.
Automatically stops and reverses a closing door if the closing
relay malfunctions.
Watch Dog TM Monitoring System.
Automatically stops and reverses a closing door if the
Safe-T-Beam ®System** notes an operational problem.
Automatic Lighting System.
One bulb lighting supplies up to 60 watts of light for safer
evening exits and entries. Turns ON when door is activated and
automatically turns OFF 3 minutes later.
Manual Emergency Release.
Manually releases door from door opener. Use during a power
failure or other emergency to allow manual opening and closing
of door. (Refer to Section 6.)
PN# 36420Supplement, 10/27/2008 3

Tbngs to cor_s der if y©u a<e p_ann _g 'i:© Do_ t-y©u_"setlL '_
This opener is designed for use with SECTIONAL doors only.
Check your ceiling where the power
head of your new unit will be mounted.
Plan how you will be mounting the power head.
It is possible that ceiling joists may not be in the
position needed with respect to the garage door
opener. It may be necessary to add an
additional bracket and fasteners (not included
with your new door opener kit).
(Refer to Section 2.)
You need a properly grounded 110-120 Volt
power supply available. The outlet should be
no more than 3 feet from the power head once it is
mounted. (Refer to Section 5.)
Check the wall directly above the garage
door. The door opener's header bracket
must be securely fastened to this wall. Insure
that the structure will provide a strong mounting
location. (Refer to Section 2.)
Check to see if the mounting location
for the Safe-T-Beam ®System is clear from
obstruction and has a wood surface available
for attaching the mounting brackets. The
brackets may be attached to concrete if necessary
but extra tools and special fasteners (not supplied)
will be required. (Refer to Section 4 and 5.)
DO NOT USE ALTERNATE POWER SUPPLIES.
To avoid damage to your door and/or
opener, make sure you disable and/or
remove any door locks, ropes, and/or cables
(NOT door lift cables) prior to installing your
opener. (Refer to Section 1.)
Insure that your door is properly balanced
and moving freely. (Refer to Section 2.)
Is your sectional garage door made of
aluminum, light-weight steel, fiberglass repaired or adjusted bya trained door system
or glass panels? Additional support bracing technician: Door springs, cables, pulleys,
must be added to these type doors. If this is the
case, please contact the door manufacturer or
authorized dealer so that they can furnish you
with a "bracing kit." (Refer to Section 2.)
T° reduce the risk °f injury to pers°ns or @ (NOT SHOWN)If your garage does not have
aseparate entry door, you should consider
an emergency release kit (GER-2) for installation on
damage to property- Use this opener only your garage door. (See emergency release kit
with sectional doorsl installation notes on page 21.)
PN# 36420Supplement, 10/27/2008

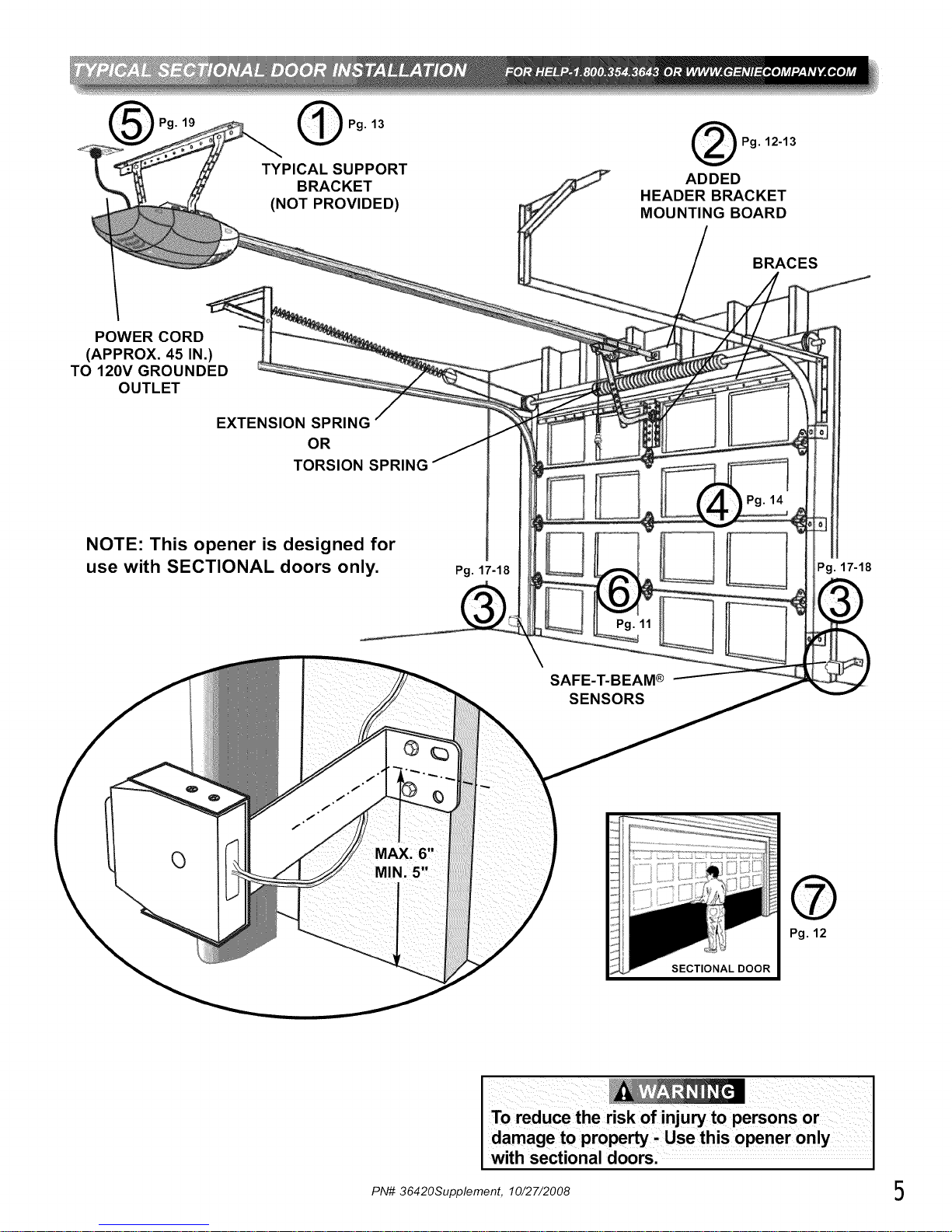

OPg. 13
TYPICAL SUPPORT
BRACKET
(NOT PROVIDED)
_Pg. 12-13
ADDED
HEADER BRACKET
MOUNTING BOARD
POWER CORD
(APPROX. 45 IN.)
TO 120V GROUNDED
OUTLET
EXTENSION SPRING
OR
TORSION SPRING
NOTE: This opener is designed for
use with SECTIONAL doors only. Pg. 17-18
iwlAX. 6
MIN.
SAFE-T-BEAM ®
SENSORS
BRACES
Pg. 17-18
SECTIONAL DOOR
Pg. 12
PN# 36420Supplement, 10/27/2008 5

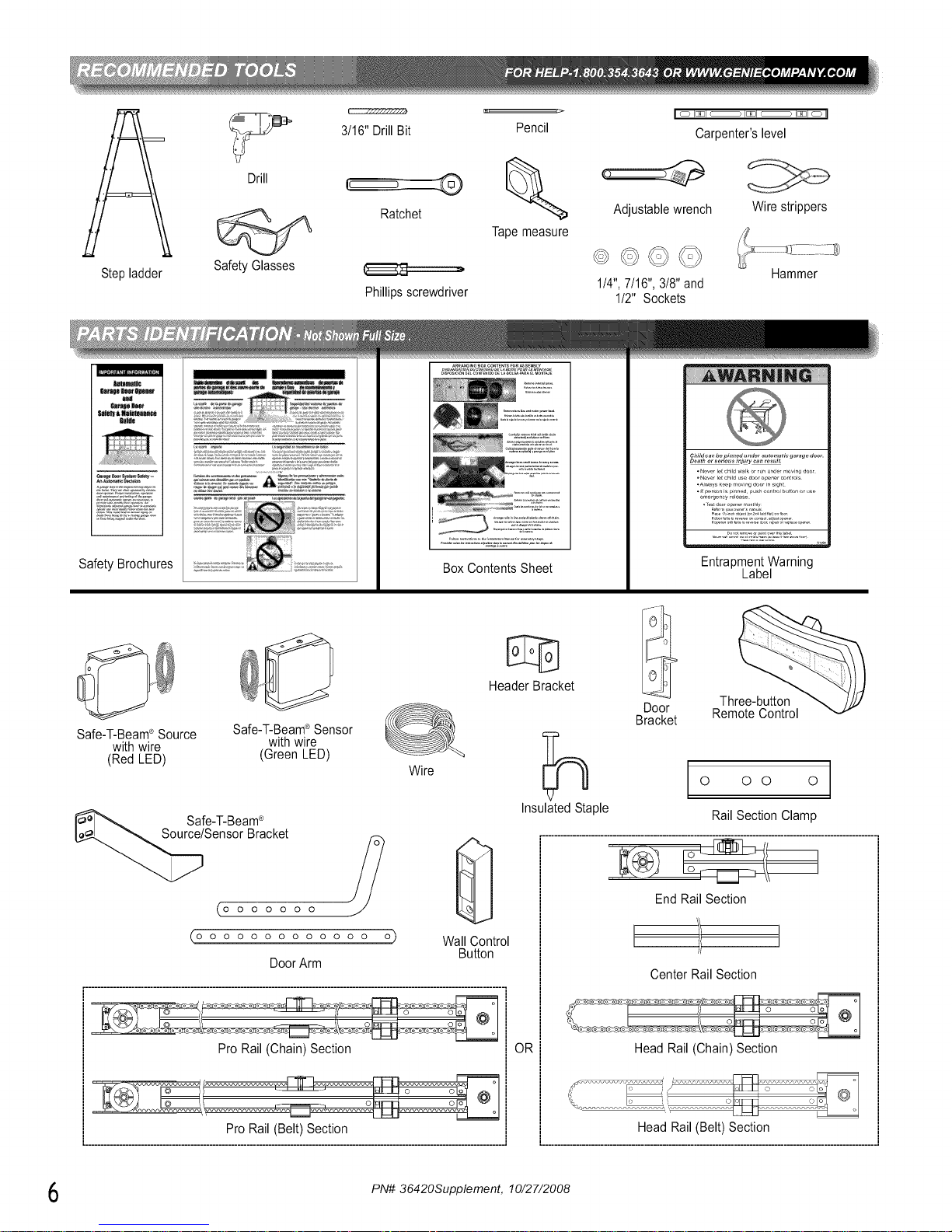

Stepladder
Drill
Safety Glasses
C_
3/16" DrillBit
I, , :@
Ratchet
Phillipsscrewdriver
Pencil
Tapemeasure
I o I_JI o I_JI o I_JI o II
Carpenter'slevel
Adjustablewrench Wire strippers
1/4",7/16", 3/8"and
1/2" Sockets
Hammer
1_sWe
Safety Brochures
ARRAYINGBOXCONTENT__ AS_EMB_
BoxContents Sheet
Child canbepinned under automaticgaragedoor.
*N_wr I_tchild walkorrun undermovingd_r
*N_verI_tchild us_do_ropenercontrols
*Al_aysk_p movingdoorin sight
•_p_r_n is pinned pushcontrol button_rus_
e,_erg_ncyrelea_,
,d_,fo,............... djuo_o,....
Entrapment Warning
Label
Safe-T-Beam®Source
with wire
(Red LED)
Safe-T-Beam®Sensor
with wire
(Green LED) O
Wire
Safe-T-Beam®
Sensor Bracket
0000 000
(o o o o o o o o o o o o o Wall Control
Button
DoorArm
Pro Rail (Chain) Section
Header Bracket
Door
Bracket
O O O O
InsulatedStaple Rail Section Clamp
OR
PN# 36420Supplement, 10/27/2008

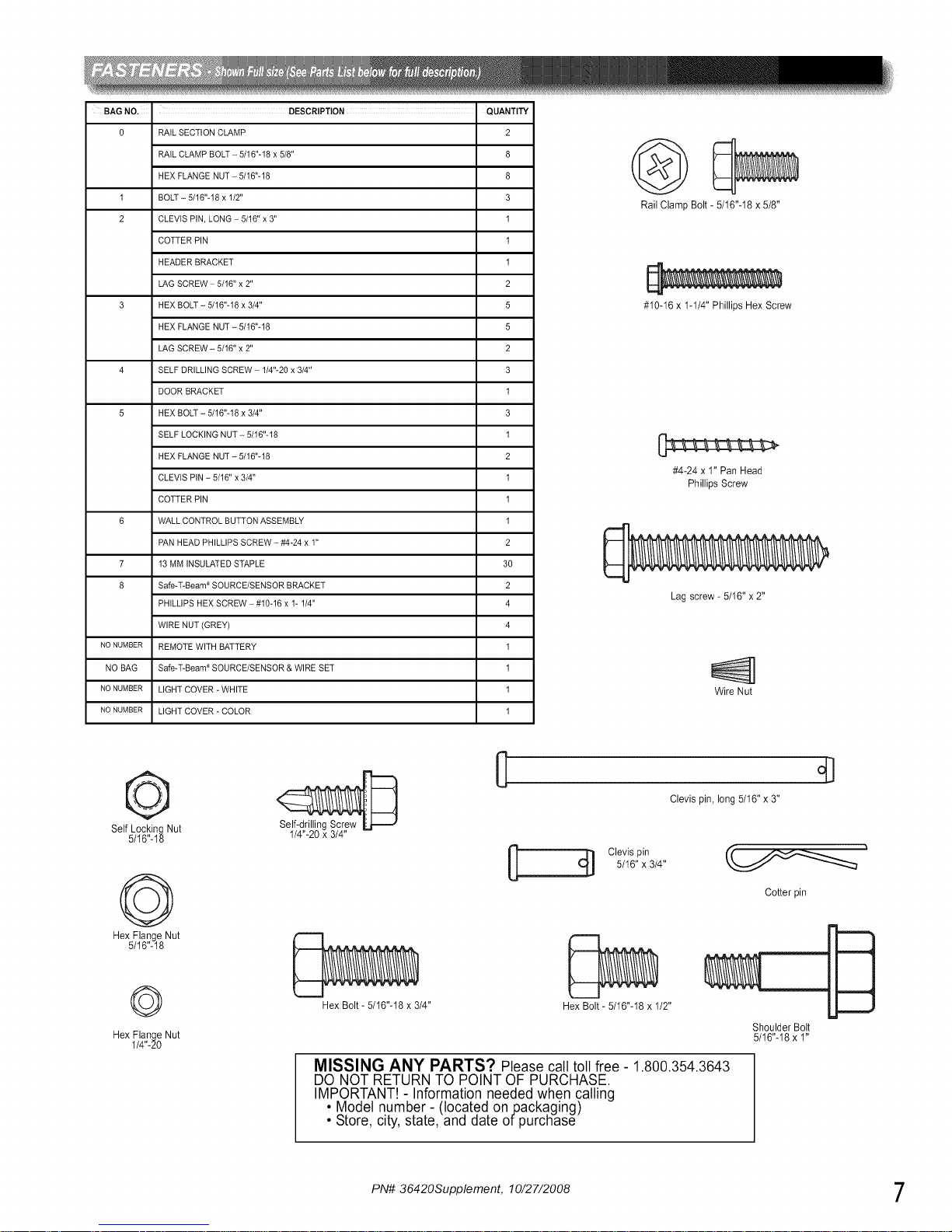

BAG NO,' DESCRIPTION QUANTITY
0 RAILSECTION CLAMP 2
RAILCLAMP BOLT- 5116"-18x 518" 8
HEX FLANGE NUT - 5/16"-18 8
1 BOLT - 5/16"-18 x 1/2" 3
2 CLEVIS PIN, LONG - 5/16" x 3" 1
COTTER PIN 1
HEADER BRACKET 1
LAG SCREW - 5/16" x 2" 2
3 HEX BOLT - 5/16"-18 x 3/4" 5
HEX FLANGE NUT - 5/16"-18 5
LAG SCREW - 5/16" x 2" 2
4 SELF DRILLING SCREW - 1/4"-20 x 3/4" 3
DOOR BRACKET 1
5 HEX BOLT - 5/16"-18 x 3/4" 3
SELF LOCKING NUT - 5/16"-18 1
HEX FLANGE NUT - 5/16"-18 2
CLEVIS PIN - 5/16" x 3/4" 1
COTTER PIN 1
6 WALL CONTROL BUTTON ASSEMBLY 1
PAN HEAD PHILLIPS SCREW - #4-24 x 1" 2
7 13 MM INSULATED STAPLE 30
8 Safe-T-Beam ®SOURCE/SENSOR BRACKET 2
PHILLIPS HEX SCREW - #10-16 x 1- 1/4" 4
WIRE NUT (GREY) 4
NONUMBER REMOTE WITH BATTERY 1
NO BAG Safe-T-Beam ®SOURCE/SENSOR & WIRE SET 1
NONUMBER LIGHT COVER - WHITE 1
NONUMBER LIGHT COVER - COLOR 1
Rail Clamp Bolt - 5/16"-18 x 5/8"
#10-16 x 1-1/4" Phillips Hex Screw
#4-24 x 1" Pan Head
Phillips Screw
Lag screw - 5/16" x 2"
Wire Nut
©
Self Locking Nut
5/16"-18
©
Hex Flange Nut
5/16"-18
Self-drilling Screw
1/4"-20 x 3/4"
(C[] Clevis pin
5/16" x 3/4"
Clevis pin, long 5/16" x 3"
Cotter pin
©
Hex Flange Nut
1/4"-20
Hex Bolt - 5/16"-18 x 3/4" Hex Bolt - 5/16"-18 x 1/2"
MISSING ANY PARTS? Please catttoll free - 1.800.354.3643
DO NOT RETURNTO POINT OF PURCHASE.
IMPORTANT!- Information needed when calling
Model number- (located onpackaging)
Store, city, state, and date of purchase
Shoulder Bolt
5/16"-18 x 1"
PN# 36420Supplement, 10/27/2008 7

Power Cord
Rail with chain
Tensioner
CHAIN
Chain
Release
Knob
Trolley Slide
Rail with belt
q
Power Head
Belt Clamp
tClevis Pin, Long BELT
Header & Cotter Pin
Bracket Belt
Trolley Slide
Rail with chain
Ra,Clam_s __
Rail Clamp Bolts_.__"_ ° "__,._-..-/k.-,,_'K__:_of_-'_ k:..i__._ enobease_ Trolley Slide
PUAIM
_I I_I11 "JH[_ Rail with belt
End Rail _ __ :,"_ _ _
eote
-_ Chain ....
/_'_vilst_irnpiL° ng
Header _Y_'_/_/ Center Rail
Bracket
\ .... Belt
PN# 36420Supplement, 10/27/2008

IMPORTANTINSTALLATIONINSTRUCTIONS
1. READAND FOLLOWALL SAFETY,INSTALLATION 5.
AND OPERATIONINSTRUCTIONS.(/yo haw;_
,_;i_;;_,__ :_' _,_'_d _ _/_ _/'_ 6.
2. Installonly on a properly balanced sectional garage door.
An improperly balanced door could cause severe injury.
Have a trained door system technician make repairs or
adjustments to cables, spring assemblies, and other 7.
hardware before installing the opener.
3. Removeall ropesand removeor make inoperativeall
locksconnectedtothegaragedoor beforeinstallingopener.
4. Wherepossible,installthe dooropener7 feet or more 8.
above thefloor. Forproductshavingan emergency
release,mounttheemergencyrelease6 feet abovethefloor.
Do NOT connect the opener to source of power
until instructed to do so.
Locate the control button:
• Within sight of door,
• At minimum height of 5 feet so small children are not
able to reach it, and
• Away from all movingparts of the door,
Installthe Entrapment WARNING Label next to the
control button in a prominent location, Installthe
Emergency Release Tagon or next to the
emergency release,
After installing the opener,the door must reverse within
2 seconds when it contacts a 1-1/2 inch high object (or a
2 x 4 board laid fiat) on the floor,
I
To reduce the risk of injury to persons or
damage to property - Use this opener only
with sectional doors.
IDo NOT run until opener is fully assembled.
Clear a workspace area to unpack and organize box
and contents for assembly.
1. There are 4 boxes inside the carton. Each box is
numbered 1 - 4. Note that some openers will
contain the same parts and be packaged with
fewer boxes. Carefully remove the three
internal boxes (Labeled #1, 2, and 3) and place
them on the floor for easy access (Fig. 1-1).
These boxes contain assembly parts and the
contents are organized by assembly tasks For
quick reference inside the id of each box there is
a label illustrating the components inside.
2. Remove the motor power head and place it on
the floor for later use. Remove box #4 and
place it on the floor for later use.
Bag 0
Bag 1
Bag 2 .............
Header _rac_et --- _
Bag 3 __i'
Box Label Example
FIG. 1-1 Internal boxes.
PN# 36420Supplement, 10/27/2008 9

IRail Assembly for CHAIN DRIVE OPENER
Jocat® Bag O t_-o£ Box_ 1
3. Remove the two rail sections that are not
connected to the chain and place them on
floor (Fig. 1-2, A).
4. Carefully remove the third rail section with
chain and plastic sleeve. Place rail section on
floor and extend chain straight out
(Fig. 1-2, B). Chain and rail should extend
approximately 7 feet.
5. Remove wire ties and plastic bag from chain.
Leave chain extended straight out on floor.
Avoid kinks in the chain by careful handling and
keeping chain flat on the floor.
6. Align the three rail sections by pulling the
chain straight and wrapping it around the
chain tensioner pulley (Fig. 1-3 & 1-4).
7. Attach the two rail clamps to the rail section
joints with (4) bolts and nuts. After both rail
clamps have been assembled to the rail sections,
securely tighten the bolts and nuts.
CHAIN DRIVE RAILS
BELT DRIVE RAILS
Belt Rail
Rail Assembly for BELT DRIVE OPENER
Jocat® Bag 0 _<:}n Box_ f
3. Remove the two rail sections that are not
connected to the belt and place them on floor
(Fig. 1-2, A).
4. Carefully remove the third rail section with
belt. Place rail section on floor, remove ties on
belt and extend belt straight out (Fig. 1-2, B).
Avoid twists and kinks in the belt by careful
handling and keeping belt flat on the floor. Belt
and rail should extend approximately 7 feet.
5. Align the three rail sections by pulling the belt
straight and wrapping it around the tensioner
pulley (Fig. 1-3 & 1-4).
6. Attach the two rail clamps to the rail section
joints with (4) bolts and nuts. After both rail
clamps have been assembled to the rail sections,
securely tighten the bolts and nuts.
FIG. 1-2 Split Rail sections.
CHAIN
Rall Clam )s
Rail with chain
Rail Clamp Bolts
Cha
Power Head
Trolley Slide
Rail Clam Nut!
Center Ra
Release
Rnol) Rail with belt
FIG. 1-3 Split Rail assembly.
Wrap around tensioner pully
FIG. 1-4 Mount chain/belt to tensioner pulley.
0PN# 36420Supplement, 10/27/2008

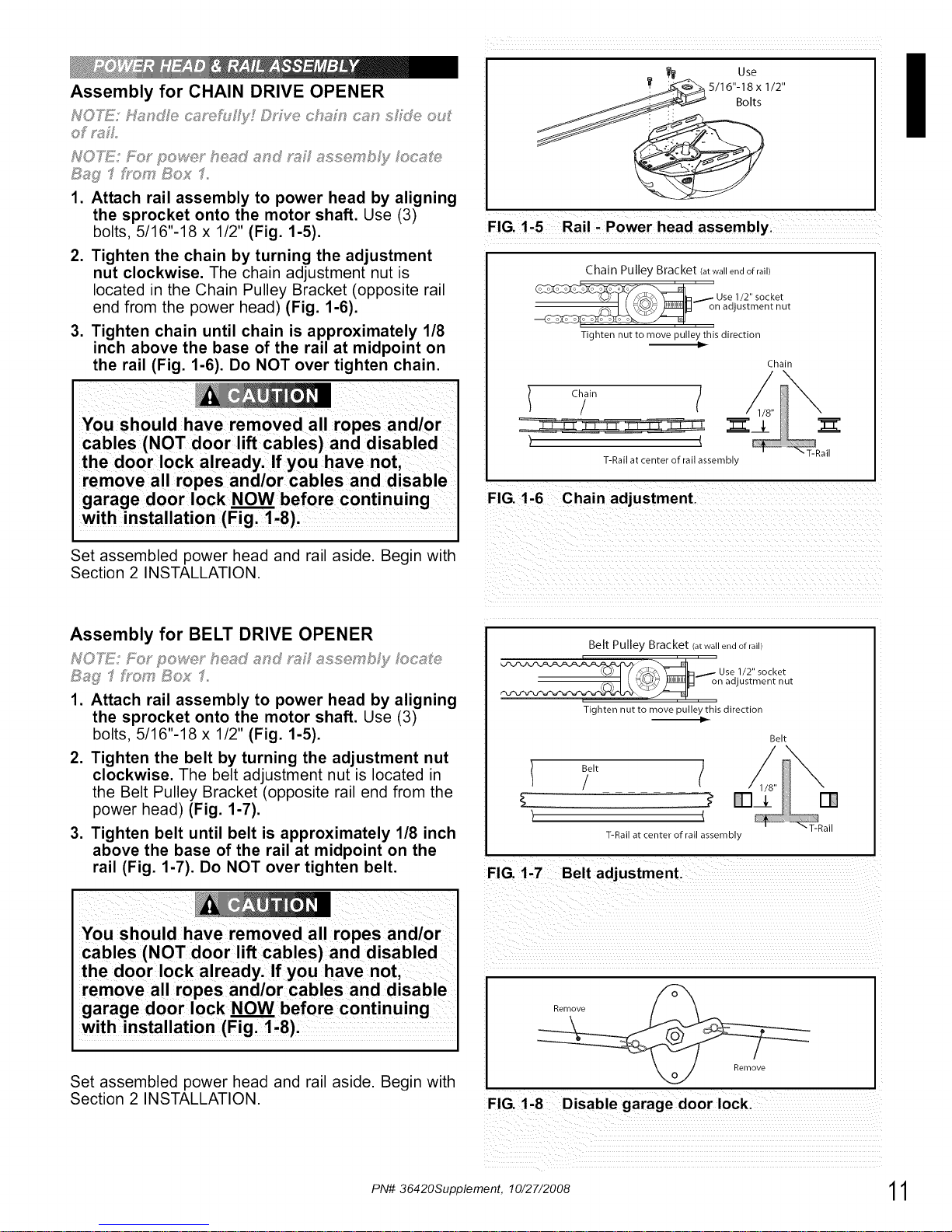

Assembly for CHAIN DRIVE OPENER
F_O"H!i:Bos powes hesd snd f:si: ssse_, _tfy Focste
_!;_,g t;'on _!;ou:1
1. Attach rail assembly to power head by aligning
the sprocket onto the motor shaft. Use (3)
bolts, 5/16"-18 x 1/2" (Fig. 1-5).
2. Tighten the chain by turning the adjustment
nut clockwise. The chain adjustment nut is
located in the Chain Pulley Bracket (opposite rail
end from the power head) (Fig. 1-6).
3. Tighten chain until chain is approximately 1/8
inch above the base of the rail at midpoint on
the rail (Fig. 1-6). Do NOT over tighten chain.
You should have removed all ropes and/or
cables(NOT door lift cables) and disabled
the door lock already. If you have not,
remove all ropes and/or cables and disable
Set assembled power head and rail aside. Begin with
Section 2 INSTALLATION.
Use
"-18 x 1/2"
FIG. 1-5 Rail - Power head assembly.
Chain Pulley Bracket a_waHenaotrai
l use .1 2 socketon adjustment nu[
i
- ghten nu[ _o move aulle, this direction
--I_
Chain
TRail at center of rail assembly
FIG. 1-6 Chain adjustment.
I
Assembly for BELT DRIVE OPENER
1. Attach rail assembly to power head by aligning
the sprocket onto the motor shaft. Use (3)
bolts, 5/16"-18 x 1/2" (Fig. 1-5).
2. Tighten the belt by turning the adjustment nut
clockwise. The belt adjustment nut is located in
the Belt Pulley Bracket (opposite rail end from the
power head) (Fig. 1-7).
3. Tighten belt until belt is approximately 1/8 inch
above the base of the rail at midpoint on the
rail (Fig. 1-7). Do NOT over tighten belt.
Belt Pulley Bracket (atwallendofrail)
__,__.- Use 1/2 socket
_ I [ _\_4_/EEL_ on adjustment nut
Tighten nut to move pulley this direction
)
Belt /
T-Rail at center of rail assembly
Belt
"T-Rail
You should have removed all ropes and/or
cables (NOT door lift cables)and disabled
the door lock already. If you have not,
remove all ropes and/or cables and disable
Set assembled power head and rail aside. Begin with
Section 2 INSTALLATION.
Remove
Remove
i i i i i i i i i i i i i i i i i i i iii
ii_ii_!_ i ii _!_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!
_L _ _ _i I _i _L
PN# 36420Supplement, 10/27/2008 11

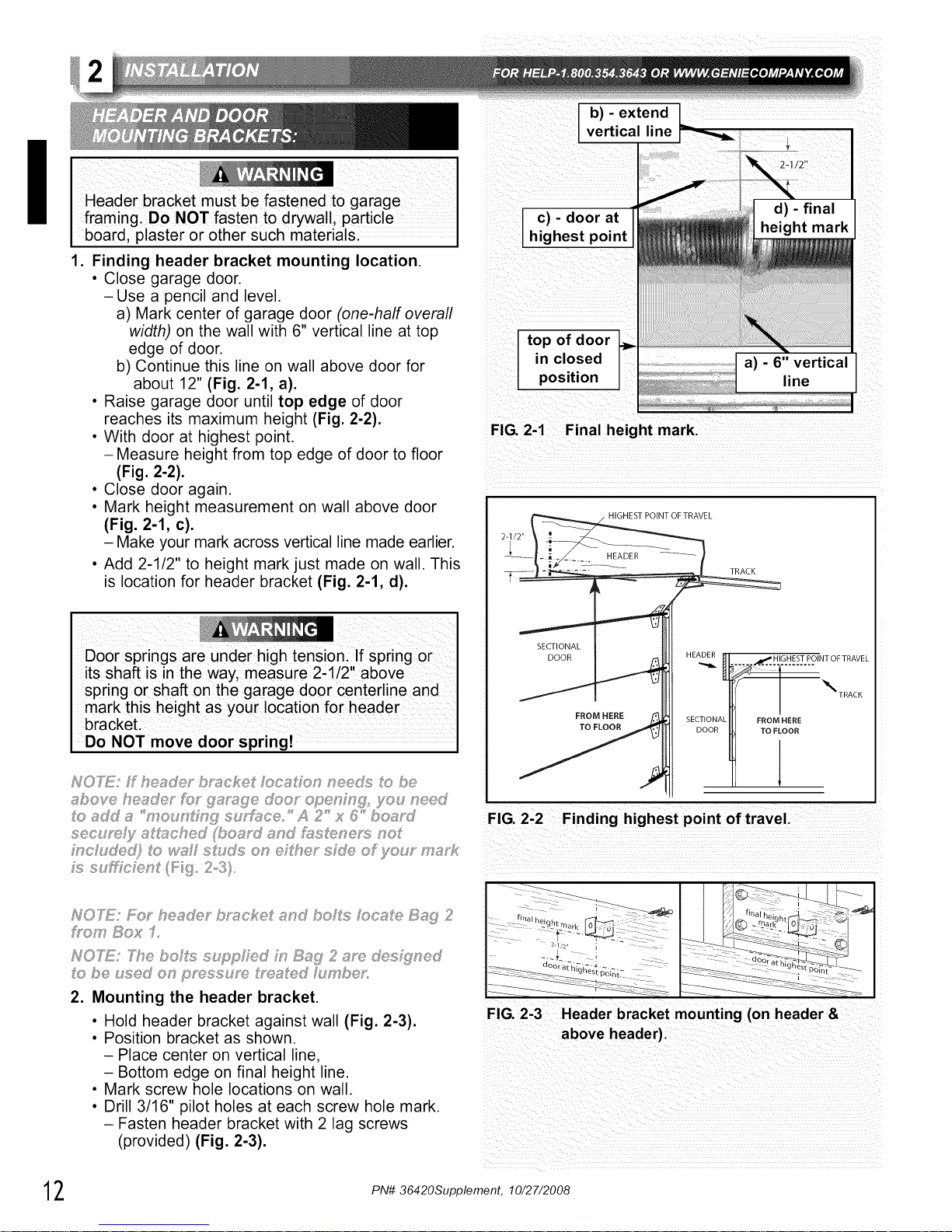

IHeade bac et ustbe aste ed toga age I
framing, Do NOT fasten to drywalt, particle
board, p aster or other such mater a sl
1. Finding header bracket mounting location.
• Close garage door.
-Use a pencil and level.
a) Mark center of garage door (one-half overall
width) on the wall with 6" vertical line at top
edge of door.
b) Continue this line on wall above door for
about 12" (Fig. 2-1, a).
• Raise garage door until top edge of door
reaches its maximum height (Fig. 2-2).
• With door at highest point.
- Measure height from top edge of door to floor
(Fig. 2-2).
• Close door again.
• Mark height measurement on wall above door
(Fig. 2-1, c).
- Make your mark across vertical line made earlier.
• Add 2-1/2" to height mark just made on wall. This
is location for header bracket (Fig. 2-1, d).
Door springs are under high tension: If spring or
its shaft is in the way, measure 2'1/2 above
spring or shaft onthe garage door centerline and
mark this height as your location for header
DoNOT move door spring!
N077,S; 7T_ebo£s s_,@Mi>Redin Is_s£2 _;,e des{{iFned
©£)e _Jsed 02S/3£s2SSSf'Fs2 £(iA_t<<?;dut}< _}et '}
2. Mounting the header bracket.
• Hold header bracket against wall (Fig. 2-3).
• Position bracket as shown.
- Place center on vertical line,
- Bottom edge on final height line.
• Mark screw hole locations on wall.
• Drill 3/16" pilot holes at each screw hole mark.
- Fasten header bracket with 2 lag screws
(provided) (Fig. 2-3).
b)- extendvertical line
d--0W-
highest point
/ /
top of door
2q 12"
;;_ ;__I_Lii ZZZZZZZZZZZZZZZZZZZZZZZZZZIIII
NT OFTRAVEL
SECTIONAL I Iit
_ - -\T=_C_
FROM HERE SECTIONAL "
FIG. 2-2 Finding highest point of travel.
final height mar#
21/2'
I _q al he ghtr-'L -- t:_:;;
/- rna k u" _
FIG. 2-3 Header bracket mounting (on header &
above header).
2PN# 36420Supplement, 10/27/2008

1. Getting started.
• Position assembled rail on wall next to header
bracket (Fig. 2-4).
-Place material on floor under power head to
protect from scratching. (A box, stool, or
similar device may be needed to clear a
torsion spring.)
_'e_:,_ueu pis ho_,
/HEADER BRACKET_
VIEW
FROM ABOVE
(not to scale)
2. Mounting the assembly. .o .o
• Attach rail to header bracket using clevis pin YES/SI/OL
and cotter pin.
• Support power head on step-ladder to prevent FIG. 2-4 Position assembly and align.
interference with header mounted (torsion)
spring (Fig. 2-5). COTTER PiN
I
Chain drive
shown
FIG. 2-5 Rail mounting to header bracket.
ANGLE IRON ON FINISHED CEILING
j©@ -
ooooooo ©[
o/-o/
0 ,
Attach angle iron to beams
UNFINISHED OR OPEN BEAM
Extra framing
not needed ,,,_._
Mounting Straps
not provided
bolts & nuts
bolts & nuts
Extra framing
NEEDED
.... '_V;:" '
NO _:: Before Ffn_?_;_ __c_menI: o cei ;ng; ms_:,re
NO'X8!: _::_YnuS_;; boFfs 8_nd F_£ screws Foc_te Bog
3 boo So;_ 1
• On finished ceilings, locate ceiling joists or
trusses using a stud finder or similar device.
Attach angle iron (not provided) to joists or
trusses through finish material using (provided)
lag screws (Fig. 2-6).
• On unfinished ceilings or open ceilings, straps
may attach directly to joists or trusses.
Depending on the garage construction, extra
framing material (not provided) which may be
required should be installed using appropriate
construction techniques (Fig. 2-6).
_pp_opH_i_te cons_ ucdon _ech_'ffques
• Attach mounting straps to ceiling using lag
bolts (Fig. 2-6).
• Set height of power head to following
(Fig. 2-6).
a) Rail must clear door at door's highest point
of travel.
b) Be level or power head slightly below level.
• Securely tighten power head mounting bolts
and nuts.
• Lower door.
• Check that rail clamp bolts and nuts are tight.
•DO NOT PLUG OPENER IN YET!
I
FIG. 2-6 Mounting the power head.
PN# 36420Supplement, 10/27/2008 13

Ifiberglass, and sheet meta! must be properly
braced before mounting door opener. Contact
door manufacturer or distributor for a bracing kit.
The Genie Company is not responsible for
damage caused due to improperly braced door:
h'c_m Box 2
.
.
Finding door bracket mounting location.
•Door bracket is mounted as high on door as
possible along vertical centerline and NO LOWER
THAN top set of rollers (Fig. 2-7).
Mounting the door bracket.
• Proper bracing should be verified at this point.
- Align door bracket centered on your vertical
centerline (Fig. 2-8).
- Attach using 3 self-drilling screws for sheet
metal or other light weight material.
- Use lag screws (not provided for solid
wooden sectional doors.
L -_m m m
centerline
centerline
even with or
above top roller
FIG. 2-7 Mounting
centerline of tOP roller
I I
.... T_So...... oO.-.-
o o o o
i
FIG. 2-8 Examples of door bracket positioning.
NOT_[!: F:o_"soh'd wood d_,)o_'_;c_;_y_,_gebo _:_;
WTYHOUT SLOT H_YiDS (30 nc uded_ _'?,_y
a_t,_obe used f_::__;',_;_ch_ _7doo_"by:_ck,e_,
co te_/p ns _oc_}te B_£ 5h'o£ Box 2
1. Attach the arms.
• Fasten short branch of curved door arm to door
bracket using bolt and locking nut (Fig. 2-9}.
• Fasten straight arm to carriage using clevis pin
and cotter pin (Fig. 2-9).
2. Connecting the arms.
• Slide carriage back and forth to adjust arm length.
- Position the straight arm 50 ° down from the
rail.
• With the arms arranged in this position, fasten
arms together using bolts and nuts spaced as
far apart as possible (Fig. 2-9).
short clevis pin & cotter pin
FIG. 2-9 Attaching door arms.
bolts as far
apart as
possible
4PN# 36420Supplement, 10/27/2008

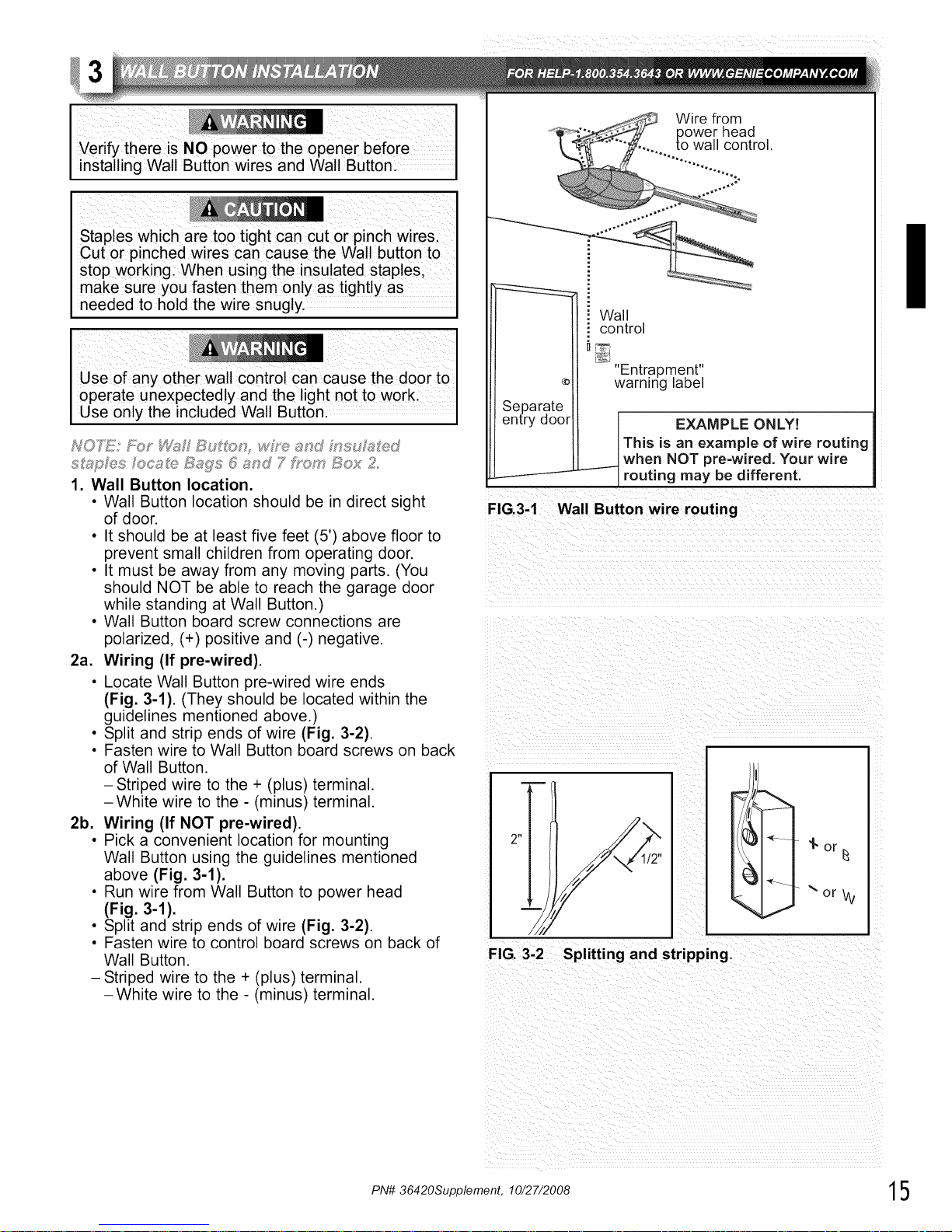

Cut or pinched wires can cause the Walt button to
stop workingl When using the insu!ated staples,
make sure you fasten them only as tightly as
needed to hold the wire snugly.
Use0f any other wall control can cause the dOor to I
operate unexpectedly and the light not to work. I
Use only the included Walt Buttonl I
s£_;;pes _oc_,_£eB_Ws _ _nd 7 #yon Box 2
1. Wall Button location.
• Wall Button location should be in direct sight
of door.
• It should be at least five feet (5') above floor to
prevent small children from operating door.
• It must be away from any moving parts. (You
should NOT be able to reach the garage door
while standing at Wall Button.)
• Wall Button board screw connections are
polarized, (+) positive and (-) negative.
2a. Wiring (If pre-wired).
• Locate Wall Button pre-wired wire ends
(Fig. 3-1). (They should be located within the
guidelines mentioned above.)
• Split and strip ends of wire (Fig. 3-2).
• Fasten wire to Wall Button board screws on back
of Wall Button.
-Striped wire to the + (plus) terminal.
-White wire to the - (minus) terminal.
2b. Wiring (If NOT pro-wired).
• Pick a convenient location for mounting
Wall Button using the guidelines mentioned
above (Fig. 3-1).
• Run wire from Wall Button to power head
(Fig. 3-1).
• Split and strip ends of wire (Fig. 3-2).
• Fasten wire to control board screws on back of
Wall Button.
- Striped wire to the + (plus) terminal.
-White wire to the - (minus) terminal.
Wire from
3oOWerhead
wall control.
...............::::.
(b
Separate
entry door
Wall
control
"Entrapment"
warning label
!EXAMPLE ONLY!
This is an example of wire routing
when NOT pre-wired. Your wire
- _ay be different.
FIG.3-1 Wall Button wire routing
FIG. 3-2 Splitting and stripping.
I

I
3.Securely fasten wires.
• Securely fasten wires to ceiling and
wall using insulated staples provided.
-Use insulated staples.
-Staples should be snug only. Insulated
• If rear cover is attached to power head, Staple
remove it.
• On power head:
-Route Wall Button wires through wire guide.
- Split and strip ends of wire (Fig. 3-2 on
previous page).
- Insert wire into terminal holes and lightly press in
the orange locking clips above each terminal
hole. (You can use a pencil or small screwdriver
to comfortably press in locking clips.) The white
wire into #1 terminal hole and striped wire into
the #2 terminal hole.
- Confirm wire lock by lightly tugging on the wire.
The wire should remain in the terminal hole.
• Do NOT install rear cover yet.
4. Mounting.
• Fasten Wall Button to wall with 2 screws
(provided) (Fig. 3-4).
• Remove protective backing from "Entrapment"
warning label (Fig. 3-5). The "Entrapment" label
is located in the center of this manual.
- Stick label on wall near Wall Button.
LOCKIng
CI_s_ Termina
(Power Head With Rear Cover Removed)
FIG. 3-3 Insert wires.
f
f
FIG. 3-4 Mounting Wall Button.
FIG. 3-5 Mounting Entrapment warning label.
6PN# 36420Supplement, 10/27/2008

There should be no electrical power tothe opener
while installing Safe-T-Beam® wire&If you have
plugged in the power cord UNPLUG ITNOW!
NOX8!: Foy Se;sso£s, sc_'-_?s4£wM% a;sd _:nsuh_ed
sS2pFes Mc,_Ae £e_'_.s and _!;a£ 8 ho_. _!;ox 3
1. Mounting brackets.
• Mark both sides of garage door frame or wall no
higher than 6" and no lower than 5" above floor
(Fig. 4-1).
• Hold bracket against door frame or wall.
-Check if brackets extend out from wall far
enough, so tongue of bracket is beyond door,
tracks or any door hardware.
-If not:
a) Mounting bracket extensions are available
through an authorized Genie ®Dealer.
b) Blocks of wood, etc. may be substituted for
extensions.
• Center bracket on your mark (Fig. 4-2).
• Fasten each with 2 screws (Fig. 4-2).
NO_£- _.usd)W bmc£eLs can be a_I'.,_ched_o @e
_fooy'oy'concye_s';_£fft_.u,_:_;/n£concy_s¢®8nchoys
2. Mounting Safe-T-Beam ®Source (Red LED) and
Sensor (Green LED).
• If garage has only one garage door.
- Determine which side of garage receives most
direct sunlight (Fig. 4-4).
-Red LED should always be on sunny side
whenever possible (Fig. 4-4).
• For multiple doors.
-Preventing crossed signals is critical.
-Place source and sensor modules on adjacent
doors facing in opposite directions (Fig. 4-4).
NO'X_!: 70 help p_'eve_s,Af_>_"_?nc e horn su_'_
S__h>..7..Seam senso_' w£h G_<,_enL nay b®
phced F_._'_;se_'away horn the @0_" ®pe_'hW_
ff_ou£h exS:f_.ded _.®f_.__he_'out ho_, _he wsA/,
_#hem £ v;_£ spe;¢d mo;,s ;h_e in s ,_/ow.
• Slide source/sensor onto tongue of bracket until
it clicks into place (Fig. 4-3).
3a. Wiring (If NOT pre-wired).
• Route wire from Safe-T-Beam ®sensors to power
head using method shown in (Fig. 4-5a).
• Securely fasten wires to wall and ceiling ST
as you go (Fig. 4-6 on next page).
-Use insulated staples.
-Staples should be snug only. Insulated
Staple
FIG. 4'1 Mark door framel
FIG. 4-2
Mounting brackets.
(
ONE DOOR j
GARAGE
FIG. 4-3 Attach
sensors to brackets.
I
TWO DOOR
GARAGE
THREE DOOR
GARAGE
FIG. 4-4 Safe-T-Beam ®source and sensor
locations.
Power
Head Dashed Line = striped wire
Solid Line = white wire
FIG. 4-5a Source and sensor wiring methods.
I
PN# 36420Supplement, 10/27/2008 17

I
3b. Wiring (pre-wired).
Route wire from wall to Safe-T-Beam ®sensors
(Fig. 4-5b).
Splice pre-wiring to shortened sensor wire,
match wire pairs dash-to-dash and
plain-to-plain.
- Trim sensor wire to approximately one foot
(1 ft) from sensor.
- Split and strip ends of sensor wires and
pre-wired wires (Fig. 4-7).
- Splice wires together with (provided)
wire nuts.
Route wire from ceiling to power head Wire Nut
(Fig. 4-5b).
Securely fasten wires where they exit tl
wall and ceiling as you go.
-Use insulated staples.
-Staples should be snug only. Insulated
Staple
Cut or pinched wires can cause the Safe,T-Beam ®
System to stop working: When using the insulated
staples, make sure you fasten them only as tightly
as needed to hold the wire snugly.
4. Split and strip ends of sensor wires (Fig. 4-7).
5. Attach Safe-T-Beam ®wire to power head wire
terminal.
• Route Safe-T-Beam ®wires through wire guide.
-Insert wire into terminal holes and lightly press
in the orange locking clips above each terminal
hole. (You can use a pencil or small
screwdriver to comfortably reach in and lightly
press down locking clips.) Insert white wires to
'even' numbered terminal holes and striped
wires into 'odd' terminal holes (Fig. 4-8).
Locking
i,_s_ Terminal
[_/ Holes
_r_q r_q
r
L.
I I Source
L \ I
Ceiling _ n
)
Power (
Head
1 '1
I I
1 I
i65 43 21]or165 43 211
Dashed Line = striped wire
Solid Line = white wire
Insert Wire
Wire Into Connector .. .... "'"
', _ Wire
_=_ _1 _ [=_ I, I wire routing
pre-wired
Sensor
S..... _,,.._.,_....Diij,r.o,t_ec,t/o_ng/_,reaea m
Splitting and stripping.
FIG. 4-8
Insert wires.
- Confirm wire lock by lightly tugging on the wire.
The wire should remain in the terminal hole.
• Install rear cover. The rear cover is the same
color as the power head clips and body
(Fig. 4-9).
• Do not install the white (lamp) cover at this time.
poweu (see p_;we S!) O0 HOT PLUG FH YET_
(Power Head With Rear Cover Removed)
Cover clips
FIG. 4-9 Install rear cover.
8PAl# 36420Supplement, 10/27/2008

has a grounded type plug that includes a third
(grounding) pin. This plug witl on!y fit a grounded type
outlet. If you do not have a grounded outlet, contact
a qualified licensed electrician to install onel DO NOT
alter the plug in any way. The d_r opener must be
properly grounded in order to prevent personal injury
and damage to the components.
• DO NOT remove motor coVerl All Work performed
on motor must be done by a trained door system
technician.
are not required to have your garage door opener
permanently wired, with circuit breaker protection:
If bui!ding codes require door opener to be
Permanently wired have aqua ified licensed
electrician connect power with permanent wiring.
Plug the opener into a properly grounded
electrical outlet (Fig. 5-1).
Instructions for Electrician.
• Remove power from circuit.
• Remove rear cover and motor cover.
- Remove four motor cover screws (Fig. 5-2).
• Remove existing power cord and strain relief
from the 7/8" dia. hole and discard (Fig. 5-3).
• Connect permanent wiring to power head using
7/8" diameter hole.
-White to white/black to black/ground to green.
-Use only UL recognized wire nuts.
• Wires inside the power head must be at least 6"
in length.
• Replace motor cover and rear cover and
re-energize the circuit.
HOTLY!?'T_ (S_enk,?Co_9_ny Lsre <espon_J_b?,<,_FOr
@_s,r;gs resuF_J<:_9_o;¢ w®_g,_pmfbm, ed @ _n
Check Safe-T-Beam ®alignment (Fig. 5-4).
• Insure that no part of door or its hardware is
in path between lenses of source and sensor.
• Insure that tops of lenses are between 5" - 6"
above the floor (Fig. 5-4). The brackets are
flexible, and can be adjusted slightly if needed.
• Adjust the Red LED transmitter by aiming the
unit directly at the Green LED receiver. Use the
adjustment screw located on the top of the
transmitter housing to make adjustments.
• The Red LED transmitter will blink if there is a
misalignment. When the LED units are aligned
the Red LED will remain ON continuously.
• After the alignment is finished tighten the
adjustment screws on both sensors.
FIG. 5-1 Connect to power.
Motor Cover Screws
FIG. 5-2 Remove motor cover.
FIG. 5-3 Power cord strain relief.
Do NOT use an extension cord.
Do NOT use a portable generator. This product
is designed to operate using standard
household current.
Do NOT use alternate power supplies.
FIG. 5,4 Check Safe,T-Beam® alignment.
,
,
3.
,
When the garage door is opening, its movement
will not be influenced if the Safe-T-Beam ®is
obstructed.
If the Safe-T-Beam ®is obstructed before the
garage door fully closes, the door will not close.
When the garage door is closing, if Safe-T-Beam ®
is cut off by people or obstacle, the garage door
will reverse automatically to its fully opened position.
(Meanwhile, the opener light will keep blinking until
door moves to its fully opened position.)
If the Safe-T-Beam ®System fails, loses power,
or is installed improperly, you will have to press
and hold the Wall Button "close" button until the
door reaches its fully closed position. The LED
indicator light on the power head will be green
and blink twice (Pattern: C-_ pause _ pause)
to inform you to eliminate problem first.
Otherwise, the door will reverse automatically to
its fully opened position if you release the
"close" button on the Wall Button during the
closing movement.
I
PN# 36420Supplement, 10/27/2008 19

I
closing force is set too high.
,Never increase the door closing force above the
minimum required to move the door.
described on page 22 and in Section 10.
The OPEN (UP) and CLOSE (DOWN) door positions
are controlled by making the adjustments on the
panel located on the bottom of the power head. The
adjustments that can be made are:
• Close Travel Limit,
• Open Travel Limit,
Maximum Closing Force
Maximum Opening Force
Transmitter Programming
ENGAGE CHAIN/BELT CONNECTOR TO
CARRIAGE
1. Press and hold the "Close Travel Limit" [] button
until the chain or belt connector advances and
engages to the Carriage Assembly (FIG 6-2).
Limit Controls location
on power head.
\\\
LED
ndicator Lignx
o
3arag_ Door
Ooex
Ooer Set Limit _o Force
,,,,, Travel Limit Button
\_ I_IlS_ [ OPEN COntrOl
ustmen£
LEARN MANUAL LIMIT FORCE
Code CODE Close CLOSE Down Force
Button Close
Travel Limit Set Limit Contro
3utton Adjus_men_
FIG. 6-1 Limit controls.
20
CLOSE TRAVEL LIMIT
1. Press and hold the "Close Travel Limit" [] button
until the door is fully closed.
2. You can quickly press and release the "Close
Travel Limit" [] button to move the door in small
increments. You can also use the "Open Travel
Limit" [] button to move the door slightly in the
UP direction.
3. Door is fully closed when the bottom edge of door
presses firmly onto the ground.
4. Once the door is in the desired position, press and
release the "Down SET Limit" [] button. The
LED indicator light light will blink green once. This
stores the closed position in memory.
OPEN TRAVEL LIMIT
1. Press and hold the "Open Travel Limit" [] button
to move the door to its fully opened position. This
starts the opener moving in the UP direction.
2. Hold the "Open Travel Limit" [] button until the
door is in the fully opened position that you desire,
then release this button.
3. You can quickly press and release the "Open
Travel Limit" [] button to move the door in small
increments. You can also use the "Close Travel
Limit" [] button to move the door slightly in the
DOWN direction.
4. Once the door is in the desired position, press
and release the "Open SET Limit" [] button.
The LED indicator light will blink green twice.
This stores the opened position in memory.
La_cr
Movement
Carriage Assembly
J
/
Chain Connector
Movement
=alcn
_ovement
Carriage Assembly
/
Belt Connector
Movement
FIG. 6-2 Engage Chain/Belt Connector to Carriage.
Operation of the opener without the Chain or Belt
Con nector engaged to the Carriage Assembly will
result in damage to rail components including the
rail pulley.
PN# 36420Supplement, 10/27/2008
