Geovent GEOFILTER DUST User manual

GEOFILTER DUST
INSTRUCTION MANUAL
www.geovent.com
Version 1.0 17.05.21

2

3
Contents
1.0 Introduction ..............................3
2.0 Safety ..................................3
2.1 General safety .......................... 3
2.2 Danger .................................3
3.0 Machine overview ........................ 4
3.1 Description ............................. 4
3.2 Intended use ............................ 4
3.3 Machine specifications .................... 4
3.3.1 Design ............................... 4
3.3.2 Technical data ......................... 4
4.0 Transport, handling and storage . . . . . . . . . . . . . 4
5.0 Assembly, installation and start of operation ... 4
5.1 Location ............................... 4
5.2 Installation ............................. 5
5.3 Control and test of the security system ........5
6.0 Commissioning .......................... 5
6.1 After installation ......................... 5
7.0 Control, test and maintenance .............. 5
7.1 Control ................................ 5
7.2 Maintenance .............................5
8.0 Cleaning ................................5
9.0 Troubleshooting ......................... 5
10.0 Dismantling, disabling and scrapping ........ 5
11.0 Dimensions ............................ 6
12.0 Liability ............................... 6
13.0 Declaration of conformity ................. 6
14.0 Spare part list .......................... 7
1.0 Introduction
This manual is made and designed in order to facilitate
the best and most secure interaction with the product.
The manual is relevant for people involved in transpor-
tation, stocking, installation, using, maintaining and all
other thinkable interaction with the product.
The manual must be read in full and understood before
interacting with the product.
When the manual has been read and understood in full,
the table of contents can be used to find the relevant
information in each case.
The product is manufactured by:
Geovent A/S
Hovedgaden 86
DK-8861 Løgstrup
DENMARK
Tel.: [phone]
E-mail: [email protected]
www.geovent.com
This manual is to be used for all interactions with the
product including: Transportation, stocking, installation,
operation and maintenance.

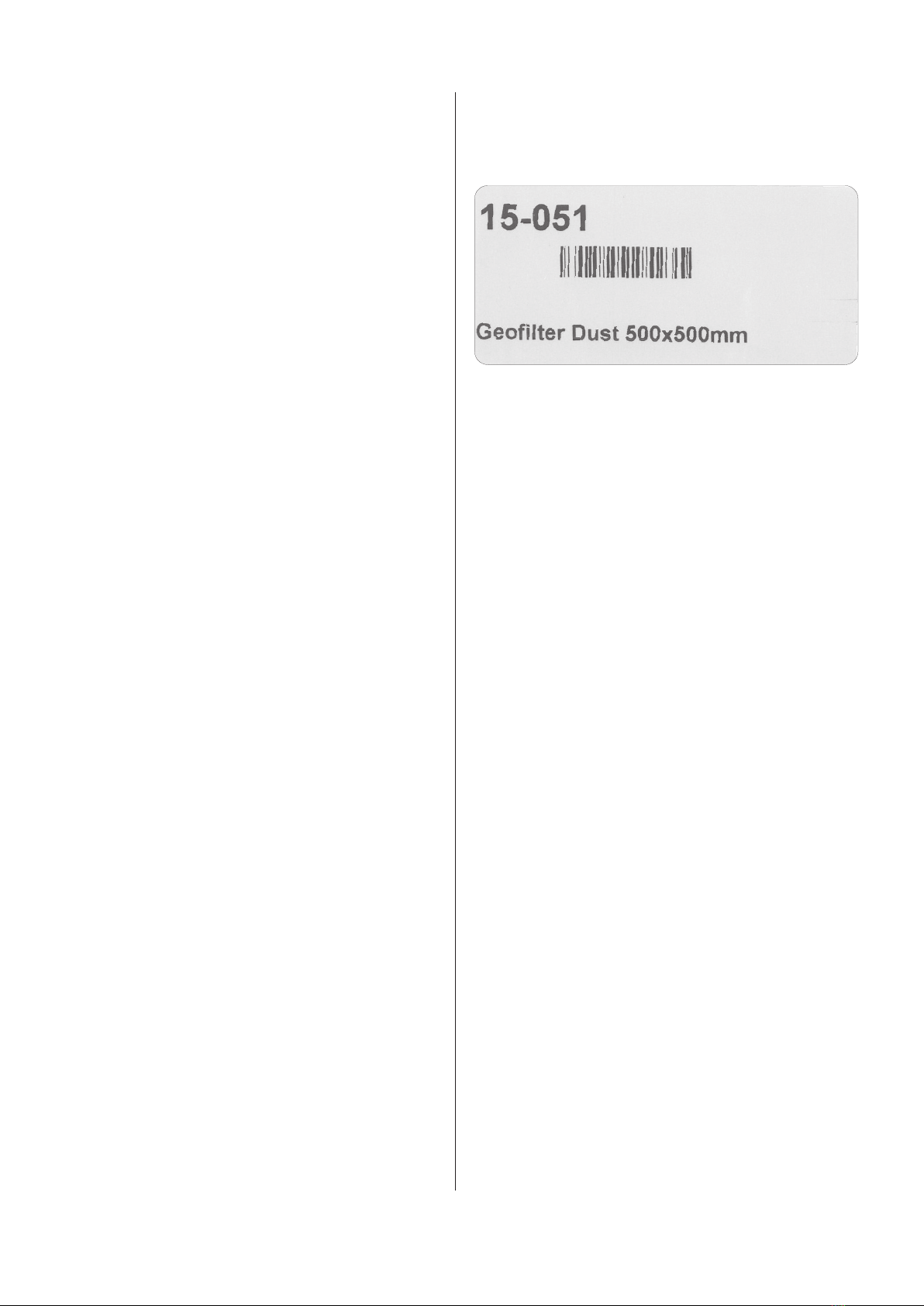

This product is marked with: (example)
2.0 Safety
2.1 General safety
Carefully read this manual before use and observe the
safety instructions in order to avoid injuries!
Keep this manual in a safe place!
Secure that all users of the product have read this ma-
nual and that they follow the instructions as described.
Observe all instructions marked on the product!
Observe the indications of the manufacturer.
Never use the product if you are in doubt about how it
works or what you should do.
When doing maintenance follow the instructions in chap-
ter 7.0.
Do not modify the product or use spare parts from other
suppliers than Geovent, as this may hamper the product
and the function.
2.2 Danger
You must wear safety gloves when handling or using the
product to protect your hands from scratches etc.
Be aware that the product may tilt when you move it.
You must handle the product with care and tie it safely to
the truck or the fork lift when it is in transport.
Follow the instructions in chapter 7.0 when the product
is maintained.
When handling the product be sure that the there is no
risk for the installer, and secure that there are no people
around the product, secure that the product cannot fall
down risking to injure persons or subjects.
The product is not to be used in areas categorised as
ATEX zones, e.g. with dust from aluminium, flour, wood,
and other mediums that present an explosion hazard.
In case of problems:

4
If a repair is not possible you should dispose of the pro-
duct. Please follow the instruction for disposal in chapter
10.0.
3.0 Machine overview
3.1. Description
The GeoFilter Dust is a dustlter and it can be
applied as a supplement to existing extraction
systems.
3.2 Intended use
This preliminary separation is intended for being
built into the a ventilation duct system, where
separate ltration is required, for example at
grinders, belt sanders, etc. for the protection of the
extraction fan.
The lter mat is mounted in a retractable lter
drawer.
Example of application
3.3 Machine specifications
3.3.1 Design
Cabinet: Galvanized steel
Powder coated
Filter box: Galvanized steel, 494x494mm,
EU3 filter
3.3.2 Technical data
Model/Dimension A
[mm]
B
[mm]
Inlet
[mm]
GeoFilter Dust 500 540 ø322np
Model/Dimension Outlet [mm] Weight [kg]
GeoFilter Dust ø315np 90
GeoFilter Dust with 500 x 540 mm EU3 filter
(85% separation v. 0,3μm).
Initial pressure drop: 55 Pa at 1.500 m³/h.
Max. airflow: 1.500 m³/h.
Connection: ø315 mm NP
4.0 Transport, handling and storage
During transport in a truck or in another means of trans-
portation the product must be securely packed in a box
or a pallet and covered with a water proff material.
The product must be securely stowed in the truck so that
it will neither tilt nor shift during transport.
During transport over a short distance e.g. in a stock or
a factory, the product can be moved by means of a for-
klift or a stabeler.
When moved it must be secured that the product does
not tilt or shift. And it must be secured that the limitations
of the means of transportation is not exceeded.
Secure that there are no people around the product,
when the product is moved.
The product must be placed in a dry place and covered
securely, in order to secure that moist, metal parts or
other substances do not damage the product.
It is not allowed to place anything on top of the product.
5.0 Assembly, installation and start of
operation
5.1 Location
For error-free performance, the product should be in-
stalled indoors. We do not recommend outdoor instal-
lation.
Before installing the filter, please make sure that the op-
Fan
MSFG 200-3
Reduction 315/200
Belt Sander
Grinder
Plastic bag
Damper 160
Spiro duct Ø160
Reduction 315/160
Spiro duct Ø200
GeoFilter Dust

5
timum installation area is selected. Is there room enough
for the filter? Is there space enough for carrying out sa-
tisfactory installation/-service of the filter?
5.2 Installation
GeoFilter Dust must be installed indoors. Outdoor instal-
lation is normally not recommended.
GeoFilter Dust is supplied complete and ready for instal-
lation.
Before installation consider the best placement for the
GeoFilter Dust. Is there space enough for carrying out
satisfactory installation/-service of the filter?
The following installation should be done by a trained
professional.
Procedure:
Attach the filter to the wall or attach the ducts to the wall.
Mount the ducts on the GeoFilter Dust.
5.3 Control and test of the security system
Before use the function of the filter should be tested.
Make sure that the entire installation is air tight.
If a whistling sound is heard locate the leak and seal
using flexible mastic.
6.0 Commissioning
Turn the entire system on and check it according to
chapter 5.3.
6.1 After installation
Check the installation according to chapter 5.3.
7.0 Control, test and maintenance
7.1 Control
Check the installation according to chapter 5.3.
The entire extraction installation should be checked at
least once a year by a qualified service technician.
Periodic maintenance:
Check the filter cartridge at regular intervals. Clean it if it
needs to. If it is densely covered with dust that cannot be
cleaned off, the filter cartridge must be replaced.
7.2 Maintenance
The GeoFilter Dust has two built-in brushes that clean
the filter when replacing it. When changing the filter, the
filter mat must be disposed of in accordance with local
rules and regulations.
8.0 Cleaning
The outside of the product is cleaned with a vacuum
cleaner or a cloth.
9.0 Troubleshooting
In case of troubles please check the following issues.
• In GeoFilter Dust, two separate brushes are built
in, which clean the filter when replacing it. Pull the
drawer back and forth a few times.
• Replace the filter mat if necessary.
10.0 Dismantling, disabling and scrapping
It is important that these instructions are followed to avo-
id contamination of persons or the environment.
Protective equipment must be worn before separation,
gloves, goggles, respirator and protective suit,
to avoid injuries.
When disposing of the product, the filter mat must be
removed and disposed of according to local rules and
regulations.
Clean the inside of the product with a vacuum cleaner,
which has a filter designed for the purpose.
Dismantle and separate metal parts by unscrewing
them. Then cut larger parts into smaller pieces and dis-
pose of it according to local rules and regulations.
Packaging must be sorted and disposed of in accordan-
ce with local regulations and regulations.

6

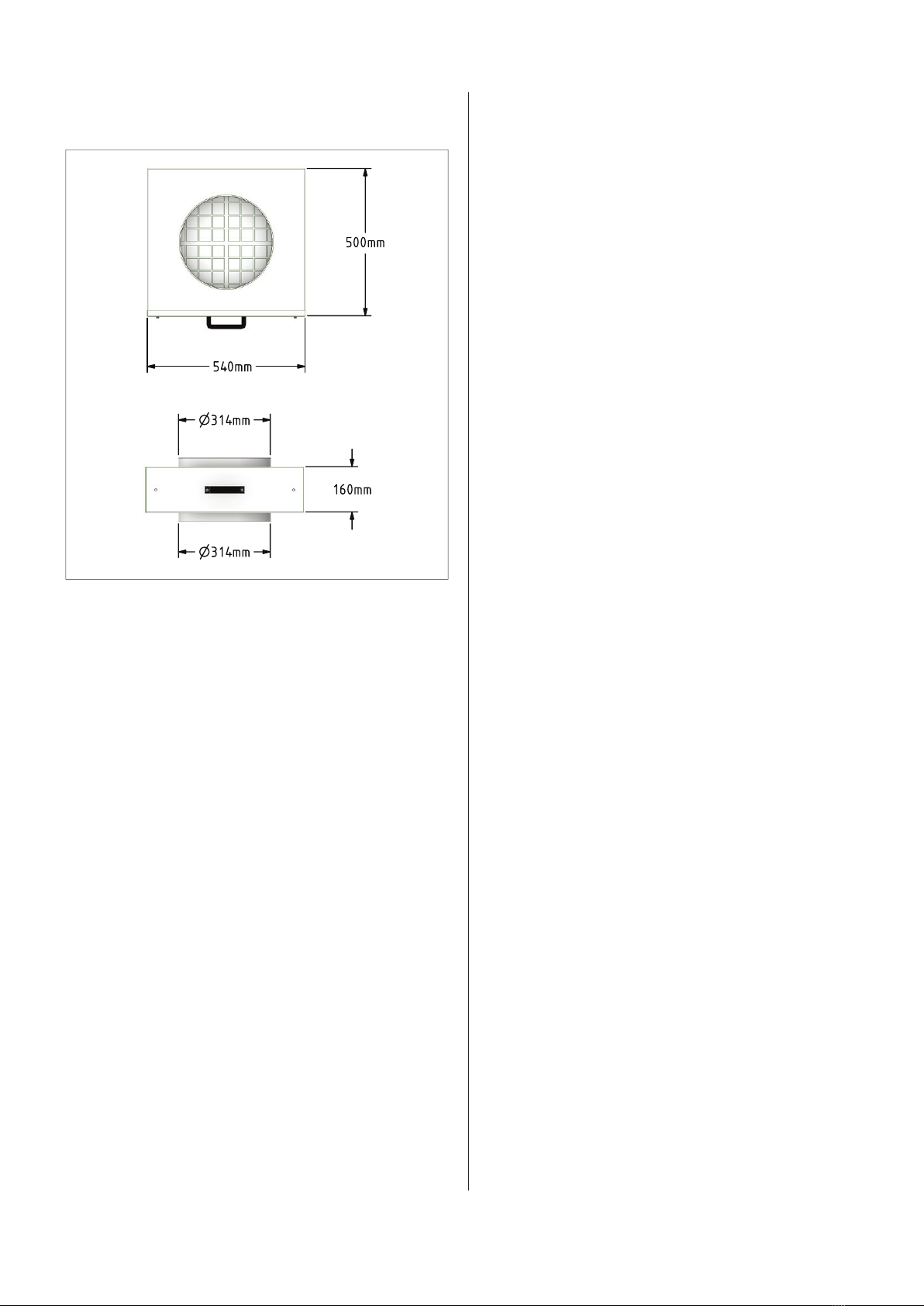

11.0 Dimensions
GeoFilter Dust
12.0 Liability
Warranty
Geovent A/S grants a warranty for products, which are
defective, when it can be proved that the defects are due
to poor manufacture or materials on the part of Geovent.
The warranty comprises remedial action (reparation or
exchange) until one year after the date of shipment.
No claims can be made against Geovent A/S in relation
to loss of earnings or consequential loss as a result of
defects on products from Geovent.
Wear on parts such as filter cartridges and hose is not
included in the warranty.
User liability
In order for Geovent to be capable of granting the decla-
red warranty, the user/fitter must follow this instruction
manual in all respects.
Under no circumstances may the products be changed
in any way, without prior written agreement with Ge-
ovent A/S.
Please refer to the current sales and delivery conditions
at www.geovent.com

7
13.0 Declaration of conformity
The manufacturer: GEOVENT A/S
HOVEDGADEN 86
DK-8831 LØGSTRUP
Hereby declares that:
The product: GeoFilter
Model: GeoFilter Dust
Complies with the relevant parts of the following directi-
ves and standards:
Directive 2006/42 / EC of the European Parliament and
of the Council of 17 May 2006 on machines and amen-
ding directives 95/16 / EC
This declaration is no more valid if changes are made to
the product by others than the manufacturer.
Authorized to collect the technical file:
Lise Cramer
Date: 17.05.2021
Position: Director
Name: Thomas Molsen
Signature: ____________________________
14.0 Spare part list
Art. No. Description
15-035 Filter cartridge EU5 f/Geofilter Dust
15-036 Filter cartridge EU4 f/GeoFilter Dust
56-074 RRL Reduction MF315-NP160
56-075 RRL Reduction MF315- NP200

HOVEDGADEN 86 • DK-8831 LØGSTRUP
([phone] • [email protected]
