S Series Datasheet 1Update: Feb./9/2007
GV-DVR SYSTEM (S Series)
GV-2016S/2008S/1480S/1240S/1120S
•Recovery DVD in case of system failure
•Operates on Windows XP Embedded
•GV-Keyboard and GV-IR Remote Control included
•Latest surveillance software preinstalled and upgradeable
•User-friendly software interface
•Built-in 4 Inputs and 4 Outputs
•Available in 14 languages
•Compatible with GeoVision optional products
•Complete product information and testing reference
•Global warranty
•FCC/CE/RoHS/WEEE certification

S Series Datasheet 2Update: Feb./9/2007
The GV-DVR is a 4U rackmount DVR system equipped with GeoVision’s video software & hardware
capture card, Windows XP Embedded and surveillance S/W within the robust chassis. It is well
equipped with HDD of a maximum size 3000GB with 4 silent CPU cooling fans. The mighty networking
enables remote access and control of the system, while GeoVision high profile video compression
technology allows superior transmission and video quality. The GV-DVR System features 8 or 16 audio
and video channels with max. 480 FPS (NTSC) / 400 FPS (PAL) display rate. Max. Resolutions can
reach full D1 on the model of GV-2008S or GV-2016S to fulfill high-profile security environment needs.
Flexible combinations of specifications and accessories are provided to meet any installation need, e.g.
enterprise, industry, retail, bank, government, casino, public utility, or even budget!
Package
•GV-DVR unit x 1
•D-Type Video Cables x 2 (1-8 Cams Black Cable x 1, 9-16 Cams Blue Cable x 1) *
•D-Type Audio Cables x 2 (1-8 Channels Red Cable x 1, 9-16 Channels Red Cable x 1) *
•D-Type Video and Audio Cable x 2 **
•AC Power Cord x 1
•RJ-11 to DB-9 Cable x 1
•Lock Key x 2
•GV-Keyboard Package x 1
•GV-IR Remote Control Package x 1
•Self-Stick Rubber Pad x 4
•Recovery DVD x 1
•Nero Express CD x 1
•Surveillance System Software CD x 1
•GV-DVR System User’s Manual x 1
•GV-DVR Quick Start Guide x 1
•Surveillance System New Feature Guide x 1
•Surveillance System Installation Guide x 1
Note : * Not supplied with GV-2008S / 2016S
** Only supplied with GV-2008S /2016S (Quantity depends on model purchased)
GV-Keyboard
GV-IR Remote Control

S Series Datasheet 3Update: Feb./9/2007
Models
GV-2016S
•Sixteen-channel digital video recorder
•Records up to 480 (NTSC) / 400 (PAL) fps at D1 resolution
•1600 GB / 2000 GB / 3000 GB storage
GV-2008S
•Eight-channel digital video recorder
•Records up to 240 (NTSC) / 200 (PAL) fps at D1 resolution
•1200 GB / 1600 GB / 2000 GB storage
GV-1480S
•Sixteen-channel digital video recorder
•Records up to 480 (NTSC) / 400 (PAL) fps at CIF resolution
•900 GB / 1200 GB / 1600 GB storage
GV-1240S
•Eight-channel or Sixteen-channel digital video recorder
•Records up to 240 (NTSC) / 200 (PAL) fps at CIF resolution
•600 GB / 1200 GB / 1600 GB storage
GV-1120S
•Sixteen-channel digital video recorder
•Records up to 120 (NTSC) / 100 (PAL) fps at CIF resolution
•300 GB / 600 GB / 1200 GB storage

S Series Datasheet 4Update: Feb./9/2007

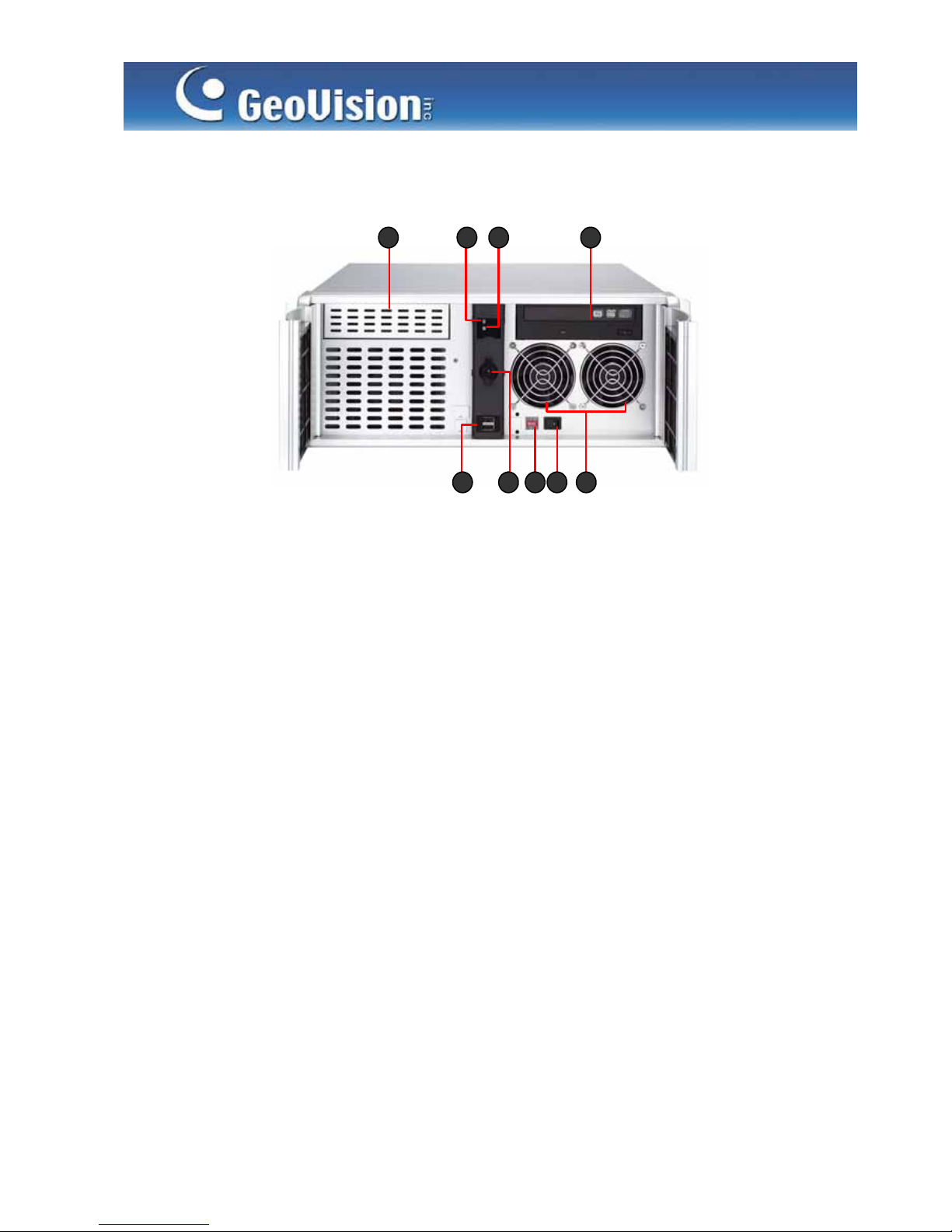

Front View
1 2 3 4
56789
1 5.25” Hard Disk Compartment 6 Power Switch
2 Power LED 7 Reset Button
3 Hard Drive Activity LED 8 Key Lock
4 DVD ±RW Drive 9 USB Port x 2
5 Fan x 2

S Series Datasheet 5Update: Feb./9/2007
Rear View
2
4
7
8
10
11
12
13
14
15
16
18
1
5
3
96
17
GV-1480S/1240S/1120S
1 Ethernet Port 7 RJ-11 Port 13 LPT Parallel Printer Port
2 Alarm Output x 4,
Sensor Input x 4
8 Audio Microphone In Port 14 DB-9 Serial Input
3 D-Type Audio Port x 2 9 Audio Line In Port 15 PS/2 Mouse Input
4 RCA TV Output 10 Audio Speaker Out Port 16 PS/2 Keyboard Input
5 D-Type Video Port x 2 11 USB Port x 4 17 AC Power Switch
6 RS-485± for PTZ Control 12 VGA Monitor Output 18 AC Power Input (110-230V)

S Series Datasheet 6Update: Feb./9/2007

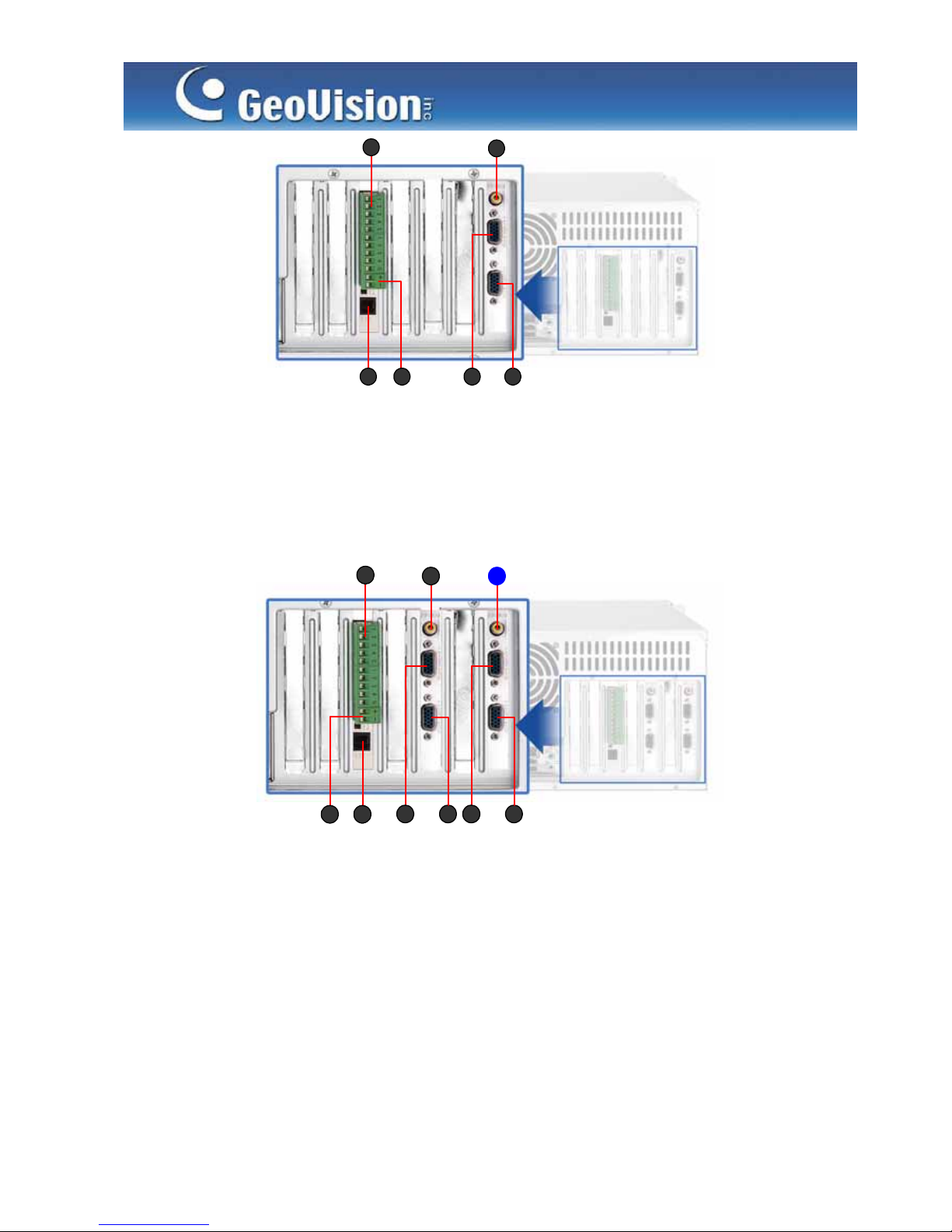

14
3 2 5 6
GV-2008S
1 Alarm Output x 4, Sensor Input x 4 4 RCA TV Output
2 RS-485±for PTZ Control 5 D-Type Audio and Video Cable 1-4
3 RJ-11 Port 6 D-Type Audio and Video Cable 5-8
1
*
37 8
4
5 6
2
GV-2016S
1 Alarm Output x 4, Sensor Input x 4 6 D-Type Audio and Video Cable 5-8
2 RS-485±for PTZ Control 7 D-Type Audio and Video Cable 9-12
3 RJ-11 Port 8 D-Type Audio and Video Cable 13-16
4 RCA TV Output (1) ＊Not functional
5 D-Type Audio and Video Cable 1-4
Note:
Owing to the installation of different GV Video Capture Cards, the rear panel may vary from model to model of
GV-DVR series. The only difference between these models is the slot arrangement.

S Series Datasheet 7Update: Feb./9/2007
Basic System Specifications
Note:
* The above specifications are default model for purchase.
** Quotation is decided by the size of HDD.
*** Please see P16 for the list of optional products, and contact your dealer or sales representative for further
information.
Model GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S
Motherboard Intel 945G Chipset or above
CPU Intel Pentium 4 3.0GHz, 800MHz FSB or above
RAM 2GB
Dual Channel
1GB
Dual Channel
512MB
Dual Channel
1600GB 1200GB 900GB 600GB 300GB
2000GB 1600GB 1200GB 1200GB 600GB
HDD *
3000GB 2000GB 1600GB 1600GB 1200GB
OS Microsoft Windows XP Embedded OEM
VGA Intel GMA 950 or above
DirectX 9.0c
DVD (±) RW 16X
Fan Front: 3 fans, Rear: 1 fans
Power 450 W, 110-230 V, 60-50 Hz

S Series Datasheet 8Update: Feb./9/2007
Video
Audio
Model GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S
Video Standard NTSC, PAL
Video Input 16 channels 8 channels 16 channels 8/16 channels 16 channels
Input Level 1.0 Vp-p (±10%) composite, 75 Ω
TV Output 1.0 Vp-p composite
S/W: Geo MPEG4 / Geo Mpeg4
(ASP) / Geo H264
Compression
H/W: MPEG-2 / MPEG-4
Geo MPEG4 / Geo Mpeg4 (ASP) /
Geo H264
NTSC 480 FPSDisplay Frame
(Max) PAL 400 FPS
NTSC
360 x 240 /
720 x 480 /
720 x 480 De-interlace
320 x 240 /
640 x 480 / 640 x 480 De-interlace /
720 x 480 / 720 x 480 De-interlace
Display
Resolution
PAL
360 x 288 /
720 x 576 /
720 x 576 De-interlace
320 x 240 /
640 x 480 / 640 x 480 De-interlace /
720 x 576 / 720 x 576 De-interlace
Camera Name Max. 32 characters
Screen Split Control 1x1 / 2x2 / 1+5 / 1+7 / 3x3 / 2+8 / 1+12 / 1+16 / 4x4
Screen Rotate Control 1 ~ 10 sec.
Image Control Contrast / Brightness / Saturation / Hue
Model GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S
Audio Input 16 channels 8 channels 16 channels 8/16 channels 16 channels
Input Level 0.5 ~ 1 Vp-p composite
Compression ADPCM / G.723

S Series Datasheet 9Update: Feb./9/2007
Recording
Model GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S
NTSC H/W:
480 (D1)
H/W:
240 (D1)
S/W:
480 (CIF)
S/W:
240 (CIF)
S/W:
120 (CIF)
Recording
Frame
PAL H/W:
400 (D1)
H/W:
200 (D1)
S/W:
400 (CIF)
S/W:
200 (CIF)
S/W:
100 (CIF)
NTSC 720x480 / 720x480 De-interlace 720x480 / 720x480 De-interlace / 640x480 /
640x480 De-interlace / 320x240
Compression
Dimensions PAL 720x576 / 720x576 De-interlace 720x576 / 720x576 De-interlace / 640x480 /
640x480 De-interlace / 320x240
Recording Mode Round the Clock / Motion Detection / Sensor Detection / Pre & Post Recording /
Schedule Recording
Schedule 96 groups per day by 15 min.
Instant Playback 10 sec. / 30 sec. / 1 min. / 5 min.
Pre Recording 1~ 90 sec. (1 FPS)
Water Marking Support
Searching and Playback
Search Method Date / Time
Date / Time / Event
Search Selectable on the tree list and calendar
Log Search Through the log data to find the video event / time
Backup Type DVD+R (DL) / DVD-R (DL) / DVD+R / DVD+RW / DVD-R / DVD-RW / CD-R /
CD-RW
Remote Client Software
Monitoring Environment
WebCam / Twin Server / CenterV2 / VSM / Control Center / Remote Playback
Server / Remote View / IP Multicast / GView for PDA / MSView for Microsoft
Smartphone / SSView Version 2 for Symbian Smartphone / SSView Version 3 for
Nokia S60 2nd / 3G Mobile Phone
WebCam Live View Max. 16 channels transmission (Max. 200 channels accessible)
Remote Search WebCam’s Remote Playback / Remote Playback Server

S Series Datasheet 10 Update: Feb./9/2007
System Monitoring and Recovery
Power Restoration Power restored after AC power loss
Monitoring Two independent Watchdogs (Hardware Watchdog + Software Watchdog)
Recovery DVD Automatic system rebuild
Alarm
Standard 4 inputs
GV-IO 12-In Card (Optional) 16 inputs
Sensor Input
GV-IO Box (Optional) 8 ~ 72 inputs
Standard 4 outputs
GV-IO 12-Out Card (Optional) 16 outputs
Alarm Output
GV-IO Box (Optional) 16 ~ 144 outputs
Motion Detection 16 channels
Connector
Video Input BNC 8 / 16 ports
Video Loop Output
(Optional) BNC 16 ports
Audio Input RCA 8 / 16 ports
Audio Microphone In Mini stereo jack
Audio Output Mini stereo jack
TV Output RCA
RS±485 for PTZ
Control 2-pin terminal
Ethernet RJ-45, 10/100/1000 Mbps
USB 2.0 Front: 2 ports, Rear: 4 ports
VGA Output 15-pin female D Sub
Remote Access TCP/IP

S Series Datasheet 11 Update: Feb./9/2007
Environment
Operating Temp. 0 ~ 50 °C (32 ~ 104 °F)
Humidity 0 ~ 80% RH (non-condensing)
Physical
Model GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S
IPC Case 4U Rackmount
Color Silver
Dimensions 483 (W) x 178 (H) x 528 (D) mm (19 x 7 x 21 inch)
300GB x x x x 17 Kg
600GB x x x 17.6 Kg 17.6 Kg
900GB x x 18.2 Kg x x
1200GB x 18.9 Kg 18.8 Kg 18.8 Kg 18.8 Kg
1600GB 19.1 Kg 18.9 Kg 18.8 Kg 18.8 Kg x
2000GB 19.1 Kg 18.9 Kg x x x
Weight
3000GB 19.1 Kg x x x x

S Series Datasheet 12 Update: Feb./9/2007
PTZ Support
PTZ Manufacturer & Model GV-System PTZ Option
1 Ademco (Juptier) Ademco (Juptier)
2 Bosch (TC700/8560) Bosch (TC700/8560)
3 Canon VC-C3 VCC3
4 Canon VC-C4 VCC4
5 CBC GANZ (ZC-S120 Series) CBC GANZ (ZC-S120 Series)
6 Chiper (V9KRV) Chiper (V9KRV)
7 D-Max Version Protocol D-Max Dome
8 DiGi Dome (DOH-240) DongYang Dome (DOH-240) / D-Max Dome
9 Direct Perception (PTU-D46) Direct Perception (PTU Series)
10 DynaColor D-7720 DynaColor (D-7720/D7722) / DynaColor Dome
11 DynaColor D-7722 DynaColor Dome
12 DynaColor Version Protocol DynaColor Dome
13 Elbex (Matrix/1000) ELBEX (Matrix/1000)
14 Elitar (EL-PT830) Pelco Dome
15 GKB (SPD-221) GKB (SPD-221)
16 Hi-Sharp (HS-CC600) HiSharp Pelco D
17 Hi-Sharp (HS-CC610) HiSharp Pelco P
18 JEC Version Protocol JEC Dome
19 JEC (ETXK8000) Pelco Dome / JEC Dome
20 JVC (TK-S576B/S655) JVC (TK-S5768B/S655)
21 Kalatel Cyber Dome with KTD-312 Kalatel Cyber Dome
22 Kampro 230X CCD Zoom Camera (GE Security) Pelco Dome
23 Kampro Technology (K-ZC23) Kampro Technology (K-ZC23)
24 Kenko (DMP23-H1) Kenko (DMP23-H1)
25 LiLin PIH-7000 (17X) Lilin (PIH)
26 LiLin PIH-7600 (22X) Lilin (PIH)
27 LiLin PIH-7600PL Lilin (PIH)
28 LiLin PIH-7625 (25X) Lilin (PIH)
29 LG (LPT-OS553HQ) LG (LPT-OS553HQ)
30 Mintron (54G2AHN/P) Mintron
31 MESSOA (SDS600 Series) MESSOS (SDS600 Series)
32 Minking Version Protocol Minking Dome
33 Mintron (54G2AHN/P) Mintron (54G2SHN/P)
34 MZC (IR6018DN) Pelco Dome

S Series Datasheet 13 Update: Feb./9/2007
35 NanWang (NVD 2300PNT) NanWang (NVD 2300PNT)
36 Panasonic WV-CS850 Panasonic (WV-CS850)
37 Panasonic WV-CS854 Panasonic (WV-CS850)
38 PTZ in I/O PTZ in I/O
39 Pelco/P-version Protocol Pelco Dome
40 Pelco/D-version Protocol Pelco Dome
41 Pelco (Spectra III) Pelco (Spectra III)
42 SAE (DR-E588) SAE (DR-E588)
43 Samsung (SPD-1600) Samsung (SPD-1600)
44 Samsung (SPD-3300) Samsung (SPD-3300)
45 Samsung (SCC-641) Samsung (SCC-641/643)
46 Samsung (SCC-643) Samsung (SCC-641/643)
47 Sensormatic (Ultra IV) Sensormatic (Ultra IV)
48 Sony EVI-D100 Sony (EVI-D100)
49 Sony EVI-D100T Sony (EVI-D100)
50 TOA (CC551) TOA (CC551)
51 VIDO Dome VIDO Dome
52 YAAN Version Protocol YAAN Dome
53 Yoko (YK-2E00) Pelco Dome
Note:
This list is limited to the original models from the company mentioned above. Any third-party camera models,
even claiming of the same protocol compatibility, may or may not work properly with GV-System. GeoVision
takes no responsibility of such incompatibility.

S Series Datasheet 14 Update: Feb./9/2007
GeoVision Optional Products
Optional devices can expand your GV-DVR’s capabilities and versatility. Contact your dealer or go to GeoVision
web-site for more information.
GV-Video Loop Through Card
This card can take the video signal from the GV-DVR and then split it into 16
signals while maintaining video quality. It can meet the need for multiple spot
monitors.
GV-IO 12-In Card
With 12-point digital inputs, this card can expand the GV-DVR up to 16 sensor
inputs.
GV-IO 12-Out Card
With 12-point relay outputs, this card can expand the GV-DVR up to 16 alarm
outputs.
GV-Multi Quad Card
With this card, the GV-DVR can connect up to 5 TV screens. The screen
divisions on the TV screens can be definable.
GV-I/O Box
With 8 input points and 16 output points, this unit can be used alone for digital
inputs. Or it can be used in combination with GV-RELAY Boxes to expand
GV-DVR’s I/O capability.
GV-RELAY Box
With 8-point relay outputs, this unit must be used in combination with GV-I/O
Box. Up to 2 GV-RELAY Boxes can connect to 1 GV-I/O Box, highly expanding
the GV-DVR’s I/O capability.

S Series Datasheet 15 Update: Feb./9/2007
GV-Data Capture V3 /V3E
GV-Data Capture V3 can integrate the GV-DVR to an electronic POS system,
while GV-Data Capture V3E can establish such integration through LAN or
Internet.
GV-Hub
An easy way for serial port extension. This hub can add 4 RS-232/RS-485 serial
ports through the GV-DVR’s USB port.
GV-COM
This unit can add 1 RS-232/RS-485 serial port through the GV-DVR’s USB port.
Other Optional Products
HDD HDD optional can be customized to meet different needs. The maximum limit is
3000GB.
VGA Card The function of dual display is provided, you can choose optional VGA card supports
dual VGA output.
RAM The amount of RAM installed in GV-DVR can be customized to meet different needs.
The maximum limit is 2G.
DOM
(Disk on Module)
This small device is a solid state hard drive, performing well in harsh conditions to
provide better data storage.
Language
English / Czech / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese (Brazil) /
Russian / Spanish / Simplified Chinese / Traditional Chinese
Warranty
2 Years

S Series Datasheet 16 Update: Feb./9/2007
Order Information
Note:
* GV-DVR Systems come with default specifications with standard price list.
** All the optional products shown on the table can be ordered separately, you need to contact your dealer or sales
representative for pricing and ordering of optional products.
*** The purchased optional products will be added on the GV-DVR before shipment.
Model Item GV-2016S GV-2008S GV-1480S GV-1240S GV-1120S
HDD (GB)
1600 /
2000 /
3000
1200 /
1600 /
2000
900 /
1200 /
1600
600 /
1200 /
1600
300 /
600 /
1200
VGA Single
Output
Single
Output
Single
Output
Single
Output
Single
Output
Default
RAM 2GB 1GB 512MB 512MB 512MB
HDD (Total GB) No 3000 2000 /
3000
2000 /
3000
2000 /
3000
VGA Dual
Output
Dual
Output
Dual
Output
Dual
Output
Dual
Output
RAM (Total) No 2GB 1GB / 2GB
Other
Optional
Products
DOM (Disk On Module) Yes / No Yes / N o Yes / No Yes / No Yes / No
GV-Video Loop Through Card Yes / No Yes / No Yes / No Yes / No Yes / N o
GV-IO 12-In Card Yes / No Yes / No Yes / N o Yes / No Yes / No
GV-IO 12-Out Card Yes / No Yes / No Yes / No Yes / No Yes / No
GV-Multi Quad Card Yes / No Ye s / No Yes / No Yes / No Yes / N o
GV-I/O Box Yes / No Yes / No Yes / No Yes / No Yes / No
GV-Relay Box Yes / No Yes / No Yes / No Yes / No Yes / N o
GV-Data Capture V3 / V3E V3 / V3E V3 / V3E V3 / V3E V3 / V3E
GV-Hub Yes / No Yes / No Yes / No Yes / No Yes / N o
GeoVision
Optional
Products
GV-Com Yes / No Yes / No Yes / N o Yes / No Yes / No

S Series Datasheet 17 Update: Feb./9/2007
* Product design and specifications are subject to change without prior notice.
* All brand names are registered trademarks referred are the properties to their respective owners.
* 2007 GeoVision Inc. all rights reserved.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
Email: [email protected]; [email protected]
Web-Site: http://www.geovision.com.tw
