GeoVision GV-DVR E100 User manual

Welcome to the GV-DVR E100 System User’s Manual.
The Manual provides an overview of the GV-DVR E100 System and its accessories. It also
includes the instructions to guide you through the installation and use of the GV-DVR E100
System:
•Chapter 1, Introduction
Identifies the GV-DVR’s accessories and options.
•Chapter 2, Overview
Identifies the GV-DVR’s components.
•Chapter 3, Getting Started
Provides step-by-step instructions on setting up the GV-DVR E100.
•Chapter 4, DVR Health Analysis
Introduces how to collect data to obtain the service of DVR health analysis
from GeoVision.
•Chapter 5, Troubleshooting
Suggests courses of action if the GV-DVR doesn’t seem to be working properly.
The instructions and figures in this manual are based on GV-System version 8.3.
GV-DVR E100
User’s Manual

Contents
Regulatory Notices................................................................................................... 4
Safety Instructions ................................................................................................... 5
Chapter 1 Introduction ......................................................................................... 6
1.1 Unpacking............................................................................................................. 6
1.2 Models .................................................................................................................. 8
1.3 Options ................................................................................................................. 9
Chapter 2 Overview .............................................................................................10
2.1 Front View............................................................................................................10
2.2 Rear View ............................................................................................................11
Chapter 3 Getting Started....................................................................................13
3.1 Basic Installation ..................................................................................................13
3.2 Turning on the Power ...........................................................................................14
3.3 Configuring an IP Address....................................................................................15
3.4 Extended Installation............................................................................................17
3.5 Recovery DVD .....................................................................................................20
3.6 Updating GV-DVR System ...................................................................................22
Chapter 4 DVR Health Analysis ..........................................................................23
4.1 System Settings ...................................................................................................23
4.2 System Log ..........................................................................................................25
4.3 Information of Your Computer System..................................................................26
4.4 Health Analysis Form ...........................................................................................28
4.5 Check List ............................................................................................................28
Chapter 5 Troubleshooting .................................................................................29
Specifications ..........................................................................................................36
Warranty Policy........................................................................................................40
Warranty Form .......................................................................................................433

4
Regulatory Notices
FCC Notice
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
Class A
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at their own expense.
CE Notice
This is a Class A product. In a domestic environment, this product may cause radio interference in
which case the user may be required to take adequate measures.
RoHS Compliance
The Restriction of Hazardous Substances (RoHS) Directive is to forbid the use of hazardous materials
of production. To meet the RoHS Directive requirements, this product is made to be RoHS compliant.
WEEE Compliance
This product is subject to the Waste Electrical and Electronic Equipment (WEEE) Directive and made
compliant with the WEEE requirements.

5
Safety Instructions
Observe these safety instructions to help ensure against injury to yourself and damage to the
product.
Read all safety and installation instructions before you operate the product.
Do not operate the product in high humidity areas or expose it to water or moisture.
Do not put the product in an unstable, a slanting or vibrated place.
Do not block any ventilation opening.
Do not install the product near any heat sources such as radiator, heat register or other
apparatus that produce heat.
Operate the product using only the type of power source indicated on the marking label.
Do not defeat the safety purpose of the grounding-type plug. A grounding plug has two blades
and a third grounding prong. The third prong is provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Do not overload wall outlets or extension cords, as this may cause fire or electric shock.
Do not use the product when abnormality occurs, such as emitting smoke from the product,
smelling burning, being damaged by drop, invasion of foreign objects inside the product, etc. Be
always sure to remove the AC adaptor at once and contact your dealer.
Do not use accessories or attachments not recommended by the manufacturer, as they may
cause hazards and void the warranty.
Do not attempt to service the product yourself, as removing the casing may expose you to
dangerous voltage and void the warranty.

6
Chapter 1 Introduction
1.1 Unpacking
The GV-DVR E100 package includes the following items:
Important: Please keep the original carton and all packing materials for future shipping need.
1. GV-DVR E100 System x 1
2. D-Type Audio Cable x 2 / 4 for 32 channel DVR
(1 x 1-8 Channels Red Cable, 1 x 9-16 Channels Red Cable)
3. RJ-11 to DB9 Cable x 1
4. Lock Key x 2
5. AC Power Cord x 1

Introduction
7
1
6. GV-Keyboard Package x 1
7. IR Remote Control Package x 1
8. Recovery DVD x 1
9. Nero Express CD x 1
10. Surveillance System Software CD x 1
11. GV-DVR E100 System User’s Manual x 1
12. Surveillance System New Feature Guide x 1
13. Surveillance System Installation Guide x 1
If any of the items are missing or damaged, contact your dealer to arrange a replacement.

8
1.2 Models
The GV-DVR E100 is available in the following configurations:
GV-2016 - Sixteen-channel digital video recorder
- Records up to 400 (PAL) fps at the D1 resolution
- Has the option of 1500GB, 2000GB, 2500GB internal storage
GV-2008 - Eight-channel digital video recorder
- Records up to 200 (PAL) fps at the D1 resolution
- Has the option of 1500GB, 2000GB, 2500GB internal storage
GV-1480 - Up to 32 channel digital video recorder
- Records up to 800 (PAL) fps at the CIF resolution
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-1240 - Up to 32 channel digital video recorder
- Records up to 400 (PAL) fps at the CIF resolution
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-1120 - Up to 32 channel digital video recorder
- Records up to 200 (PAL) fps at the CIF resolution
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-800 - up to 32 channel digital video recorder
- Records up to 200 (PAL) fps at the CIF resolution
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-650 - up to 32 channel digital video recorder
- records up to 100 (PAL) fps at the CIF resolution
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-2016 Hybrid - 16 channels of H/W compressed analog and 16 channels of IP video recording
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-2008 Hybrid - 8 channels of H/W compressed analog and 24 channels of IP video recording
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-1480 Hybrid - 16 channels of analog and up to 16 channels of IP video recording
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-1240 Hybrid - 8 or 16 channels of analog and up to 24 channels of IP video recording
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-1120 Hybrid - 8 or 16 channels of analog and up to 24 channels of IP video recording
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-800 Hybrid - Up to 32 channels of analog and IP video recording
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage
GV-650 Hybrid - Up to 32 channels of analog and IP video recording
- Has the option of 500GB, 1000GB, 1500GB, 2000GB, 2500GB internal storage

Introduction
9
1
1.3 Options
Optional devices can expand your GV-DVR E100’s capabilities and versatility. Contact your dealer for
more information.
GV-IO 12-In Card With 12-point digital inputs, this card can expand the GV-DVR up to
16 sensor inputs.
GV-IO 12-Out Card With 12-point relay outputs, this card can expand the GV-DVR up to
16 alarm outputs.
GV-Multi Quad Card With this card, the GV-DVR can connect up to 5 TV screens. The
screen divisions on the TV screens can be definable.
GV-Data Capture V3 Series GV-Data Capture V3 can integrate the GV-DVR to an electronic
POS system, while GV-Data Capture V3E can establish such
integration through LAN or Internet.
GV-IO BOX 4 Ports The GV-IO Box 4 provides 4 inputs and 4 relay outputs. It supports
both DC and AC output voltages, and provides a USB port for PC
connection.
GV-IO BOX 8 Ports The GV-IO Box 8 provides 8 inputs and 8 relay outputs. It supports
both DC and AC output voltages, and provides a USB port for PC
connection.
GV-COM Box This unit can add 1 RS-232/RS-485 serial port through the
GV-DVR’s USB port.
GV-Joystick GV-Joystick facilitates the PTZ camera control. It can be either
plugged into the GV-DVR for independent use or connected to
GV-Keyboard to empower the operation. However, this device can
only work on GV-System version 8.2 or later.
Hard Disk Multiple options for the HDD capacity are available to meet different
needs.
Storage system Is a high-performance RAID storage system based on the latest
iSCSI technology. It provides a centralized network recording
solution over TCP/IP by enabling the storage of multiple video and
audio streams at the same time.
Note: The purchased GV-series cards will be added on the GV-DVR before shipment.

10
Chapter 2 Overview
2.1 Front View

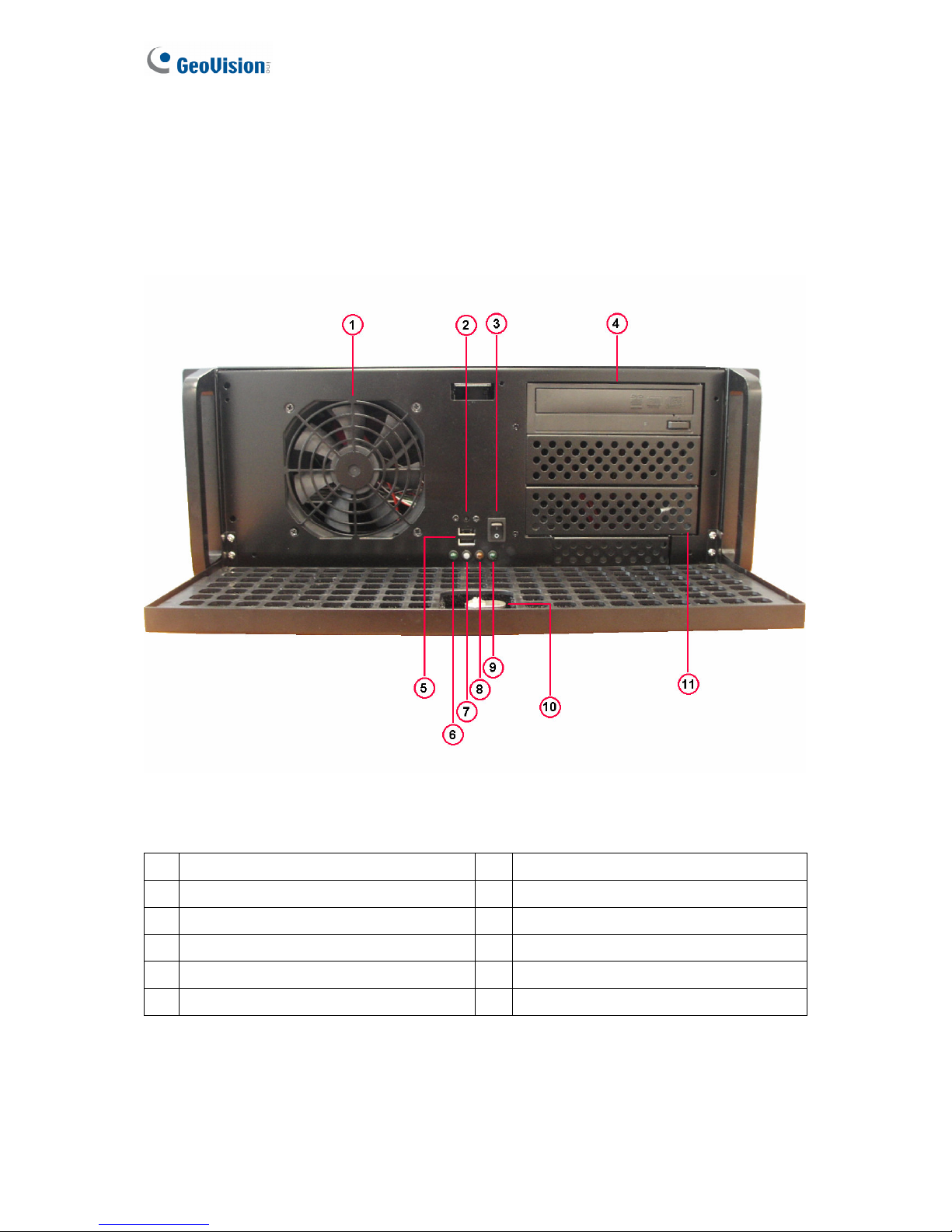

Figure 1
1 Fan 6 System LED
2 Reset switch 7 Fan fail LED
3 Power switch 8 HDD LED
4 DVD ±RW Drive 9 Power LED
5 USB Port x 2 10 Key lock
11 5.25” Hard Disk Compartment

Overview
11
2
2.2 Rear View
Figure 2
1 AC Power Switch 14 Audio Line In Port
2 AC Power Input (Full Range) 15 Rear speaker out (for HD audio)
3 PS/2 Keyboard Input 16 Audio Line Out Port
4 USB Port x 2 17 Side speaker out (for HD audio)
5 HDMI interface 18 Audio Microphone In Port
6 VGA Monitor Port (D-sub) 19 BNC Connector x 16
7 VGA Monitor Port (DVI) 20 BNC Connector x 16
8 USB Port x 2 21 D-Type Audio Port x 2
9 IEEE 1394 22 D-Type Audio Port x 2
10 E-Sata 23 RJ-11 Port
11 Ethernet Port 24 RS-485 ± for PTZ Control
12 USB Port x 2 25 RCA TV Output
13 Center/ subwoofer (for HD audio) 26

12

Getting Started
13
3
Chapter 3 Getting Started
3.1 Basic Installation
Basic installation describes all the equipments required to program and operate the GV-DVR E100.
Figure 3
1. Using the supplied power cord, connect one end to the AC input and the other end to the power
outlet.
2. Connect the keyboard to the PS/2 input.
3. Connect the mouse to the PS/2 input.
4. Using the VGA cable supplied by the monitor manufacturer, connect the VGA monitor.
5. For video lost beep, connect Speakers to the Audio Line Out port.
6. Using the RJ-45 cable, connect one end to the Ethernet port and the other end to Network.
7. Using the BNC video cables, connect one end to the BNC connectors and the other end to video
sources.
8. Using the supplied D-type audio cables, connect one end to the audio ports and the other end to
audio sources.
Note: The monitor you use must be capable of having a screen resolution of 1280 x 1024 and display
color of 32 bits.

14
3.2 Turning on the Power
Once the above hardware is properly connected, it is the time to turn on the GV-DVR. To turn on the
power, follow these steps:
1. Turn on the monitor.
On
Figure 4
2. Turn on the AC power switch on the rear panel.
Figure 5
3. Turn on the main power switch on the front panel.
Figure 6
The GV-DVR will run a series of self-tests. After two or three minutes, a series of messages may be
displayed as the various hardware and software subsystems are activated. After this finishes, the
GV-System Software (Multicam Surveillance System) should load automatically and bring you to the
main screen with 8 or 16 cameras display.

Getting Started
15
3
3.3 Configuring an IP Address
The purpose of configuring an IP address is to support the remote monitoring, control and configuration
of the GV-DVR over a network connection.
The GV-DVR is enabled for DHCP network. An IP address will be automatically allocated when the
GV-DVR E100 is powered up. Despite the DHCP setting, it is recommended that a static IP address be
configured on the unit.
The GV-DVR uses Windows operating system to configure an IP address. For this, you must exit to
Windows.
Note: Exiting to the Windows operating system is a protected feature. The default ID and Password is
“0000”.
Exit to Windows
1. Exit the main screen to display the GV-Desktop screen.
Figure 7 Exit the main screen
2. Click the Settings button, and enter the valid ID and Password to display the Settings dialog box.
3. Under Desktop Type, select Windows from the drop-down list, and click OK.
4. Click the Log Off button, and enter the valid ID and Password to display the Windows desktop.

16
5. Configure a static IP address on the Windows XP platform. Check your network administrator if you
have questions about the configuration.
2 34
Figure 8 The GV-Desktop
Back to GV-Desktop
Click the Windows Start button, point to Programs, select GVCombo, and click Key Lock Utility.
Figure 9 Windows XP desktop

Getting Started
17
3
3.4 Extended Installation
Beyond basic installation, the GV-DVR E100 package provides the following accessories to make your
unit even more powerful and convenient:
GV-Keyboard
IR-Remote Control
RJ-11 to DB9 Cable for PTZ control
GV-Keyboard
The GV-Keyboard is designed to operate the GV-DVR E100 exclusively. Using the USB cable supplied
with the GV-Keyboard, plug one end into the GV-Keyboard and the other end into the assigned USB
port (COM11) on the front of the GV-DVR; you can operate the Keyboard immediately without installing
any drivers.
For details on the GV-Keyboard, find the Installation Manual included in its own package.
Figure 10
It is also possible to plug the Keyboard into other USB ports of the GV-DVR E100. For this, you must
modify the default COM port on the Multicam Controller pop-up once the Keyboard is connected. See
Figure 11-1.

18
To modify the default COM port:
1. Click to stop the Keyboard service first.
2. In the Port 1 field, modify the port number from the drop-down list. For the port allocation, refer to
Figure 11-2.
3. Click to start the service.
2
1
Figure 11-1 Figure 11-2
IR Remote Control
The IR Remote Control is another plug-and-play device. Simply plug the Receiver into any USB ports of
the GV-DVR E100.
For details on the IR Remote Control, find the User’s Manual included in its own package.
Figure 12

Getting Started
19
3
I/O Devices
The GV-DVR E100, with built-in GV-NET/IO Card, provides 4 alarm outputs and 4 sensor inputs.
Figure 13
PTZ Domes
When connecting PTZ domes, you need to plug the supplied RJ-11 to DB9 cable into the DB9 port of
the GV-DVR E100.
Figure 14

20
3.5 Recovery DVD
If preinstalled files are damaged, use the supplied Recovery DVD to restore them. To restore the
operation system and all preinstalled software, follow these steps:
Note: After recovery, you need to re-install all settings and passwords. But the recovery will not delete
your recording files saved in the GV-DVR since it only reformats the partition C and all of your files are
still stored at other partitions.
1. Insert the Recovery DVD, and restart the GV-DVR.
2. The message “Are you sure want to recover C partition?”will appear. Click Yes.
Figure 15
3. When the recovery is complete, the message “Operation completed. Please take out
disks from DVD-ROM” will appear. Click Yes,and remove the DVD.
Figure 16
