GeoVision GV-HOT SWAP User manual

© 2006 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part, without the
written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is accurate.
GeoVision is not responsible for printing or clerical errors.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
http://www.geovision.com.tw
The Windows XP Embedded is the componentized version of Microsoft Windows XP
Professional, forsaking much functionality that Windows XP Professional provides and
meeting the specific requirements of GV-Hot Swap DVR System. For details on embedded
operation systems, please visit Microsoft's website.
Trademarks used in this manual: GeoVision, the GeoVision logo, GV-Hot Swap DVR System,
and GV series products are trademarks of GeoVision, Inc. Windows and Windows XP are
registered trademarks of Microsoft Corporation. Other company and product names
mentioned herein are trademarks of their respective companies. GeoVision assumes no
responsibility with regard to the performance or use of these products.
May 2006

3
Regulatory Notices
FCC Notice
This equipment has been tested and found to comply with the limits for a Class Adigital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
Class A
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at their own
expense.
CE Notice
This is a Class A product. In a domestic environment, this product may cause radio
interference in which case the user may be required to take adequate measures.

4
Safety Instructions
Observe these safety instructions to help ensure against injury to yourself and damage
to the product.
 Read all safety and installation instructions before you operate the product.
 Do not operate the product in high humidity areas or expose it to water or moisture.
 Do not put the product in an unstable, a slanting or vibrated place.
 Do not block any ventilation opening.
 Do not install the product near any heat sources such as radiator, heat register or
other apparatus that produce heat.
 Operate the product using only the type of power source indicated on the marking label.
 Do not defeat the safety purpose of the grounding-type plug.Agrounding plug has two
blades and a third grounding prong. The third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
 Do not overload wall outlets or extension cords, as this may cause fire or electric
shock.
 Do not use the product when abnormality occurs, such as emitting smoke from the
product, smelling burning, being damaged by drop, invasion of foreign objects inside the
product, etc. Be always sure to remove the AC adaptor at once and contact your dealer.
 Do not use accessories or attachments not recommended by the manufacturer, as they
may cause hazards and void the warranty.
 Do not attempt to service the product yourself, as removing the casing may expose
you to dangerous voltage and void the warranty.

Welcome to the GV-Hot Swap DVR System User’s Manual.
The Manual provides an overview of the GV-Hot Swap DVR System and its
accessories. It also includes the instructions to guide you through the installation and
use of the GV-Hot Swap DVR System:
• Chapter 1, Introduction
Identifies the GV-Hot Swap DVR’s accessories and options.
• Chapter 2, Overview
Identifies the GV-Hot Swap DVR’s components.
• Chapter 3, Getting Started
Provides step-by-step instructions on setting up the GV-Hot Swap DVR.
• Chapter 4, Troubleshooting
Suggests courses of action if the GV-Hot Swap DVR doesn’t seem to be working
properly.
User’s Manual for
GV-Hot Swap DVR System

Table of Contents
Regulatory Notices…………………………………………………………………….. 3
Safety Instructions…………………………………………………………………….. 4
Chapter 1 Introduction………….….……………………………………………….. 5
1-1 Unpacking…………………….……………………………………………. 5
1-2 Models………………….……….………………………………………….. 7
1-3 Options……………...……………………………………………………… 8
Chapter 2 Overview………………………….…………………………………………………….. 9

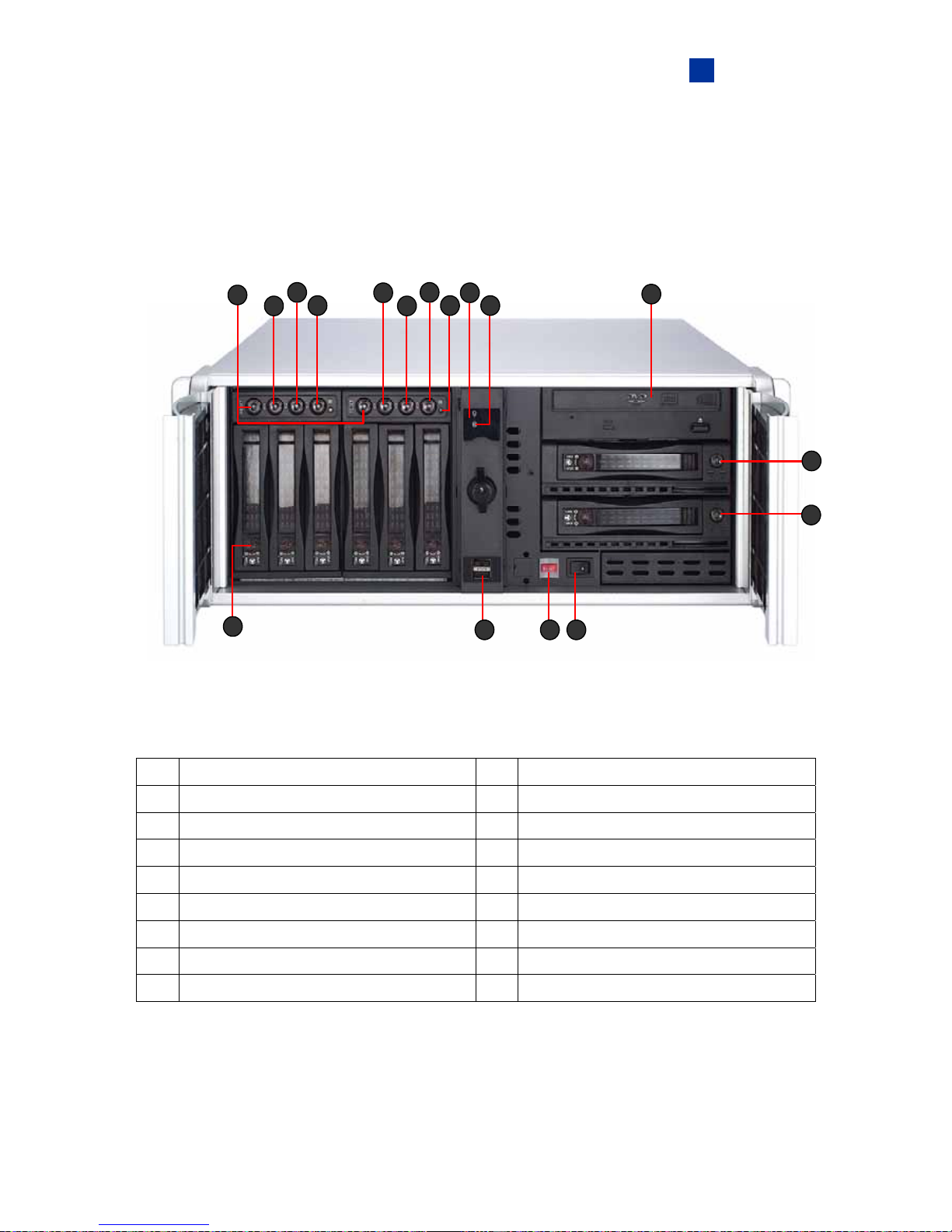

2-1 Front View………………………………………………………………….. 9
2-2 Rear View….……………………………………………………………….. 10
Chapter 3 Getting Started.………………………………………………………………………. 11

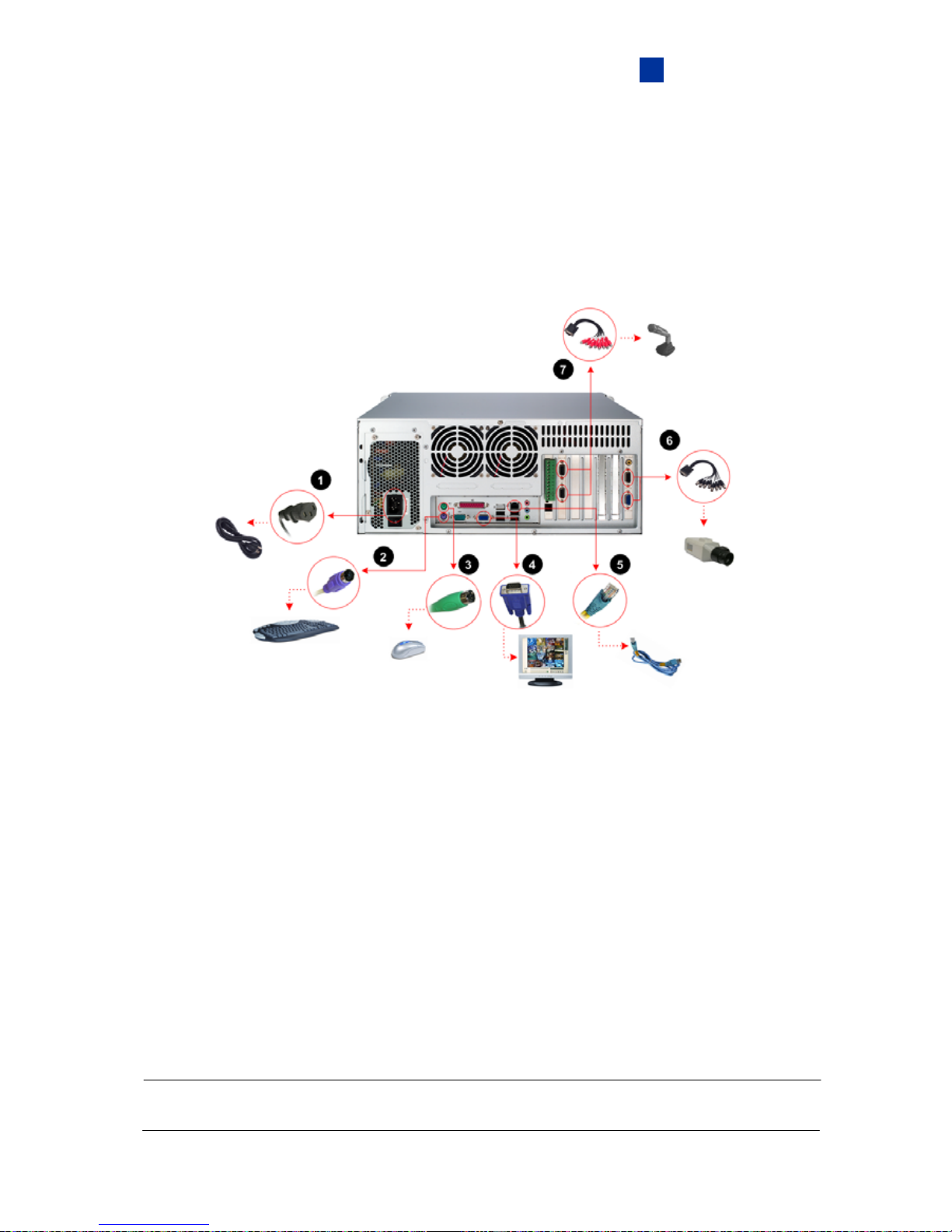

3-1 Basic Installation…….…………………………………………………….. 11
3-2 Turning on the Power……………………………………………………… 12
3-3 Installing the Hard Drive…………………………………………………... 13

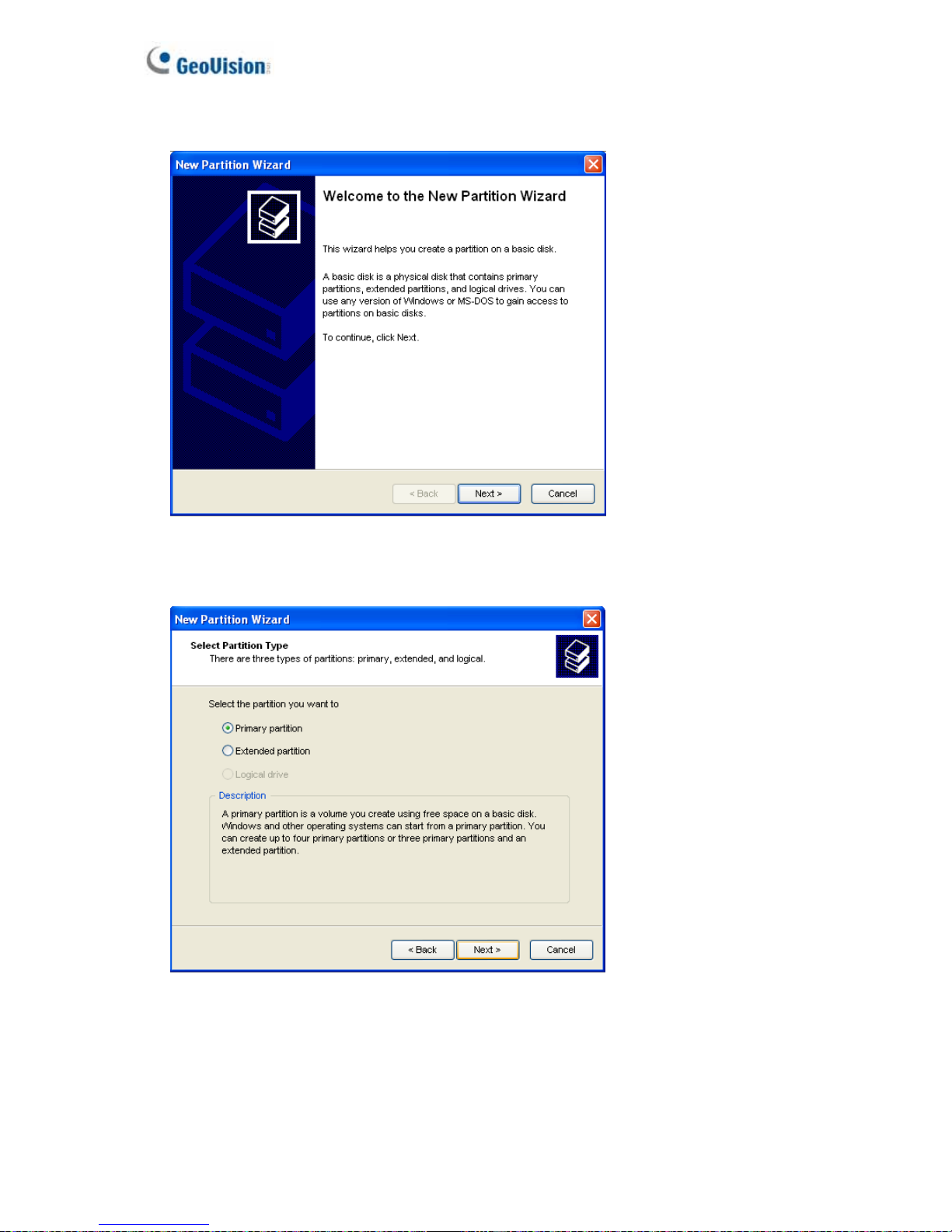

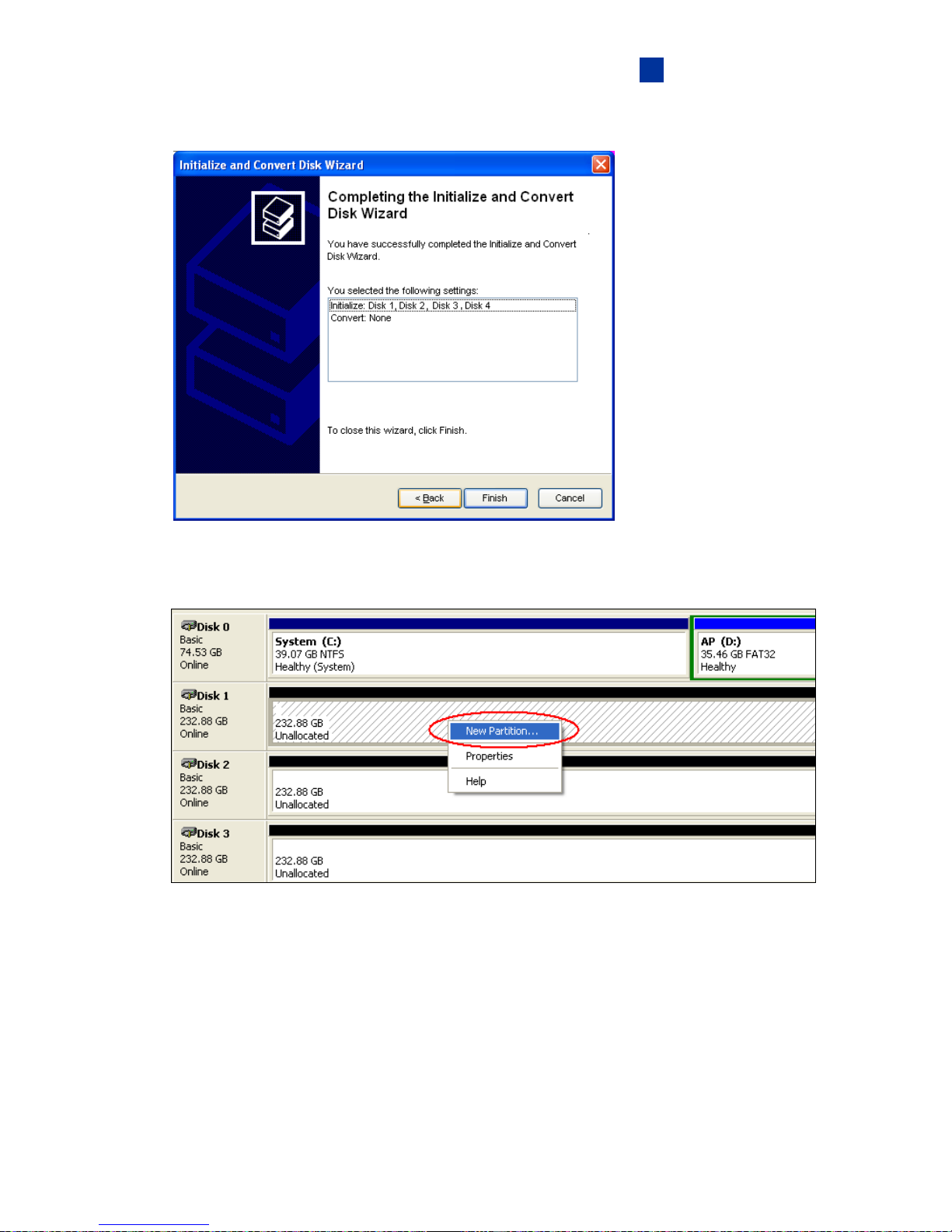

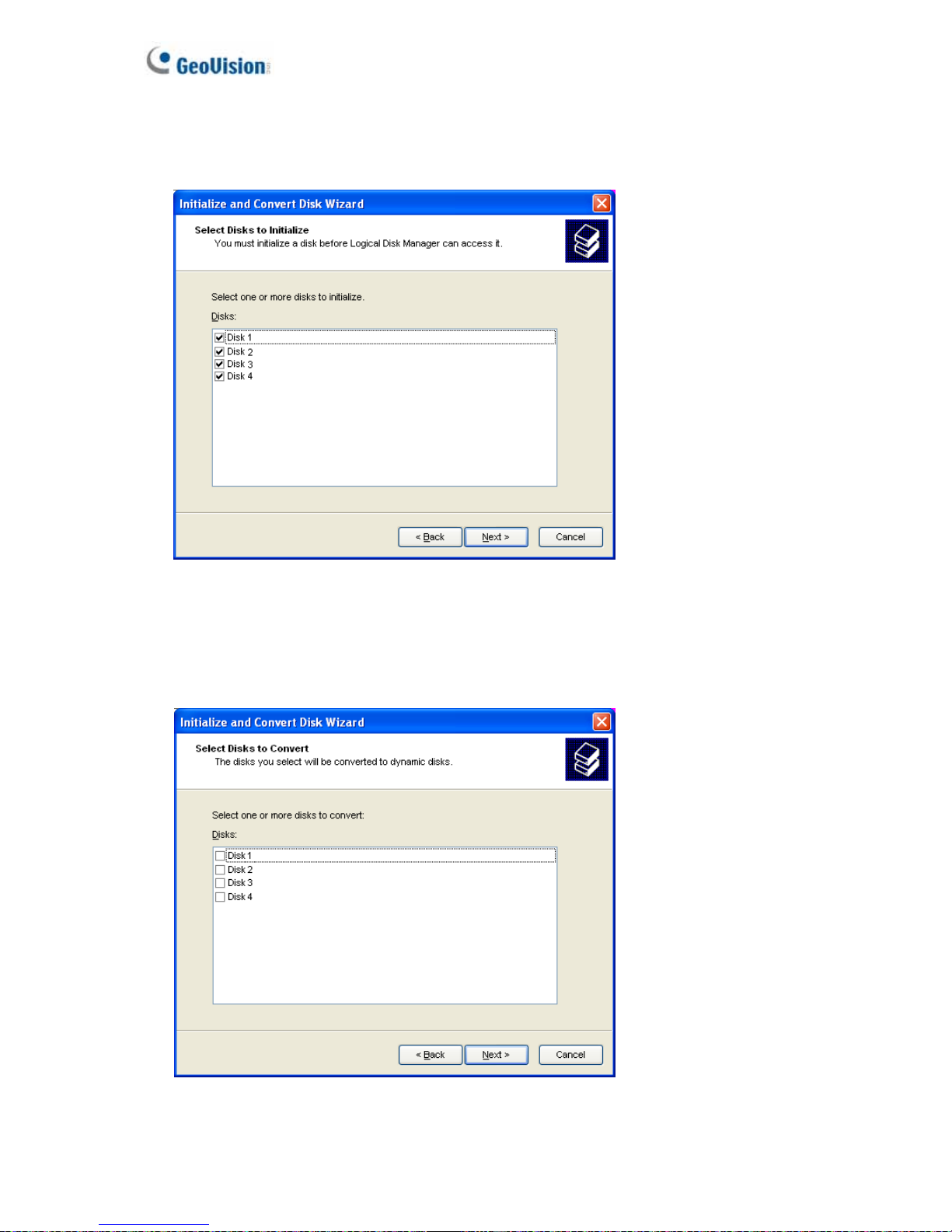

3-4 Formatting the Hard Drive………………………………………………… 15
3-5 Adding the Hard Drive to Recording Path……………………………….. 21
3-6 Configuring an IPAddress...…………………………………………..….. 23
Exit to Windows...………………………………………………………… 23
Back to GV-Desktop……………………………………………………… 24
3-7 Extended Installation……….……………………………………………… 25
GV-Keyboard………..……………………………………………………. 25
IR Remote Control.............................................................................. 26
I/O Devices......................................................................................... 27
PTZ Domes........................................................................................ 27
3-8 Recovery DVD…...………………………………………………………… 28
3-9 Updating GV-Hot Swap DVR System…………………………………… 30
Chapter 4 Troubleshooting…………………………………………………………………..... 31
Specifications…………………………………………………………………………… 35
Warranty Policy………..……………………………………………………………….. 39
Warranty Form………………………………………………………………………….. 43

Introduction
5
1
Chapter 1 Introduction

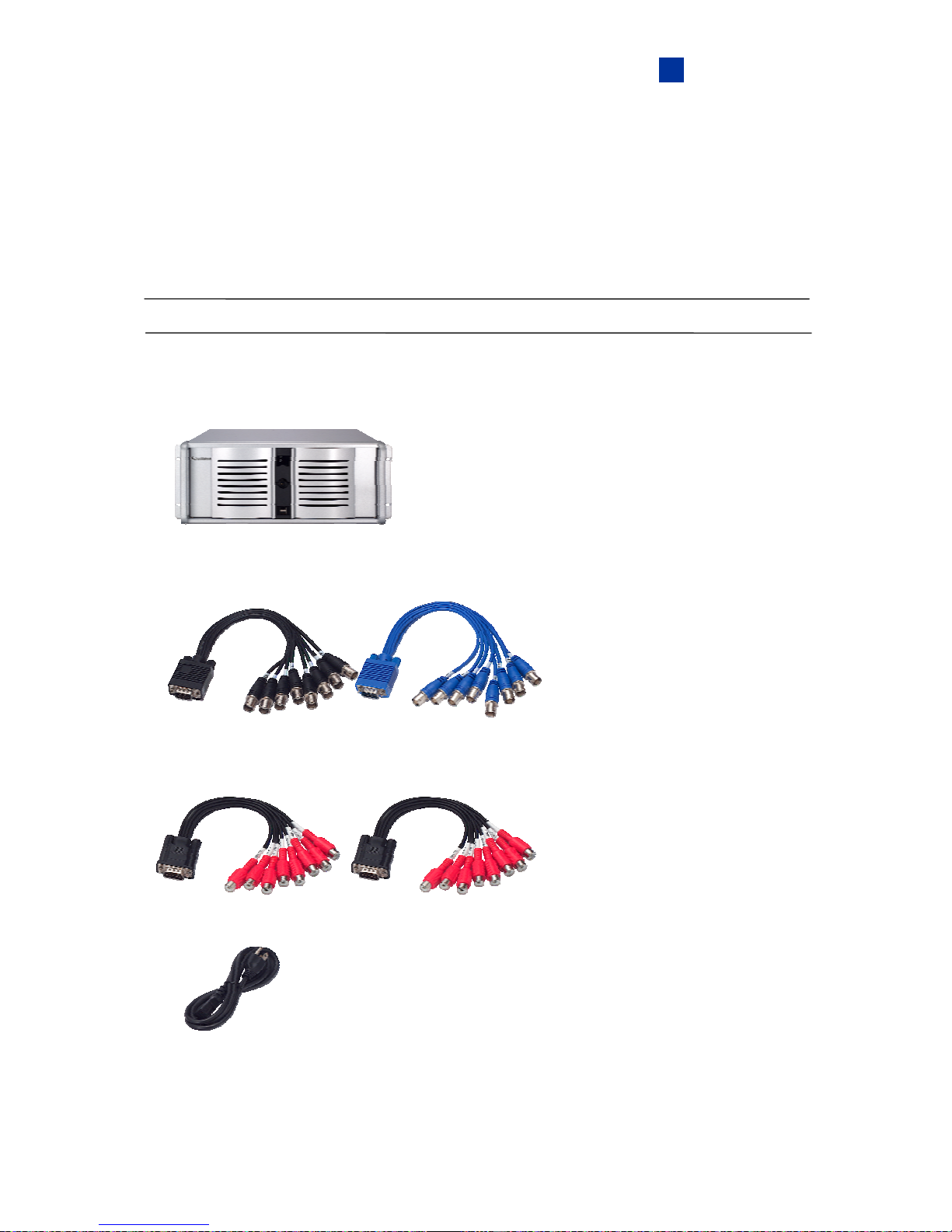

1.1 Unpacking
The GV-Hot Swap DVR package includes the following items:
Important: Please keep the original carton and all packing materials for future shipping need.
1. GV-Hot Swap DVR System x 1
2. D-Type Video Cable x 2
(1 x 1-8 Cams Black Cable, 1 x 9-16 Cams Blue Cable)
3. D-Type Audio Cable x 2
(1 x 1-8 Channels Red Cable, 1 x 9-16 Channels Red Cable)
4. AC Power Cord x 1

6
5. RJ-11 to DB9 Cable x 1
6. Lock Key x 2
7. GV-Keyboard Package x 1
8. IR Remote Control Package x 1
9. Self-Stick Rubber Pad x 4
10. Recovery DVD x 1
11. Nero Express CD x 1
12. Surveillance System Software CD x 1
13. GV-Hot Swap DVR System User’s Manual x 1
14. GV-Hot Swap DVR System Quick Start Guide x 1
15. Surveillance System New Feature Guide x 1
16. Surveillance System Installation Guide x 1
If any of the items are missing or damaged, contact your dealer to arrange a replacement.

Introduction
7
1
1.2 Models
The GV-Hot Swap DVR has the following three models:
GV-1480H - Sixteen-channel digital video recorder
- Records up to 480 (NTSC) / 400 (PAL) fps at the 320 x 240 resolution
- Has the option of 4 / 6 / 8 hot-swap SATA drive bays
GV-1240H - Eight-channel or sixteen-channel digital video recorder
- Records up to 240 (NTSC) / 200 (PAL) fps at the 320 x 240 resolution
- Has the option of 4 / 6 / 8 hot-swap SATA drive bays
GV-1120H - Sixteen-channel digital video recorder
- Records up to 120 (NTSC) / 100 (PAL) fps at the 320 x 240 resolution
- Has the option of 4 / 6 / 8 hot-swap SATA drive bays

8
1.3 Options
Optional devices can expand your GV-Hot Swap DVR’s capabilities and versatility. Contact
your dealer for more information.
GV-Hybrid DVR Card This hardware compression card can record up to 480 fps at
the 720 x 480 resolution, and allow for DVD-format export.
GV-Video Loop Through
Card
This card can take the video signal from the GV-Hot Swap
DVR and then split it into 16 signals while maintaining video
quality. It can meet the need for multiple spot monitors.
GV-IO 12-In Card With 12-point digital inputs, this card can expand the GV-Hot
Swap DVR up to 16 sensor inputs.
GV-IO 12-Out Card With 12-point relay outputs, this card can expand the GV-Hot
Swap DVR up to 16 alarm outputs.
GV-TV Out Card With this card, the GV-Hot Swap DVR can connect up to 5 TV
screens. The screen divisions on the TV screens can be
definable.
GV-I/O Box With 8 input points and 16 output points, this unit can be used
alone. Or it can be used in combination with GV-RELAY Boxes
to expand GV-Hot Swap DVR’s I/O capability.
GV-RELAY Box With 8-point relay outputs, this unit must be used in
combination with GV-I/O Box. Up to 2 GV-RELAY Boxes can
connect to 1 GV-I/O Box, highly expanding the GV-Hot Swap
DVR’s I/O capability.
GV-Data Capture V2E Box This unit can integrate the GV-Hot Swap DVR to an electronic
POS system through LAN.
GV-Hub Box An easy way for serial port extension. This hub can add 4
RS-232/RS-485 serial ports through the GV-Hot Swap DVR’s
USB port.
GV-COM Box This unit can add 1 RS-232/RS-485 serial port through the
GV-Hot Swap DVR’s USB port.
* The purchased GV-series cards will be added on the GV-Hot Swap DVR before shipment.
