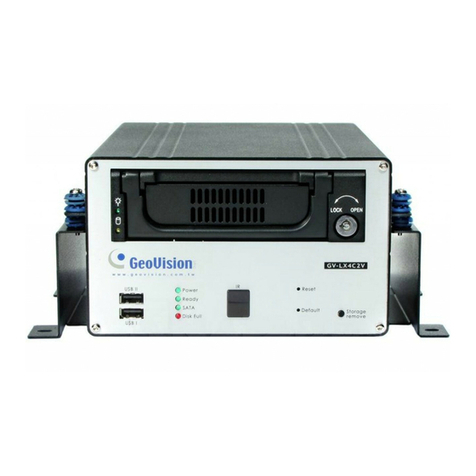

GeoVision GV-Compact DVR V2 User manual

Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
User's Manual
User's Manual
Firmware V1.07
Firmware V1.07
GV-Compact DVR V2
CDVR2V107-A

© 2012 GeoVision, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part,
without the written consent of GeoVision.
Every effort has been made to ensure that the information in this manual is
accurate. GeoVision, Inc. makes no expressed or implied warranty of any kind
and assumes no responsibility for errors or omissions. No liability is assumed
for incidental or consequential damages arising from the use of the information
or products contained herein. Features and specifications are subject to
change without notice.
GeoVision, Inc.
9F, No. 246, Sec. 1, Neihu Rd.,
Neihu District, Taipei, Taiwan
Tel: [phone]
Fax: [phone]
http://www.geovision.com.tw
Trademarks used in this manual: GeoVision, the GeoVision logo and GV
series products are trademarks of GeoVision, Inc. Windows and Windows XP
are registered trademarks of Microsoft Corporation.
January 2012

Preface
Welcome to the GV-Compact DVR V2 User’s Manual.
The GV-Compact DVR V2 has two models designed to meet different needs. This
Manual is designed for the following models and firmware version:
Models Model Name Firmware Version
Standard Model GV-LX4C2
Anti-Vibration Model and
Anti-Vibration Model of ACC Version
GV-LX4C2V 1.07

i
Contents
Chapter 1 Introduction ..........................................................1
1.1 Features..................................................................................................................2
1.2 Models ....................................................................................................................3
1.3 Packing List............................................................................................................4
1.4 Options ...................................................................................................................7
1.5 System Requirement.............................................................................................7
Chapter 2 Physical Description............................................8
2.1 Front Panel.............................................................................................................8
2.1.1 Standard Model...........................................................................................8
2.1.2 Anti-Vibration Model and Anti-Vibration Model of ACC Version..................9
2.2 Rear Panel ............................................................................................................10
2.2.1 Standard and Anti-Vibration Models .........................................................10
2.2.2 Anti-Vibration Model of ACC Version........................................................11
2.3 Remote Control....................................................................................................12
Chapter 3 Getting Started ...................................................14
3.1 Basic Connection.................................................................................................15
3.2 Connecting Anti-Vibration Model.......................................................................16
3.3 Connecting Anti-Vibration Model of ACC Version............................................17
3.3.1 Testing Connection...................................................................................17
3.3.2 Connecting to the Vehicle.........................................................................18
3.4 Connecting Optional Video Output Devices .....................................................23
3.5 Installing Hard Drive............................................................................................24
3.6 Turning On / Off the Power.................................................................................26
3.6.1 Turning On the Power...............................................................................26
3.6.2 Turning Off the Power...............................................................................26
3.7 Formatting Hard Drive.........................................................................................27
3.8 Main Screen Overview.........................................................................................28
3.9 Basic Operation ...................................................................................................29
3.9.1 Date/Time Adjustment...............................................................................29
3.9.2 Recording Operation.................................................................................29
3.9.3 Search/Playback Operation ......................................................................30
3.9.4 PTZ Operation...........................................................................................30
3.9.5 Channel Number and Camera Name........................................................30

ii
Chapter 4 OSD Menu Configurations ................................31
4.1 Channel Settings .................................................................................................33
4.1.1 Channel Name..........................................................................................33
4.1.2 Video/Audio Settings.................................................................................34
4.1.3 Motion Detection.......................................................................................35
4.1.4 Motion Trigger Output Settings.................................................................37
4.1.5 Alarm Settings...........................................................................................38
4.1.6 Camera Settings .......................................................................................38
4.1.7 PTZ Settings .............................................................................................39
4.1.8 PTZ Control...............................................................................................40
4.1.9 Privacy Mask.............................................................................................41
4.2 Digital IO Settings................................................................................................42
4.2.1 Digital Input Settings.................................................................................42
4.2.2 Digital Output Settings ..............................................................................43
4.2.3 GPS Settings.............................................................................................44
4.3 Events and Alerts ................................................................................................45
4.3.1 E-mail........................................................................................................45
4.3.2 FTP ...........................................................................................................46
4.3.3 Center V2..................................................................................................47
4.3.4 VSM ..........................................................................................................48
4.3.5 GV-GIS......................................................................................................49
4.3.6 GV-Video Gateway ...................................................................................50
4.3.7 Remote Playback......................................................................................51
4.3.8 3GPP.........................................................................................................52
4.4 Monitoring Settings.............................................................................................53
4.5 Recording Schedule............................................................................................54
4.5.1 Specific Day..............................................................................................54
4.5.2 Channel Schedule.....................................................................................55
4.5.3 I/O Monitoring Schedule............................................................................56
4.6 Search/Playback ..................................................................................................57
4.6.1 Time Map List............................................................................................57
4.6.2 List All........................................................................................................58
4.6.3 Manual Recording List ..............................................................................58
4.6.4 Alarm Recording List.................................................................................58
4.6.5 Motion Recording List ...............................................................................58
4.6.6 Time Search..............................................................................................58
4.6.7 Advanced Search......................................................................................59
4.7 Network.................................................................................................................60
4.7.1 Network Status..........................................................................................60
4.7.2 Connection Settings..................................................................................61
4.7.3 Wireless Settings ......................................................................................62
4.7.4 Advanced TCP/IP......................................................................................63
4.7.5 UMTS Settings..........................................................................................64
4.7.6 DDNS Settings..........................................................................................65
4.7.7 Multicast Settings......................................................................................66
4.7.8 Web User Account Info.............................................................................67

iii
4.8 Advanced..............................................................................................................68
4.8.1 Date and Time...........................................................................................68
4.8.2 Firmware Settings.....................................................................................69
4.8.3 Storage Settings........................................................................................70
4.8.4 Display Settings ........................................................................................71
4.8.5 Spot Monitor Settings................................................................................72
4.8.6 Alert Settings.............................................................................................73
4.8.7 System Settings........................................................................................73
4.8.8 System Log...............................................................................................74
4.8.9 Backup......................................................................................................74
Chapter 5 Remote Viewing Using A Web Browser...........75
5.1 Assigning an IP Address ....................................................................................75
5.1.1 Using OSD Menu......................................................................................75
5.1.2 Connecting with a PC................................................................................76
5.2 Accessing Your Surveillance Images................................................................78
5.3 Functions Featured on the Main Page...............................................................79
5.3.1 The Live View Window..............................................................................80
5.3.2 The Control Panel of the Live View Window.............................................81
5.3.3 Snapshot of a Live Video..........................................................................82
5.3.4 Video Recording........................................................................................82
5.3.5 Picture-in-Picture and Picture-and-Picture View.......................................83
5.3.6 Alarm Notification......................................................................................85
5.3.7 Video and Audio Configuration .................................................................86
5.3.8 Remote Configuration...............................................................................86
5.3.9 Camera Name Display..............................................................................86
5.3.10 Image Enhancement...............................................................................87
5.3.11 PTZ Control.............................................................................................87
5.3.12 Visual PTZ...............................................................................................88
5.3.13 I/O Control...............................................................................................89
5.3.14 Visual Automation...................................................................................90
5.3.15 Network Status........................................................................................90
Chapter 6 Remote Configurations .....................................91
6.1 Video & Motion.....................................................................................................93
6.1.1 Video Settings...........................................................................................93
6.1.2 Motion Detection.......................................................................................96
6.1.3 Text Overlay..............................................................................................97
6.1.4 Visual Automation.....................................................................................98
6.1.5 VGA Output Settings.................................................................................99
6.1.6 Video Channel Source Settings................................................................99
6.2 Digital I/O & PTZ.................................................................................................100
6.2.1 I/O Control...............................................................................................100

iv
6.2.2 PTZ Settings ...........................................................................................103
6.2.3 GPS.........................................................................................................104
6.2.4 Buzzer.....................................................................................................106
6.2.5 Spot Monitor............................................................................................107
6.3 Events & Alerts ..................................................................................................108
6.3.1 E-mail......................................................................................................109
6.3.2 FTP .........................................................................................................111
6.3.3 Center V2................................................................................................113
6.3.4 VSM ........................................................................................................115
6.3.5 GV-GIS....................................................................................................117
6.3.6 GV-Backup Center..................................................................................119
6.3.7 GV-Video Gateway / Recording Server ..................................................121
6.3.8 ViewLog Server.......................................................................................123
6.3.9 RTSP / 3GPP..........................................................................................124
6.4 Monitoring ..........................................................................................................125
6.5 Recording Schedule..........................................................................................126
6.5.1 Recording Schedule Settings..................................................................126
6.5.2 I/O Monitoring Settings............................................................................127
6.6 Remote ViewLog................................................................................................128
6.7 Network...............................................................................................................129
6.7.1 LAN.........................................................................................................129
6.7.2 Wireless-Client Mode..............................................................................131
6.7.3 Advanced TCP/IP....................................................................................133
6.7.4 UMTS/ZigBee..........................................................................................136
6.7.5 Multicast..................................................................................................138
6.7.6 IP Filter....................................................................................................139
6.7.7 SNMP Setting..........................................................................................140
6.8 Management.......................................................................................................141
6.8.1 Date & Time Setting................................................................................141
6.8.2 GPS Maps Settings.................................................................................143
6.8.3 Storage Settings......................................................................................144
6.8.4 User Account...........................................................................................146
6.8.5 Log Information.......................................................................................146
6.8.6 Tools .......................................................................................................147
6.8.7 ACC Settings...........................................................................................149
Chapter 7 Remote Recording and Playback ...................150
7.1 Remote Recording.............................................................................................150
7.2 Remote Playback...............................................................................................150
7.2.1 Playback Using Hard Drive.....................................................................151
7.2.2 Playback over Network ...........................................................................152
7.2.3 Access to the Recorded Files through FTP Server.................................153
7.2.4 Playback of GPS Tracks.........................................................................153
7.2.5 Playback of Daylight Saving Time Events...............................................155

v
Chapter 8 Advanced Applications ...................................156
8.1 Upgrading System Firmware............................................................................156
8.1.1 Using the Web Interface..........................................................................157
8.1.2 Using the IP Device Utility.......................................................................158
8.2 Backing Up and Restoring Settings.................................................................160
8.2.1 Backing Up the Settings..........................................................................160
8.2.2 Restoring the Settings.............................................................................161
8.3 GPS Tracking .....................................................................................................162
8.4 Restoring to Factory Default Settings .............................................................164
8.5 Verifying Watermark..........................................................................................165
8.5.1 Accessing AVI Files ................................................................................165
8.5.2 Running Watermark Proof.......................................................................165
8.5.3 The Watermark Proof Window................................................................166
Chapter 9 Mobile Phone Surveillance..............................167
9.1 PDA....................................................................................................................169
9.1.1 Installing GV-GView V2...........................................................................169
9.1.2 Activating the GV-GView Function..........................................................169
9.1.3 Connecting to GV-Compact DVR V2......................................................170
9.1.4 Playing Back the Recordings from GV-Compact DVR V2......................171
9.1.5 Other Functions.......................................................................................172
9.2 Windows Smartphone......................................................................................177
9.2.1 Installing GV-MSView V2 / V3 ................................................................177
9.2.2 Activating the GV-MSView V2 / V3 Function..........................................177
9.2.3 Connecting to GV-Compact DVR V2......................................................178
9.2.4 Playing Back the Recordings from GV-Compact DVR V2......................180
9.2.5 Other Functions.......................................................................................180
9.3 Symbian Smartphone........................................................................................181
9.3.1 Installing GV-SSView V3.........................................................................181
9.3.2 Activating the GV-SSView V3 Function..................................................181
9.3.3 Connecting to GV-Compact DVR V2......................................................182
9.3.4 Quick Connection....................................................................................182
9.3.5 Playing Back the Recordings from GV-Compact DVR V2......................183
9.3.6 Other Functions.......................................................................................183
9.4 3G Mobile Phone................................................................................................184
9.4.1 Activating the 3G Mobile Phone Function...............................................184
9.4.2 Connecting to the GV-Compact DVR V2................................................185
9.4.3 Playing Back the Recordings from GV-Compact DVR V2......................186
9.5 Android Smartphone.........................................................................................188
9.5.1 Connecting to GV-Compact DVR V2......................................................188

vi
Chapter 10 DVR Configurations.......................................191
10.1 Setting up GV-Compact DVR V2.....................................................................192
10.2 Remote Monitoring with Multi View ...............................................................195
10.3 Remote Monitoring with E-Map......................................................................197
Chapter 11 CMS Configurations.......................................199
11.1 Center V2..........................................................................................................199
11.2 VSM...................................................................................................................201
11.3 Dispatch Server ...............................................................................................202
Chapter 12 The I/O Terminal Block ..................................203
12.1 Pin Assignment................................................................................................203
12.2 Relay Output ....................................................................................................204
12.3 Camera Power Supply.....................................................................................205
Specifications.......................................................................206
Appendix…………………………………………………………209
A. Supported Wireless LAN USB Adaptor.............................................................209
B. Supported Mobile Broadband Device ...............................................................209
C. Settings for Internet Explore 8...........................................................................210
D. The CGI Command..............................................................................................210
E. RTSP Protocol Support.......................................................................................211
F. Supported PTZ Cameras....................................................................................212
G. Default Port Value...............................................................................................214

Introduction
1
1
Chapter 1 Introduction
The GV-Compact DVR V2 is a mobile video recorder. It can simultaneously display real-time
images from four cameras. The recording frame rate of each channel is adjustable up to 30 /
25 fps at the resolution of 704 x 480 (NTSC) / 704 x 576 (PAL). You can access the four video
channels either in the quad mode or single channel mode.
The Anti-Vibration model of the GV-Compact DVR V2 has already been tested to withstand
severe levels of shock and vibration in mobile environments. It is perfect to be installed in any
vehicles, such as buses and vans, for surveillance and recording.
The special design of the GV-Compact DVR V2 enables you to link up with TV, VGA and spot
monitors simultaneously for direct display. The GV-Compact DVR V2 offers many features
that you can expect to have.

2
1.1 Features
•Vibration and mechanical shock protection (Anti-Vibration model)
•4-channel video and audio recording and playback
•Up to 704 x 480 (NTSC) / 704 x 576 (PAL) recording resolution
•Up to 120 images per second recording rate at D1 resolution
•VGA output in high resolution (1024 x 768)
•Independent channel resolution, quality and frame rate settings
•Video signal auto detection
•On-screen menu and Web-based control
•Display video on TV, VGA and Spot Monitor simultaneously
•Continuous, motion scheduled and input-triggered recording
•Motion detection function with 3 sensitivity values adjustable on each channel
•4 alarm inputs, 4 relay outputs
•Buzzer alarm on video lost, input triggered, motion detected and disk full
•Retrieve video by date, time and event
•Remote playback
•Support one 3.5” or 2.5” SATA HDD (2.5” to 3.5” HDD converter required)
•Support two external USB mass storage devices
•Support USB DVD-RW for video backup
•GPS tracking (GPS module required)
•Support mobile broadband (HSDPA, UMTS, EDGE, EVDO, etc.)
•3G Mobile Phone Surveillance
•Support central monitoring systems Center V2, VSM and Control Center
•Support geographic information system GV-GIS
•Support 16 languages on Web interface

Introduction
3
1
1.2 Models
The GV-Compact DVR V2 has the following models:
•Standard Model (GV-LX4C2)
•Anti-Vibration Model and Anti-Vibration Model of ACC Version (GV-LX4C2V)
The GV-Compact DVR V2, equipped with vibration absorbers, can withstand severe
levels of shock and vibration in mobile environments.
Caution: Standard and Anti-Vibration models have different internal designs. It is forbidden
to connect Standard model to the vehicle power supply.
Note: The hard disk is not included in the package.

4
1.3 Packing List
If any of the items are missing or damaged, contact your dealer to arrange a replacement.
•Standard Model (GV-LX4C2)
•D-Type Video Cable x 1 •D-Type Audio/TV/Spot Monitor Cable x 1
•1 to 4 Camera Power Cable x 1 •Power Adaptor 12V, 5.0A x 1
•AC Power Cord x 1
•Lock Key x 2
•GV-Compact DVR V2 Remote Control x 1
•GV-Compact DVR V2 Quick Start Guide x
1
•GV-Compact DVR V2 Software DVD x 1
•GV-NVR Quick Start Guide
•GV-NVR Software DVD x 1
•Anti-Vibration Model (GV-LX4C2V)
•D-Type Video Cable x 1 •D-Type Audio/TV/Spot Monitor Cable x 1

Introduction
5
1
•1 to 4 Camera Power Cable x 1 •Cigarette Lighter Power Adapter x 1
•Lock Key x 2
•GV-Compact DVR V2 Remote Control x 1
•GV-Compact DVR V2 Quick Start Guide x 1
•GV-Compact DVR V2 Software DVD x 1
•GV-NVR Quick Start Guide
•GV-NVR Software DVD x 1
•Anti-Vibration Model of ACC Version (GV-LX4C2V)
•D-Type Video Cable x 1 •D-Type Audio/TV/Spot Monitor Cable x 1
•1 to 4 Camera Power Cable x 1 •Power Cable x 1

6
•Shorting Cable x 1 •Lock Key x 2
•GV-Compact DVR V2 Remote Control x 1
•GV-Compact DVR V2 Quick Start Guide x
1
•GV- Compact DVR V2 Software DVD x 1
•GV-NVR Quick Start Guide
•GV-NVR Software DVD x 1
The optional accessories contain the following items:
•GV-GPS 232 Receiver (For Standard and
Anti-Vibration Models)
•GV-GPS 232 Receiver with PS/2
Connector (For Anti-Vibration Model of
ACC Version)
•External IR Receiver •Power Adaptor with AC Power Cord 12V,
5.0A (Optional for Anti-Vibration model
and Anti-Vibration Model of ACC Version)
•2.5” to 3.5” HDD Converter

Introduction
7
1
1.4 Options
Optional devices can expand your GV-Compact DVR V2’s capabilities and versatility. Contact
your dealer for more information.
External IR Receiver
The external IR receiver, with a 5-meter cable (16.4 feet),
allows long-distance remote control of the GV-Compact DVR
V2.
GV-GPS 232 Receiver
GV-GPS 232 Receiver, with RS-232 interface, is a Global
Position System receiver. It can be applied to vehicle
tracking and location verification.
2.5” to 3.5” HDD Converter The HDD converter allows you to install a 2.5’’ SATA HDD
into GV-Compact DVR V2.
GV-Relay V2 Working with this module, GV-Compact DVR V2 can drive
the loads of relay outputs over 5 volts.
WiFi USB Adaptor
The WiFi USB Adaptor is designed to connect the GV IP
devices, such as GV-Video Servers or GV-Compact DVRs,
to the wireless network. This product complies with IEEE
802.11 b/g/n (Draft 3.0) standards for wireless networking.
Power Adaptor of DC 12V,
5.0A
The power adaptor is used to power on the Anti-Vibration
Model of ACC Version to test the connection.
1.5 System Requirement
To access the Web interface of the GV-Compact DVR V2, it is required to use Microsoft
Internet Explorer 7.x or later.
Note: If you are using Microsoft Internet Explorer 8, additional settings are required. See
Settings for Internet Explorer 8 in Appendix C.

8
Chapter 2 Physical Description
This section identifies the various components of the GV-Compact DVR V2, and provides the
overview of the remote control.
2.1 Front Panel
2.1.1 Standard Model
Figure 2-1
No. Name Description
1 USB Port The two USB ports can connect the USB storage device,
Wireless LAN adaptor and/or mobile Internet device.
2 System LED
•Power LED: Turns on when the power is supplied.
•Ready LED: Turns on when the unit is ready for use.
•SATA LED: Turns on when the HDD is reading or
writing data.
•Disk Full LED: Turns on when the HDD is full.
3 IR Receiver Receives data from the infrared remote control.
4 Reset Button Restarts the unit, and keeps all current configurations.
5 Default Button Sets all configurations to their factory settings. See 8.4
Restoring to Factory Default Settings.
6 Storage Removal Button Stops recording and removes the HDD from the system.
7 HDD Drive Bay Installs the SATA hard drive for recording.
8 HDD Power LED Turns on when the power is supplied.
9 Key Lock Locks and unlocks the HDD drive bay.
10 HDD Activity LED Blinks when the HDD is reading or writing data.

Physical Description
9
2.1.2 Anti-Vibration Model and Anti-Vibration Model of ACC
Version
Figure 2-2
No. Name Description
1 USB Port The two USB ports can connect the USB storage device,
Wireless LAN adaptor and/or mobile Internet device.
2 System LED
•Power LED: Turns on when the power is supplied.
•Ready LED: Turns on when the unit is ready for use.
•SATA LED: Turns on when the HDD is reading or
writing data.
•Disk Full LED: Turns on when the HDD is full.
3 IR Receiver Receives data from the infrared remote control.
4 Reset Button Restarts the unit, and keeps all current configurations.
5 Default Button Sets all configurations to their factory settings. See 8.4
Restoring to Factory Default Settings.
6 Storage Removal Button Stops recording and removes the HDD from the system.
7 Key Lock Locks and unlocks the HDD drive bay.
8 HDD Drive Bay Installs the SATA hard drive for recording.
9 HDD Power LED Turns on when the power is supplied.
10 HDD Activity LED Blinks when the HDD is reading or writing data.

10
2.2 Rear Panel
2.2.1 Standard and Anti-Vibration Models
Figure 2-3
No. Name Description
1 DC Power Input (12V) Connects to power supply.
2 External IR Receiver Port Connects to the optional External IR Receiver.
3 75 Ω
When using the Loop function, turn the switches to OFF
positions. The switch number is corresponding to the
channel number. The default setting is ON.
4 Video In/Out
•Inputs (4 Blue Connectors/CH1-4): Connects to
cameras.
•Outputs (4 Black Connectors/CH1-4): Loops out
each camera input to monitors.
5 Audio/TV In/Out
•TV Output (1 Black Connector/QUAD): Connects
to a TV monitor.
•Spot Monitor Output (1 Black Connector/MUX):
Connects to a spot monitor to display video
sequentially from each video input.
•Audio Inputs (4 White Connectors/MIC1-4):
Connects to microphones.
•Audio Output for playback (1 Red Connector/
SPK-OUT): Connects to speakers. Note the audio
output only works during playback or when
receiving callback audio.
6 VGA Monitor Port Connects to a PC monitor.
7 LAN Port Connects to the network.
8 I/O Terminal Block
Connects to input and output devices, PTZ cameras,
GPS module and etc. For details see Chapter 12 The
I/O Terminal Block.

Physical Description
11
2.2.2 Anti-Vibration Model of ACC Version
Figure 2-4
No. Name Description
1 DC Power Input (12V) Connects to power supply.
2 External IR Receiver Port Connects to the optional External IR Receiver.
3 75 Ω
When using the Loop function, turn the switches to OFF
positions. The switch number is corresponding to the
channel number. The default setting is ON.
4 Video In/Out
•Inputs (4 Blue Connectors/CH1-4): Connects to
cameras.
•Outputs (4 Black Connectors/CH1-4): Loops out
each camera input to monitors.
5 Audio/TV In/Out
•TV Output (1 Black Connector/QUAD): Connects
to a TV monitor.
•Spot Monitor Output (1 Black Connector/MUX):
Connects to a spot monitor to display video
sequentially from each video input.
•Audio Inputs (4 White Connectors/MIC1-4):
Connects to microphones.
•Audio Output for playback (1 Red Connector/
SPK-OUT): Connects to speakers. Note the audio
output only works during playback or when
receiving callback audio.
6 VGA Monitor Port Connects to a PC monitor.
7 LAN Port Connects to the network.
8 I/O Terminal Block
Connects to input and output devices, PTZ cameras
and etc. For details see Chapter 12 The I/O Terminal
Block.
9 GPS Port (PS/2 Connector) Connects to a GPS 232 receiver.
