GERATHERM DUOTEMP GEF-100 User manual

INSTRUCTIONS FOR USE
Geratherm Duotemp GEF-100
DIGITAL EAR AND
FOREHEAD THERMOMETER
GB

CONTENTS

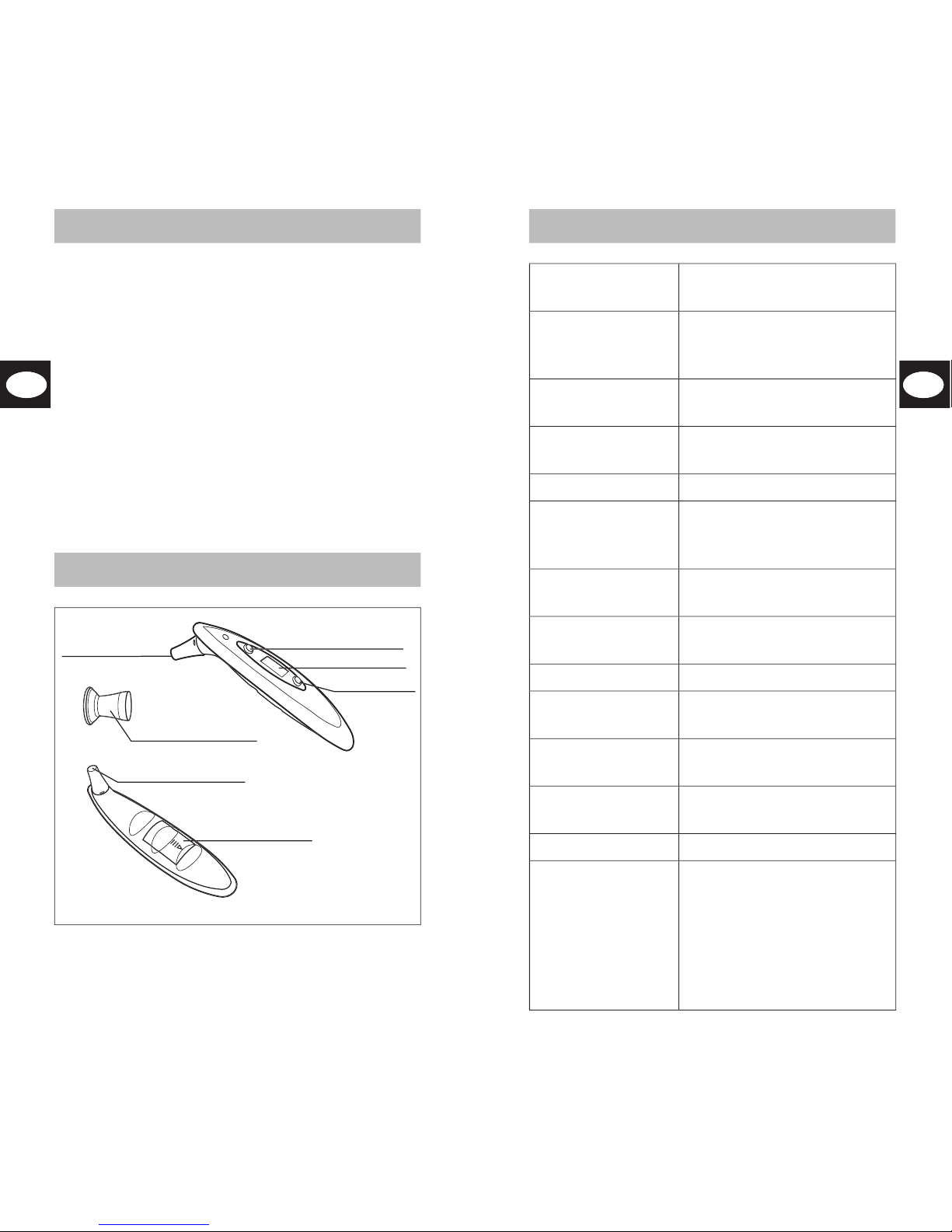

THE PARTS OF THE UNIT
Probe
On button
LCD panel
Memory button
Probe attachment
(fore forehead use)
Probe
Battery cover
SPECIFICATIONS
Point of
measurement
Infra-red measurement at
the eardrum or forehead
Measuring range
Ear Mode:
Forehead Mode:
0 - 100 °C (32 - 212 °F)
32.2 - 43.3°C (90 - 109.9 °F)
Operating
conditions
10 - 40 °C (50 - 104 °F),
humidity: 15 - 95 % RH
Storage
conditions
-20 - 50 °C (-4 - 122 °F),
humidity: 15 - 95 % RH
Resolution
0.1 °C or 0.1 °F
Accuracy
(laboratory)
35.5 °C - 42.0 °C: +/- 0.2 °C
(95.9 °F - 107.6 °F: +/- 0.4 °F);
other ranges +/- 2%
Memory
Stores up to 10 measure-
ments in the memory
Automatic
switch-off
60 seconds
Reaction time
- 1 second
Battery
DC 3V lithium battery
CR20322
Battery life
More than 12 months if
used for 10 minutes per day
Dimensions
150 mm (l) x 36.7 mm (b) x
44 mm (h)
Weight
47 g (including battery)
Quality
guarantee:
The unit conforms to the Council
Directive 93/42/EEC concerning
medical devices and the standard
DIN EN 12470-5:2003 Medical
Thermometers, Part 5: Standards for
Infra-Red Ear Thermometers. A quality
management system in compliance
with DIN EN ISO 9001:2000 and DIN
EN ISO 13485:2003 ensures that the
required qualitycriteria are met.
1 - GB
2 - GB
The parts of the unit 1 - GB
Specifi cations 2 - GB
What is body temperature? 4 - GB
Temperature measurement - Ear 5 - GB
Temperature measurement – Forehead 7 - GB
Measuring water and room temperature 8 - GB
Memory 9 - GB
Changing the temperature scale 9 - GB
Battery replacement and insertion 10 - GB
Fault indication 11 - GB
Warranty 13 - GB
Certifi cate of guarantee 14 - GB
GB
GB

WHAT IS BODY TEMPERATURE?
Body temperature refers to the internal tempe-
rature of the body (core temperature). ‘Normal’
body temperature fl uctuates over the course
of 24 hours. It tends to be lowest in the early
morning and highest in the late afternoon. Body
temperature also varies depending on the part of
the body where the temperature is measured and
also differs with age. Hence, the body tempera-
ture measurement obtained depends on when
and where the temperature is taken and on who
the patient is.
Normal temperature
ranges - by point of
measurement
1)
Axillary
34.7 - 37.3 °C
Oral
35.5 - 37.5 °C
Ear
35.8 - 38.0 °C
Rectal
36.6 - 38.0 °C
Normal temperature
ranges - by age
2)
0 - 2
years
36.4 - 38.0 °C
3 - 10
years
36.1 - 37.8 °C
11 - 65
years
35.9 - 37.6 °C
> 65
years
36.8 - 37.5 °C
1) Chamberlain, J. M. Dr. med., and Temdrup, T. E. Dr.
med., “New Light on Ear Thermometer Readings”,
Contemporary Pediatrics, March 1994.
2) Chamberlain, J. M. Dr. med., and Temdrup, T. E. Dr.
med., “Determination of Normal Ear Temperature with
an Infrared Emission Detection Thermometer”, Annals
Emergency Medicine, January 1995
3 - GB
4 - GB
• Store out of children’s reach! Measurement
of children’s temperatures must be conducted
under adult supervision!
• If the unit is dropped, false readings
may occur.
• The unit is intended for private household use.
• Do not apply a protective cap!
• The probe tip should be cleaned before each
use. It can be cleaned by wiping it with a cloth
or cotton-wool ball soaked in rubbing alcohol.
• If the lens is dirty, false readings may occur.
• Use of the thermometer is no substitute for
medical treatment!
• The unit has an off-set function to compensate
for the infl uence of the ambient temperature.
• When it is switched on, the unit conducts an
automatic self-testing procedure. Any faults are
shown on the display.
GB
GB

TEMPERATURE MEASUREMENT - EAR
34.
8 C
/94.64
F
8 C
/98.24
F
In order to ensure accurate measurement, the
patient should fi rst rest for 20 minutes in the
same room as the thermometer. Immediately
after exercise or a bath, the temperature may
be raised.
Press the ON button [ON].
Insert the probe into the
auditory canal.
For the temperature to
be measured accurately
in the ear, the tip of the
probe must be directed
towards the eardrum.
5 - GB
Press the ON button and
wait until you hear a beep.
If no beep is heard, press
and release the ON button
again.
As soon as you hear the
beep, remove the probe
from the auditory canal.
Read the temperature
displayed on the LCD
panel.
• As long as the symbol is displayed, a new
• As long as the symbol is displayed, a new
• As long as the symbol is displayed, a new
• As long as the symbol is displayed, a new
• As long as the symbol is displayed, a new
• As long as the symbol is displayed, a new
• As long as the symbol is displayed, a new
• As long as the symbol is displayed, a new
• As long as the symbol is displayed, a new
measurement can be taken.
• It is advisable to take the temperature in the
same ear, since the values measured in the left
and right ear may be different.
• In the case of patients whose auditory canal is
curved, the temperature values measured may
deviate owing to anatomical infl uences.
• The ear should not be obstructed, for example
by excessive amounts of ear wax.
6 - GB
GB
GB
To switch from forehead mode back to ear
mode, press MEM for 2 seconds.

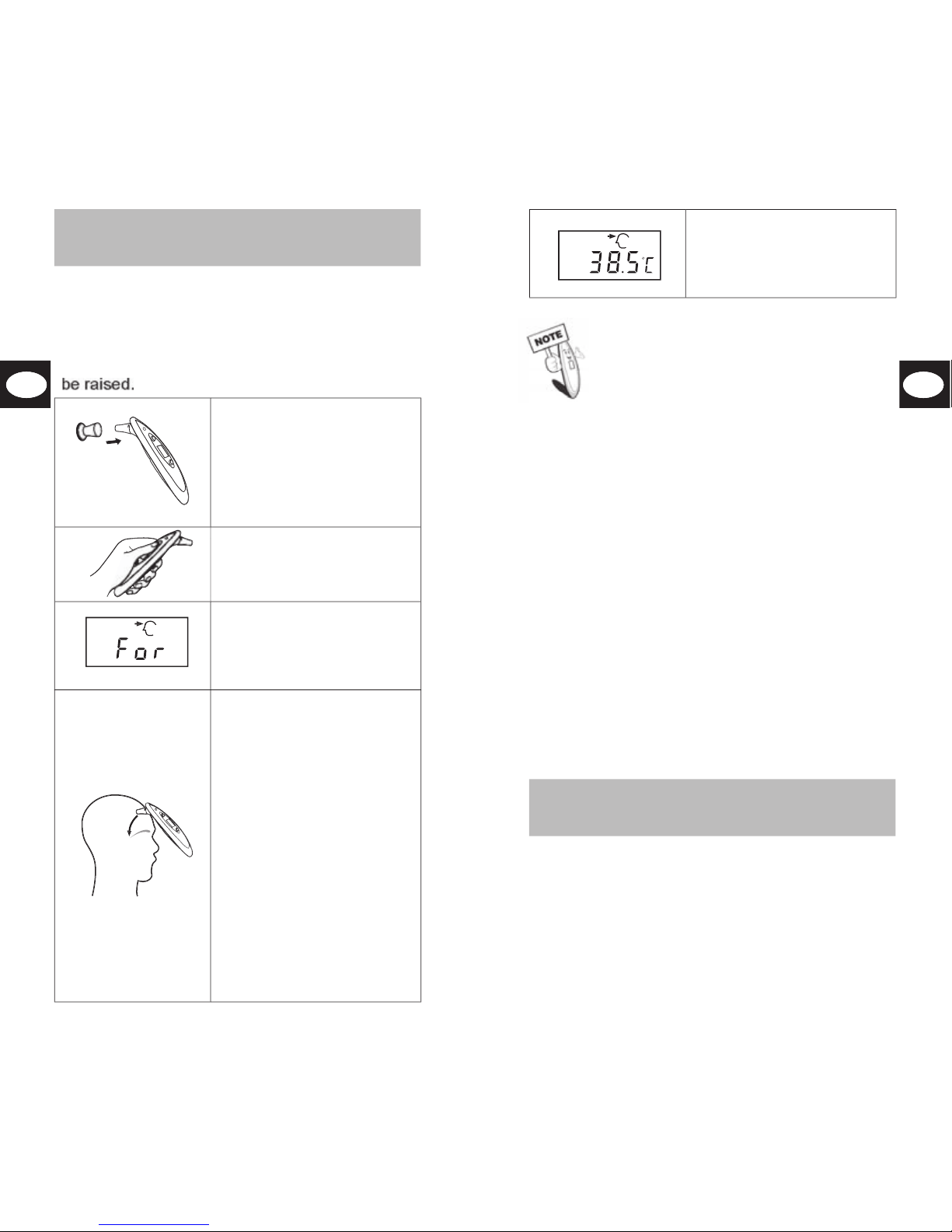

TEMPERATURE MEASUREMENT -
FOREHEAD
In order to ensure accurate measurement, the
patient should fi rst rest for 20 minutes in the
same room as the thermometer. Immediately
after exercise or a bath, the temperature may
Always check that the
probe attachment is fi xed
onto the thermometer.
Prior to measurement, the
forehead should be free of
perspiration, make-up, etc.
Press the ON button [ON].
Press MEM for 2 seconds,
it will switch to Forehead
Mode.
Place the probe tip with the
attachment on the patient’s
forehead. The recommended
area is on the left-hand side
above the left eyebrow (or on
the opposite side if you choo-
se the right eyebrow). Press
the ON button (you will hear
a beep) and keep it pressed
down as you slide the thermo-
meter towards the left, moving
it for at least three seconds
over the temporal artery. Then
remove the thermometer from
the point of measurement.
7 - GB
Read the temperature
value displayed on the
LCD panel.
• The precise sensing system records
the heat emitted naturally through the
the heat emitted naturally through the
skin. If the thermometer is not moved
skin. If the thermometer is not moved
over the temporal artery, the tempera-
over the temporal artery, the tempera-
ture recorded may be lower.
• It is advisable to take the temperature 2 - 3
times and to record the highest value, since
the position of the temporal artery varies from
person to person.
• In some patients the forehead temperature
may differ as a result of environmental factors
and it is advisable to take and record your
forehead temperature when healthy.
• The measurement of forehead temperature is
an excellent point of reference for recognising
raised body temperature.
• If you are in any doubt about the temperature
measured, please measure it again in the ear
and, for the sake of accuracy, record the high-
est value.
MEASURING WATER AND ROOM
TEMPERATURE
• Measurement should be conducted in ear
mode only.
• To measure water temperature, keep the probe
at least 1cm (± 0.5 cm) above the surface of
the water. The greater the distance from
the surface of the water, the less accurate the
measured values will be.
8 - GB
GB
GB

MEMORY
Press the MEM button.
The fi rst memory cell
number (“0”) will then
show the stored tempera-
ture (the last reading).
Press the MEM button
again. Now the reading
before last will be shown.
The other values stored
in the memory can be
viewed by pressing the
MEM button again.
CHANGING THE TEMPERATURE
SCALE
In order to switch over to
Fahrenheit (°F), press the
MEM button and then press
and release the ON button
while the memory cell
number is displayed on the
LCD panel.
9 - GB
When the symbol ap-
pears on the LCD panel,
the battery needs to be
replaced.
Press down on the part
of the cover marked
and push the cover in
the direction of the arrow
shown in the illustration.
Remove the battery.
Attention: Avoid using
any sharp metal object
in this operation.
Insert a new CR2032
lithium battery, taking care
to match the polarities (+)
as indicated.
Replace the battery cover
by pushing it in the direc-
tion indicated by the arrow
in the illustration.
If no signal is received after changing the battery,
insert the new battery again and press the ON
button.
When disposing of the unit and/or batteries, be
sure to adhere to current regulations.
of the cover marked
and push the cover in
and push the cover in
and push the cover in
and push the cover in
BATTERY REPLACEMENT AND
INSERTION
In order to switch over to
Celcius (°C), press the
MEM button and then press
and release the ON button
while the memory cell
number is displayed on the
LCD panel.
10 - GB
When the symbol ap-
ON
MEM
ON
MEM
GB
GB

FAULT INDICATION
FAULT OR
FAULT
SYMBOL
FAULT DE-
SCRIPTION
CORRECTIVE
MEASURE
No display
on the LCD
panel
The battery
has run out.
Incorrect bat-
tery polarity.
Replace the
battery. Ple-
ase note:
The (+) side
of the battery
must face
upwards.
Measurement
not possible
(or an abnor-
mal value is
displayed)
The thermo-
meter is not
ready.
Wait until the
°C symbol is
displayed.
An abnormal
temperatu-
re value is
displayed.
The probe
tip is dirty or
damaged. Did
you hear the
beep after
pressing the
ON button?
Clean the
probe tip or
get it repaired.
Wait until
you hear the
beep before
removing the
thermometer
from the ear or
forehead.
LO or HI
symbol is
displayed
The tempera-
ture measured
is outside the
measuring
range
(0 °C -100 °C
or
32 °F-212°F)
Low:
temperature
too low
High:
temperature
too high
Check that the
probe tip is
clean and that
the thermome-
ter is properly
inserted into
the ear or
placed on the
forehead.
11 - GB
symbol is
displayed
The battery
has run out.
Replace the
battery.
symbol is
displayed
The thermo-
meter is not
yet ready for
measuring.
The ON but-
ton was not
pressed at the
right time.
Wait until the
°C symbol is
displayed on
the panel.
Then press
the ON button
as soon as
you begin
measuring.
symbol is
displayed
The ambient
temperature
is outside
the operating
temperature
range or is
changing too
fast.
To ensure
accurate
measurement,
let the ther-
mometer rest
at operating
temperature
for 20 minutes
prior to use.
12 - GB
GB
GB

LIMITED WARRANTY
This thermometer is guaranteed for 2 years from
the date of purchase against any manufacturing
defect, conditional upon normal household use.
If your unit does not work owing to defective parts
or assembly, we undertake to repair it without
charge. Apart from the battery, all parts of the
unit are subject to this warranty. Damage to the
unit caused by improper use is not covered by
this warranty. We recommend that the accuracy
of the unit be checked annually by an authorised
laboratory (in Germany this is compulsory). This
checking procedure is not a service provided un-
der the warranty. Use of the unit under operating
conditions outside the range indicated may result
in false readings.
The period of manufacture is indicated by the
LOT number on the unit. The fi rst two digits
indicate the month and the third and fourth digits
the year of manufacture.
Manufacturer:
Geratherm Medical AG
Fahrenheitstraße 1
D-98716 Geschwenda
Deutschland
CERTIFICATE OF GUARANTEE
Geratherm
®
guarantees the infra-red dual
® guarantees the infra-red dual ®
thermometer against any manufacturing defect
for two years from the date of purchase if it is re-
turned to the dealer from whom it was purchased.
During this period the unit will be repaired or
replaced free of charge if the fault is due to defec-
tive design or assembly.
13 - GB
This guarantee does not cover any damage or
defect caused by improper handling resulting
from use that is not in compliance with these
instructions or from unauthorised attempts to
repair it. Your local dealer cannot declare this
manufacturer’s guarantee invalid, but may ex-
pand it by additional guarantees at his discretion
and at his own expense.
Model No.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Serial No.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Date of purchase: . . . . . . . . . . . . . . . . . . . . . . . .
Dealer’s signature: . . . . . . . . . . . . . . . . . . . . . . .
Invoice No. / Receipt No.: . . . . . . . . . . . . . . . . . .
Name and address of dealer: . . . . . . . . . . . . . . .
Manufacturer:
Geratherm Medical AG
Fahrenheitstraße 1
D-98716 Geschwenda
Deutschland
EAR AND FOREHEAD THERMOMETER
Geratherm
®
duotemp
® duotemp ®
GEF-100
14 - GB
GB
GB
