Gestetner DSc224 Service manual

67
5. User Tools (System Settings)
User Tools Menu (System Settings)
$These items must be set to use the function. Be sure to set them before using
the corresponding function.
❍These items must be set if required.
❖
❖❖
❖General Features ⇒
⇒⇒
⇒p.73 “General Features”
❖
❖❖
❖Tray Paper Settings ⇒
⇒⇒
⇒p.76 “Tray Paper Settings”
Default Copier Facsimile Printer Scanner
Panel Tone ON ❍❍❍❍
Warm Up Notice ON ❍❍
Copy Count Display Up ❍
Function Priority Copier ❍❍❍❍
Print Priority Display mode ❍❍❍
Function Reset Timer 3 seconds ❍❍❍
Output: Copier Internal Tray 1 ❍
Output: Document
Server
Internal Tray 1
Output: Facsimile Internal Tray 1 ❍
Output: Printer Internal Tray 1 ❍
Default Copier Facsimile Printer Scanner
Paper Tray Priority:
Copier
Tray 1 ❍
Paper Tray Priority:
Printer
Tray 1 ❍
Tray Paper Size: Tray 1 Auto Detect ❍❍ ❍
Tray Paper Size: Tray 2 Auto Detect ❍❍ ❍
Tray Paper Size: Tray 3 Auto Detect ❍❍ ❍
Tray Paper Size: Tray 4 Auto Detect ❍❍ ❍
Paper Type: Bypass tray No display ❍❍
Paper Type: Tray 1 No display/2 Sided
Copy/Auto Paper
Select
❍❍
UranosC1-ENzen_F2_FM.book Page 67 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
68
5
❖
❖❖
❖Timer Setting ⇒
⇒⇒
⇒p.79 “Timer Setting”
Paper Type: Tray 2 No display/2 Sided
Copy/Auto Paper
Select
❍❍
Paper Type: Tray 3 No display/2 Sided
Copy/Auto Paper
Select
❍❍
Paper Type: Tray 4 No display/2 Sided
Copy/Auto Paper
Select
❍❍
Cover Sheet Tray OFF ❍❍
Slip Sheet Tray OFF ❍❍
Default Copier Facsimile Printer Scanner
Auto Off Timer 60 minute(s) ❍❍
Energy Saver Timer 15 minute(s) ❍❍
Panel Off Timer 60 seconds ❍❍ ❍
System Reset Timer 60 seconds ❍❍❍❍
Copier/Document
Server Auto Reset
Timer
60 seconds ❍
Facsimile Auto Reset
Timer
30 seconds ❍
Scanner Auto Reset
Timer
60 seconds ❍
Set Date -- $$
Set Time -- $$
Default Copier Facsimile Printer Scanner
UranosC1-ENzen_F2_FM.book Page 68 Friday, August 2, 2002 1:32 PM

User Tools Menu (System Settings)
69
5
❖
❖❖
❖Interface Settings ⇒
⇒⇒
⇒p.81 “Interface Settings/Network”, p.83 “Interface Settings/Par-
allel Interface”, p.84 “Interface Settings/IEEE 1394 (Option)”, p.85 “Interface Set-
tings/IEEE 802.11b (Option)”
Default Copier Facsimile Printer Scanner
Network IP Address 011.022.033.044 ❍❍❍*3
Sub-net Mask 000.000.000.000 ❍❍❍*3
Gateway
Address
000.000.000.000 ❍❍❍*3
Network
Boot
NONE ❍❍❍*3
Effective
Protocol
(all effective) ❍❍❍*3 *4
NW Frame
Type
Auto select ❍❍
LAN Type Ethernet ❍❍❍*3
Ethernet
Speed
Auto select ❍❍❍*3
Parallel
interface
Parallel
Timing
ACK outside ❍❍
Parallel Com-
munication
Speed
High speed ❍❍
Selection Sig-
nal Status
High ❍❍
Input Prime Invalid ❍❍
Bidirectional
Communica-
tion
ON ❍❍
Signal
Control
Job acceptance
priority
❍❍
IEEE 1394
*1
IP address 000.000.000.000 ❍❍❍*3
Sub-net Mask 000.000.000.000 ❍❍❍*3
IP over 1394 Active ❍❍❍*3
SCSI Print
(SBP-2)
Active ❍
Bidirectional
SCSI print
ON ❍
UranosC1-ENzen_F2_FM.book Page 69 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
70
5
*1 Displayed when the IEEE1394 board (option) is installed.
*2 Displayed when the Wireless LAN board (option) is installed.
*3 Settings are required when using the delivery, TWAIN, store file, or mail delivery
functions.
*4 Effective Protocol Setting is required when using TCP/IP.
❖
❖❖
❖File Transfer
❖
❖❖
❖Key Operator Tools
IEEE
802.11b *2
Communica-
tion Mode
802.11 Ad hoc ❍❍❍*3
SSID Setting ASSID ❍❍❍*3
Channel 11 ❍❍❍*3
WEP (En-
cryption) Set-
ting
Inactive ❍❍❍*3
Wireless
LAN Signal
--
Transmis-
sion Speed
Auto ❍❍❍*3
Return to
Defaults
--
Default Copier Facsimile Printer Scanner
Delivery Option OFF ❍❍
Fax RX File Transmission -- ❍
Scanner Recall Interval
Time
300 seconds ❍
Number of Scanner
Recalls
3 time(s) ❍
Default Copier Facsimile Printer Scanner
User Code Management OFF ❍❍❍❍
Key Counter Management All OFF ❍❍❍❍
External Charge Unit
Management
-- ❍❍❍❍
Key Operator Code OFF ❍❍❍❍
Panel Off Level Level 1 ❍❍
Display/Print Counter -- ❍❍❍❍
Display/Clear/Print
Counter per User Code
-- ❍❍❍❍
Default Copier Facsimile Printer Scanner
UranosC1-ENzen_F2_FM.book Page 70 Friday, August 2, 2002 1:32 PM

User Tools Menu (System Settings)
71
5
Address Book
Management
-- ❍❍❍❍
Address Book: Pro-
gram/Change/Delete
Group
-- ❍
Address Book: Change
Order
-- ❍
Address Book: Edit
Title
-- ❍❍❍❍
Address Book: Select
Title
Title 1 ❍❍❍❍
Auto Delete File Yes After 3 day(s) ❍❍❍❍
Delete All Files -- ❍❍❍❍
Display Password with
Stored File
OFF ❍❍❍❍
Key Operator's E-mail
Address
-- ❍
AOF (Always ON) ON
Default Copier Facsimile Printer Scanner
UranosC1-ENzen_F2_FM.book Page 71 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
72
5
Accessing User Tools (System Settings)
This section is the key operators in
charge of this machine. You can
change or set the machine's default
settings.
Note
❒Operations for system settings are
different from normal operations.
After using User Tools, be sure to
exit.
❒Any changes you make with User
Tools remain in effect even if the
main power switch or operation
switch is turned off, or the {
{{
{Energy
Saver}
}}
}or {
{{
{Clear Modes}
}}
}key is
pressed.
Changing Settings
Note
❒If a key operator code has been set,
the key operator code entry dialog
box appears. Enter the key opera-
tor code, and then press [OK]. ⇒
p.88 “Key Operator Code”
A
AA
APress the {
{{
{User Tools/Counter}
}}
}key.
B
BB
BPress [System Settings].
C
CC
CSelect the desired menu and press
the desired key.
D
DD
DChange settings by following in-
structions on the display panel.
Then press [OK].
Note
❒To cancel changes made to set-
tings and return to the normal
function display, press the {
{{
{User
Tools/Counter}
}}
}key.
Exiting from User Tools
A
AA
APress the {
{{
{User Tools/Counter}
}}
}key.
Changing the system setting is fin-
ished, and the machine returns to
Copy or Print mode.
Note
❒You can also exit from User
Tools by pressing [Exit].
ZGJS002N
UranosC1-ENzen_F2_FM.book Page 72 Friday, August 2, 2002 1:32 PM

Settings You Can Change with the User Tools
73
5
Settings You Can Change with the User
Tools
Reference
For how to access User Tools, see p.72 “Changing Settings”.
General Features
❖
❖❖
❖Panel Tone
The beeper (key tone) sounds when a key is pressed.
Note
❒Default: ON
❖
❖❖
❖Warm Up Notice (Copier/Document Server)
Specify whether the beeper sounds when the machine becomes ready for cop-
ying after Energy Saver mode is deactivated or the power is turned on.
Note
❒If the “Panel Tone”setting is “OFF”, the beeper does not sound, whatever
the “Warm Up Notice”setting.
❒Default: ON
❖
❖❖
❖Copy Count Display (Copier/Document Server)
The copy counter can be set to show the number of copies made (count up) or
the number of copies remaining to be made (count down).
Note
❒Default: Up (count up)
❖
❖❖
❖Function Priority
You can specify the mode to be displayed immediately after the operation
switch is turned on or System Reset mode is turned on.
Note
❒Default: Copier
❖
❖❖
❖Print Priority
Print priority is given to the mode selected.
Reference
⇒p.50 “Multi-Access”
UranosC1-ENzen_F2_FM.book Page 73 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
74
5
Note
❒Default: Display mode
❒When “Interleave”is selected, the current print job will be interrupted af-
ter maximum of 5 sheets.
❒When the optional Internal Tray, Shift Sort Tray, 500-Sheet Finisher, or
1000-Sheet Finisher is installed on the machine, you can specify an output
tray to which documents are delivered. For more information about how
to specify an output tray for each function, see the following descriptions:
•p.74 “Output: Copier (Copy mode)”
•p.75 “Output: Document Server (Document server)”
•p.75 “Output: Facsimile (Facsimile)”
•p.75 “Output: Printer”
❖
❖❖
❖Function Reset Timer
You can set the length of time the machine waits before changing modes
when using the multi-access function (⇒p.50 “Multi-Access”). This is useful
if you make many copies and you have to change the settings for each copy.
If you set a large value, you can prevent jobs from other functions interrupt-
ing the copy job.
Note
❒Default: 3 Seconds
❒The Function Reset Timer setting is ignored if "Interleave" is set for "Print
Priority" (⇒p.73).
❒When you select "Set Time", enter the time (3∼30 seconds by 1 second
steps) with the number keys.
❖
❖❖

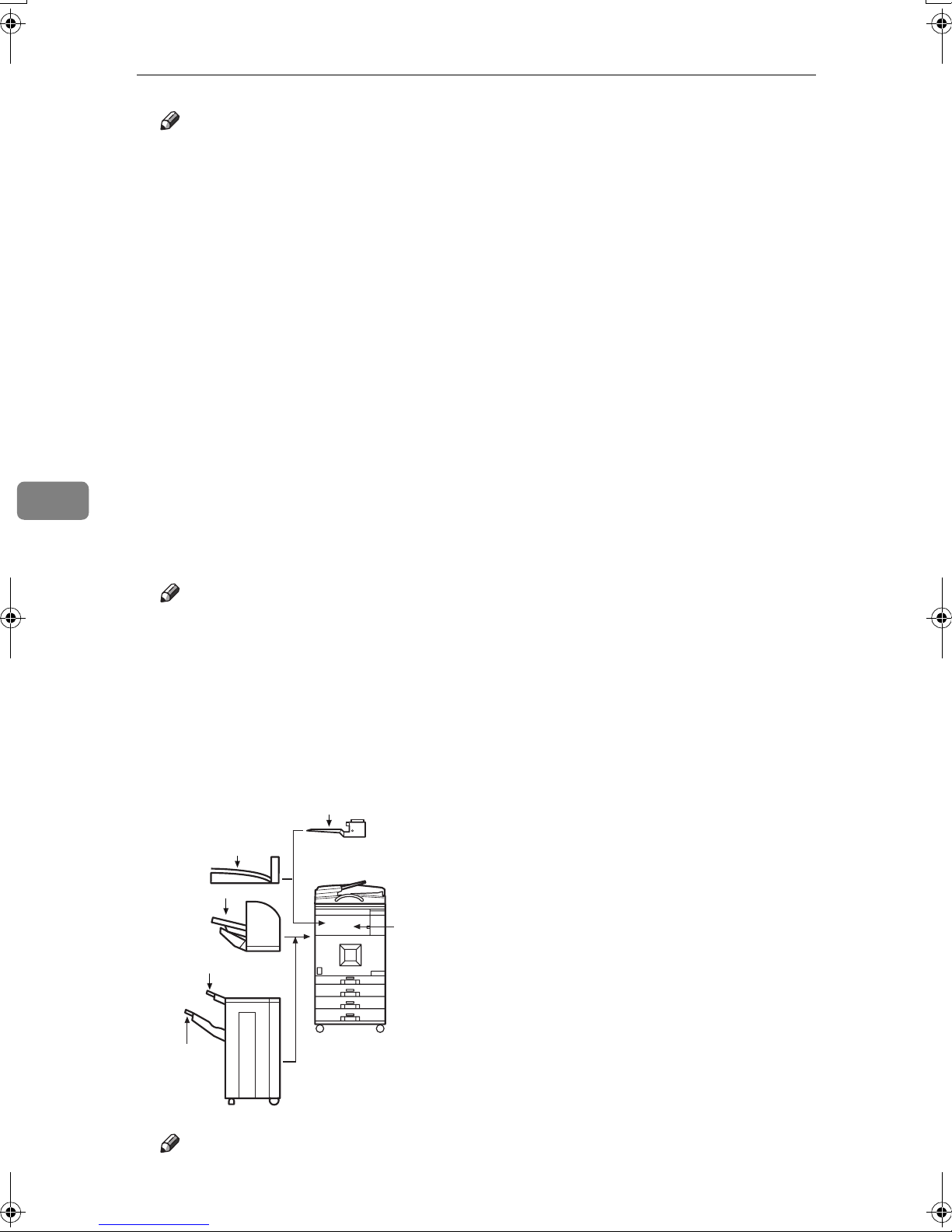

❖Output: Copier (Copy mode)
You can specify a tray to which documents are delivered.
Note
❒Default: Internal Tray 1
ZFFH110E
Shift Sort Tray
Internal Tray 1
Finisher Shift Tray
Finisher Proof Tray
Finisher Shift Tray
Internal Tray 2
UranosC1-ENzen_F2_FM.book Page 74 Friday, August 2, 2002 1:32 PM

Settings You Can Change with the User Tools
75
5
❖
❖❖
❖Output: Document Server (Document server)
You can specify a tray to which documents are delivered.
Note
❒Default: Internal Tray 1
❒For details about output trays, refer to p.74 “Output: Copier (Copy
mode)”.
❖
❖❖
❖Output: Facsimile (Facsimile)
You can specify a tray to which documents are delivered.
Note
❒Default: Internal Tray 1
❒For details about output trays, refer to p.74 “Output: Copier (Copy
mode)”.
❖
❖❖
❖Output: Printer
You can specify a tray to which documents are delivered.
Note
❒Default: Internal Tray 1
❒The output trays set on the Printer Driver have priority over the output
tray specified above.
❒For details about output trays, refer to the illustration in p.74 “Output:
Copier (Copy mode)”.
Output tray settings
Limitation
❒You cannot interrupt the current stapling job even when a stapling job is spec-
ified with a different function.
❒When the 500-Sheet Finisher or 1000-Sheet Finisher is installed and stapling
or shift-sorting is specified for a job, the job will be delivered to the Finisher
Shift Tray regardless of the output tray specified.
❒The output tray used can be changed, when a stapling job of a different func-
tion is interrupted by copying, as in the following cases:
❖
❖❖
❖When the 500-Sheet Finisher is installed and the finisher tray is specified for the
output tray:
•The interrupting job will be delivered to Internal Tray 1.
❖
❖❖
❖When the 1000-Sheet Finisher is installed and the finisher tray is specified for the
output tray:
•The interrupting job will be delivered to Finisher Proof Tray.
UranosC1-ENzen_F2_FM.book Page 75 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
76
5
Tray Paper Settings
❖
❖❖
❖Paper Tray Priority:Copier (Copier/Document Server)
You can specify the tray to supply paper for output.
Note
❒Default: Tray 1
❖
❖❖
❖Paper Tray Priority:Printer (Printer)
You can specify the tray to supply paper for output.
Note
❒Default: Tray 1
❖
❖❖
❖Tray Paper Size: (Tray 1–4)
Select the size of the copy paper set in the paper tray.
•The paper sizes you can set for trays 1 and 2 are as follows:
•Auto Detect, A3L, B4L, A4K, A4L, B5K, B5L, A5K, A5L, A6L,
8KL, 16KK, 16KL
•11"×17"L, 81/2"×14"L, 81/2"×13"L, 81/2"×11"K, 81/2"×11"L,
81/4"×13"L, 8"×13"L, 71/4"×101/2"K, 71/4"×101/2"L, 51/2"×81/2"K,
51/2"×81/2"L, custom size (100.0-297.0 mm (3.94"-11.69") wide ×148.0-
432.0 mm (5.83"-17.00") long)
•The paper sizes you can set for trays 3 and 4 are as follows:
•Auto Detect, A3L, B4L, A4K, A4L, B5K, B5L, A5K, A5L, 8KL,
16KK, 16KL
•11"×17"L, 81/2"×14"L, 81/2"×13"L, 81/2"×11"K, 81/2"×11"L,
81/4"×13"L, 8"×13"L, 71/4"×101/2"L, 51/2"×81/2"K, 51/2"×81/2"L,
custom size (148.0-297.0 mm (5.83"-11.69") wide ×148.0-432.0 mm
(5.83"-17.00") long)
Important
❒If the specified paper size differs from the size of paper actually set in the
paper tray, a paper misfeed might occur because the paper size is not de-
tected correctly.
Note
❒The tray fence for the optional large capacity tray (LCT) is fixed. If you
need to change the paper size, contact your service representative.
❒Default: Auto Detect
Reference
⇒p.126 “Changing the Paper Size”
UranosC1-ENzen_F2_FM.book Page 76 Friday, August 2, 2002 1:32 PM

Settings You Can Change with the User Tools
77
5
❖
❖❖
❖Paper Type:Bypass Tray
Sets the display so you can see what type of paper is loaded in the bypass tray.
•The paper types you can set for the bypass tray are as follows:
•Thick Paper, Recycled Paper, Special Paper, Color Paper, Letterhead,
Preprinted Paper, OHP, Label Paper, Punched Paper, Bond Paper,
Cardstock, Plain: Dup. Back, Thick: Dup. Back
Note
❒Paper size which can be detected automatically, will be detected in Ldi-
rection.
❒Default: No display
❖
❖❖
❖Paper Type:Tray1–4
Sets the display so you can see what type of paper is loaded in each of the pa-
per trays. This information is used by the print function to automatically se-
lect the paper tray.
•The paper types you can set for trays 1 and 2 are as follows:
•Recycled Paper, Special Paper, Color Paper, Letterhead, Preprinted Pa-
per, Punched Paper, Label Paper, Bond Paper, Cardstock, OHP, Thick
Paper
•The paper types you can set for trays 3 and 4 are as follows:
•Recycled Paper, Special Paper, Color Paper, Letterhead, Preprinted Pa-
per, Punched Paper, Bond Paper, Cardstock
Note
❒Default:
•Paper Type: No display
•Copying Method: 2 Sided Copy
•Apply Auto Paper Select: Yes
❒A is displayed next to the paper tray if “No”is selected in “Auto Paper
Select”.
Limitation
❒“Auto Paper Select”can only be selected for the Copy function if “No dis-
play”and “Recycled Paper”are selected. If “No”is selected, “Auto Paper
Select”will not be valid for the tray.
UranosC1-ENzen_F2_FM.book Page 77 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
78
5
❖
❖❖
❖Cover Sheet Tray
Allows you to specify and display the paper tray to set cover sheets. After se-
lecting the paper tray, you can also specify the display timing and copy meth-
od for two-sided copying.
Note
❒Default:
•Tray to program: NONE
❒The functions that use the Cover Sheet Tray setting are the front cover
function and front/back cover function.
❒When “At Mode Selected”is selected, the Cover Sheet Tray settings are
only displayed when the cover function is selected.
❒When “Full Time”is selected, the Cover Sheet Tray is always displayed.
❒You can set the Copying Method in Duplex setting only when “At Mode
Selected”is selected.
Reference
⇒“Covers”in the Copy Reference
❖
❖❖
❖Slip Sheet Tray
Allows you to specify and display the paper tray to set slip sheets. After se-
lecting the paper tray, you can also specify the display timing and copy meth-
od for two-sided copying.
Note
❒Default:
•Tray to program: NONE
❒When “At Mode Selected”is selected, the Slip Sheet Tray settings are only
displayed when the cover function is selected.
❒When “Full Time”is selected, the Slip Sheet Tray is always displayed.
Reference
"Slip Sheets" in the Copy Reference
UranosC1-ENzen_F2_FM.book Page 78 Friday, August 2, 2002 1:32 PM

Settings You Can Change with the User Tools
79
5
Timer Setting
❖
❖❖
❖Auto Off Timer
The machine turns off automatically to conserve energy after a specified
amount of time has passed following job completion. This function is called
"Auto Off".
The machine status after the Auto Off operation is called "Off mode" or "Sleep
mode". For the Auto Off Timer, specify the time to elapse before the Auto Off
function is activated.
The time can be set from 1 minute to 240 minutes using the number keys.
Note
❒Default: 60 minute(s)
❒When in “Off mode”or “Sleep mode”, the machine can be ready for use
within 99 seconds.
❒Auto off may not work when errors are displayed.
❖
❖❖
❖Energy Saver Timer
Set the amount of time the machine waits before switching to lower-power
mode after copying has finished or the last operation is performed.
The time can be set from 1 minute to 240 minutes using the number keys.
Note
❒Default: 15 minute(s)
❖
❖❖
❖Panel Off Timer
Set the amount of time the machine waits before switching the panel off after
copying has finished or the last operation is performed.
Note
❒The warm up time for making a copy from standby mode is 3 seconds for
Panel off Level 1 and 10 seconds for Panel off Level 2.
❒Default: 60 seconds
❒Enter a time interval between 10 seconds and 999 seconds using the
number keys.
❖
❖❖
❖System Reset Timer
The System Reset setting is a setting that automatically switches to the screen
for the function set in Function Priority. This happens if no operations are per-
formed or when an interruputed job is cleared. This setting sets the system re-
set interval. ⇒p.73 “Function Priority”
Note
❒Default: 60 seconds
❒The time can be set from 10 to 999 seconds by 1 second steps using the
number keys.
UranosC1-ENzen_F2_FM.book Page 79 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
80
5
❖
❖❖
❖Copier/Document Server Auto Reset Timer (Copier/Document Server)
Specifies the time to elapse before the copier and Document Server functions
reset.
Note
❒If [No]is selected, the machine will not automatically switch to the user
code entry screen.
❒Default: 60 seconds
❒The time can be set from 10 to 999 seconds using the number keys.
❖
❖❖
❖Facsimile Auto Reset Timer (Facsimile)
Specifies the time to elapse before the facsimile function is reset.
Note
❒Default: 30 seconds
❒The time can be set from 30 to 999 seconds using the number keys.
❖
❖❖
❖Scanner Auto Reset Timer (Scanner)
Specifies the time to elapse before the scanner function resets.
Note
❒If [No]is selected, the machine will not automatically switch to the user
code entry screen.
❒Default: 60 seconds
❒The time can be set from 10 to 999 seconds using the number keys.
❖
❖❖
❖Set Date
Set the date for the copier's internal clock using the number keys.
Note
❒To change between year, month and day, press [←
←←
←]and [→
→→
→].
❖
❖❖
❖Set Time
Set the time for the copier's internal clock using the number keys.
Note
❒To change between minutes and seconds, press [←
←←
←]and [→
→→
→].
UranosC1-ENzen_F2_FM.book Page 80 Friday, August 2, 2002 1:32 PM

Settings You Can Change with the User Tools
81
5
Interface Settings/Network
❖
❖❖
❖IP Address
Before using this machine with the network environment, you must config-
ure the IP address.
Note
❒Default: 011.022.033.044
❒Do not use an IP address that is used for another machine. To get the ad-
dresses, contact your network administrator.
❒If you install the IEEE 1394 board (option) and use the IEEE 1394 interface,
you must set the address of the domain, different from the IP address of
[IEEE 1394]. If you intend to set the address for the same domain, set a dif-
ferent value for the Sub-net Mask.
❒Press [←
←←
←]or [→
→→
→]to move between each group of three numbers.
❖
❖❖
❖Sub-net Mask
This is a number used to mathematically "mask" or hide an IP address on the
network by eliminating those parts of the address that are alike for all the ma-
chines on the network.
Note
❒Default: 000.000.000.000
❒Press [←
←←
←]or [→
→→
→]to move between each group of three numbers.
❖
❖❖
❖Gateway Address
A gateway is a connection or interchange point connecting two networks.
Configure the gateway address for the router or host computer used as a gate-
way.
Note
❒Default: 000.000.000.000
❒Press [←
←←
←]or [→
→→
→]to move between each group of three numbers.
❒To get the address, contact your network administrator.
❖
❖❖
❖Network Boot
Select how to set an IP address from a client.
Note
❒Default: NONE
❒For details about settings, consult your network administrator.
Reference
For details, see the Printer Reference
UranosC1-ENzen_F2_FM.book Page 81 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
82
5
❖
❖❖
❖Effective Protocol
Select the protocol to use in the network.
Note
❒Default: TCP/IP:Effective, NetWare:Effective, NetBEUI:Effective, AppleTalk:
Effective
❖
❖❖
❖NW Frame Type
Select the frame type when you use NetWare.
Note
❒Default: Auto Select
❖
❖❖
❖LAN Type
When you have installed the Wireless LAN board (option), select the inter-
face, Wireless LAN (IEEE 802.11b) or Ethernet.
Note
❒Default: Ethernet
❖
❖❖
❖Ethernet Speed
Set the access speed for networks.
Select a speed that matches your network environment. "Auto Select" should
usually be specified.
Note
❒Default: Auto Select
UranosC1-ENzen_F2_FM.book Page 82 Friday, August 2, 2002 1:32 PM

Settings You Can Change with the User Tools
83
5
Interface Settings/Parallel Interface
❖
❖❖
❖Parallel Timing
Specifies the timing setting for the parallel interface. Under normal circum-
stances, you will not need to change this setting.
Note
❒Default: ACK outside
❖
❖❖
❖Parallel Communication Speed
Specifies the communication speed of the parallel interface. If the communi-
cation speed is set too fast, data transfer may not flow smoothly. If this occurs,
change the setting to “Standard”.
Note
❒Default: High speed
❖
❖❖
❖Selection Signal Status
Specifies the signal setting of the parallel interface.
Note
❒Default: High
❖
❖❖
❖Input Prime
Specifies whether the prime signal is active or inactive when an input prime
signal is sent. Under normal circumstances, you will not need to change this
setting.
Note
❒Default: Invalid
❖
❖❖
❖Bidirectional Communication
Specifies the printer's response mode and so forth for a status request when
using the parallel interface. If you experience problems when using other
manufacturers' printers, set this to “OFF”.
Limitation
❒If this is set to “OFF”, asynchronous functions will not work.
Note
❒Default: ON
❖
❖❖
❖Signal Control
Specifies the error processing settings for when an error occurs when printing
from a computer or sending faxes. Under normal circumstances, you will not
need to change this setting.
Note
❒Default: Job acceptance priority
UranosC1-ENzen_F2_FM.book Page 83 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
84
5
Interface Settings/IEEE 1394 (Option)
Preparation
You must install the IEEE 1394 board (option) into the machine.
The Wireless LAN board (option) cannot be installed at the same time.
❖
❖❖
❖IP Address
When you connect this machine to a network using the IEEE 1394 board (op-
tion), you must configure the IP address.
Note
❒Default: 000.000.000.000
❒When you use the IEEE 1394 interface on a network, you cannot use the
Ethernet interface in the same domain. To use it in the same domain, set a
different value for the Sub-net Mask.
❖
❖❖
❖Sub-net Mask
This is a number used to mathematically "mask" or hide an IP address on the
network by eliminating those parts of the address that are alike for all the ma-
chines on the network.
Note
❒Default: 000.000.000.000
❒When you use the IEEE 1394 interface on a network, you cannot use the
Ethernet interface in the same domain. To use it in the same domain, set
the different value for the Sub-net Mask.
❒Press [←
←←
←]or [→
→→
→]to move between each group of three numbers.
❖
❖❖
❖IP over 1394
When you use the IP over 1394 function of the IEEE 1394 interface to connect
the machine to the network, or you print using a personal computer with the
IP over 1394 driver, you must set the IP over 1394. This function is supported
by Windows Me or Windows XP.
Note
❒Default: Active
❒When using the IP over 1394 function, set the IP Address and the Sub-net
Mask.
Reference
For details, see the Printer Reference.
UranosC1-ENzen_F2_FM.book Page 84 Friday, August 2, 2002 1:32 PM

Settings You Can Change with the User Tools
85
5
❖
❖❖
❖SCSI Print (SBP-2)
When you print using the SCSI Print client function supported by Windows
2000 or Windows XP, you must set SCSI Print. For details, see the Network
Reference.
Note
❒Default: Active
❒When using the SCSI Print (SBP-2), setting the IP Address and the Sub-net
Mask is not required.
❖
❖❖
❖Bidirectional SCSI Print
Specifies the printer's response mode and so forth for a status request when
using the IEEE 1394 interface.
Note
❒Default: ON
❒If this is set to "OFF", asynchronous functions will not work.
Interface Settings/IEEE 802.11b (Option)
Preparation
You must install the Wireless LAN board (option) into the machine.
The IEEE 1394 board (option) cannot be installed at the same time.
Note
❒Be sure to make all settings simultaneously.
❖
❖❖
❖Communication Mode
Specifies the communication mode of the Wireless LAN.
Note
❒Default: 802.11 Ad hoc
❖
❖❖
❖SSID Setting
Specifies SSID to distinguish the access point in the Infrastructure mode.
Note
❒Default: ASSID
❒If SSID is left blank for the 802.11b Ad hoc Mode or Ad hoc Mode, “ASSID”
is displayed.
❖
❖❖
❖Channel
Specifies a channel when you select 802.11b Ad hoc mode or Ad hoc mode.
Note
❒The channel can be set from 1 - 11.
❒Default: 11
UranosC1-ENzen_F2_FM.book Page 85 Friday, August 2, 2002 1:32 PM

User Tools (System Settings)
86
5
❖
❖❖
❖Wireless LAN Signal
Shows the radio-wave status of the access point connected in Infrastructure
mode.
Radio wave status is shown when you press [Wireless LAN Signal].
❖
❖❖
❖WEP (Encryption) Setting
Specifies encryption of the Wireless LAN. If this is set to effective, you must
enter the WEP key.
Note
❒Default: Inactive
❖
❖❖
❖Transmission Speed
Specifies the communication speed of the Wireless LAN.
Note
❒Default: Auto
❖
❖❖
❖Return to Defaults
You can return Wireless LAN settings to the factory default value.
File Transfer
Make these settings as required when using ScanRouter V2 Lite/Professional.
Note
❒The optional ScanRouter V2 Professional is required for distributing received
fax documents.
❖
❖❖
❖Delivery Option
If [ON]is selected, the delivery server IP address will be displayed.
Note
❒Default: OFF
❒The delivery server IP address can only be set from ScanRouter V2
Lite/Professional.
❖
❖❖
❖Fax RX File Transmission
•Setting per Line
Specifies whether or not received fax documents should be sent to Scan-
Router V2 Professional for each of the fax lines.
Note
❒Default: G3 Port 1/Do not Deliver, G3 Port 2/Do not Deliver, G3 Port 3/Do
not Deliver
UranosC1-ENzen_F2_FM.book Page 86 Friday, August 2, 2002 1:32 PM
