Getz Equipment Innovators EP 303 FH User manual

GETZ EQUIPMENT
INNOVATORS PART NO: 4G58961
MODEL: EP 303 FH
TRIPLE HOSE TESTER
(Revised 5/17/07)

2320 Lakecrest Drive, Pekin, Illinois 61554
Telephone: [phone] Fax: [phone]
Website: www.getzequipment.com
Limited Warranty
Products manufactured by Getz Equipment Innovators (with exception of electrical products or
components) will be free from defects for a period of one year from shipment date. Electrical products
and/or components used in manufactured products will have a (6) month warranty from shipment date.
During the warranty period, customers who experience any manufacture-related service issues with
our products, the product may be returned for repair or replacement. Customer must contact Getz
Equipment for approval prior to any product return. Notwithstanding the foregoing, the limited warranty
set forth shall be immediately void of customer uses any replacement parts other than those provided
by Getz Equipment Innovators. The warranty does not cover normal wear and tear items, defects
resulting from modification, alteration, misuse, exposure to corrosive conditions, extremely high
temperatures, improper installation or maintenance. Warranties on component items not manufactured
by Getz Equipment Innovators are provided by others whose warranty, evaluation and judgment will be
final.
All implied warranties, including, but not limited to, warranties of fitness for purpose and
merchantability, are limited to the time periods as stated above. In no event shall Getz Equipment
Innovators be liable to incidental or consequential damages. Some states do not allow limitations on
how long an implied warranty lasts or the exclusions or limitation of incidental or consequential
damages, so that the above limitations or exclusions may not apply to you. Getz Equipment Innovators
neither assumes nor authorizes any representative or other person to assume for it any obligation or
liability other than as expressly set forth herein.
Mobile Service Vehicles:
The warranty does not cover:
·Defects in the chassis and or power unit
·Defects in separately manufactured products not produced by Getz Equipment Innovators
·Deterioration due to normal wear, tear, and exposure
·Repairs made necessary by negligent use, misuse, abuse, loading the service vehicle beyond its
gross vehicle weight limitations, accident, acts of God, or other contingencies beyond the control
of Getz Equipment Innovators.
·Repairs deemed necessary by reason of the failure to follow ordinary maintenance procedures.
·Repairs deemed necessary by reason of alterations done without Getz Equipment Innovators’
written approval.
Warranty Service:
·All warranty repairs will be performed by Getz Equipment Innovators in Pekin, IL, unless otherwise
authorized by Getz Equipment Innovators.
Freight:
·Getz Equipment Innovators will not be liable for shipping or transportation charges to or from
customer's location.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To obtain performance to the obligation
of the warranty, write to Getz Equipment Innovators, 2320 Lakecrest Drive, Pekin IL 61554, USA for instructions.

THE GETZ ELECTRIC HYDROTEST PUMP
OPERATION AND PARTS MANUAL
MODEL #EP-303-FH
TABLE OF CONTENTS
PAGE #
1............................................................ INSTRUCTIONS
2............................................................ PARTS LIST
3............................................................ PARTS LIST (Cont.)
4............................................................ TOP VIEW DRAWING
5............................................................ FRONT VIEW DRAWING
6............................................................ HOSE ADAPTER DRAWING
7.………………..……………………. MAINTENANCE

INSTRUCTIONS FOR HOSE HYDROTEST PUMP
FOLLOW NFPA 1962 GUIDE LINES WHEN TESTING FIRE HOSES
THIS TESTER IS TO BE POWERED ONLY BY A PROPERLY INSTALLED AND TESTED
120V AC GFCI ELECTRICAL RECEPTICAL
1. Connect a garden hose to a clean water source and purge the line to remove air and dirt.
2. Test the GFCI receptacle before plugging the tester in.
DO NOT TURN THE MOTOR ON AT THIS POINT
3. Roll the hoses out in a straight line in front of the hose tester. This will help reduce the amount of
twisting when the hoses are filled with water. Make sure the hoses are on a flat surface with the ends
slightly elevated to remove any air trapped inside.
4. Open the water supply to the garden hose and inlet ball valves items # 6, # 46 and #10. Open the ball
valve located on the manifold, item # 36. Turn the pump motor on by placing the toggle switch item # 21
in the up position. Run for approx. 30 seconds to purge the tester of air and close item # 36.
5. Close ball valve item # 6. With the pump running, set the test pressure by turning the valve # 31 handle
clockwise to increase or counter clockwise to decrease pressure. Close ball valve item # 10 and turn the
motor off. Pressure on gauge # 12 must remain at test pressure for five minutes. Release the manifold
pressure by opening valve # 36.
6. Select the correct size test adaptor for the hose being tested. Install the test adaptor with the male quick
connect on the female end of the hose and connect to item # 9 on the tester manifold. Install the test
adaptor with the 1/4" ball valve on the male end of the hose. Turn the ball valve to the on position to
remove air trapped in the hose when filled with water.
7. Close valve item # 36 and open valve item # 6 and # 46 to quick fill the hoses. Go to the far end of the
hoses being tested and close the 1/4" ball valve when a steady stream of water is present. Allow the hoses
to expand from normal water pressure. Place a black mark on each end of the hose, just in back of the
coupling.
8. Close valve # 6 and turn the motor on until it reaches test pressure shown on the manifold gauge item
#12. Close ball valve # 10 and wait five minutes to ensure pressure remains constant. Close valve # 46,
open valve # 10 and relieve the pressure slowly with the bleeder vale # 36 or valves on the hose adaptors.
9. Check the black mark just behind the hose couplings. If the mark has moved away from the fitting; that
fitting must be replaced, and the hose must be retested before returning to service.
10. When all pressure has been relieved from the hoses, remove the test adaptors and drain the water from
the hoses.
1

PARTS LIST
DRAWING # PART # DESCRIPTION
1 1G51321 FRAME HOSE HYDRO
2 1G53371 MOTOR 60 HZ SINGLE 1 HP
3 1G0102 PIPE TEE BR 1/2 ST
4 1G0309 FTNG SWIVEL WATER
5 1G51948 WATER FILTER N 107
6 1G0084 VLV BALL BR 1/2 X 1/2 FMLE
7 1G0217 PIPE NIP BR 1/2 X CLOSE
8 1G0291 PIPE ELB BR 1/2 ML X 1/2 FMLE
9 1G51823 SOCKET HANSON 1/2 EP 303 FH
10 1G0042 VLV BALL 1/4 X 1/4 ML
11 1G51649 PIPE NIP BR 1/4 CLOSE
12 3G56190 GAUGE 1500 PSI GLY CALIBRATED
13 1G51325 CPLG 3/8 HOSE X 9/16 SWIVEL
14 1G51020 AD 3/8 ML X 9/16 FL (2021)
15 1G51683 PIPE RDCR BR 3/8 X 1/4
16 1G51692 PIPE TEE 3/8 NPT
17 1G53591 ADP VLV UNLOADER
18 1G0291 PIPE ELB BR 1/2 ML X 1/2 FMLE
19 1G0351 PUMP TESTER HOSE
20 1G53972 RELIEF STRAIN 90 DEG
21 1G0358 SWITCH TOGGLE
22 1G51828 SPLASHCOVER SWITCH
23 1G53391 CORD ELECTRICAL
2

PARTS LIST
(Continued)
DRAWING # PART # DESCRIPTION
24 1G52492 AD 1/4 FMLE X 9/16 FL ML
25 1G51325 CPLG 3/8 HOSE X 9/16 SWIVEL
26 1G51412 HOSE 3/8 SYNFLEX 2250 PSI
27 1G51864 SWIVEL MECH 1/2 (9205)
28 1G51253 CPLG 1/2 ML SYNFLEX
29 1G51562 MTL SYNFLEX 1/2 2000 PSI
30 1G51253 CPLG 1/2 ML SYNFLEX
31 1G0352 VLV UNLOADER AR
32 1G51621 PIPE ELB BR 1/4 FMLE
33 1G53780 HEX NIPPLE ¼ NPT
34 1G0078 PIPE ELB 45 DEG ST
35 1G53778 MANIFOLD EP/AP TESTER
36 1G0042 VLV BALL 1/4 X 1/4 ML
37 1G51624 PIPE ELB BR 1/4 ST
38 1G51624 PIPE ELB BR 1/4 ST
39 1G0274 VLV PRESS RLF 850 PSI
40 1G53592 CASTER SWIVEL 4”
41 1G53593 CASTER 4”
42 1G51125 BKT MANIFOLD EP 303 FH
43 1G0217 PIPE NIP BR 1/2 X CLOSE
44 1G0103 PIPE RDCR BR ½ X 1/4
45 1G0217 PIPE NIP BR 1/2 X CLOSE
46 1G0084 VLV BALL BR X 1/2 X 1/2 FMLE
3

F
E
R
OFF
DETAIL-A
C------;()  
POSITION]
I I I I
 I
ON POSITION i

SEE DETAIL -A
SEE DETAIL -A
CHANGED APPEARANCE OF ITEM 2 C
CHANGED ITEM 20
REMOVED ITEM 10, CHANGED MANI FOL C
G G
  
   
          
17
07
/31
05
  

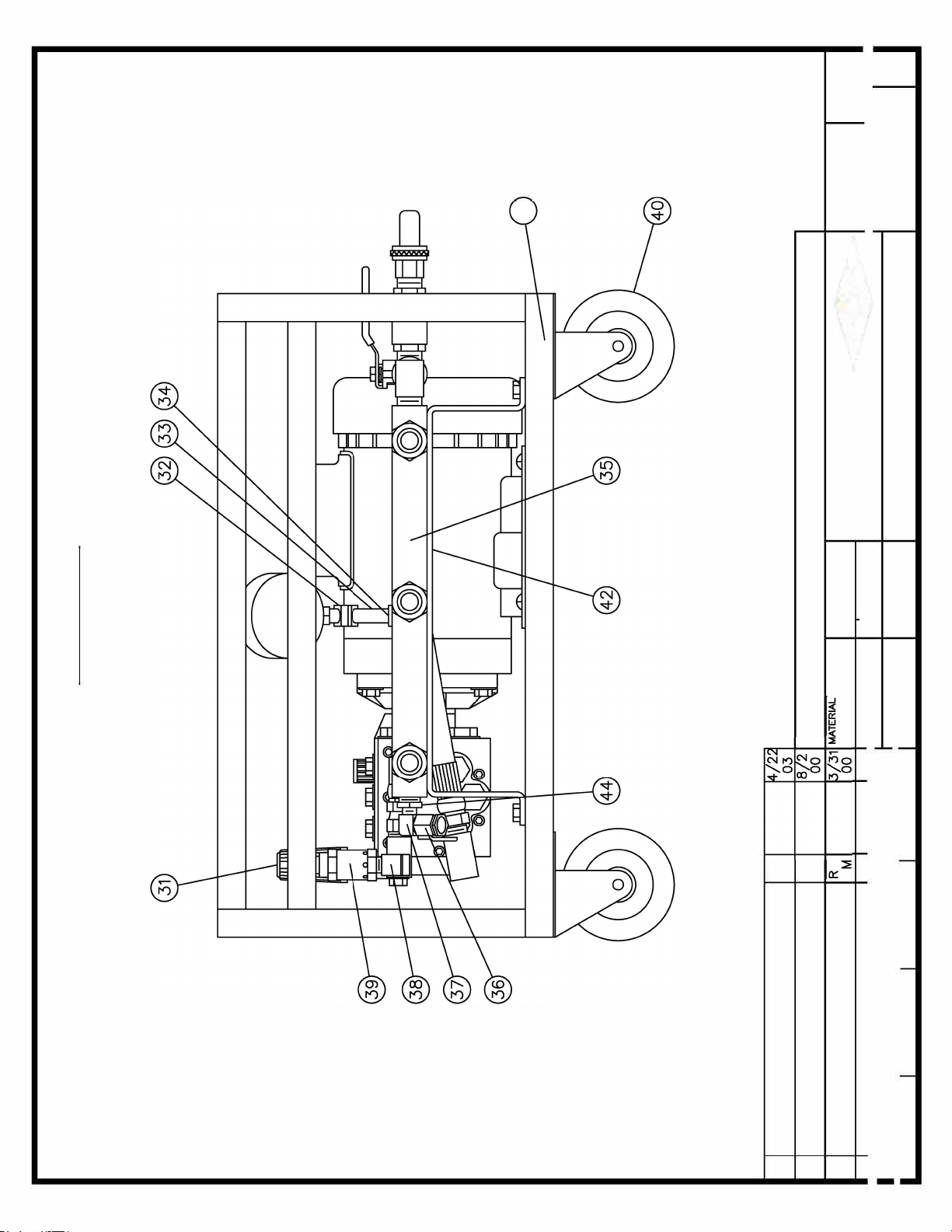

TOP VIEW
               
            
 
 
.c.
 
1 /4"=1" 3-24-92     
  
1 OF 3
  R.
4G58589-M
F
GETZ EQUIPMENT INNOVATORS
NORTH PEKIN, ILLINOIS

 

 
C OVERALL CHANGE 
FRONT VIE
41 -IN BACK
 
B ADDED ITEM #36                 
            
A REMOVED ITEM #4















      


 


 = 


u.c.
 
3-24-92
 
2 OF 3






    
4G58589-2M

GETZ EQUIPMENT INNOVATORS
NORTH PEKIN, ILLINOIS





-
- 
 



      
                        

I
 
 __ -�

      
                   

MAINTENANCE
OIL
SAE 30 W NON DETERGENT
Change after first 50 hours of use, and every 200 hours thereafter.
WINTER STORAGE
If possible store this unit in a warm dry area when not in use.
In conditions where the temperature may drop below freezing, all water must be drained from the system.
WATER LEFT IN THIS SYSTEM CAN CAUSE SEVERE DAMAGE
1. Remove the water hose inlet supply.
2. Open valves # 36, # 46, #10 and # 6.
3. Turn motor on for 30 seconds.
START UP PROCEDURE
1. Inspect for any damage.
2. Check item #23 electrical cord for any cuts or damage. IF DAMAGED THIS SHOULD BE
REPLACED BY A QUALIFIED ELECTRICIAN.
3. Check item # 20 cord connection. This connection must be tight with no internal wiring exposed.
4. Continue to page 1. Testing
