GFA TS 971 Series User manual

Installation instructions
Door control – TS 971-Automatic ATEX
outside Ex – Zone
Version: 51171731_00002
0000000 0000 51171731 00002
-en-
Version: a / 01.2018

2
GfA ELEKTROMATEN GmbH & Co. KG
Wiesenstraße 81 • 40549 Düsseldorf
www.gfa-elektromaten.de
[e-mail]

Contens
3
1General safety information ............................................................................................. 4
2Technical data ................................................................................................................ 5 
3Components ................................................................................................................... 6
3.1Motor protection switch ................................................................................................. 6
3.2Zener barriers ............................................................................................................... 6
3.3Safety edge system ...................................................................................................... 6
3.4Pass-door / slack-rope switch ....................................................................................... 7
3.5Switch device................................................................................................................ 7
4Installation ...................................................................................................................... 8
4.1Mains supply................................................................................................................. 8
4.2Motor connection .......................................................................................................... 8
4.3Other connections......................................................................................................... 9
4.4Proof of intrinsic safety.................................................................................................. 9
5Description door control TS 971 ................................................................................... 10
5.1Overview of control ..................................................................................................... 10
5.2NES: Rapid adjustment of final limit positions............................................................. 11
6Control programming.................................................................................................... 12

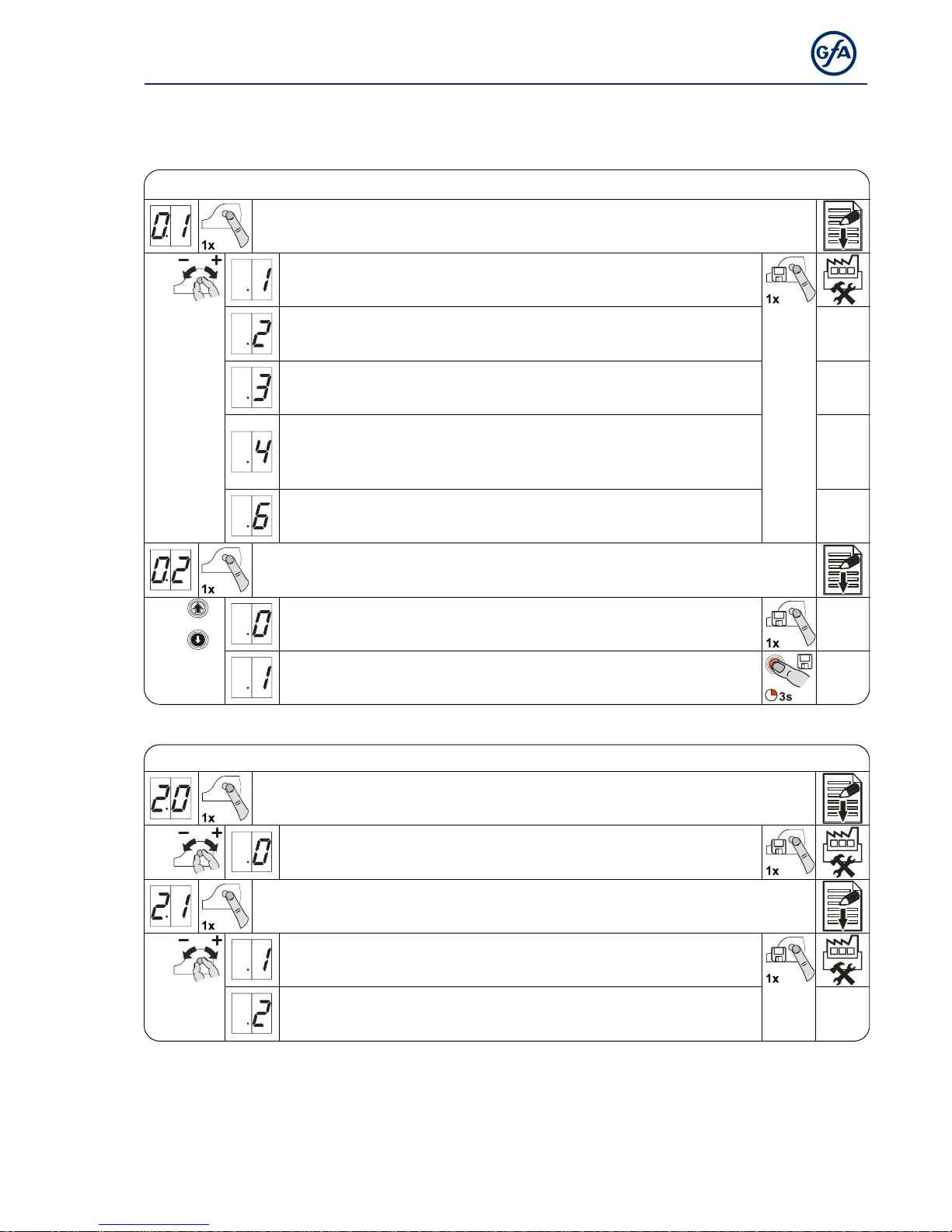

6.1Table menu items ....................................................................................................... 13
Door operating modes ....................................................................................................... 13
Door functions, Part 1........................................................................................................ 13
Door functions, Part 2........................................................................................................ 14
Door functions, Part 3........................................................................................................ 15
Door functions, Part 4........................................................................................................ 16
Safety functions ................................................................................................................. 16
Maintenance cycle counter................................................................................................ 17

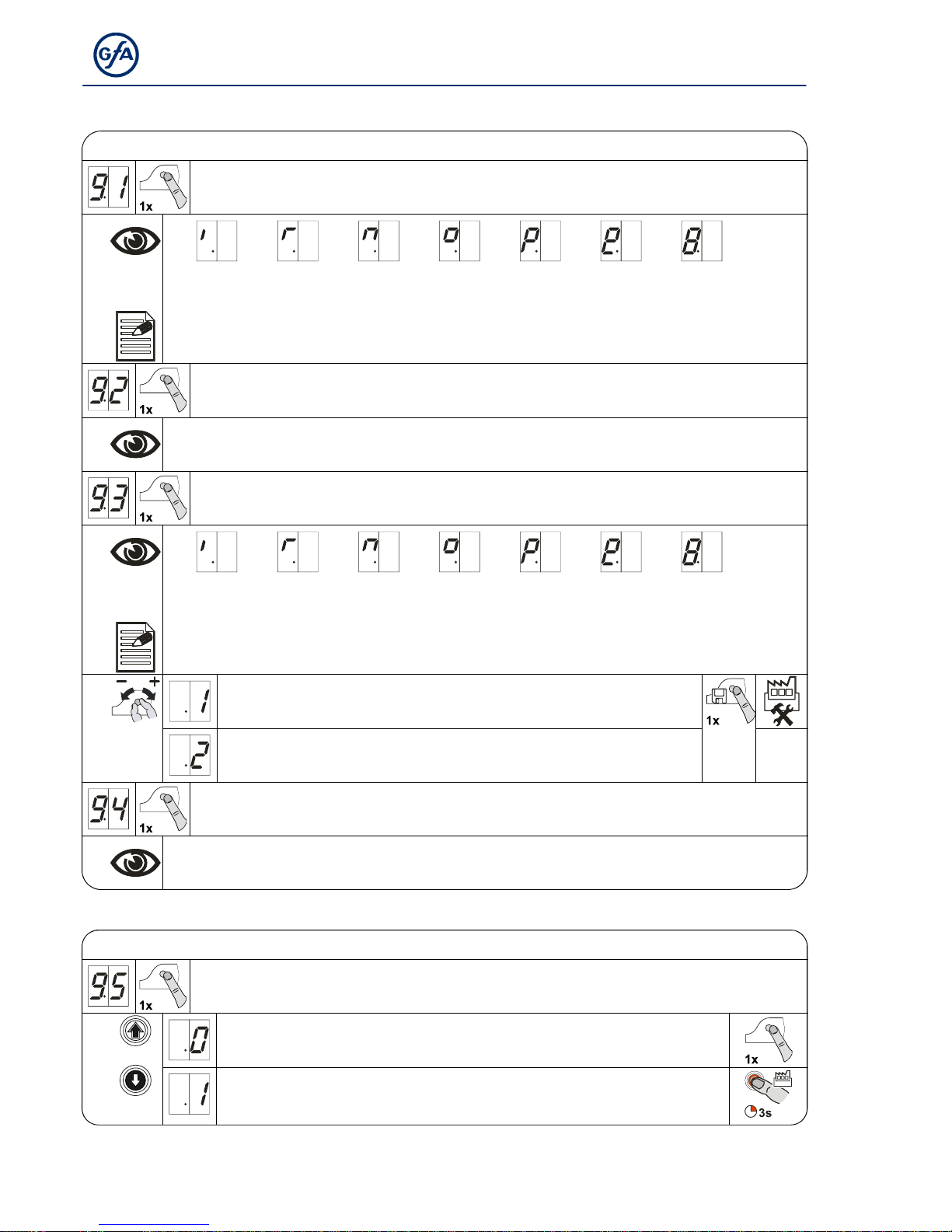

Readout of Data memory................................................................................................... 18
Deleting / readout .............................................................................................................. 18
7Safety devices .............................................................................................................. 19
7.1X2: Input, safety edge system 8k2.............................................................................. 19
7.2EMERGENCY operation............................................................................................. 20
7.3X3: Input, emergency stop .......................................................................................... 20
8Status display ............................................................................................................... 21
Faults................................................................................................................................. 21
Faults................................................................................................................................. 22
Commands ........................................................................................................................ 23
Status indications .............................................................................................................. 23
9Explanation of symbols................................................................................................. 25
10Commissioning............................................................................................................. 27
11Maintenance / annual inspection .................................................................................. 28
12Repairs ......................................................................................................................... 28
13Declaration of Incorporation ......................................................................................... 29
14Characteristic curves of motor protection switches....................................................... 30
15Circuit diagrams............................................................................................................ 32
16Parts list........................................................................................................................ 40

General safety information
4
1 General safety information
Specified normal use
The door control is intended for a force-actuated door with drive unit and mechanical limit switch
(NES) by GfA.
The safe operation is only guaranteed with specified normal use. The door control and the drive unit
are to be protected against rain, moisture and ambient environmental conditions.
There is no liability for damage caused by other applications or failure to follow the installation
instructions. Modifications are only permitted with the agreement of the manufacturer. Otherwise the
Manufacturer’s Declaration shall be rendered null and void.
Safety information
Only skilled personnel may carry out the installation and commissioning. Only trained electrical
craftsmen are permitted to work on electrical equipment. They must assess the tasks assigned to
them, recognise potential danger zones and be able to take appropriate safety measures. Installation
work may be carried out only in a voltage-free state. Observe valid regulations and standards.
Coverings and protective devices
Only operate with corresponding covers and protective devices. Ensure proper seating of gaskets and
correctly tightened screw connections.
Spare parts
Use original spare parts only.

Technical data
5
2 Technical data
Place of use outside EX zone
Housing dimensions mm 375 x 375 x 188
Housing cover transparent
Installation vertical
Supply voltage (mains / motor voltage)
(+/- 10%) V AC 3 N~220-400 V, PE 3~220-400 V, PE
Max. permissible backup fuse A3x 10 (slow)
Control voltage V DC 24V DC
External mains supply:
(internal electronic protection)
V DC 24
A 0,35
External mains supply: X1/L, X1/N
(protection via F1 micro-fuse)
1 N~230 V
A 1,6
Motor protection switch (setting range) A0.9 – 1.25 / 2.2 – 3.2
Frequency Hz 50
Degree of protection IP 65
Ex-specific associated equipment
Zener barrier 9001/01-280-085-101
Zener barrier 9001/01-252-060-141
Switch device GM D1030D
Ex marking
- Zener barriers
- Switch device
II 3(1)G [Ex ia Ga] IIC T4 Gc
II (1)D [Ex ia Da] IIIC
II (1)G [Ex ia] IIC
II (1)D [Ex iaD] IIIC
Permissible ambient temperature °C -10/+50
Air humidity up to 80 % non-condensing
Load of relay contacts,
ohmic/inductive 230 V AC, 1A
24 V DC, 0.4A
Relay contact
When switching inductive loads (such as
additional relays or brakes), freewheeling
diodes and appropriate interference
suppression measures must be used
Power consumption of door control W18
Weight kg 8.2

Components
6
3 Components
3.1 Motor protection switch
Motors for use in potentially explosive atmospheres (Ex) require protection against overload and short
circuit. Overload protection is provided by a built-in motor protection switch (Q2). The motor protection
switch is suitable for Ex-d/Ex-de and Ex-e motors. The protection is current-dependent and becomes
effective when the motor is blocked. Only manual reset is permissible. The setting value of the
overload device must correspond to the rated motor current. For Ex-e motors, it must be ensured that
the motor is disconnected from the mains within the warming period tE. The actual tripping time tAat
relative operating current IA/ INmust be determined using the tripping characteristic of the motor
protection switch. It must be ensured that tA< tEis given.
3.2 Zener barriers
Zener barriers of series 9001 are used as isolation stages without galvanic separation between
intrinsically safe and non- intrinsically safe current circuits. Zener barriers protect current circuits (such
as conductors and equipment) installed in explosive atmospheres. As they also contain non-
intrinsically safe current circuits, Zener barriers must be installed outside the explosive zone. Zener
barriers represent associated equipment.
3.3 Safety edge system
The Zener barrier N1 is an associated device without galvanic isolation. This barrier is suitable for
zones 1, 2 (gas) as well as 21, 22 (dust) and may be used in combination with an electric safety edge
as a safety edge system. The safety edge is connected directly to the Zener barrier. For example, the
rubber profile "Contact-Duo" by GELBAU can be used as safety edge. The design of the rubber
profile must be suitable for Ex atmospheres. The safety edge must be equipped with an end of line
resistor of 8k2 ohms. The power dissipation of the resistor must be observed (a resistance of 1W
corresponds temperature class T4).
Ex-factory, a resistor R1 of 8k2 Ohm is connected to terminals 3-4. This resistor is for test purposes
only and must be removed after commissioning.
Technical data of the Zener barrier:
Manufacturer: R. Stahl Schaltgeräte GmbH, Waldenburg
Type: 9001/01-280-085-101
Certification: PTB 01 ATEX 2088 X
Explosion protection: II 3(1)GnA [Ex ia Ga] IIC T4 Gc
II (1)D [Ex ia Da] IIIC
U
0, I0, P0: 28V, 85mA, 595mW
L
0: 2.4mH (IIC) / 16mH (IIB)
C
0: 0.083μF (IIC) / 0.65μF (IIB)

Components
7
3.4 Pass-door / slack-rope switch
The Zener barrier N2 is an associated device without galvanic isolation. This barrier is suitable for
zones 1, 2 (gas) as well as 21, 22 (dust) and serves to evaluate a switch contact (pass-door / slack-
rope switch). Multiple contacts must be connected in series.
Technical data of the Zener barrier:
Manufacturer: R. Stahl Schaltgeräte GmbH, Waldenburg
Type: 9001/01-252-060-141
Certification: PTB 01 ATEX 2088 X
Explosion protection: II 3(1)GnA [Ex ia Ga] IIC T4 Gc
II (1)D [Ex ia Da] IIIC
U
0, I0, P0: 25.2V; 60mA; 378mW
L
0: 6.2mH (IIC) / 25mH (IIB)
C
0: 0.107μF (IIC) / 0.82μF (IIB)
3.5 Switch device
The 2-channel switch device A2 serves as an interface between signals from the explosive
atmosphere and the non-explosive atmosphere. Due to the galvanic isolation, no connection to the
potential equalisation is required. The switch device is considered an associated device.
LEDs (power: green, status: yellow, error: red) signal operational readiness and output status.
Any photocell built and tested according to NAMUR standard with Ex approval may be connected to
the switch device.
In principle, the photocells are approved zones 1 and 21. The photocell must be connected
unblanking.
Technical data:
Manufacturer: G. M. International
Type: GM D1030D
Certification: DMT 01 ATEX E042 X
Explosion protection: II (1)G [Ex ia] IIC
II (1)D [Ex iaD]
U
0, I0, P0: 10.7V, 15mA, 39mW
L
0: 172mH (IIC) / 689mH (IIB) / 1379mH (IIA) / 689mH (iaD)
C
0: 2.23µF (IIC) / 15.6μF (IIB) / 69μF (IIA) / 15.6μF (iaD)
Auxiliary power: at 24VDC, 75mA (1.8W)
Input level: ON I > 2.1mA OFF I < 1.2mA

Installation
8
4 Installation
Before installation, the door control must be checked for transport or other damage. The base for
attaching the door control must be level and free of vibrations. The door control must be easily
accessible and be installed between 0.6 m and 1.7 m above the floor. Installation is only permissible
in vertical mounting position. Ensure that no foreign bodies (such as drilling chips) enter the housing.
4.1 Mains supply
The door control is intended for three-phase drives with a mains voltage of 3 ~ 230 V and 3 ~ 400 V.
The mains connection point must be protected with the specified backup fuse. Use copper cables with
the appropriate cross-section to avoid excessive voltage drop during start-up and during operation.
The motor voltage must be within a limit of +/- 10%. The outer diameter of the cable must correspond
to the cable gland's diameter.
4.2 Motor connection
Choose the size of mains cables according to DIN VDE 0298. When using motors with integrated
brake, two separate lines are required. Cable entries and cable diameters are specified in the
installation instructions of the drive unit.

Installation
9
4.3 Other connections
- Limit switch at drive unit
- Control device in door area
- Ceiling pull switch (optional)
- A latching switch to release the automatic closing mechanism (optional)
The connection terminals are located in control circuits with 24 V DC.
DANGER
Installed devices within the Ex zone must be flameproof and have an Ex approval.
CAUTION
▶ Door operating mode "hold-to-run":
Ensure unobstructed view from the place of operation to the door.
4.4 Proof of intrinsic safety
Intrinsically safe current circuits are:
- Safety edge with resistor of 8k2 Ohm, spiral cable and connection cable
- Pass-door and slack-rope switch with connection cable
- Photo cell with connection cable
The erection regulations DIN EN 60079-14 [1] require a proof of intrinsic safety for intrinsically safe
current circuits. For technical data of equipment N1, N2 and A2, please refer to the technical data
sheets by the manufacturers.

Description door control TS 971
10
5 Description door control TS 971

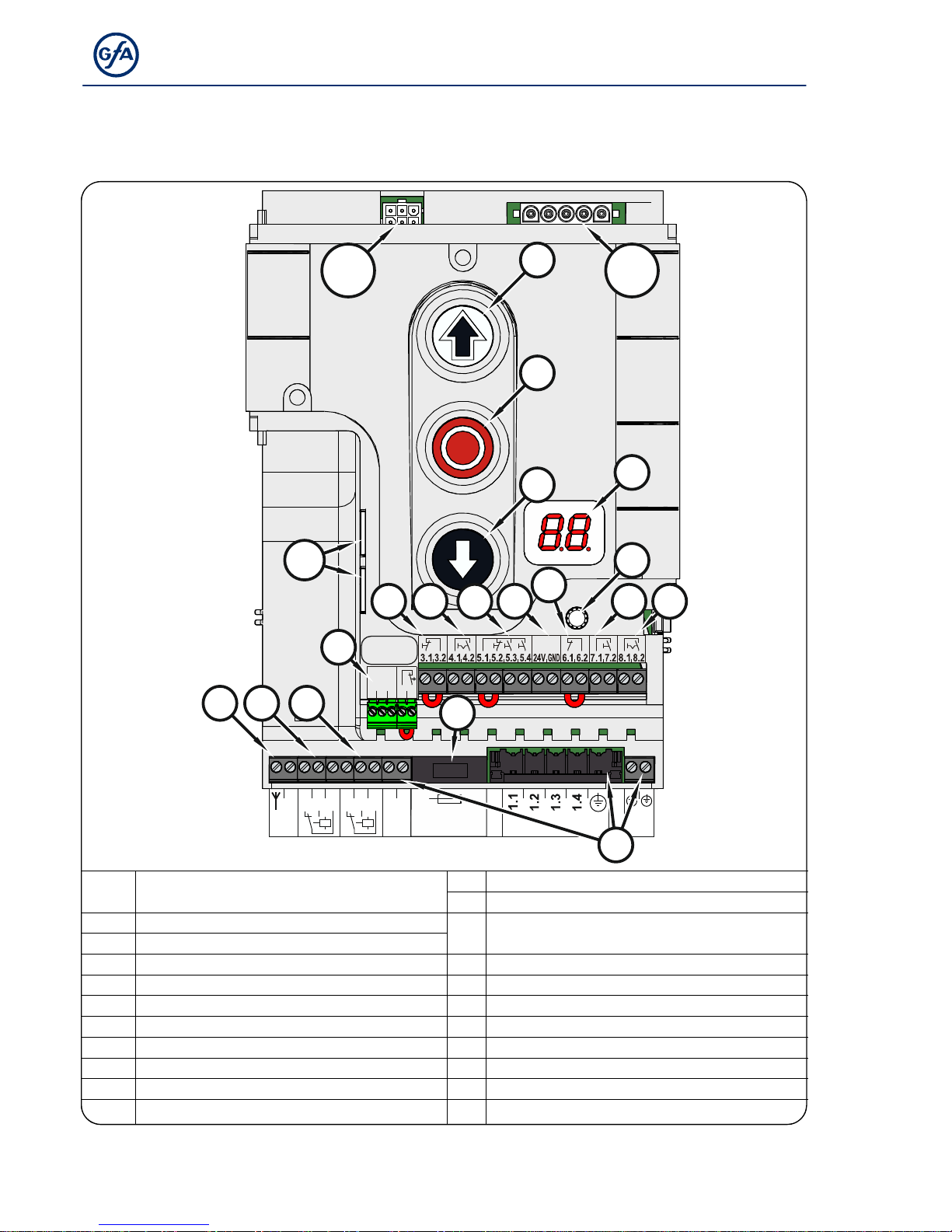

5.1 Overview of control
DES/
NES DES or NES limit switch socket X24 V mains supply, external devices
X1 Mains supply
F1 Micro-fuse 1.6 A time-lag X2 Safety edge and
door safety switch
MOT Motor socket
S Selector switch X3 Emergency STOP control device
S11 OPEN push-button X4
A
utomatic closing On/Off
S12 STOP push-button X5 Control device, external three push-button
S13 CLOSE push-button X6 Through / reflective photo cell
T Internal aerial, 434 MHz X7 Pull switch, external radio receiver
UBS Universal command sensor socket X8 Intermediate open On/Off
V1 Display X20 Potential-free relay contact 1
X21 Potential-free relay contact 2
2.1 2.3 2.5 2.2 2.4
20.1
1.8 1.9
ANT
GND
20.2 20.3
21.1
21.2 21.3
F1 = 1,6A t
V1
MOT
DES/
NES
S11
S12
S13
X20X21T
X3
X2
X4 X5 X
X6
X7 X8
F1
UBS S
X1
971
