GHP Group X Series Installation and operating instructions

Before the rst use of this heater, please read this USER’S MANUAL
very carefully. This USER’S MANUAL has been designed to instruct
you as to the proper manner in which to assemble, maintain, store,
and most importantly, how to operate the heater in a safe and efcient
manner. Please keep this manual for future reference.
CONSUMER: Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 877-447-4768 8:00 a.m. - 4:30 pm CST, Monday - Friday.
190624
Electric Garage Heater
INSTALLATION & MAINTENANCE INSTRUCTIONS
7,500W / 240V / 25,589 BTU
EG7500DH

PET OWNERS WARNING: The health of some small pets including birds are extremely
sensitive to the fumes produced during the rst-time use of many appliances. These fumes are
not harmful to humans but we recommended that you do not use your heater around birds and
small pets during its initial use until the manufacturing corrosion coatings burn off.
When using electrical appliances, basic precautions should always be followed
to reduce the risk of re, electric shock, and injury to persons, including the
following:
1. Read all instructions before installing or using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch
hot surfaces. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front
of the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children
or invalids and whenever the heater is left operating and unattended.
4. Always turn off the power of heater when not in use.
5. Do not operate any heater with the heater malfunctions, has been
dropped or damaged in any manner. Return heater to authorized service
facility for examination, electrical or mechanical adjustment, or repair.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms, laundry areas and
similar indoor locations. Never locate heater where it may fall into a
bathtub or other water container.
8. Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or re, or damage the heater.
9. To prevent a possible re, do not block air intakes or exhaust in any
manner. Do not use on soft surfaces, like a bed, where openings may
become blocked.
10. A heater has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint, or ammable liquids are used or stored.
11. Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause re, electric shock, or
injury to persons.
IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This Product can expose you to chemicals including Diisononyl phthalate (DINP) which is known
to the State of California to cause cancer and Di-isodecyl phthalates (DIDP) which is known to the
State of California to cause birth defects or other reproductive harm.
For more information go to www.p65Warnings.ca.gov
WARNING

3
ITEM PAGE #
SPECIFICATIONS........................................................................... 3
SAFETY INFORMATION................................................................. 3
LOCATING HEATER ....................................................................... 4
PRE-INSTALLATION....................................................................... 5
INSTALLATION ............................................................................... 6
OPERATING INSTRUCTIONS........................................................ 10
MAINTENANCE .............................................................................. 12
REPLACEMENT PARTS................................................................. 12
TROUBLESHOOTING .................................................................... 13
1. Use only copper wires rated for at least 60ºC.
2. Heaterairowmustbedirectedparalleltoorawayfromadjacentwall.
3. Observeallwall,oorandceilingclearancerequirements.
4. Allwiringmustbedoneaccordingtonationalandlocalelectricalcodes.The
heatermustbegroundedasaprecautionagainstpossibleelectricalshock.
Heatercircuitmustbeprotectedwithproperfuses.
5. Themountingstructureandtheanchoringhardwaremustbecapableof
supportingtheweightoftheheaterandthemountingbracket(ifused).
Rating AMPS BTU/hour
7500W II 240-1-60 31.25 22589
5000W I 240-1-60 20.9 17065
TABLE OF CONTENTS
SPECIFICATIONS
SAFETY INFORMATION
THISHEATERREQUIRESHARDWIREINSTALLATION(NOPLUG).THEINSTALLATIONOFTHIS
PRODUCT MUST BE CARRIED OUT BY A CERTIFIED ELECTRICIAN AND IN ACCORDANCE WITH
ALL LOCAL AND NATIONAL ELECTRICAL CODES.
NOTE: COMPATIBLE WITH A 240V LINE VOLTAGE DOUBLE POLE WALL THERMOSTAT. MUST BE
INSTALLED BY A CERTIFIED ELECTRICIAN.
READ AND UNDERSTAND ALL INSTALLATION & OPERATION INSTRUCTIONS PRIOR TO
OPERATING THIS UNIT. OBSERVE ALL SAFETY INSTRUCTIONS.
WARNING

4
6. Allelectricalpowermustbedisconnectedatthemainservicebox,which
mustbelockedbeforeconnecting,inspecting,cleaningorservicingthe
heater.Thisisanimportantprecautiontopreventseriouselectricshock.
7. Thisisheaterisnotsuitableforuseinhazardouslocationscontaining
explosiveliquidsorvapours.Thisheaterhashotorarcingorsparkingpads
inside.Donotuseitinareaswheregasoline,paintorammableliquidsare
usedorstored.
8. Thisheaterisnotsuitableforuseincorrosiveatmospheressuchasmarine
greenhousesorchemicalstorageareas.
9. Thisheatermustbemountedatleast8feetofftheoor.Forspecic
clearances,pleaseseenextpage.
Installheaterawayfromtrafcareas,maintainingclearancesstatedingure
2(below).Theairowdirectionshouldnotberestricted(ie.bycolumnsor
machinery).Theairowshouldwipeexposedwallsratherthanblowingdirectly
onthem.Whenmorethanoneheaterisusedinanarea,heatersshouldbe
installedsothattheairdischargeofeachheatersupportstheairowofthe
others,toprovidebestwarmaircirculationasshowningure3.
Figure 2
SAFETY INFORMATION
LOCATING HEATER
IMPROPER INSTALLATION OR FAILURE TO FOLLOW THE PROCEDURES OUTLINED IN THIS
INSTRUCTION MANUAL CAN RESULT IN SERIOUS ELECTRICAL SHOCK.
WARNING

5
Part Description Quantity
AGarageHeater 1
BMountingBracket 1
CInfraredRemoteControl 1
D Screw 3
EWasher 6
PRE-INSTALLATION
LOCATING HEATER
Figure 3

6
WoodCeiling WoodCeiling
MOUNTING THE BRACKET
RefertoFigures4aand4b.
1.Locateawoodstudinthewoodceilingjoist.Ifyoucannotlocateawood
stud,youhavetoinstallawoodpieceontheceilingasthisheatermustbe
securelyfastened.
2.Removethemountingbracketfromtheheatingunitbylooseningbracket
screwswithawrenchandslippingthehandleoffoverthescrewheads.
3.Placeawasheronscrewsbeforeinsertingthroughtheholesinthemounting
bracketandscrewthemsecurelyintoaceilingjoist.
NOTE:Ifyouwanttoswiveltheheatereithertotherightorleftaddingawasher
tobothsidesofthebracketisrecommended.Alongerlagboltmayberequired
toproperlysecuretheunit.SeeFigure4a.
HANGING THE HEATER
1. Attachtheheatingunittothemountingbracket.
2. Lifttheheaterupandintothemounting
bracket.
3. Alignthebracketscrewswiththekeyholeslots
inthemountingbracket.
4. Iftheheateristobetilteditmustbepositioned
inthekeyholeslots-seegure5.
5. Tightenthebracketscrewswithawrenchso
theunitissecurelysuspendedathorizontalor
verticallevel.
Figure 5
ADJUSTING AIR FLOW DIRECTION
1.Toturntheunitwhenithasbeeninstalled
withasinglelagbolt(asshowningure
4a),simplyturntheentireheaterasneeded.
Theunitcannotbeturnedhorizontallyifit
hasbeeninstalledwith2lagbolts.
2.Totilttheunitvertically,loosenthebracket
screws(seegure5).
Figure 4a. Single-Screw Mounting Figure 4b. Double-Screw Mounting
INSTALLATION

7
MULTIPLE VERTICAL ANGLES
3.Adjustlouverstothedesiredposition(seeFigure6).
NOTE: Thelouversaredesignedsotheycannot
becompletelyclosed.Donotattempttobypassthis
feature;damagetotheunitcanresult.
CEILING
90 degrees
90 degrees
seerged54seerged5.76
45 degrees
INSTALLATION
NOTE: Fortheheatertobetiltedvertically,itmustbemountedinbottomkeyhole
slotsofmountingbracketstomaintainadequateclearanceandpreventpossible
overheating.
Figure 6
TOPREVENTPOSSIBLEELECTRICSHOCK,DISCONNECTPOWERTOTHEHEATERATTHE
MAIN SERVICE BOX BEFORE ATTEMPTING TO ADJUST THE HEAT OUTPUT OF THIS UNIT.
WARNING

8
GND
E
L1
L2
1
2
240AC or 208AC
60HZ
External
thermostat
PCB
Selected
switch
2500W
2500W x2
GND
E
L1
L2
1
2
240AC or 208AC
60HZ
External
thermostat
PCB
Selected
switch
2500W
2500W x2
3
4
LINE
RED LOAD
BLACK
External thermostat
Terminal station
1
2
Selection Switch
(Heater’s thermostat, External thermostat)
Heater’s
thermostat
External
thermostat
CONNECTING THE POWER
If you will use an external temperature control (external thermostat) to control
the heater to be operated or not, please follow below attention points:
1.Makesurethattheheater'stemperaturecontrolknob(thermostatknob)isturned
fullyclockwise.
2.Connectthewireaccordingtobelowwiringdiagram.
INSTALLATION

9
CONNECTING THE POWER
3.Theexternaltemperaturecontrol(externalthermostat)shouldbein
accordancewiththerequirementofULorCSAstandard.
4.Theleadwireofexternaltemperaturecontrol(externalthermostat)cannot
belessthan14AWG.
1.Removethescrewfromthefrontoftheunittoconnectthepowertotheheater.
2.Attachthecableconnectorstotheunit(SeeFigure7)andslidethe10-gauge
wirethroughthecableconnector.
3.Connectthewiretothepowerblocklocatedinthebaseoftheheater-See
Figure7.
4.Turnonthepoweratthemainservice.
NOTE:AllwiringmustbecarriedoutbyaCertiedElectricianandmustbein
accordancetonationalandlocalelectricalcodesintheUnitedStates.Forcertain
applications,conduitmayberequired,SeeFigure7.Checklocalelectricalcodes.
Ifyourunthewiringinconduitandwishtobeabletoturntheheaterbesureto
purchaseenoughexibleconduittoallowtheheatertobeturned.
TO PROTECT THE HEATING ELEMENT
Whenstartingtheheater,turningthetemperaturecontrolclockwiseslowlytoterminal,
theunitstartsthefanrstthenstartstheheatingelement.
Whenshuttingofftheheater,turningthetemperaturecontrolcounter-clockwisetooff,
theheatingelementrstwillturnoffthenthefanwillrunashortcoolingcycleandthen
turnoff.
INSTALLATION
THIS APPLIANCE MUST BE GROUNDED!
THE APPLIANCE MUST CONNECT TO A CURRENT PROTECTION CIRCUIT OR DEVICE AT
50AMP OR LESS BEFORE BEING CONNECTED TO POWER SUPPLY!
WARNING
HIGHTEMPERATURES–RISKOFFIRE.KEEPFLAMMABLEMATERIALS,SUCHAS
FURNITURE,PILLOWS,BEDDING,PAPERS,CLOTHESANDCURTAINSATLEAST3FT.(0.9
M)FROMTHEFRONTANDTOPOFTHEHEATERANDKEEPTHEMAWAYFROMTHESIDES
ANDREAR.TOREDUCETHERISKOFFIRE,DONOTUSEITINAREASWHEREGASOLINE,
PAINT OR FLAMMABLE LIQUIDS ARE USED OR STORED.
CAUTION

10
CONNECTING THE POWER
Control Panel
Connectors,cable,andhardwareusedto
wiretheheater Figure 7Figura 7
Conduit
Connector
Conduit
FlexibleConduit
FlexibleNMCable FlexibleNMCableConnector
FlexibleConduitConnector
WHITE
BLACK
GREEN
(orbarecopper)
3ft
INSTALLATION
OPERATING INSTRUCTIONS
THE HEATER MUST BE PROPERLY INSTALLED BEFORE IT IS USED.
WARNING

11
Checkthatthegarageheatersoutletgrillisnotcoveredorobstructedinanyway,and
makesurethepowertotheunitisswitchedon.
Thegarageheatercontrolfunctionscanbeaccessedintwo(2)ways:
•Usingthetouchpadcontrolpanel,locatedonthefrontofthegarageheaterbelowthe
airguideplates.
•Usingthemultifunctionremotecontrolunit.
1. Main Power Button:
Thisbuttonsuppliespowertoallofthegarageheatersfunctions.Itmustbeturnedon
forthegarageheatertowork
2. Heater Control Button:
Thisbuttonadjuststhe3heatingstages:OFFFa(FanOnly)LOW(5000Wdisplays
“L”),High(7500Wdisplays“H”).
3. Temperature/Timer Display:
ThisLEDdisplayshowsthesetpointforthetemperatureandtimerfunctions.When
eitherofthesefunctionsisactivated,thedisplayreectsthesetpointforveseconds
andthenfadestoblack.Anychangetohesetpointofthetemperatureortimerwill
reactivatethedisplay,whichagainfadesafterveseconds.
4. DOWN Control Button:
Thisbuttonisusedtodecreasetemperatureortimersettiing.Itadjuststhe
temperaturerangebetween10°C-35°C(50°F-95°F)in2°F(/1°C)increments.
5. UP Control Button:
Thisbuttonisincreasingtemperatureortimersetting.Itadjuststhetemperaturerange
between10°C-35°C(50°F-95°F)in2°F(/1°C)increments.
6. Timer Button:
ThisbuttoncontrolstheTimerON/OFFand8settingsfrom1hourto8hours.Whenthe
Timerisrstturnedon,itwillcomeonattheshortesttimesetting(1hour).Eachtime
theTimerbuttonispressed,thetimeincreasesby1hour,uptothelongestsetting(8
hours).Oncethesettimeexpires,allgarageheatersfunctionswillbeautomatically
turnoff.
7. Fahrenheit/Celsius Button:
REMOTE:
ThisbuttondisplaysF(Fahrenheit)orC(Celsius)dependingonhowthetemperature
modeisset.Whenthegarageheateristurnedon,theFahrenheit(F)temperaturewill
bedisplayed.
GARAGEHEATER:
ToswitchfromFahrenheittoCelsius,orvise-versa,whenthegarageheaterisON,
holdHEATERCONTROLbuttonfor5seconds.Unlesspowertotheunithasbeen
interrupted,thegarageheaterwillrememberthelasttemperaturemodesettingwill
startatthatsetting,
OPERATING INSTRUCTIONS

12
1.Beforecleaning,makesurethepowerhasbeenturnedoffatthecircuitbreaker
panelandthattheheatingelementoftheheateriscool.
2.Tomaintaintheexternalappearanceoftheheater,theunitoccasionallyneedsto
bewipedwithadryduster.Duringthesummermonths,oratothertimeswhen
theapplianceisnotinuseandiscompletelycold,itshouldbethewipedover
withadampcloth.
3.Donotuseabrasiveclearingpowdersorfurniturepolish.Donotusechemicalor
abrasiveproducts,metallicscourersandsoon,whichmaydeterioratethesur-
face,tocleantheappliance.
4.Duringthesummermonths,oratothertimeswhentheapplianceisnotinuse,
disconnectthepowersupply,andcoverthewholeappliancewithadustcloth.
Moreover,keeptheapplianceinadryandcoolplace.
5.Allotherservicingshouldbeperformedbyqualiedservicepersonnel.Donottry
torepairtheheateryourself.
Part Description Part#
1Backmesh EG5000001AC
2Hangingplate EG5000002AC
3 Fan Blade EG5000003AC
4Airguideplate EG5000004AC
5Largehandleseat EG5000005AC
6Smallhandleseat EG5000006AC
7Spring EG5000007AC
8 Motor EG5000008AC
Part Description Part#
9 Heater EG7500001AC
10 SelectionSwitch EG5000011AC
11 Main Board EG7500DH001AC
12 Terminalblock EG5000014AC
13 TemperatureCUT-OFF EG5000017AC
14 ControlPanelCircuitBoard EG7500DH002AC
15 ControlPanelbox EG7500DH003AC
16 InfraredRemoteControl EG7500DH004AC
MAINTENANCE
REPLACEMENT PARTS

TROUBLESHOOTING
PROBLEM DISPLAY
CODE ROOT CAUSE CORRECTIVE ACTION
Unit is not
heating
Display
shows”EE”
The thermostat sensor is
broken or disconnected. Please call customer service.
Display
shows"EF"
The overheat protection
has activated.
Inspect the garage heater and check
that the air inlets and outlets are not
blocked as this may cause overheat-
ing. Switch off the circuit breaker to
the garage heater for 30 minutes and
allow it to cool down. Turn the power
back on and operate.
Display
shows
"LOC"
Heater is in Lock Mode Hold the POWER button for 10 seconds
to unlock the heating function.
Display
shows "FA"
and blows
cold air
The heater is set to FAN
ONLY mode
Change the setting and switch to
"AUT" heating mode
The heater
will not start
The room temperature
has already reached the
set thermostat tempera-
ture
Adjust the temperature setting to make
sure the thermostat setting tem-
perature is higher than current room
temperature.
The heater
will not start The breaker has tripped Rest the breaker at the fuse panel and
restart the heater
Garage heater
has burned
smell
During production dust
and/or oil debris gath-
ered on heating coils.
Make sure the room is well ventilated.
Allow the garage heater to run until the
smell is dissipated.
Check and make sure
there is no combustible
material within 0.9 meter
(3 feet) of the garage
heater.
Remove the combustible material
around the garage heater.
This heater must be
mounted at least 8 feet
off the oor, for specif-
ic clearances, please
check the "LOCATING
HEATER" section in the
instruction manual
Relocate the garage heater so there
is enough space between the heater
and adjacent wall and oor.
13

PRODUCT NOTES

Warranty
LIMITED WARRANTY:
This limited warranty is extended to the original retail purchaser of this Forced Air/Convection/Radiant Heater and warrants against any defect
in materials and workmanship for a period of one (1) year from the date of retail sale.GHP Group, Inc., at it’s option, will either provide
replacement parts or replace or repair the unit, when properly returned to the retailer where purchased or one of our service centers
as directed by GHP Group,Inc., within one (1) year of retail purchase. (Shipping costs, labour costs,etc. are the responsibility of the purchaser.)
DUTIES OF THE OWNER:
This heating appliance must be operated in accordance with the written instructions furnished with this heater. This warranty shall not excuse
the owner from properly maintaining this heater in accordance with the written instructions furnished with this heater. A bill of sale, canceled
check or payment record must be kept to verify purchase data and establish warranty period. Original carton should be kept in case of
warranty return of unit.
WHAT IS NOT COVERED:
1. Damage resulting from use of improper fuel.
2. Damage caused by misuse or use contrary to the owners manual and safety guidelines.
3. Damage caused by a lack of normal maintenance.
4. Fuses
5. Use of non-standard parts or accessories.
6. Damage caused in transit. Freight charges on warranty parts or heaters to and from the factory shall be the responsibility of the owner.
This warranty does not imply or assume any responsibility for consequential damages that may result from the use, misuse, or the lack of
routine maintenance of this heating appliance. A cleaning fee and the cost of parts may be charged for appliance failures resulting from lack of
maintenance. This warranty does not cover claims which do not involve defective workmanship or materials. FAILURE TO PERFORM
GENERAL MAINTENANCE (INCLUDING CLEANING) WILL VOID THIS WARRANTY.
THIS LIMITED WARRANTY IS GIVEN TO THE PURCHASER IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE. THE
REMEDY PROVIDED IN THIS WARRANTY IS EXCLUSIVE AND IS GRANTED IN LIEU OF ALL OTHER REMEDIES. IN NO EVENT
WILL GHP GROUP, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not
allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.
CLAIMS HANDLED AS FOLLOWS:
1. Contact your retailer and explain the problem.
2. If the retailer is unable to resolve the problem, contact our Customer Service Dept. detailing the heater model, the problem, and proof
of date of purchase.
3. A representative will contact you. DO NOT RETURN THE HEATER TO GHP GROUP, INC. unless instructed by our Representative.
Thiswarrantygivesyouspeciclegalrightsandyoumayalsohaveotherrightswhichvaryfromstatetostate.
TO REGISTER THE WARRANTY ON YOUR HEATER, PLEASE FILL OUT THIS CARD COMPLETELY
AND MAIL WITHIN 14 DAYS FROM DATE OF PURCHASE OR REGISTER ON-LINE AT www.ghpgroupinc.com
NAME:_______________________________ PHONE: ( ) _________________ EMAIL: ____________________________________
ADDRESS: ___________________________ CITY: ________________________ STATE: _____________________ ZIP:___________
MODEL:______________________________ SERIAL#: _____________________ DATE PURCHASED:_________________________
DEALER PURCHASED FROM: _________________________________________ TYPE OF STORE: __________________________
CITY & STATE WHERE PURCHASED: ___________________________________ PRICE PAID: _______________________________
Please Take 1 Minute To Give Us Your Answers To The Following Questions.
All Responses Used Solely For Market Research And Are Held In Strict Condence.
Whoprimarilydecidedthispurchase? Male Female 18-24 25-39 40-59 60andoverofage?
Doyouownanyotherportableheaters? Yes NoIfyes,type ______________________ brand ____________________________
Howdoyouintendtouseyournewheater? ConstructionSite Farm Warehouse/Commercial Garage/Outbuilding Other
Howdidyoubecomeawareofthisheater? In-Store Display Newspaper Ad MagazineAd Friend/Relative
TVCommercial Store Salesperson Other____________________________________________________________________
Whatmadeyouselectthisheater? Style Size/Portability Price Package Brand Other __________________________
Doyou: Own RentWouldyourecommendthisheatertoafriend? Yes No
Pleasegiveusyourcomments _____________________________________________________________________________________
THANK YOU FOR COMPLETING THIS FORM!
Informationwillbeheldcondential.

WARRANTY REGISTRATION
IMPORTANT: We urge you to ll out your warranty registration card within fourteen (14)
days of date of purchase. You can also register your warranty on the internet at
www.ghpgroupinc.com. Complete the entire serial number. Retain this portion of the card
for your records.
Place
Postage
Stamp
Here
SAVE THIS CARD!
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
Tel: (877) 447-4768
www.ghpgroupinc.com
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302

Antes de utilizar por primera vez este calentador, lea este MANUAL DEL
USUARIO atentamente. Este MANUAL DEL USUARIO ha sido diseñado
para instruirle la forma adecuada de ensamblar el calentador, brindarle
mantenimiento, guardarlo y lo más importante: cómo hacerlo funcionar de
manera segura y ecaz. Conserve este manual para referencia futura.
CONSUMIDOR: Conserve este manual para referencia futura.
¿Preguntas, problemas, partes faltantes? Antes de regresar al distribuidor,
llame a nuestro departamento de servicio al 877-447-4768 de 8:00 a.m. a
4:30 p.m. hora estándar del centro, de lunes a viernes o envíenos un correo
Calefactor de garaje eléctrico
INSTRUCCIONES DE INSTALACIÓN Y MANTENIMIENTO
7,500W / 240V / 25,589 BTU
EG7500DH

ADVERTENCIA PARA DUEÑOS DE MASCOTAS: Algunas mascotas pequeñas, incluidos los
pájaros, son muy sensibles a la exposición de los humos que se producen durante el uso de
electrodomésticos por primera vez. Estos humos no son dañinos para los seres humanos, pero
le recomendamos que no utilice el calefactor cerca de pájaros y mascotas pequeñas durante el
primer uso de la unidad hasta que los recubrimientos anticorrosivos se quemen por completo.
Al usar electrodomésticos, siempre se deben respetar las precauciones básicas
para reducir el riesgo de incendio, choques eléctricos y lesiones personales,
incluidas las siguientes:
1. Lea todas las instrucciones antes de instalar o usar este calefactor.
2. Este calefactor se calienta cuando está en uso. Para evitar quemaduras,
notoquelassuperciescalientesconlapieldescubierta.
Mantenga los materiales combustibles, como muebles, almohadas, ropa
de cama, papeles, vestimenta, cortinas, etc. a una distancia mínima de 3
pies (0,90 m) de la parte frontal del calefactor, y alejados de los laterales
y de la parte trasera.
3. Se debe tener sumo cuidado al usar calefactores junto a niños o
personas inválidas, o cerca de ellos, y en todo momento en que el
calefactor se deje prendido y desatendido.
4. Siempre desconecte la alimentación al calefactor cuando no esté en uso.
5. No ponga en funcionamiento ningún calefactor después de que haya
fallado. Desconecte la alimentación en el panel de servicio eléctrico
y haga revisar el calefactor por un electricista profesional antes de volver
a utilizarlo.
6. No lo utilice al aire libre.
7. Este calefactor no está diseñado para usarse en baños, lavaderos o
lugares cubiertos similares. No ubique el calefactor en un lugar donde
pueda caerse dentro de una bañera u otro contenedor de agua.
8. No inserte ni permita que ingresen objetos extraños en ninguna abertura
de ventilación o escape porque podrían provocar un choque eléctrico, un
incendio o daños en el calefactor.
9. Para evitar posibles incendios, no bloquee las tomas de aire ni el
conducto de escape de ninguna manera. No haga funcionar el calefactor
sobresuperciesblandas,comounacama,dondelasaberturaspuedan
bloquearse.
10. El calefactor contiene piezas internas que se calientan, forman arcos
eléctricos o generan chispas. No lo use en áreas donde se utilice o se
guardegasolina,pinturaolíquidosinamables.
11. Utilice este calefactor solo como se describe en este manual. Otros
usos no recomendados por el fabricante podrían provocar incendios,
choques eléctricos o lesiones personales.
INSTRUCCIONES IMPORTANTES
GUARDE ESTAS INSTRUCCIONES
Este producto puede exponerlo a usted a agentes químicos incluyendo ftalato de diisononilo
(DINP), reconocido por el estado de California como causante de cáncer, así como ftalatos de
diisodecilo (DIDP), reconocidos por el estado de California como causantes de defectos congénitos
y otros daños al sistema reproductor.
Para obtener más información, visite www.p65Warnings.ca.gov
ADVERTENCIA

19
ARTÍCULO PÁGINA
ESPECIFICACIONES ..................................................................... 19
INFORMACIÓN GENERAL SOBRE SEGURIDAD......................... 19
UBICACIÓN DEL CALEFACTOR.................................................... 20
PRE-INSTALACIÓN ........................................................................ 21
INSTALACIÓN................................................................................. 22
INSTRUCCIONES DE USO............................................................ 26
MANTENIMIENTO Y LIMPIEZA ..................................................... 28
PIEZAS DE REPUESTO................................................................. 28
SOLUCIÓN DE PROBLEMAS ........................................................ 29
1.Utilicesolocablesdecobrecalicadospara60°Ccomomínimo.
2.Elujodeairedelcalefactorsedebeorientardemodoquequedeparaleloala
pared adyacente o en dirección contraria a ella.
3.Respetelosrequisitosdeespaciolibrehacialapared,elpisoyeltecho.
4.Todoelcableadosedeberealizardeconformidadconloscódigosnacionalesy
localesdeelectricidaddeEstadosUnidosyelcalefactordebeestarconectado
atierracomoprecaucióncontraposibleschoqueseléctricos.Elcircuitodel
calefactorsedebeprotegerconfusiblesapropiados.
5.Laestructurademontajeylatornilleríadeanclajedebenpodersoportardemodo
conableelpesodelcalefactorydelsoportedemontaje,siseloutiliza.
Índice Amperios BTU/hora
7500W II 240-1-60 31.25 22589
5000W I 240-1-60 20.9 17065
CONTENIDO
ESPECIFICACIONES
INFORMACIÓN SOBRE SEGURIDAD
ESTECALEFACTORREQUIEREUNAINSTALACIÓNCABLEADAFIJA(SINENCHUFE).ALA
INSTALACIÓN LA DEBE REALIZAR UN ELECTRICISTA CERTIFICADO Y SE DEBE EFECTUAR
DE CONFORMIDAD CON TODOS LOS CÓDIGOS LOCALES Y NACIONALES DE ELECTRICIDAD.
NOTA: COMPATIBLE CON UN TERMOSTATO DE PARED BIPOLAR CON TENSIÓN DE LÍNEA DE
240 V. DEBE SER INSTALADO POR UN ELECTRICISTA CERTIFICADO.
LEAYCOMPRENDATODASLASINSTRUCCIONESDEINSTALACIÓNYFUNCIONAMIENTO,Y
RESPETE TODAS LAS INSTRUCCIONES DE SEGURIDAD.
ADVERTENCIA

20
DISTANCIA
MÍNIMA
A PARED
DISTANCIA
MÍNIMA
A PARED
13 pulg.
VISTA LATERAL
10-⁄ pulg.
24 pulg.
4½ pulg.
¾ pulg.
1¾ pulg.
½ pulg.
7-3/8 pulg.
4½ pulg.
DISTANCIA
MÍNIMA
DESDE LA
DESCARGA A
UN OBJETO
DISTANCIA
MÍNIMA AL PISO
8 pies
ALTURA MÁXIMA DE MONTAJE DESDE:
Unidad para proporcionar aire vertical = 11 pies
Unidad para proporcionar aire horizontal = 8 pies
Nota: El espacio libre
mínimo al techo cuando no
se utilizan los soportes de
montaje es de 1-⁄ pulg.
14 pulg.
12½ pulg.
VISTA FRONTAL Figura 2
6.Sedebedesconectarlaalimentacióneléctricaybloquearlacajadeservicio
eléctricoantesdeinspeccionarelcalefactor,limpiarloorealizarlemantenimiento.
Estaesunaprecauciónparaevitarchoqueseléctricosgraves.
7.Estecalefactornoesapropiadoparautilizarloenubicacionespeligrosastalcomo
lasdenelaAsociaciónNacionaldeProteccióncontraIncendios(NFPA,porsu
siglaeninglés)deEstadosUnidos.Elcalefactorcontienepiezasinternasquese
calientan,formanarcoseléctricosogeneranchispas.Nolouseenáreasdonde
seutiliceoseguardegasolina,pinturaolíquidosinamables.
8.Estecalefactornoesapropiadoparautilizarloenatmósferascorrosivas,como
zonasmarinas,invernaderosoáreasdealmacenamientodeproductosquímicos.
9.Estecalefactordebeestarubicadoa8piesdelpiso,comomínimo.
Instaleelcalefactorfueradelaszonasdetránsitoymantengalosespacioslibres
indicadosenlagura2.Ladireccióndelujodeairenodebeestarrestringidapor
columnasomáquinas.Elujodeairesolodeberozarlasparedesynodirigirse
directamenteaellas.Cuandoseutilizamásdeuncalefactorenunárea,los
calefactoressedebendisponerdemodoqueladescargadeairedecadauno
acompañeelujodeairedelosotrosparaproporcionarunacirculaciónóptimade
airecaliente,comoseindicaenlagura3.
INSTALAR INCORRECTAMENTE O NO RESPETAR LOS PROCEDIMIENTOS DESCRITOS EN
ESTE MANUAL DE INSTRUCCIONES PUEDE DAR LUGAR A CHOQUES ELÉCTRICOS GRAVES.
ADVERTENCIA
INFORMACIÓN SOBRE SEGURIDAD
UBICACIÓN DEL CALEFACTOR
This manual suits for next models
1
Table of contents
Languages:
Other GHP Group Electric Heater manuals

GHP Group
GHP Group Dyna-Glo EG10000DG Installation and operating instructions

GHP Group
GHP Group Dyna-Glo EG10000DGP Manual

GHP Group
GHP Group Dyna-Glo HEAT AROUND 360 HA1360RH Manual

GHP Group

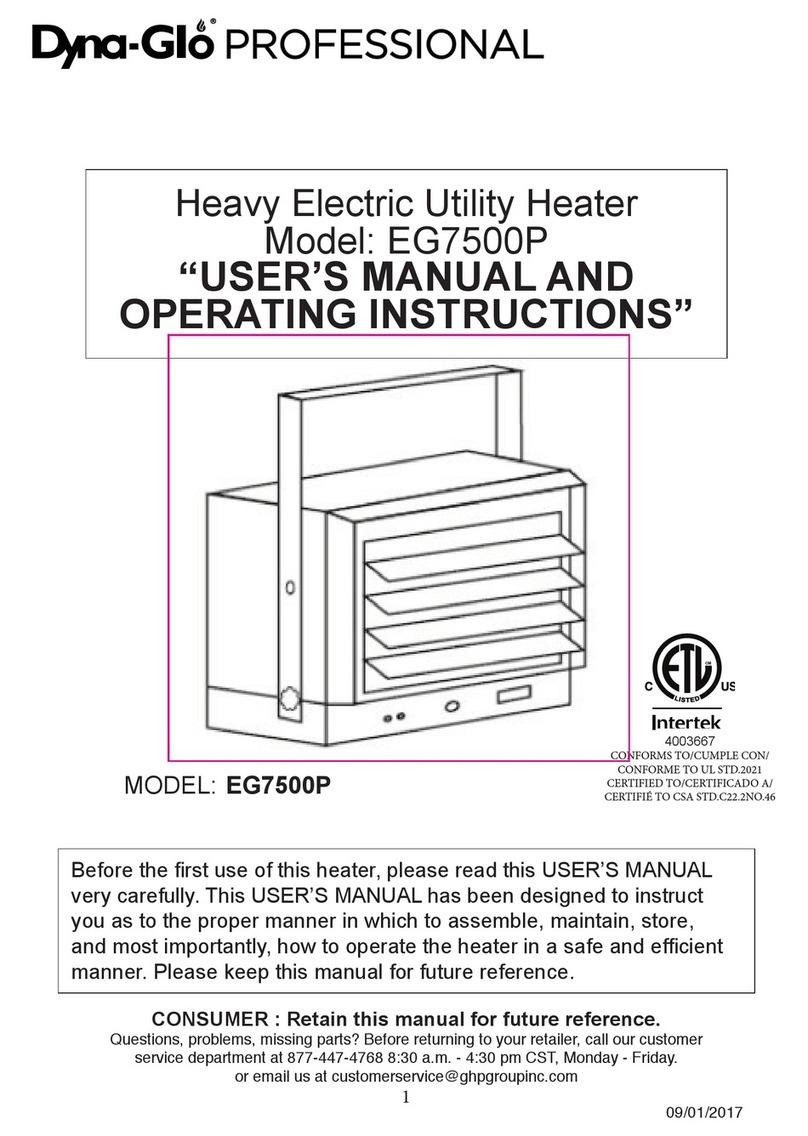

GHP Group Dyna-Glo PROFESSIONAL EG7500P Manual

GHP Group

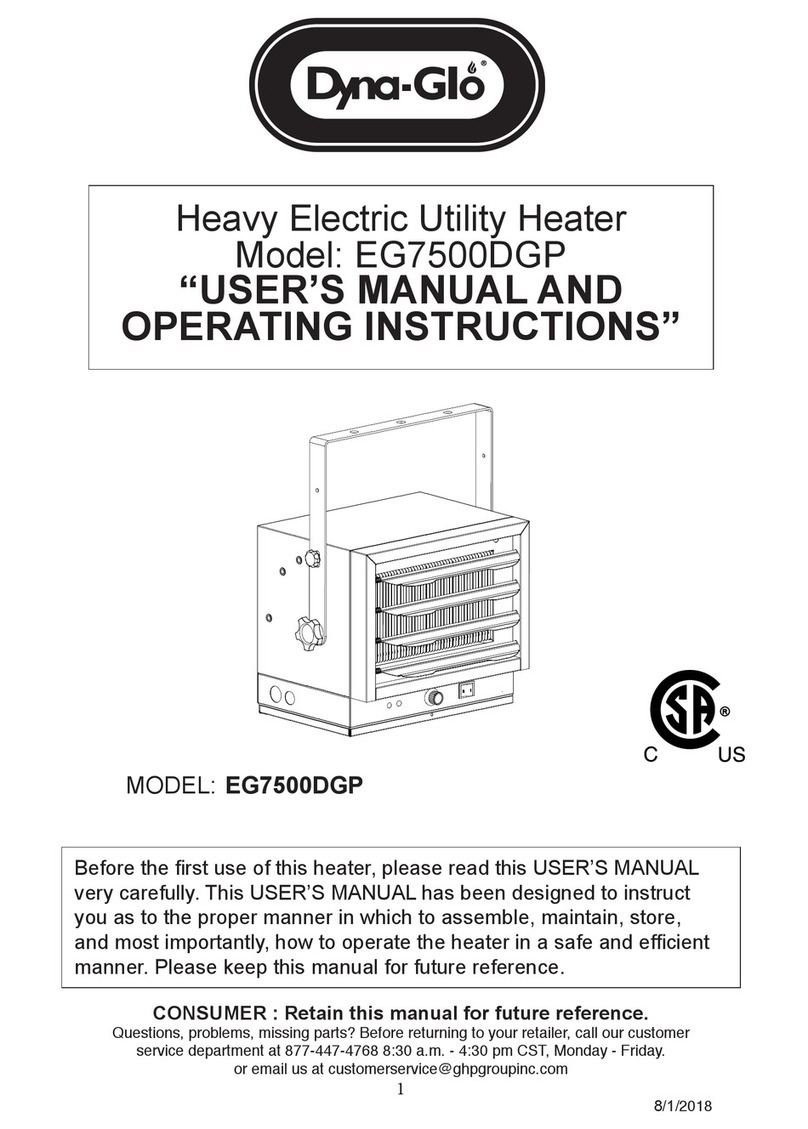

GHP Group Dyna-Glo EG7500DGP Manual

GHP Group
GHP Group Dyna-Glo X Series Installation and operating instructions
