Giant TRINITY ADVANCED PRO User manual

Version 9 /2015
1
TRINITY ADVANCED PRO
Instruction manual
ATTENTION! THIS MANUAL IS ONLY FOR PROFESSIONAL
BICYCLE MECHANICS AT AUTHORIZED GIANT DEALERS.
IT IS NOT INTENDED FOR THE CONSUMER/END-USER.

Version 9 /2015
2
CONTENTS
SELECTING THE CORRECT FRAME SIZE-------------------------------------------------------------3
ARMREST STACK AND REACH RANGE ----------------------------------------------------------------4
FORK STEER LENGTH --------------------------------------------------------------------------------------------5
COCKPIT PARTS ASSEMBLY CHART--------------------------------------------------------------------6
STEM/BASEBAR PARTS ASSEMBLY CHART --------------------------------------------------------7
HANDLEBAR & STEM ASSEMBLY INSTRUCTIONS---------------------------------------------8
ARMREST AND EXTENSIONS ------------------------------------------------------------------------------ 10
BASEBAR HEIGHT ADJUSTMENT ----------------------------------------------------------------------------------- 10
ARMREST PAD HEIGHTADJUSTMENT----------------------------------------------------------------------------- 10
EXTENSION WIDTH ADJUSTMENT---------------------------------------------------------------------------------- 11
ARMREST PAD REACH ADJUSTMENT ----------------------------------------------------------------------------- 12
ARMREST PAD WIDTH ADJUSTMENT------------------------------------------------------------------------------ 14
ARMREST PAD ROTATION ADJUSTMENT ------------------------------------------------------------------------- 15
BRAKE ASSEMBLY------------------------------------------------------------------------------------------------ 16
FRONT BRAKE ASSEMBLY ------------------------------------------------------------------------------------------- 16
REAR BRAKE ASSEMBLY--------------------------------------------------------------------------------------------- 17
DERAILLEUR/BRAKE CABLE HOUSING GUIDELINE & CABLE ROUTING------ 18
DI2DERAILLEUR PARTS LIST &CABLE ROUTING---------------------------------------------------------------- 18
MECHANICAL PARTS LIST &CABLE ROUTING -------------------------------------------------------------------- 19
TRINITY BRAKE ROUTING-------------------------------------------------------------------------------------------- 20
AEROVAULT TOPTUBE BOX ASSEMBLY (DI2)--------------------------------------------------- 21
AEROVAULT TOPTUBE BOX ASSEMBLY (MECHANICAL)--------------------------------- 22
DI2 BATTERY SEATPOST INSTALLATION ---------------------------------------------------------- 23
AEROVAULT STEM HYDRATION ASSEMBLY CHART--------------------------------------- 24
AERO VAULT STEM HYDRATION ASSEMBLY --------------------------------------------------------------------- 25
AERO VAULT DOWN TUBE BOTTLE ASSEMBLY ----------------------------------------------- 26

Version 9 /2015
3
Selecting the Correct Frame Size
The Trinity Advanced Pro is available in 4 frame sizes to fit a wider range of riders.
While each individual’s unique body proportions will determine which frame size
offers the best fit, beginning with the rider’s height .inseam. saddle and height
provide a narrower range of sizing options:
※We recommend first performing the rider fit using the Right Ride System or a
comparable fitting system to find the ideal pad position, saddle height, saddle
position, etc.; then adjusting the position on the Trinity Advanced Pro accordingly.
Rider Size
Inseam
Saddle Height
Trinity
(Frame Size)
cm
inch
cm
inch
cm
inch
194
76.4
91.5
36
80.5
31.7
193
76
90.7
35.7
79.8
31.4
192
75.6
89.9
35.4
79.1
31.1
191
75.2
89.1
35.1
78.4
30.9
190
74.8
88.3
34.8
77.7
30.6
189
74.4
87.4
34.4
76.9
30.3
188
74
86.4
34
76
29.9
L
187
73.6
85.8
33.8
75.5
29.7
186
73.2
85.1
33.5
74.9
29.5
185
72.8
84.3
33.2
74.2
29.2
184
72.4
83.5
32.9
73.5
28.9
183
72
82.6
32.5
72.7
28.6
182
71.7
81.6
32.1
71.8
28.3
181
71.3
80.7
31.8
71
28
180
70.9
79.7
31.4
70.1
27.6
M
179
70.5
79.3
31.2
69.8
27.5
178
70.1
79
31.1
69.5
27.4
177
69.7
78.3
30.8
68.9
27.1
176
69.3
77.5
30.5
68.2
26.9
175
68.9
76.8
30.2
67.6
26.6
174
68.5
76.1
30
67
26.4
S
173
68.1
75.3
29.6
66.3
26.1
172
67.7
74.5
29.3
65.6
25.8
171
67.3
73.8
29.1
64.9
25.6
170
66.9
72.8
28.7
64.1
25.2
169
66.5
72
28.3
63.4
25
168
66.1
71.3
28.1
62.7
24.7
XS
167
65.7
70.8
27.9
62.3
24.5
166
65.4
70.2
27.6
61.8
24.3
165
65
69.4
27.3
61.1
24.1
164
64.6
68.6
27
60.4
23.8
163
64.2
68.4
26.9
60.2
23.7
162
63.8
68.1
26.8
59.9
23.6
161
63.4
66.8
26.3
58.75
23.1
160
63
65.5
25.8
57.6
22.7
Optimal Fit Range
Overall Fit Range

Version 9 /2015
4

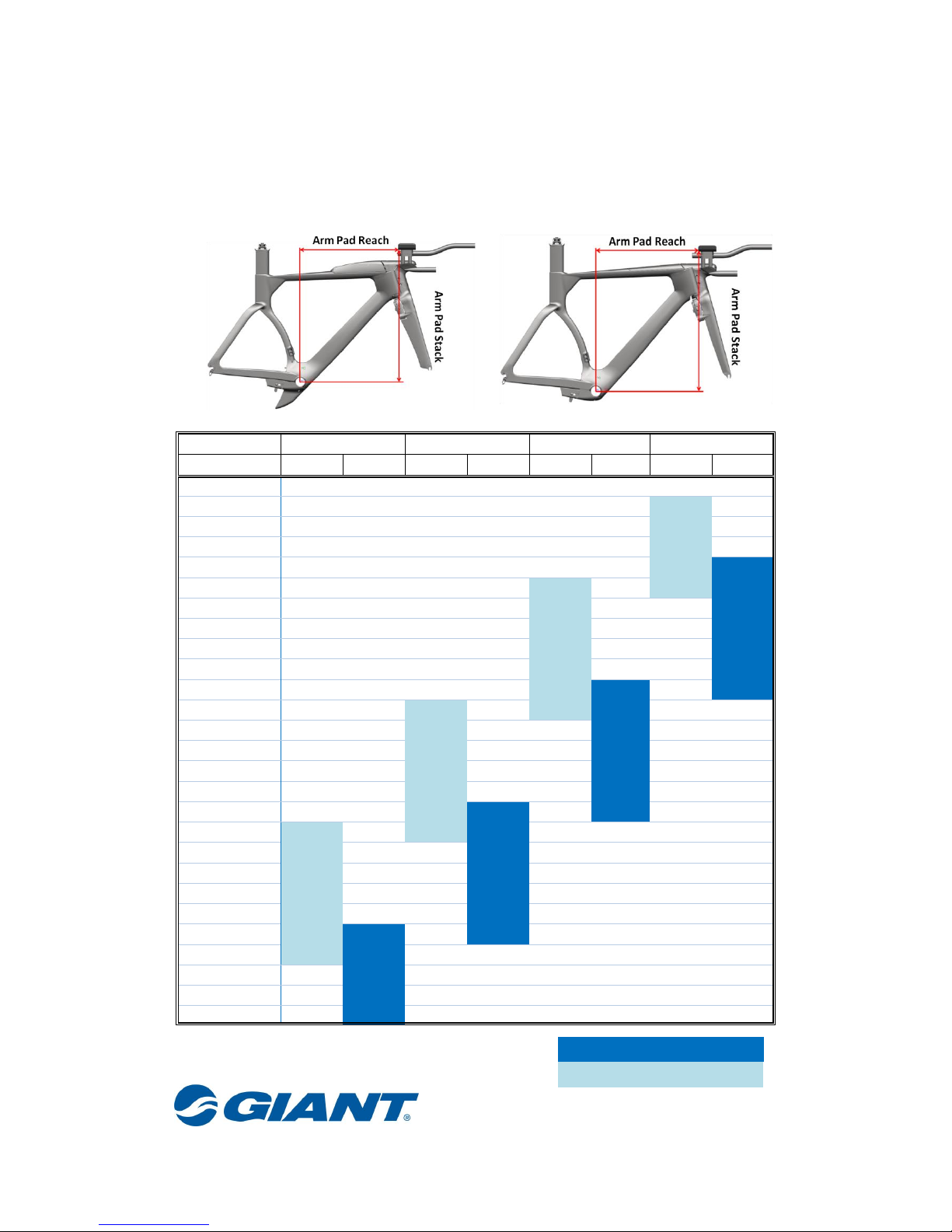

Armrest Stack and Reach Range
For many fitters, the most effective approach to determining triathlon bike fit is by
identifying the rider’s ideal armrest stack and reach measurements. The following
chart shows the armrest stack and armrest reach adjustment range attainable for
each Trinity frame size, in both the triathlon and TT conf igurations.
Frame Size
XS
S
M
L
Version
Tri
TT
Tri
TT
Tri
TT
Tri
TT
Arm Pad Stack
Arm Pad Reach (mm)
670
428-488
660
650
642
436-496
640
422-482
632
630
622
620
612
430-490
610
415-475
602
600
592
590
582
423-483
580
403-463
572
570
562
560
552
411-471
550
542
532
522
Tri Version
UCI Version
Trinity Advanced Pro Triathlon
Trinity Advanced Pro TT

Version 9 /2015
5
Fork Steer Length
Trinity/Avow Advanced Pro (TT) are high performance bikes which need
to be built with great precision, please follow the reference table for
cutting the fork steer tube to the correct length for optimal
performance.
Version
Model
Frame Size
Steer
Length
(mm)
Triathlon
MY16 Trinity Advanced Pro
46(XS) M
121
49(S) M
151
51.5(M) M
181
54.5(L) M
211
MY16 Avow Advanced Pro/
MY16 Avow Advanced Pro-FF TM
45(XXS) W
121.5
48(XS) W
121.5
51(S) W
136.5
53(M) W
166.5
UCI
MY16 Trinity Advance Pro TT- FF/
MY16 Trinity Advance Pro TT- FF TM
46(XS) M
91
49(S) M
121
51.5(M) M
151
54.5(L) M
181
Steer Length
(mm)

Version 9 /2015
6

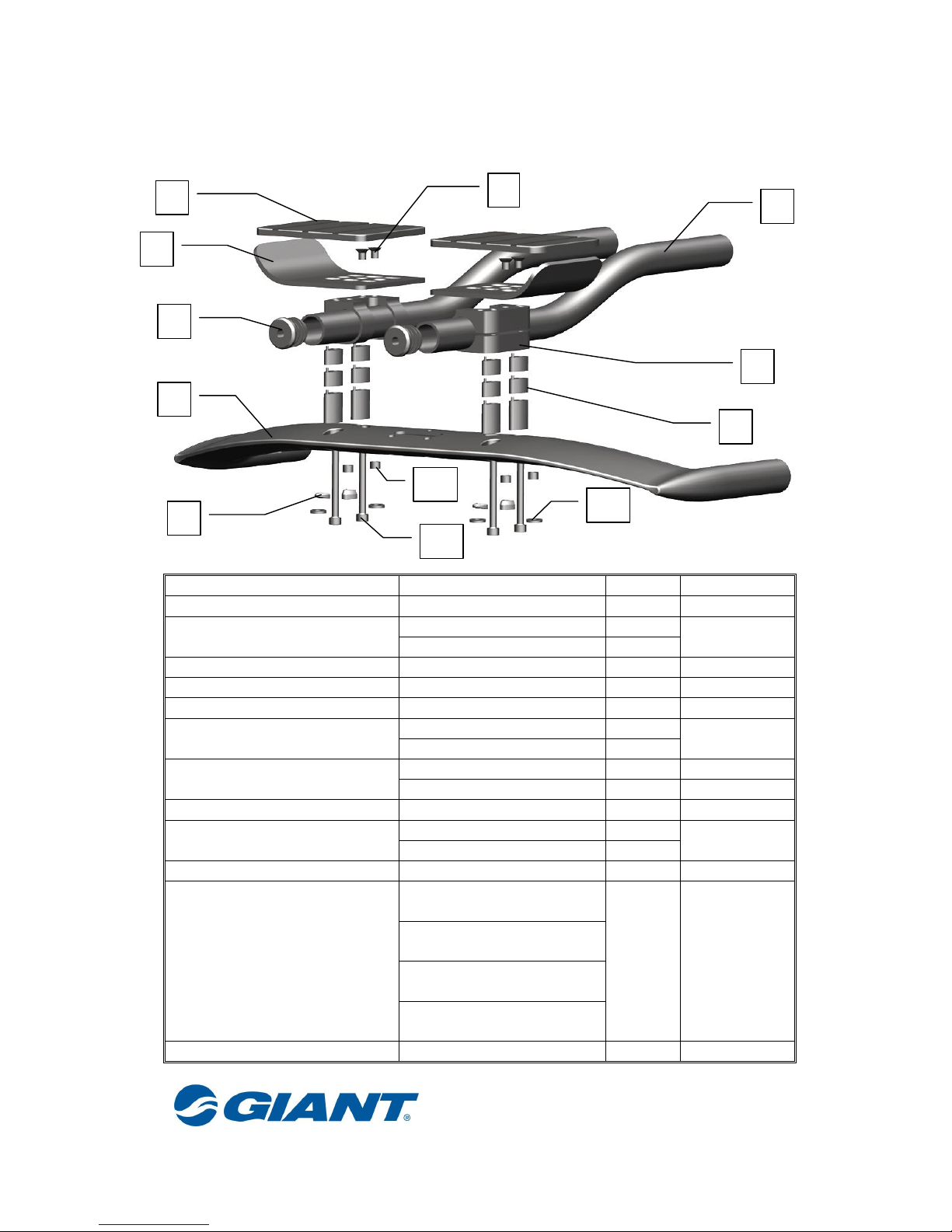

Cockpit Parts Assembly Chart
Specification
Quantity
Torque range
[1] Armrest pad
2
-
[2] Armrest
Right
1
-
Left
1
[3] Armrest bolt
M5X8 tapered
4
3 Nm
[4] Extension plug
2
-
[5] Extension
2
-
[6] Extension clamp
Right
1
-
Left
1
[7] Tear drop spacer
10mm
8
-
20mm
4
-
[8] Handlebar
1
[9] Handlebar plug
Front
2
-
Rear
2
[10] Handlebar ring
4
[11] Extension clamp bolts
M5X70
(w/ Tear drop spacer H:40)
4
6 Nm
M5X60
(w/ Tear drop spacer H:30)
M5X50
(w/ Tear drop spacer H:20)
M5X40
(w/ Tear drop spacer H:10)
[12] Extension clamp bolt washer
4
1
2
6
4
5
7
8
9
10
11
3
12

Version 9 /2015
7
Stem/Basebar Parts Assembly Chart
Specification
Quantity
Torque range
[1] Headset compression bolts
M6X30
1
6 Nm
[2] Upper stem bolts
M5X15
2
6 Nm
[3] Upper stem
-
1
[4] Stem bolts
M5X25
2
6 Nm
M5X35
(w/o stem bottle)
1
3 Nm
M5X45
(w/ stem bottle)
1
3 Nm
[5] Handlebar bolt
M4X25
1
4 Nm
[6] Lower stem
-
1
-
[7] Stem spacer
XS size
-
-
-
S size
H:25mm*1
M size
H:51mm*1
L size
H:25mm*1
& H:51mm*1
[8] Lower stem bolts
M5X10 tapered
2
3 Nm
M5X15 tapered
1
3 Nm
[9] Stem spacer bolts
M5X10 tapered
3
3 Nm
4
2
3
1
5
6
7
8
9

Version 9 /2015
8
Handlebar & Stem Assembly Instructions
Warning: Please ensure you are using correct assembly parts in the correct order.

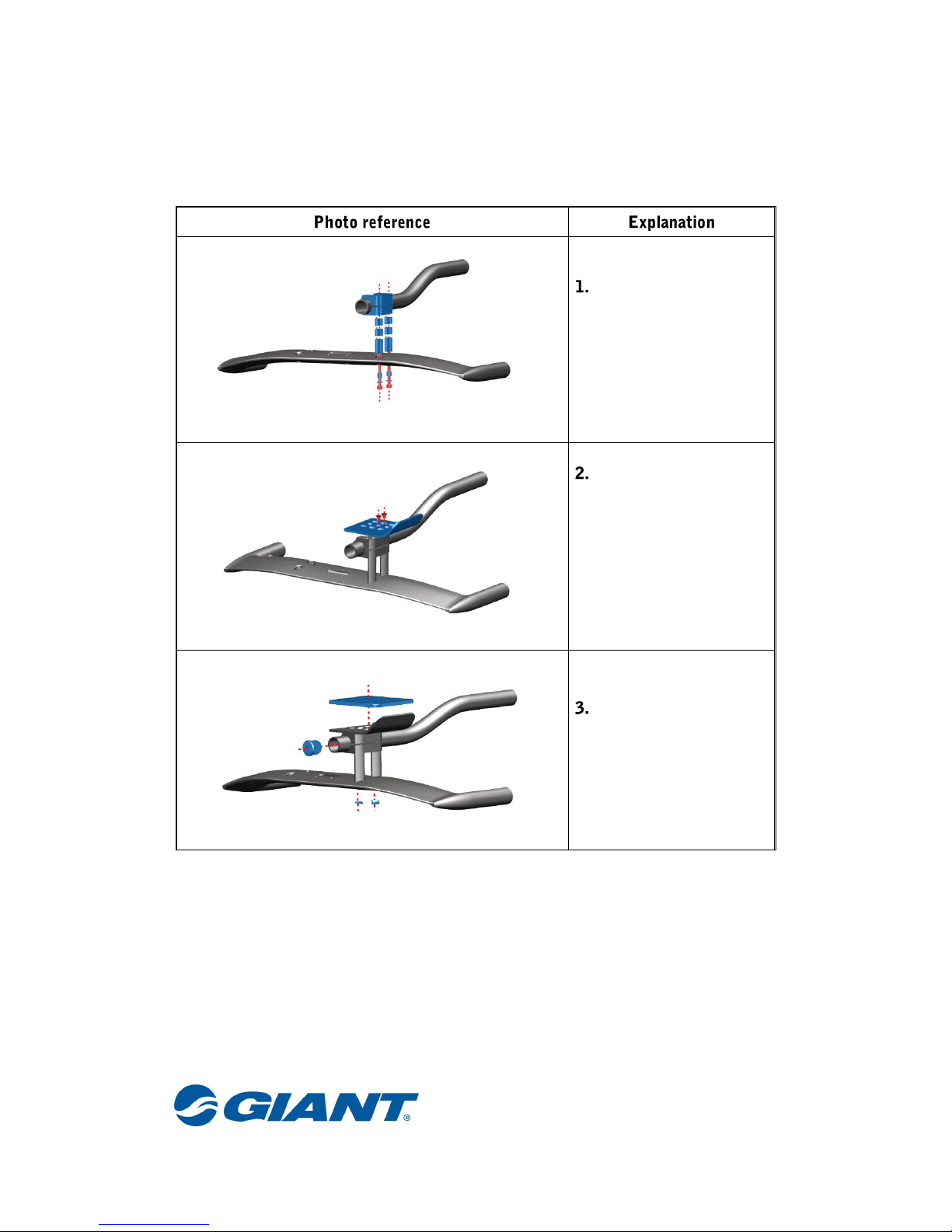

Assemble extension bar
on the handlebar with M5
screws, locking torque
6Nm
Assemble armrest pad to
the clamp with M5
Hexagon socket
countersunk head screws,
locking torque 3Nm
Handlebar alignment and
assembly handlebar
attachments
M5
M5
M5
M5
M5

Version 9 /2015
9
Assemble upper stem to
the fork steering tube.
Lock M6 screws first then
M5 screws, locking torque
6Nm
Assemble handlebar in
upper stem with M4
screws, locking
torque4Nm
Assemble stem spacer at
fork with M5 Hexagon
socket countersunk head
screws, locking torque
3Nm
Assemble lower stem with
M5 screws and M5
Hexagon socket
countersunk head screws
M5 screws locking torque
front 3Nm, rear 6Nm,M5
Hexagon socket
countersunk head screws
locking torque 3Nm
M5
M6
M4
M5
M5
M5

Version 9 /2015
10
Armrest and Extensions
Basebar Height Adjustment
By inverting the handlebar, you can choose either the low position or the
high position. The height difference between the two is 40mm.
Armrest Pad Height Adjustment
The armrest supports height can be adjusted up to 40mm with the
teardrop spacers.
Depending on the selected height, make sure you are using the correct
extension clamp screw lengths as detailed.
