Gigabyte GV-AG32S User manual

AG32S
RAGETM128 ProGraphics Accelerator
REV.1.22
12MD-AG32S-122
USER'SMANUAL
中文使用手冊
Upgrade your Life

2
AG32SGraphics Accelerator
Copyright
CopyrightbyGIGA-BYTETECHNOLOGYCO., LTD.(“GBT”)Nopartofthismanual
maybe reproduced ortransmitted inanyfromwithoutthe expressed,written permis-
sion ofGBT.
Trademarks
Third-partybrandsand namesarethe propertyoftheirrespectiveowners.
Notice
Due torapidchange intechnology,someofthe specificationsmightbe outofdatebefore
publication ofthisbooklet.
The authorassumesno responsibilityforanyerrorsoromissionswhichmayappearin
thisdocumentnordoesitmakeacommitmenttoupdatethe information contained
herein.
Pleasedo notremoveanylabelson VGAcard,thismayvoidthe warrantyofthisVGA
card.
March 17,2003Taipei, Taiwan
Chapter1User’sManual
Thisproductincorporatescopyrightprotection technologythatisprotected by
method claimsofcertainU.S.patentsand otherintellectualpropertyrights
owned byMacrovision Corporation and otherrightsowners.Useofthiscopy-
rightprotection technologymustbe authorized byMacrovision Corporation,and
isintended forhomeand otherlimited viewing usesonlyunless otherwise
authorized byMacrovision Corporation.Reverseengineering ordisassemblyis
prohibited.

3
TableofContent
TableofContents
1.INTRODUCTION
1.1.PREFACE...................................................................................4
1.2.Overview.....................................................................................4
2.HARDWAREINSTALLATION
2.1.UNPACKING...............................................................................5
2.2.BOARD LAYOUT........................................................................6
2.3.HARDWAREINSTALLATION......................................................7
3.SOFTWAREINSTALLATION
3.1Win98/98/SE orWinME/WinXP DriverAnd UtilitiesInstallation .....9
3.1.1Operating systemrequirement ................................................9
3.1.2DirectXinstallation ................................................................ 10
3.1.3Driverinstallation .................................................................. 12
3.1.4Utilitieson driverCD ............................................................. 15
3.1.5TaskbarIcon ......................................................................... 15
3.1.6Propertypages..................................................................... 18
3.2.WINDOWSNT4.0DRIVERINSTALLATION............................. 22
3.3.WINDOWS2000 DRIVERINSTALLATION................................. 23
3.4BIOSFLASHUTILITY................................................................ 23
4.TroubleshootingTips................................................................................. 24
5.Appendix
5.1.Howtorefashthe BIOS.............................................................. 25
5.2.Resolutionsand ColorDepthTable............................................. 27

4
AG32SGraphics Accelerator
1.INTRODUCTION
1.1.PREFACE
Atthe centerofthe AGseriesperformanceisaunique 128-bit, SuperScalarRender-
ing architecturedesigned tooperateatdramaticallyelevated memoryandengine speeds.
Single-Pass MultiTexturing (SMT)enablesadvanced 3Deffectsliketexturing,lighting
and shading atfull performance.Additionalgainsareobtained withATI'sunique Twin-
Cache Architecture(TCA)whichincorporatestextureand pixelcache toincreasethe ef-
fectivememorybandwidthforextraperformance..
1.2.KEY FEATURES
nFeatures32MBofmemoryand ATIRAGE128 PRO™graphics technology
nFull 3Dacceleration inall modesand colordepthsinresolutionsup to
1920x1200 @32bpp
nDirectX®,Direct3D,DirectDraw
nTriangleSetup Engine
nTextureCache
nBilinear/TrilinearFiltering
nLine &Edge Anti-Aliasing
nZ-buffering andDouble-buffering
Chapter 1 User's Manual

5
HardwareInstallation
2.HARDWAREINSTALLATION
WARNING!
Expansion cardscontainverydelicateIntegrated Circuit(IC)chips.Toprotectthemagainst
damage fromstaticelectricity,you shouldfollowsomeprecautionswheneveryou workon your
computer.
1.Turnoff yourcomputerand unplug powersupply.
2.Useagrounded wriststrap beforehandling computercomponents.If you do nothaveone,
touchbothofyourhandstoasafelygrounded objectortoametalobject, suchasthe power
supplycase.
3.Placecomponentson agrounded antistaticpad oron the bag thatcamewiththe
componentswheneverthe componentsareseparated fromthe system.
The cardcontainssensitiveelectriccomponents,whichcan be easilydamaged bystatic
electricity,sothe cardshouldbe left initsoriginalpacking until itisinstalled.
Unpacking and installation shouldbe done on agrounded anti-staticmat. The operatorshould
be wearing an anti-staticwristband,grounded atthe samepointasthe anti-staticmat.
Inspectthe cardcarton forobviousdamage.Shipping and handling maycausedamage toyour
card.Besurethereareno shipping and handling damageson the cardbeforeproceeding.
MDONOTAPPLYPOWERTOYOUR SYSTEMIFITHASBEENDAMAGEDONTHE
CARD.
MInordertoensureyourgraphics cardworking correctly,please use officialGigabyte
BIOSonlyUse noneofficialgigabyteBIOSmightcause problemon thegraphics card.
2.1.UNPACKING
The AG32Spackage containsthe following:
lThe AG32Sgraphics accelerator
lThisUSER'SMANUAL
l DVDPlayersoftwareincluded
lLiteversion 3DGamex2(CD x1)
lCD fordriver&Utilities

6
AG32SGraphics Accelerator
2.2.BOARD LAYOUT
AG32S(4Mx16 32MBSDRAM)
4Mx16 FrameBufferSDRAM
BIOS
ATi
RAGE128 Pro
VGAMonitor
Connector
(15pin)
VGAOutput
VGAMonitor
Connector
(15pin)
ImpacTV2
(Optional)

7
HardwareInstallation

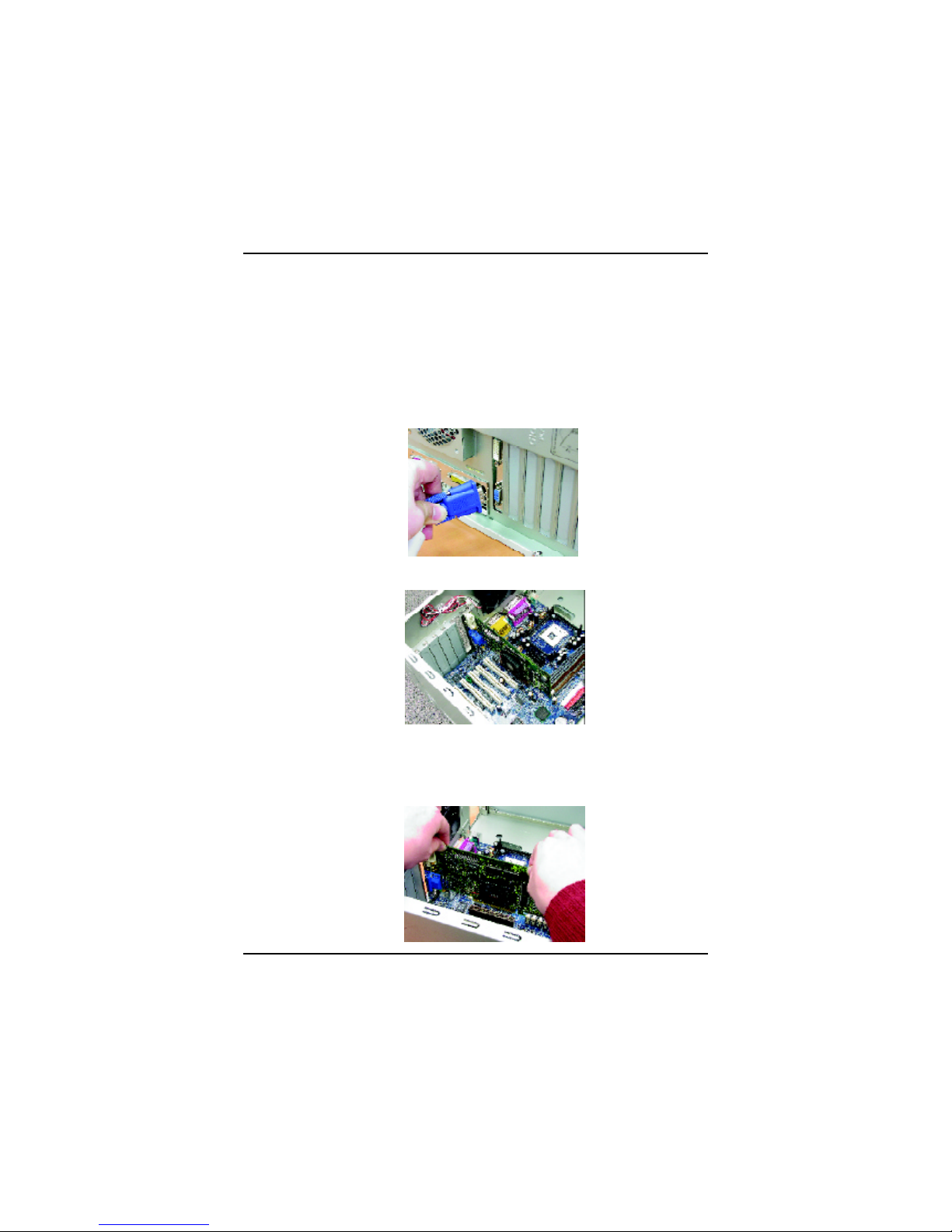

2.3.HARDWAREINSTALLATION
Installing YourGraphics card..
Nowthatyou haveprepared yourcomputer,you arereadytoinstall yourgraphics
acceleratorcard.
Toinstall yourgraphics acceleratorcard
1.Poweroff the computerand monitor,then disconnectthe displaycablefromthe
backofyourcomputer.
2.Removethe computercover.If necessary,consultyourcomputer'smanualforhelp
inremoving the cover.
3.Removeanyexisting graphics cardfromyourcomputer.
Or,ifyourcomputerhasanyon-boardgraphics capability,you mayneed todisableit
on the motherboard.Formoreinformation,see yourcomputerdocumentation.

8
AG32SGraphics Accelerator

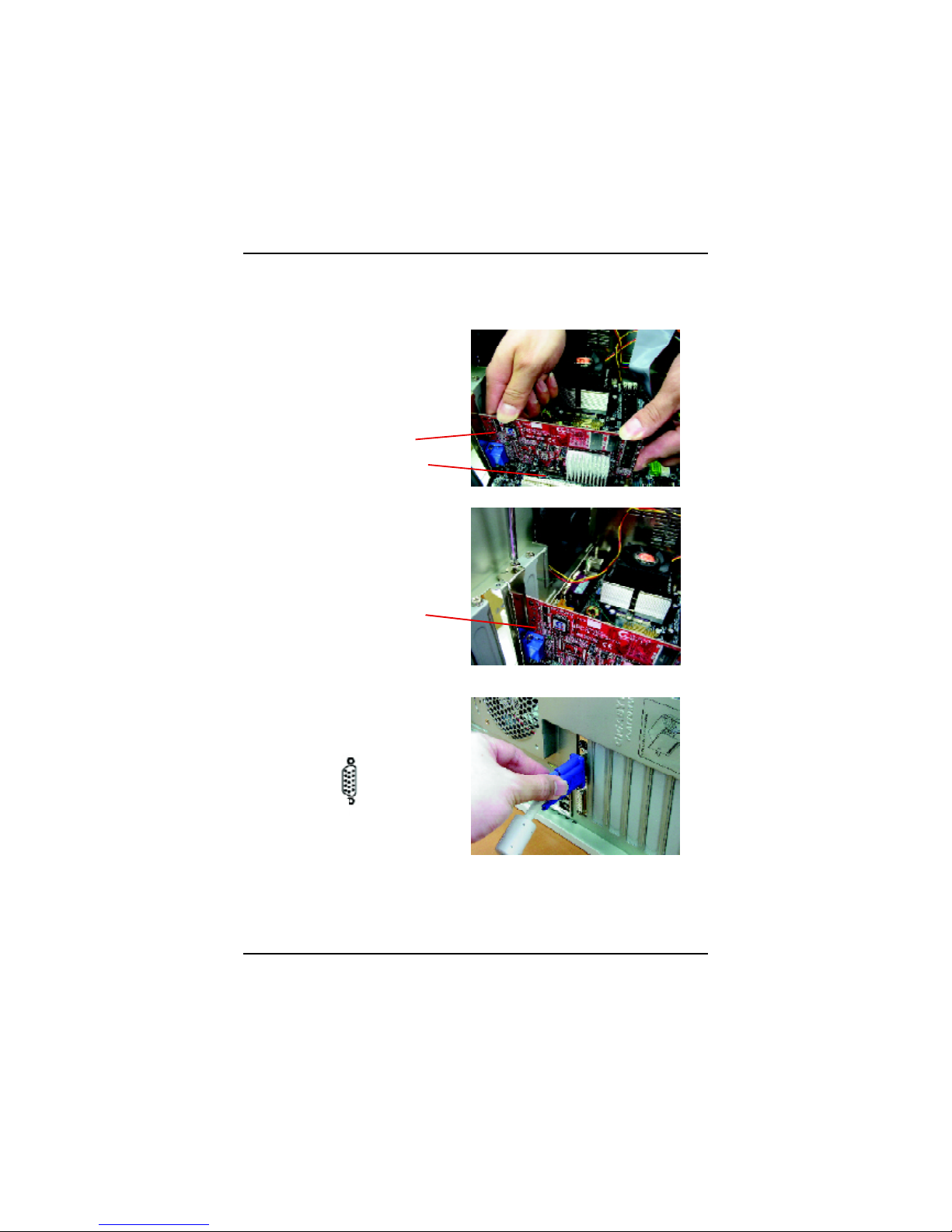

4.Locatethe AGPslot. If necessary,removethe metalcoverfromthisslot; then align
yourGraphics cardwiththe AGPslot, and press itinfirmlyuntil the cardisfully
eated.
5.Replacethe screwtofasten the cardinplace,and replacethe computercover.
6.Plug the displaycableintoyourcard;then turnon the computerand monitor.
You arenowreadytoproceed withthe installation ofthe Graphics carddriver.For
detailed instructions,selectyouroperating systemfromthe listbelow:
AG32SGraphics card
AGPSlot
AG32SGraphics card
ToVGAMONITOR

9
SoftwareInstallation
3.SOFTWAREINSTALLATION
Inthismanual, weassumethatyourCD-ROMDrive lettertobeDrive D:
3.1.WINDOWS®98 /98SE orWINDOWSME/WINDOWSXP DRIVER
AND UTILITIES INSTALLATION
The installation ofWin98/98SE /WinME/WinXP driversisverysimple.
When you insertthe driverCD intoyourCD-ROMdrive,you can see the AUTORUN
window(ifitdoesnotshowup,run "D:\setup.exe").Then you can followguidesto
setup yourAG32Sdriver(Pleasefollowthe subsection 3.1.3"Step ByStep Installation"
toinstall the driverforyourgraphics accelerator.
3.1.1.Operatingsystemrequirement
lIf yourOSisMicrosoft Windows,when loading the AG32Sdriversforthe
system,pleasemakesureyoursystem(Windows98/98SE orWindowsME)has
installed DirectX8.1orlater.
lIf you install the AG32Sdriversforthe mainboard,which
consistofSIS,ALIorVIAchipsets,pleaseinstall the appropriateDriverprogramfor
thatmainboard.OrpleasecontactyourmotherboardnearestdealerforM/BDiver.

10
AG32SGraphics Accelerator
3.1.2.DirectXInstallation
Install Microsoft DirectX8.1toenable3Dhardwareacceleration supportforWin98/
98SE orWinMEtoachievebetter3Dperformence.
Note:ForsoftwareMPEGsupportinWin98/98SE orWinME,you mustDirectXfirst
install.
1.Installation DirectXDriver
Click "Install DirectX8.1”Item.
2.Click "Yes"icon.
3.Click "Yes“icon.

11
SoftwareInstallation
Then the DirectX8.1installation iscompleted.
4.Click "OK"item.

12
AG32SGraphics Accelerator
3.1.3.DriverInstallation
The following isthe step-by-step installation guide.
Step1:NewHardwareFound
AfterAG32Sisinserted intoyourcomputeratthe firsttime,the windowswill automati-
callydetectanewhardwareinthe systemand pop outa"NewHardwareFound"
message.Pleaseselect"Donotinstall adriver"and press OK.
Step2:UpdateDevice DriverWizard:StandardPCIGraphicsAdapter(VGA)
Step3:UpdateDevice DriverWizard:Finish
Atthistime,systemwill ask foryourWindowsCD inordertocompletethe VGAdriver
installation.
If you don'thavethe CD,you can press C:\Windows\Systemdirectory.
Step4:SystemSetting Change
1.Click "Next“icon.
2..Click "Finish“icon.
MDon’tclick “Cancel”,because
the systemwill hang ifyou press it.

13
SoftwareInstallation
Afterthe systemhasfinished loading,insertthe AG32SdriverCD disk intoyourCD-
ROM,and then you can see the AUTORUN window.If itdoesnotshowup,pleaserun
"D:\setup.exe".
3..Click "NO“icon.
Step5:DriverSetup
1.Click "Install DisplayDriver(Rage 128
Pro).

14
AG32SGraphics Accelerator
2.Click “Next“icon.
3.Click “Yes”icon.
4.Click “Finish”icon torestart
computer.

15
SoftwareInstallation
3.1.5TaskbarIcon
3.1.4.Utilities on driverCD
The utilitiesinclude DisplayDriverand V-Tunerutilities.Pleasebrowsethe driverCD
fordetail.
Afterinstallation ofthe displaydrivers,you will find an GBTicon on the taskbar’sstatus
area.Right-clicking thisicon opensthe GBTcontrolpanel,showing amenu composed
ofshortcuteofthe graphics board’senhanced and otherfunctions.
You mayclick the “DisplayProperties”item,and then click Settings.Click “Advanced”
afterclickng Settings.Click the appropriatetab tochange yourdisplaysettings.
You can linktoGBTweb site
forupdated information about
the graphics borad,latest
drivers,and other
information.

16
AG32SGraphics Accelerator

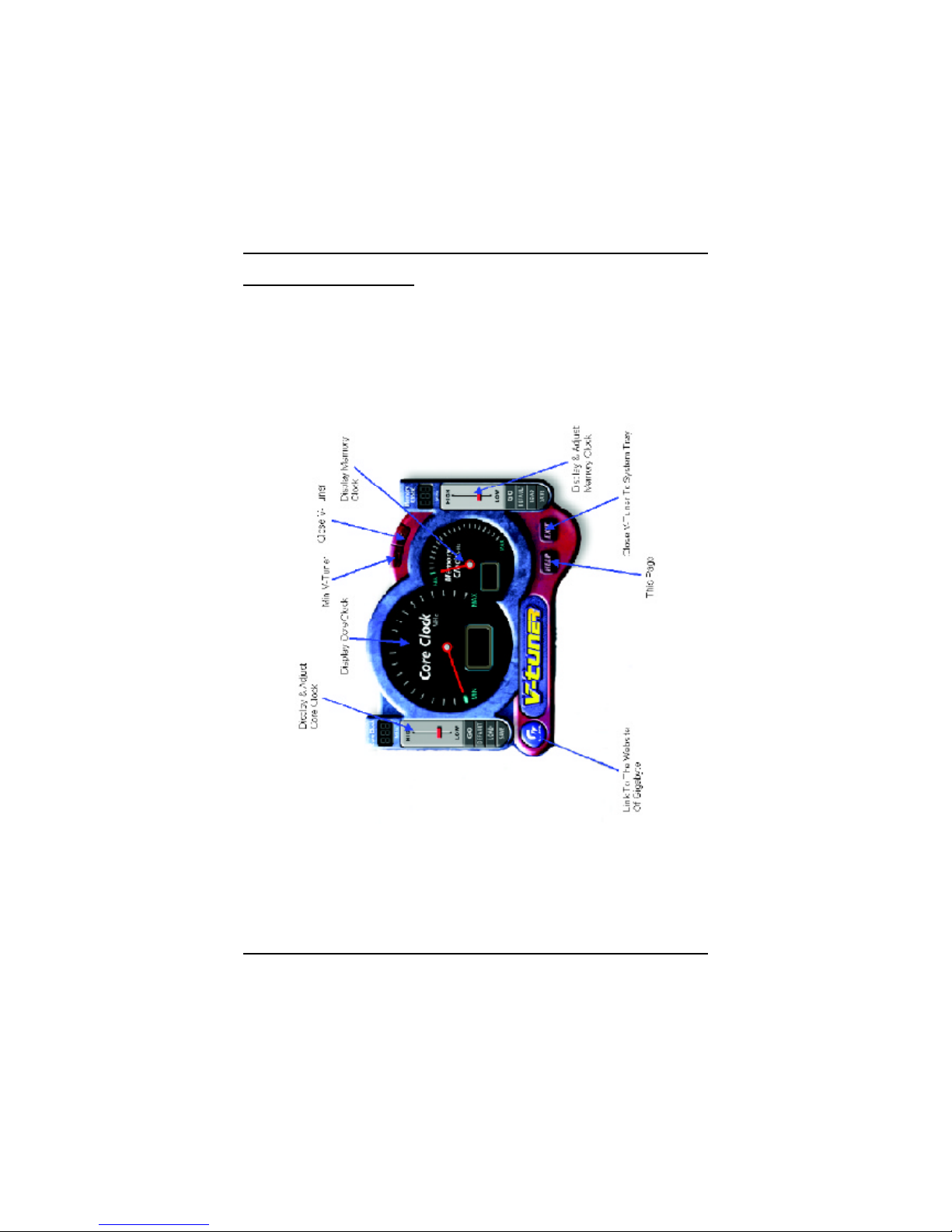

V-Tuner(Overclock Utility)
V-Tunerletsyou adjustthe working frequency ofthe graphicengine and video
memory(CoreClock and MemoryClock)

17
SoftwareInstallation
VGAInfo
VGAInfoliststhe relevantinformation aboutyourcard.
ColorAdjust
ColorAdjustallowsyou tomakecoloradjustments,suchasbrightness,
contrast, and gammavaluesforeachorall ofRGBcolors.

18
AG32SGraphics Accelerator
3.1.6.DisplayPropertypages
The screen showsthe information ofdisplayadapter,color,the range ofdisplay
area and the refreshrate.
Setting (Resolutionsand Colordepthforwindows)
The Setting propertiespage allowsyou toadjustthe Direct3Dsettings
OptionsProperties
Click”Advanced..”icon foradapter
and setting.
You can click the itemtochange
the colordepth.
You can movethe slidertothe
change resolution.
nEnableATItaskbaricon application enablesor
disablesthe ATItaskbaricon.However,thisfeature
mustbe enabled forATIhotkeysupport.
nShowATIicon on taskbaraddsorremovesthe ATI
icon fromthe taskbar.

19
SoftwareInstallation
OpenGLProperties:
The OpenGLpropertiespage givesyou completecontrolofthe OpenGLsettings.
nOptimizationPreference
lQualityallowsyou tooptimizeyourOpenGLsettingsforquality.
lPerformance allowsyou tooptimizeyourOpenGLsettingsforperformance
nOpenGLSettings
lConvert32 bittextures to16 bitallowsyoutoincreasevideo performancefor
gamesthatmakeheavy useoftextures.Howeverthiscouldalsoreduceimage
quality.
lEnableKTXbufferregion extension enablesrapidupdatesofthoseportionsof
yourscreen thathavebeen moved.
lEnablepageflipping allowsyoutoenablehardwareacceleration ofpage flipping
toswap full screen buffers.
lForce 16-bitZ-buffering allowsyou todisableall otherformatsofZ-bufferand
utilizes16-bitZ-buffering.
lDisabledithering whenalphablending mayremoveartifactsleft on the screen
when bothdithering and alpha blending areenabled.
lWaitforverticalsynclowersthe framespersecond rateinfull screen games
Howeverthiscan reducethe image tearing thatcan occurwithhigherframerates.
lLevelofDetail allowsyou tosetthe levelofmipmapped detail.
The Sharpsetting isrecommended forlarger,moredetailed,mipmapping scenes
The Fuzzysetting isrecommended forsmaller,less detailed,mipmapping scenes.

20
AG32SGraphics Accelerator
Direct3DDisplay Properties
The Direct3Dpropertiespage allowsyou toadjustthe Direct3Dsettings.
D3DSettings
nWaitforverticalsyncallowsyou tolowerthe framerateoffull screen games.Thiswill .
reduceimage tearing thatcan occurwithhigherframerates.
nCompressedtextureformatallowsyou toenablesupportforDirectXcompressed
textureformats.Someapplicationscannothandletoo manytextureformats.Disabling
compressed textureformatthe video driverceasestosupportthisfeature.Thisreduces
the numberoftextureformatssupported.
nAnti-aliasing providesyou withan overall higherqualityvideo image withaslight
reduction inperformance.When “Application Preference”mode isselected,the video
driverwill useanti-aliasing onlywhen an application requestsit. When “Always On”
mode isselected,the video driverwill forceanti-aliasing on all applications.
nDefaultsrestoresyourDirect3Dsetting totheirdefaultvalues.
