Gigabyte GV-R9500 User manual

Declaration of Conformity
We, Manufacturer/Importer
(full address)
G.B.T. Technology Träding GMbH
Ausschlager Weg 41, 1F, 20537 Hamburg, Germany
declare that the product
( description of the apparatus, system, installation to which it refers)
3D Graphics Accelerator
GV-R9500
is in conformity with
(reference to the specification under which conformity is declared)
in accordance with 89/336 EEC-EMC Directive
oEN 55011Limits and methods of measurement
of radio disturbance characteristics of
industrial,scientific and medical (ISM
high frequency equipment
oEN 61000-3-2*
77
77
7EN 60555-2 Disturbances in supply systems cause by household appliances and similar
electrical equipment “Harmonics”
oEN 55013
Limits and methods of measurement
of radio disturbance characteristics of
broadcast receivers and associated
equipment
oEN 61000-3-3* Disturbances in supply systems cause
by household appliances and similar
electrical equipment “Voltage fluctuations”
oEN 55014 Limits and methods of measurement
of radio disturbance characteristics of
household electrical appliances,
portable tools and similar electrical
apparatus
77
77
7EN 50081-1 Generic emission standard Part 1:
Residual commercial and light industry
77
77
7EN 50082-1 Generic immunity standard Part 1:
Residual commercial and light industry
oEN 55015 Limits and methods of measurement
of radio disturbance characteristics of
fluorescent lamps and luminaries
Generic emission standard Part 2:
Industrial environment
oEN 55081-2
Immunity from radio interference of
broadcast receivers and associated
equipment
Generic emission standard Part 2:
Industrial environment
oEN 55082-2
77
77
7EN 55022 Limits and methods of measurement
of radio disturbance characteristics of
information technology equipment
lmmunity requirements for household
appliances tools and similar apparatus
oENV 55104
Cabled distribution systems; Equipment
for receiving and/or distribution from
sound and television signals
EMC requirements for uninterruptible
power systems (UPS)
oEN50091-2
oEN 55020
oDIN VDE 0855
opart 10
opart 12
(EC conformity marking)
77
77
7CE marking
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
Safety requirements for mains operated
electronic and related apparatus for
household and similar general use
oEN 60950
oEN 60065
Safety of household and similar
electrical appliances
oEN 60335
Manufacturer/Importer
Signature:
Name:
(Stamp) Date : Nov. 30, 2002
77
77
7EN 60555-3
Timmy Huang
Timmy Huang
oEN 50091-1
Safety for information technology equipment
including electrical bussiness equipment
General and Safety requirements for
uninterruptible power systems (UPS)

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109
(a),Class B Digital Device
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name:
Address:
Phone/Fax No:
hereby declares that the product
Product Name:
Conforms to the following specifications:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
causeharmfuland(2)thisdevicemustacceptanyinferencereceived,
including that may cause undesired operation.
Representative Person’s Name:
Signature: Eric Lu
Supplementary Information:
Model Number:
17358 Railroad Street
City of Industry, CA 91748
G.B.T. INC. (U.S.A.)
[phone]/ [phone]
3DGraphicsAccelerator
GV-R9500
Date:
ERIC LU
Nov. 30, 2002

GV-R9500 Series
Radeon 9500 Graphics Accelerator
Rev. 103
12MD-R9500-103
USER'S MANUAL
Upgrade your Life

GV-R9500 Series Graphics Accelerator - 2 -
English
Copyright
CopyrightbyGIGA-BYTETECHNOLOGYCO.,LTD.("GBT")Nopartofthismanual may
be reproduced or transmitted in any from without the expressed, written permission of
GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Duetorapidchangeintechnology,someofthespecificationsmightbeoutofdatebefore
publication of this booklet.
Theauthorassumesnoresponsibilityforanyerrorsoromissionswhichmayappearinthis
document nor does it make a commitment to update the information contained herein.
PleasedonotremoveanylabelsonVGAcard,thismayvoidthewarrantyofthisVGAcard.
Dec. 20, 2002 Taipei, Taiwan
Chapter 1 User's Manual
This product incorporates copyright protection technology that is protected by method
claimsofcertain U.S. patents and other intellectual property rights owned by Macrovision
Corporationandother rights owners. Useofthis copyright protection technologymustbe
authorizedbyMacrovisionCorporation,andisintendedforhomeandotherlimitedviewing
usesonlyunlessotherwiseauthorized by Macrovision Corporation. Reverseengineering
or disassembly is prohibited.

Table of Content- 3 -
English
Table of Contents
1. INTRODUCTION.................................................................................4
1.1.PREFACE .................................................................................................. 4
1.2.KEYFEATURES ........................................................................................ 4
2. HARDWARE INSTALLATION..............................................................5
2.1.UNPACKING .............................................................................................. 5
2.2.BOARD LAYOUT........................................................................................ 6
2.3. HARDWARE INSTALLATION ..................................................................... 8
3. SOFTWARE INSTALLATION ............................................................10
3.1. WINDOWS®98/98SE / WINDOWS®ME/ WINDOWS®XP DRIVER
AND UTILITIES INSTALLATION............................................................... 10
3.1.1. Operating system requirement ....................................................................................... 10
3.1.2. DirectX Installation...........................................................................................................11
3.1.3. Driver Installation ............................................................................................................ 13
3.1.4. Utilities on driver CD ....................................................................................................... 16
3.1.5. Taskbar Icon.................................................................................................................... 19
3.1.6. Display Properties pages................................................................................................ 23
3.2.WINDOWS 2000DRIVER INSTALLATION .............................................. 32
3.3. BIOS FLASH UTILITY .............................................................................. 32
4. Troubleshooting Tips .........................................................................33
5.Appendix ...........................................................................................34
5.1. How to reflash the BIOS........................................................................... 34
5.2. Resolutions and Color DepthTable (In Windows®XP) ............................. 36

GV-R9500 Series Graphics Accelerator - 4 -
English
1. INTRODUCTION
1.1. PREFACE
GV-R9500 Series features 4-pipeline architecture for twice the rendering power, 64MB/
128MB(C3) of memory to accelerate latest 3D games and new SMARTSHADER™2.0
technologysupportingDirectX®9.0andthelatestOpenGL®functionalitytogivedevelopers
thefreedomtocreate more complicated andrealisticvisualeffects than ever before.GV-
R9500Series supports thenew AGP 8Xstandard, which allowslarge volumes oftexture
and vertex data to be transferred faster from system memory to the chip.
1.2. KEY FEATURES
nPowered by RADEON™9500 Visual Processing Unit (VPU)
nFully support DirectX®9.0
nSupports the newAGP8X standard
n4-pixel pipeline architecture
nAll new 128-bit memory interface
n64MB / 128MB(C3) DDR memory accelerates the latest 3D games
nFirst to use pixel shaders to accelerate video
nDVI-I and TV-Out connector supported

Hardware Installation- 5 -
English
2. HARDWARE INSTALLATION
2.1. UNPACKING
The GV-R9500 Series package contains the following:
zThe GV-R9500 Series graphics accelerator
zThis USER'S MANUAL
zThe GV-R9500 Series Driver CD x 1
zPower DVD XP CD x 1
zGame CD x 3
zOne cable supports S-video andAV-Output; DVI-I to D-Sub connector
WARNING!
Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against
damage from static electricity, you should follow some precautions whenever you work on
your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the
power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static
electricity, so the card should be left in its original packing until it is installed.
Unpackingandinstallationshouldbedoneonagroundedanti-staticmat.Theoperatorshould
be wearing an anti-static wristband, grounded at the same point as the anti-static mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage to
yourcard.Besuretherearenoshippingandhandlingdamagesonthecardbeforeproceeding.
00
00
0DONOTAPPLYPOWER TOYOUR SYSTEM IF IT HAS BEEN DAMAGED ON THECARD.
00
00
0In order to ensure your graphics card working correctly, please use official Gigabyte
BIOS only. Use none official gigabyte BIOS might cause problem on the graphics card.

GV-R9500 Series Graphics Accelerator - 6 -
English

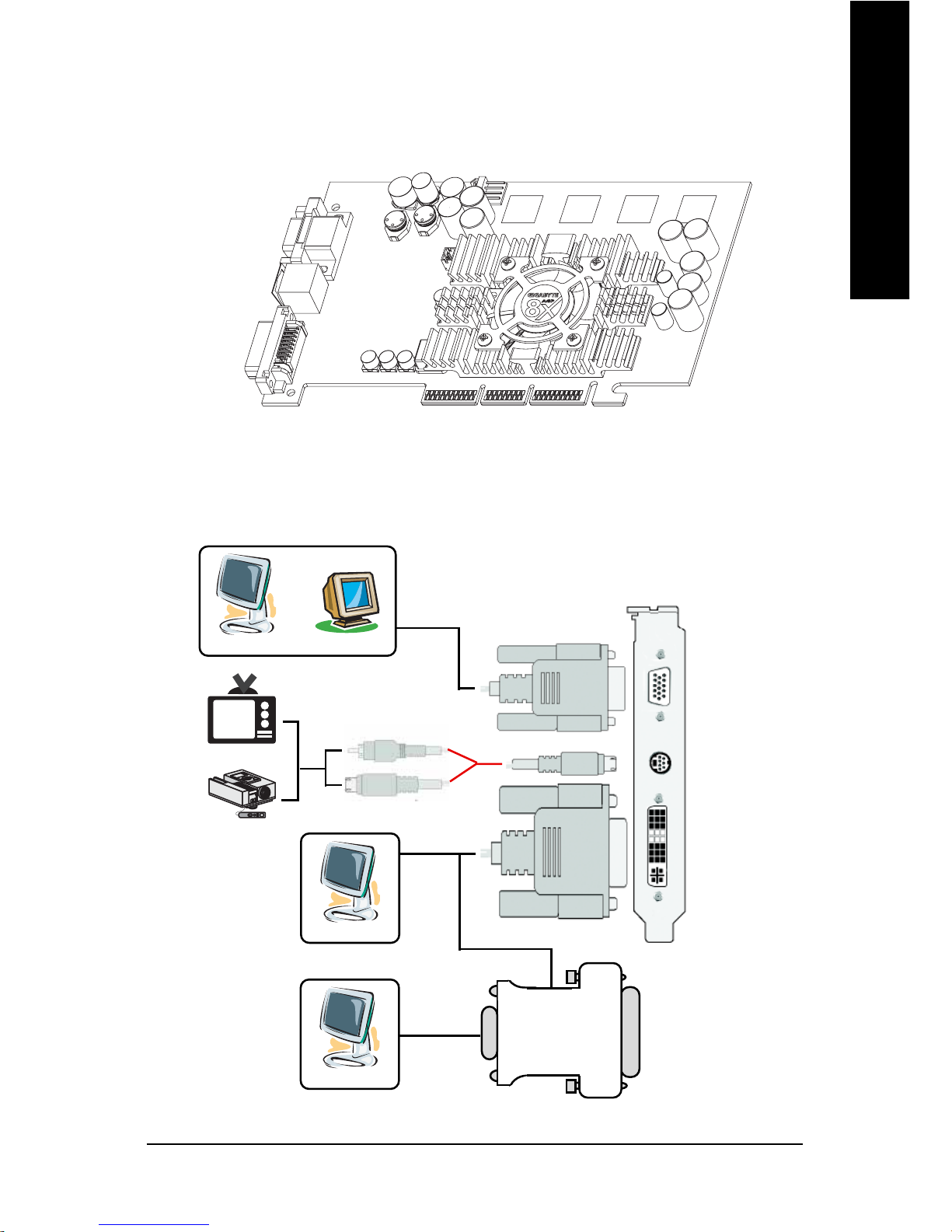

2.2. BOARD LAYOUT
1) GV-R9500 (64MB DDR)
TV-Out
VGAMonitor
Connector
(15pin)
DVI Connector
TV-Out
VGAMonitor
Connector
(15pin)
DVI Connector
TypeA
Type B

Hardware Installation- 7 -
English
TV-out
VGAMonitor
Connector
(15pin)
DVI Connector
AV Output
NTSC/ PALTV
Projector
S-VideoOutput
DVIOutput
Digital LCD Monitor
DVI-I to D-sub
Connector
VGAOutput
Analog LCD Monitor
OR
Analog LCD Monitor AnalogMonitor
OR VGAOutput
2) GV-R9500-C3 (128MB DDR)
TV-Out
VGAMonitor
Connector
(15pin)
DVI Connector

GV-R9500 Series Graphics Accelerator - 8 -
English

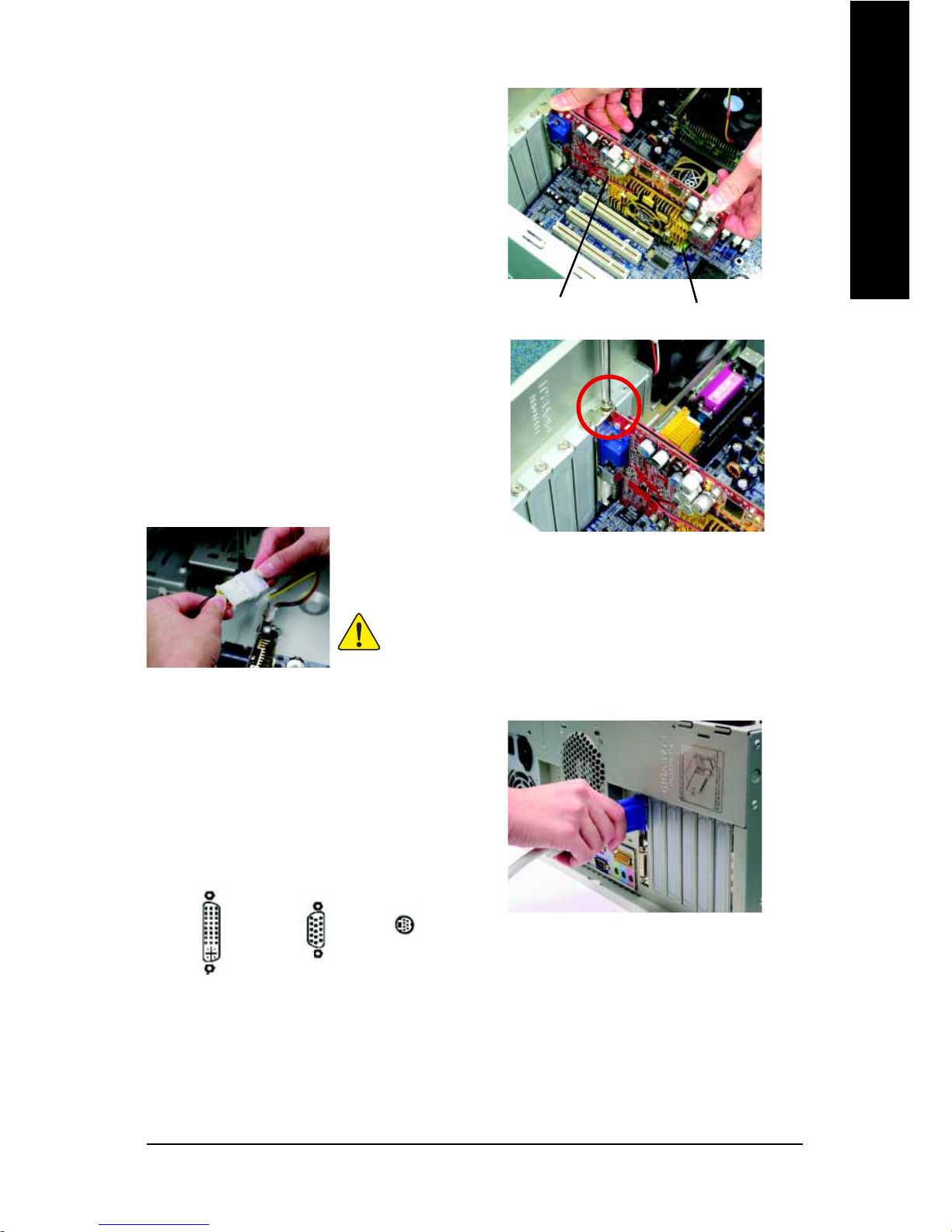

2.3. HARDWARE INSTALLATION
Installing Your Graphics card.
Now that you have prepared your computer, you are ready to install your graphics
accelerator card.
To install your graphics accelerator card:
1. Power off the computer and monitor, then
disconnectthedisplaycablefromtheback
of your computer.
2. Removethecomputercover.Ifnecessary,
consult your computer's manual for help
in removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to
disable it on the motherboard. For more
information, see you computer
documentation.

Hardware Installation- 9 -
English
4. LocatetheAGPslot.Ifnecessary, remove
the metal cover from this slot; then align
yourGraphics card with theAGPslot, and
pressitinfirmlyuntilthecardisfullyeated.
AGPSlot
GV-R9500 Series Graphics card
5. Replace the screw to fasten the card in
place, and replace the computer cover.
6. Plugthedisplay cable intoyour card; then
turn on the computer and monitor.If your
GraphicscardcamewithaDVIconnector,
youcanconnect a flat paneldisplayto the
appropriate connector, as shown below...
YouarenowreadytoproceedwiththeinstallationoftheGraphicscarddriver.Fordetailed
instructions, select your operating system from the list below.
Afterinstallation, please connectthepowercabletoyour
GV-R9500 Series graphics card,or systemwill not boot.
To Flat Panel Display
To TV or VCR
To VGAMonitor

GV-R9500 Series Graphics Accelerator - 10 -
English
3. SOFTWARE INSTALLATION
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
3.1. WINDOWS®98 /98SE / WINDOWS®ME / WINDOWS®XP DRIVER
AND UTILITIES INSTALLATION
The installation of Win®98/98SE / WINDOWS®2000 / Win®ME / Win®XP drivers is very
simple.WhenyouinsertthedriverCDintoyourCD-ROMdrive,youcanseetheAUTORUN
window (if it does not show up, run "D:\setup.exe"). Then you can follow guides to setup
yourGV-R9500Seriesdriver(Pleasefollowthesubsection3.1.3"StepByStepInstallation"
to install the driver for your GV-R9500 Series graphics accelerator.
3.1.1. Operating system requirement
zIf your OS is Microsoft Windows, when loading the GV-R9500 Series drivers for
the system, please make sure your system (Windows 98/98SE, Windows2000 or
Windows ME) has installed DirectX8.1 or later version.
zIf you install the GV-R9500 Series drivers for the motherboard, which consist of
SIS,ALI or VIA chipsets, please install the appropriate Driver program for that
motherboard. Or please contact your motherboard nearest dealer for M/B Driver.

Software Installation- 11 -
English
3.1.2. DirectX Installation
InstallMicrosoftDirectX 8.1(or later version)toenable 3D hardware accelerationsupport
for Windows®98/98SE/ Windows®2000 or Windows®ME to achieve better 3D
performence.
0Note: For software MPEG support in Windows®98/ 98SE/ Windows®2000 or
Windows®ME, you must install DirectX8.1(or later version) first. (If your OS is
Windows®XP, please skip this section.)
Here we use DirectX 8.1 as installation example:
3.Click "Yes" icon.
2.Click "Yes" icon.
1. Install DirectX Driver:
Click "Install DirectX 8.1" Item.

GV-R9500 Series Graphics Accelerator - 12 -
English
Then the DirectX 8.1 installation is completed.
4.Click "OK" item.

Software Installation- 13 -
English
3.1.3. Driver Installation
The following is the step-by-step installation guide.
Step 1: New Hardware Found
After GV-R9500 Series is inserted into your computer at the first time, the windows will
automaticallydetect a new hardwareinthesystemandpopouta "New Hardware Found"
message. Please select "Do not install a driver" and press OK.
Step 2: Update Device Driver Wizard: Standard PCI GraphicsAdapter(VGA)
Step 3: Update Device Driver Wizard: Finish
At this time, system will ask for your Windows CD in order to complete the VGA driver
installation.
If you don't have the CD, you can press C:\Windows\System directory.
Step 4: System Setting Change
2.Click "Finish" icon.
1.Click "Next"icon.
00
00
0Don't click "Cancel", because the
system will hang if you press it.

GV-R9500 Series Graphics Accelerator - 14 -
English
After the system has finished loading, insert the GV-R9500 Series driver CD disk into
your CD-ROM, and then you can see theAUTORUN window. If it does not show up,
please run "D:\setup.exe".
3..Click "No" icon.
Step 5: Driver Setup
(Pictures below are shown in Windows XP)
2.Click "Next".
1. Click "Install Display Drivers (Radeon
9500 Series)" item.

Software Installation- 15 -
English
3.Click "Yes".
4. Click "Express" or "Custom" icon.
5. Click "Finish" to restart computer.

GV-R9500 Series Graphics Accelerator - 16 -
English

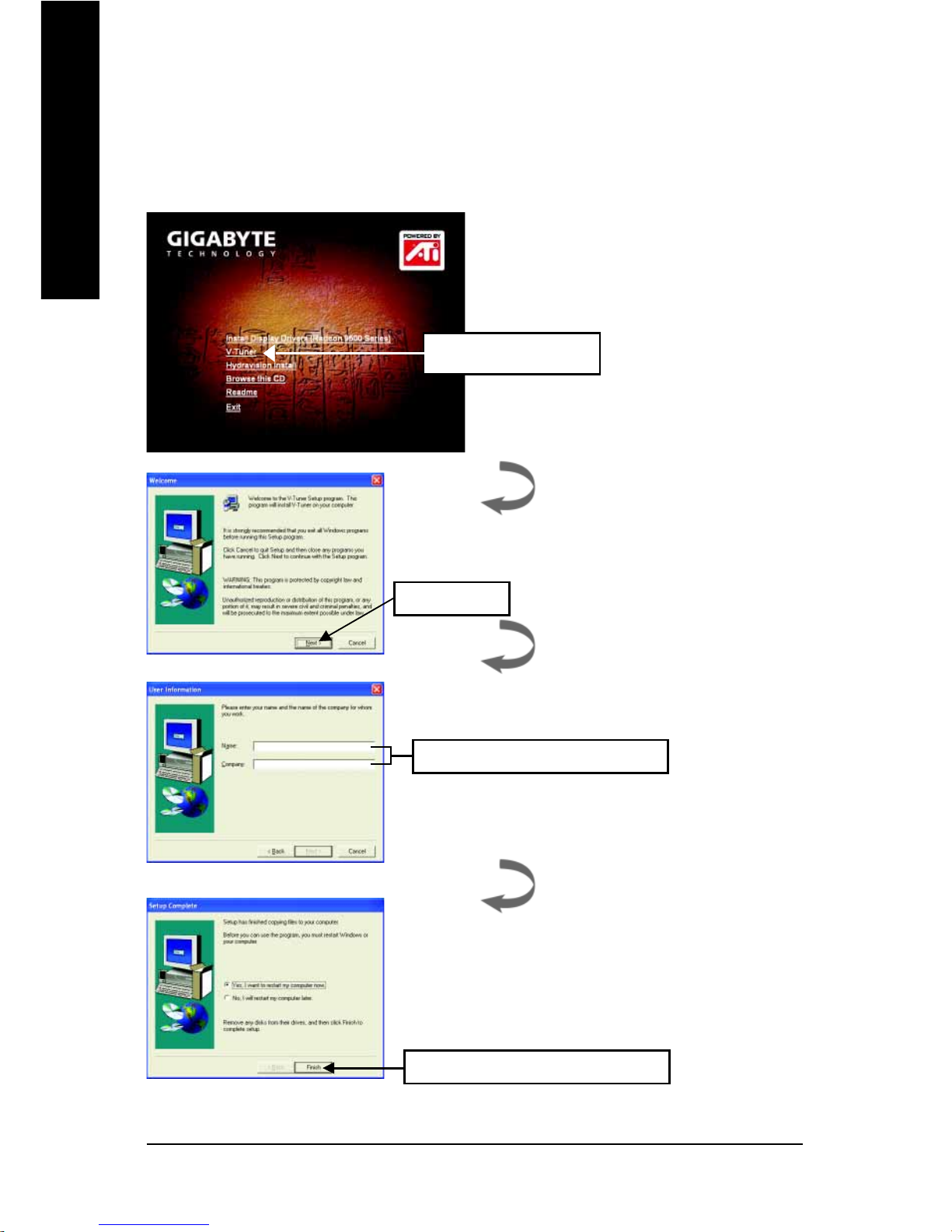

zInstall V-Tuner :
3.1.4. Utilities on driver CD
The utilities include Display Driver and V-Tuner utilities. Please follow the steps.
1. Click "V-Tuner" item.
2.Click "Next".
3. Enter your name and company.
4. Click "Finish" to restart computer.

Software Installation- 17 -
English

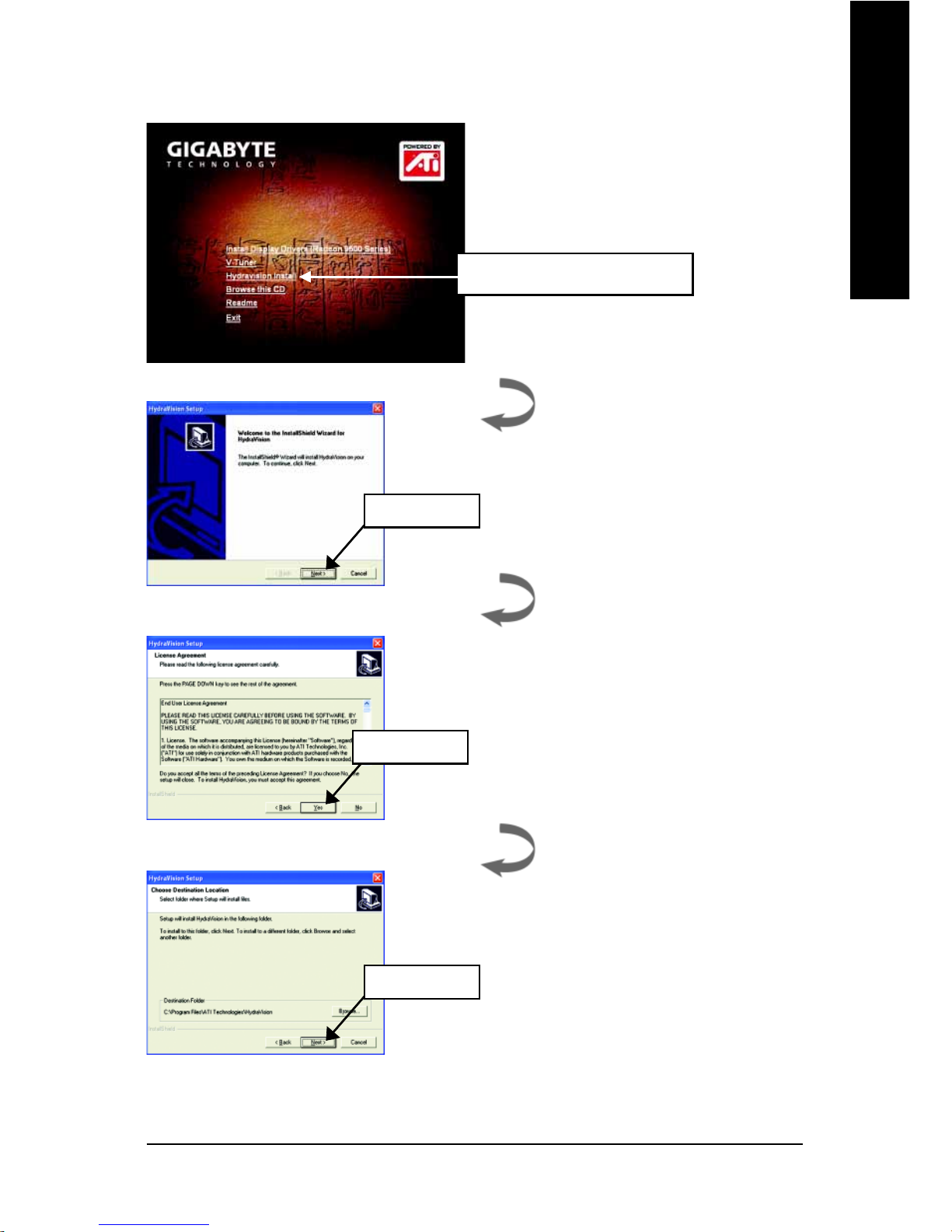

zInstall Hydravision :
2.Click "Next".
3.Click "Yes".
4.Click "Next".
1. Click "Hydravision Install" item.

GV-R9500 Series Graphics Accelerator - 18 -
English
5.Click "Next".
6. Click "Finish" to restart computer.
