GV-RX165P256D-RH
Radeon X1650 Pro Graphics Accelerator
User's Manual
Rev. 101
12MD-RX165P2R-101R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.
Copyright
© 2006 GIGABYTE TECHNOLOGY CO., LTD
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT"). No part of this manual may be reproduced or transmitted in any from
without the expressed, written permission of GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Please do not remove any labels on VGA card, this may void the warranty of this VGA card
Due to rapid change in technology, some of the specifications might be out of date before publication of this booklet.
The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a
commitment to update the information contained herein.
Macrovision corporation product notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

- 2 -
English
GV-RX165P256D-RH Graphics Accelerator
Table of Contents
1. Introduction ......................................................................................... 3
1.1. Features ..................................................................................................... 3
1.2. Minimum System Requirement ..................................................................... 3
2. Hardware Installation ........................................................................... 4
2.1. Board Layout .............................................................................................. 4
2.2. Hardware Installation ................................................................................... 6
3. Software Installation .......................................................................... 10
3.1. Windows®XP Driver and Utilities Installation ............................................... 10
3.1.1. Operating System Requirement ................................................................................. 10
3.1.2. DirectX Installation ......................................................................................................... 11
3.1.3. Driver Installation .......................................................................................................... 12
3.1.4. Utilities on Driver CD ................................................................................................... 14
3.1.5. Taskbar Icon ................................................................................................................. 17
3.1.6. Display Properties pages ............................................................................................ 20
3.2. Windows®2000 Driver Installation ............................................................. 37
4. Troubleshooting Tips ........................................................................ 38
5. Appendix .......................................................................................... 39
5.1. How to Reflash the BIOS ........................................................................... 39
5.1.1. Reflash BIOS in MS-DOS mode ................................................................................. 39
5.1.2. Reflash BIOS in Windows mode ................................................................................ 39
5.2. Resolutions and Color Depth Table (In Windows®XP) ............................... 40

Introduction- 3 -
English
1. Introduction
1.1. Features
•Powered by ATI Radeon X1650 Pro Graphics Processing Unit (GPU)
•Supports the newest PCI Express x16
•Integrated with 256MB GDDR3 memory
•Supports DirectX 9.0c
•Supports AV / S-Video and HDTV output
•Supports TV-Out connector
•Supports D-sub connector (by adapter)
•Supports 2 DVI-I connectors
1.2. Minimum System Requirements
•Intel®Pentium®4 or AMD AthlonTM or higher
•One PCI Express x16 slot
•Operating Systems Windows®2000 / Windows®XP
•512 MB of system memory
•200 MB of available disk space for full installation
•CD-ROM or DVD-ROM drive

- 4 -
English
GV-RX165P256D-RH Graphics Accelerator

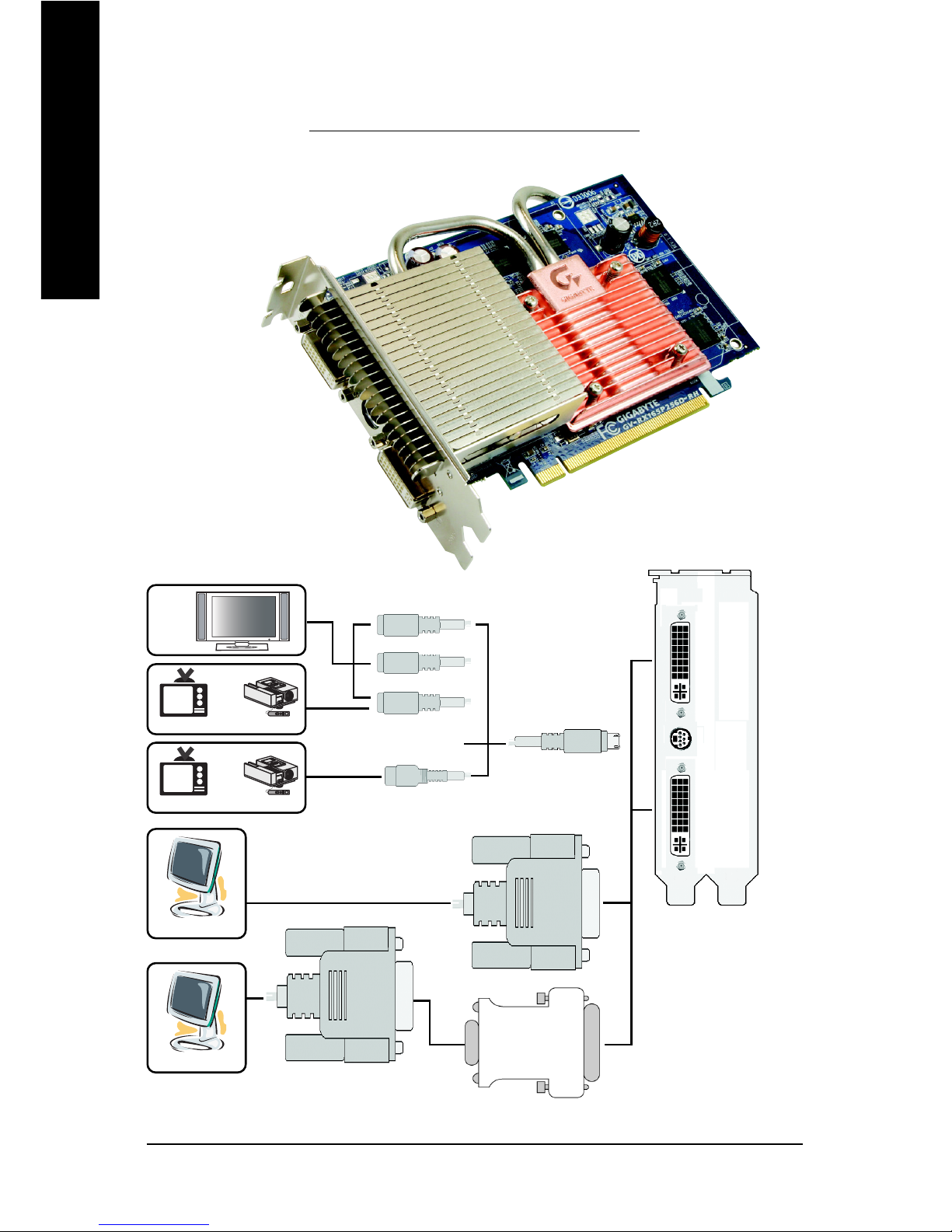

2. Hardware Installation
TV-Out
DVI-I
Connector 2
Analog LCD Monitor
Digital LCD Monitor
DVI Output
DVI-I
Connector 1
DVI-I to D-Sub
Adapter
VGA Output
S-Video Output
Pb/AV Output
Pr
Y
NTSC / PAL TV Projector
HDTV
OR
NTSC / PAL TV Projector
OR
DVI-I Connector 2
TV-Out
DVI-I Connector 1
2.1. Board Layout

Hardware Installation
- 5 -
English
Expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some
precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static
electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator
should be wearing an anti-static wristband, grounded at the same point as the anti-static
mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage
to your card. Be sure there are no shipping and handling damages on the card before
proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON
THE CARD.
In order to ensure your graphics card working correctly, please use official
Gigabyte BIOS only. Use none official Gigabyte BIOS might cause problem
on the graphics card.

- 6 -
English
GV-RX165P256D-RH Graphics Accelerator
2.2. Hardware installation
Installing Your graphics card.
Now that you have prepared your computer, you are ready to install your graphics accelerator
card.
To remove the existing graphics card:
1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help in
removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to disable
it on the motherboard. For more information,
please see you computer documentation.

Hardware Installation
- 7 -
English
2. Replace the screw to fasten the card in place,
and replace the computer cover.
You are now ready to proceed with the installation of the graphics card drivers. Please refer
to next chapter for detailed instructions.
To Flat Panel Display
3. Plug the display cable into your graphics
card; then turn on the computer and monitor.
To connect a flat panel directly to your
graphics card, use the DVI-I connector. To
connect a VGA monitor to the DVI-I
connector, plug the DVI-I to D-sub adapter
intotheDVI-I connector, thenplugthe monitor
cable into the adapter.
Connect a flat panel
Connect a VGA monitor via DVI-I to D-sub adapter
To install your new graphics card:
1. Locate the PCI Express x16 slot. If
necessary, remove the metal cover from this
slot; then align your graphics card with the
PCI Express x16 slot, and press it in firmly
until the card is fully seated.
Warning!
When installing the graphics card, do not push down the
heat pipe. This may displace the heat pipe and cause
bad contact between the GPU and thermal pad as well
as affect the heat dissipation. To avoid system instability,
do not touch the graphics card when it is runnnig.
* Please make sure that the gold edge connectors of the graphics card is securely inserted.
To TV/VCR

- 8 -
English
GV-RX165P256D-RH Graphics Accelerator
GIGABYTE Video Adapter for ATI Graphics Cards
(1) Connecting HDTV
Connect your HDTV cables to the video adapter
according to the corresponding color.
(Y= Green, Pr= Red, Pb= Blue)
(2) Connecting S-Video
If your TV has a S-Video connection, connect the S-
Video cable from your TV to the S-Video Out port on the
adapter.
(3) Connecting AV Output
If your TV has Composite video connection, you can
connect the RCA cable from your TV to the AV Out port
on the adapter.
Connect to the TV-
Out port on the
graphics card.
S-Video Out HDTV Component
(Y+Pr+Pb)
AV Out

Hardware Installation
- 9 -
English

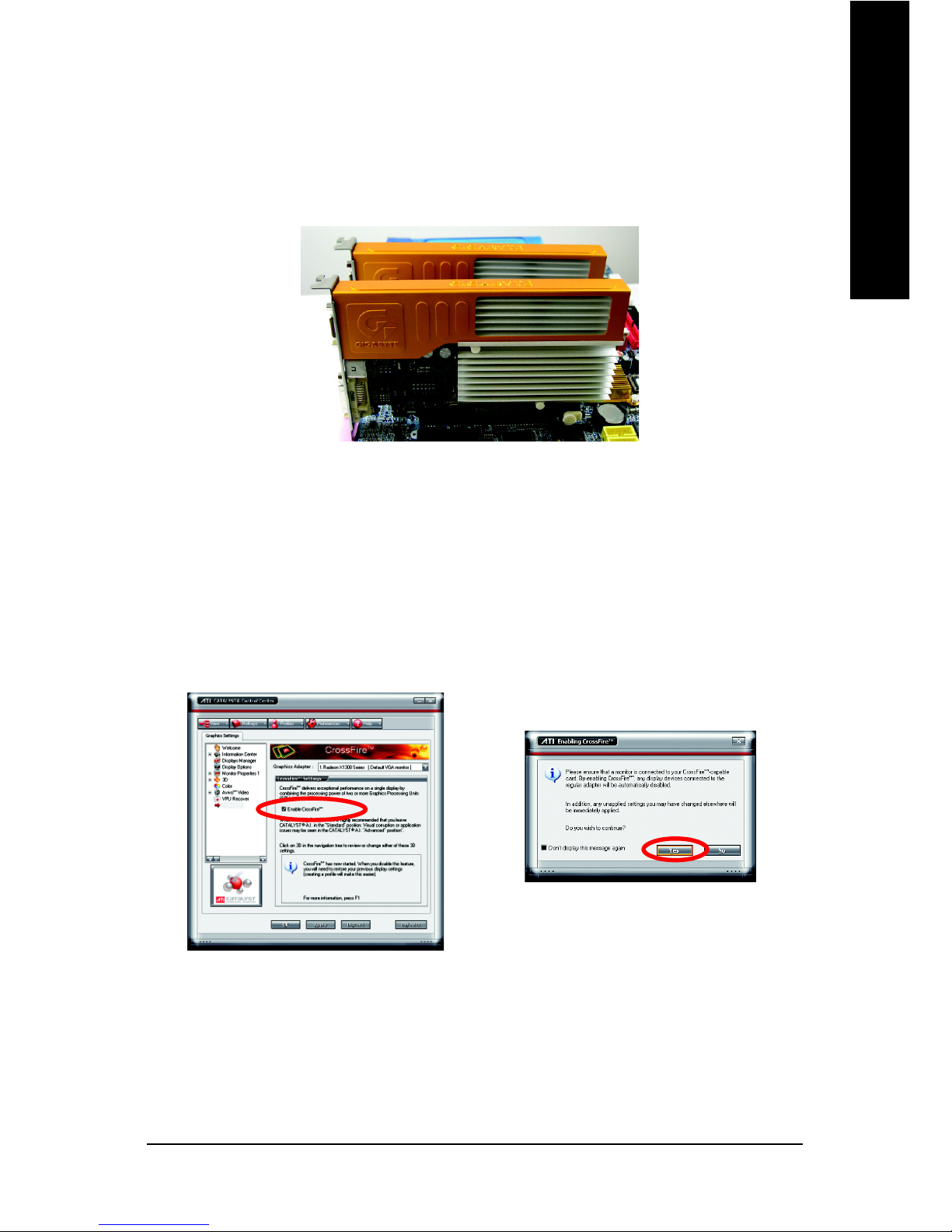

Step 1: After installing graphics card driver in operating system, access the ATI CATALYST
Control Center (please refer to Page 19). From the ATI CATALYST Control Center, enter the
CrossFire menu and assure to select the Enable CrossFire checkbox (Figure 2).
Step 2: When the next confirmation dialog box appears (Figure 3), click Yes to complete the
CrossFire configurations.
How to enable the ATI CrossFireTM technology:
After installing two CrossFire graphics cards of the same chipset (example: GV-RX13 series/
GV-RX16 series) (Figure 1) on a CrossFire-supported motherboard, users can enable the
CrossFire technology simply through the graphics card driver .
Figure 2
(Note): Only Windows®XP operating system supports CrossFire mode. Please do not
enable CrossFire in Windows®2000.
Figure 1
Figure 3

- 10 -
English
GV-RX165P256D-RH Graphics Accelerator
3. Software Installation
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
The installation of Windows®2000 / Windows®XP drivers is very simple. When you insert the
driver CD into your CD-ROM drive, you can see the AUTORUN window (if it does not show
up, run "D:\setup.exe"). Then you can follow the guides to setup your graphics card driver.
(Please follow the subsection 3.1.3 "Driver installation" to install the driver for your graphics
accelerator.)
3.1. Windows®XP Driver and Utilities Installation
3.1.1. Operating System Requirement
•When loading the graphics card drivers for the system, please make sure your system
has installed DirectX 9.0c or later version.
•If you install the graphics card drivers for the motherboard, which consist of SIS, or VIA
chipsets, please install the appropriate driver program for that motherboard. Or please
contact your motherboard nearest dealer for motherboard driver.

Software Installation- 11 -
English

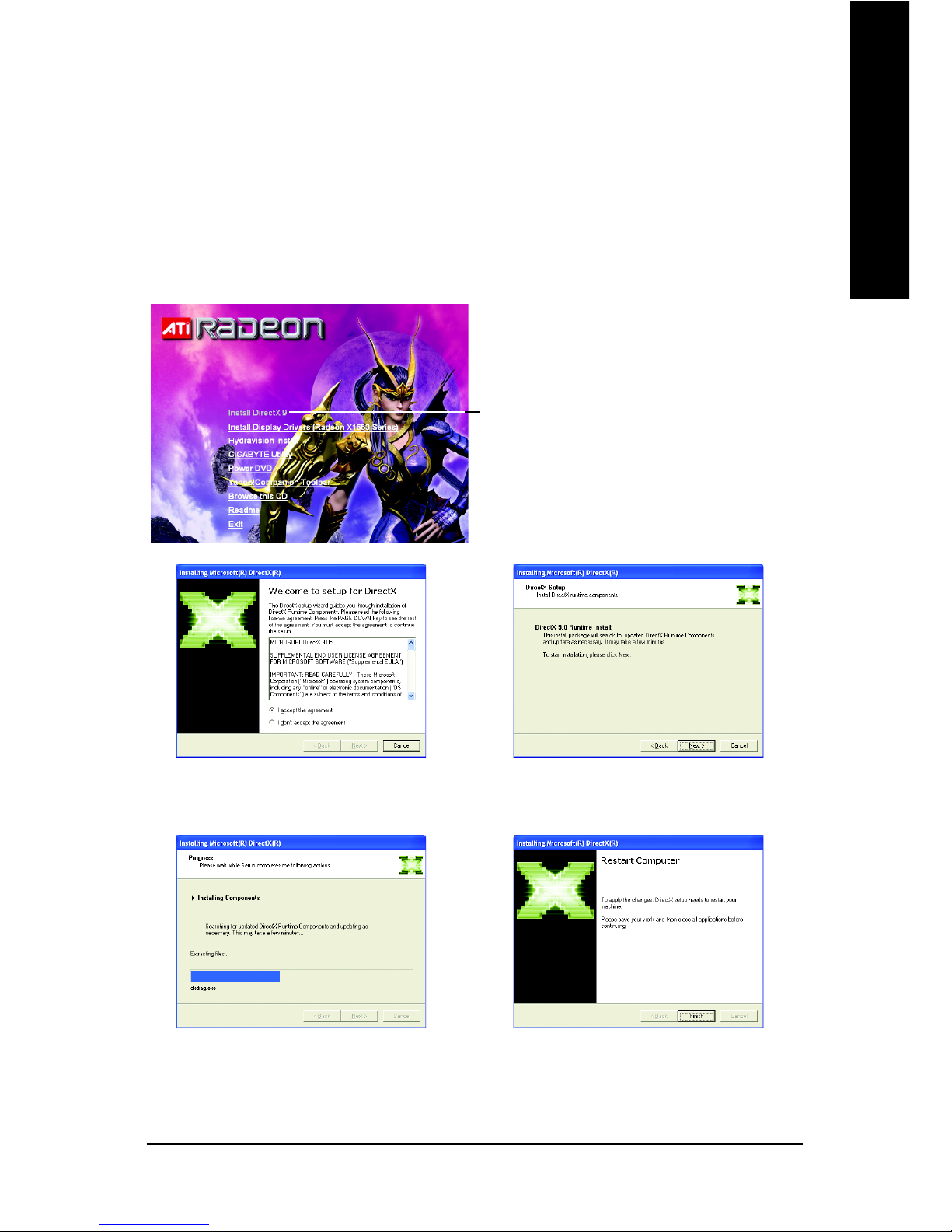

3.1.2. DirectX Installation
Install Microsoft DirectX to enable 3D hardware acceleration support for Windows®2000 or
Windows®XP to achieve better 3D performance.
0Note: For software MPEG support in Windows®2000 or Windows®XP, you must install
DirectX first. Users who run Windows XP with Service Pack 2 or above do not need to
install DirectX separately.
Step 1. When autorun window show up, click the
Install DirectX 9 item.
Step 2. Choose I accept the agreement
and click the Next button.
Step 3. Click the Next button.
Step 4. Click Finish to restart computer.
Then the DirectX 9 installation is completed.
Installing the components.
Click the Install DirectX 9 item.

- 12 -
English
GV-RX165P256D-RH Graphics Accelerator
3.1.3. Driver Installation
A. New hardware found
After the graphics card is inserted into your computer at the first time, the windows will
automatically detect a new hardware in the system and pop out a "New Hardware Found"
message. The following is the step-by-step installation guide.
Step 1: Found new hardware wizard: Video controller (VGA Compatible)
Click the Next button to install the driver. (There is
a driver CD disk that came with your graphics
accelerator, please insert it now.)
Or click the Cancel button to install the driver from
AUTORUN window.
Step 2: Found new hardware wizard: Searching and installing
The wizard will search for the driver and install it automatically.
Step 3: Found new hardware wizard: Finish
Click the Finish button to finish the installation.

Software Installation- 13 -
English

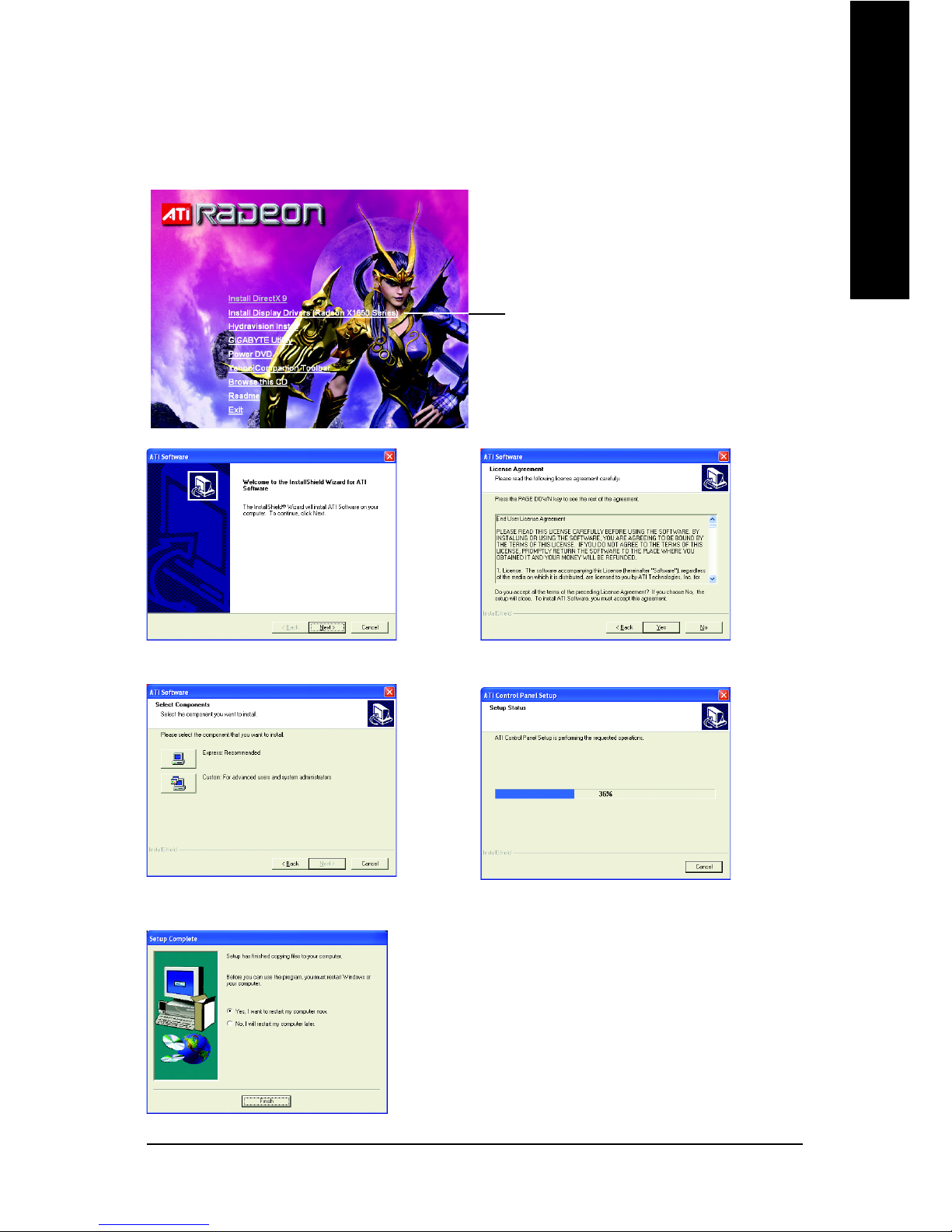

B. Driver installation (Autorun Window)
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
Click the Install Display Drivers (Radeon
X1650 Series) item.
Step 1. When autorun window show up, click the
Install Display Drivers (Radeon X1650 Series)
item.
Step 2. Click Next button. Step 3. Click Yes button.
Setp 4. Click Express or Custom icon.
Step 5. Click the Finish button to restart computer.
Then the driver installation is completed.
Windows installings the components.

- 14 -
English
GV-RX165P256D-RH Graphics Accelerator
Step 3. Enter your name and company.
Step 4. Click the Finish button to restart computer.
Then the V-Tuner3 installation is completed.
Step 2. Click the Next button.
Click the GIGABYTE Utility item.

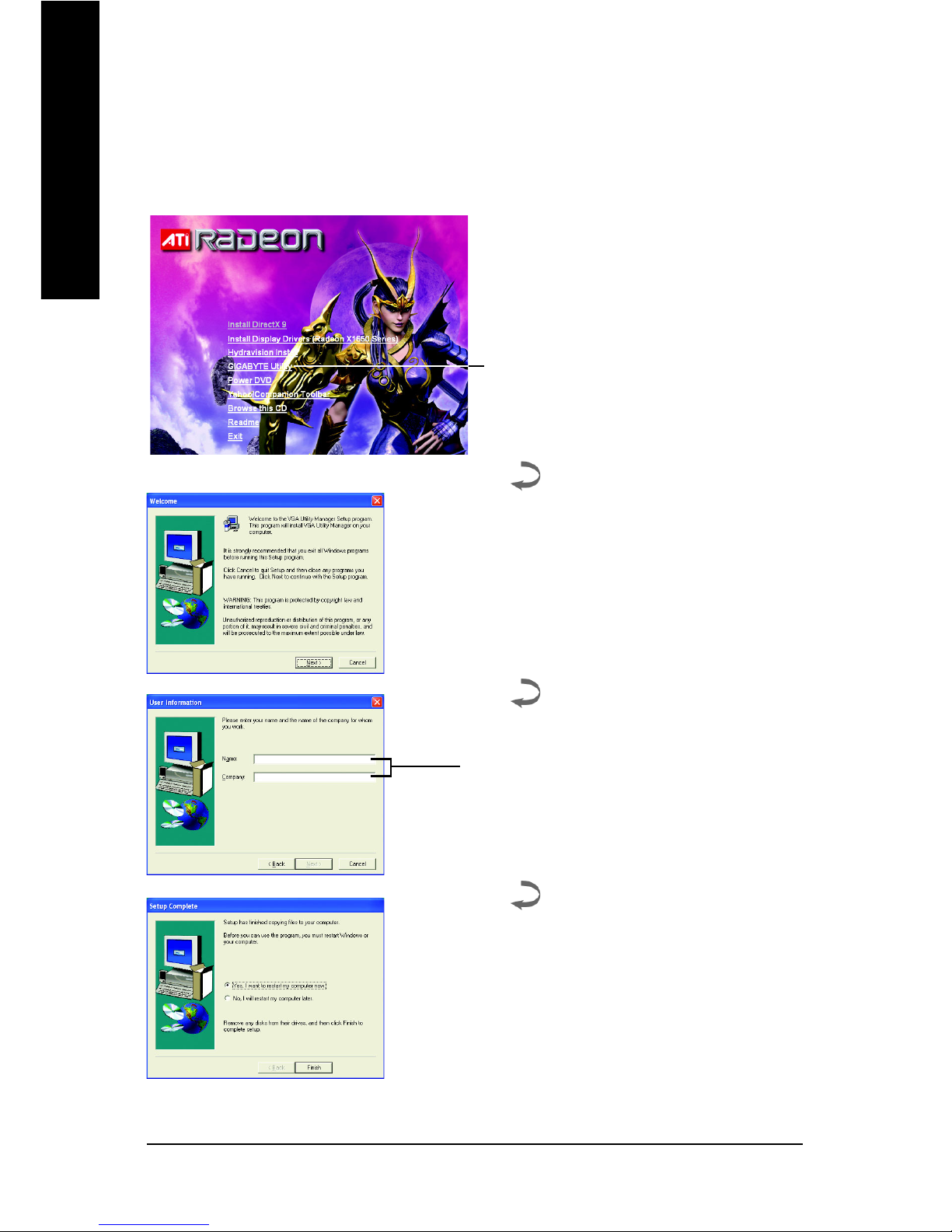

3.1.4. Utilities on Driver CD
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window.
If it does not show up, please run "D:\setup.exe".
zInstall GIGABYTE Utility (V-Tuner3):

Software Installation- 15 -
English
zInstall Hydravision :
Step 2. Click the Next button.
Click the Hydravision Install item.
Step 3. Click the Yes button.
Step 4. Click the Next button. Windows installings the components.
Step 6. Click the Finish button to restart computer.
Then the Hydravision Install is completed.
Step 5. Click the Next button.

- 16 -
English
GV-RX165P256D-RH Graphics Accelerator
V-Tuner 3
V-Tuner 3 lets you adjust the working frequency of the graphic engine and video memory
(Core Clock and Memory Clock).
Button Function
DEFAULT You may click this button to restore to the default setting
SAVE You may click this button to save the frequency you wanted
LOAD After saving the specific value, you may click this button to load the
frequency you saved last time
Auto-Optimized The V-Tuner3 clock configuration utility will determine the recommended
GPU and memory clock setting your system. If the utility should hang,
restart your system and then enter "Auto-Optimized" mode
Fixed Clock The V-Tuner3 clock configuration utility will lock the GPU and memory
clock you choose, whether you restart your system or not. To rechange
clock, uncheck the "Fixed Clock" mode and then adjust
HELP Opens Help page
Displays 2D/3D core clock status Displays memory clock status
Adjust 2D/3D
core clock
Adjust memory clock
Auto-Optimized
core / memory clock
Fixed Clock

Software Installation- 17 -
English

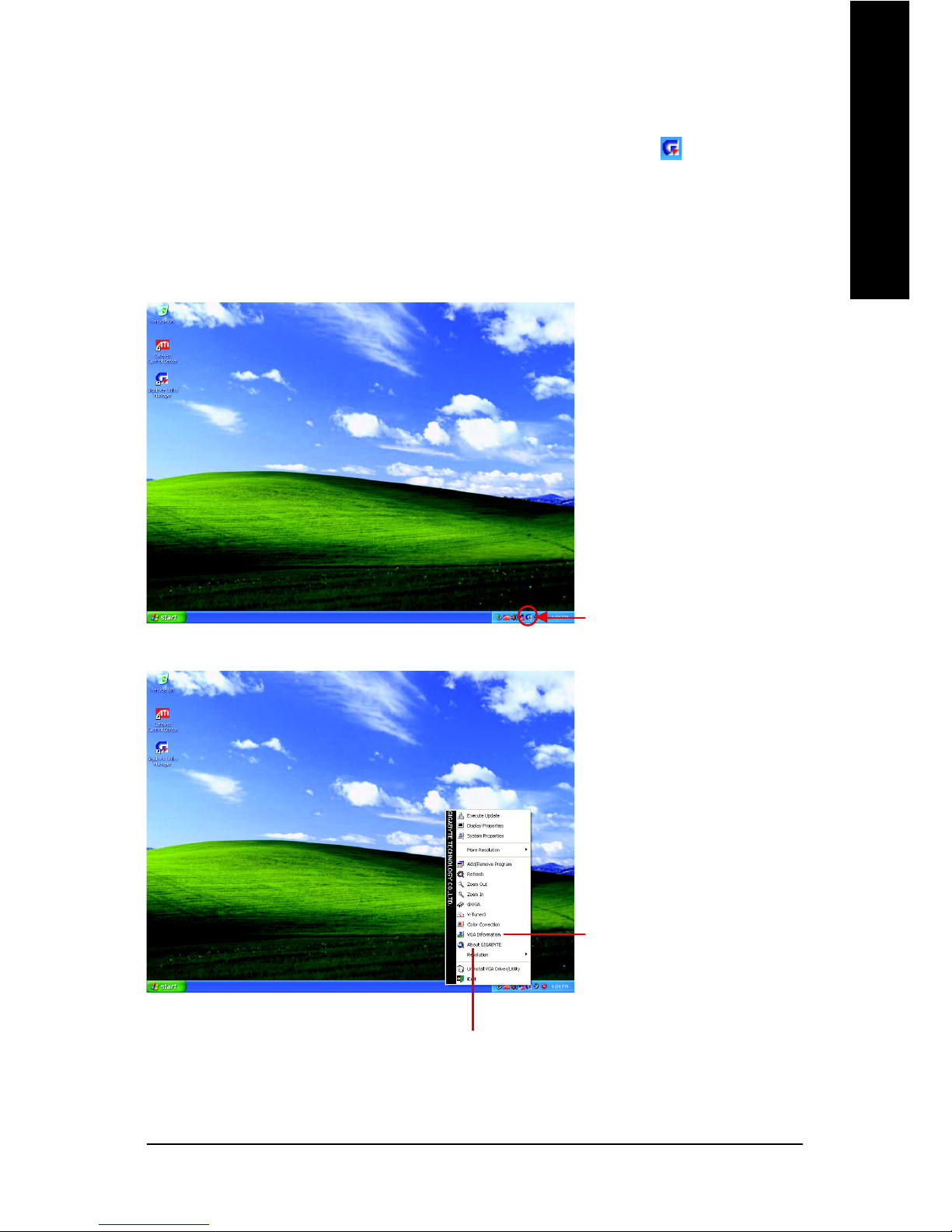

3.1.5. Taskbar Icon
After installation of the display drivers, you will find a GIGABYTE icon on the taskbar's
status area. Right-clicking this icon opens the GIGABYTE control panel, showing a menu
composed of shortcut of the graphics card's enhanced and other functions.
You may click the "Display Properties" item, and then click Settings. Click "Advanced" after
clicking Settings. Click the appropriate tab to change your display settings.
Right-click the icon.
You can link to GIGABYTE website for updated information about the
graphics accelerator, latest drivers, and other information.
Click the VGA Information
item into the "VGA Info" and
"Color Adjust" tabs.

- 18 -
English
GV-RX165P256D-RH Graphics Accelerator
VGA Information
VGA Info lists the relevant information about your card.
Color Adjust
Color Adjust allows you to make color adjustments, such as brightness, contrast and
gamma values for each or all of RGB colors.

Software Installation- 19 -
English
ATI CATALYSTTM Control Center:
After installation of the display drivers, you will find an ATI CATALYSTTM Control Center icon on
the taskbar's status area. The ATI CATALYSTTM Control Center is used to configure all your graphics
card settings. Right-click the icon to enter the ATI CATALYSTTM Control Center (refer to Fig. 1). Or
you can right-click on the desktop to select Properties>Settings>Advanced>ATI CATALYST Control
Center tab and press ATI CATALYST(tm) Control Center button (refer to Fig. 2).
Fig. 1 Fig. 2
HYDRAVISIONTM :
HYDRAVISION has everything you need to manage increased amounts of information across your
computer desktop. It allows you to quickly and easily tailor your computer desktop to the way you
work. You can:
• arrange and rearrange monitors. • assign Hot Key shortcuts.
• create up to 9 virtual desktops. • add special effects to windows and menus.
You can right-click on ATI CATALYSTTM Control Center icon to select HYDRAVISIONTM>
HYDRAVISIONTM Properties to set the HYDRAVISION (refer to Fig. 3).
Fig. 3

- 20 -
English
GV-RX165P256D-RH Graphics Accelerator
3.1.6. Display Properties pages
To access Display Properties pages, right-click the GIGABYTE icon on the taskbar and
select Display Properties or right-click on Desktop and then select Properties. The Display
Properties dialog box shows the information of display adapter, color, the range of display
area, and the refresh rate.
Settings (Resolutions and Color depth for Windows)
You may adjust the screen resolution and color quality settings in this dialog box.
You can move the slider to change the resolution.
(Note) The CRT+TV configuration requires that you connect your CRT display to the DVI connector 2
on the card using the DVI-I to VGA adapter to ensure normal operation.
This configuration is not supported if the CRT monitor is directly attached to the DVI connector 1
on the card.
Display
Matrix
Model GV-RX165P256D-RH
CRT+TV(Note) Yes
CRT+DVI Yes
DVI+TV Yes
DVI+TV+CRT No
Click the Advanced button for adapter and setting.
You can click the item to change the color quality.
