Gima MAYLEA 28430 User manual

User's Manual
Instructions for use
This manual provides indications for safe use
of the device.
Before using the device, please:
carefully read this manual.
MAYLEA
Digital pressure massage
28430

2
Table of Contents
Summary
Introduction........................................................................................................................................................................3
Thank you for choosing our device ...............................................................................................................................3
Symbols key ..................................................................................................................................................................3
Safety information .............................................................................................................................................................4
Electric safety ................................................................................................................................................................4
User safety.....................................................................................................................................................................5
Use and maintenance....................................................................................................................................................6
Cleaning and warnings..................................................................................................................................................6
Product description ...........................................................................................................................................................7
Accessories.......................................................................................................................................................................8
Standard accessories....................................................................................................................................................8
Optional accessories .....................................................................................................................................................8
How to use the device.......................................................................................................................................................9
Features.........................................................................................................................................................................9
Warnings for first use.....................................................................................................................................................9
Setting the pressure ....................................................................................................................................................10
Setting the timer ..........................................................................................................................................................10
Setting the operating mode .........................................................................................................................................11
Self-Calibration............................................................................................................................................................11
Connecting the hose to the air inlet.............................................................................................................................12
Using the leg/arm cuff..................................................................................................................................................13
Leg cuff extension (optional) .......................................................................................................................................14
Technical and environmental features............................................................................................................................15
Troubleshooting ..............................................................................................................................................................16
Warranty..........................................................................................................................................................................17
Disposal...........................................................................................................................................................................17

3
Thank you for choosing our device
How to safely use our device:
- Before using the device, please read this manual carefully.
- Keep this manual so that you may consult it whenever necessary.
- This manual contains details that the user must know in order to prevent any hazards that may
occur.
Symbols key
1
In case of failure to comply with the instructions
herein you expose yourself to severe injury and
death hazard.
In case of failure to comply with the instructions herein,
the user may get seriously injured or damage the device.
Precautions
Marks dangerous actions.
Forbidden
Do not disassemble the device.
Forbidden
to
demount
Attention
Introduction

4
Electric safety
Before connecting the device make sure that the network voltage values
match those indicated on the device plate.
In case of device failure or malfunction, turn it off immediately. For
technical assistance please contact only authorized service centres.
Do not pull the power cable to disconnect the plug from the socket.
Do not connect or disconnect the supply plug if your hands are wet (fire
and electrocution hazards).
Do not damage, bend or tangle thecable (fire and electrocution
hazards).
Disconnect the power supply plug before cleaning the device and during
periods of inactivity.
Forbidden
2
Safety information
Precautions

5
User safety
- If you experience pain or discomfort when using the device, stop
using it immediately.
- Do not use the device onsubjects with pacemakers or heart
diseases.
- Keep out of reach of children.
- Do not use the device or its accessories for purposes different from
those intended.
- Patients suffering from cardiovascular diseases should seek medical
advice before using the device.
-Patients with artificial joints, metal inserts, etc. are not allowed to
use the device.
- Use the device according to physician's prescription on patients
suffering from heart diseases, inflammatory skin disorders,
pulmonary oedema, fever, or other particular health conditions.
- Use the device according to physician's prescription on patients who
undergone surgery and are not yet fully recovered.
-Do not use the accessories directlyon the skin. In order to avoid
skin irritations please wear light clothes under leg and arm cuffs.
-Zip them perfectly to prevent them from opening during use.
Forbidden
Attention

6
Use and maintenance
Cleaning and warnings
- Do not use or keep the device near bathtubs, sinks etc. Do not
immerse the device in water.
- Keep the device away from rain or direct sunlight.
- If you are using the device in a different country, please check the
compatibility of the network voltage with the data specified on device's
label.
- Do not use the device in very wet places (bathtubs/saunas etc.).
- Keep the device in horizontal position (if tilted, malfunctions may occur).
Forbidden
Attention
Precautions
Forbidden
Attention
- Do not use water, oil, benzene, alcohol, petrol, chemical products etc. The
use of chemical products may damage the device and its accessories.
Clean with a dry cloth.
The user must not repair or demount the device.
- Do not bend or scratch the air connection hose.
- Be careful and prevent liquid or other substances to penetrate the device.
- For product disposal please follow the regulations concerning electrical and
electronic products waste disposal in force in the country of use.

7
Model:
28430
Use:
indoors
Voltage:
220V 50/60Hz
Timer:
10, 20, 30, 40 minutes
Fuse :
220V 3A
Pressure:
10~180mmHg ±20mmHg
Consumption:
70VA
Dimensions:
190(L)x250(d)x210(h)
Weight:
3Kg (Only body)
3
Product description

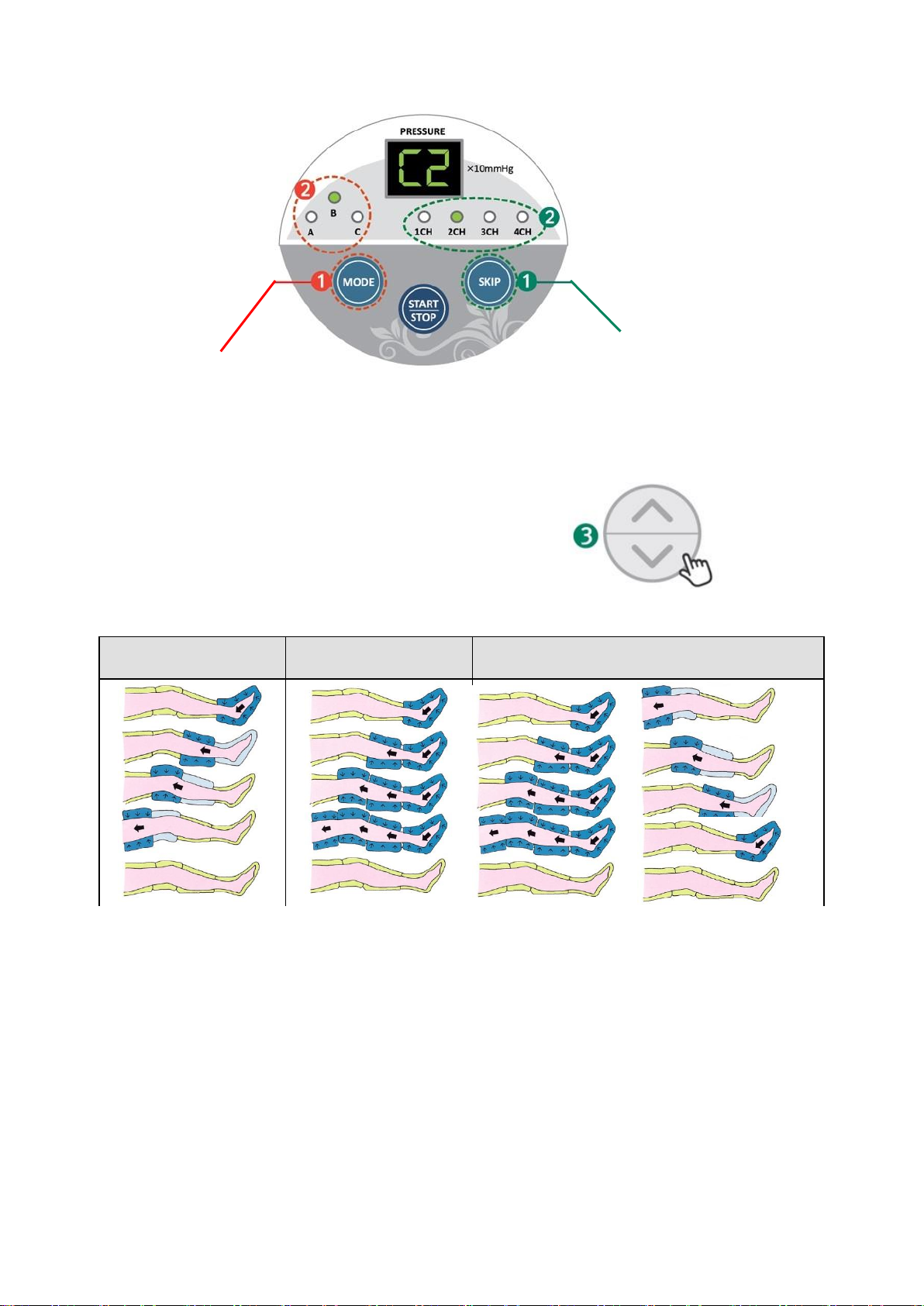

Operating mode
indicator
Mode selection key
Pressure
dial
Pressure
display
Channel
indicator
SKIP function
setup key
Start/Stop key
Timer setup keys
Start button
Air connector

8
Standard accessories
Optional accessories
4
Accessories
single hose
double hose
Massage sole
28440
28435
Leg cuff
Arm cuff
Leg cuff
extension
28434
28437
Waist pad
28436

9
Features
Three operating modes
You can choose from three different operating modes. (Mode A, Mode B, Mode C).
Digital pressure sensor
A sensor that detects the pressure and allows you to accurately set its value.
Digital pressure measuring device
The user can easily check the applied pressure thanks to the digital display.
Digital timer
The user can adjust the device operating time easily and accurately.
Safety system
In case of power outage while using the device, the safety system will automatically discharge the air
from the leg/arm cuffs.
Warnings for first use
Setting the pressure
At first use, set the pressure to a value lower than 60mmHg for 10 minutes, then gradually increase
the pressure and the usage time based on user's conditions.
Leg cuff
Put the leg cuff on, keeping your leg straight. If you straighten your leg after putting on the leg cuff
you might feel pain to your knee.
Waist pad (optional)
Wind the pad properly around your abdomen, waist or hips.
Arm cuff
Fix the arm cuff using the appropriate Velcro strap to prevent it from opening during use. Please use
one arm cuff at a time if there are no persons around you that can intervene in case of need.
Air hose
Use the correct hose for the correct type of application. Use the single hose if you want to use only
one arm cuff or leg cuff. Use the double hose if you want to use two leg/arm cuffs.
5
How to use the device

10
Setting the pressure
Pressure range: 10~180mmHg (increases: 10mmHg).
We recommend you to set the pressure below 80mmHg.
You can find out the applied pressure value by multiplying the value on the display by 10.
Example: when on the display appears 11, the applied pressure is 11 x10 = 110mmHg.
If you consider that there is not enough pressure inside the unit, check for any air losses from the leg
or arm cuff.
In case of air loss due to a hole, the pressure sensor detects the outflow and after
15/20 seconds it automatically passes to the next chamber.
Setting the timer
The timer can be set to the values below: 10, 20, 30, 40 minutes
To decrease the pressure
turn the pressure knob to
left.
The set pressure value can
be viewed on the LCD
display
To decrease the usage
time press the key
To increase the pressure
turn the pressure dial to the
right.
The set pressure value can
be viewed on the LCD
display.
(Max. 180mmHg)
To increase the usage time
press the key
