Giropes GI650 User manual

1
USER MANUAL
V.1.4_12/09/2022
EN
TOUCH SCREEN INDICATOR
GI650
TOTALIZER
The manufacturer reserves the right to modify the specifications of its products in order to make technical improvements or comply with new regulations.
Pol. Empordà Internacional C/Molló 3
17469 VILAMALLA - (Girona) SPAIN
T. (34) 972 527 212

ENENUSER MANUAL GI650
2

3
ENENUSER MANUAL GI650
INDEX
1. INTRODUCTION 4
1.1 CHARACTERISTICS 4
CONNECTION OF THE LOAD CELL 4
OPERATION INTERFACE 4
COMMUNICATION 4
POWER SUPPLY 4
OPERATING CONDITIONS AND MECHANICAL DATA 4
1.2 GENERAL FUNCTIONAL CHARACTERISTICS 5
1.3 DIMENSIONS 6
1.4 DISPLAY 7
1.5 KEYS AND FUNCTIONS 8
MAIN-DISPLAY 8
KEYBOARD-DISPLAY 9
NUMERIC-KEYBOARD 9
1.6 FUNCTIONS WHEN STARTING THE INDICATOR 10
2. WEIGHING INSTRUCTIONS 10
ZERO 10
TARE 11
TARE NORMAL 11
TARE MANUAL 11
DEACTIVATE TARE 11
MEMORIZED TARE 11
CHECKWEIGHER 11
ACCUMULATION AND TOTALIZE 12
3. MENU STRUCTURE 13
3.1 MENU 14
COMMUNICATIONS 14
SECURITY 15
DATABASE 15
GENERAL 15
FUNCTIONALITY 16
PRINTERS 17
CUSTOM TICKETS 18
ADDITIONAL 18
WEIGHING 18
CALIBRATION AND METROLOGY 20
DIAGNOSTIC 22
ABOUT THE DEVICE 22
3.2 DATABASE 23
4. ERROR MESSAGES 27
5. CONFIGURATION OF PERSONALIZED TICKETS 27
6. CONNECTIONS 32
7. DSD-MEMORY 33
8. REMOVAL OF ELECTRONIC EQUIPMENT 33
9. WARRANTY 33
10. ANNEX 34

ENENUSER MANUAL GI650
4
1. INTRODUCTION
Dear User,
the performance that the equipment you have acquired will offer you, will be all the greater the more attention you devote to the instructions for use
included in this manual. Please break our traditional apathy towards the manuals and do not wait for “everything goes wrong” for a consultant, so
you can enjoy optimal benefits from the execution of the first weight.
This equipment is designed to work on one hand as basic equipment to carry out weighing with or without tare, assigning these weights to their
corresponding code. Up to a maximum of 9200 weighings can be memorized.
1.1 CHARACTERISTICS
CONNECTION OF THE LOAD CELL
Precision Class III or IIII
Fraction factor p’I = 0,5
Minimum input voltage per VSI > 0.3 uV
Excitation voltage 5 V DC
Min. transducer resistance 29 Ω
Max. transducer resistance 1200 kΩ
Maximum length of cable 5714 m/mm2
Temperature range -10°C à +40°C
OPERATION INTERFACE
Display LCD tactil 800x600
COMMUNICATION
Port Tx/Rx: (Channel 1) RS-232 bi-directional
Port Tx/Rx: (Channel 2) RS-232 bi-directional
Port Tx/Rx: RS-485 bi-directional
Port Ethernet
Port USB Compatible with USB 2.0
Transmission Speed 300 - 115200
Bits 7 and 8 bits
Parity No; Even and Odd
POWER SUPPLY
Power Source 110 - 230VAC, 50-60 Hz
OPERATING CONDITIONS AND MECHANICAL DATA
Operation Temperature Range from -10ºC till 40ºC
Max. Temperature Range from -25ºC till 70ºC
Size without Support (mm) 242 x 212 x 84
Weight without Support ~ 2.8Kg
Support Desktop and Wall

5
ENENUSER MANUAL GI650
1.2 GENERAL FUNCTIONAL CHARACTERISTICS
Display
The GI650 has a Touchscreen Display with integrated backlight.
Password
Password protection for metrological and security Parameters
Theoric Calibration
If the reference weight is not available, you can perform a theoretical calibra-
tion by using the capacity and sensitivity values (mV/V) of the load cells.
Import / Export Data
It is possible to export the code files and weighings via USB to a PC to
manage / edit the categories.
Manage Files
It is possible to store and manage up to 1600 code-files. These files are used
in 4 different types: Product (1000), Customer (400), Free cod.1 (100)
and Free cod.2 (100). It is also possible to program a specific name for
each code.
Manage Weighings
It is possible to store and manage up to 9200 weighings in 2 different types:
open weights and Weights (4600 each).
Manage memorized Tares
It is possible to store and manage up to 300 Tare values.
Manage the Printer
It is possible to work with 2 printer/labeler on the GI650. You can also free
configure the printouts and on which printer, which information is printed.
Software
GI Manager
Repeater available
It is possible to work with a Repeater through the serial RS-232 Port or the
optional RS-485 Port
Alibi-Memory
Alibi-Memory (DSD) is available.
Barcode-Reader
It is possible to work with a Barcode-Reader.
External Keyboard
It is possible to plug an external Keyboard through the serial USB-Port

ENENUSER MANUAL GI650
6
1.3 DIMENSIONS
BENCH TOP
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Diseñado: Revisado: Fecha: Unidades del plano: Número SAP:
Tamaño del papel:
Escala:
Página:
Propiedad:
Giropès S.L.
Pol. Empordà Internacional.
Calle Molló. Parcela 15-16.
17469 Vilamalla (Girona).
AMS NT 13/05/2019 mm
A3
GI450T8
Vista general Pedido nº:
Validado:
Nº plano: IDD-VIGI-GI650-C2DD-0003-00
126
242
226
84
164
212
242
272
ON WALL
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Diseñado: Revisado: Fecha: Unidades del plano: Número SAP:
Tamaño del papel:
Escala:
Página:
Propiedad:
Giropès S.L.
Pol. Empordà Internacional.
Calle Molló. Parcela 15-16.
17469 Vilamalla (Girona).
AMS NT 13/05/2019 mm
A3
GI450T8
Vista general Pedido nº:
Validado:
Nº plano: IDD-VIGI-GI650-C2DD-0003-00
126
242
226
84
164
212
242
272

7
ENENUSER MANUAL GI650
1.4 DISPLAY
1
12
14
2
9
10
4
5
6
7
11
13
3
15
8
Number Function
1Platform-number and Configuration
2Date
3Time
4Charging-indicator
5Zero-indicator
6Stable-indicator
7Weight-range
8Net-indicator
9Net-weight
10 Gross-weight
11 Tare-weight
12 Number and Weight of Subtotal
13 Number and Weight of Total
14 Categories
15 Command-Keys

ENENUSER MANUAL GI650
8
1.5 KEYS AND FUNCTIONS
It is possible to choose between 3 different Keyboards:
QWERTZ, QWERTY and AZERTY
To change the Keyboard you have to access to the Main-menu by
Choose the Menu point General and change the settings.
MAIN-DISPLAY
1234
5678 9 10 11 12 13 14
Number Function
1Zero
2Tare
3Set Manual Tare
4Deactivate Tare
5Accumulate the Weight
6Subtract the last weight
7Totalize: Subtotal --> Total
8Totalize: Total --> Big Total
9Fastkey to access Database
10 See actual Summary of open weights
11 Access to Main-menu
12 Change to Page 2 of commands
13 Reprint the last ticket
14 Activate / Deactivate the Checkweigher

9
ENENUSER MANUAL GI650
KEYBOARD-DISPLAY
1
56
234
Key Function
1Exit the Keyboard
2Clear all letters
3Delete the last letter
4Save the changes
5Change to the special characters
6Arrow Keys
NUMERIC-KEYBOARD
1 2 34
Key Function
1Exit the Keyboard
2Clear all numbers
3Delete the last number
4Save the change

ENENUSER MANUAL GI650
10
1.6 FUNCTIONS WHEN STARTING THE INDICATOR
To turn on the indicator press the key
The Display turns on, showing the Firmware-, Bootloader- and Weightmodel-version, also the CRC-value and the number of Calibrations during
the initialization.
After finishing the initialization, the indicator is performing the initial zero.
To do this, the indicator must be connected to the Load cell and following conditions must be made:
• The weight must be stable (indicator for stability is on )
• The weight must be inside the range of initial Zero (15% in positive and 5% in negative)
During this operation, the Display will show “0 init” till the weight is in range.
2. WEIGHING INSTRUCTIONS
PLEASE NOTE:
This equipment comes with a standard factory configuration. It is strongly recommended to program the databases and the
different codes as required.
Before do your first weighing you have to select a Product OR Client.
Without doing this, it is not possible to store any weight.
You can put the Data directly into the respective Field or select from Database (see point 3.2)
ZERO
When you press the key ,this assumes the metrological function of weight zeroing.
To do this, the following conditions must be made:
• The weight must be stable (indicator for stability is on )
• Weight value not less than -2% of the Max. in relation to the zero of the calibration
• Weight value not higher than 2% of the Max. in relation to the zero of the calibration
The sign indicates that the function has been done.

11
ENENUSER MANUAL GI650
TARE
There are different types of tare that are described in the following sections.
TARE NORMAL
Pressing the key the indicator will take the current value as tare.
To the right of the weight, the NET-indicator will be displayed.
TARE MANUAL
Pressing the Tare-value will open the Numeric-Keyboard to
enter the Tare-value.
Also you can press the field TLU, and set the tare manually. After saving the value
with the OK button. The value will be shown in negative in the indicator. To the
right of the weight, the NET-indicator will turn on.
DEACTIVATE TARE
To deactivate the tare, press the button.
MEMORIZED TARE
To activate a memorized Tare press the button TLU on the right side, the list with memorized tare will open. Choose the tare you need in
the list and confirm. The tare will be activated and the NET-indicator will turn on.
CHECKWEIGHER
The GI650 is equipped with a Checkweigher function. The different areas are displayed in different Colours.
Low OK High Alarm
There are 2 ways to activate. You can set the Checkweigher included into each Product (will be explained in point 3.2).
The other way is to set it directly in the menu. At first you have to access to the Main-menu by pressing . Choose the Menu-point Func-
tionality and you will see the settings of Check Weight Low, Check Weight High and Check Weight Alarm (the “OK-range” automatically
is set between the Low and High). Press the showed value you want to modify (by default it is set on 0) and the Numeric keyboard will appear.
Input all 3 values, when you finish press the key to save the changes. The Checkweigher is NOT activating automatically.
To activate the Checkweigher you have to first press in the weighing-screen, to change the page of commands.
Now press to activate the Checkweigher.
Its possible to choose if the Checkweigher uses the Net or Gross weight for to show the actual Zone.
Also is possible, to choose the Checkweigher-zone in which the it is allowed to store the data. The possible options are:
All zones; Ok-zone; Ok-zone and high limit

ENENUSER MANUAL GI650
12
ACCUMULATION AND TOTALIZE
In general you have 3 Steps of storing the Data:
- The first Step is the Subtotal for example a Package.
- The second Step is the Total for example a Pallet of Boxes.
- The third Step is the Big Total for example the Truck of a Customer.
For store a weight, you have to insert a Product OR Client first, without this, no storing of weight is possible.
After this you can place the weight on the pan, please note that the weight have to be higher than the minimum-weight.
Wait till the stability-indicator turn on and press to store the weight in the Subtotal. Repeat this operation till all weights of the Subtotal
are made.
When finish the weighings of the Subtotal press for store the actual Subtotal into the Total. The number of weighings and
the weight will be moved into the column Total, and the Subtotal values reset back to 0. Now you can start a new Accumulation of the
Subtotal. During the Weight-operation you can check the actual Accumulation by press . It will visualize the columns of the Subtotal
and Total.
When all the weights are finished you have to store the Total into the Big Total. Press the Button to store the Data.
PLEASE NOTE:
It is possible to change the Information of the files at any time, BUT a Product OR Client must always be active.

13
ENENUSER MANUAL GI650

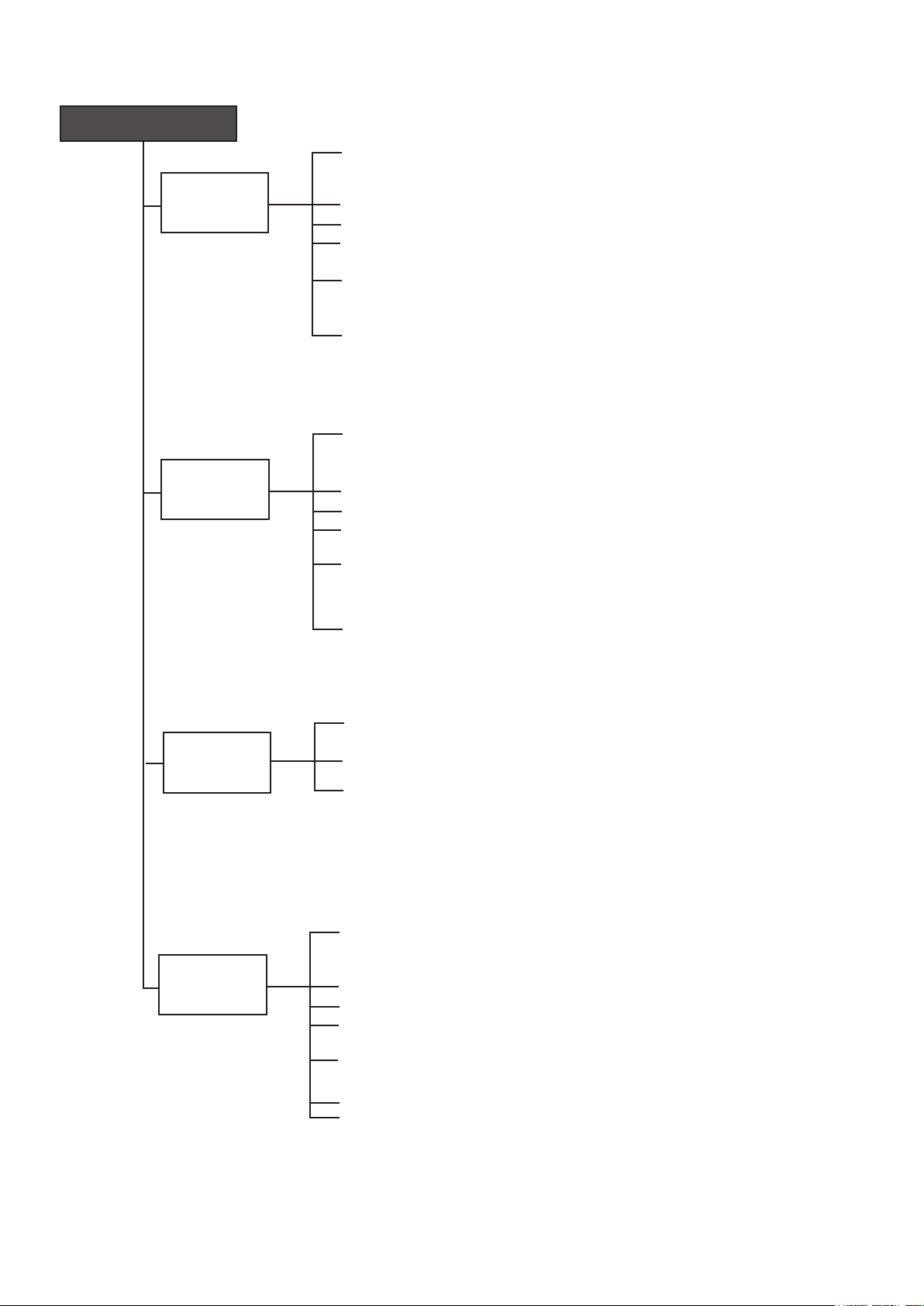

3. MENU STRUCTURE
Communications
COM 1
COM 1
COM 2
COM 2
ETHERNET
RS-485
General
Security
Database initialization
Database configuration
Database tables
Import / Export
Date
Hour
Language
Keyboard Type
Tare block
Check Weight Low
Check Weight High
Check Weight Alarm
Checkweight Weight type
Checkweight Zone
Print mode
Trigger type
M+ mode
% of FS
Full-empty function
Baudrate
Number of bits
Parity
Stop bits
Protocol
Trigger type
Interval time
Baudrate
Number of bits
Parity
Stop bits
Protocol
Trigger type
Interval time
Protocol
Trigger type
Interval time
Baudrate
Number of bits
Parity
Stop bits
Protocol
Trigger type
Interval time
Address
Database
General
Functionality
Printers
Additional
Weighing
Diagnostic
About the device
Ticket ID
Header
Footer
DSD
Printer type
Configuration
Subtotal ticket
Total ticket
Big total ticket
Printer type
Configuration
Subtotal ticket
Total ticket
Big total ticket
Gravity adjust
Scale configuration
Legally relevant data
Restore all to default
MENU
User password
Default parameters
Custom tickets

ENENUSER MANUAL GI650
14
3.1 MENU
COM 1
RS-232
COM 2
RS-232
ETHERNET
RS-485
300; 600; 1200; 2400; 4800; 9600; 14400;
19200; 28800; 38400; 56000; 57600; 115200
7; 8
None; Even; Odd
1; 2
None; Giropes; Sipi 2; Alibi; Sensocar; Printer; GiConf2; Smart; Bilancai; A+;
Bizerba; Epsa; Eric; M-T; SB400; Soehnle; Barcode, PT6S3
No trigger; Weight trigger; Continuous
Freely Configurable (ms)
300; 600; 1200; 2400; 4800; 9600; 14400;
19200; 28800; 38400; 56000; 57600; 115200
7; 8
None; Even; Odd
1; 2
None; Giropes; Sipi 2; Alibi; Sensocar; Printer; GiConf2; Smart; Bilancai; A+;
Bizerba; Epsa; Eric; M-T; SB400; Soehnle; Barcode, PT6S3
No trigger; Weight trigger; Continuous
Freely Configurable (ms)
None; Giropes; Sipi 2; Alibi; Sensocar; Printer; GiConf2; Smart; Bilancai;
A+; Bizerba; Epsa; Eric; M-T; SB400; Soehnle; Barcode, PT6S3
No trigger; Weight trigger; Continuous
Freely Configurable (ms)
300; 600; 1200; 2400; 4800; 9600; 14400;
19200; 28800; 38400; 56000; 57600; 115200
7; 8
None; Even; Odd
1; 2
None; Giropes; Sipi 2; Alibi; Sensocar; Printer; GiConf2; Smart; Bilancai; A+;
Bizerba; Epsa; Eric; M-T; SB400; Soehnle; Barcode, PT6S3
No trigger; Weight trigger; Continuous
Freely Configurable (ms)
COMMUNICATIONS
Baudrate
Baudrate
Protocol
Baudrate
Number of bits
Parity
Stop bits
Number of bits
Parity
Stop bits
Number of bits
Parity
Stop bits
Protocol
Protocol
Protocol
Sending mode
Interval time
Sending mode
Interval time
Sending mode
Interval time
Sending mode
Interval time

15
ENENUSER MANUAL GI650
SECURITY
Inside the menu are 2 sub-menus: User Password and Default parameters:
• User Password: Inside here you can change the Password for the saved menus.
• Default parameters: It is restoring to Factory settings, except the Database, Ticket-number and the weighing parameters.
PLEASE NOTE:
For access to the menu you need to insert a Password, by default 0000
DATABASE
In the Database you can modify and manage the different Code-files and weighings.(More in point 3.2)
GENERAL
When access to this menu, you can modify the Date and Time as well as the Language and the Keyboard Type.
• Languages available: Spanish; English; French; Italian; Portuguese and German
• Keyboards available: QWERTZ ; QWERTY and AZERTY

ENENUSER MANUAL GI650
16
FUNCTIONALITY
In the functionality menu you have access to following working configurations:
Tare-setting, Checkweigher-settings, the Print-/Accumulation-settings, and special functions-settings
• You can decide to work with a blocked or not blocked Tare (By default this option is not blocked)
Blocked Tare means, that the tare stays active even the Brut weight is 0.
• You can modify the Checkweigher-settings (Explained in point 2)
• Available Print modes:
-Ticket each M+ -> this means that every time you press M+; Print or MR a ticket will be printed (if there is a printer connected)
- Line each M+ -> this means that the first time you press M+ it is starting a new ticket, after this every M+ is only printing a new line on
this ticket. When finish the accumulation with Print this will close the ticket.
- Ticket when press print -> this means that when press M+ the Accumulation will be counted in the background, and just when press Print it
will printout the whole accumulation ticket.
• Available Trigger type:
Manual; Zero step; Stable; Unload; None
When use the trigger Manual you can choose between Mode Zero
step,or modified weight. This means which change of weight it
needs, to be able to store a new weight.
The % of FS in this case means that it will need the value in % of
the max capacity of the scale.
For example: the max capacity is 10Kg and the value set is 10% of FS
it will need a change of 1Kg (10% of 10Kg) around the actual weight,
it counts the half in positive and the other half in negative. So it will
need 500g change in one direction to be able to store a new weight.
• Full-empty function:
This function is made, to be able to perform an automatic tare
without press the tare-button. For example if you have a filled
box, which you want to know the Net-weight of the filling.
At first, place the filled box on the plate and you will see the
complete gross weight. For example 1,500kg.
Press and the indicator will ask if you want to enter a
Tare. Empty the box, and place the empty box back on the pan.
Validate and the weight will be stored. For example if the empty
box is 0.250kg, this will be stored as the Tara weight.

17
ENENUSER MANUAL GI650
PRINTERS
Here you have access to the general ticket configuration and also to the detailed configuration of each Com Port.
• General tickets configuration
Here you can set the Ticket-ID (ticket number) and the Header / Footer lines of the default-ticket.
Printer configuration
In the different Port Com are several sub menus, them are even on both Com-Ports.
Here you can set the Printer type (Custom plus, AscII, ESC/POS) You can configure which Format is used for each Printout, the number of
ticket-copies and Advanced lines. Also if this Com-port is used for print lists and if a cutter is used or not.

ENENUSER MANUAL GI650
18
CUSTOM TICKETS
It is possible to customize the ticket formats, explained in point 9.
ADDITIONAL
Inside this menu you can check and delete the stored Alibi-weighings. (when Alibi-Memory is plugged )
WEIGHING
PLEASE NOTE:
For access to the menu you need to insert a Password, by default 0000
When you access to this Menu, you have only access to the non-metrological. (Cal_close)
To have full access to All metrological Parts, you need to press the Cal_switch. (Cal_open)
• Cal_close:
You only have access to the Sub-menu Legally relevant data. Inside this Menu are different Software-information about the device.

19
ENENUSER MANUAL GI650
Cal_open:
You have access to all Sub-menus included the Calibration.
Scales configuration:
Inside this menu, you will find all the calibration settings and metrological settings. (explained in the next point)
Legally relevant data:
Inside this menu you can find all legally relevant data, such as WM-version, Events, Errors and Updates.
Restore all default parameters:
with this setting you restore All parameters back to fabric, included the Calibration.
(except the Database and Ticket-number)

ENENUSER MANUAL GI650
20
CALIBRATION AND METROLOGY
PLEASE NOTE:
For access to this menu you need to remove the calibration-jumper
For be able to do this, you have to open the case of the device. Once you did this, you have to remove the sealed Cover from the Jumper.
Now lift the Calibration-jumper and place it again.
NOTE:
You have to be in the Weight-window when remove the Jumper, otherwise it will not have any effect
